Advanced Settings

The Advanced page in Machine Settings contains additional configuration options for specialized use cases.

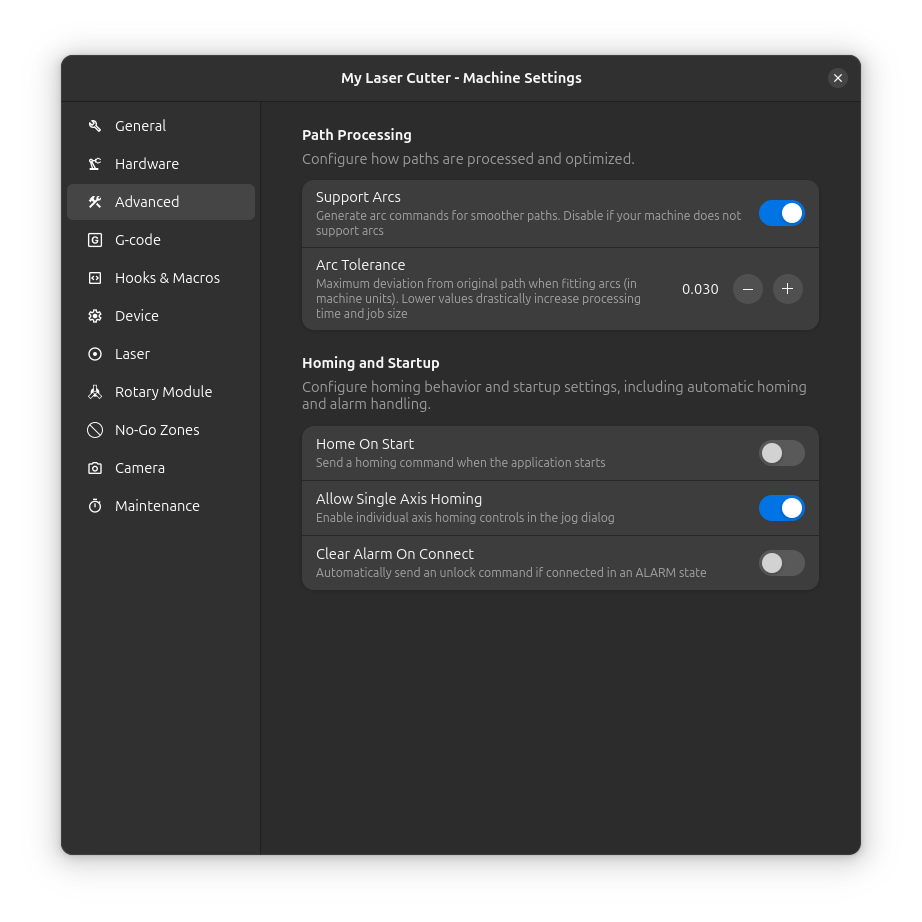

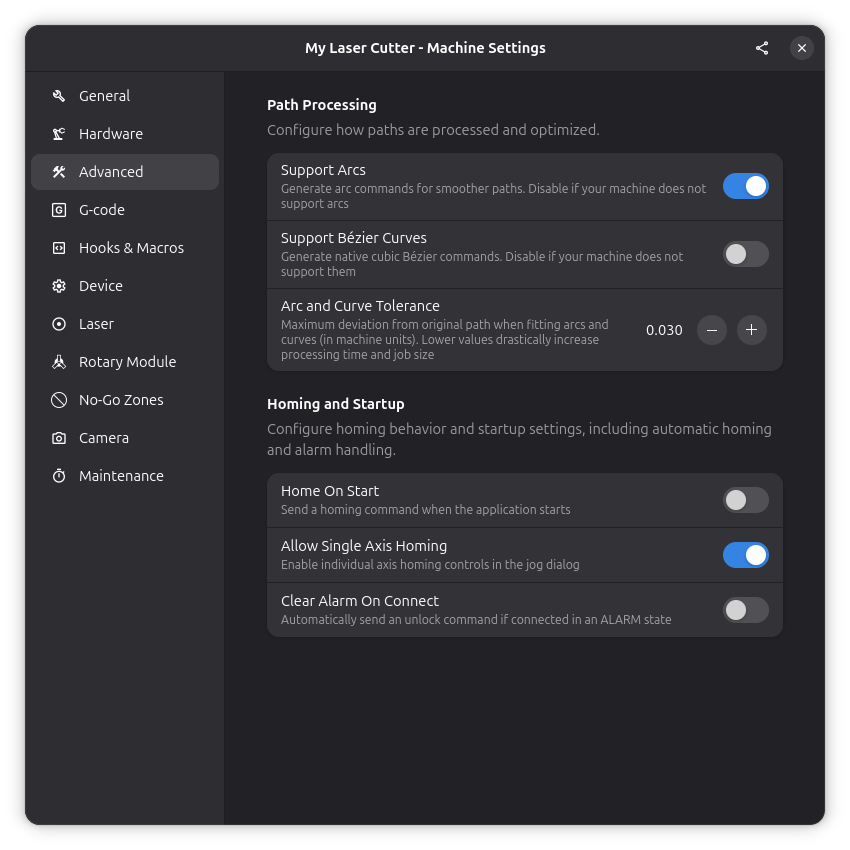

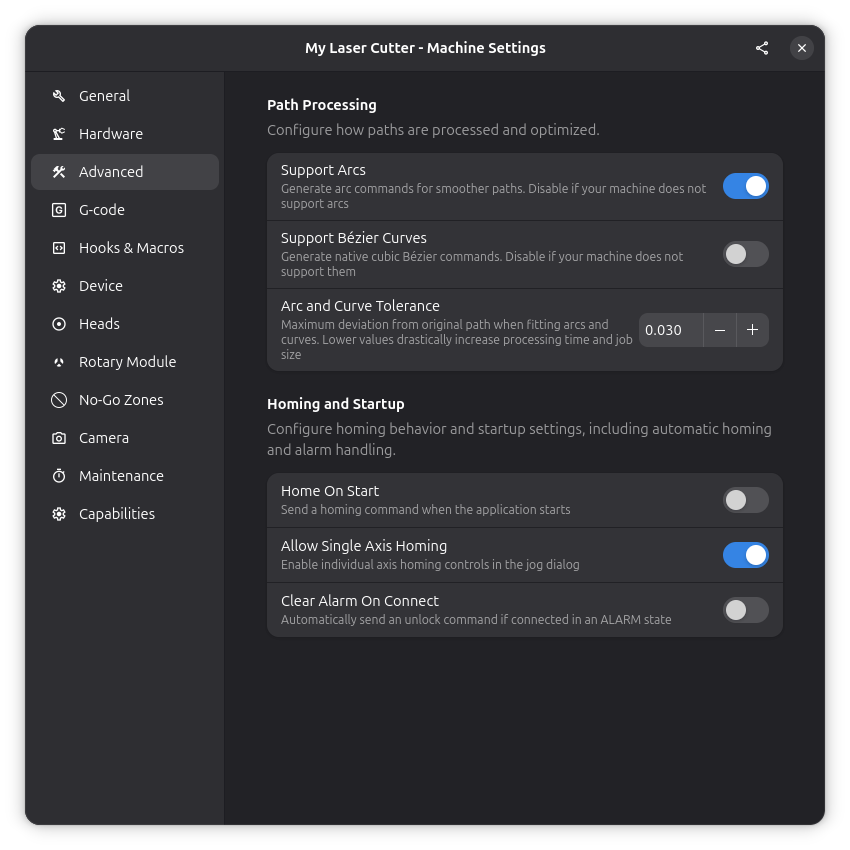

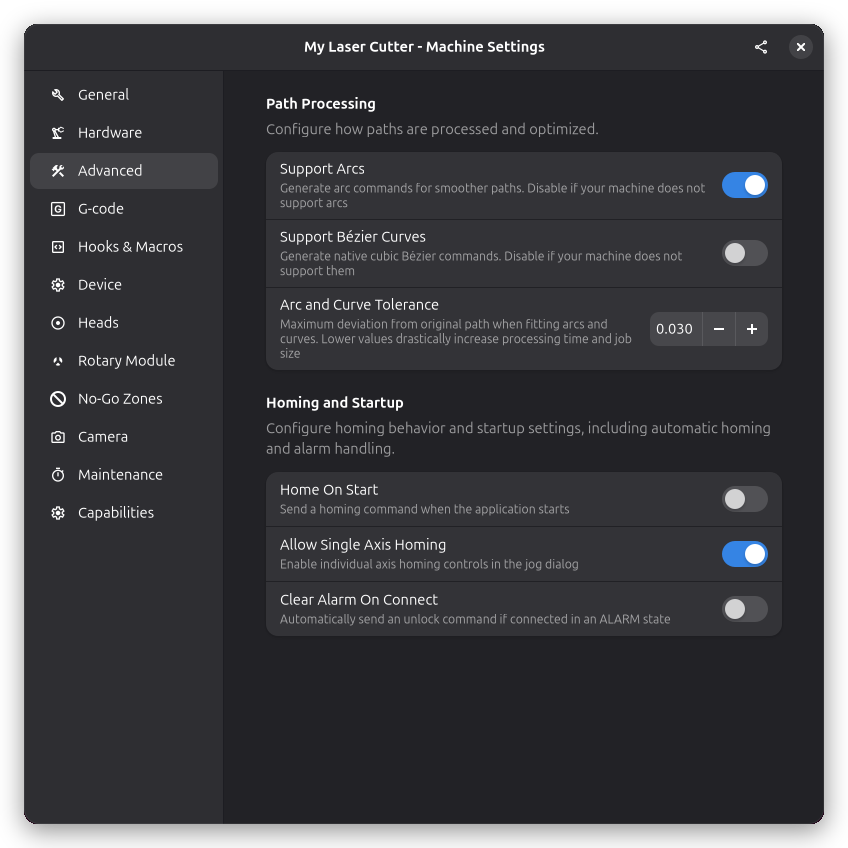

Advanced Settings

Connection Behavior​

Settings that control how Rayforge interacts with your machine during connection.

Home on Connect​

When enabled, Rayforge automatically sends a homing command ($H) when connecting to the machine.

  • Enable if: Your machine has reliable limit switches
  • Disable if: Your machine has no limit switches or homing is unreliable

Park After Homing​

When enabled, Rayforge moves the head to the configured park position (a machine-coordinate X/Y pair) after homing completes. The move uses the "Move To Park" command template (default G53 G0 X{x} Y{y}, editable in Machine Settings → G-code), so it is independent of the active work coordinate system. It only runs after homing all axes.

  • Enable if: You want the head at a known spot after homing, or homing leaves it parked outside the soft-limit range. Some firmwares (e.g. the Creality Falcon series) retract past the machine origin during the homing pull-off, which makes the first jog fail with a soft-limit error ("error:15") until a diagonal jog moves the head back inside — parking at (0, 0) fixes that
  • Disable if: Your machine parks safely inside its travel range after homing, or a fixture is mounted at the park position

Clear Alarms on Connect​

When enabled, Rayforge automatically clears any alarm state when connecting.

  • Enable if: Your machine frequently starts in alarm state
  • Disable if: You want to manually investigate alarms before clearing

Allow Single Axis Homing​

When enabled, you can home individual axes independently (X, Y, or Z) rather than requiring all axes to home together. This is useful for machines where one axis may already be positioned correctly.

Z Homing​

Chooses how the Z axis finds its reference position when you home it. This setting only appears when the machine's driver supports more than one method.

  • Home Switch: Z moves to its home switch, like the X and Y axes
  • Probe: Z uses the controller's auto-focus probe to find the work surface, then moves to the configured focus distance

Arc and Curve Settings​

Settings for controlling how curved paths are converted to G-code movements.

Support Arcs​

When enabled, Rayforge generates arc commands (G2/G3) for curved paths instead of breaking them into many small linear moves. This produces more compact G-code and smoother motion on most controllers.

When disabled, all curves are converted to linear segments (G1 commands), which provides maximum compatibility with controllers that don't support arcs.

Support Bézier Curves​

When enabled, Rayforge generates native cubic Bézier commands (such as the G5 command used by LinuxCNC) for curved paths. This produces very smooth motion and compact G-code on controllers that support it. You should disable this setting if your machine's firmware does not understand Bézier commands, in which case the curves will be broken down into linear segments instead.

Arc and Curve Tolerance​

This setting controls the maximum allowed deviation when fitting arcs and curves to curved paths, specified in millimeters. A smaller value produces more accurate paths but may require more commands. A larger value allows more deviation but generates fewer commands.

Typical values range from 0.01mm for precision work to 0.1mm for faster processing.

Bidirectional Scan Offset by Speed​

The Bidirectional Scan Offset by Speed table corrects the horizontal misalignment between left-to-right and right-to-left raster passes. On many machines this skew is not constant: the faster the laser head moves, the further the right-to-left passes drift out of alignment, which shows up as banding that gets worse at higher engraving speeds.

Bidirectional Scan Offset by Speed

Each row of the table pairs an engraving speed with the offset, in millimeters, that right-to-left passes need at that speed:

  • Use Add Row to add a row and the trash button on a row to remove it
  • Positive values shift right-to-left passes to the right, negative values to the left
  • Rows are kept sorted by speed; if two rows have the same speed, the last one wins

When an engrave step runs, Rayforge looks up the step's speed in this table and interpolates the offset linearly between the surrounding rows. Speeds below the first row or above the last row use the nearest row's offset, and an empty table means every speed uses an offset of 0.

Without correction — the misalignment grows with the engraving speed:

Raster passes misaligned at 1000, 4000 and 8000 mm/min

With the offset table applied:

Raster passes aligned at every speed

The table only applies to engrave steps whose own Bidirectional Scan Offset is set to 0; a non-zero per-step offset always takes precedence. See Bidirectional Scan Offset for how the misalignment looks and how to calibrate it.
