raygeo.image.dither
Functions
apply_bayer_dither()
apply_bayer_dither(
grayscale: numpy.NDArray[numpy.uint8],
bayer_matrix: numpy.NDArray[numpy.float32],
invert: bool,
cell_size: int = 1,
) -> numpy.NDArray[numpy.uint8]
Apply ordered (Bayer) dithering using a threshold matrix.
| Parameter | Type | Description |
|---|---|---|
grayscale | numpy.NDArray[numpy.uint8] | 2D grayscale image as uint8 array. |
bayer_matrix | numpy.NDArray[numpy.float32] | 2D Bayer threshold matrix as float32. |
invert | bool | If True, invert the output. |
cell_size | int = 1 | Pixel grouping size for the threshold. |
| Returns | numpy.NDArray[numpy.uint8] | 2D binary uint8 array (values 0 or 1). |
| Complexity | O(w*h) |

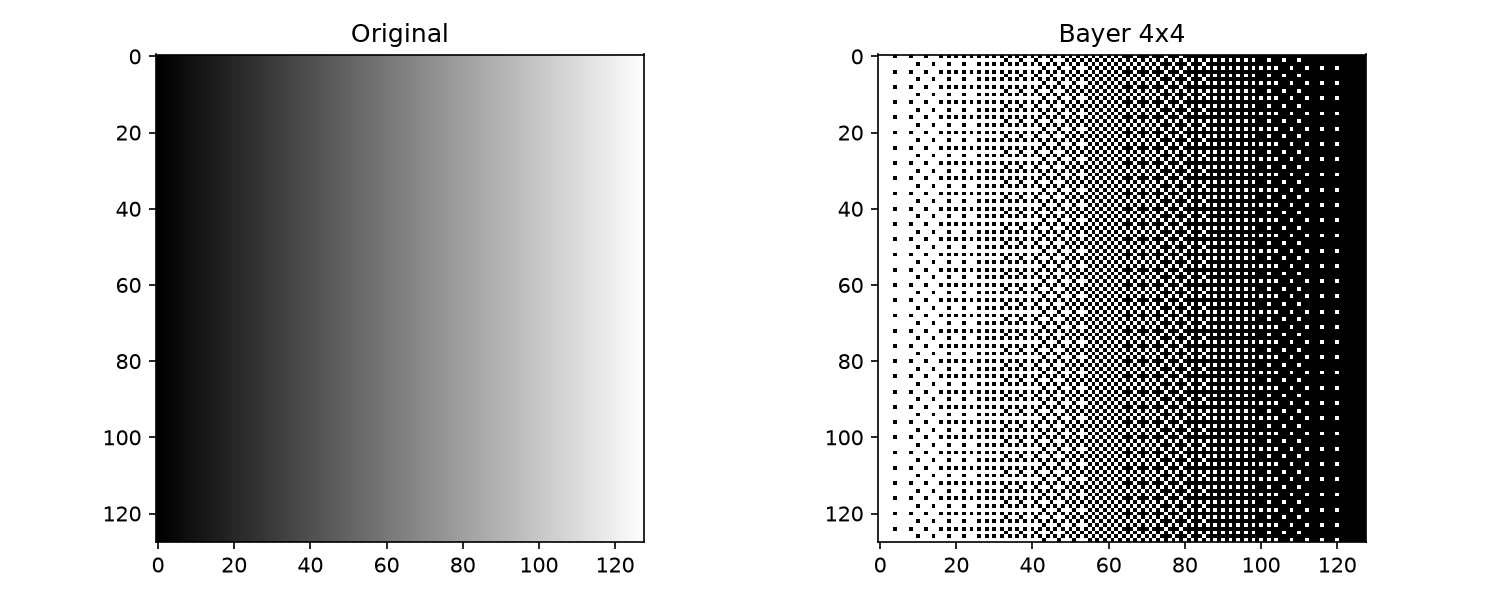

Bayer 4x4 ordered dithering
apply_floyd_steinberg_dither()
apply_floyd_steinberg_dither(
grayscale: numpy.NDArray[numpy.uint8],
invert: bool,
) -> numpy.NDArray[numpy.uint8]
Apply Floyd-Steinberg error-diffusion dithering.
| Parameter | Type | Description |
|---|---|---|
grayscale | numpy.NDArray[numpy.uint8] | 2D grayscale image as uint8 array. |
invert | bool | If True, invert the output (swap black/white). |
| Returns | numpy.NDArray[numpy.uint8] | 2D binary uint8 array (values 0 or 1). |
| Complexity | O(w*h) |

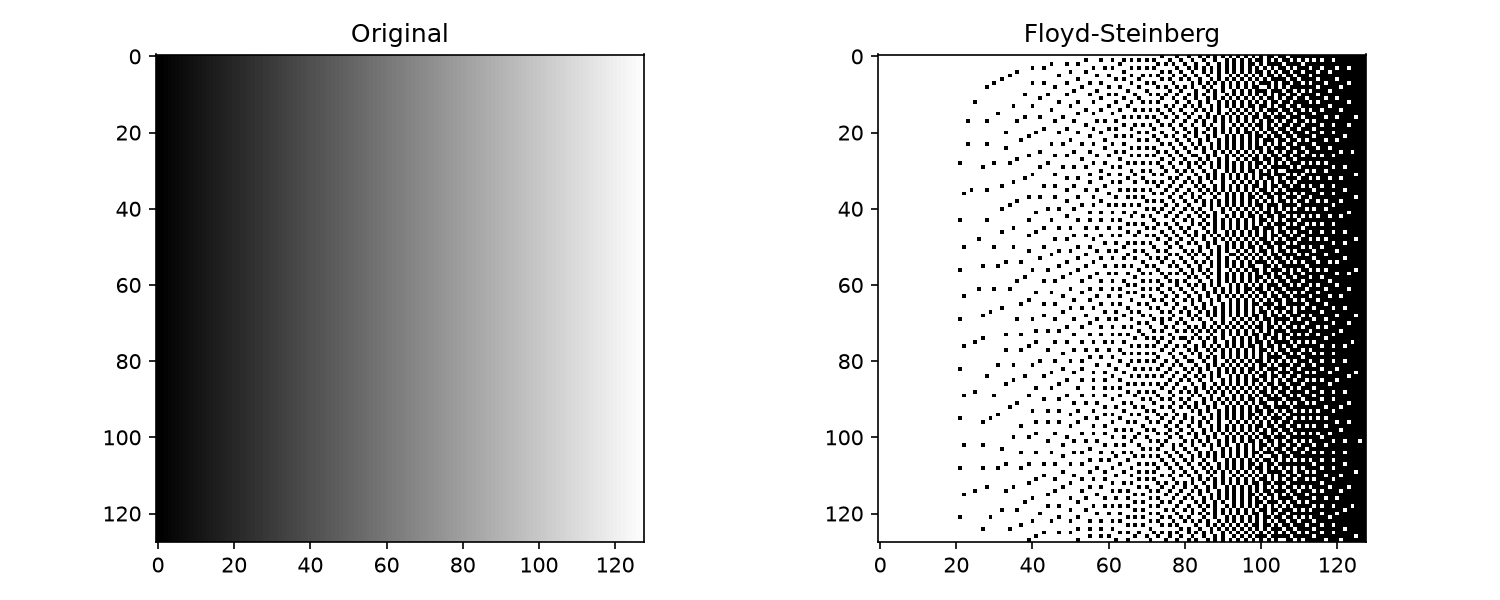

Floyd-Steinberg dithering
apply_minimum_run_length()
apply_minimum_run_length(
binary: numpy.NDArray[numpy.uint8],
min_run_length: int,
) -> numpy.NDArray[numpy.uint8]
Remove binary runs shorter than the given minimum.
| Parameter | Type | Description |
|---|---|---|
binary | numpy.NDArray[numpy.uint8] | 2D binary uint8 array (values 0 or 1). |
min_run_length | int | Minimum run length to keep. |
| Returns | numpy.NDArray[numpy.uint8] | 2D binary uint8 array with short runs removed. |
| Complexity | O(w*h) |

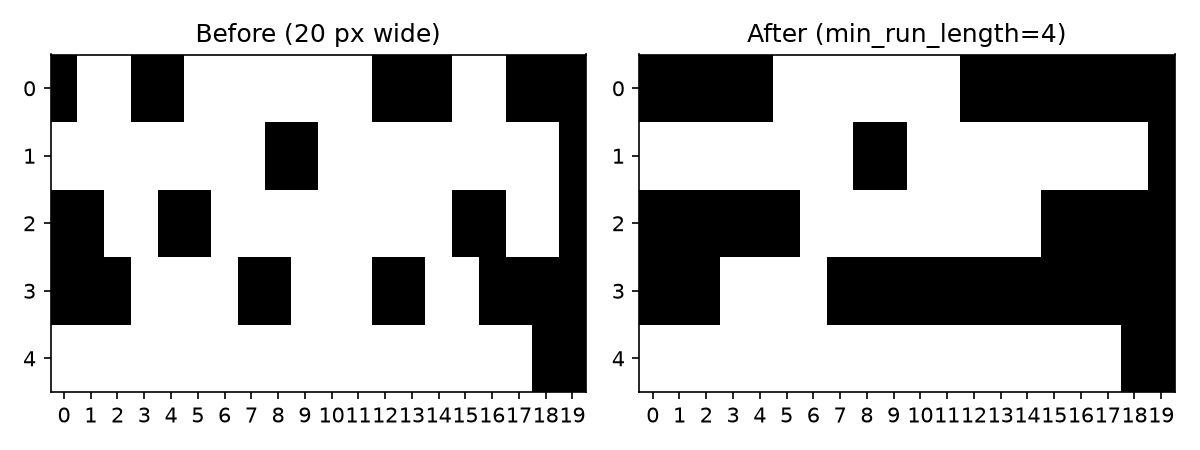

Minimum run length applied to binary image
