raygeo.ops.feature.region

Functions

find_regions()

find_regions(
    boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] | None = None,
    tool_radius: float = 3,
    tolerance: float = 0.5,
) -> list[tuple[list[tuple[float, float]], float, tuple[float, float], float]]

Detect disconnected wide sub-regions of a pocket.

Analyses the pocket boundary (with optional islands) for narrow passages that separate the pocket into disconnected wide sub-regions. Each sub-region is returned as a tuple of (polygon, area, entry_pt, r_max).

• polygon — list of (x, y) vertices of the wide region.
• area — area of the sub-region in mm².
• entry_pt — (x, y) centre of the largest inscribed circle.
• r_max — radius of the largest inscribed circle in mm.

Results are sorted by area descending (largest region first). Returns an empty list when the pocket is entirely narrow/slot.

Parameter	Type	Description
boundary	Sequence[tuple[float, float]]	Outer pocket boundary as [(x, y), ...].
islands	Sequence[Sequence[tuple[float, float]]] | None = None	List of island polygons, each as [(x, y), ...].
tool_radius	float = 3	Tool radius in mm.
tolerance	float = 0.5	Additional clearance tolerance in mm.
Returns	list[tuple[list[tuple[float, float]], float, tuple[float, float], float]]	List of (polygon, area, entry_pt, r_max) tuples.

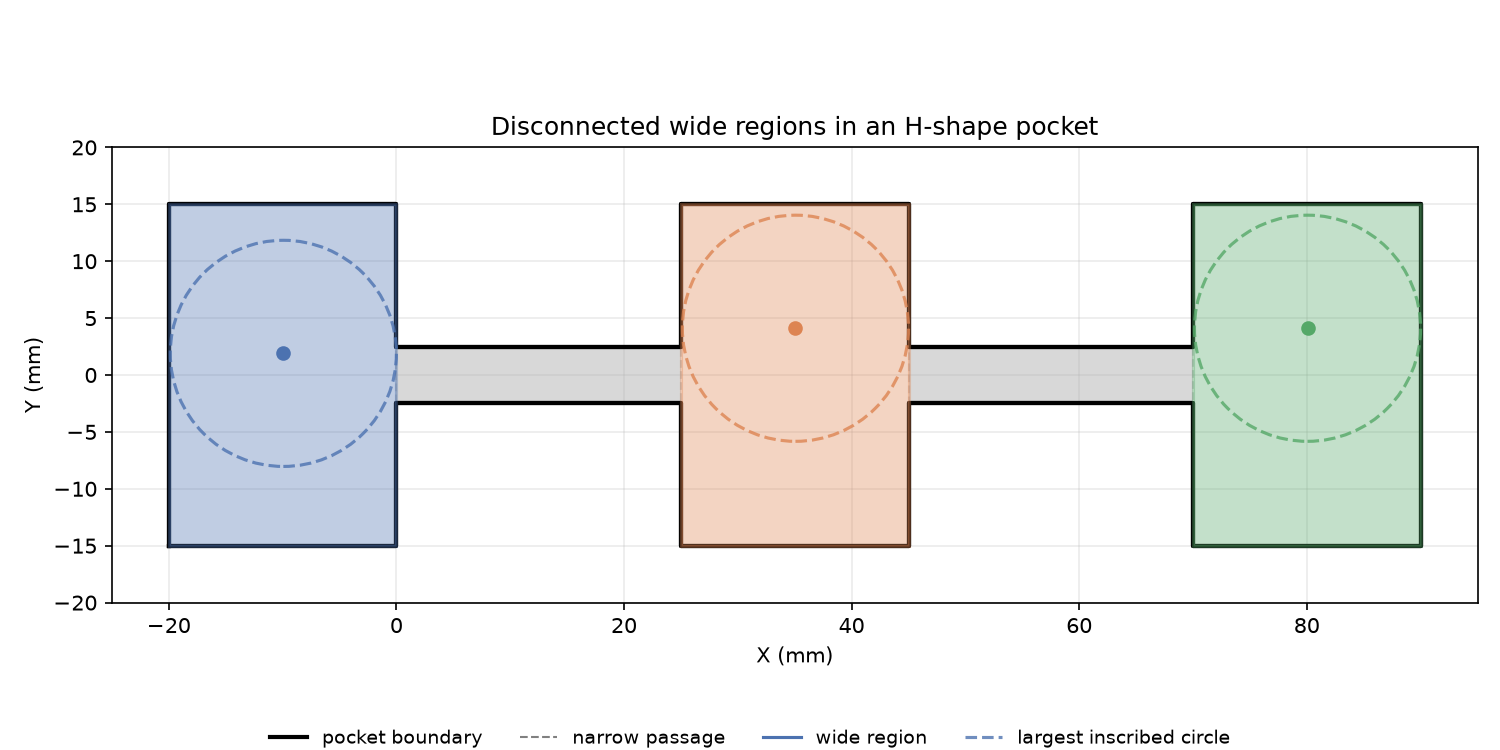

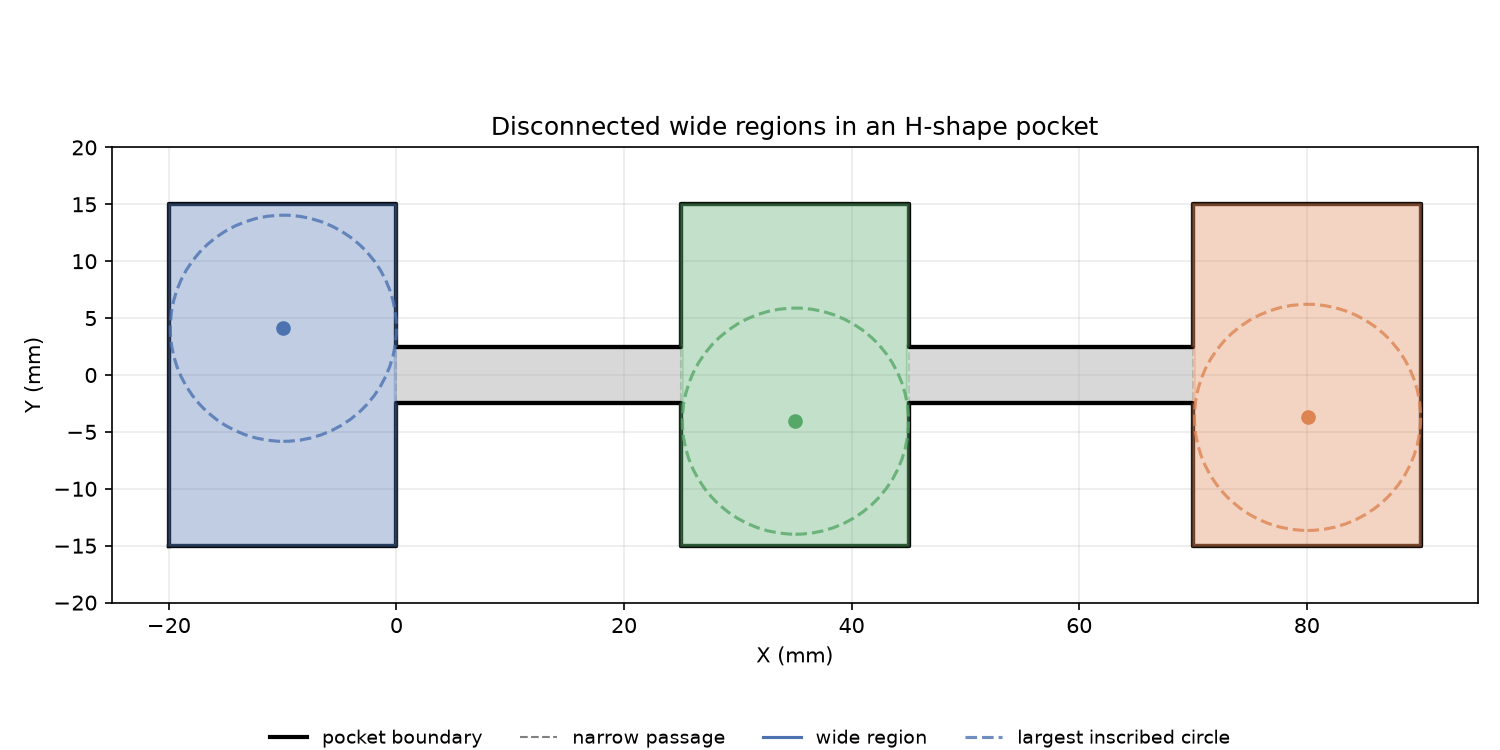

H-shape pocket: wide regions colored, entry points marked, narrow corridors shaded gray
