raygeo.geo.algo.nest2d.ifp

Inner-Fit Polygon (IFP) calculation for nesting algorithms.

Provides functions for computing Inner-Fit Polygons, which define the valid placement region for a part inside a bin.

Functions

build_no_go_zones(
    bin: Sequence[types.Point],
    part_neg: Sequence[types.Point],
) -> list[types.Polygon]

Build the no-go zones for a bin-part pair.

Parameter	Type	Description
`bin`	`Sequence[types.Point]`	Bin polygon as (x, y) points.
`part_neg`	`Sequence[types.Point]`	Orbiting polygon negated as (x, y) points.
Returns	`list[types.Polygon]`	List of no-go zone polygons.
Complexity		O(n * m) where n, m = vertex counts.

inner_fit_polygon(
    bin: Sequence[types.Point],
    part: Sequence[types.Point],
) -> list[types.Polygon]

Compute the Inner-Fit Polygon (IFP) for a part inside a bin.

Parameter	Type	Description
`bin`	`Sequence[types.Point]`	Bin polygon as (x, y) points.
`part`	`Sequence[types.Point]`	Part polygon as (x, y) points.
Returns	`list[types.Polygon]`	List of IFP polygons.
Complexity		O(n * m) where n, m = vertex counts of bin and part.

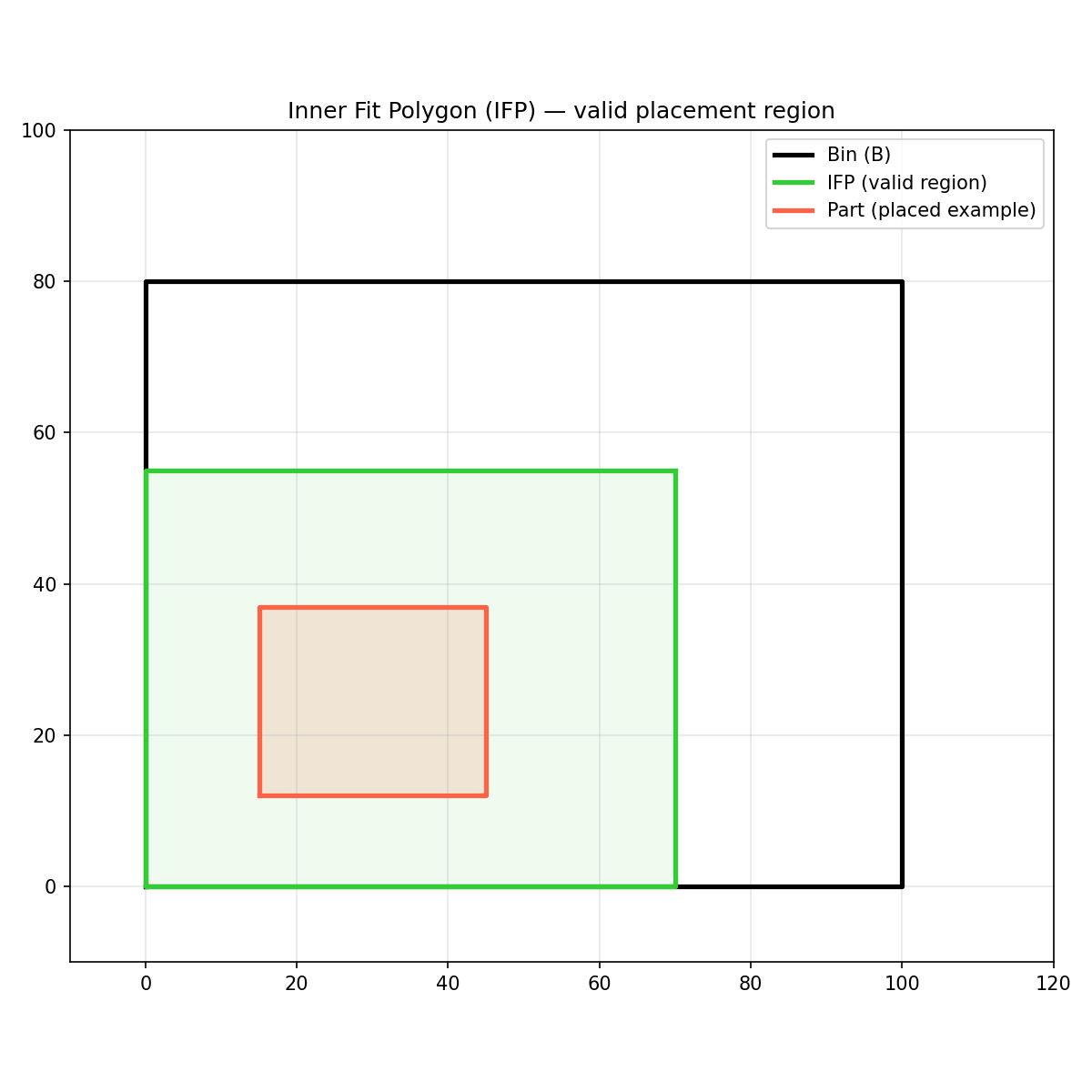

Inner Fit Polygon showing valid placement region

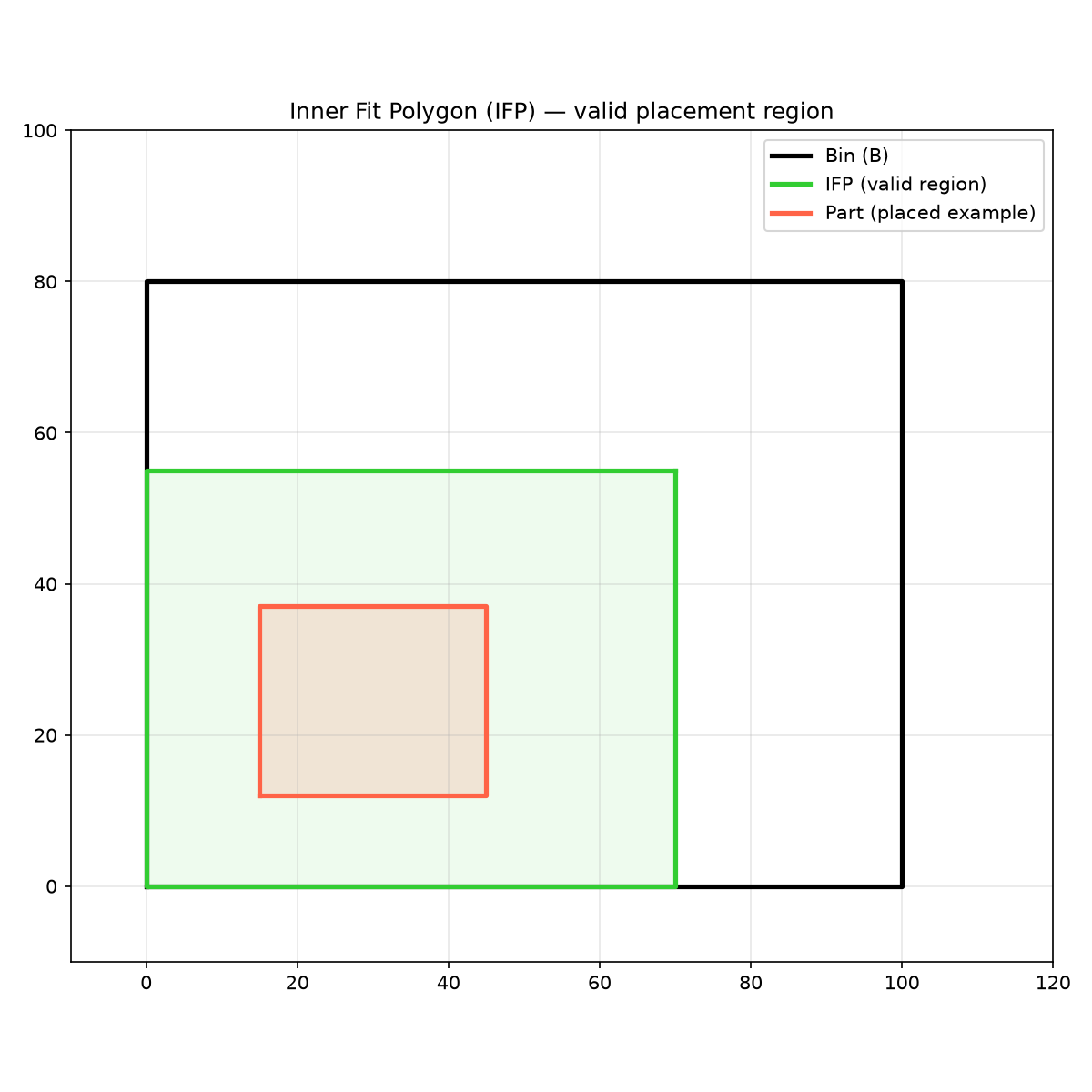

Inner Fit Polygon showing valid placement region

sweep_hull_for_edge(
    p1: types.Point,
    p2: types.Point,
    part_neg: Sequence[types.Point],
) -> types.Polygon

Compute the convex hull sweep of part_neg along the edge p1->p2.

Parameter	Type	Description
`p1`	`types.Point`	First edge endpoint.
`p2`	`types.Point`	Second edge endpoint.
`part_neg`	`Sequence[types.Point]`	Orbiting polygon negated as (x, y) points.
Returns	`types.Polygon`	Convex hull polygon.
Complexity		O(n log n) for convex hull computation.
