raygeo.ops.feature.near

Functions

find_plunge_point()

find_plunge_point(
    near: tuple[float, float],
    cleared_polygons: Sequence[Sequence[tuple[float, float]]],
    boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] | None = None,
    tool_radius: float = 3,
    search_radius: float = 10,
) -> tuple[float, float] | None

Find a plunge point near the given position within the cleared area.

Searches for a valid tool placement point inside the union of cleared_polygons that is within search_radius of near, fully inside boundary, and does not overlap any island.

The algorithm first checks near itself, then searches outward on concentric rings with a step of tool_radius / 2.

Parameter	Type	Description
near	tuple[float, float]	Target point (x, y) to search near.
cleared_polygons	Sequence[Sequence[tuple[float, float]]]	List of cleared-area polygons.
boundary	Sequence[tuple[float, float]]	Outer boundary polygon.
islands	Sequence[Sequence[tuple[float, float]]] | None = None	List of island polygons (optional).
tool_radius	float = 3	Tool radius in mm.
search_radius	float = 10	Maximum search distance from near in mm.
Returns	tuple[float, float] | None	(x, y) plunge point or None if no valid point found.

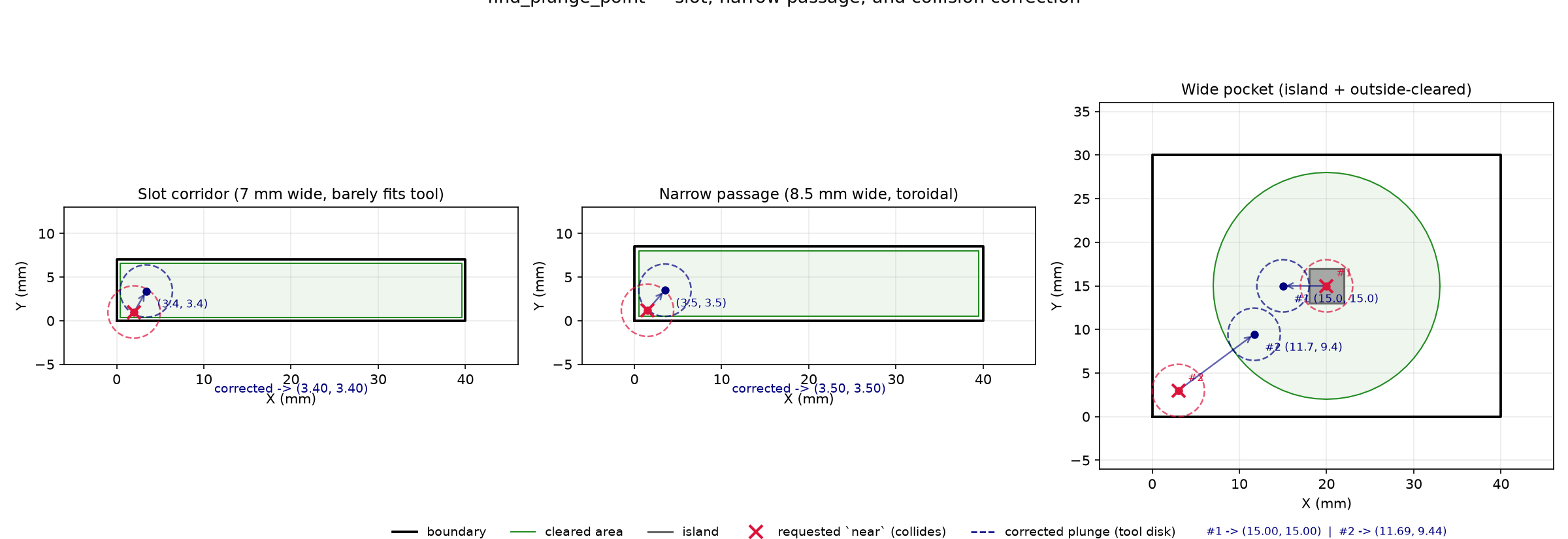

Three scenarios of find_plunge_point correcting near points: slot, passage, and pocket with island.
