raygeo.ops.assembly.slot
Functions
generate_slot()
generate_slot(
carrier: Sequence[tuple[float, float]],
tool_radius: float,
target_z: float,
state: ops.state.State | None = None,
) -> ops.assembly.result.AssemblyResult
Generate a back-and-forth slot clearing path along a carrier.
Produces a forward pass then a backward pass along the carrier, both at constant target_z. The cleared polygon is the carrier swept by tool_radius (Minkowski sum).
| Parameter | Type | Description |
|---|---|---|
carrier | Sequence[tuple[float, float]] | (x, y) waypoints (currently 2-point segment). |
tool_radius | float | Tool radius in mm. |
target_z | float | Cutting Z height. |
state | ops.state.State | None = None | Optional machine state to apply before the path. |
| Returns | ops.assembly.result.AssemblyResult | An AssemblyResult with the slot path. |

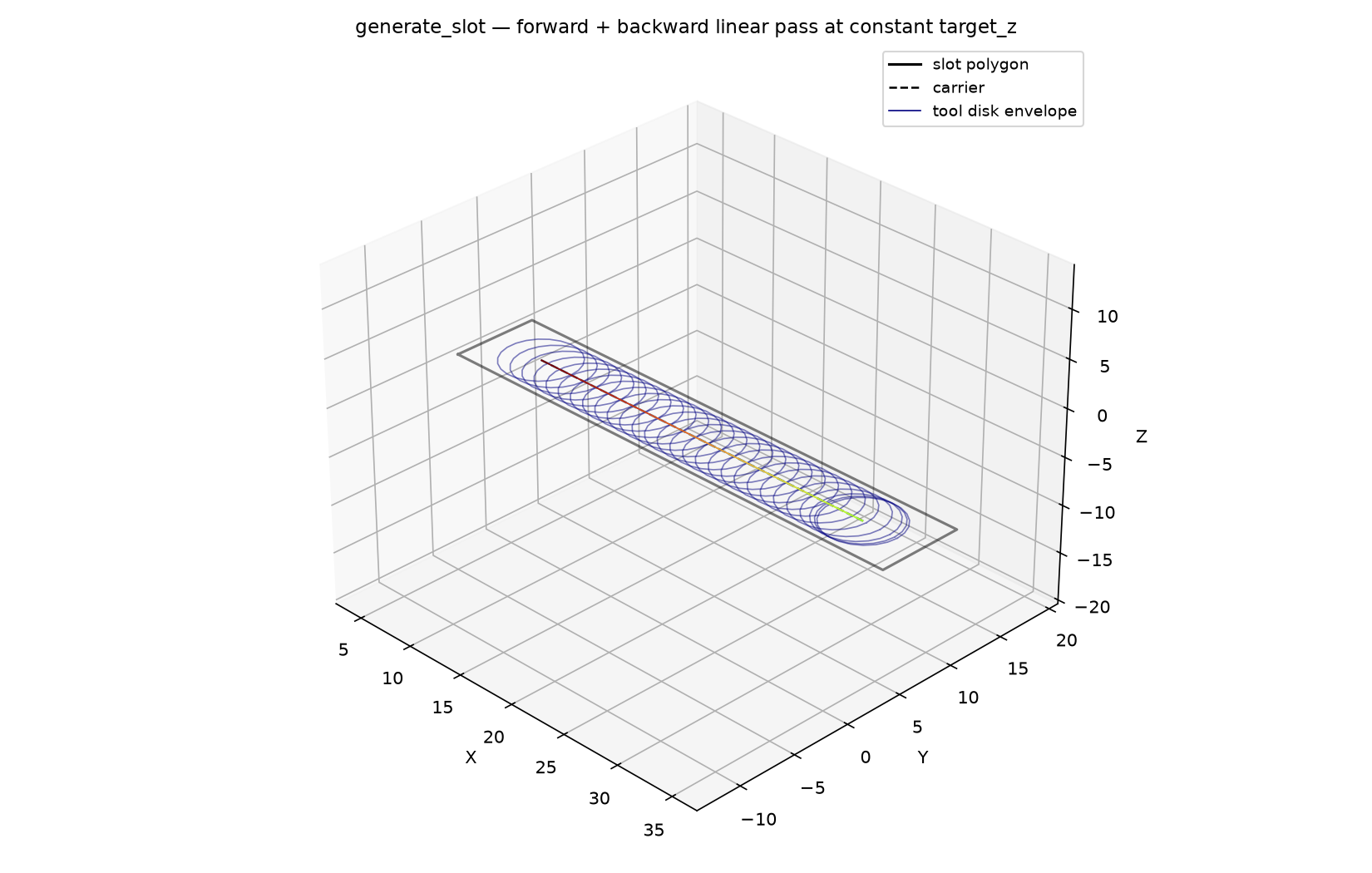

3D forward+backward slot path through a rectangular slot at constant depth, no trochoid.
