raygeo.ops.feature.ramp

Functions

find_ramp_carrier()

find_ramp_carrier(
    boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] | None = None,
    tool_radius: float = 3,
    max_ramp_angle_deg: float = 45,
) -> tuple[tuple[float, float], tuple[float, float]] | None

Find the longest straight carrier segment suitable for ramp entry.

Returns a ((x1, y1), (x2, y2)) tuple representing the longest straight-line segment within the valid tool-centre region (boundary eroded by tool_radius minus dilated islands) that is long enough for a ramp descent of one pass at the given maximum ramp angle.

The returned segment is oriented so the start point has the smaller coordinate on the dominant axis.

Parameter	Type	Description
boundary	Sequence[tuple[float, float]]	Outer boundary polygon as [(x, y), ...].
islands	Sequence[Sequence[tuple[float, float]]] | None = None	List of island polygons (optional).
tool_radius	float = 3	Tool radius in mm.
max_ramp_angle_deg	float = 45	Maximum ramp angle in degrees.
Returns	tuple[tuple[float, float], tuple[float, float]] | None	((x1, y1), (x2, y2)) or None if no carrier found.

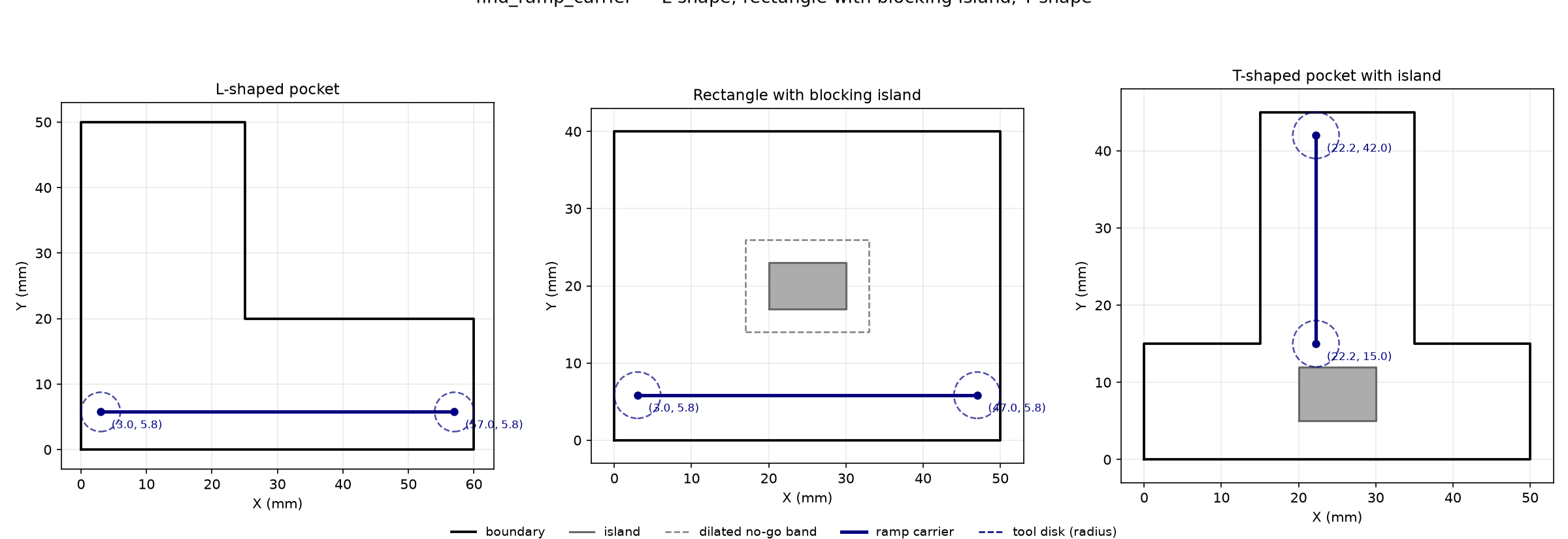

find_ramp_carrier on L-shaped, rectangle with blocking island, and T-shaped pocket.
