raygeo.ops.assembly.helix

Functions

generate_helix()

generate_helix(
    center: tuple[float, float],
    start_radius: float,
    z_start: float,
    z_end: float,
    pitch: float,
    direction: str = 'CW',
    angular_step: float = 0.1,
    state: ops.state.State | None = None,
) -> ops.assembly.result.AssemblyResult

Generate a helical entry path.

Produces a helical toolpath from z_start to z_end at the given center and start_radius.

Parameter	Type	Description
center	tuple[float, float]	(x, y) center of the helix.
start_radius	float	Radius of the helix in mm.
z_start	float	Starting Z height.
z_end	float	Ending (target) Z depth.
pitch	float	Vertical descent per full revolution.
direction	str = 'CW'	"CW" or "CCW" (default "CW").
angular_step	float = 0.1	Angular step in radians (default 0.1).
state	ops.state.State | None = None	Optional machine state to apply before the path.
Returns	ops.assembly.result.AssemblyResult	An AssemblyResult with the helical path.

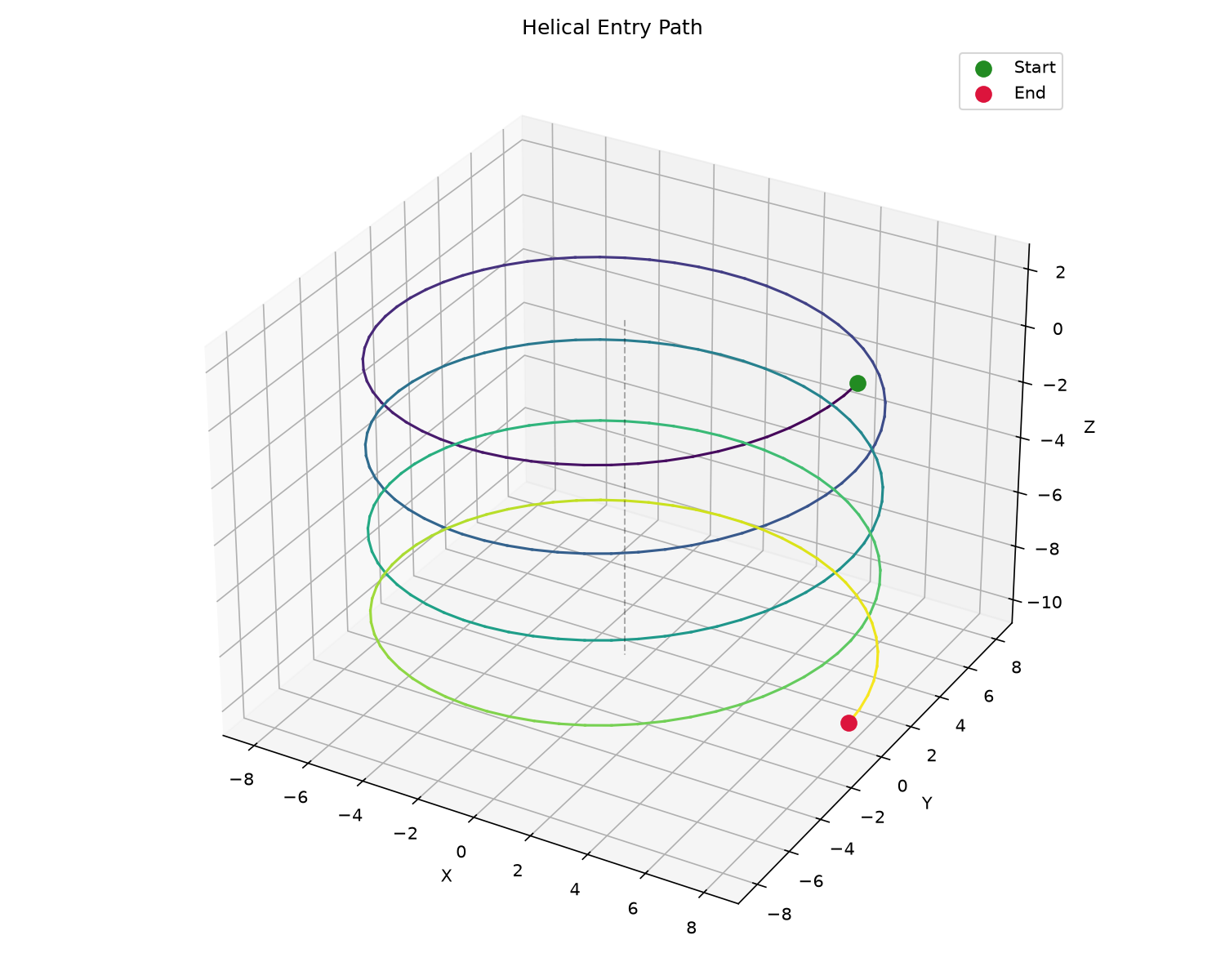

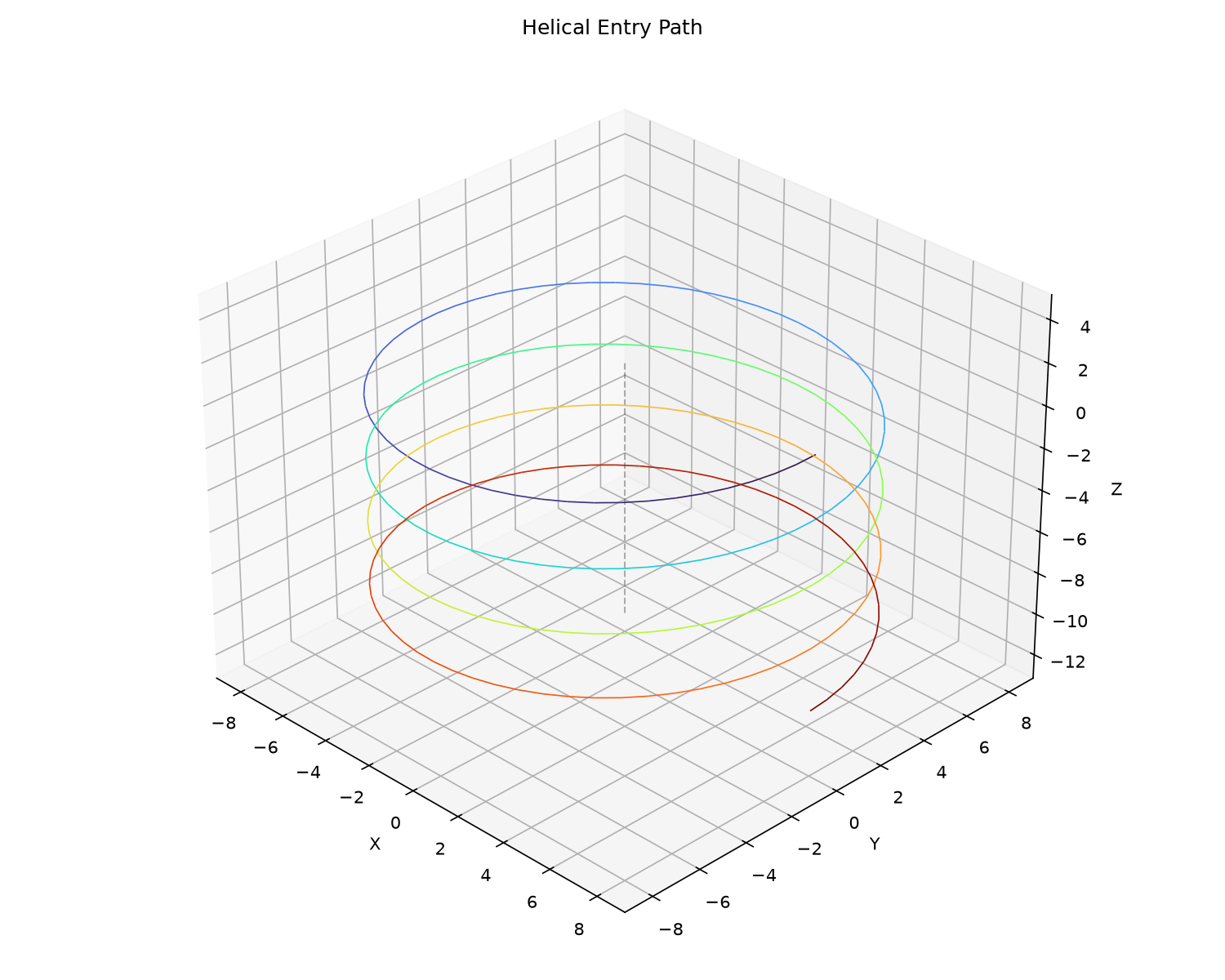

Helical entry path from safe Z to target depth
