raygeo.geo.algo.minkowski2d

Minkowski sum operations for 2D polygon toolpath generation.

Provides convolution of point sequences and segments, Minkowski sums for convex polygons, and no-fit polygon / inner fit polygon calculations used in nesting and packing algorithms.

Functions

calculate_input_scale()

calculate_input_scale(
    polygons: Sequence[Sequence[types.Point]],
    max_int: int = 2147483647,
) -> float

Calculate the optimal input scale for clipper operations.

Parameter	Type	Description
polygons	Sequence[Sequence[types.Point]]	List of polygons to scale.
max_int	int = 2147483647	Maximum integer value for Clipper.
Returns	float	Optimal scale factor.
Complexity		O(n) time, O(1) space

convolve_point_sequences()

convolve_point_sequences(
    seq_a: Sequence[tuple[float, float]],
    seq_b: Sequence[tuple[float, float]],
) -> list[list[tuple[float, float]]]

Convolve two sequences of points.

Parameter	Type	Description
seq_a	Sequence[tuple[float, float]]	First sequence of points.
seq_b	Sequence[tuple[float, float]]	Second sequence of points.
Returns	list[list[tuple[float, float]]]	Convolved point sequences.
Complexity		O(n * m) time, O(n * m) space

convolve_two_segments()

convolve_two_segments(
    a1: tuple[float, float],
    a2: tuple[float, float],
    b1: tuple[float, float],
    b2: tuple[float, float],
) -> list[tuple[float, float]]

Convolve two line segments.

Parameter	Type	Description
a1	tuple[float, float]	Start point of segment A.
a2	tuple[float, float]	End point of segment A.
b1	tuple[float, float]	Start point of segment B.
b2	tuple[float, float]	End point of segment B.
Returns	list[tuple[float, float]]	Convolved point sequence.
Complexity		O(1) time, O(1) space

get_inner_fit_polygon()

get_inner_fit_polygon(
    outer: Sequence[types.Point],
    inner: Sequence[types.Point],
) -> list[types.Polygon]

Compute the inner fit polygon (no-fit polygon for nesting).

Parameter	Type	Description
outer	Sequence[types.Point]	Outer polygon as (x, y) points.
inner	Sequence[types.Point]	Inner polygon as (x, y) points.
Returns	list[types.Polygon]	Inner fit polygon.
Complexity		O(n * m) time, O(n + m) space

get_no_fit_polygon()

get_no_fit_polygon(
    subject: Sequence[types.Point],
    tool: Sequence[types.Point],
) -> list[types.Polygon]

Compute the no-fit polygon for two 2D polygons.

Parameter	Type	Description
subject	Sequence[types.Point]	Subject polygon as (x, y) points.
tool	Sequence[types.Point]	Tool polygon as (x, y) points.
Returns	list[types.Polygon]	No-fit polygon.
Complexity		O(n * m) time, O(n + m) space

get_polygon_minkowski_sum_convex()

get_polygon_minkowski_sum_convex(
    poly_a: Sequence[tuple[float, float]],
    poly_b: Sequence[tuple[float, float]],
) -> list[list[tuple[float, float]]]

Compute the Minkowski sum of two convex polygons.

Parameter	Type	Description
poly_a	Sequence[tuple[float, float]]	First convex polygon as points.
poly_b	Sequence[tuple[float, float]]	Second convex polygon as points.
Returns	list[list[tuple[float, float]]]	Minkowski sum as list of polygons.
Complexity		O(n + m) time, O(n + m) space

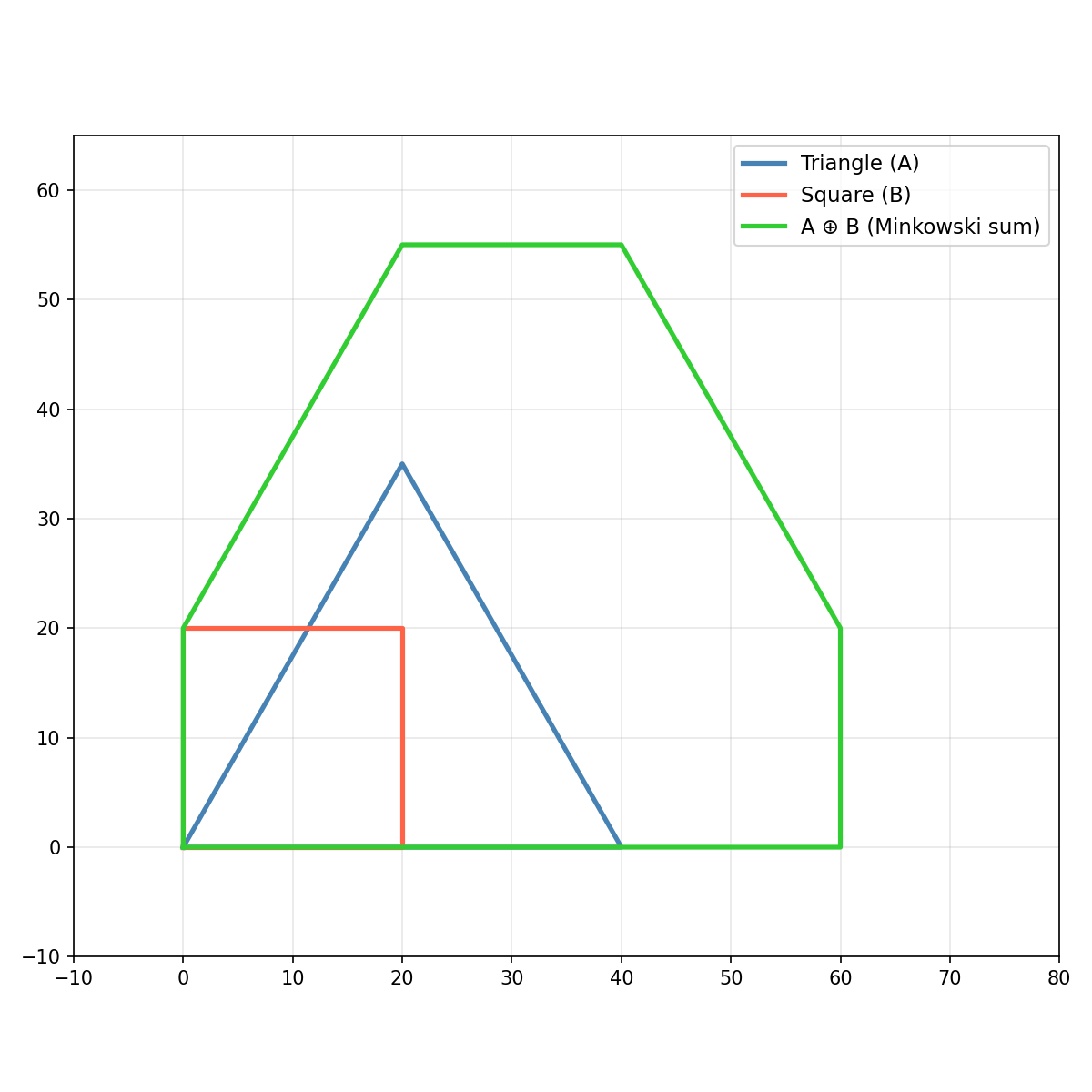

Minkowski sum of two convex polygons
