raygeo.ops.cut.stepper

StepResult

Result of a single forward step.

Contains the next centre position, updated heading, solver iteration count, and the final status.

heading

heading: float

Updated heading angle in radians.

iteration_angle

iteration_angle: float

Solver steering angle (radians). Non-zero for step_adaptive; always 0 for step.

iters

iters: int

Number of solver iterations used.

next

next: tuple[float, float]

Next centre position (x, y).

status

status: StepStatus

Step completion status.

StepStatus

Status of a single step or cut segment.

One of Ok (normal), BoundaryHit (hit pocket boundary), LostEngagement (no uncut material), or NoConvergence (solver failed to converge).

boundary_hit()

@classmethod boundary_hit() -> StepStatus

Hit pocket boundary.

Parameter	Type	Description
Returns	StepStatus	StepStatus.boundary_hit

lost_engagement()

@classmethod lost_engagement() -> StepStatus

No uncut material found.

Parameter	Type	Description
Returns	StepStatus	StepStatus.lost_engagement

no_convergence()

@classmethod no_convergence() -> StepStatus

Solver failed to converge.

Parameter	Type	Description
Returns	StepStatus	StepStatus.no_convergence

ok()

@classmethod ok() -> StepStatus

Normal step completion.

Parameter	Type	Description
Returns	StepStatus	StepStatus.ok

StepperOptions

Options for the stepping solver.

Controls disk radius, step length, target engagement angle, solver tolerance, max steering deflection, and iteration budget.

engagement_tol

engagement_tol: float

Engagement tolerance in radians.

max_deflection

max_deflection: float

Maximum steering deflection per step in radians.

max_solver_iters

max_solver_iters: int

Maximum solver iterations per step.

metric

metric: str

Engagement metric: "angle" (default) or "area".

radius

radius: float

Disk radius in mm.

step_length

step_length: float

Forward step length in mm.

target_engagement

target_engagement: float

Target engagement angle in radians.

Functions

run_segment()

run_segment(
    cleared: cleared_area.ClearedArea,
    start: tuple[float, float],
    initial_heading: float,
    opts: StepperOptions,
    max_steps: int,
) -> tuple[list[tuple[float, float]], str]

Drive the disk forward until a non-Ok status or max_steps.

Does not modify the ClearedArea — the caller is responsible for committing swept polygons.

Parameter	Type	Description
cleared	cleared_area.ClearedArea	ClearedArea instance.
start	tuple[float, float]	Starting position (x, y).
initial_heading	float	Initial heading angle (radians).
opts	StepperOptions	StepperOptions controlling the solver.
max_steps	int	Maximum number of steps.
Returns	tuple[list[tuple[float, float]], str]	(path, status_string).

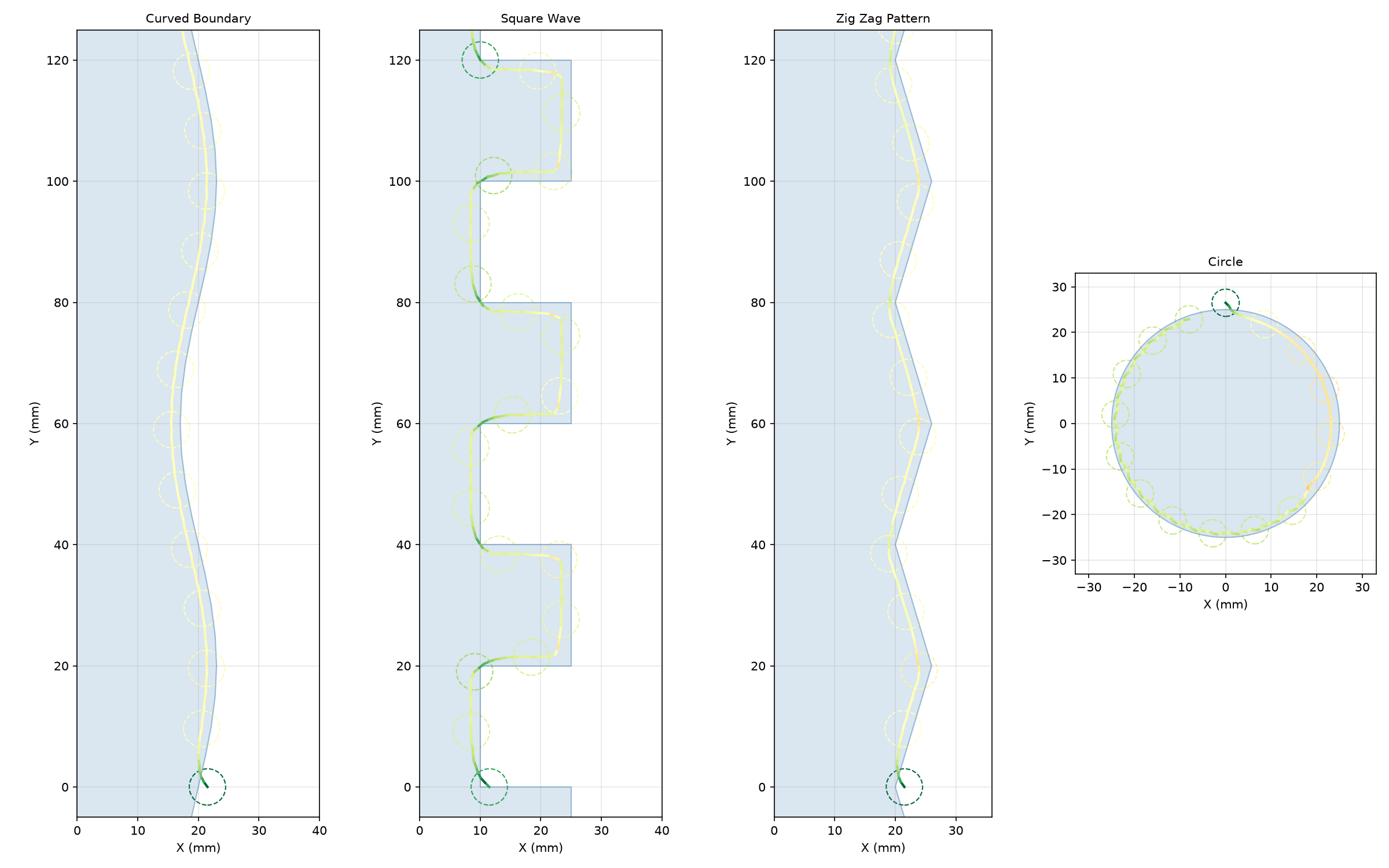

Wall following along four boundary shapes: curved, square wave, zig zag, and circle.

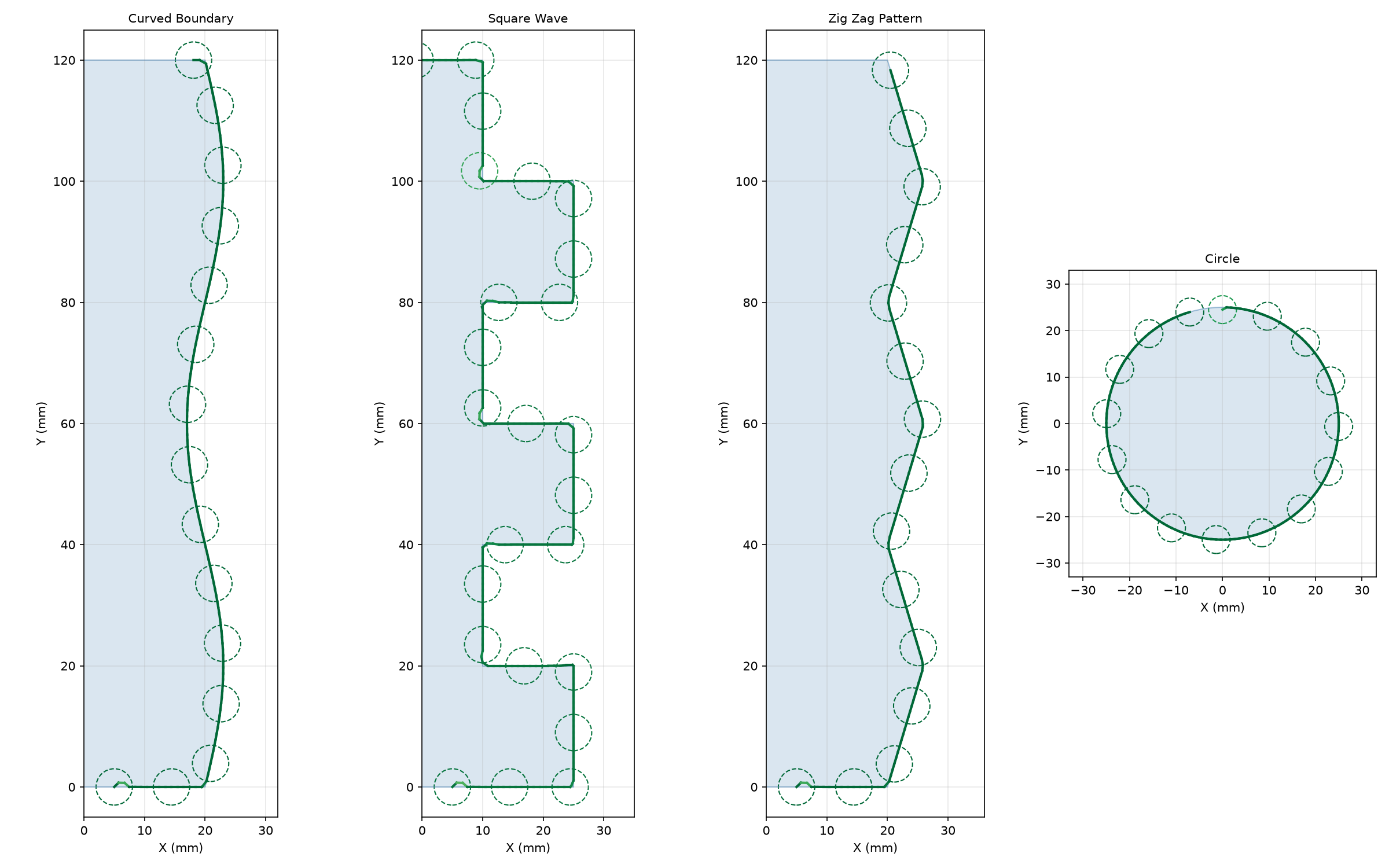

Wall following using area engagement (same shapes as angular version).

step()

step(
    cleared: cleared_area.ClearedArea,
    pos: tuple[float, float],
    heading: float,
    opts: StepperOptions,
) -> StepResult

Perform one forward step.

Starting from pos with the given heading (radians), proposes candidate positions and solves for the heading that maintains the target engagement.

Parameter	Type	Description
cleared	cleared_area.ClearedArea	ClearedArea instance.
pos	tuple[float, float]	Current centre position (x, y).
heading	float	Current heading angle in radians.
opts	StepperOptions	StepperOptions controlling the solver.
Returns	StepResult	StepResult with the next position and updated heading.

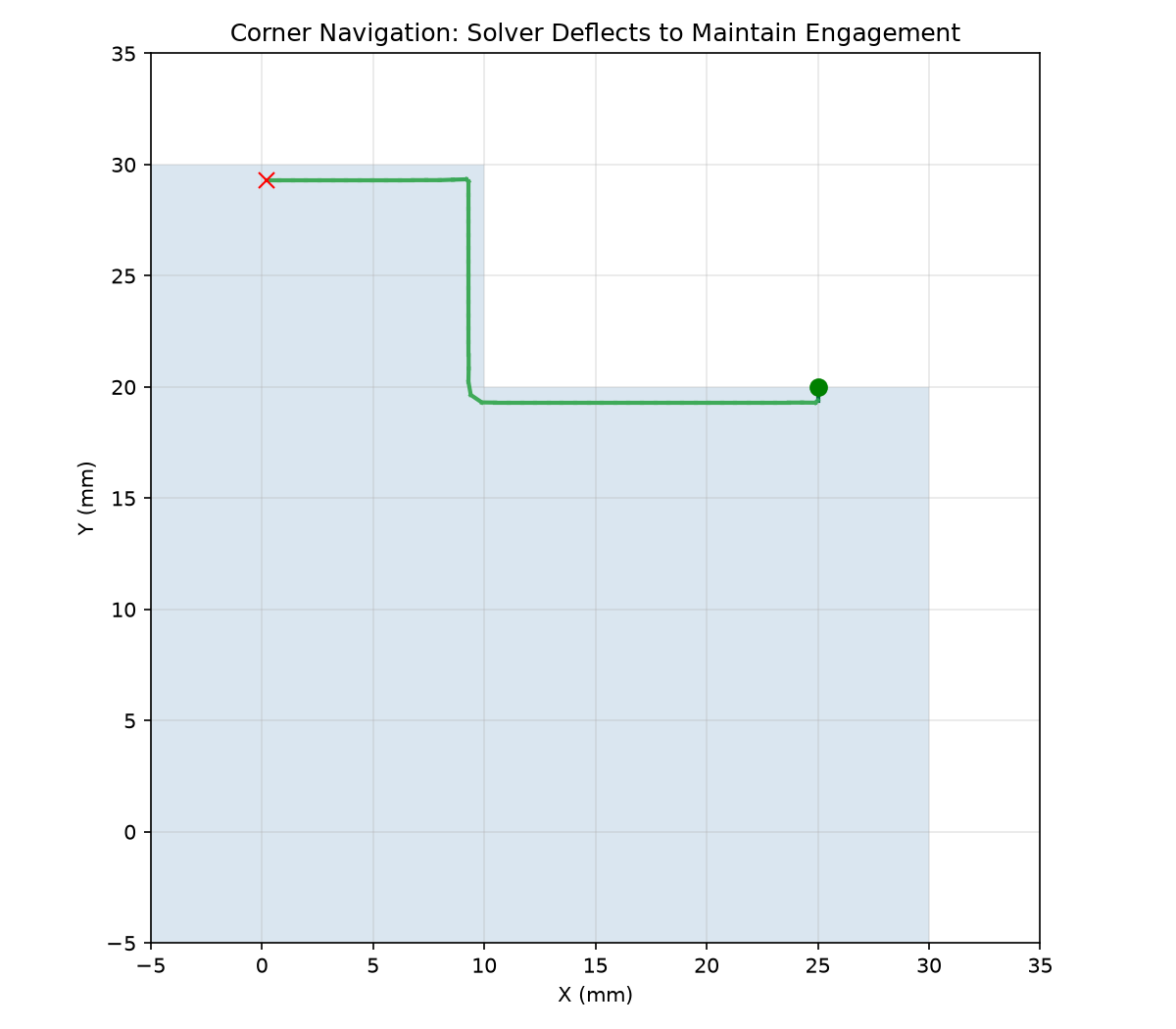

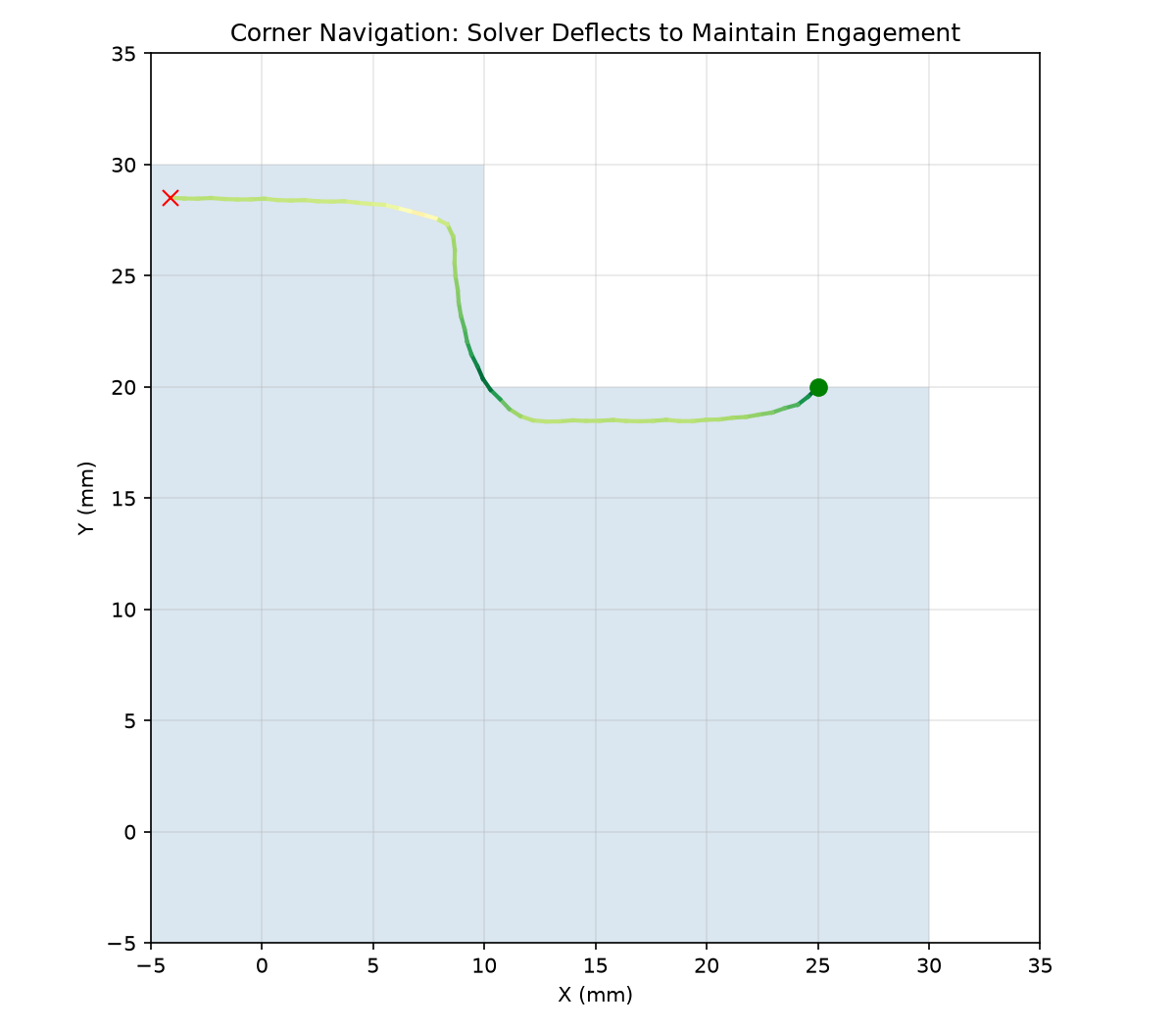

90° corner: the solver deflects the heading to keep engagement constant around the turn.

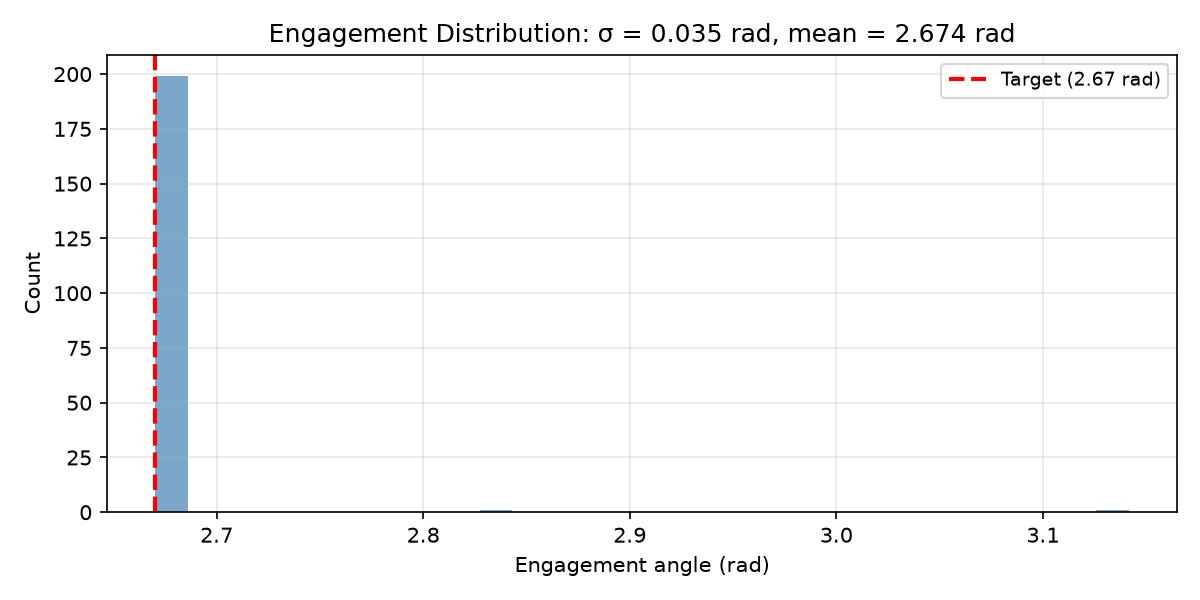

Engagement histogram for 200 steps along a straight wall. Tight peak near target indicates stable behaviour.

step_adaptive()

step_adaptive(
    cleared: cleared_area.ClearedArea,
    pos: tuple[float, float],
    heading: float,
    predicted_angle: float,
    target_area_pd: float,
    step_length: float,
    radius: float,
    max_deflection: float,
    valid_area: Sequence[Sequence[tuple[float, float]]],
) -> StepResult

Perform one forward step using the area-based adaptive solver.

Like step, but targets cut-area per unit distance rather than an engagement angle. Used internally by adaptive_clearing.

Parameter	Type	Description
cleared	cleared_area.ClearedArea	ClearedArea instance.
pos	tuple[float, float]	Current centre position (x, y).
heading	float	Smoothed heading angle (radians).
predicted_angle	float	Predicted steering angle from history.
target_area_pd	float	Target cut-area per unit distance.
step_length	float	Forward step length in mm.
radius	float	Disk radius in mm.
max_deflection	float	Max steering deflection in radians.
valid_area	Sequence[Sequence[tuple[float, float]]]	Valid tool-centre region polygons.
Returns	StepResult	StepResult with the next position and updated heading.

target_engagement_from_advance()

target_engagement_from_advance(advance: float, radius: float) -> float

Derive the target engagement angle from the advance ratio.

Parameter	Type	Description
advance	float	Per-step forward distance (mm).
radius	float	Disk radius (mm).
Returns	float	Engagement angle in radians.
