raygeo.geo.algo.overcut

Overcut operations for closed contours.

Extends closed contours past their start point to ensure complete cuts through the material, particularly useful in laser cutting where the laser may not fully penetrate at the start/end point.

Functions

apply_overcut()

apply_overcut(geometry: geo.Geometry, overcut: float) -> geo.Geometry

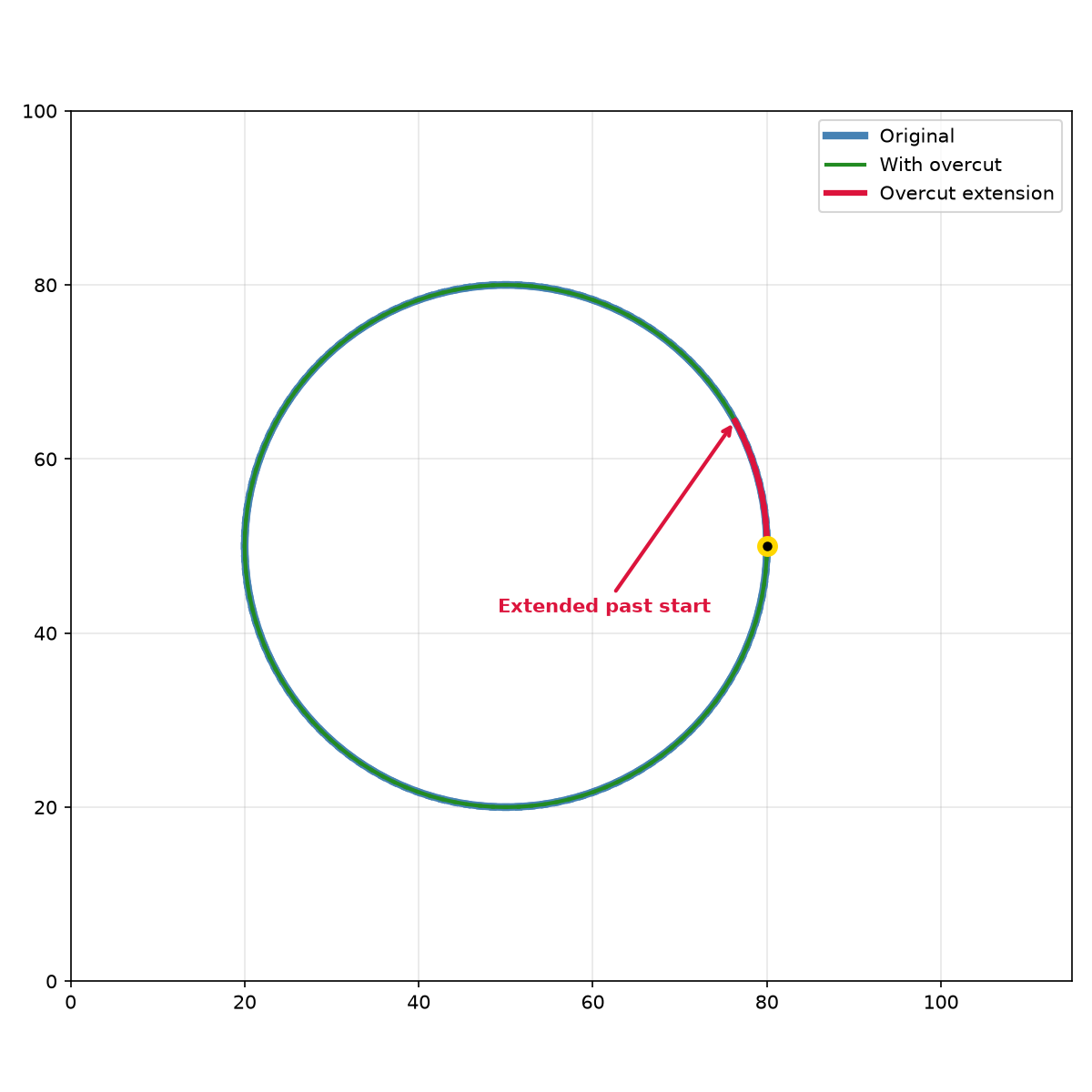

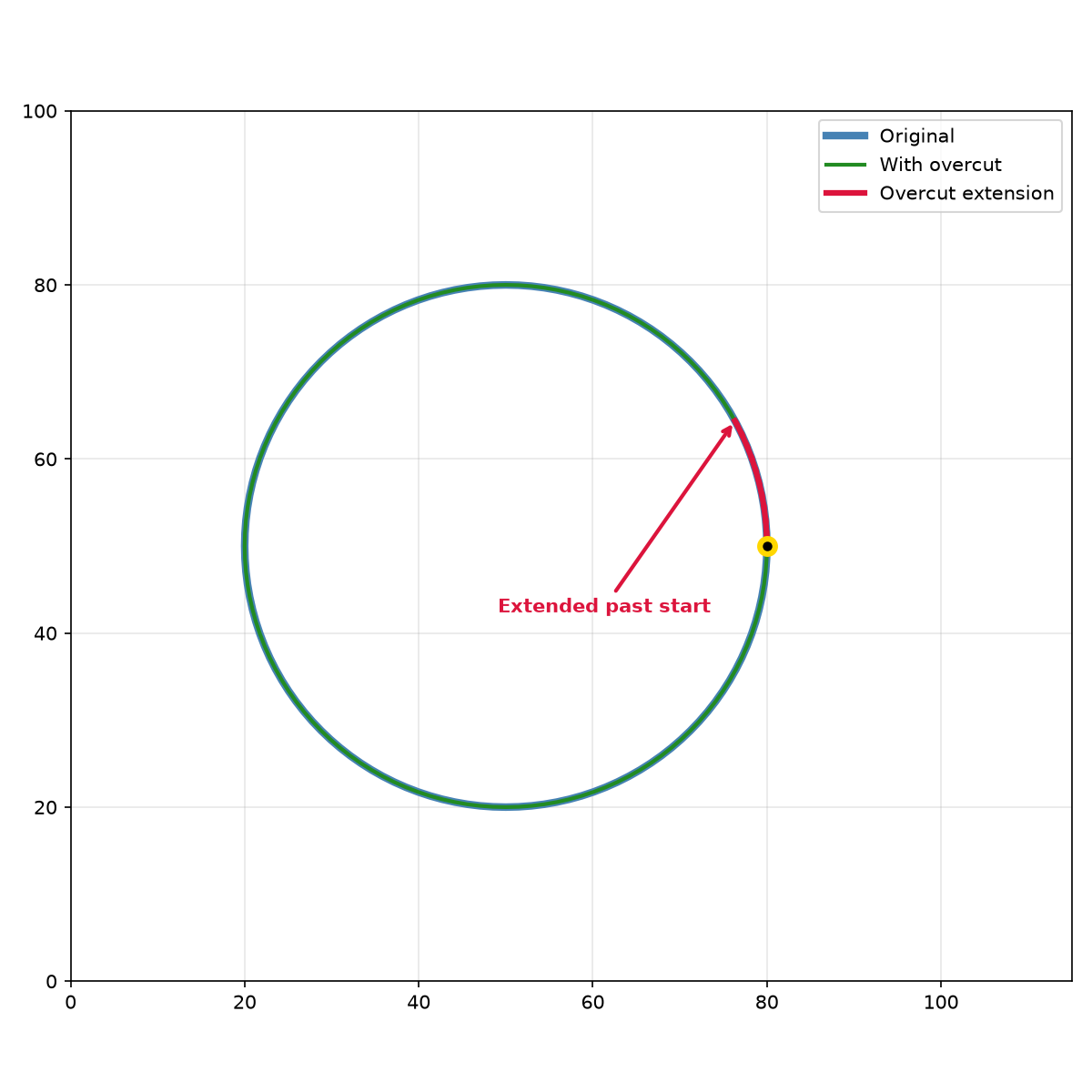

Extend a closed contour past its start point.

When laser-cutting closed contours, the laser slows down at corners and may not cut through completely. This function extends the path by overcut distance past the start point to ensure a clean cut.

If the geometry is not closed, empty, or overcut is <= 0, the geometry is returned unchanged.

Returns: A new geometry with the overcut applied.

Parameter	Type	Description
geometry	geo.Geometry	The input geometry (must be closed).
overcut	float	Distance to extend past the start point.
Returns	geo.Geometry
