raygeo.cnc.machining.adaptive

Functions

build_clearing_workplan()

build_clearing_workplan(
    pocket_boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] | None = None,
    tool_radius: float = 3,
    step_over: float = 2,
    step_length: float = 0.6,
    target_z: float = -5,
    safe_z: float = 2,
    wall_margin: float = 0,
    safe_margin: float = 1,
    stock_to_leave: float = 0,
    plunge_pitch: float = 1,
    angular_step: float = 0.1,
    area_tolerance: float = 1,
    max_deflection_deg: float = 30,
    finishing: bool = False,
) -> list[dict]

Build a clearing workplan for the given pocket.

Produces entry steps for the largest wide region, an AdaptiveClear step covering the whole pocket, narrow-passage-specific steps (ToroidalClear or Slot) for each classified passage, and an optional ProfileInner finishing pass.

Combine with raygeo.cnc.machining.plan.Workplan to turn the steps into a toolpath.

Parameter	Type	Description
pocket_boundary	Sequence[tuple[float, float]]	Outer boundary as [(x, y), ...].
islands	Sequence[Sequence[tuple[float, float]]] | None = None	List of island polygons (default None).
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 2	Radial step-over (default 2.0).
step_length	float = 0.6	Forward step length (default 0.6).
target_z	float = -5	Target cutting depth (default -5.0).
safe_z	float = 2	Safe Z height (default 2.0).
wall_margin	float = 0	Wall margin (default 0.0).
safe_margin	float = 1	Safety margin from tool edge (default 1.0).
stock_to_leave	float = 0	Stock to leave for finishing (default 0.0).
plunge_pitch	float = 1	Helix pitch per revolution (default 1.0).
angular_step	float = 0.1	Angular step in radians (default 0.1).
area_tolerance	float = 1	Convergence area tolerance (default 1.0).
max_deflection_deg	float = 30	Max deflection per step in degrees (default 30.0).
finishing	bool = False	Whether to add a ProfileInner finishing pass (default False).
Returns	list[dict]	List of WorkplanStep dicts with a "kind" key.

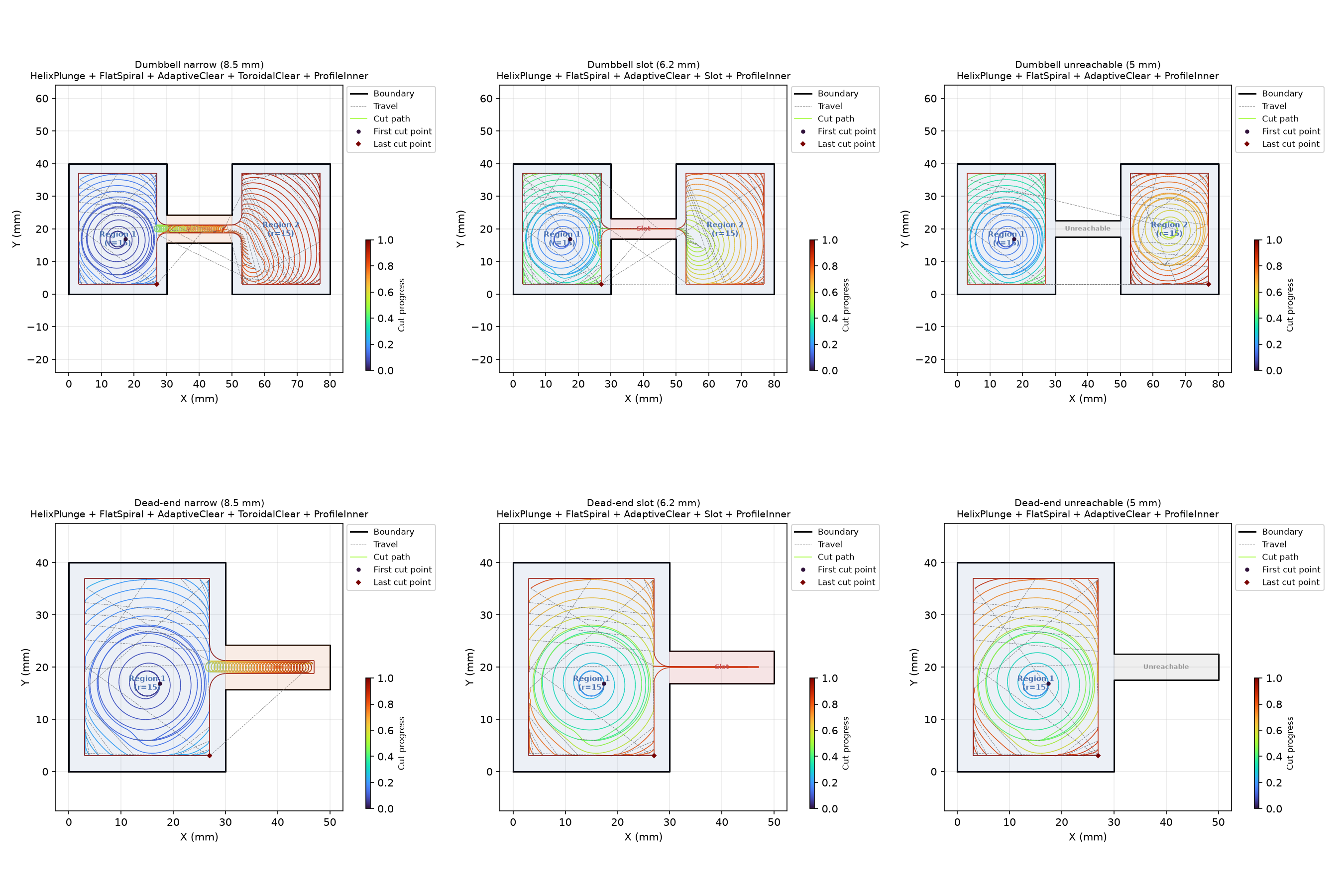

Clearing workplan: narrow passage (ToroidalClear), slot (Slot), dual-entry dumbbell (Unreachable).
