raygeo.ops.assembly.profile

ProfileRampSpec

Parameters for the profile ramp-entry assembler: it descends along the same loop the profile pass walks, so the tool enters the material gradually and the wall is never nicked by a vertical bore.

cut_direction

cut_direction: str

"cw" or "ccw".

kind

kind: str

"inner" or "outer".

ramp_angle

ramp_angle: float

Steepest descent along the loop (radians).

stock_to_leave

stock_to_leave: float

tolerance

tolerance: float

Boundary-following tolerance of the loop derivation.

tool_radius

tool_radius: float

wall_margin

wall_margin: float

z_end

z_end: float

z_start

z_start: float

for_tool()

for_tool(
    kind: str,
    tool_radius: float,
    ramp_angle: float,
    z_start: float,
    z_end: float,
) -> ProfileRampSpec

A ramp spec with the neutral defaults for the per-operation fields; set wall_margin, stock_to_leave, cut_direction and tolerance on the result to match the ProfileSpec it leads into.

Parameter	Type	Description
kind	str	"inner" or "outer".
tool_radius	float	Tool radius in mm.
ramp_angle	float	Steepest descent along the loop (radians).
z_start	float	Height the ramp descends from.
z_end	float	Depth the ramp descends to.
Returns	ProfileRampSpec

ProfileSpec

Parameters for the adaptive-profile assembler.

cut_direction

cut_direction: str

"cw" or "ccw".

engagement_angle_threshold

engagement_angle_threshold: float

engagement_area_threshold

engagement_area_threshold: float

expansion_batch_size

expansion_batch_size: int

feed_reduction_factor

feed_reduction_factor: float

Factor (0–1) by which feed is reduced on over-engagement.

kind

kind: str

"inner" or "outer".

safe_z

safe_z: float

start_pos

start_pos: Optional[tuple[float, float]]

Optional override start (x, y).

step_length

step_length: float

step_over

step_over: float

stock_to_leave

stock_to_leave: float

target_z

target_z: float

tolerance

tolerance: float

tool_radius

tool_radius: float

trace_path

trace_path: Optional[str]

Optional path to write a binary trace file.

wall_margin

wall_margin: float

for_tool()

for_tool(
    kind: str,
    tool_radius: float,
    target_z: float,
    safe_z: float,
) -> ProfileSpec

A spec carrying the planner's canonical tuning for tool_radius: a radius-wide step-over, a fifth-of-a-radius step length, the clearing planner's engagement gates (a 1.0 mm² area gate, and a 30-rad angle gate that never trips, so feed reduction is area-driven) and its 0.5 feed-reduction factor. The per-operation fields keep their neutral defaults; set wall_margin, stock_to_leave, cut_direction, tolerance, start_pos and trace_path on the result.

Parameter	Type	Description
kind	str	"inner" or "outer".
tool_radius	float	Tool radius in mm.
target_z	float	Cutting depth (Z).
safe_z	float	Safe (rapid) Z height.
Returns	ProfileSpec

Functions

profile_inner()

profile_inner(
    part: ops.part.Part,
    tool_radius: float = 3,
    step_over: float = 1.5,
    step_length: float = 0.6,
    target_z: float = -5,
    safe_z: float = 2,
    wall_margin: float = 0,
    stock_to_leave: float = 0,
    cut_feed_rate: int = 1000,
    cut_power: float = 0,
    start_pos: tuple[float, float] | None = None,
    cut_direction: str = 'ccw',
    engagement_area_threshold: float = 0,
    engagement_angle_threshold: float = 3.141592653589793,
    trace_path: str | None = None,
    plunge_feed_rate: int | None = None,
) -> ops.assembly.AssemblyResult

Profile the inner boundary of a pocket, around islands.

Walks a tool around the inset boundary (offset inward by tool radius) and around accessible islands, so that the tool clears the material along the pocket walls and around each island. Returns an AssemblyResult with the profiling move sequence.

Parameter	Type	Description
part	ops.part.Part	The part whose cleared field tracks accumulated workpiece state and whose geometry defines the pocket boundary and islands.
tool_radius	float = 3	Tool radius in mm.
step_over	float = 1.5	Radial step-over between passes (mm).
step_length	float = 0.6	Forward step length in mm.
target_z	float = -5	Cutting depth (Z).
safe_z	float = 2	Safe (rapid) Z height.
wall_margin	float = 0	Extra distance to keep from the wall (mm).
stock_to_leave	float = 0	Stock left on wall for rough pass (mm, default 0.0).
cut_feed_rate	int = 1000	Feed rate in mm/min.
cut_power	float = 0	Spindle power (0.0–1.0).
start_pos	tuple[float, float] | None = None	Optional override start (x, y) (default: first boundary vertex).
cut_direction	str = 'ccw'	"cw" or "ccw" (default "ccw").
engagement_area_threshold	float = 0	Overengagement area threshold (mm², 0 = auto).
engagement_angle_threshold	float = 3.141592653589793	Overengagement angle threshold (rad, default π).
trace_path	str | None = None	Optional path to write a binary trace file (default None).
plunge_feed_rate	int | None = None	Vertical plunge feed in mm/min for the descent into material (default None: cut feed).
Returns	ops.assembly.AssemblyResult	An AssemblyResult with the profiling path.

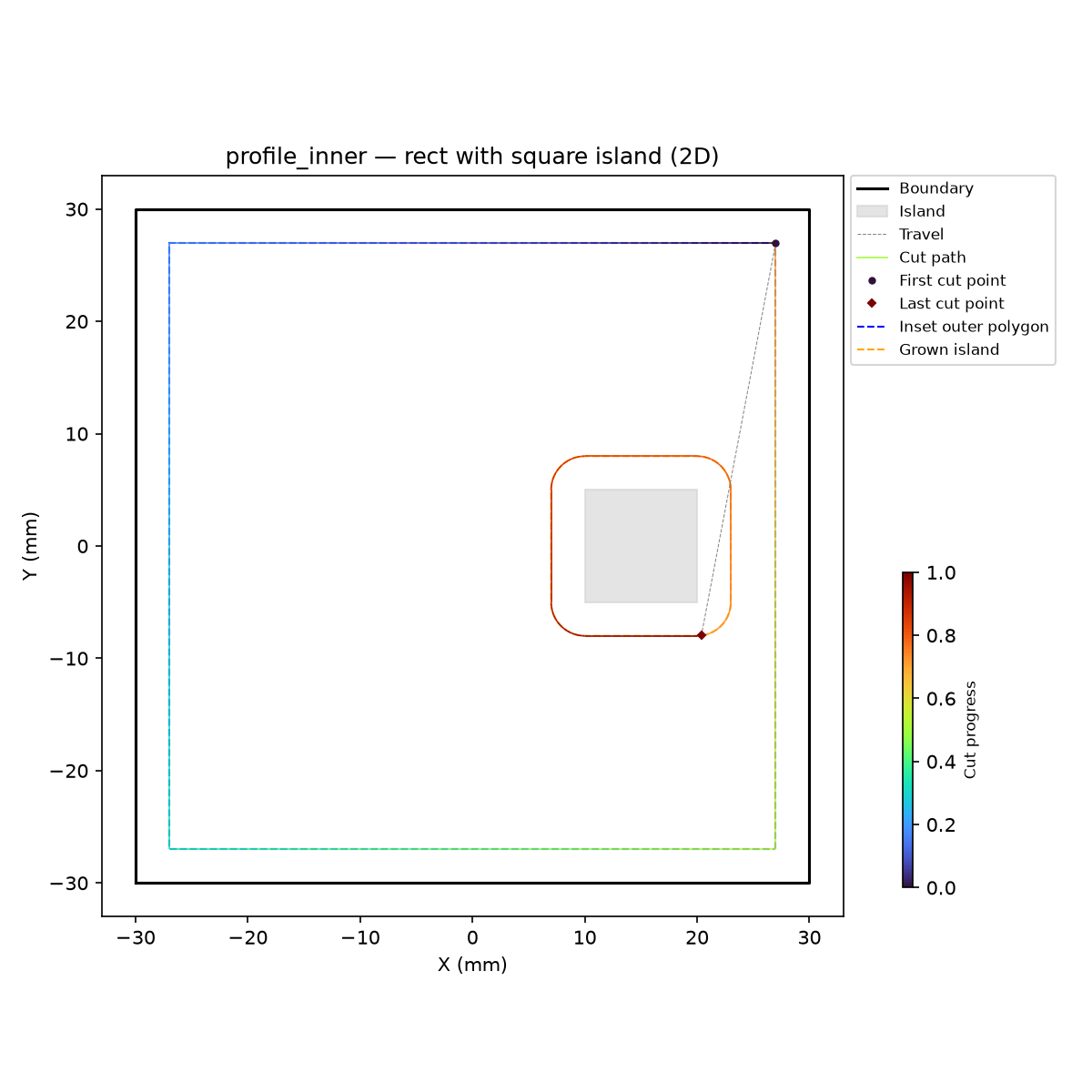

profile_inner on a square pocket with island — 2D: boundary, island, offset walks, cuts (turbo).

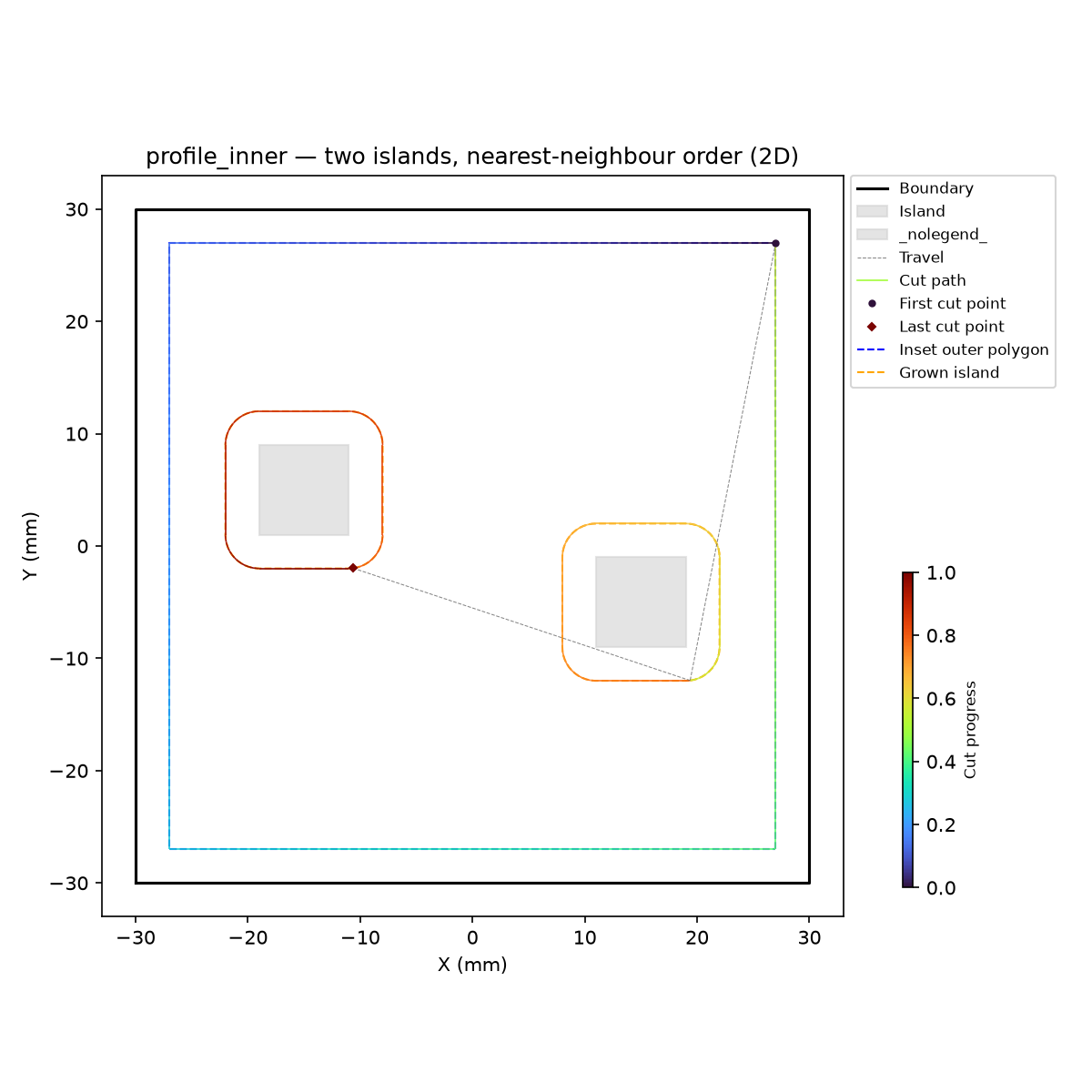

profile_inner with two accessible islands — nearest-neighbour order via turbo gradient.

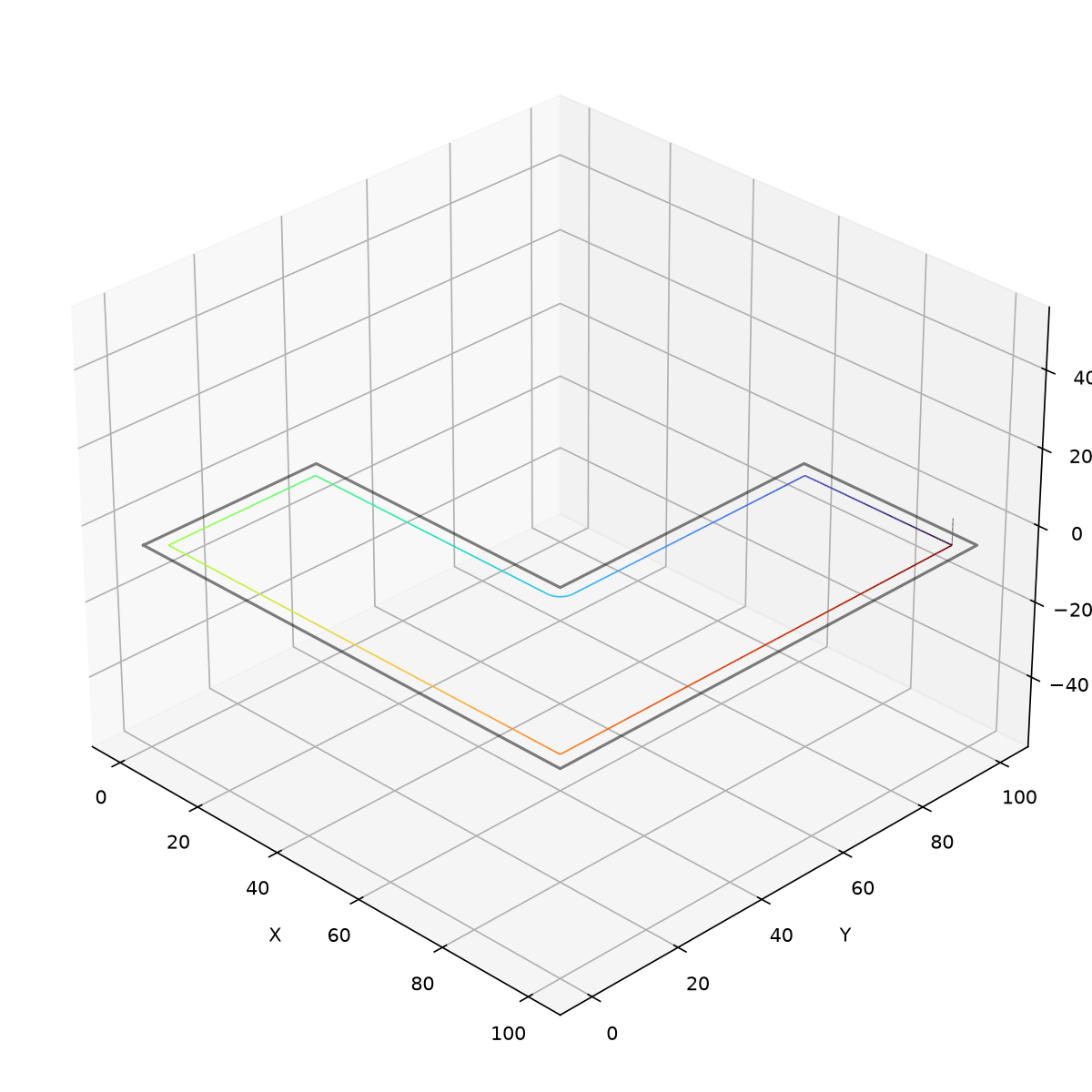

profile_inner on an L-shaped pocket with island — 3D: cut path at cut_z, rapids at safe_z.

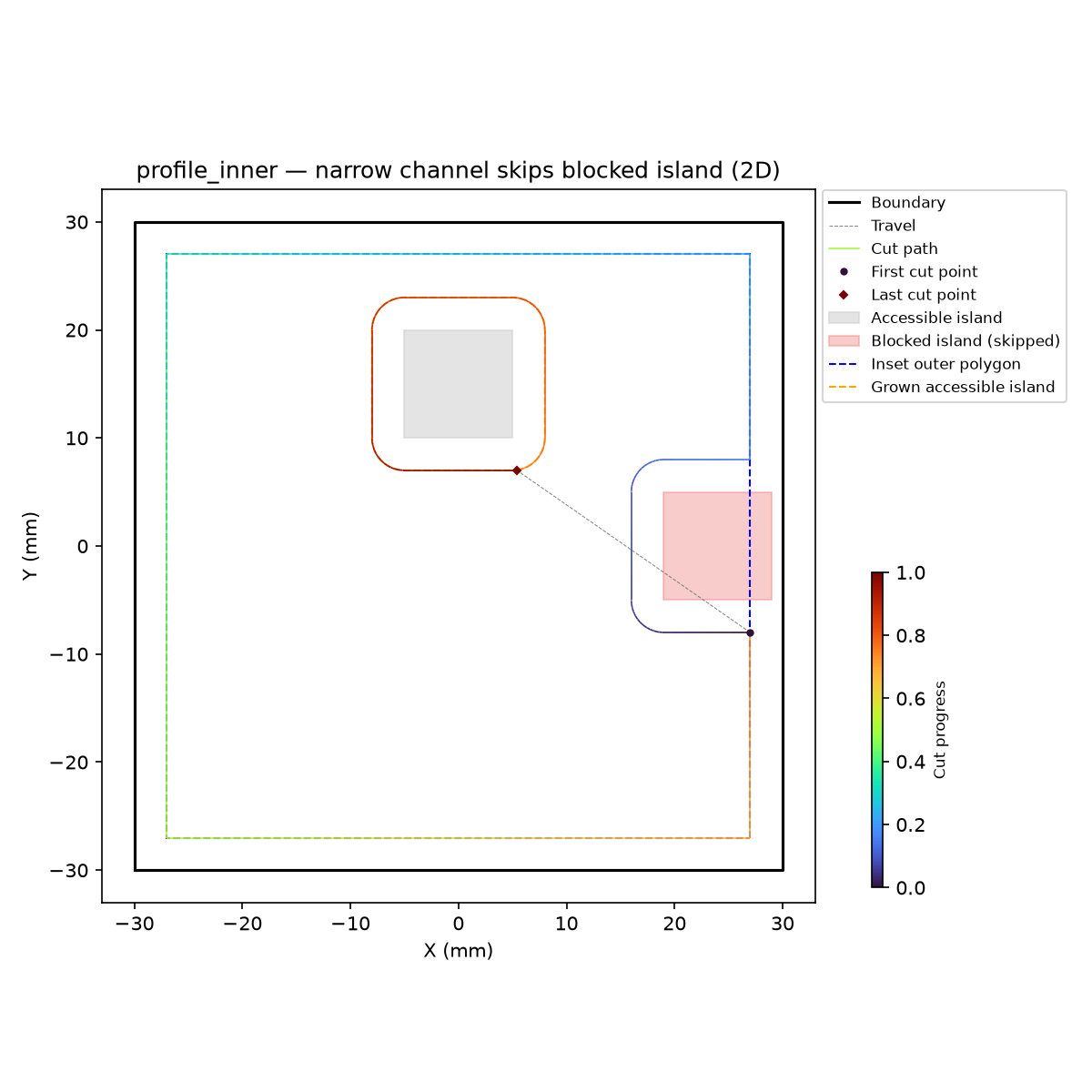

profile_inner skips an island when the channel between island and wall is too narrow.

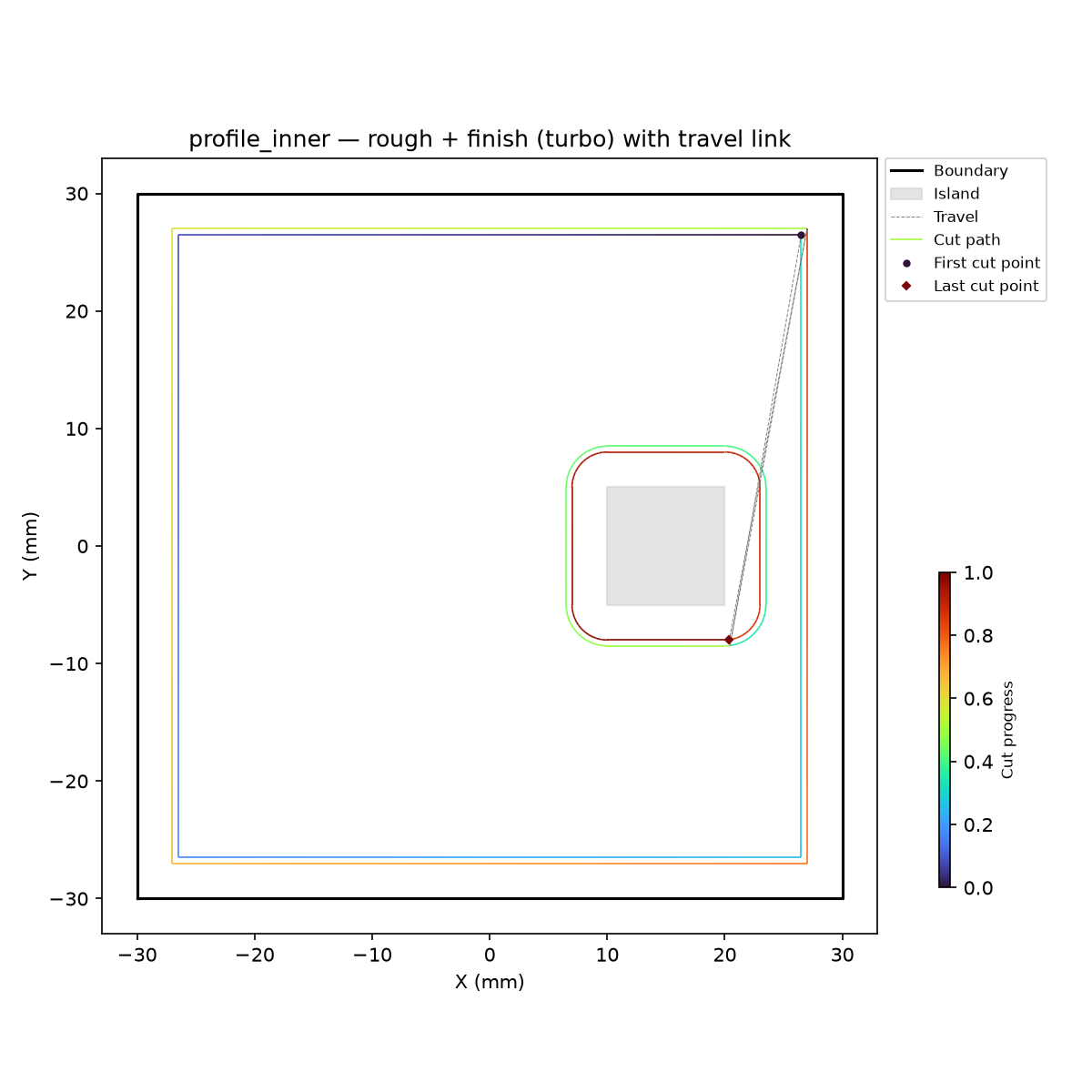

Two-pass inner profiling: rough (orange) + finish (red) on same ClearedArea.

profile_inner on a curve-true circular boundary — the wall pass is emitted as true arcs.

profile_outer()

profile_outer(
    part: ops.part.Part,
    tool_radius: float,
    step_over: float,
    step_length: float,
    target_z: float,
    safe_z: float,
    wall_margin: float,
    cut_feed_rate: int,
    cut_power: float,
    start_pos: tuple[float, float] | None = None,
    cut_direction: str = 'ccw',
    stock_to_leave: float = 0,
    engagement_area_threshold: float = 0,
    engagement_angle_threshold: float = 3.141592653589793,
    trace_path: str | None = None,
    plunge_feed_rate: int | None = None,
) -> ops.assembly.AssemblyResult

Profile the outer boundary of a pocket.

Walks a tool around the grown boundary (offset outward by tool radius). The path stays approximately one tool radius outside the original boundary, removing any excess stock on the outer side. Returns an AssemblyResult with the profiling move sequence.

Parameter	Type	Description
part	ops.part.Part	The part whose cleared field tracks accumulated workpiece state and whose geometry defines the pocket boundary.
tool_radius	float	Tool radius in mm.
step_over	float	Radial step-over between passes (mm).
step_length	float	Forward step length in mm.
target_z	float	Cutting depth (Z).
safe_z	float	Safe (rapid) Z height.
wall_margin	float	Extra distance to keep from the wall (mm).
cut_feed_rate	int	Feed rate in mm/min.
cut_power	float	Spindle power (0.0–1.0).
start_pos	tuple[float, float] | None = None	Optional override start (x, y) (default: first boundary vertex).
cut_direction	str = 'ccw'	"cw" or "ccw" (default "ccw").
stock_to_leave	float = 0	Stock left on wall for rough pass (mm, default 0.0).
engagement_area_threshold	float = 0	Overengagement area threshold (mm², 0 = auto).
engagement_angle_threshold	float = 3.141592653589793	Overengagement angle threshold (rad, default π).
trace_path	str | None = None	Optional path to write a binary trace file (default None).
plunge_feed_rate	int | None = None	Vertical plunge feed in mm/min for the descent into material (default None: cut feed).
Returns	ops.assembly.AssemblyResult	An AssemblyResult with the profiling path.

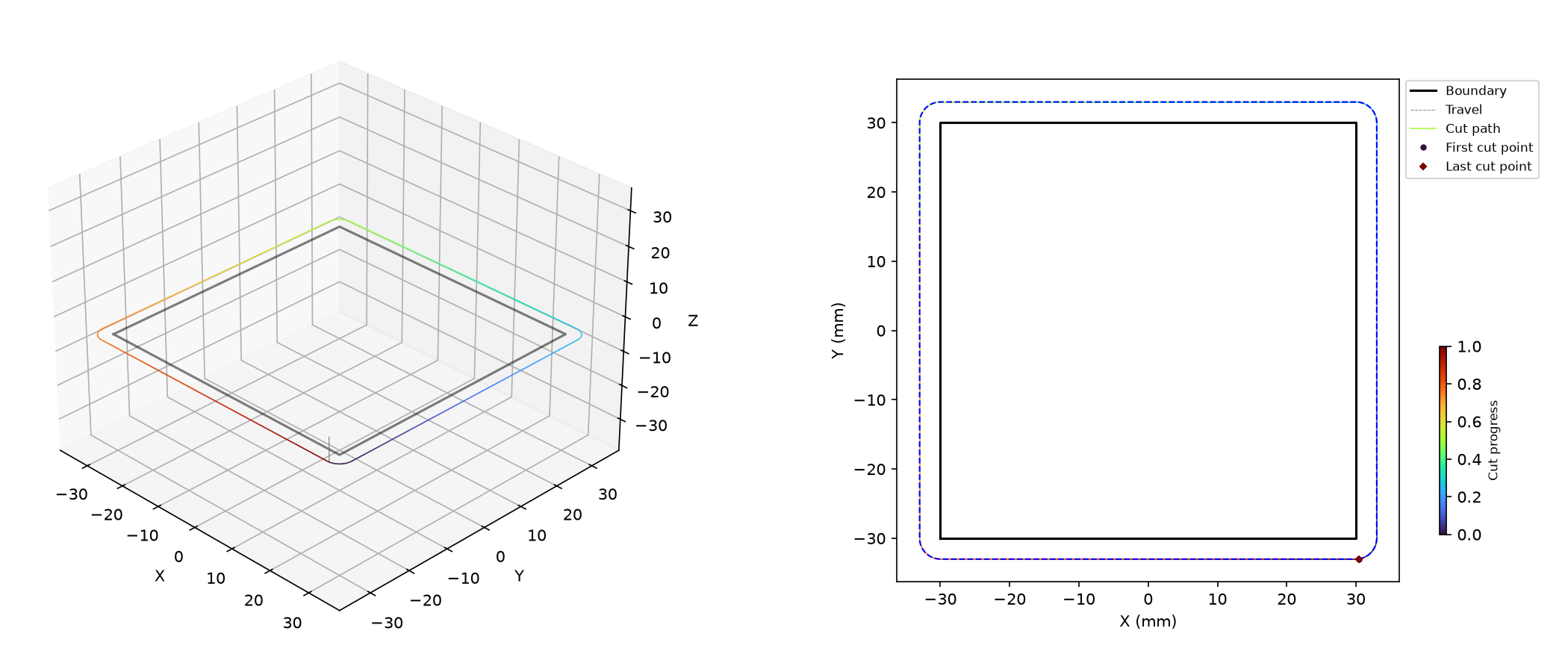

profile_outer on a rect pocket — 3D (left) and 2D top-down with offset tool-centre polygon (right).

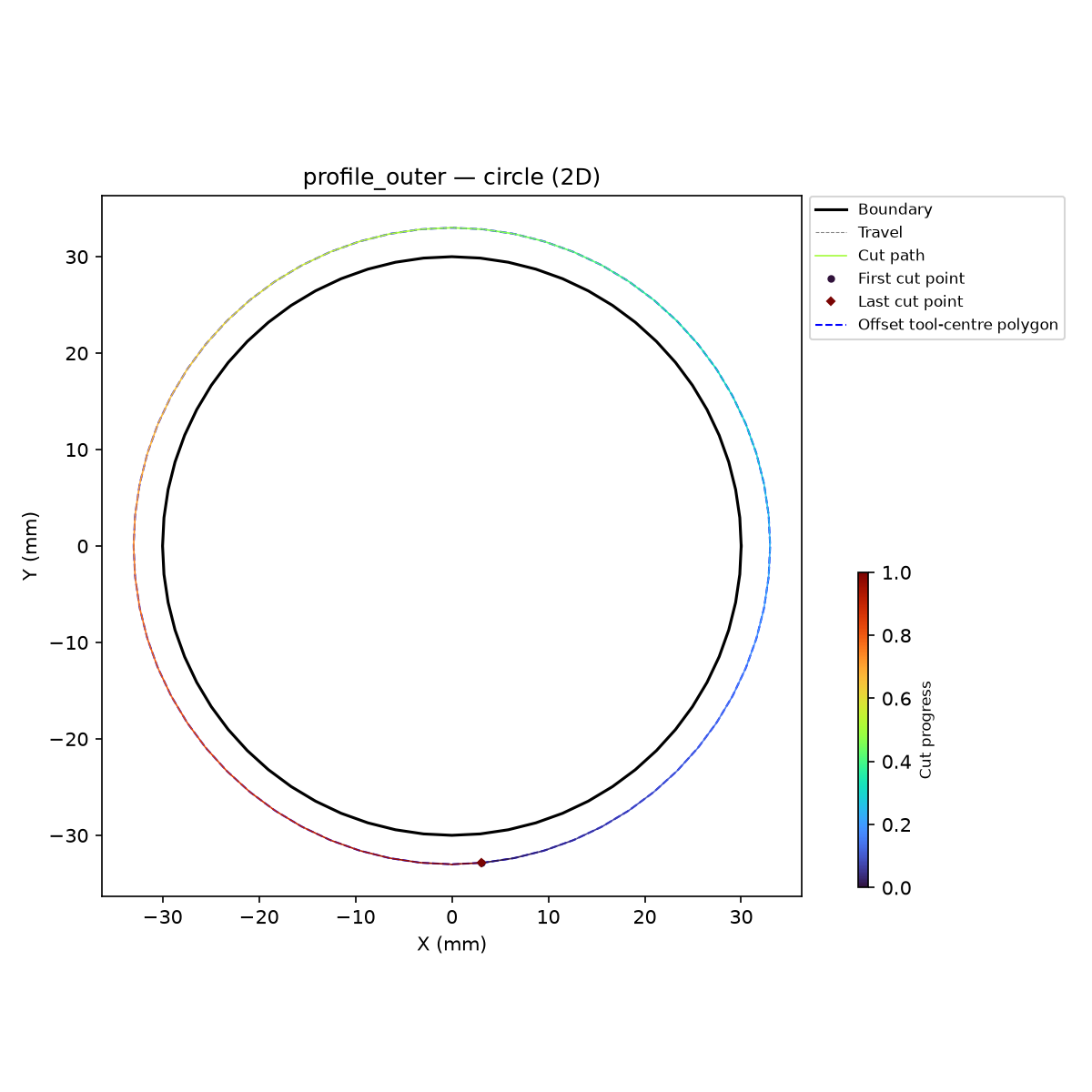

profile_outer on a circular boundary — smooth walk around the offset circle.

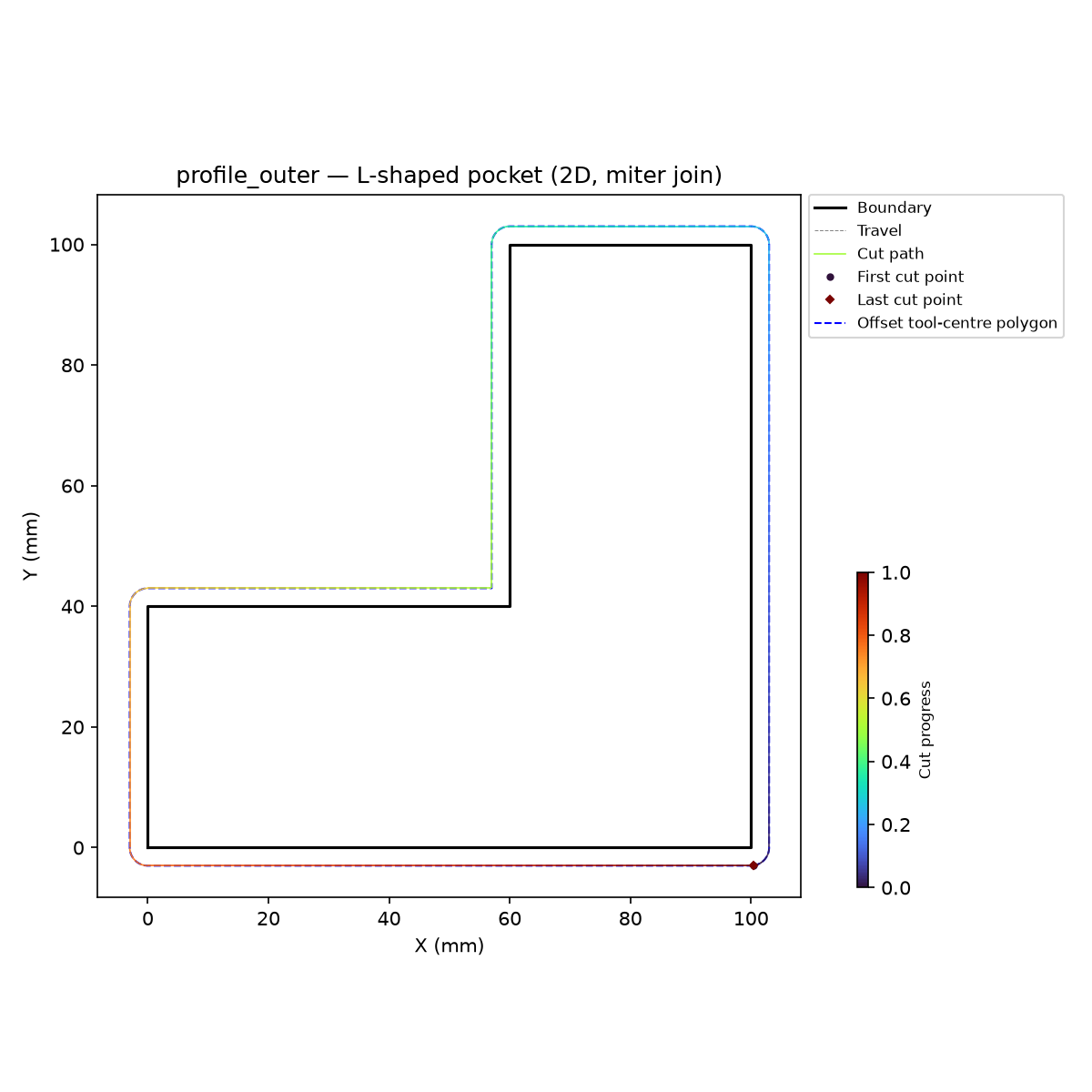

profile_outer on an L-shaped pocket with miter join at the concave corner.

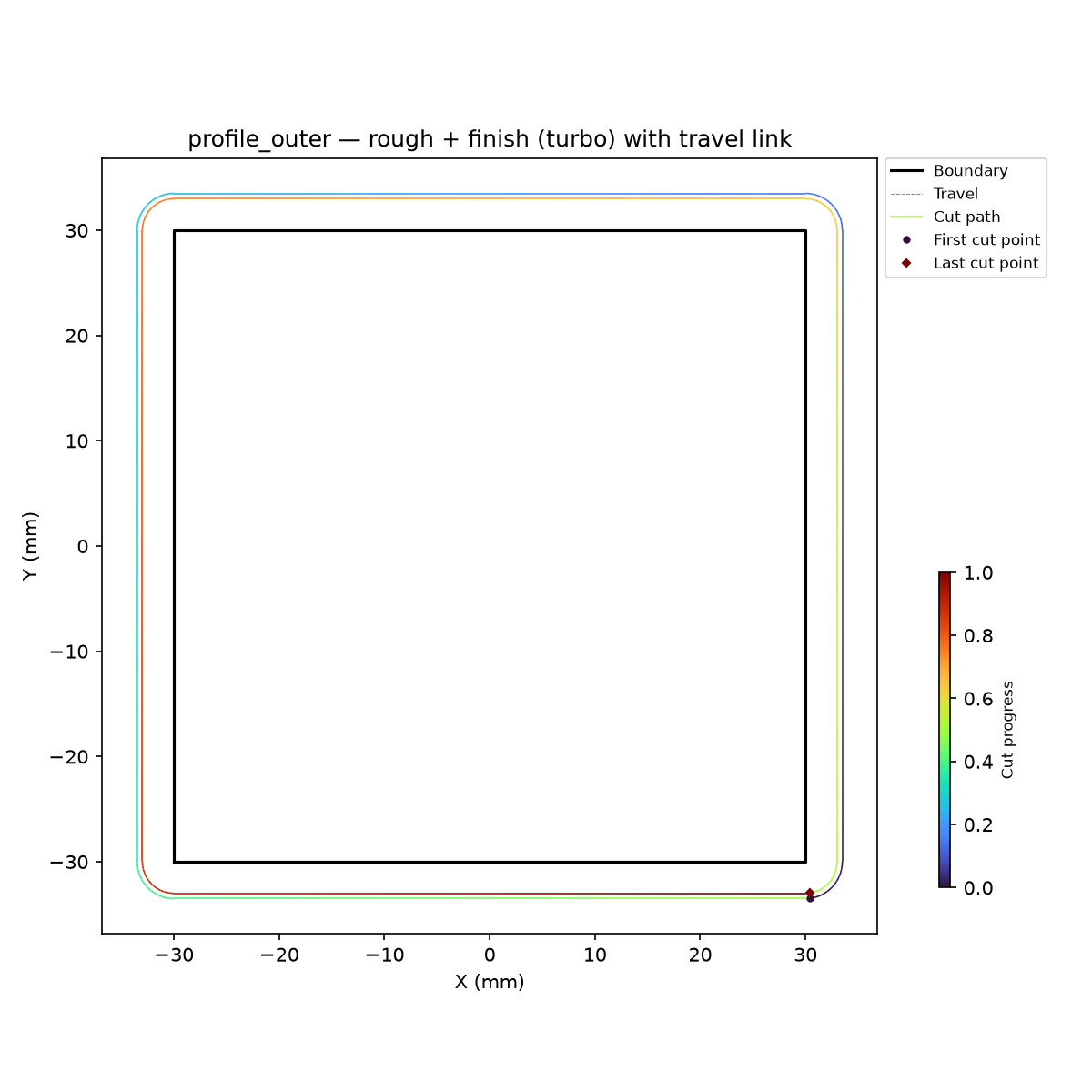

Two-pass profiling: rough (with stock, orange) + finish (red) on the same ClearedArea.
