raygeo.geo.shape.text

FontConfig

`bold`

bold: bool

`extra`

extra: dict

`family`

family: str

`font_family`

font_family: str

`font_size`

font_size: float

`italic`

italic: bool

`size`

size: float

`copy()`

copy() -> FontConfig

Parameter	Type	Description
Returns	`FontConfig`

`from_dict()`

from_dict(data: Optional[dict]) -> FontConfig

Parameter	Type	Description
`data`	`Optional[dict]`
Returns	`FontConfig`

`get_font_metrics()`

get_font_metrics() -> tuple[float, float, float]

Parameter	Type	Description
Returns	`tuple[float, float, float]`

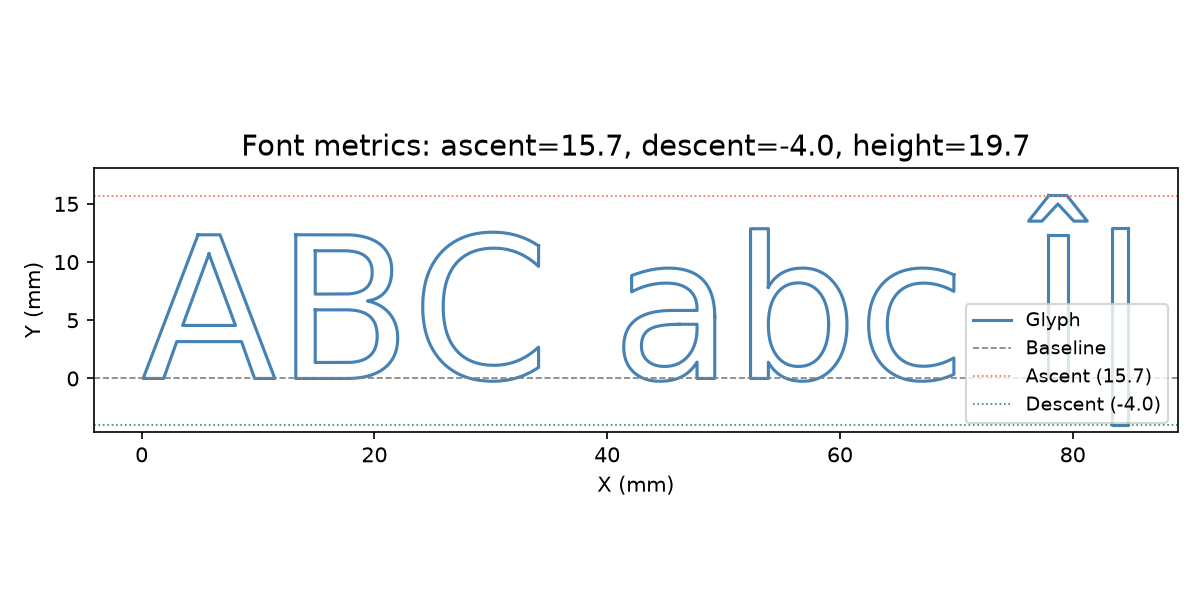

Ascent, descent, and height above the baseline

Ascent, descent, and height above the baseline

`get_text_position()`

get_text_position(text: str, index: int) -> float

Parameter	Type	Description
`text`	`str`
`index`	`int`
Returns	`float`

`get_text_width()`

get_text_width(text: str) -> float

Parameter	Type	Description
`text`	`str`
Returns	`float`

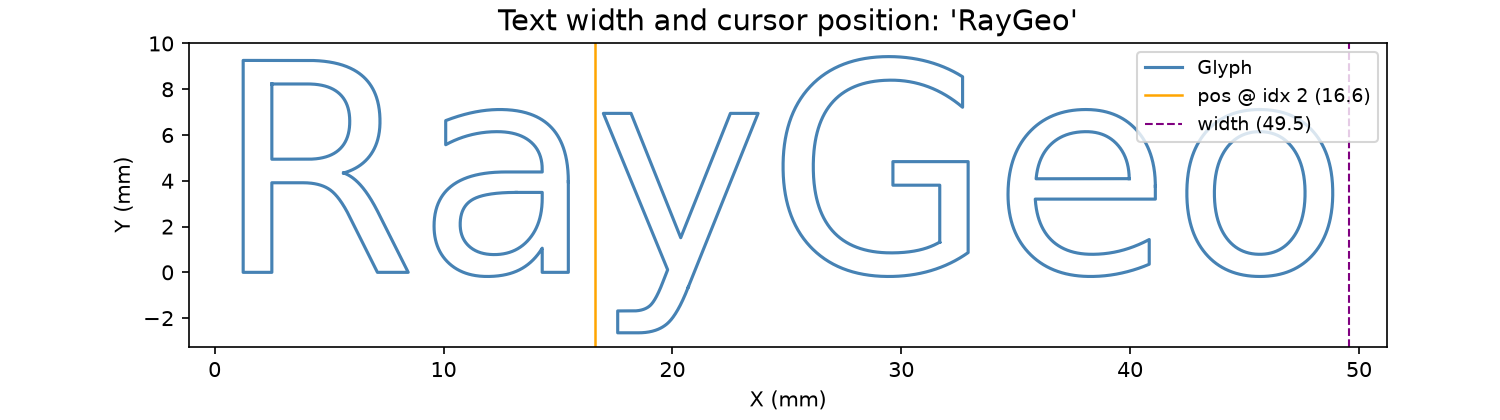

Text advance width and cursor position markers

Text advance width and cursor position markers

`to_dict()`

to_dict() -> dict

Parameter	Type	Description
Returns	`dict`

Functions

`text_to_geometry()`

text_to_geometry(
    text: str,
    font_config: geo.shape.text.FontConfig,
) -> geo.Geometry

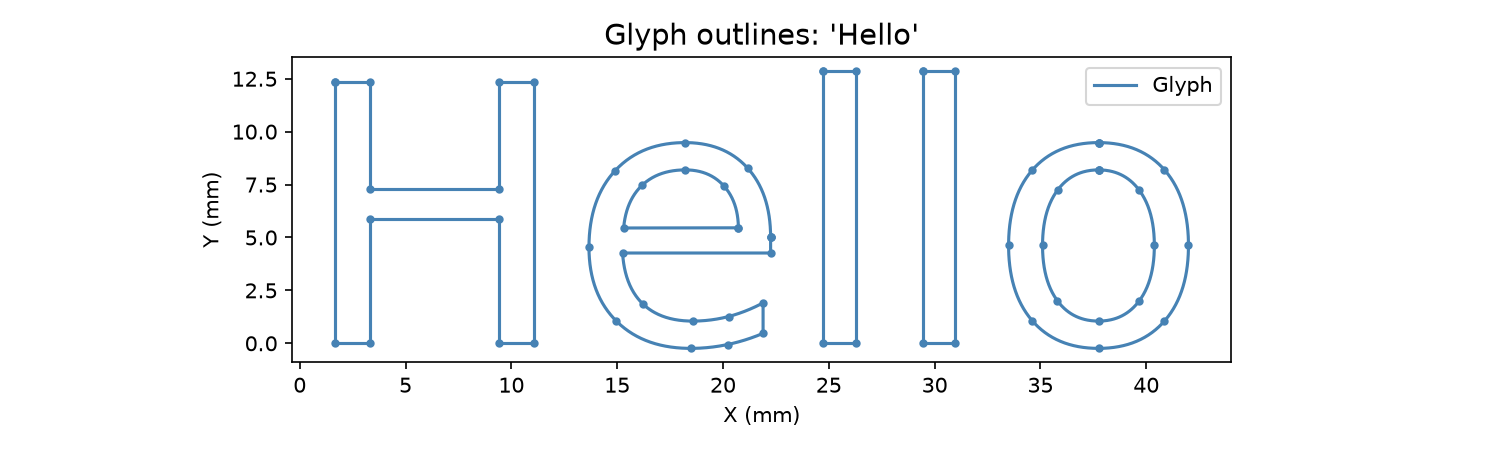

Convert a text string to a Geometry containing the glyph outlines.

Parameter	Type	Description
`text`	`str`
`font_config`	`geo.shape.text.FontConfig`
Returns	`geo.Geometry`

Glyph outlines rendered as vector geometry

Glyph outlines rendered as vector geometry
