raygeo.ops.assembly.profile

Functions

`profile_inner()`

profile_inner(
    cleared: ops.cut.cleared_area.ClearedArea,
    boundary: list[tuple[float, float]],
    islands: list[list[tuple[float, float]]] = [],
    tool_radius: float = 3,
    step_over: float = 1.5,
    step_length: float = 0.6,
    target_z: float = -5,
    safe_z: float = 2,
    wall_margin: float = 0,
    stock_to_leave: float = 0,
    cut_feed_rate: int = 1000,
    cut_power: float = 0,
    start_pos: tuple[float, float] | None = None,
    cut_direction: str = 'ccw',
    engagement_area_threshold: float = 0,
    engagement_angle_threshold: float = 3.141592653589793,
    trace_path: str | None = None,
) -> ops.assembly.result.AssemblyResult

Profile the inner boundary of a pocket, around islands.

Walks a tool around the inset boundary (offset inward by tool radius) and around accessible islands, so that the tool clears the material along the pocket walls and around each island. Returns an AssemblyResult with the profiling move sequence.

Parameter	Type	Description
`cleared`	`ops.cut.cleared_area.ClearedArea`	Cleared area tracker.
`boundary`	`list[tuple[float, float]]`	Outer boundary polygon as `(x, y)` pairs.
`islands`	`list[list[tuple[float, float]]] = []`	List of island (hole) polygons (default []).
`tool_radius`	`float = 3`	Tool radius in mm.
`step_over`	`float = 1.5`	Radial step-over between passes (mm).
`step_length`	`float = 0.6`	Forward step length in mm.
`target_z`	`float = -5`	Cutting depth (Z).
`safe_z`	`float = 2`	Safe (rapid) Z height.
`wall_margin`	`float = 0`	Extra distance to keep from the wall (mm).
`stock_to_leave`	`float = 0`	Stock left on wall for rough pass (mm, default 0.0).
`cut_feed_rate`	`int = 1000`	Feed rate in mm/min.
`cut_power`	`float = 0`	Spindle power (0.0–1.0).
`start_pos`	`tuple[float, float] \| None = None`	Optional override start `(x, y)` (default: first boundary vertex).
`cut_direction`	`str = 'ccw'`	`"cw"` or `"ccw"` (default `"ccw"`).
`engagement_area_threshold`	`float = 0`	Overengagement area threshold (mm², 0 = auto).
`engagement_angle_threshold`	`float = 3.141592653589793`	Overengagement angle threshold (rad, default π).
`trace_path`	`str \| None = None`	Optional path to write a binary trace file (default None).
Returns	`ops.assembly.result.AssemblyResult`	An AssemblyResult with the profiling path.

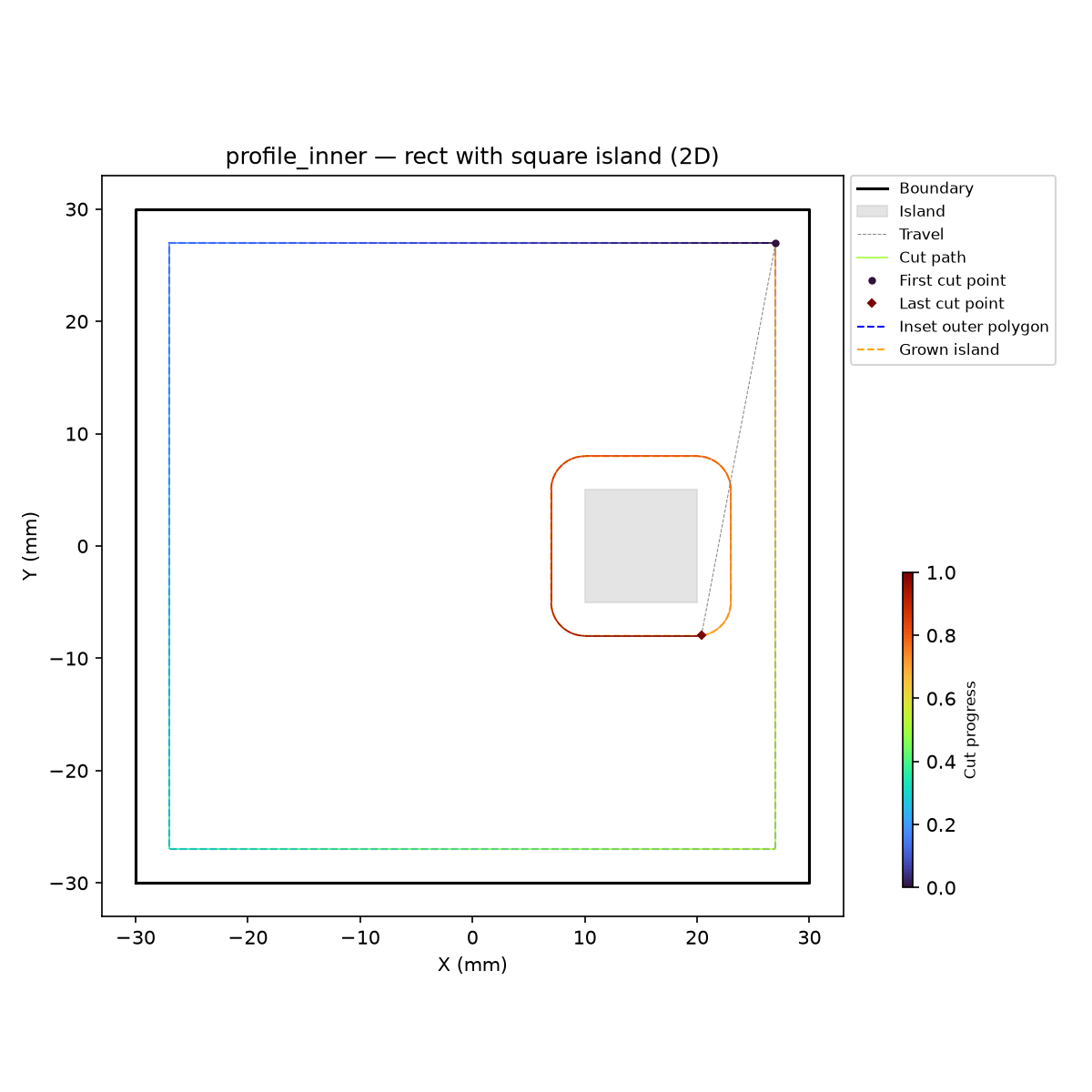

profile_inner on a square pocket with island — 2D: boundary, island, offset walks, cuts (turbo).

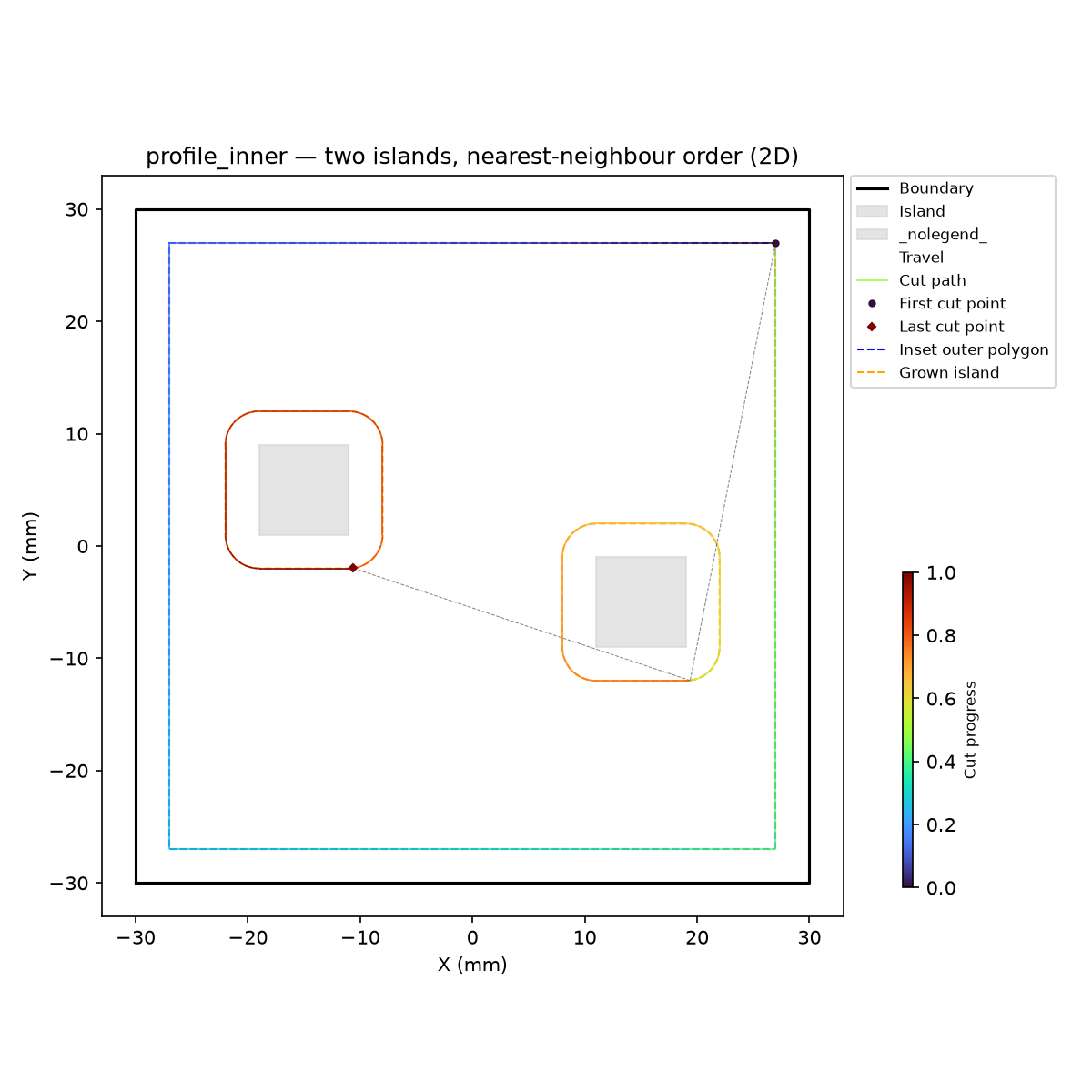

profile_inner with two accessible islands — nearest-neighbour order via turbo gradient.

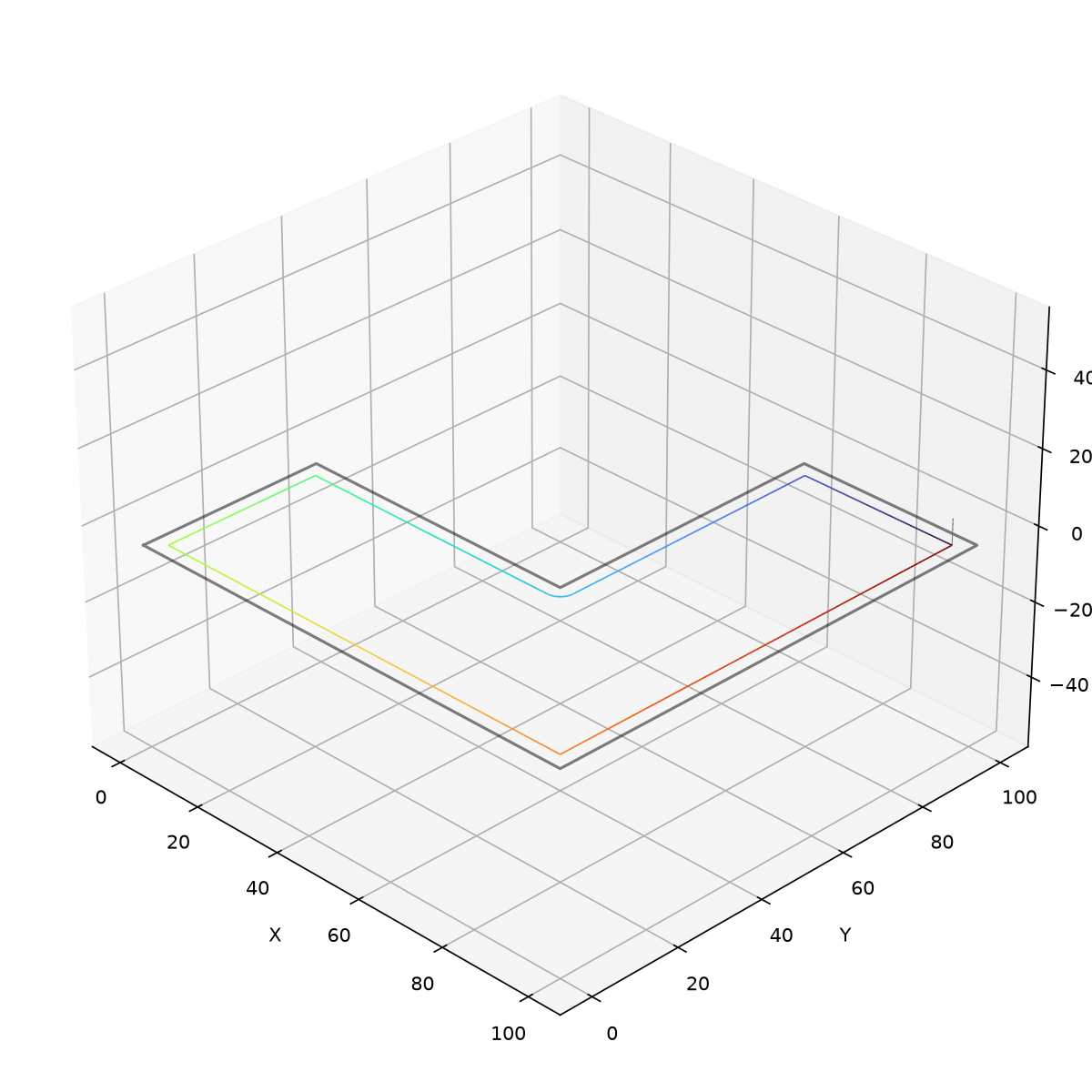

profile_inner on an L-shaped pocket with island — 3D: cut path at cut_z, rapids at safe_z.

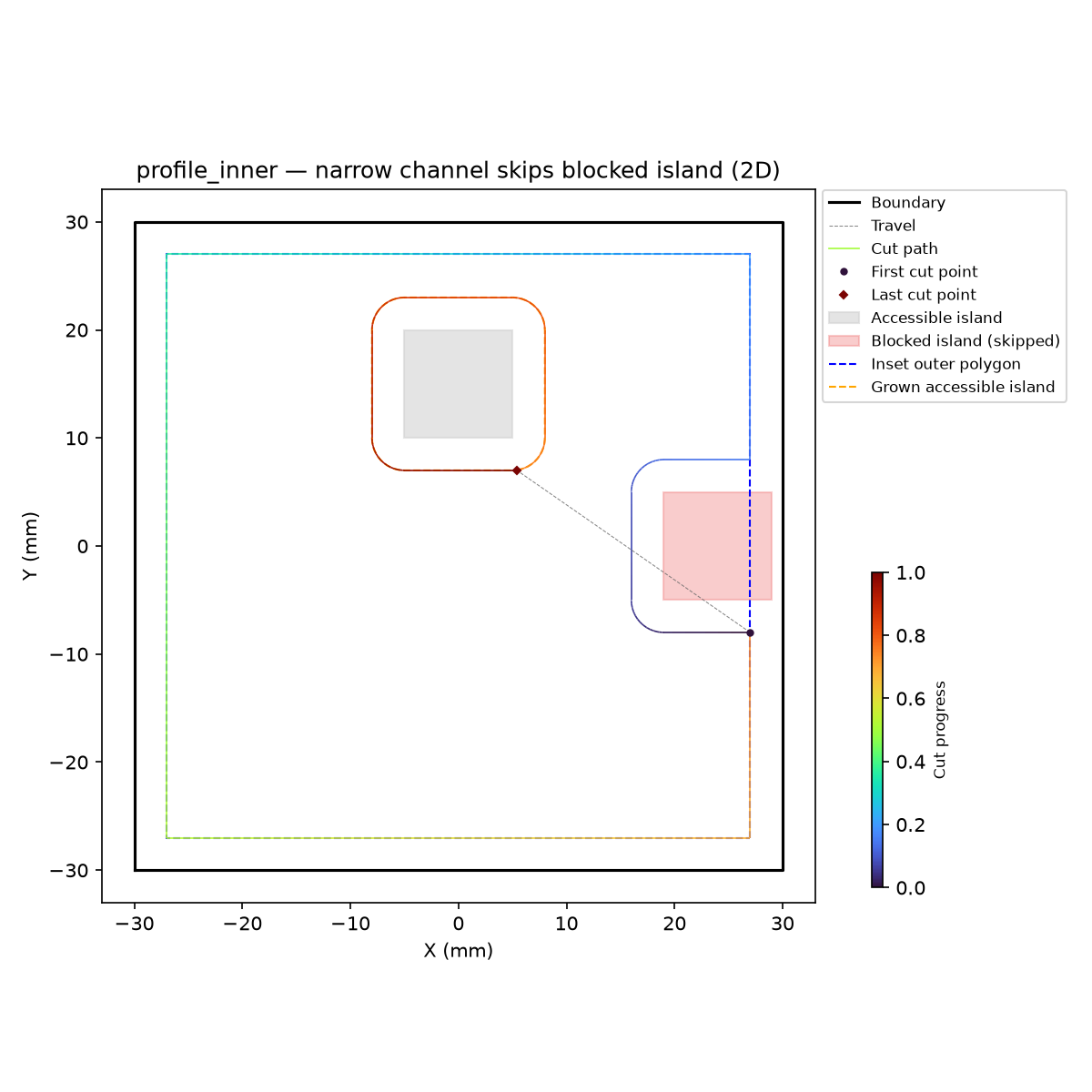

profile_inner skips an island when the channel between island and wall is too narrow.

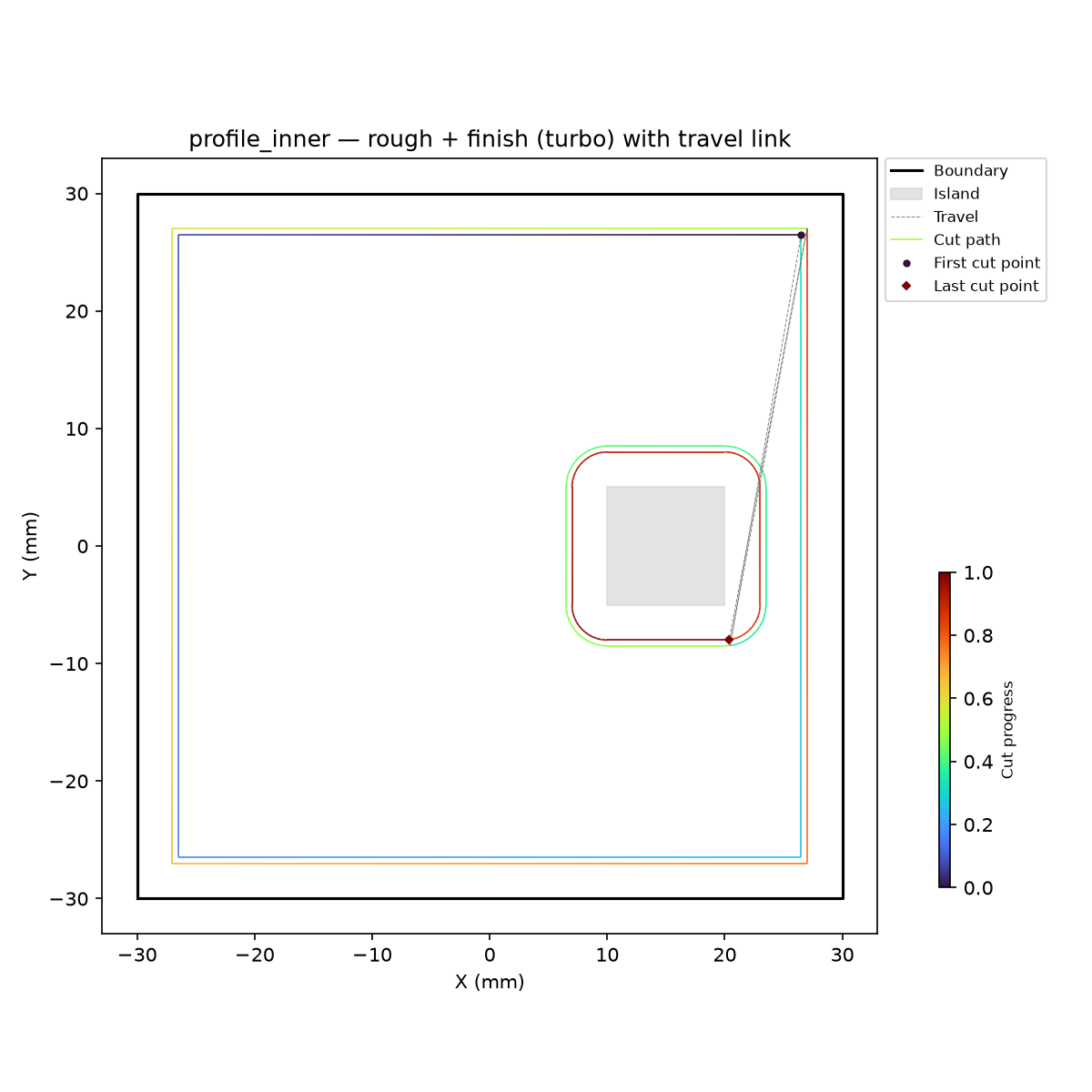

Two-pass inner profiling: rough (orange) + finish (red) on same ClearedArea.

`profile_outer()`

profile_outer(
    cleared: ops.cut.cleared_area.ClearedArea,
    boundary: list[tuple[float, float]],
    tool_radius: float,
    step_over: float,
    step_length: float,
    target_z: float,
    safe_z: float,
    wall_margin: float,
    cut_feed_rate: int,
    cut_power: float,
    start_pos: tuple[float, float] | None = None,
    cut_direction: str = 'ccw',
    stock_to_leave: float = 0,
    engagement_area_threshold: float = 0,
    engagement_angle_threshold: float = 3.141592653589793,
    trace_path: str | None = None,
) -> ops.assembly.result.AssemblyResult

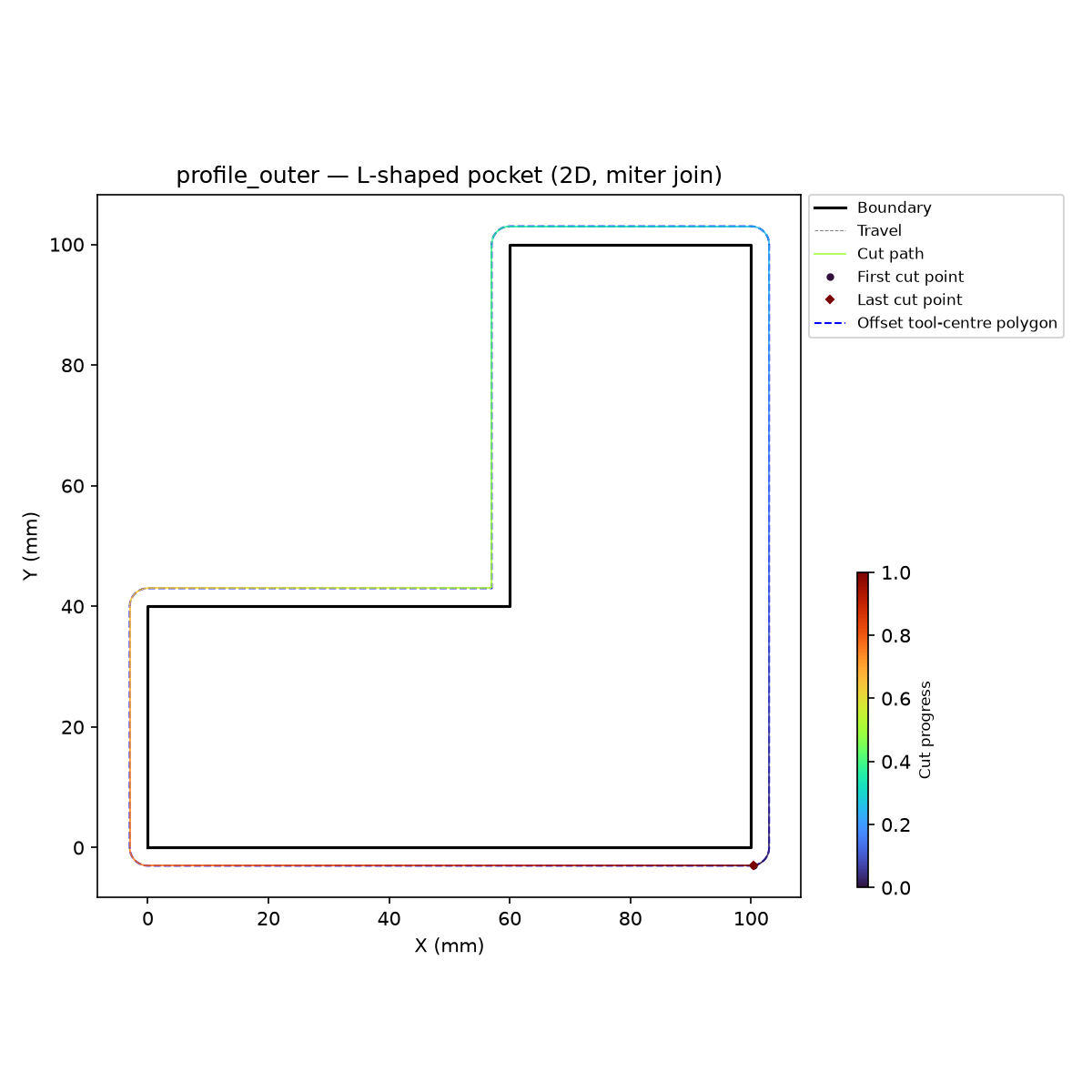

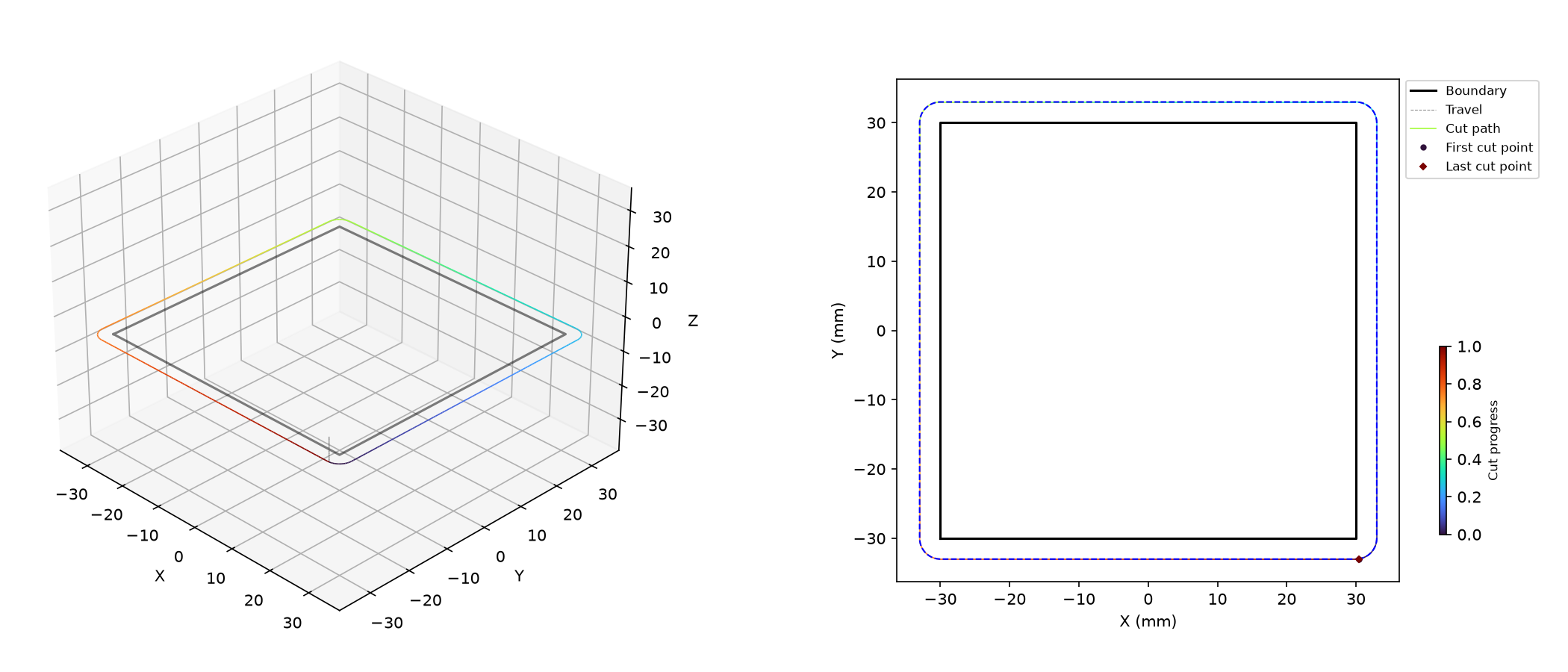

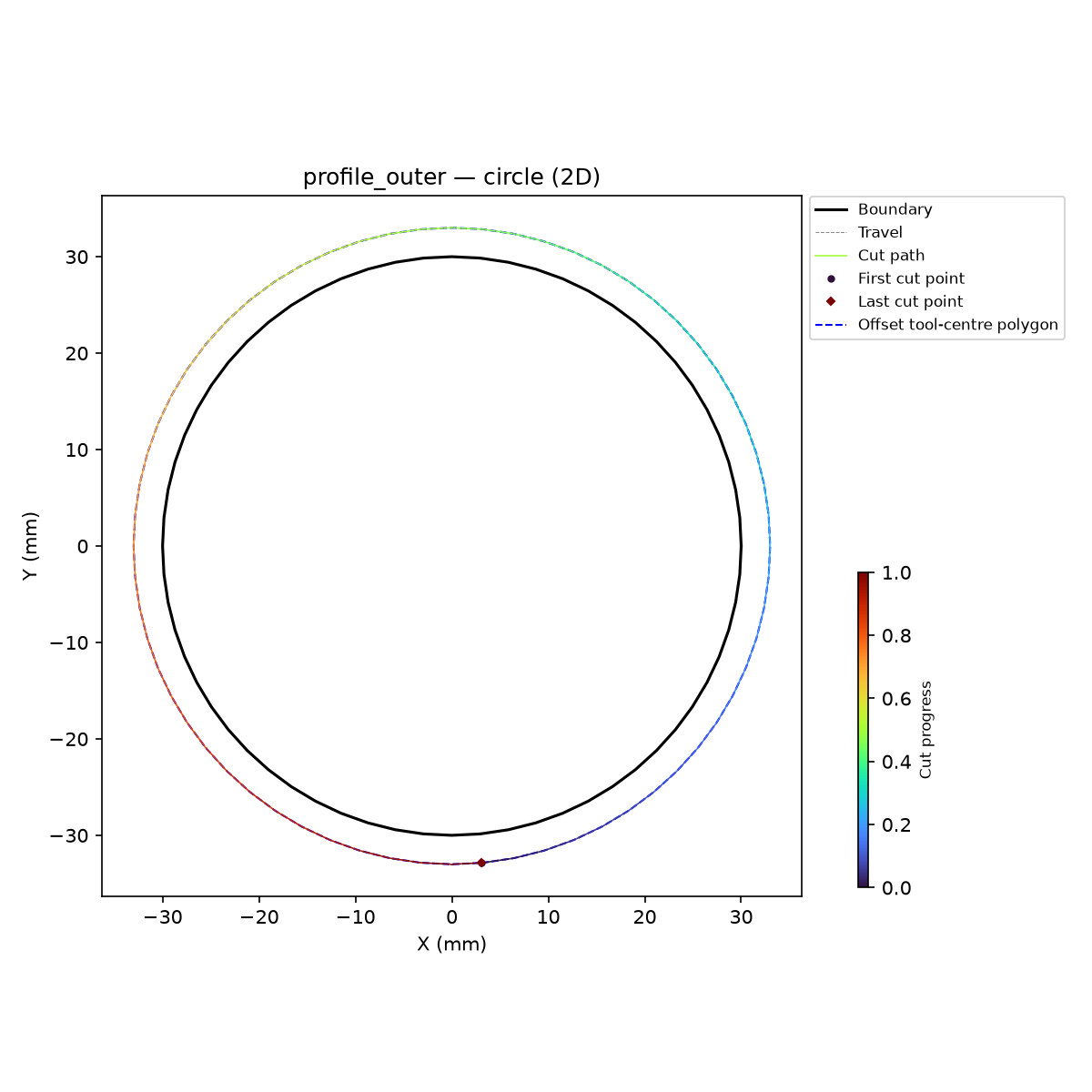

Profile the outer boundary of a pocket.

Walks a tool around the grown boundary (offset outward by tool radius). The path stays approximately one tool radius outside the original boundary, removing any excess stock on the outer side. Returns an AssemblyResult with the profiling move sequence.

Parameter	Type	Description
`cleared`	`ops.cut.cleared_area.ClearedArea`	Cleared area tracker.
`boundary`	`list[tuple[float, float]]`	Outer boundary polygon as `(x, y)` pairs.
`tool_radius`	`float`	Tool radius in mm.
`step_over`	`float`	Radial step-over between passes (mm).
`step_length`	`float`	Forward step length in mm.
`target_z`	`float`	Cutting depth (Z).
`safe_z`	`float`	Safe (rapid) Z height.
`wall_margin`	`float`	Extra distance to keep from the wall (mm).
`cut_feed_rate`	`int`	Feed rate in mm/min.
`cut_power`	`float`	Spindle power (0.0–1.0).
`start_pos`	`tuple[float, float] \| None = None`	Optional override start `(x, y)` (default: first boundary vertex).
`cut_direction`	`str = 'ccw'`	`"cw"` or `"ccw"` (default `"ccw"`).
`stock_to_leave`	`float = 0`	Stock left on wall for rough pass (mm, default 0.0).
`engagement_area_threshold`	`float = 0`	Overengagement area threshold (mm², 0 = auto).
`engagement_angle_threshold`	`float = 3.141592653589793`	Overengagement angle threshold (rad, default π).
`trace_path`	`str \| None = None`	Optional path to write a binary trace file (default None).
Returns	`ops.assembly.result.AssemblyResult`	An AssemblyResult with the profiling path.
