raygeo.cnc.plan.clearing

CNC clearing plan builder.

Produces a ~raygeo.cnc.plan.Plan organised as a BFS traversal of the pocket's region/passage graph.

ClearingWorkplanOptions

The tool and machining parameters plan_clearing plans from.

The pocket boundary and islands are read from the Part — this class carries only the tool and machining parameters.

angular_step

angular_step: float

area_tolerance

area_tolerance: float

cut_direction

cut_direction: str

"cw" or "ccw": how passes walk their loops.

feed_rate

feed_rate: Optional[float]

Cut feed rate (mm/min) the plan's moves carry; None leaves the cut state unset, for embedders that map feeds themselves.

finishing

finishing: bool

max_deflection_deg

max_deflection_deg: float

max_entry_angle_deg

max_entry_angle_deg: float

Steepest entry descent in degrees; <= 0 keeps the planner's historical entry behaviour.

plunge_feed

plunge_feed: Optional[float]

Vertical plunge feed (mm/min) for descents into material; None falls back to the cut feed.

plunge_pitch

plunge_pitch: float

safe_margin

safe_margin: float

safe_z

safe_z: float

step_length

step_length: float

step_over

step_over: float

stock_to_leave

stock_to_leave: float

target_z

target_z: float

tool_radius

tool_radius: float

travel_mode

travel_mode: str

"cleared_area" or "safe_z": how travels are routed.

wall_margin

wall_margin: float

for_tool()

for_tool(
    tool_radius: float,
    step_over: float,
    target_z: float,
    safe_z: float,
) -> ClearingWorkplanOptions

Options carrying the planner's canonical scales for tool_radius: a fifth-of-a-radius step length, a fifth-of-a-radius safe margin, a plunge pitch of a third of the radius, and the planner's angular and area tuning (0.1 rad angular steps, a 1.0 mm² area tolerance, 30° max deflection). The per-operation fields keep their neutral defaults; set step_over, wall_margin, stock_to_leave, finishing, max_entry_angle_deg and the feeds on the result.

Parameter	Type	Description
tool_radius	float	Tool radius in mm.
step_over	float	Radial step-over between passes (mm).
target_z	float	Cutting depth (Z).
safe_z	float	Safe (rapid) Z height.
Returns	ClearingWorkplanOptions

Functions

plan_clearing()

plan_clearing(
    part: part.Part,
    face_id: str = '',
    tool_radius: float = 3.0,
    step_over: float = 2.0,
    step_length: float = 0.6,
    target_z: float = -5.0,
    safe_z: float = 2.0,
    wall_margin: float = 0.0,
    safe_margin: float = 1.0,
    stock_to_leave: float = 0.0,
    plunge_pitch: float = 1.0,
    angular_step: float = 0.1,
    area_tolerance: float = 1.0,
    max_deflection_deg: float = 30.0,
    finishing: bool = False,
    feed_rate: Optional[float] = None,
    plunge_feed: Optional[float] = None,
    max_entry_angle_deg: float = 0.0,
    cut_direction: str = 'ccw',
    travel_mode: str = 'cleared_area',
) -> plan.Plan

Parameter	Type	Description
part	part.Part
face_id	str = ''
tool_radius	float = 3.0
step_over	float = 2.0
step_length	float = 0.6
target_z	float = -5.0
safe_z	float = 2.0
wall_margin	float = 0.0
safe_margin	float = 1.0
stock_to_leave	float = 0.0
plunge_pitch	float = 1.0
angular_step	float = 0.1
area_tolerance	float = 1.0
max_deflection_deg	float = 30.0
finishing	bool = False
feed_rate	Optional[float] = None
plunge_feed	Optional[float] = None
max_entry_angle_deg	float = 0.0
cut_direction	str = 'ccw'
travel_mode	str = 'cleared_area'
Returns	plan.Plan

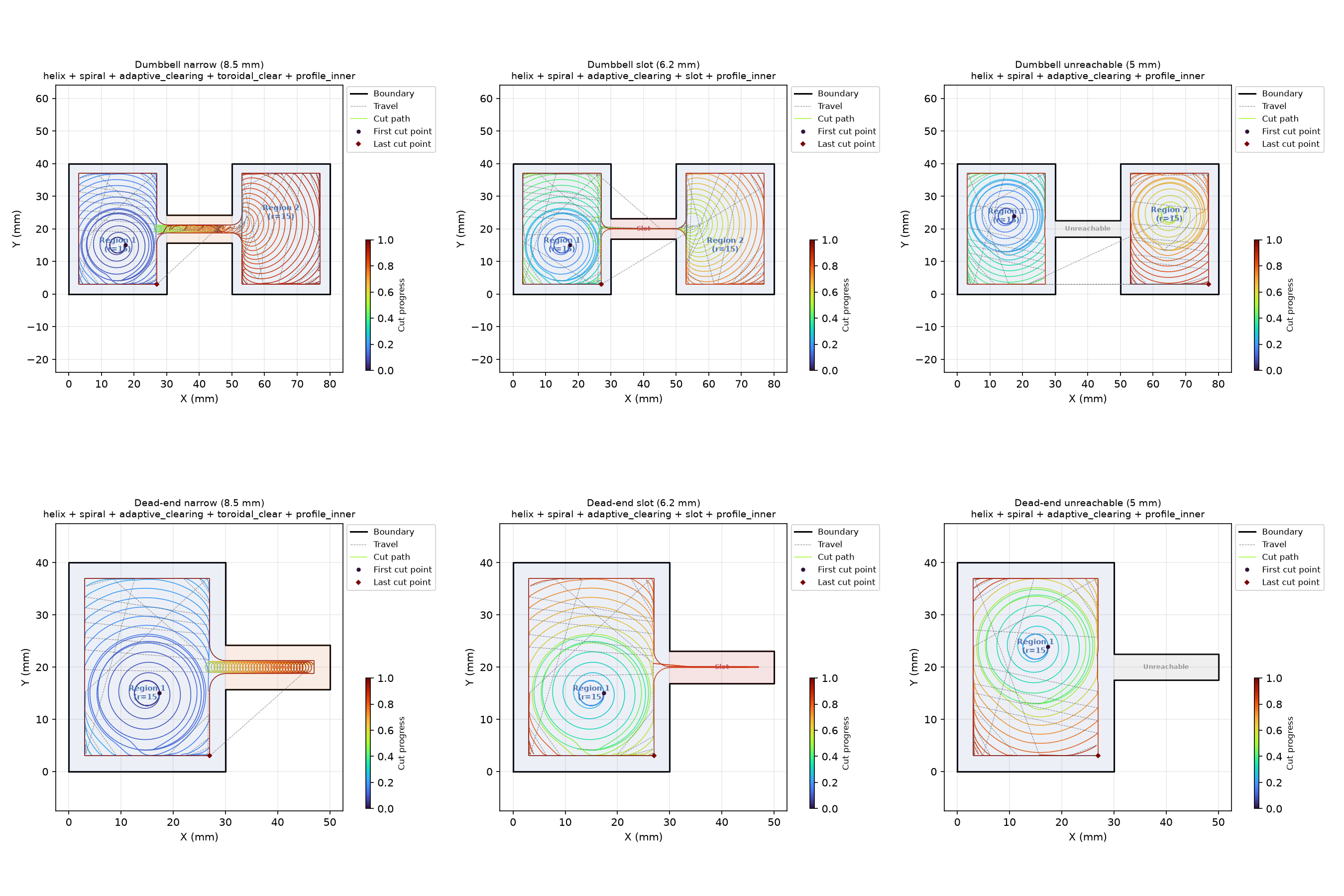

Clearing workplan: narrow passage (ToroidalClear), slot (Slot), dual-entry dumbbell (Unreachable).

The same pockets with a 0.5 mm wall margin: too-narrow passages stay uncut.

Cut direction: climb ('ccw', left) vs conventional ('cw', right) — arrows mark the walk.
