raygeo.ops.assembly.helix

HelixSpec

Parameters for the helix assembler.

angular_step

angular_step: float

center

center: tuple[float, float]

direction

direction: str

"CW" or "CCW".

pitch

pitch: float

start_radius

start_radius: float

z_end

z_end: float

z_start

z_start: float

Functions

generate_helix()

generate_helix(
    part: ops.part.Part,
    center: tuple[float, float],
    start_radius: float,
    z_start: float,
    z_end: float,
    pitch: float,
    direction: str = 'CW',
    angular_step: float = 0.1,
    state: ops.state.State | None = None,
) -> ops.assembly.AssemblyResult

Generate a helical entry path.

Produces a helical toolpath from z_start to z_end at the given center and start_radius.

Parameter	Type	Description
part	ops.part.Part
center	tuple[float, float]	(x, y) center of the helix.
start_radius	float	Radius of the helix in mm.
z_start	float	Starting Z height.
z_end	float	Ending (target) Z depth.
pitch	float	Vertical descent per full revolution.
direction	str = 'CW'	"CW" or "CCW" (default "CW").
angular_step	float = 0.1	Angular step in radians (default 0.1).
state	ops.state.State | None = None	Optional machine state to apply before the path.
Returns	ops.assembly.AssemblyResult	An AssemblyResult with the helical path.

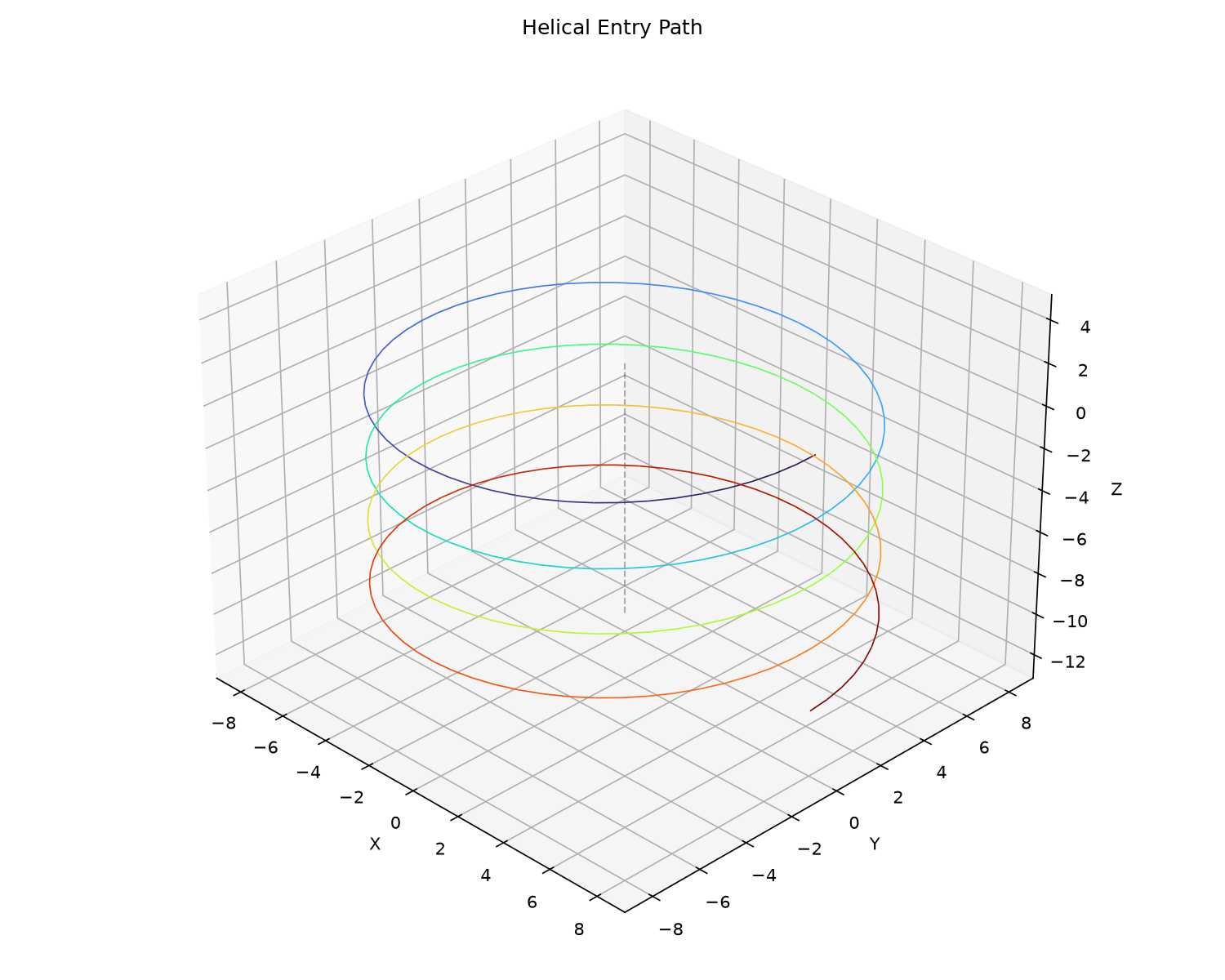

Helical entry path from safe Z to target depth
