raygeo.cnc.plan.clearing

CNC clearing plan builder.

Produces a ~raygeo.cnc.plan.Plan organised as a BFS traversal of the pocket's region/passage graph.

Functions

plan_clearing()

plan_clearing(
    part: part.Part,
    face_id: str = '',
    tool_radius: float = 3.0,
    step_over: float = 2.0,
    step_length: float = 0.6,
    target_z: float = -5.0,
    safe_z: float = 2.0,
    wall_margin: float = 0.0,
    safe_margin: float = 1.0,
    stock_to_leave: float = 0.0,
    plunge_pitch: float = 1.0,
    angular_step: float = 0.1,
    area_tolerance: float = 1.0,
    max_deflection_deg: float = 30.0,
    finishing: bool = False,
) -> plan.Plan

Parameter	Type	Description
part	part.Part
face_id	str = ''
tool_radius	float = 3.0
step_over	float = 2.0
step_length	float = 0.6
target_z	float = -5.0
safe_z	float = 2.0
wall_margin	float = 0.0
safe_margin	float = 1.0
stock_to_leave	float = 0.0
plunge_pitch	float = 1.0
angular_step	float = 0.1
area_tolerance	float = 1.0
max_deflection_deg	float = 30.0
finishing	bool = False
Returns	plan.Plan

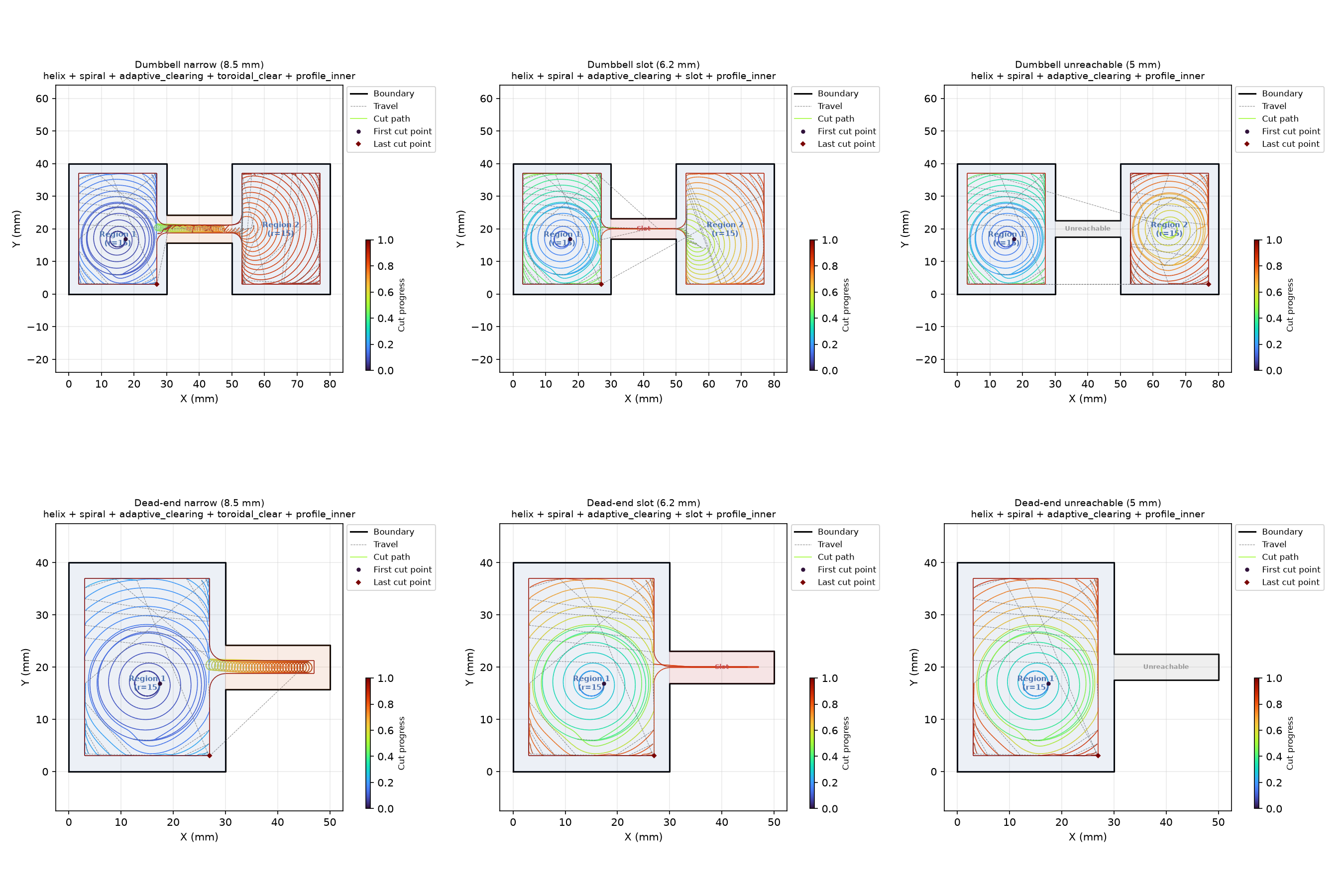

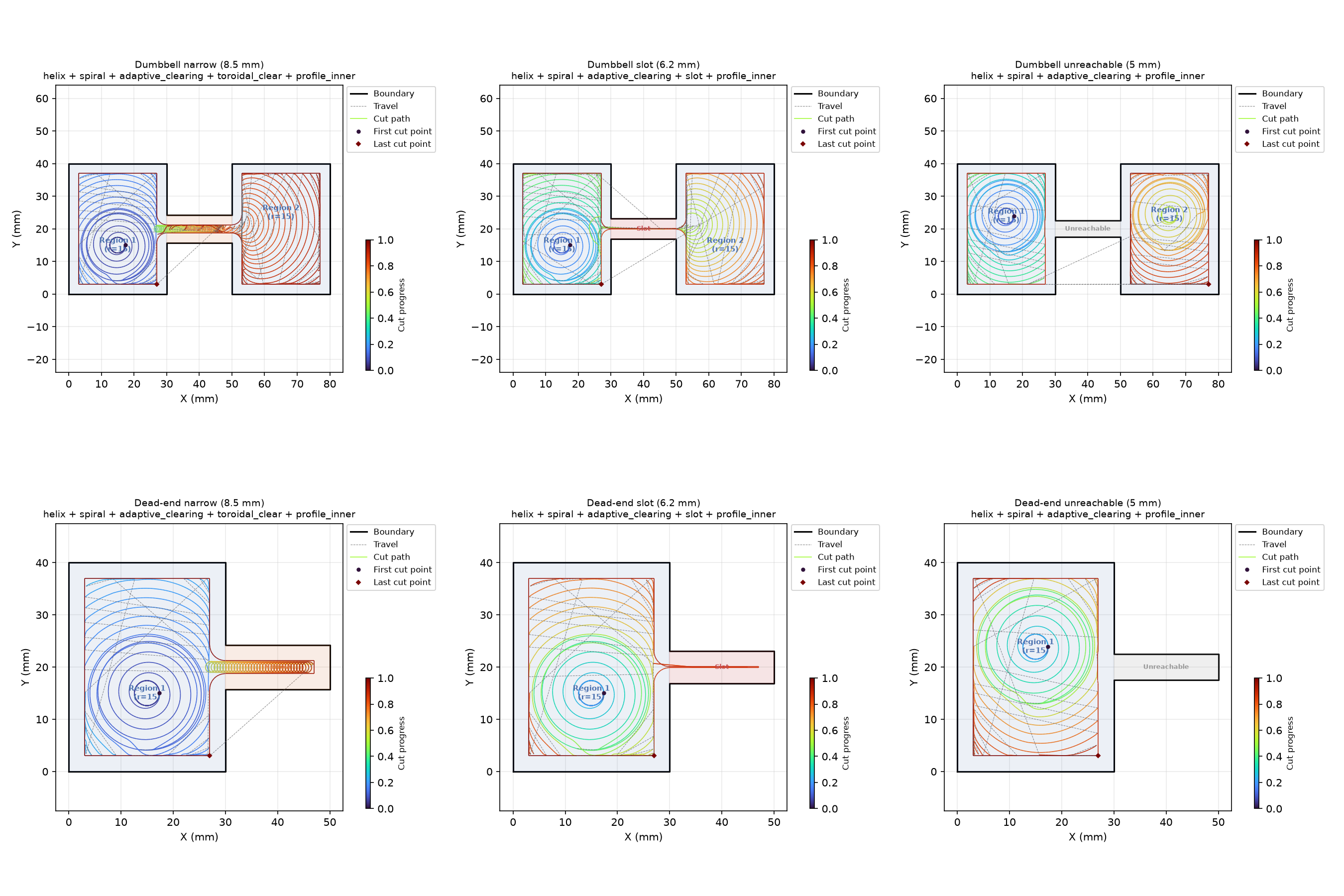

Clearing workplan: narrow passage (ToroidalClear), slot (Slot), dual-entry dumbbell (Unreachable).
