raygeo.ops.cut.cleared_area

ClearedArea tracking a simulated raster toolpath — cleared fragments shown in blue, remaining area in red

ClearedArea

angular_engagement()

angular_engagement(center: tuple[float, float], radius: float) -> float

Compute angular engagement by exact circle–polygon intersection.

Creates a disk polygon at center with radius, intersects it with all nearby cleared fragments, and returns the uncleared angular extent in [0, 2π].

Parameter	Type	Description
center	tuple[float, float]	Query point (x, y).
radius	float	Disk radius (mm).
Returns	float	Uncleared angular extent (radians).

begin_batch()

begin_batch() -> None

Begin buffering single‑segment expansions.

Subsequent calls to expand_batched are queued without a union. Call commit_batch to union all queued sweeps with the stored fragments in a single pass.

Calling this while a batch is already active is a no‑op.

Parameter	Type	Description
Returns	None

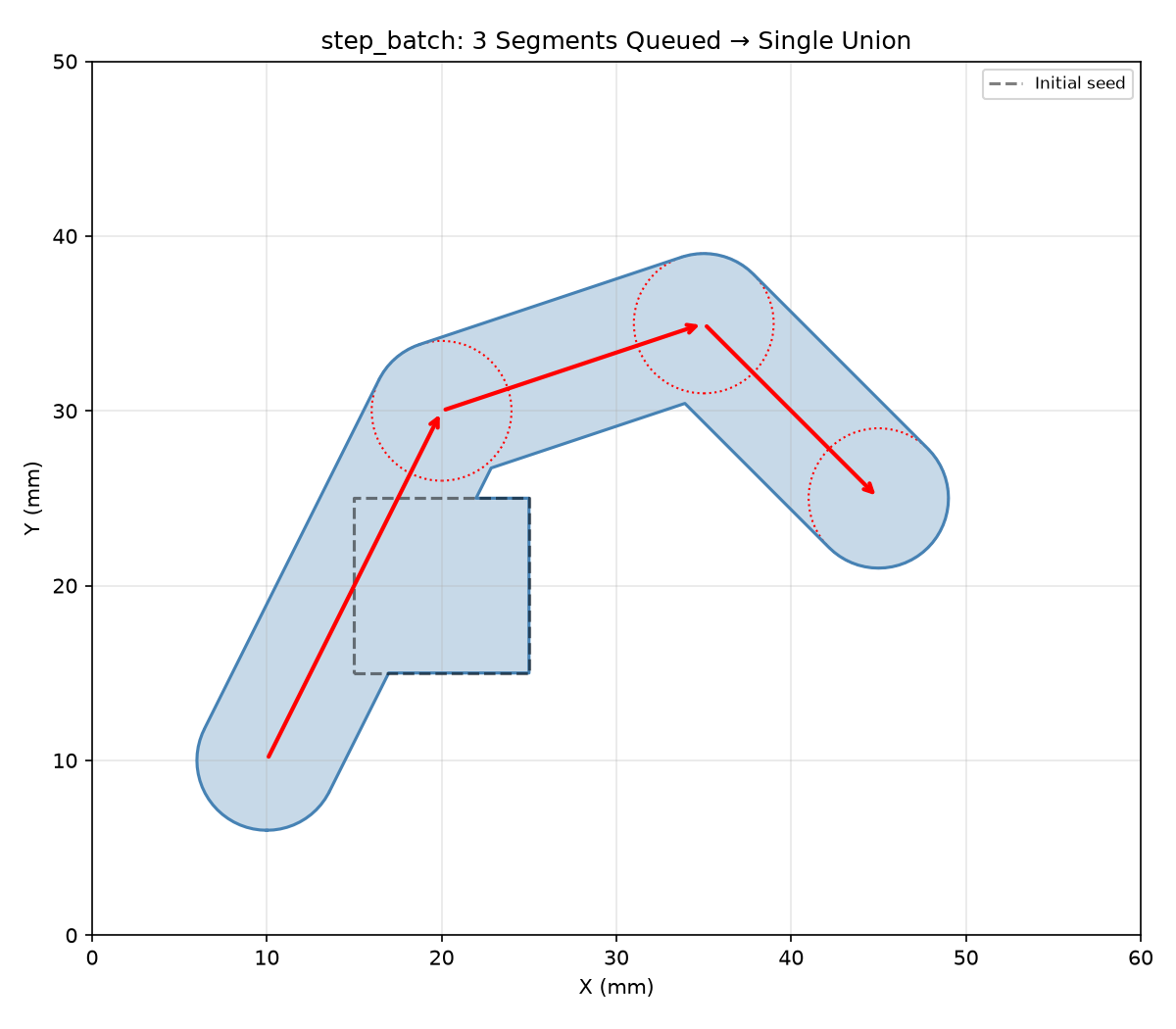

Three segments queued via begin_batch / expand_batched then unioned in a single commit_batch pass.

bites()

bites(
    step_over: float,
    tool_radius: float,
    simplify_tol: float,
) -> list[list[tuple[float, float]]]

Compute the "bites" — new material reachable by expanding the current frontier outward by step_over, clipping to the tool-centre envelope, and subtracting already-cleared portions.

Parameter	Type	Description
step_over	float	Lateral step-over in mm.
tool_radius	float	Tool radius (mm) for computing the envelope.
simplify_tol	float	Tolerance in mm for frontier simplification.
Returns	list[list[tuple[float, float]]]	List of polygons representing the bite regions.
Complexity		O(n log n)

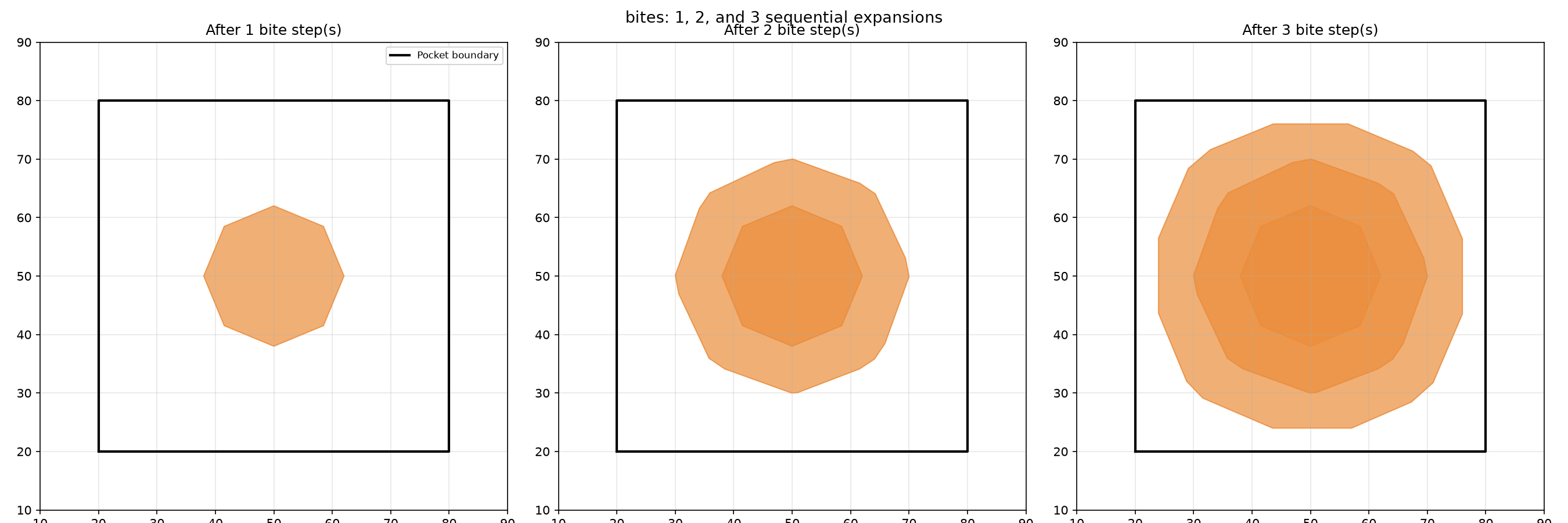

bites computes the expansible material — the crescent-shaped regions of uncut material reachable by expanding the frontier by step_over.

commit_batch()

commit_batch() -> None

Union all buffered sweeps with stored fragments in a single pass, then rebuild the spatial grid.

After this call the batch is closed (the caller may start a new one).

Parameter	Type	Description
Returns	None

commit_batch_local()

commit_batch_local() -> None

Union only the buffered sweeps with nearby overlapping fragments, using the spatial grid to avoid touching distant fragments.

After this call the batch is closed (the caller may start a new one).

Parameter	Type	Description
Returns	None

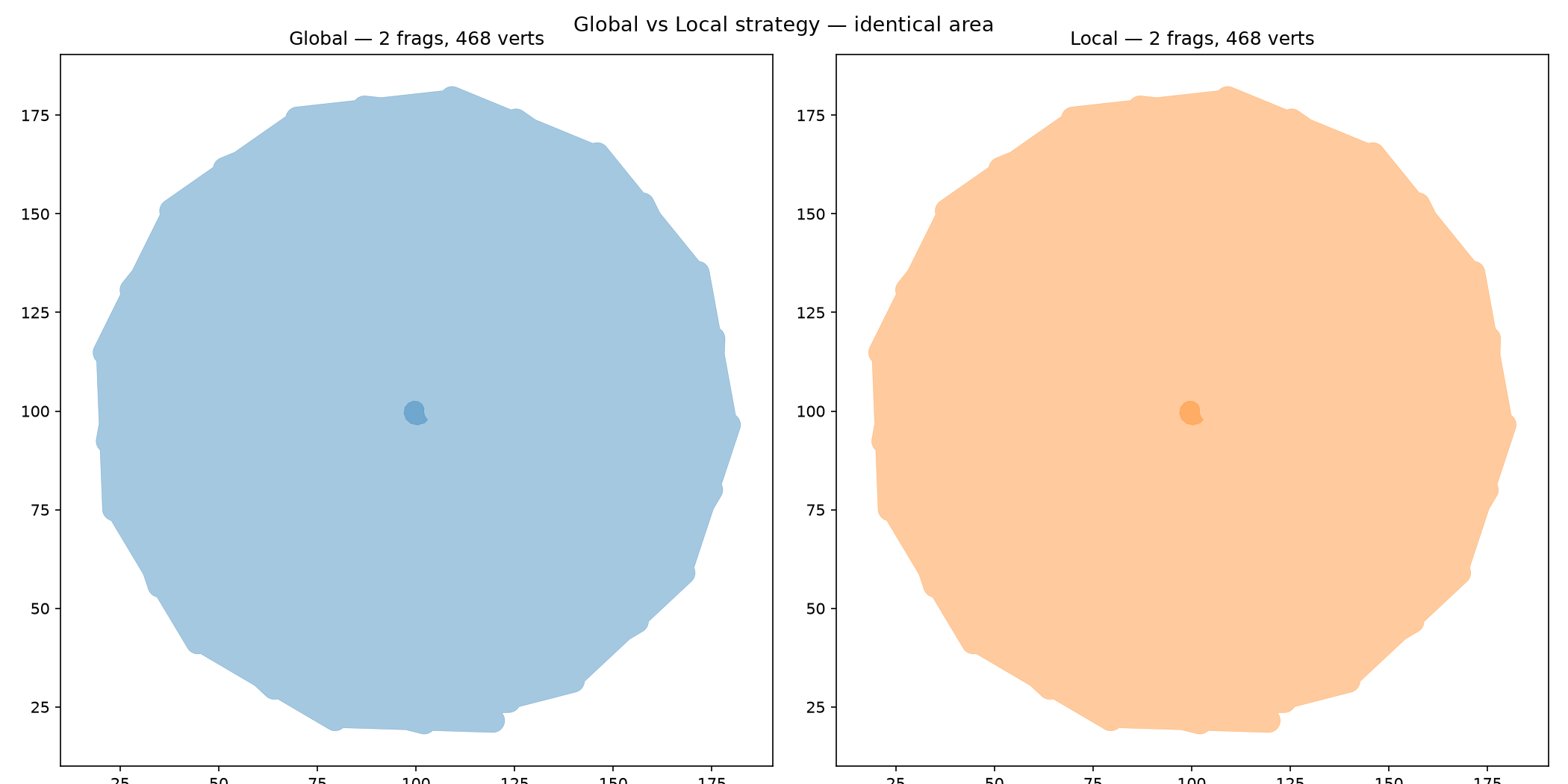

commit_batch (global union) vs commit_batch_local (grid-local merge) — identical cleared area, but Local updates only the fragments whose bbox overlaps each new swept polygon.

compact_if_needed()

compact_if_needed(tol: float) -> None

Compact fragments if total vertex count exceeds the default threshold.

Parameter	Type	Description
tol	float	Vertex simplification tolerance in mm.
Returns	None

compact_if_needed_threshold()

compact_if_needed_threshold(tol: float, threshold: int) -> None

Compact with an explicit vertex-count threshold.

Parameter	Type	Description
tol	float	Vertex simplification tolerance in mm.
threshold	int	Vertex count threshold above which compaction is triggered.
Returns	None

cut()

cut(polygons: Sequence[Sequence[tuple[float, float]]]) -> None

Add pre‑computed polygons to the cleared set.

Parameter	Type	Description
polygons	Sequence[Sequence[tuple[float, float]]]	List of polygons (each a list of (x, y) vertices) to add.
Returns	None
Complexity		O(n) where n = total vertices across all polygons

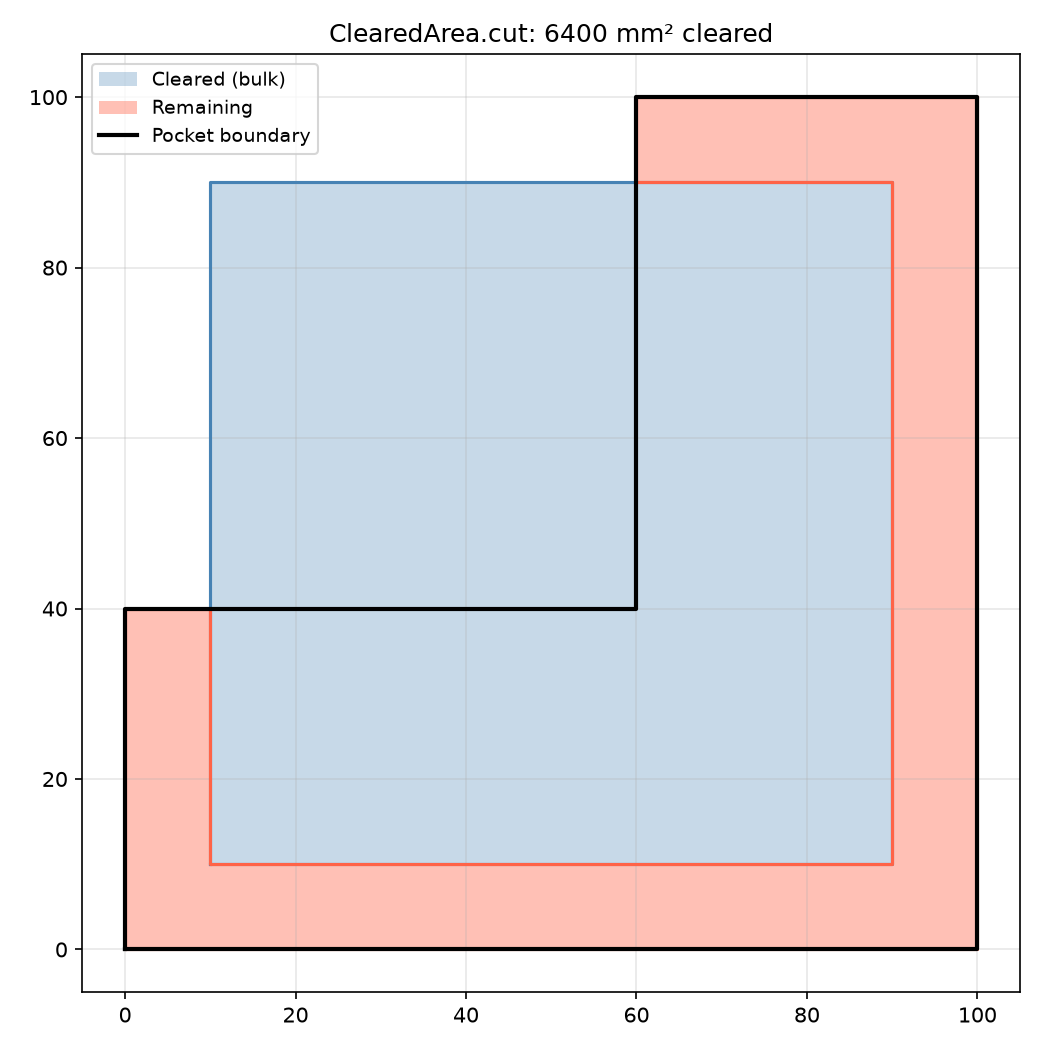

ClearedArea with bulk polygon insertion via cut — cleared region in blue, remaining area in red

cut_area()

cut_area(
    c1: tuple[float, float],
    c2: tuple[float, float],
    radius: float,
) -> float

Incremental cut area when the tool moves from c1 to c2.

Computes the fresh material area inside the disk at c2 that is not already cleared (crescent area).

Parameter	Type	Description
c1	tuple[float, float]	Previous centre (x, y).
c2	tuple[float, float]	Next centre (x, y).
radius	float	Disk radius (mm).
Returns	float	Fresh cut area (mm²).

cut_fast()

cut_fast(
    polygons: Sequence[Sequence[tuple[float, float]]],
) -> list[list[tuple[float, float]]]

Add polygons, returning only the newly-added portion. Faster than cut when inputs don't overlap existing fragments (skips the full union).

         O(n) when inputs are disjoint from existing fragments

Parameter	Type	Description
polygons	Sequence[Sequence[tuple[float, float]]]	List of polygons to add.
Returns	list[list[tuple[float, float]]]	List of polygons representing the newly-added portion.
Complexity		O(n log n) worst case when union required,

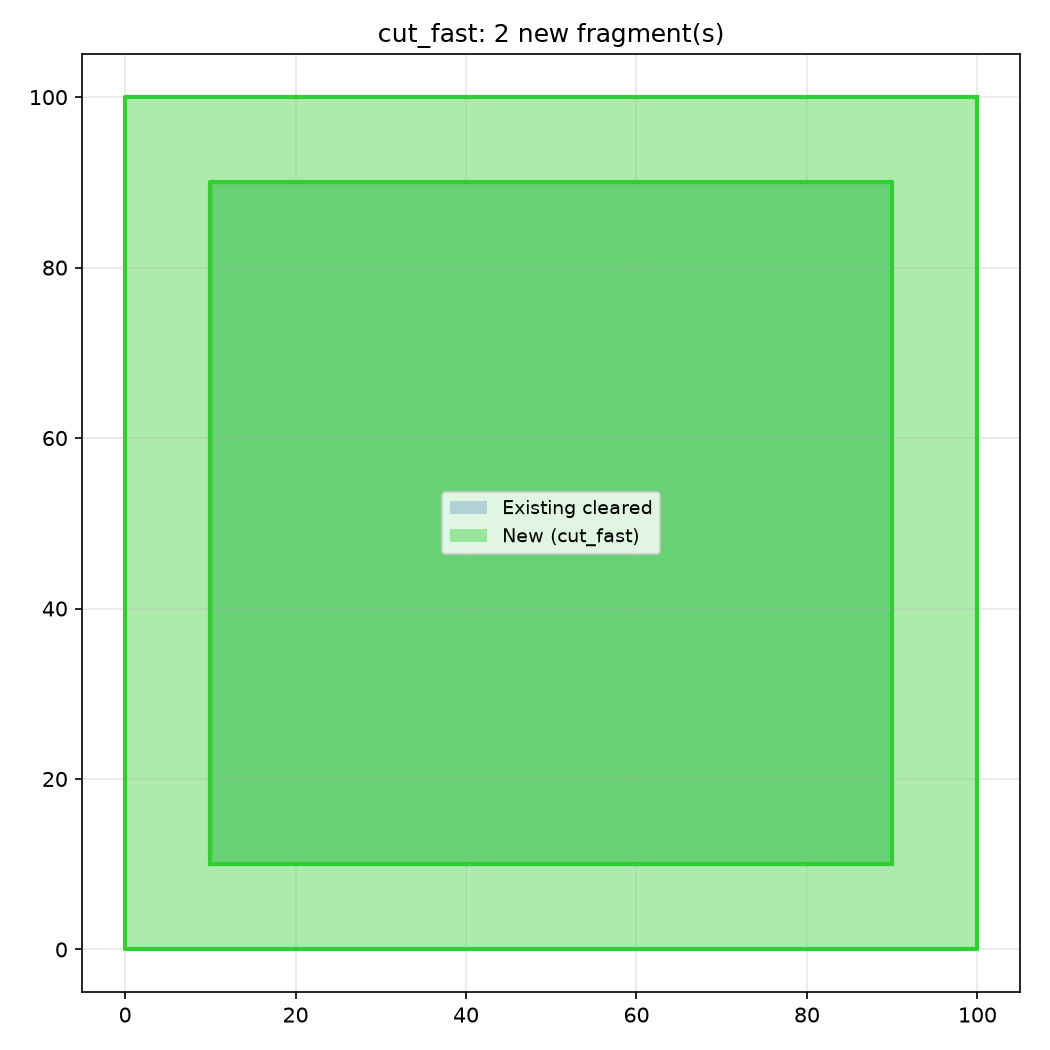

cut_fast adds polygons to the cleared state while returning only the newly-covered region (shown in green).

envelope()

envelope(tool_radius: float) -> list[list[tuple[float, float]]]

The tool-centre envelope (inset of boundary by tool_radius, minus islands).

Parameter	Type	Description
tool_radius	float	Tool radius (mm).
Returns	list[list[tuple[float, float]]]	List of polygons representing the tool-centre envelope.

expand()

expand(path: Sequence[tuple[float, float]], radius: float) -> None

Sweep a disk along a polyline, adding the swept area to the cleared set.

Parameter	Type	Description
path	Sequence[tuple[float, float]]	List of (x, y) points forming the polyline.
radius	float	Disk radius (mm).
Returns	None
Complexity		O(n) where n = number of path points

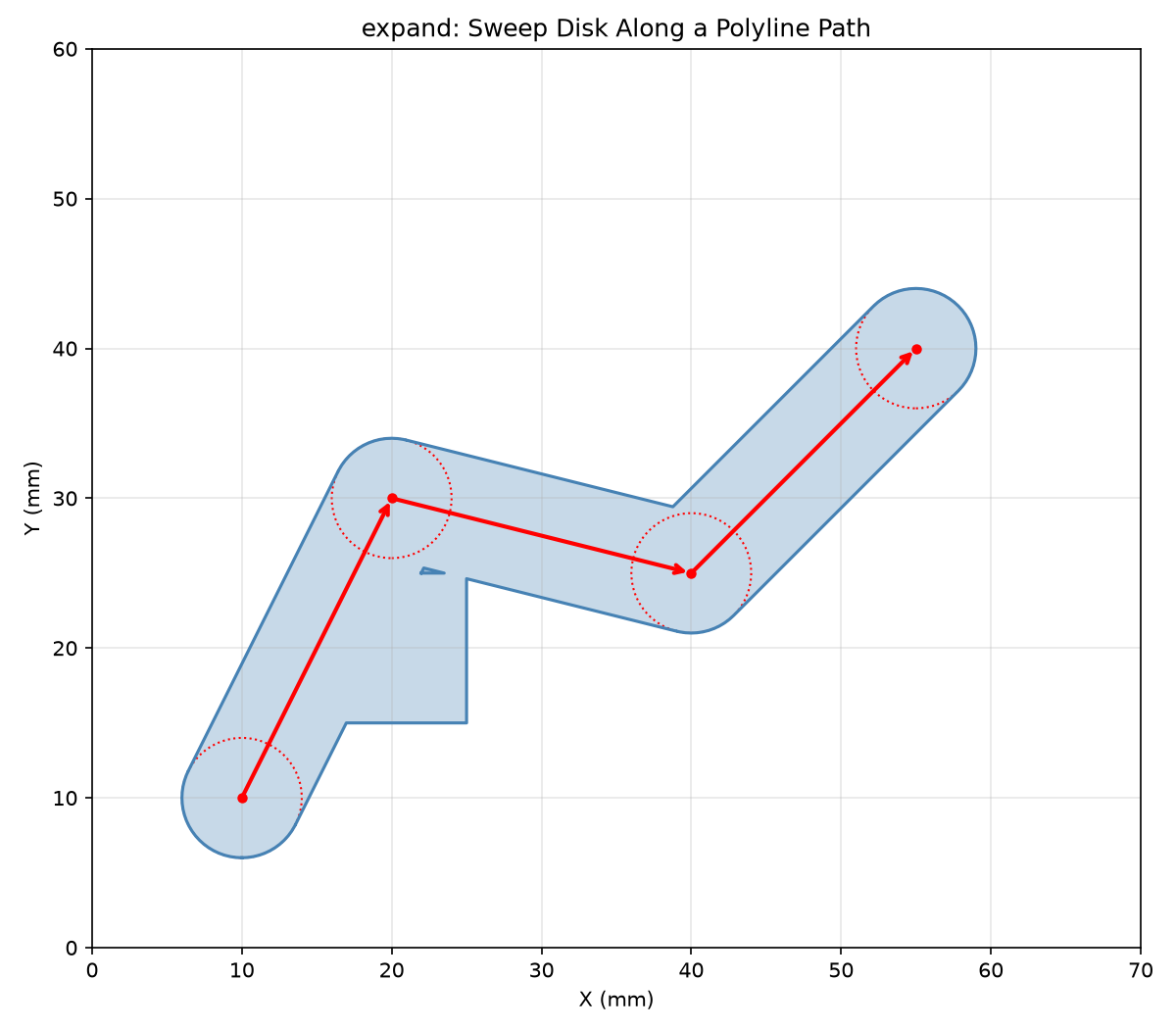

expand: sweeping a disk along a multi-segment path enlarges the cleared area.

expand_batched()

expand_batched(
    prev: tuple[float, float],
    next: tuple[float, float],
    radius: float,
) -> None

Queue a single‑segment expansion into the current batch.

The segment swept polygon is stored in the internal buffer. Does not perform a union until commit_batch is called.

.. warning::

Panics if `begin_batch` was not called first.

Parameter	Type	Description
prev	tuple[float, float]	Start point (x, y) of the segment.
next	tuple[float, float]	End point (x, y) of the segment.
radius	float	Disk radius (mm).
Returns	None

expand_step()

expand_step(
    prev: tuple[float, float],
    next: tuple[float, float],
    radius: float,
) -> None

Expand the cleared area by sweeping a disk of radius along a single segment from prev to next.

Parameter	Type	Description
prev	tuple[float, float]	Start point (x, y) of the segment.
next	tuple[float, float]	End point (x, y) of the segment.
radius	float	Disk radius (mm).
Returns	None

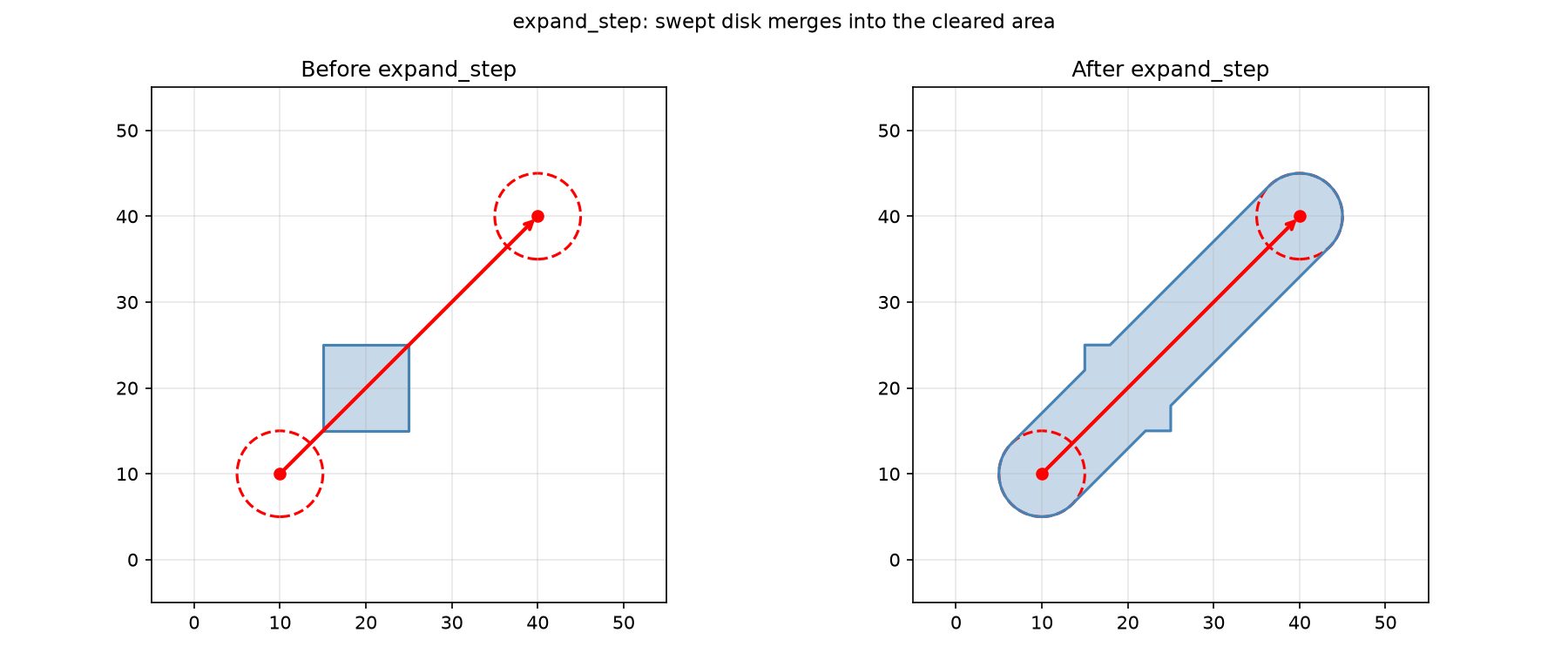

expand_step: sweeping a disk (dashed circle) of radius radius from prev to next (red arrow) enlarges the cleared area (right) vs the initial state (left).

fragments()

fragments() -> list[list[tuple[float, float]]]

Return the union of all polygons currently tracked as cleared.

Each fragment is a closed polygon (list of (x, y) vertices) representing an area that has already been cut. The fragment set grows as cut_fast or cut are called.

This is useful for inspecting which areas have been cleared.

Parameter	Type	Description
Returns	list[list[tuple[float, float]]]	List of polygons representing the cleared fragments.
Complexity		O(m) where m = number of fragments

frontier()

frontier(simplify_tol: float) -> list[list[tuple[float, float]]]

Return a unioned, simplified snapshot of the current outer boundary, clipped to the stock.

Parameter	Type	Description
simplify_tol	float	Tolerance in mm for polyline simplification.
Returns	list[list[tuple[float, float]]]	List of polygons representing the outer boundary.
Complexity		O(n log n)

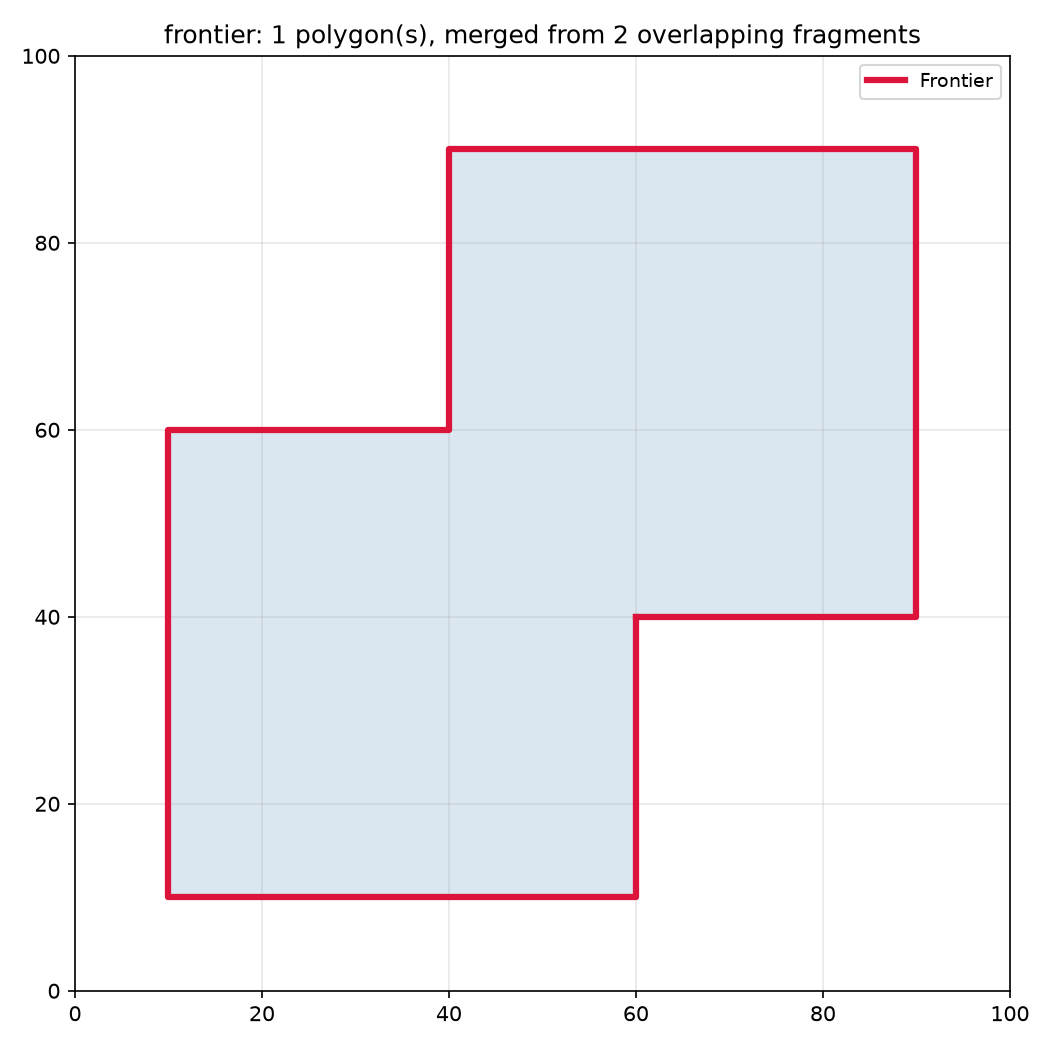

frontier returns the outer boundary of the cleared area after merging overlapping fragments — shown in crimson.

is_empty()

is_empty() -> bool

True when no fragments have been recorded.

Parameter	Type	Description
Returns	bool	True if no fragments have been recorded.

path_engagement()

path_engagement(
    path: Sequence[tuple[float, float]],
    radius: float,
) -> list[tuple[float, float, float]]

Evaluate engagement along a polyline.

Parameter	Type	Description
path	Sequence[tuple[float, float]]	List of (x, y) points.
radius	float	Disk radius (mm).
Returns	list[tuple[float, float, float]]	List of (angle, area, chord_depth) tuples.

point_engagement()

point_engagement(
    center: tuple[float, float],
    radius: float,
) -> tuple[float, float, float]

Evaluate engagement at a point using the signed distance to this cleared area's boundary.

Parameter	Type	Description
center	tuple[float, float]	Query point (x, y).
radius	float	Disk radius (mm).
Returns	tuple[float, float, float]	(angle_rad, area, chord_depth).

query_window()

query_window(
    bbox: tuple[float, float, float, float],
) -> list[list[tuple[float, float]]]

Return fragments whose bounding box overlaps the query window.

         k = output vertices

Parameter	Type	Description
bbox	tuple[float, float, float, float]	Bounding box (x_min, y_min, x_max, y_max).
Returns	list[list[tuple[float, float]]]	Fragments intersecting the bounding box.
Complexity		O(m + k) where m = number of fragments,

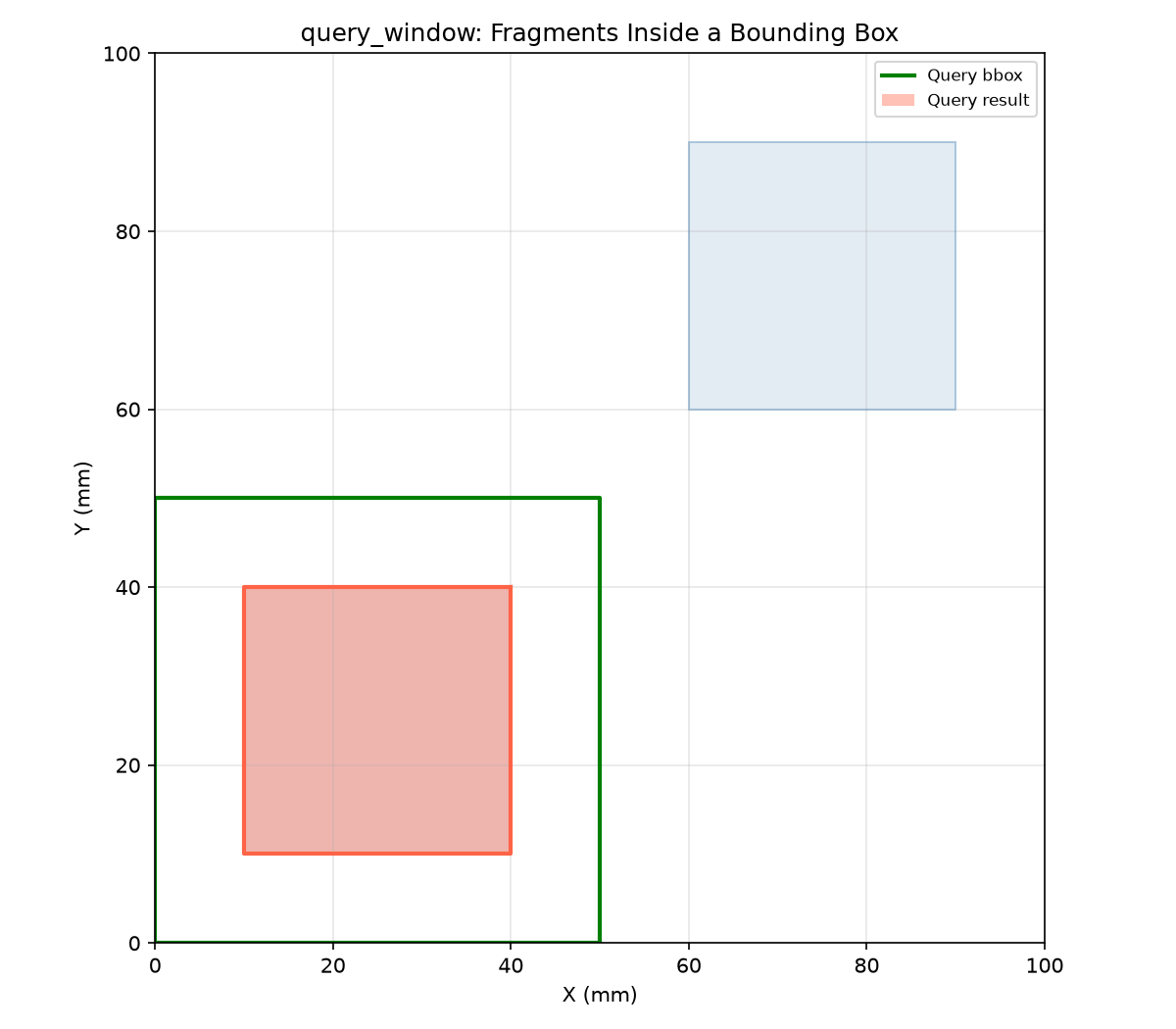

query_window returns only the cleared fragments whose bounding box overlaps the query (green box).

remaining()

remaining() -> list[list[tuple[float, float]]]

Subtract cleared fragments from the stock, returning the uncut portion.

Parameter	Type	Description
Returns	list[list[tuple[float, float]]]	List of polygons representing the uncut portion.
Complexity		O(n * m) where n = stock vertices, m = fragments

remaining subtracts cleared fragments from the boundary polygon, returning the uncut region (red).

signed_boundary_distance()

signed_boundary_distance(x: float, y: float) -> float

Signed perpendicular distance to the nearest cleared boundary.

Returns positive when the point is outside the cleared area (in uncut material), negative when inside.

Parameter	Type	Description
x	float	X coordinate of the query point.
y	float	Y coordinate of the query point.
Returns	float	Signed distance in mm. 0.0 means exactly on the boundary.

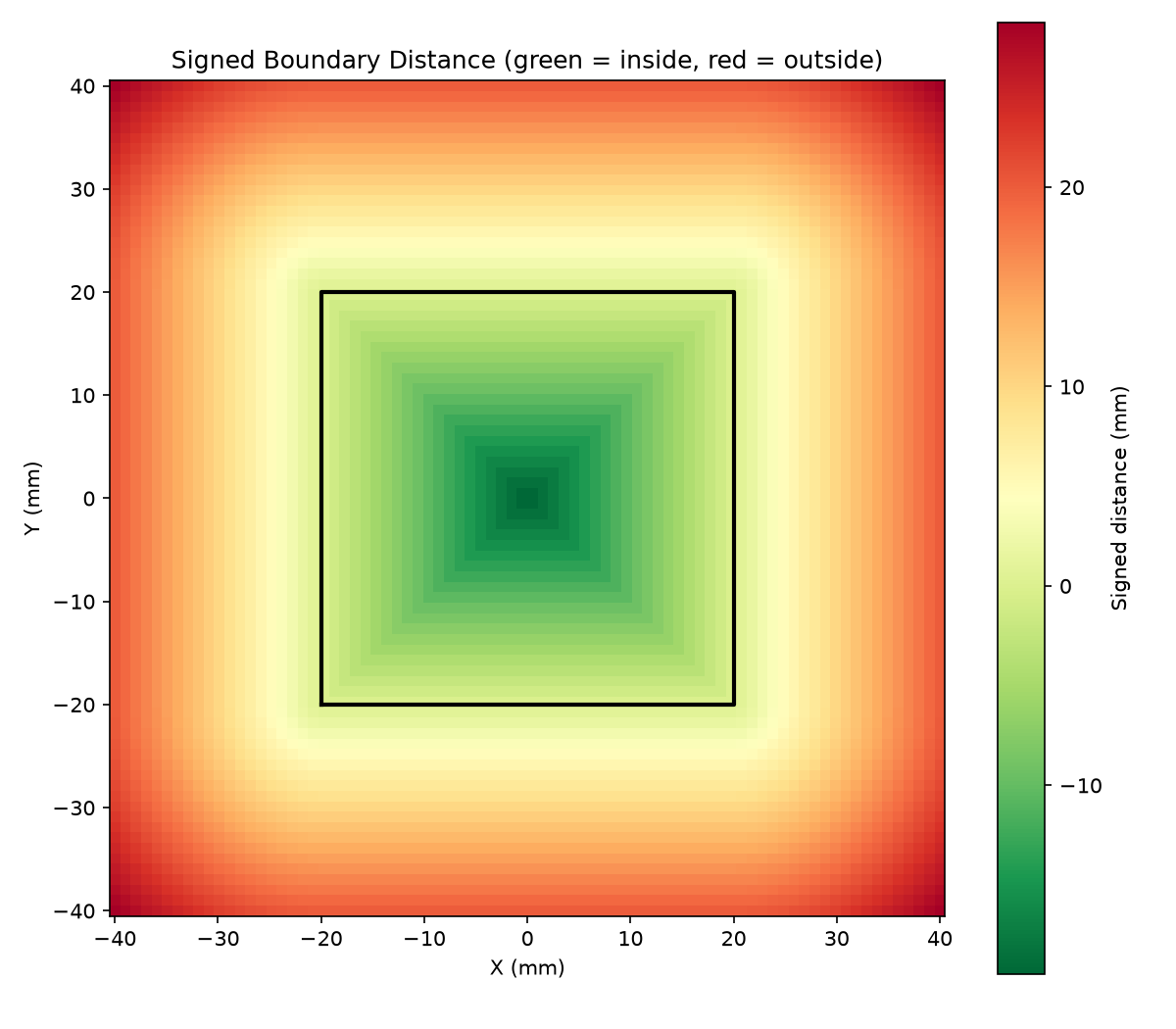

Signed boundary distance around a cleared square: green = inside cleared, red = outside.

total_area()

total_area() -> float

Total cleared area.

Parameter	Type	Description
Returns	float	Total cleared area in mm².
Complexity		O(1)
