raygeo.mesh.remesh

Name: Rayforge
Author: barebaric

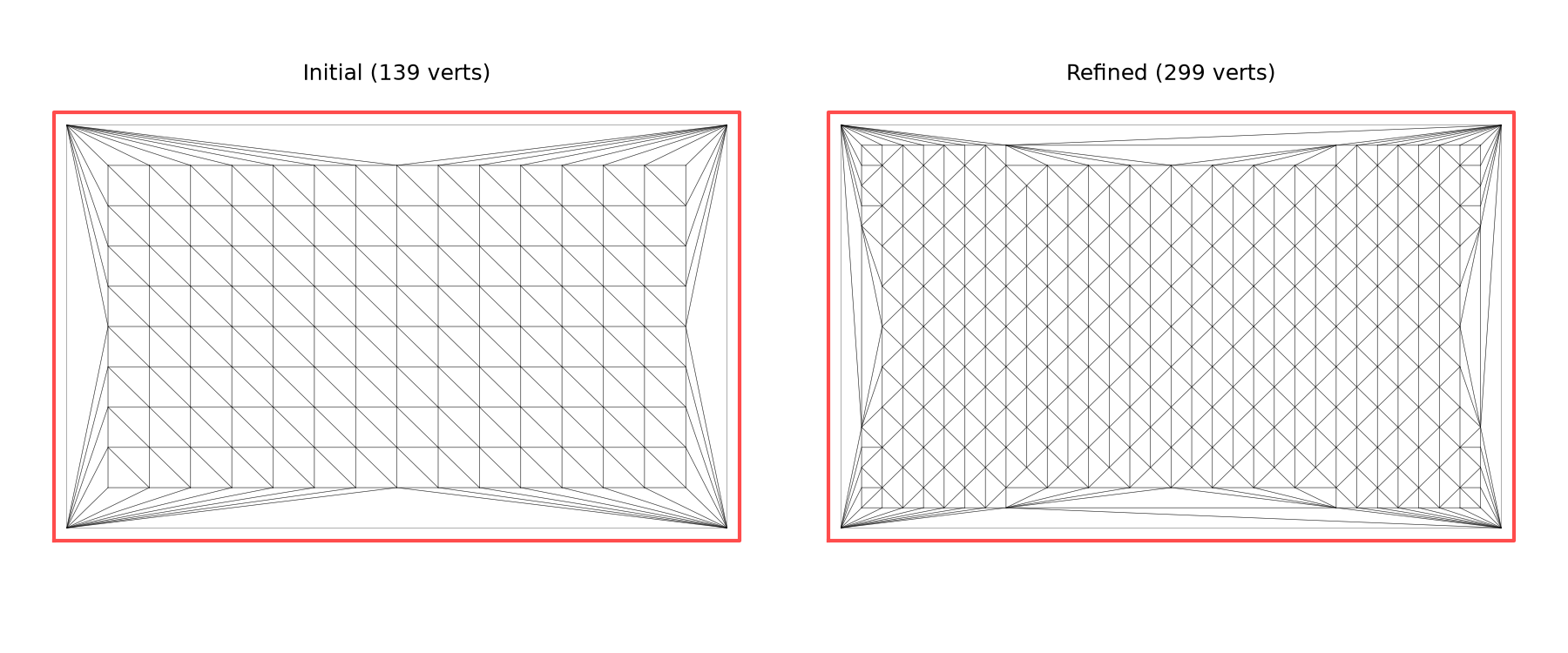

Initial mesh (left) vs refined mesh (right) after remesh.

Initial mesh (left) vs refined mesh (right) after remesh.

Functions

remesh(
    mesh: types.TriangleMesh,
    outer: Sequence[tuple[float, float]],
    max_edge_len: float = 1,
) -> types.TriangleMesh

Refine a triangle mesh so no interior edge exceeds max_edge_len.

Boundary edges are preserved; only edges with at least one free (non-boundary) vertex are subdivided.

Raises: RuntimeError — If retriangulation fails.

Parameter	Type	Description
`mesh`	`types.TriangleMesh`	Input TriangleMesh to refine.
`outer`	`Sequence[tuple[float, float]]`	Outer boundary polygon (for retriangulation).
`max_edge_len`	`float = 1`	Maximum allowed edge length (default 1.0).
Returns	`types.TriangleMesh`	A refined TriangleMesh.
Complexity		O(n log n) where n = number of edges
