raygeo.geo.algo.helix

Helical and conical helical path generation.

Provides generation of 3D helical polylines (cylindrical or conical) with configurable direction (CW/CCW), pitch, and expansion/reduction.

HelixDirection

Functions

generate_helix()

generate_helix(
    center: tuple[float, float],
    start_radius: float,
    end_radius: float,
    z_start: float,
    z_end: float,
    pitch: float,
    direction: HelixDirection,
    angular_step: float = 0.1,
    min_revolutions: int | None = None,
) -> list[tuple[float, float, float]]

Generate a 3D helical polyline.

Parameter	Type	Description
center	tuple[float, float]	Center (x, y) of the helix.
start_radius	float	Starting radius at z_start.
end_radius	float	Ending radius at z_end.
z_start	float	Starting Z height.
z_end	float	Ending Z height (must be lower than z_start).
pitch	float	Z descent per full revolution.
direction	HelixDirection	CW or CCW revolution.
angular_step	float = 0.1	Angular step in radians per vertex (default 0.1).
min_revolutions	int | None = None	Minimum number of revolutions (optional).
Returns	list[tuple[float, float, float]]	List of (x, y, z) points approximating the helix.
Complexity		O(n) time, O(n) space where n = total_angle / angular_step

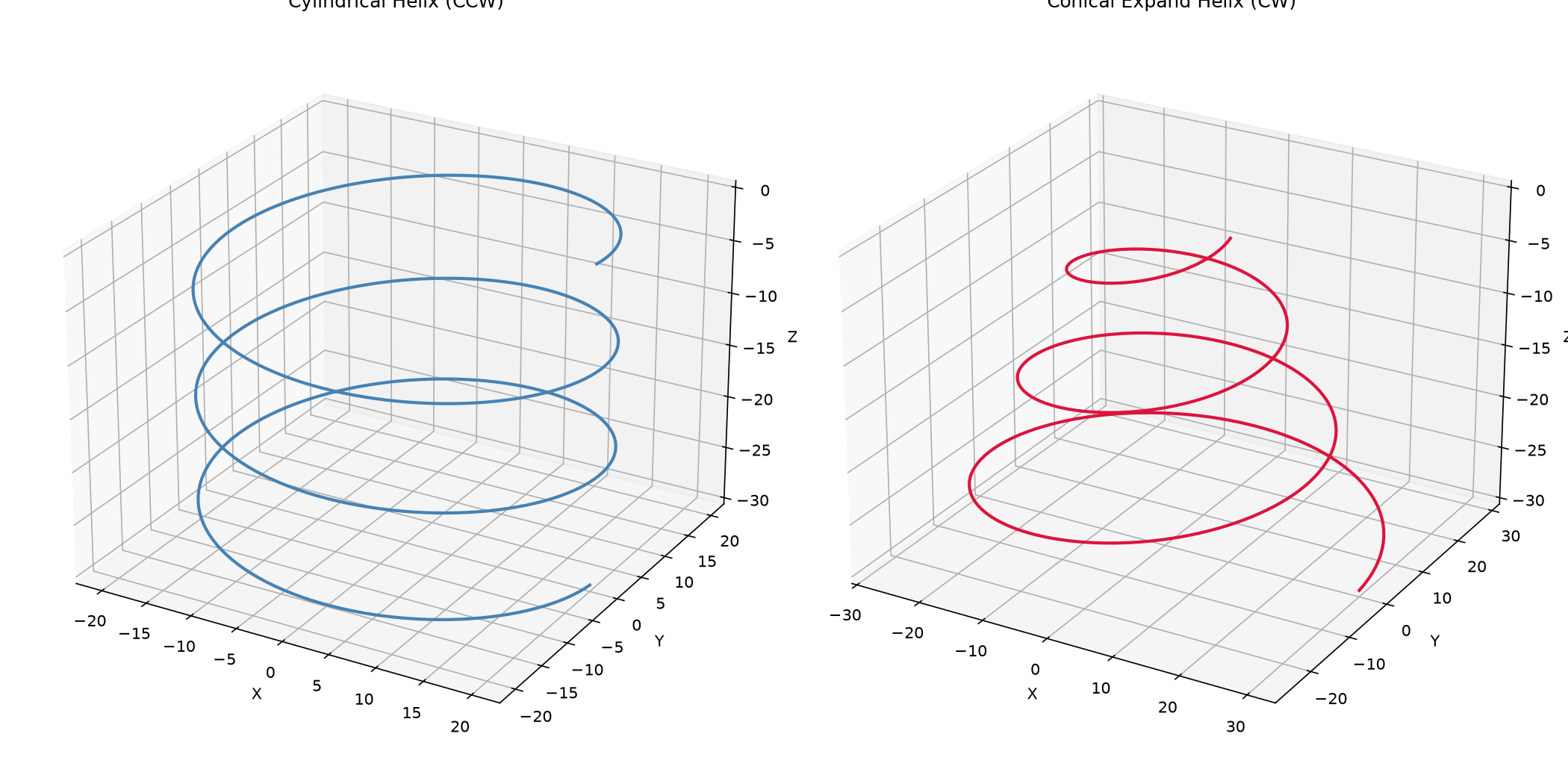

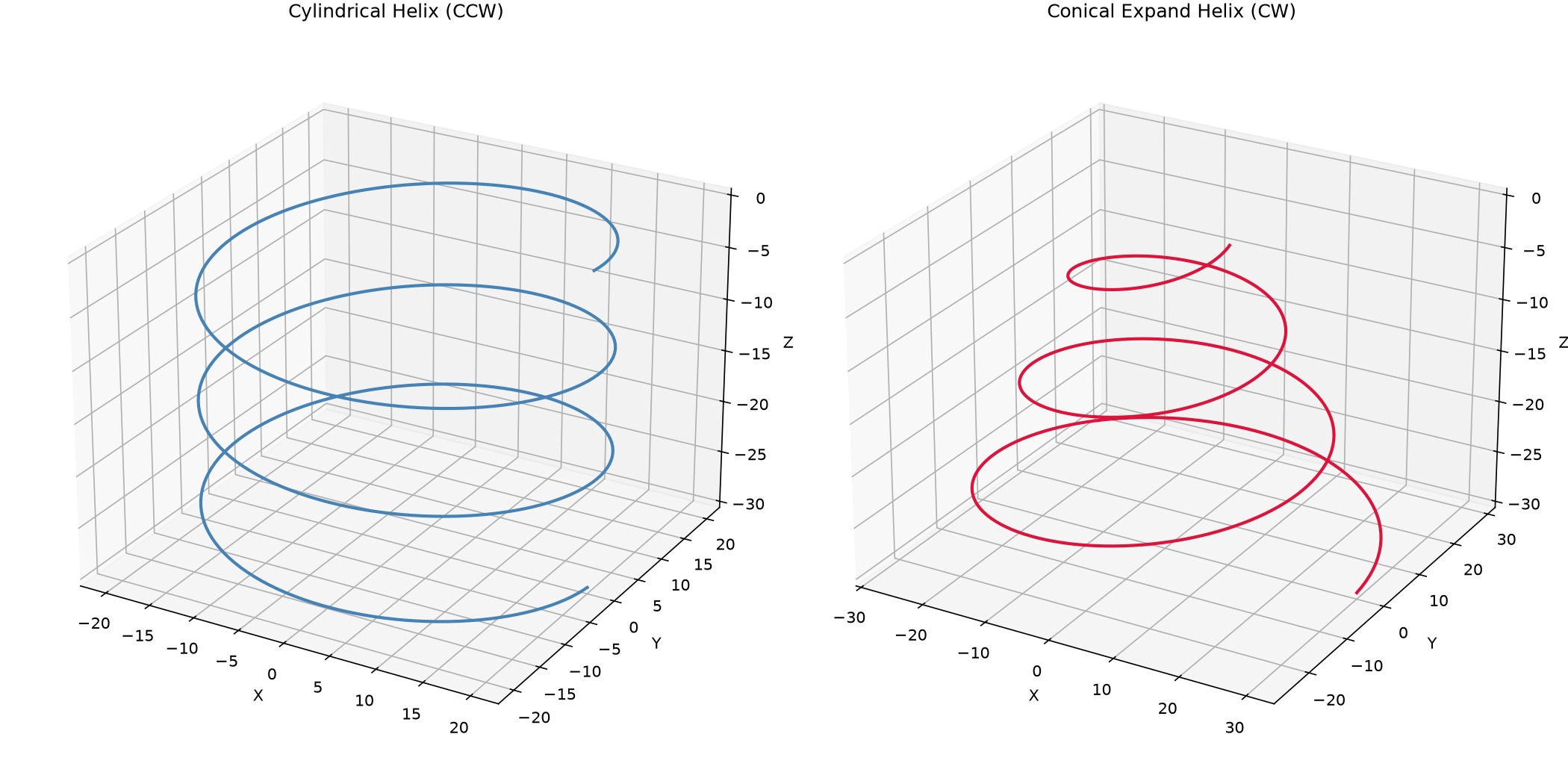

Cylindrical (CCW) and conical-expand (CW) helical paths
