raygeo.geo.algo.fitting

Curve and primitive fitting algorithms.

Provides functions for fitting arcs, lines, circles, and beziers to point sequences. Includes recursive fitting with primitives, polyline linearization, and evaluating fitting quality (line and arc deviation).

Functions

are_points_collinear_3d()

are_points_collinear_3d(
    points: Sequence[types.Point3D],
    tolerance: float = 1e-06,
) -> bool

Check if three or more points are collinear within tolerance.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points.
tolerance	float = 1e-06	Collinearity tolerance.
Returns	bool	True if points are collinear.
Complexity		O(n) time, O(1) space

fit_circle_to_3_points()

fit_circle_to_3_points(
    p1: types.Point2DOr3D,
    p2: types.Point2DOr3D,
    p3: types.Point2DOr3D,
) -> Optional[tuple[types.Point, float]]

Fit a circle to three points.

Parameter	Type	Description
p1	types.Point2DOr3D	First point (x, y) or (x, y, z).
p2	types.Point2DOr3D	Second point (x, y) or (x, y, z).
p3	types.Point2DOr3D	Third point (x, y) or (x, y, z).
Returns	Optional[tuple[types.Point, float]]	Tuple of (center, radius) or None.
Complexity		O(1) time, O(1) space

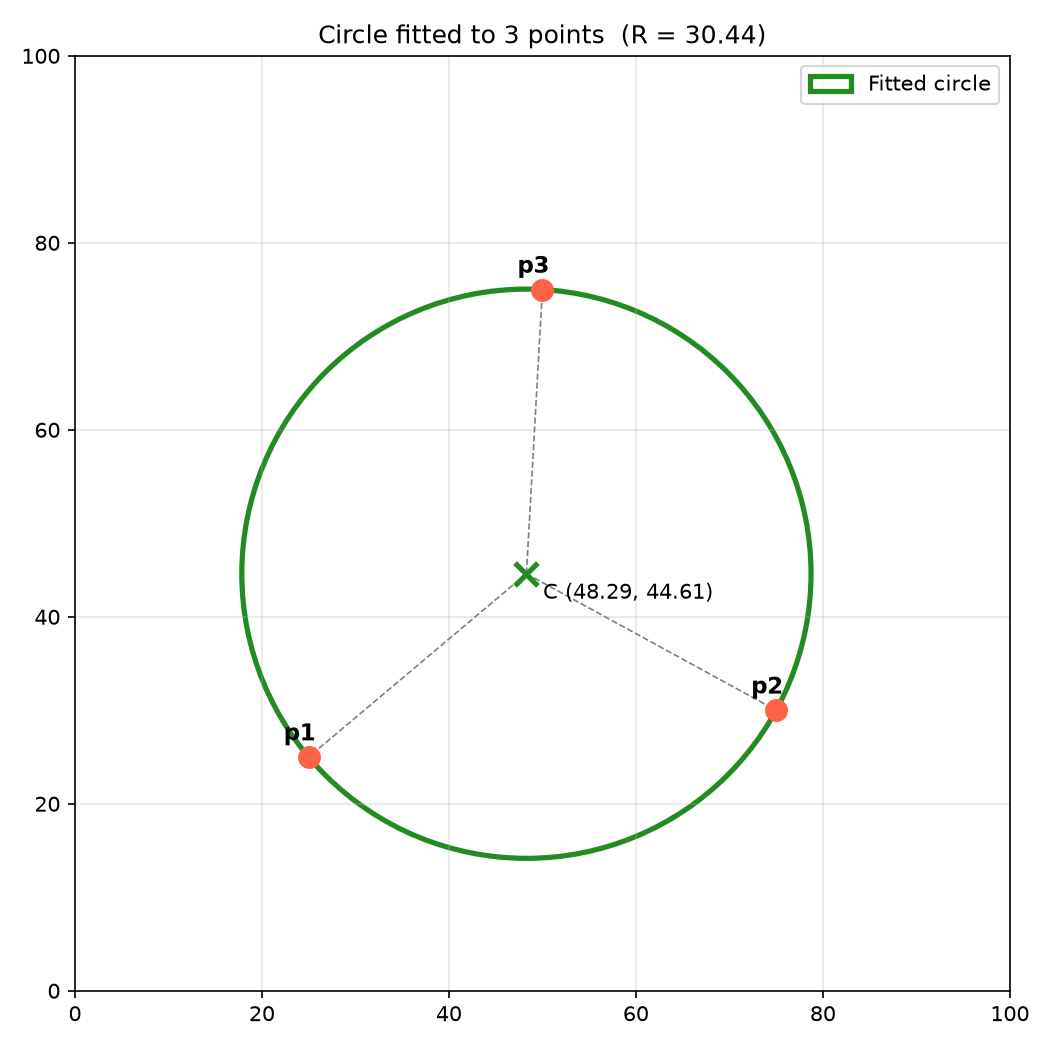

Circle fitted to three points

fit_circle_to_points_3d()

fit_circle_to_points_3d(
    points: Sequence[types.Point3D],
) -> Optional[tuple[types.Point, float, float]]

Fit a circle to a set of points.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points to fit.
Returns	Optional[tuple[types.Point, float, float]]	Tuple of (center, radius, error) or None.
Complexity		O(n) time, O(1) space

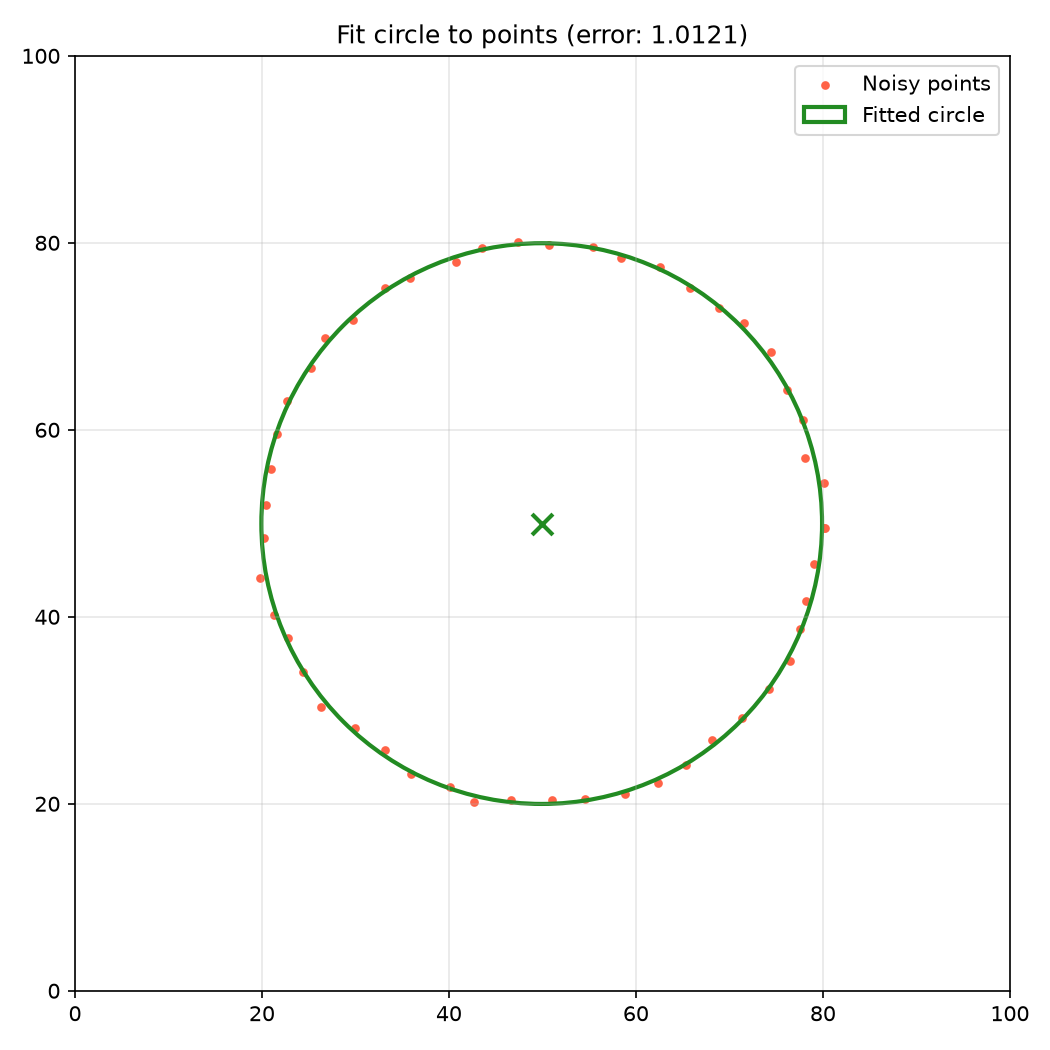

Circle fitted to points

fit_points_recursive()

fit_points_recursive(
    points: Sequence[types.Point3D],
    tolerance: float,
    start_idx: int,
    end_idx: int,
) -> geo.Geometry

Recursively fit points with line and arc primitives.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points to fit.
tolerance	float	Fitting tolerance.
start_idx	int	Start index in the points array.
end_idx	int	End index in the points array.
Returns	geo.Geometry	Geometry of fitted commands.
Complexity		O(n log n) average time, O(n) space

fit_points_with_primitives()

fit_points_with_primitives(
    points: Sequence[types.Point3D],
    tolerance: float,
) -> geo.Geometry

Fit a polyline of points with arc and line primitives.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points to fit.
tolerance	float	Fitting tolerance.
Returns	geo.Geometry	Geometry of fitted commands.
Complexity		O(n log n) average time, O(n) space

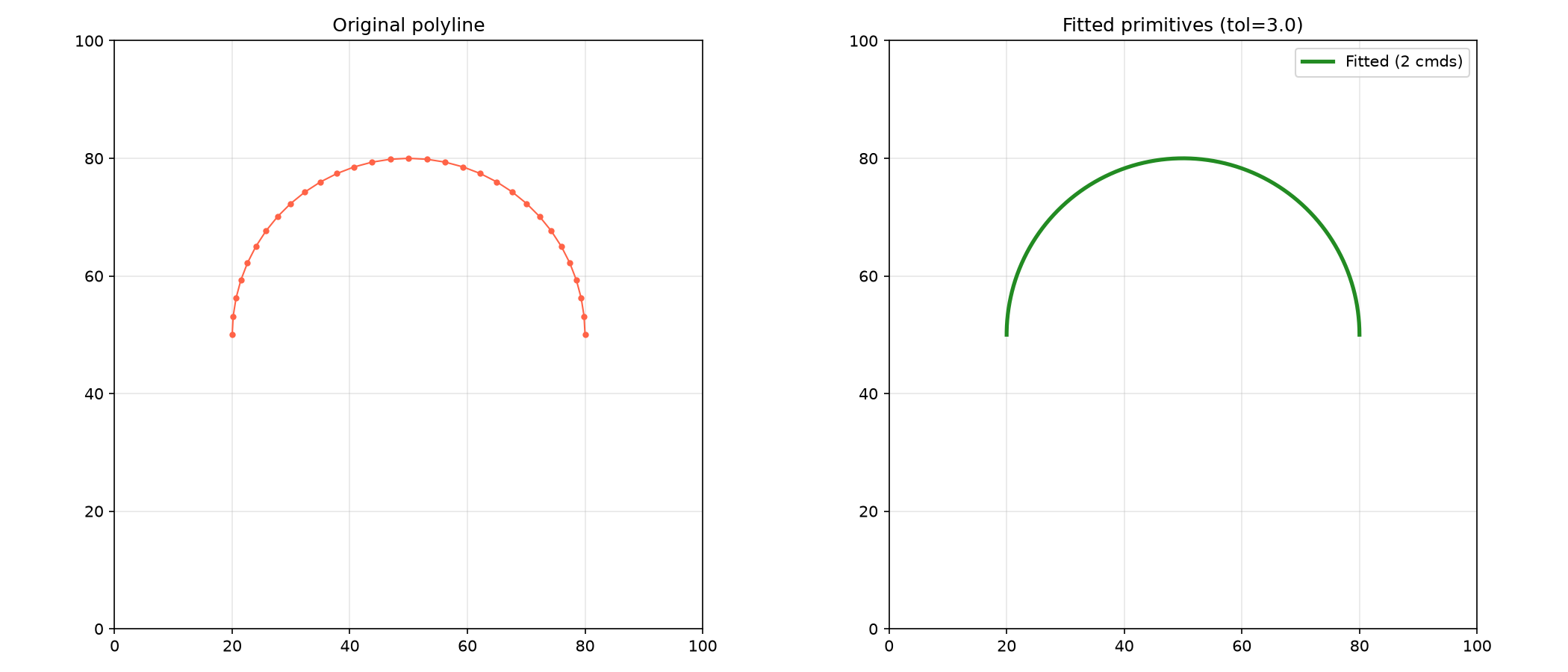

Fitted primitives

flatten_to_points_3d()

flatten_to_points_3d(
    geometry: geo.Geometry,
    tolerance: float,
) -> list[list[types.Point3D]]

Flatten curves into linear segments.

Parameter	Type	Description
geometry	geo.Geometry	Geometry to flatten.
tolerance	float	Flattening tolerance.
Returns	list[list[types.Point3D]]	List of flattened point segments.
Complexity		O(n + m) time, O(m) space where n is the number of commands and m the number of output points

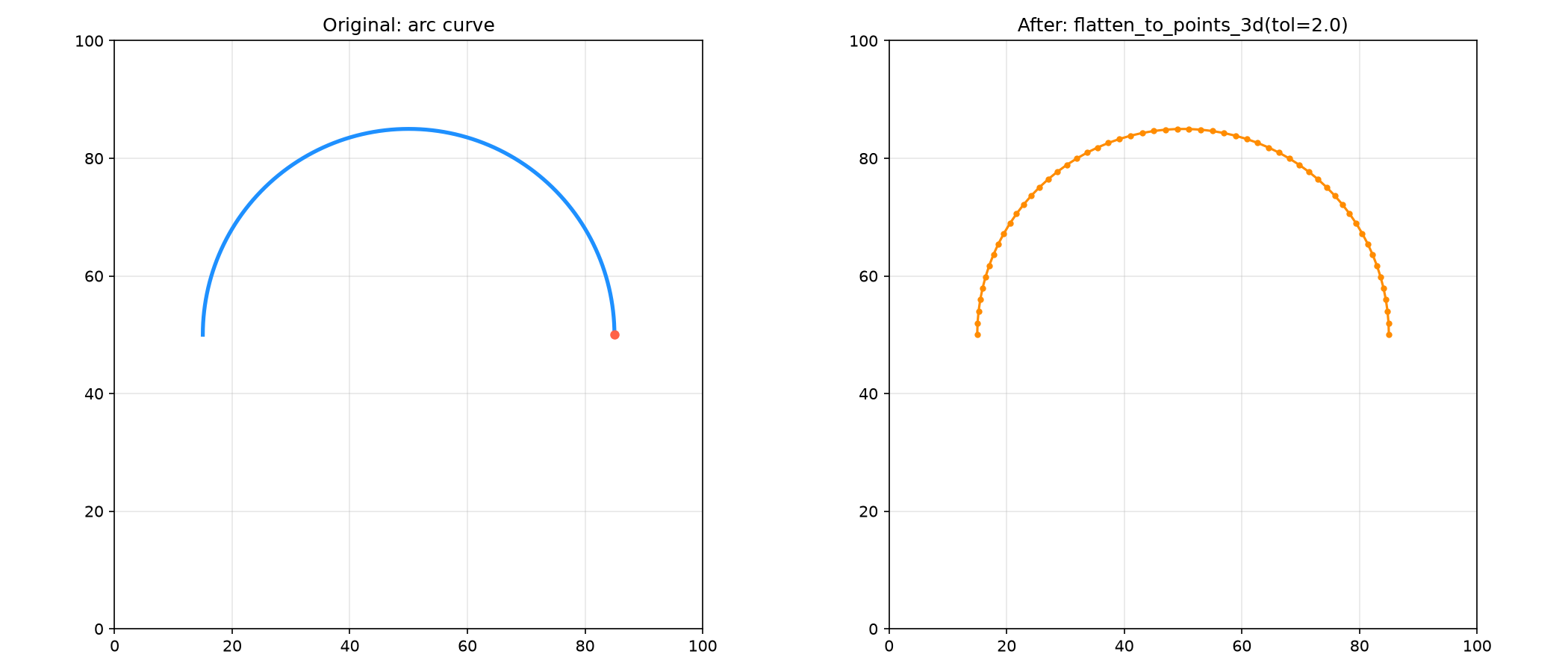

Arc curve flattened to dense line segments

generate_arc_between_two_points()

generate_arc_between_two_points(
    p0: tuple[float, float],
    p1: tuple[float, float],
    offset: float,
    min_radius: float,
    z: float,
    resolution: float,
) -> Optional[list[tuple[float, float, float]]]

Fit a circular arc through two points with a perpendicular offset.

Uses a third point offset perpendicularly from the chord midpoint to define the arc shape. Returns a linearized arc polyline, or None if the radius would be below min_radius or the geometry is degenerate.

Parameter	Type	Description
p0	tuple[float, float]	Start point (x, y).
p1	tuple[float, float]	End point (x, y).
offset	float	Perpendicular offset from the chord midpoint.
min_radius	float	Minimum allowed arc radius.
z	float	Z-coordinate for all output points.
resolution	float	Arc linearization resolution.
Returns	Optional[list[tuple[float, float, float]]]	List of 3D points forming the arc, or None.
Complexity		O(n) time, O(n) space where n depends on arc length and resolution

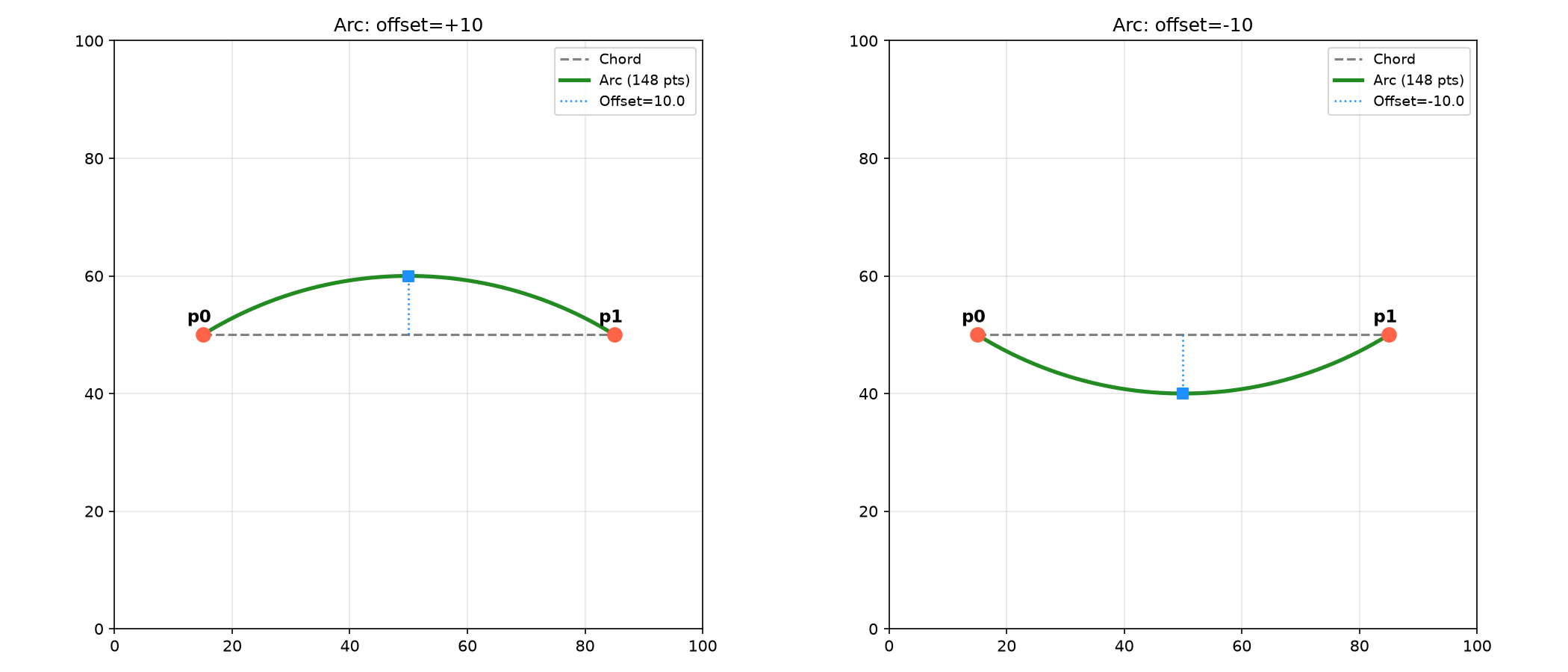

Arc through two points with + and - perpendicular offset

generate_linking_arc()

generate_linking_arc(
    start: tuple[float, float, float],
    end: tuple[float, float, float],
    min_radius: float,
    z: float,
) -> list[tuple[float, float, float]]

Generate a smooth linking arc between two points.

Uses generate_arc_between_two_points internally with an offset derived from min_radius. Falls back to a straight-line interpolation if no valid arc can be fit.

Parameter	Type	Description
start	tuple[float, float, float]	Start 3D point (x, y, z).
end	tuple[float, float, float]	End 3D point (x, y, z).
min_radius	float	Minimum allowed arc radius.
z	float	Z-coordinate for all output points (overrides start.z / end.z).
Returns	list[tuple[float, float, float]]	List of 3D points forming the linking arc.
Complexity		O(n) time, O(n) space where n scales with chord_length / min_radius

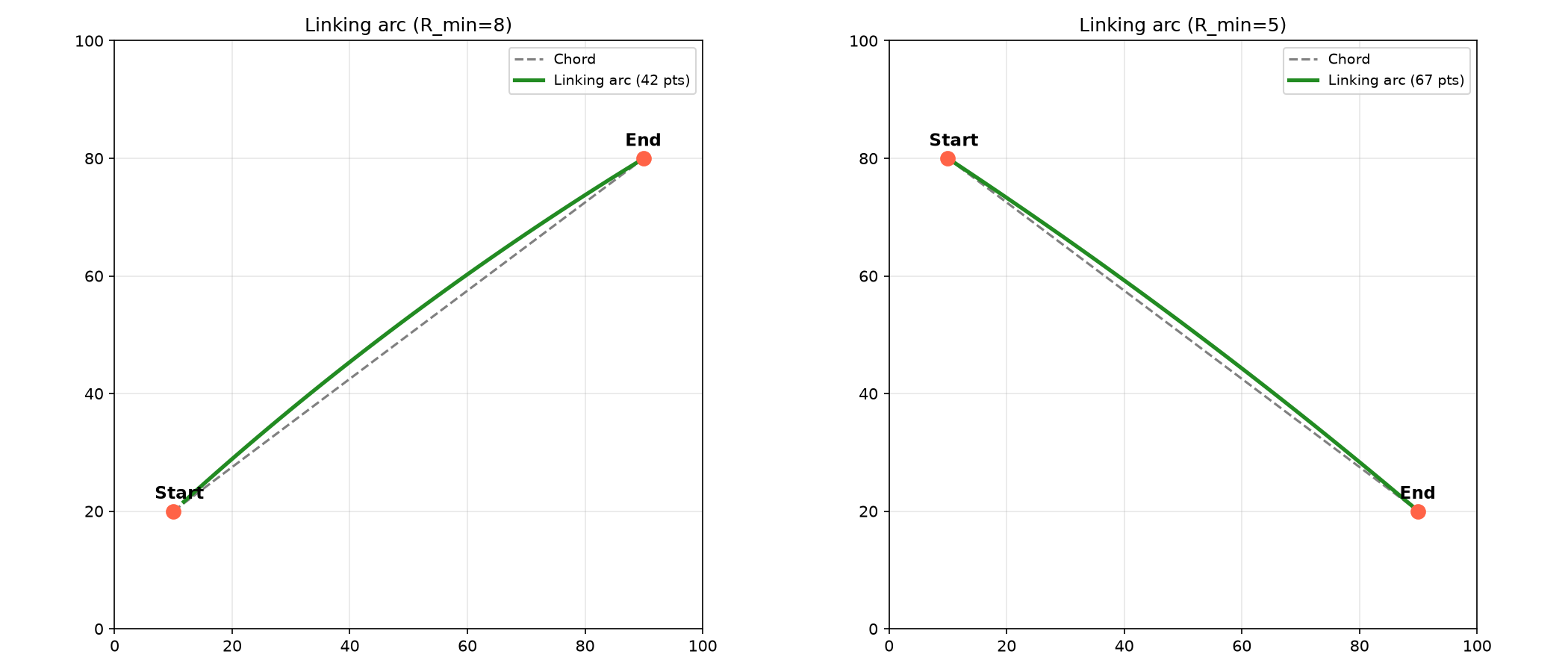

Linking arc with varying minimum radius constraints

get_polyline_arc_deviation()

get_polyline_arc_deviation(
    points: Sequence[types.Point3D],
    center: types.Point,
    radius: float,
) -> float

Get the maximum arc deviation for a set of points.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points.
center	types.Point	Arc center (x, y).
radius	float	Arc radius.
Returns	float	Maximum deviation from the arc.
Complexity		O(n) time, O(1) space

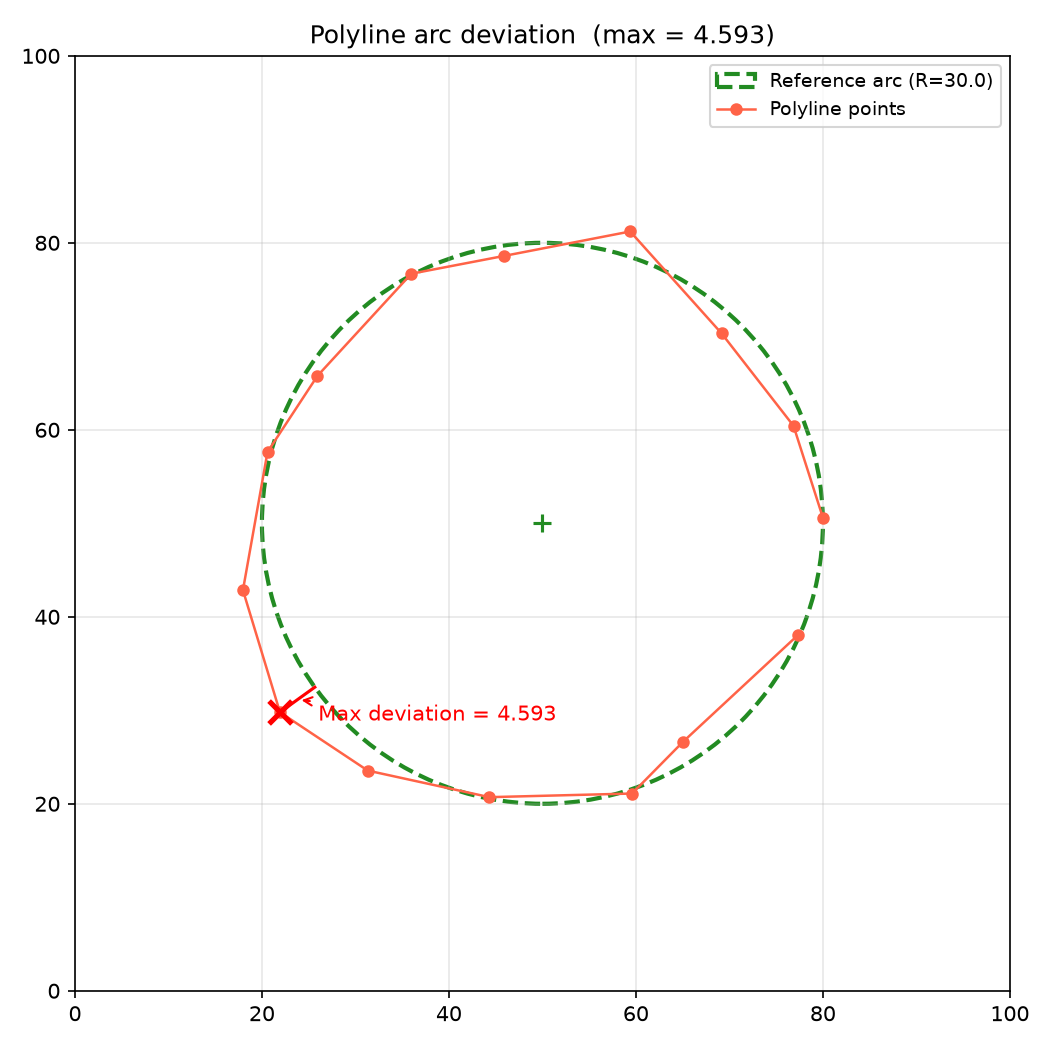

Maximum deviation from a reference arc

get_polyline_line_deviation()

get_polyline_line_deviation(
    points: Sequence[types.Point3D],
    start: int,
    end: int,
) -> tuple[float, int]

Get the maximum line deviation for a segment of a polyline.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points.
start	int	Start index.
end	int	End index.
Returns	tuple[float, int]	Tuple of (max_deviation, index_of_max).
Complexity		O(n) time, O(1) space

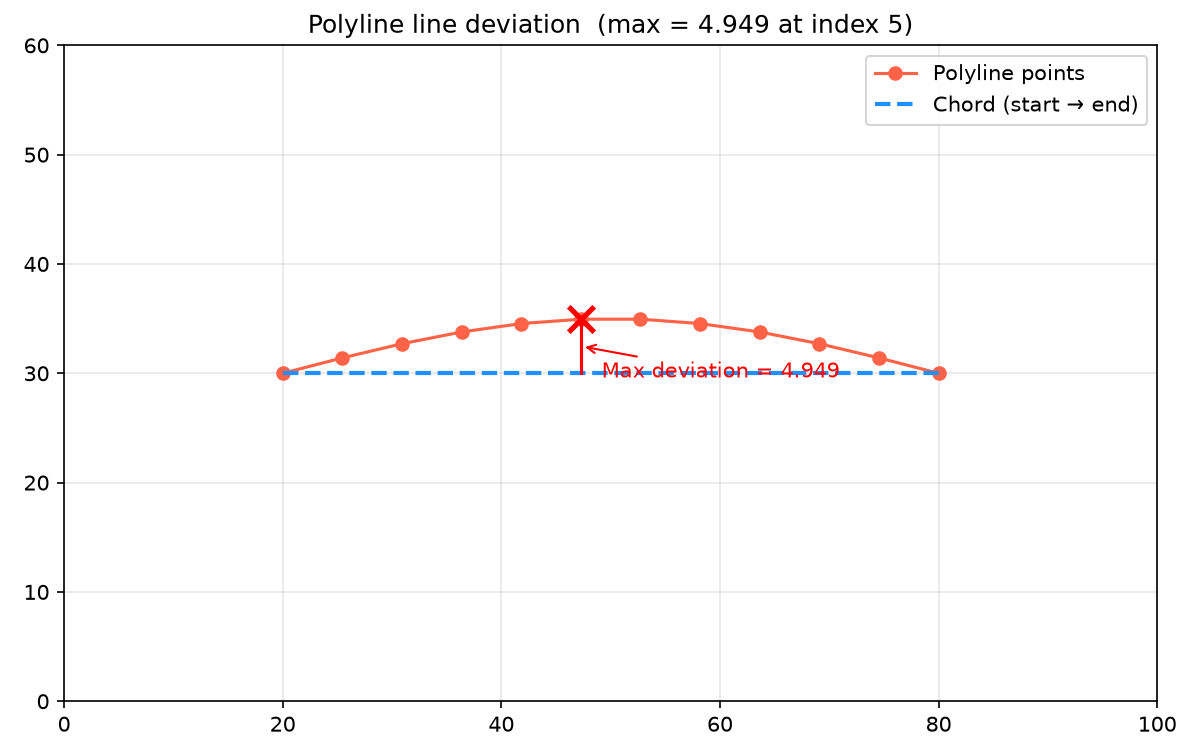

Maximum deviation from a chord

linearize_geometry()

linearize_geometry(geometry: geo.Geometry, tolerance: float) -> geo.Geometry

Linearize geometry data into line segments.

Parameter	Type	Description
geometry	geo.Geometry	Geometry to linearize.
tolerance	float	Linearization tolerance.
Returns	geo.Geometry	Linearized Geometry.
Complexity		O(n + m) time, O(m) space where n is the number of commands and m the number of output segments

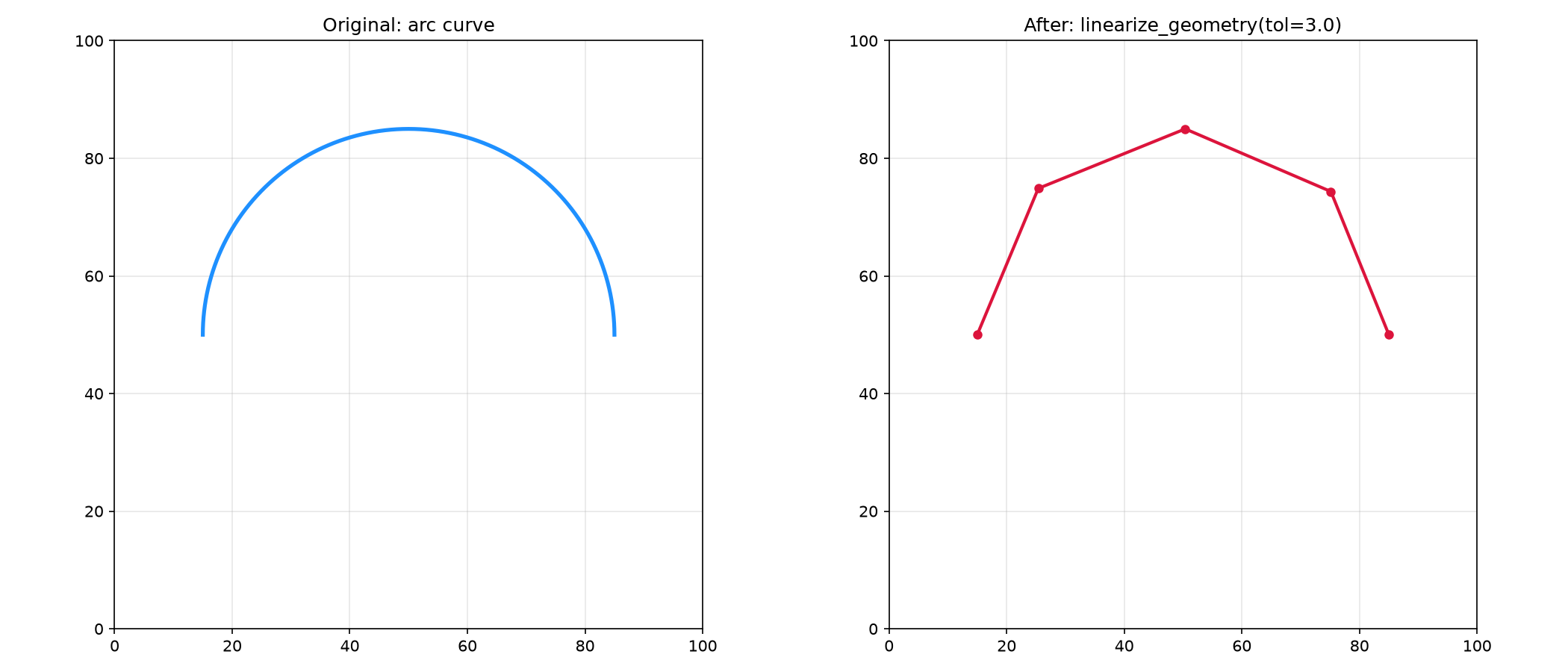

Arc curve linearized with RDP simplification

project_circle_center_to_bisector()

project_circle_center_to_bisector(
    p1: types.Point2DOr3D,
    p2: types.Point2DOr3D,
    center: types.Point,
) -> types.Point

Project a circle center onto the perpendicular bisector of two points.

Parameter	Type	Description
p1	types.Point2DOr3D	First point (x, y) or (x, y, z).
p2	types.Point2DOr3D	Second point (x, y) or (x, y, z).
center	types.Point	Circle center to project.
Returns	types.Point	Projected center point (x, y).
Complexity		O(1) time, O(1) space

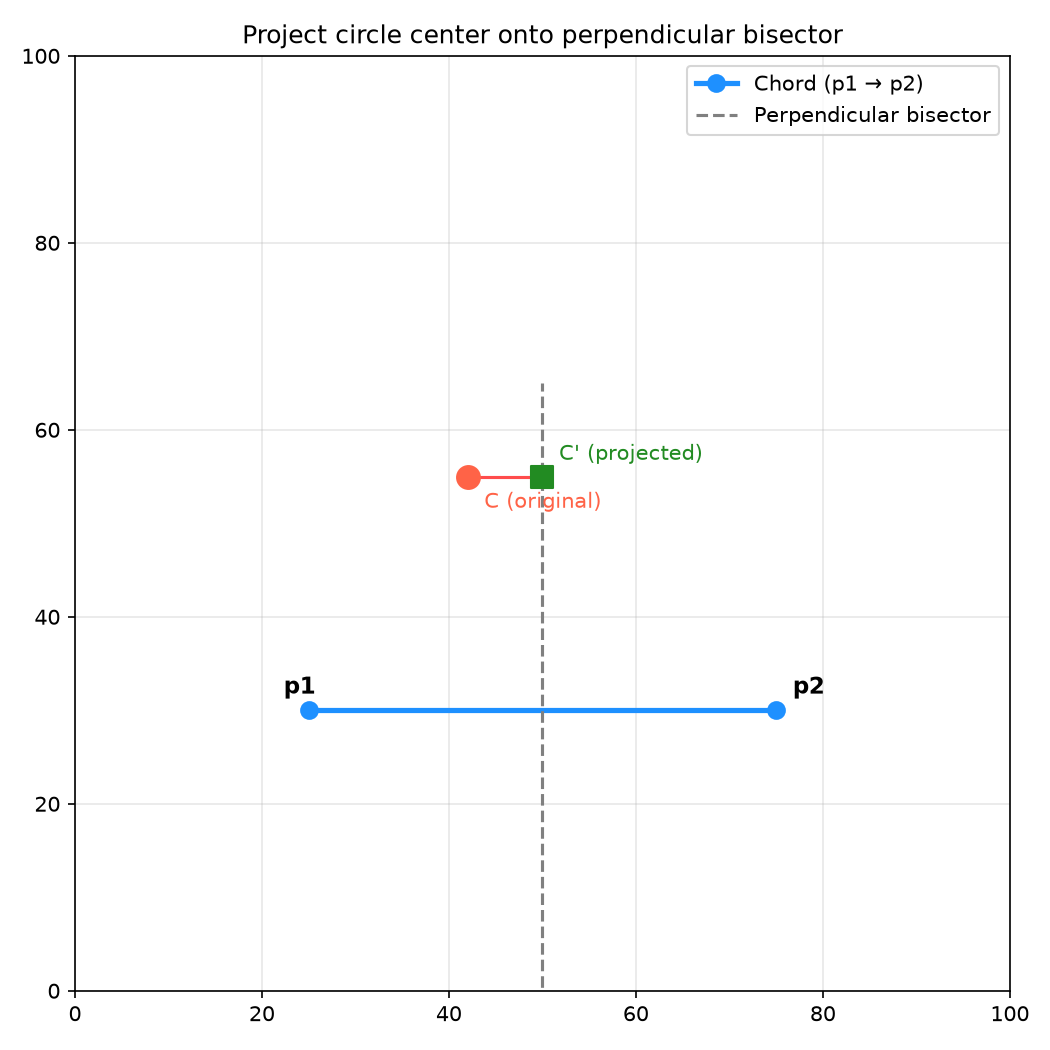

Circle center projected onto the perpendicular bisector
