analyze_pocket()

analyze_pocket(
    polygon: Sequence[tuple[float, float]],
    holes: Sequence[Sequence[tuple[float, float]]] | None = None,
    tool_radius: float = 3,
    tolerance: float = 0.5,
    min_slot_width: float | None = None,
) -> list[tuple[list[tuple[float, float]], str, float, list[int]]]

Analyze a pocket and return classified narrow regions.

Calls find_narrow_passages with max_width = 1.5 × 2 × tool_radius, then classifies each passage as Narrow (toroidal), Slot, or Unreachable based on the minimum passage width. Each entry in the returned list is a tuple of (polygon, class, min_width, entry_edge_indices).

• polygon — list of (x, y) vertices of the narrow passage.
• class — "narrow", "slot", or "unreachable".
• min_width — estimated minimum passage width in mm.
• entry_edge_indices — list of vertex indices of entry-side edges.

Raises: RuntimeError — If the polygon cannot be analyzed.

Parameter	Type	Description
polygon	Sequence[tuple[float, float]]	Outer boundary polygon.
holes	Sequence[Sequence[tuple[float, float]]] | None = None	List of hole (island) polygons.
tool_radius	float = 3	Tool radius in mm.
tolerance	float = 0.5	Additional clearance tolerance in mm.
min_slot_width	float | None = None	Minimum passage width for slotting in mm. Defaults to 2 × tool_radius (tool diameter) when None.
Returns	list[tuple[list[tuple[float, float]], str, float, list[int]]]	List of (polygon, class, min_width, entry_edge_indices) tuples.

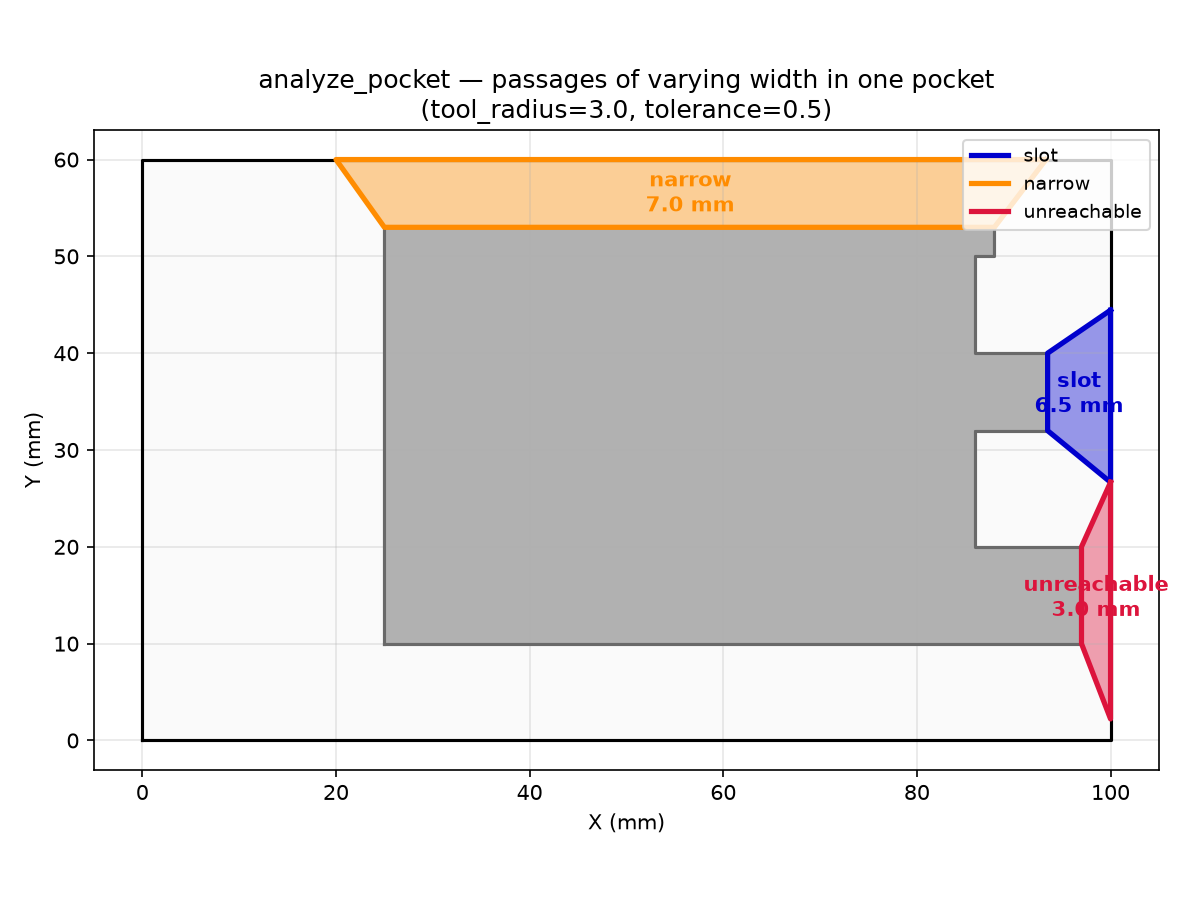

A pocket with staircase island produces passages of three widths, showing all classification levels
