raygeo.geo.algo.hull
Hull computation from binary images.
Provides convex and concave (shrink-wrap) hull generation from boolean images, using contour tracing and Bézier gravity attraction. Coordinates are returned in image pixel space (y increases downward).
Functions
get_concave_hull()
get_concave_hull(boolean_image: numpy.ndarray, gravity: float = 0.1) -> Geometry | None

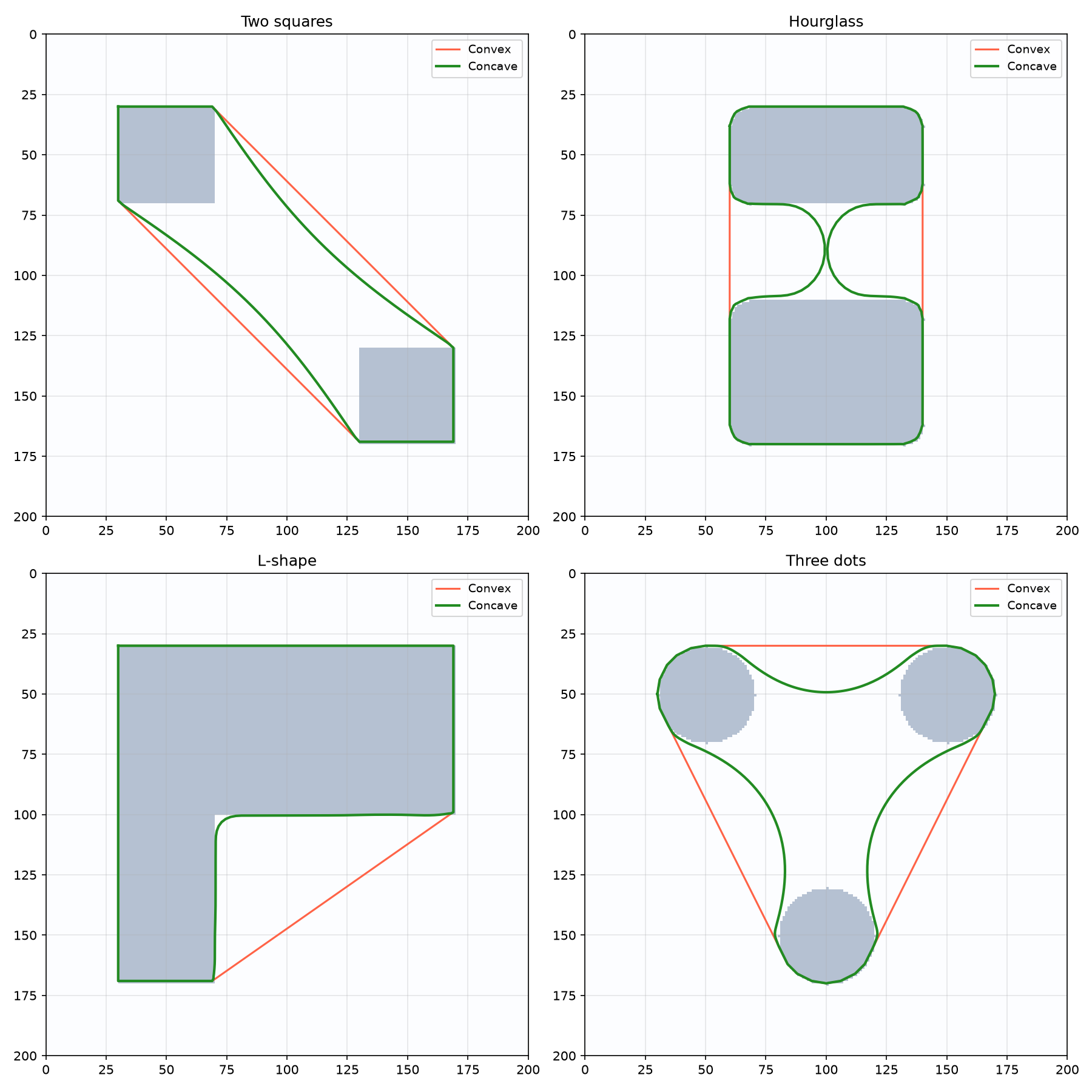

Compute a concave (shrink-wrap) hull with Bézier gravity.
Returns: Concave hull as Geometry in pixel coords, or None.
| Parameter | Type | Description |
|---|---|---|
boolean_image | numpy.ndarray | 2D boolean array. |
gravity | float = 0.1 | Shrink-wrap factor 0.0-1.0. 0 gives convex hull. |
| Returns | `Geometry | None` |
get_enclosing_hull()
get_enclosing_hull(boolean_image: numpy.ndarray) -> Geometry | None
Compute a single convex hull enclosing all content.
Returns: Convex hull as Geometry in pixel coords, or None.
| Parameter | Type | Description |
|---|---|---|
boolean_image | numpy.ndarray | 2D boolean array. |
| Returns | `Geometry | None` |
get_hulls_from_image()
get_hulls_from_image(boolean_image: numpy.ndarray) -> list[Geometry]
Compute a separate convex hull for each distinct component.
Returns: List of Geometry objects in pixel coords.
| Parameter | Type | Description |
|---|---|---|
boolean_image | numpy.ndarray | 2D boolean array. |
| Returns | list[Geometry] |
