raygeo.cnc.machining.entry

Functions

adaptive_entry()

adaptive_entry(
    pocket_boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] = [],
    tool_radius: float = 3,
    step_over: float = 2,
    safe_z: float = 2,
    target_z: float = -5,
    plunge_pitch: float = 1,
    safe_margin: float = 1,
    angular_step: float = 0.1,
    cut_feed_rate: int = 1200,
    cut_power: float = 1,
) -> ops.assembly.result.AssemblyResult

Fast central clearing entry.

Finds the optimal entry pole using find_largest_circle, then generates either a helix->spiral (wide area) or zigzag ramp (tight slot).

Parameter	Type	Description
pocket_boundary	Sequence[tuple[float, float]]	Outer boundary of the pocket.
islands	Sequence[Sequence[tuple[float, float]]] = []	List of island (hole) polygons (default []).
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 2	Radial step-over per spiral revolution (default 2.0).
safe_z	float = 2	Safe (retract) Z height (default 2.0).
target_z	float = -5	Target cutting depth (default -5.0).
plunge_pitch	float = 1	Vertical descent per helix revolution (default 1.0).
safe_margin	float = 1	Extra margin from tool edge to boundary (default 1.0).
angular_step	float = 0.1	Angular step in radians for path vertices (default 0.1).
cut_feed_rate	int = 1200	Feed rate for the entry path (default 1200).
cut_power	float = 1	Laser power for the entry path (0.0-1.0, default 1.0).
Returns	ops.assembly.result.AssemblyResult	An AssemblyResult with the entry toolpath.

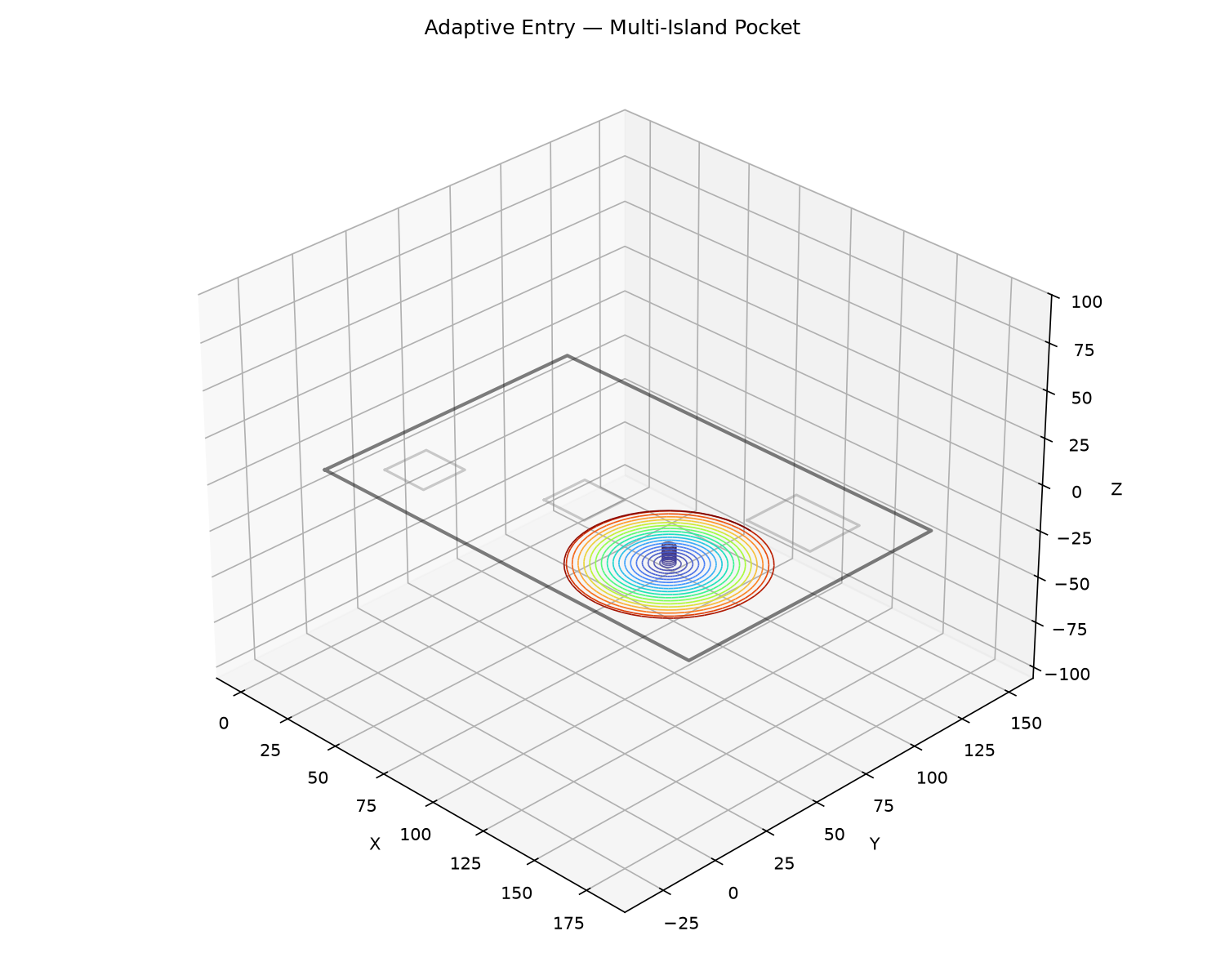

Adaptive clearing — Helix → Spiral in a pocket with three islands

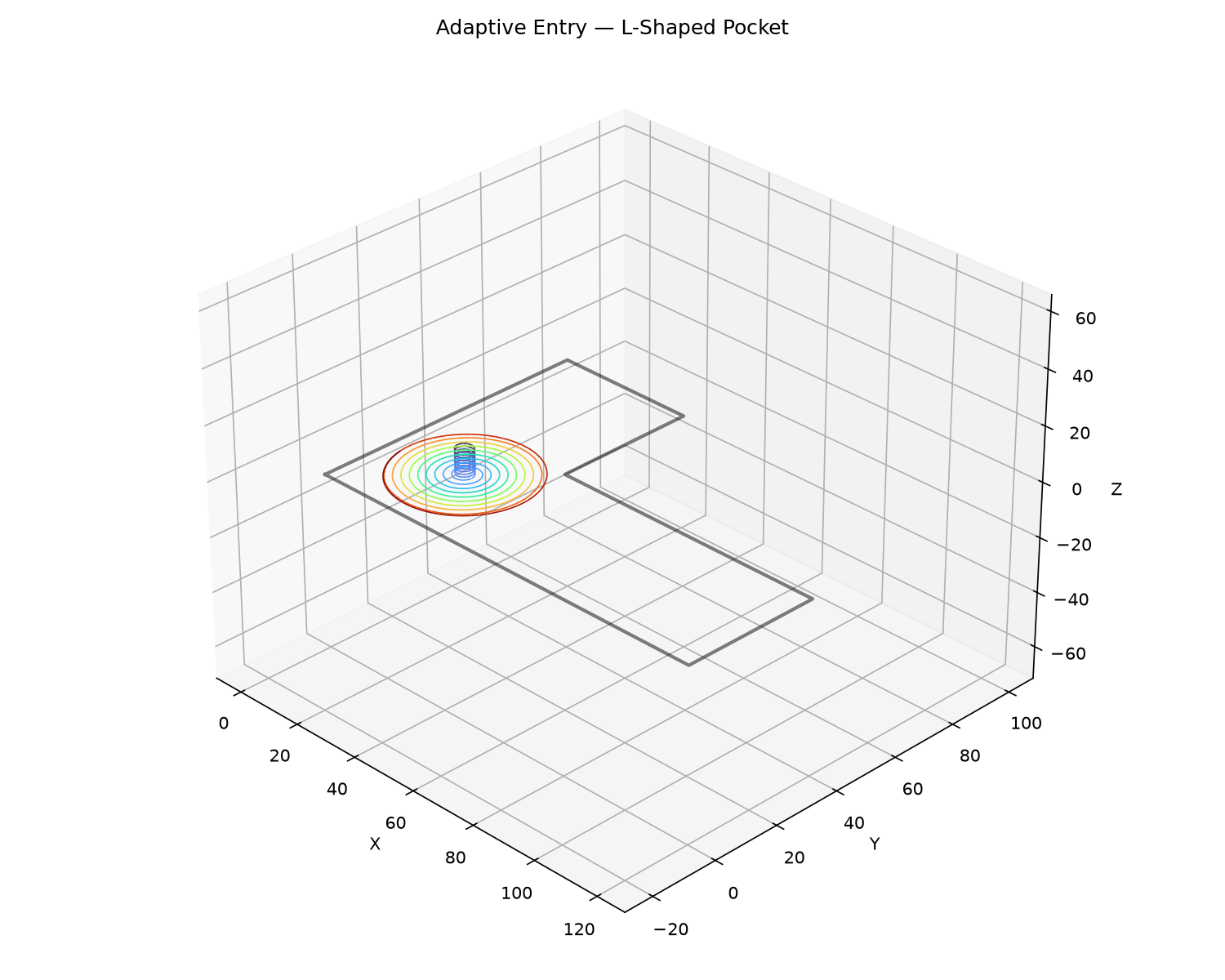

Adaptive clearing — Helix → Spiral in an L-shaped pocket

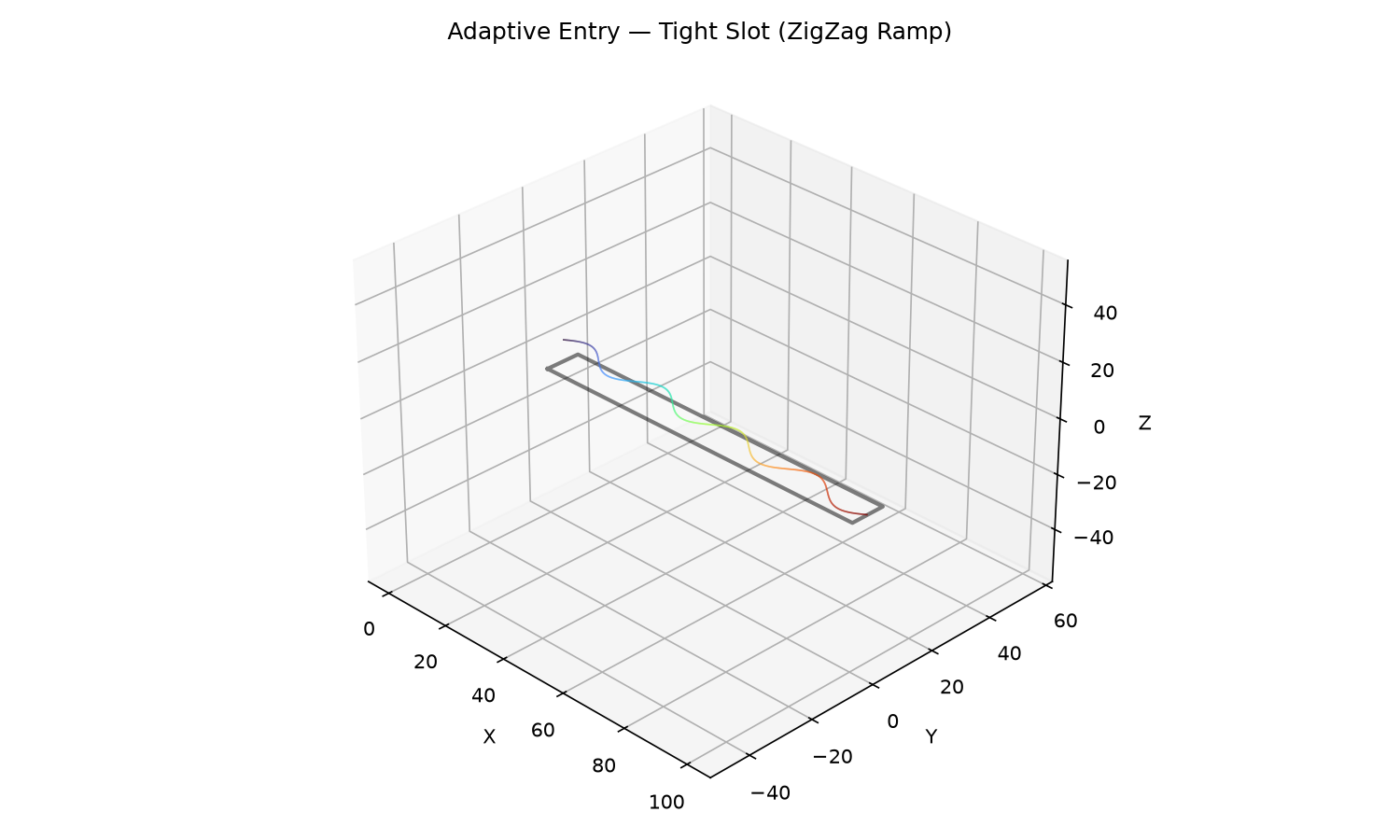

Adaptive clearing — ZigZag Ramp in a tight slot

detect_entry_method()

detect_entry_method(
    r_max: float,
    tool_radius: float,
    safe_margin: float = 0,
) -> str

Classify a pocket by its largest inscribed circle radius.

Returns "helix_spiral", "toroid", "ramp", or "none".

Parameter	Type	Description
r_max	float	Radius of the largest inscribed circle (mm).
tool_radius	float	Tool radius (mm).
safe_margin	float = 0	Safety margin (mm, default 0).
Returns	str	Entry method name.

generate_helix_spiral()

generate_helix_spiral(
    entry_pt: tuple[float, float],
    r_max: float,
    tool_radius: float = 3,
    step_over: float = 2,
    safe_z: float = 2,
    target_z: float = -5,
    plunge_pitch: float = 1,
    safe_margin: float = 1,
    angular_step: float = 0.1,
    state: ops.state.State | None = None,
) -> ops.assembly.result.AssemblyResult

Build a helix→spiral entry sequence.

Chains a helical plunge with a flat Archimedean spiral + smoothing circular pass. Useful when you already know the entry point and max radius (e.g. from find_largest_circle).

Parameter	Type	Description
entry_pt	tuple[float, float]	(x, y) entry point (pocket center).
r_max	float	Max inscribed circle radius (mm).
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 2	Radial step-over per spiral revolution (default 2.0).
safe_z	float = 2	Safe (retract) Z height (default 2.0).
target_z	float = -5	Target cutting depth (default -5.0).
plunge_pitch	float = 1	Vertical descent per helix revolution (default 1.0).
safe_margin	float = 1	Extra margin from tool edge to boundary (default 1.0).
angular_step	float = 0.1	Angular step in radians (default 0.1).
state	ops.state.State | None = None	Optional machine state to apply before the path.
Returns	ops.assembly.result.AssemblyResult	An AssemblyResult.

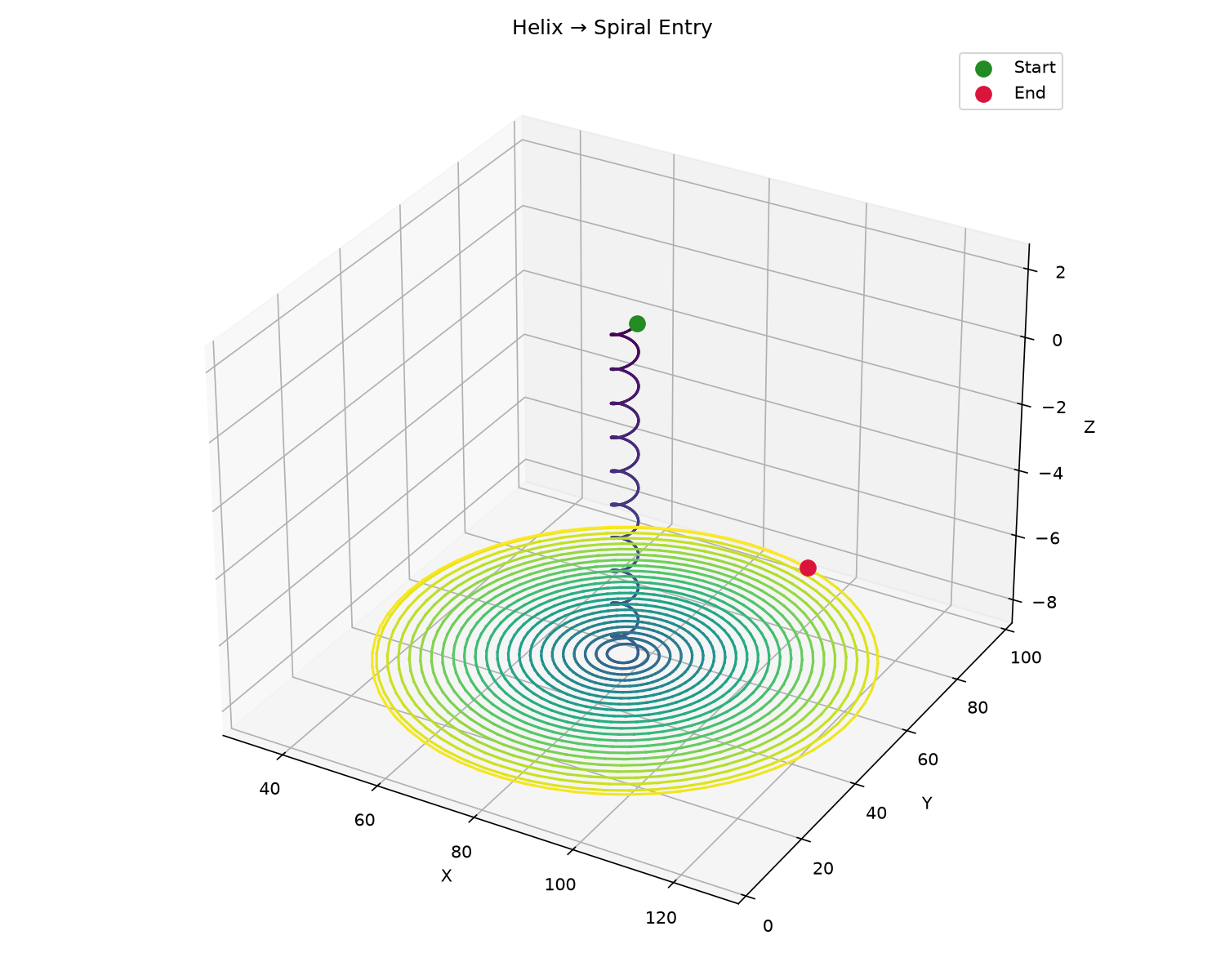

Helix → Spiral: helical plunge then Archimedean spiral
