raygeo.geo.algo.trochoid

Trochoidal path generation for constant-engagement milling.

Provides generation of trochoidal toolpaths along a carrier polyline, with configurable tool diameter, engagement angle, and step-over ratio.

Functions

trochoid_along()

trochoid_along(
    carrier: Sequence[tuple[float, float]],
    tool_diameter: float,
    engagement_angle_deg: float = 90,
    step_over_ratio: float = 0.2,
    min_loop_radius: float = 0.5,
    z: float = 0,
) -> list[tuple[float, float, float]]

Generate a trochoidal cutting path along a carrier polyline.

Parameter	Type	Description
carrier	Sequence[tuple[float, float]]	Sequence of (x, y) points defining the centerline.
tool_diameter	float	Tool diameter in mm.
engagement_angle_deg	float = 90	Target engagement angle in degrees (default 90).
step_over_ratio	float = 0.2	Forward advance per loop as fraction of tool diameter (default 0.2).
min_loop_radius	float = 0.5	Minimum trochoid loop radius in mm (default 0.5).
z	float = 0	Z height for all points (default 0.0).
Returns	list[tuple[float, float, float]]	List of (x, y, z) points forming the trochoidal path.
Complexity		O(n) time, O(n) space where n is proportional to path length / step

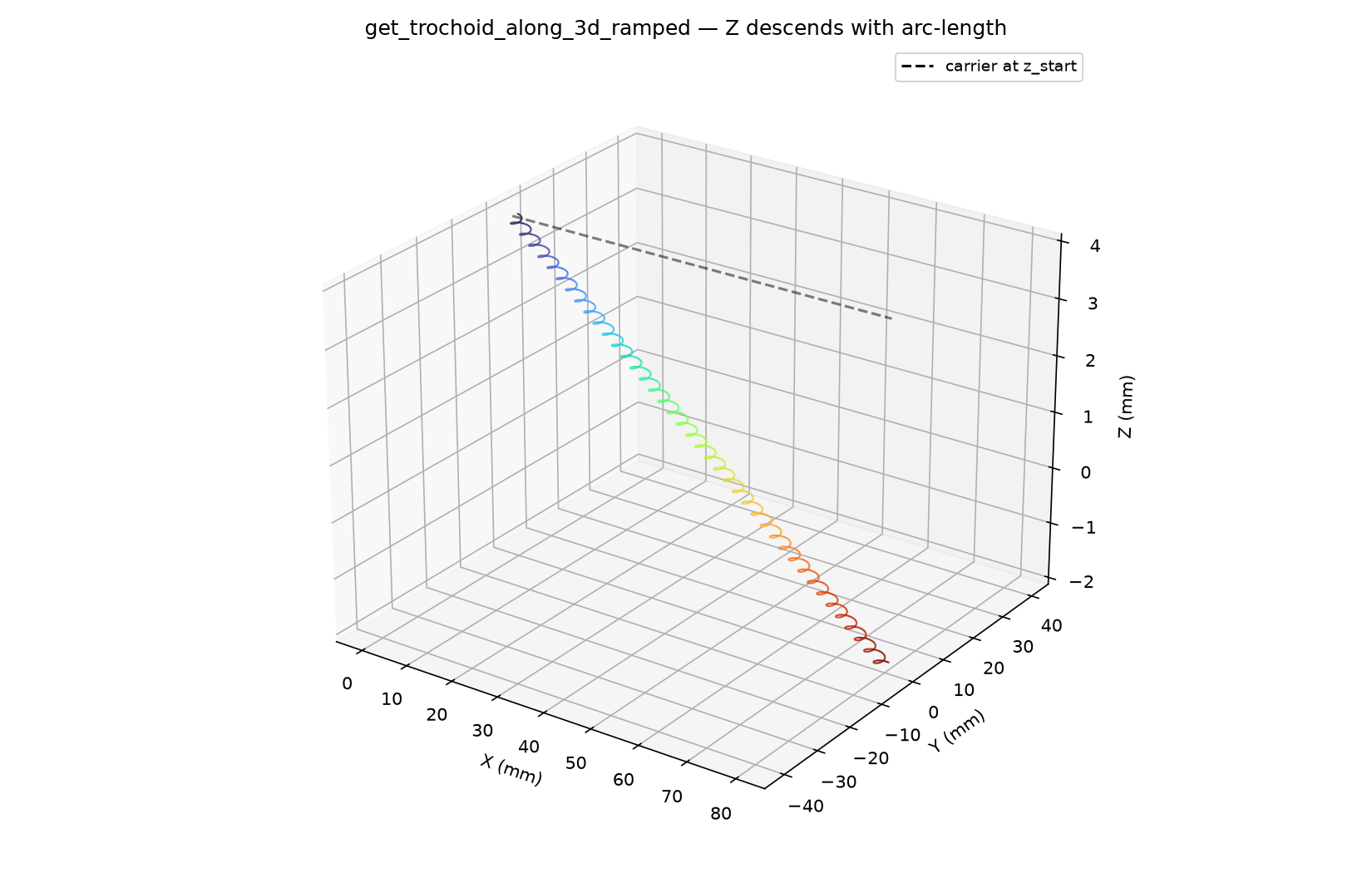

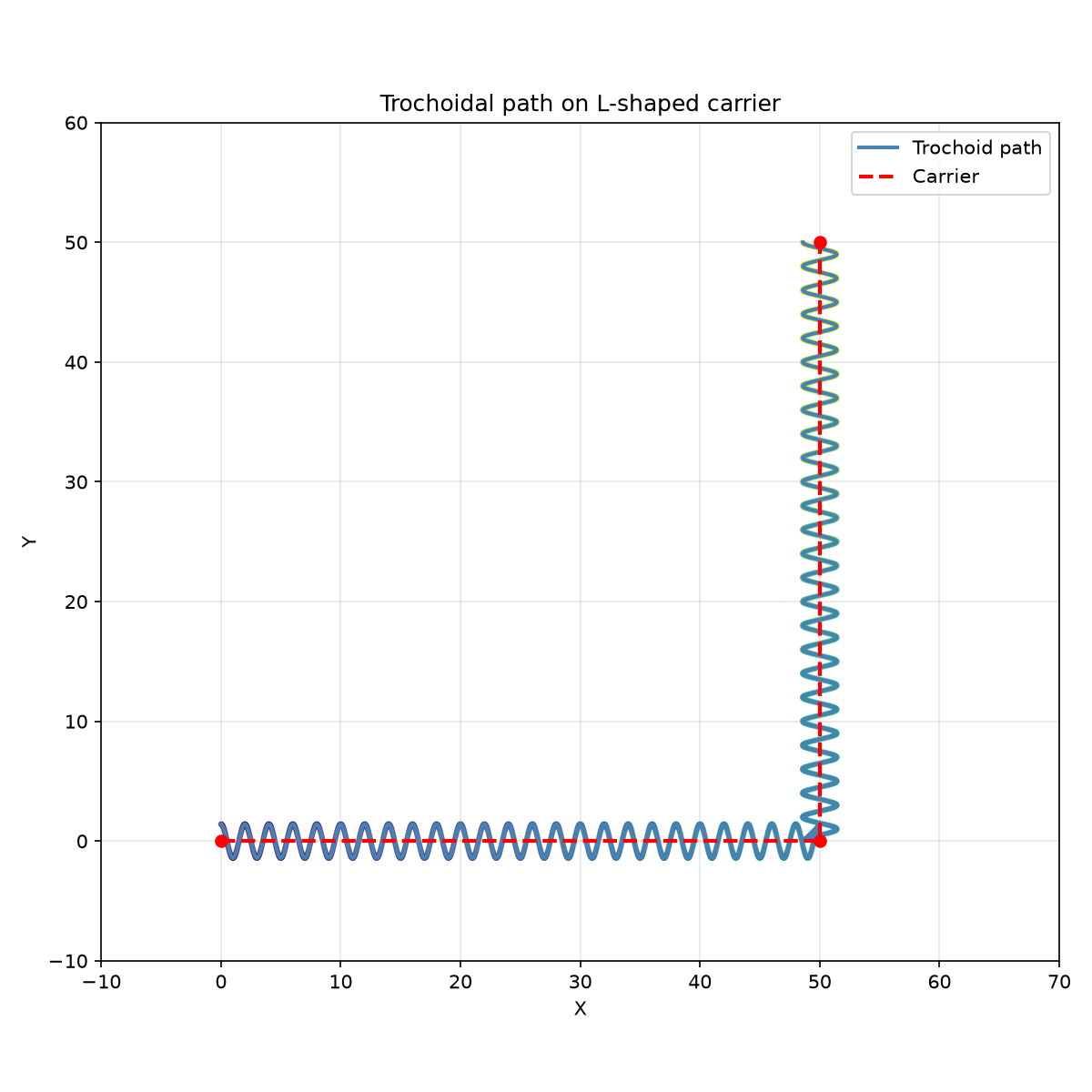

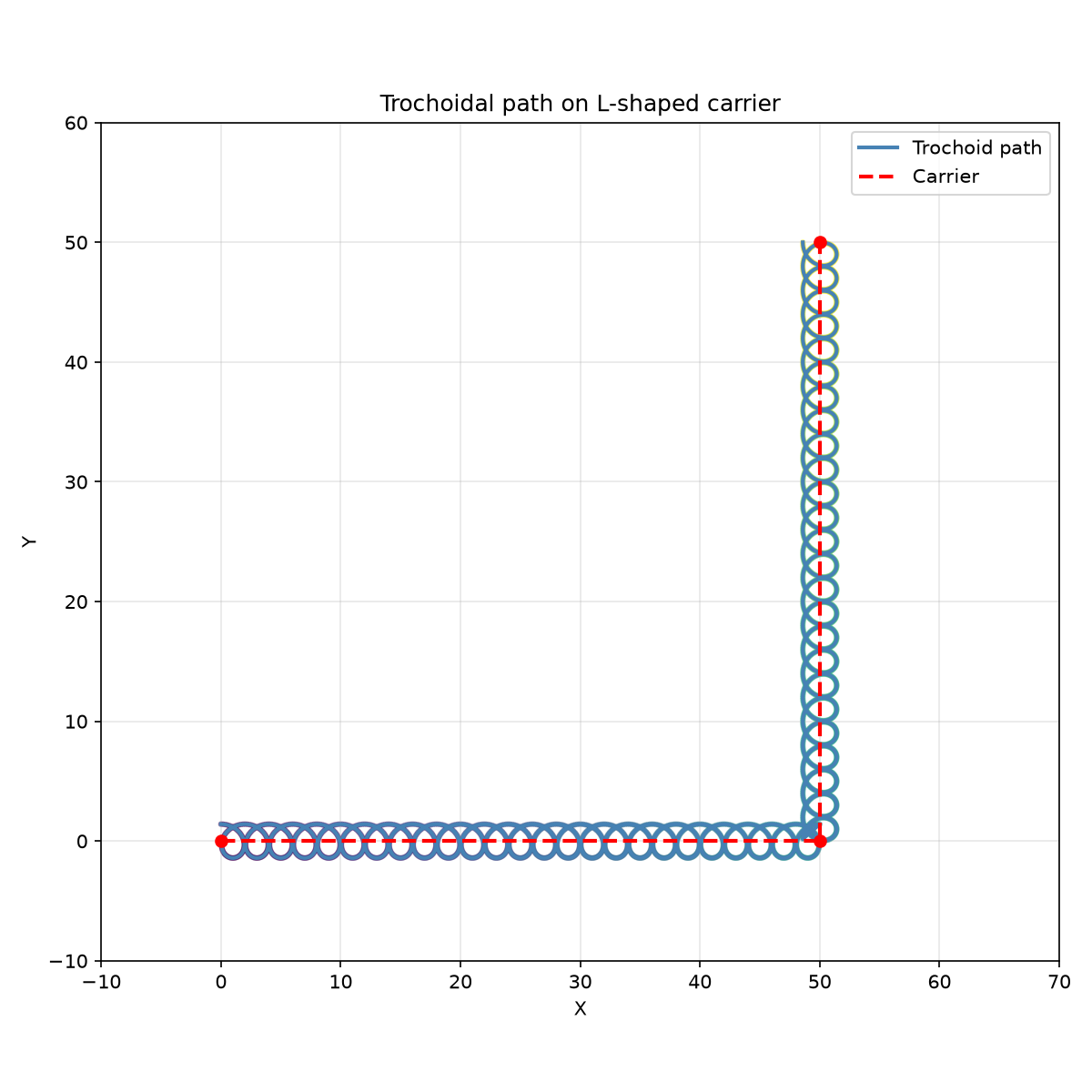

Trochoidal toolpath around an L-shaped corner

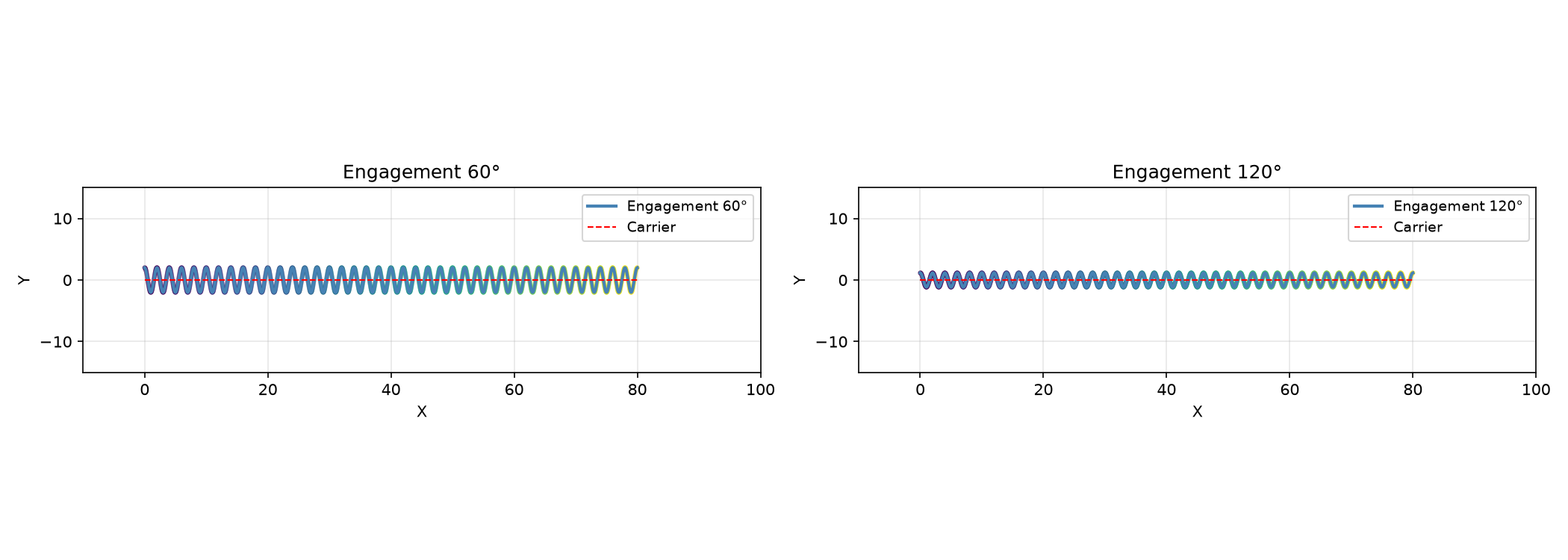

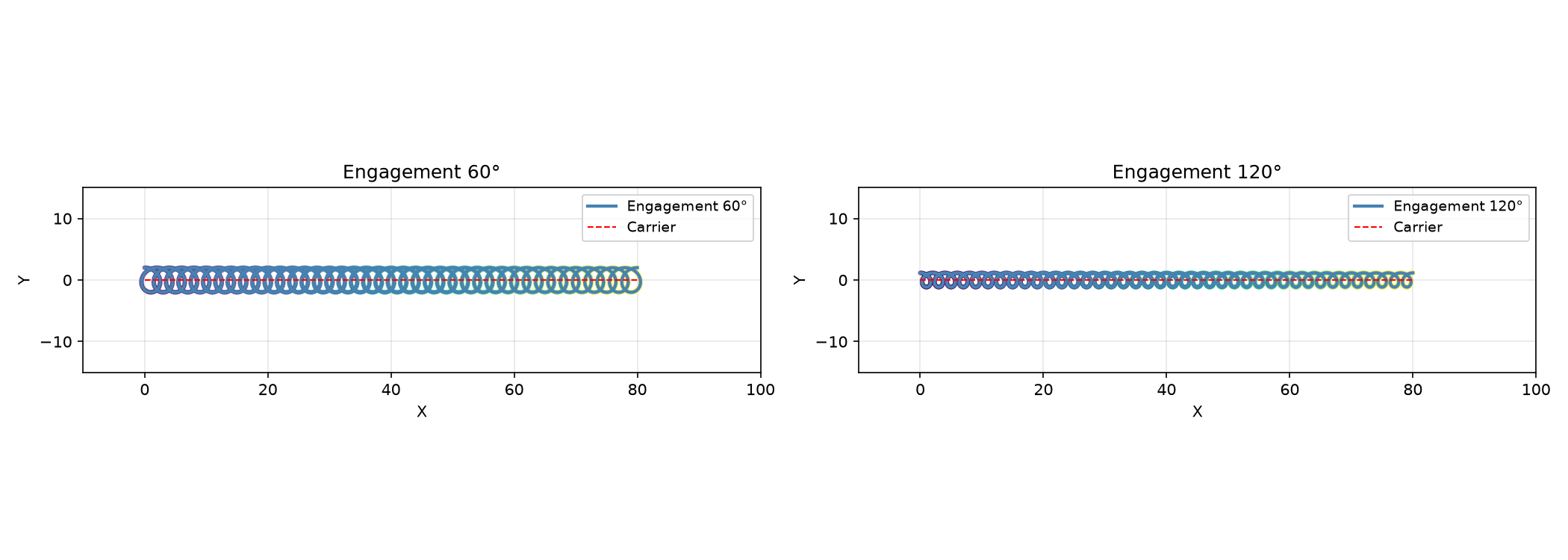

Trochoidal toolpath along a straight carrier — 60° vs 120°
