raygeo.geo.algo.medial_axis

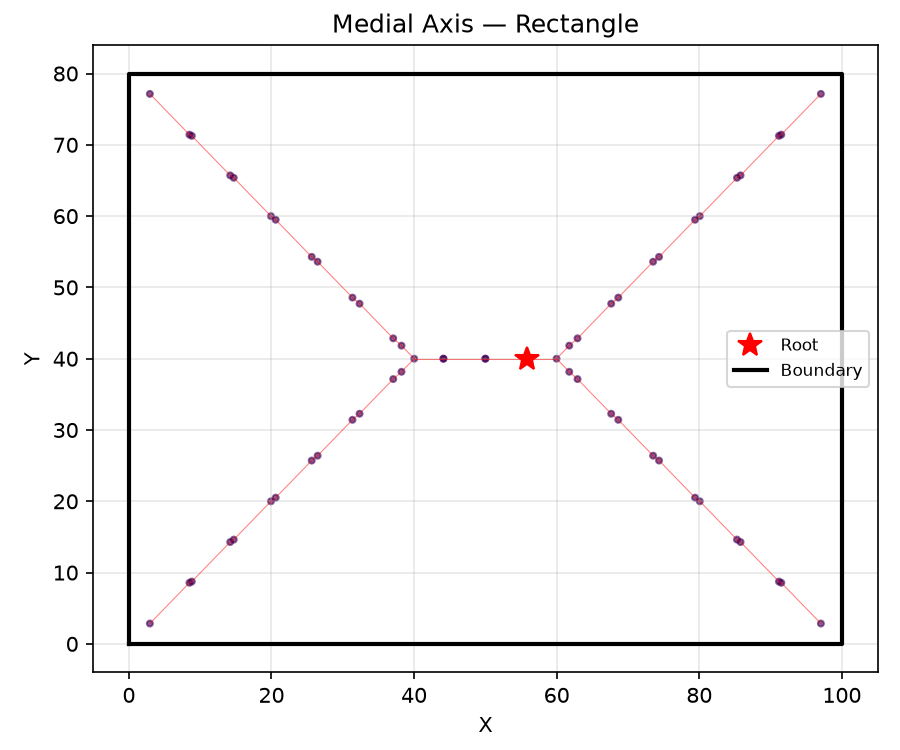

Medial axis of a rectangular pocket — skeleton from center to corners. Medial Axis Transform (MAT) computation.

The MAT is the skeleton of a 2D domain — the set of points equidistant to two or more boundary features. It is computed via Delaunay-get_circumcenter extraction from a constrained triangulation of the domain boundary.

• MedialAxis.compute — compute the MAT of a domain (with optional holes).
• MedialAxis.path_between — find a path between two points along the skeleton.
• MedialAxis.trim_to_polygons — filter nodes to those inside given polygons.

MedialAxis

Medial Axis Transform of a planar domain.

The MAT is the set of points equidistant to two or more boundary features, forming the skeleton of the free space.

Usage:

axis = MedialAxis.compute(outer, holes)
path = axis.path_between((x1, y1), (x2, y2))
trimmed = axis.trim_to_polygons(polygons)
nodes = axis.nodes
clearances = axis.clearances
edges = axis.edges
root = axis.root
branches = axis.branches

branches

branches: list[list[int]]

clearances

clearances: list[float]

edges

edges: list[tuple[int, int]]

nodes

nodes: list[tuple[float, float]]

root

root: int

compute()

compute(
    outer: Sequence[tuple[float, float]],
    holes: Optional[Sequence[Sequence[tuple[float, float]]]] = None,
    min_clearance: float = 1.0,
    sampling_spacing: float = 1.0,
) -> MedialAxis

Compute the Medial Axis Transform of a planar domain.

Parameter	Type	Description
outer	Sequence[tuple[float, float]]	Outer boundary polygon (list of (x, y) vertices).
holes	Optional[Sequence[Sequence[tuple[float, float]]]] = None	List of hole polygons (each a list of (x, y) vertices).
min_clearance	float = 1.0	Minimum clearance distance in mm.
sampling_spacing	float = 1.0	Spacing between sampling points in mm.
Returns	MedialAxis	MedialAxis object.

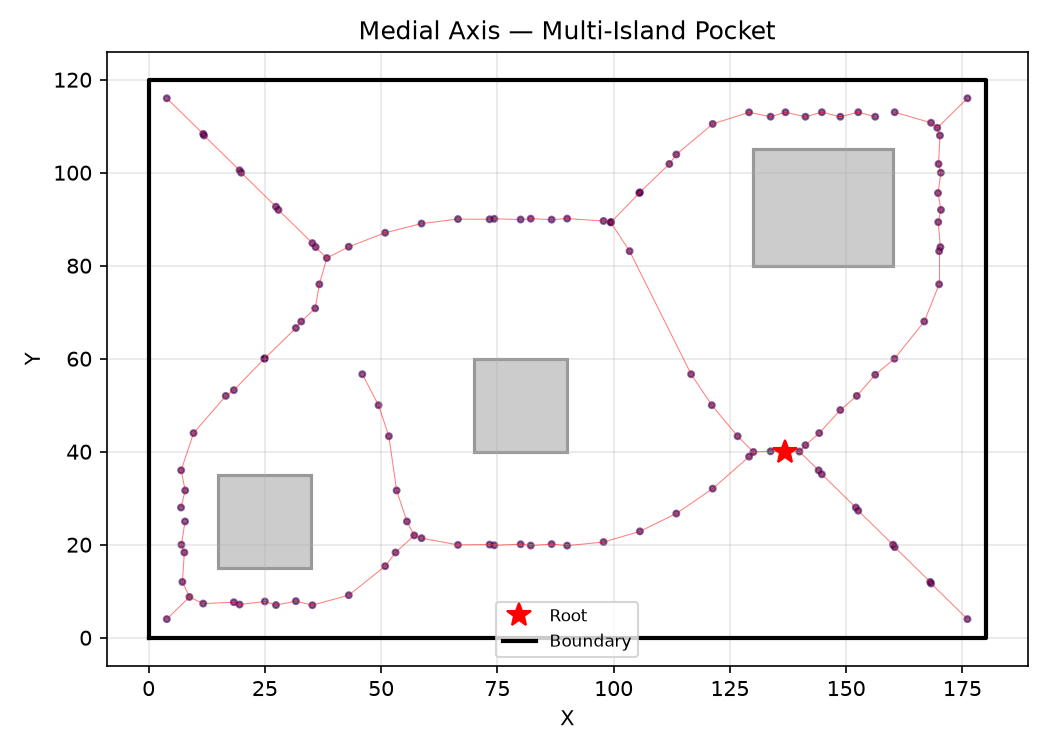

Medial axis with three rectangular islands — skeleton branches around each obstacle.

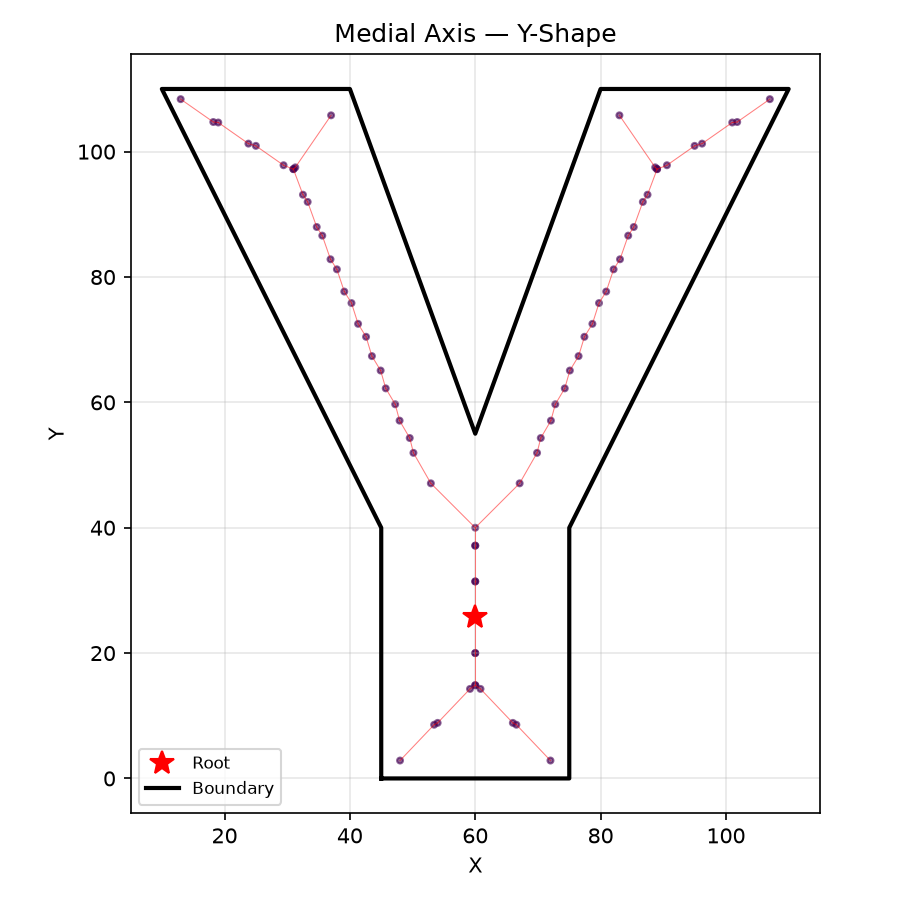

Medial axis of a Y-shaped channel — skeleton follows the branching topology.

path_between()

path_between(
    from_pt: tuple[float, float],
    to_pt: tuple[float, float],
) -> Optional[list[tuple[float, float]]]

Find a path between two points along the medial axis skeleton.

Parameter	Type	Description
from_pt	tuple[float, float]	Start point (x, y).
to_pt	tuple[float, float]	End point (x, y).
Returns	Optional[list[tuple[float, float]]]	List of (x, y) waypoints along the medial axis.

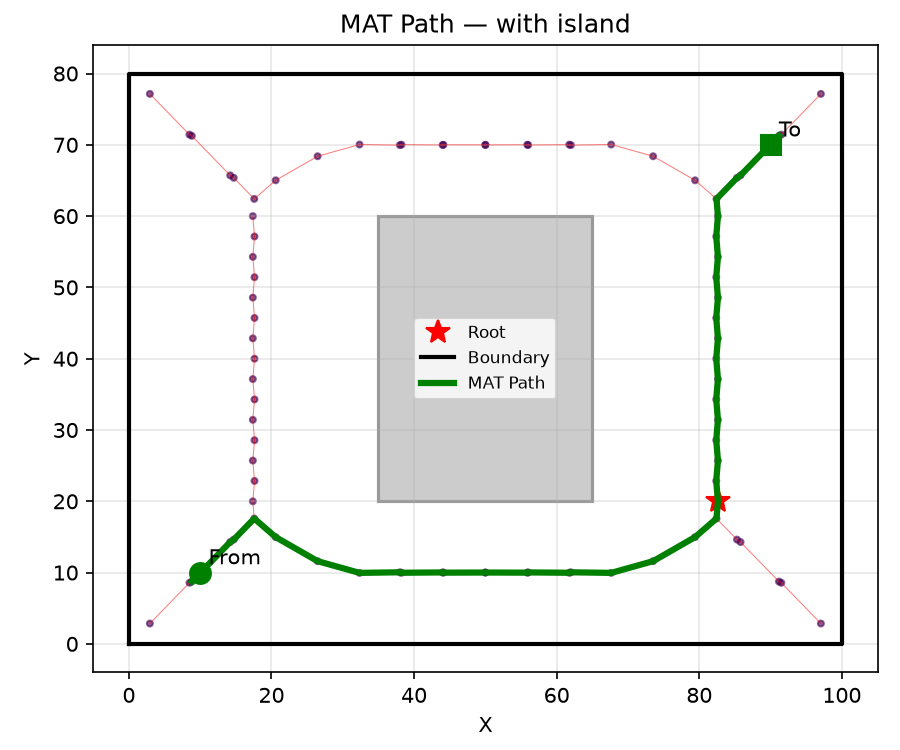

MAT path routing: a path between two points along the medial axis skeleton, avoiding the island

trim_to_polygons()

trim_to_polygons(
    polygons: Sequence[Sequence[tuple[float, float]]],
) -> MedialAxis

Return a new MedialAxis containing only nodes whose positions fall inside at least one of the given polygons.

Parameter	Type	Description
polygons	Sequence[Sequence[tuple[float, float]]]	List of polygons to trim against.
Returns	MedialAxis	Trimmed MedialAxis.

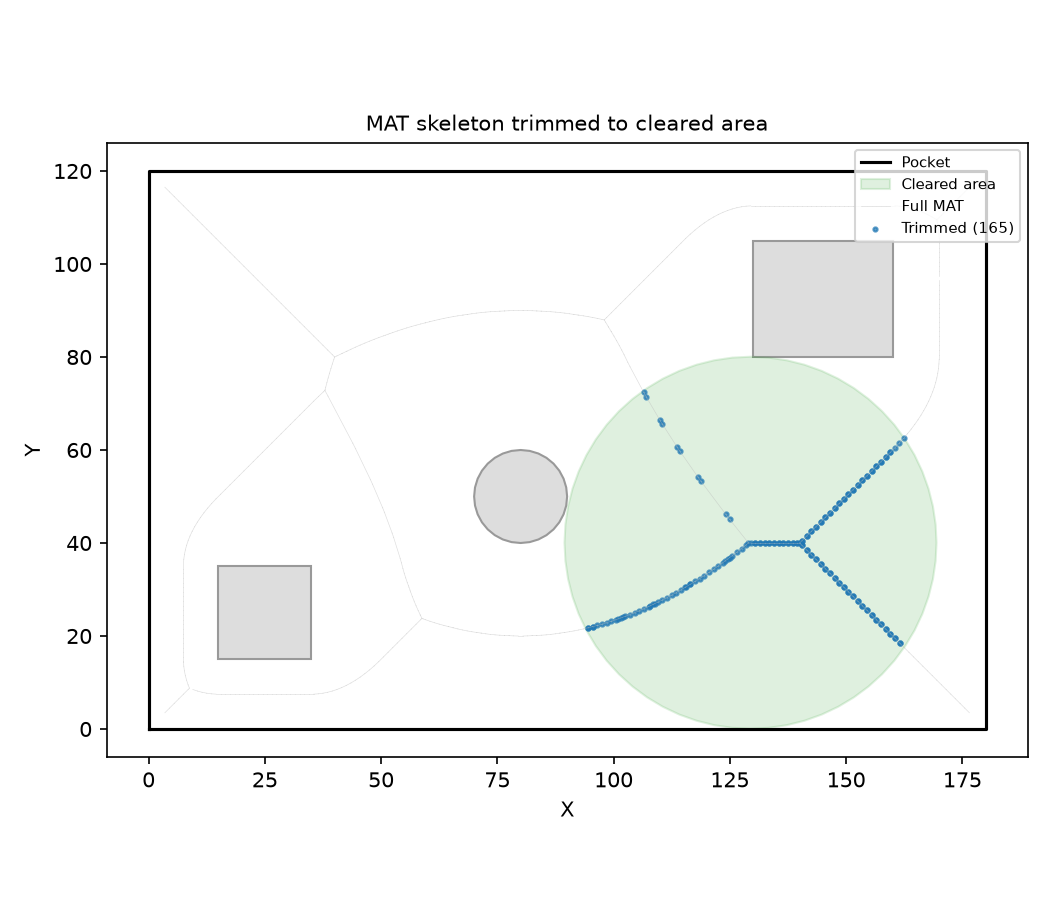

MAT trimmed to cleared area: original (gray) and trimmed nodes (blue) after multiple clearing passes
