raygeo.geo.algo.clipping

Line and polygon clipping operations.

Provides functions for clipping line segments against rectangles and polygon regions, as well as converting between float and Clipper integer coordinate systems.

Functions

clip_line_segment_with_polygons()

clip_line_segment_with_polygons(
    p1: types.Point3D,
    p2: types.Point3D,
    regions: Sequence[Sequence[types.Point]],
) -> list[tuple[types.Point3D, types.Point3D]]

Clip line segments that fall within polygon regions.

Parameter	Type	Description
p1	types.Point3D	Start point of the line segment.
p2	types.Point3D	End point of the line segment.
regions	Sequence[Sequence[types.Point]]	Polygon regions to clip against.
Returns	list[tuple[types.Point3D, types.Point3D]]	List of clipped segments.
Complexity		O(n * m) time, O(n) space where n is the number of regions and m their average vertex count

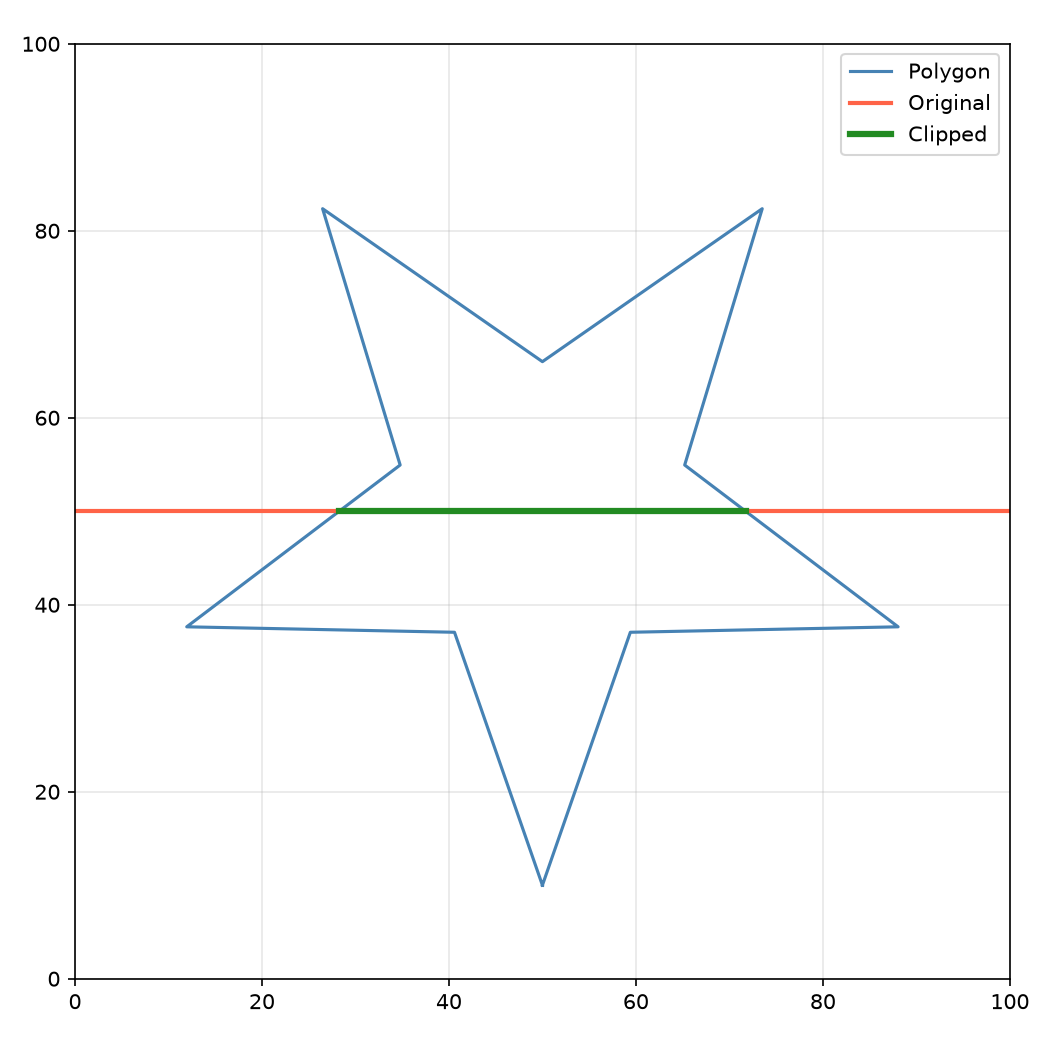

Line clipped to polygon

clip_line_segment_with_polygons_2d()

clip_line_segment_with_polygons_2d(
    p1: types.Point,
    p2: types.Point,
    regions: Sequence[Sequence[types.Point]],
) -> list[tuple[types.Point, types.Point]]

Clip 2D line segments that fall within polygon regions (XY-plane only).

Parameter	Type	Description
p1	types.Point	Start point (x, y).
p2	types.Point	End point (x, y).
regions	Sequence[Sequence[types.Point]]	Polygon regions to clip against.
Returns	list[tuple[types.Point, types.Point]]	List of clipped segments.
Complexity		O(n * m) time, O(n) space where n is the number of regions and m their average vertex count

clip_line_segment_with_rect()

clip_line_segment_with_rect(
    p1: types.Point3D,
    p2: types.Point3D,
    rect: types.Rect,
) -> Optional[tuple[types.Point3D, types.Point3D]]

Clip a line segment with a rectangle.

Parameter	Type	Description
p1	types.Point3D	Start point of the line segment.
p2	types.Point3D	End point of the line segment.
rect	types.Rect	Clipping rectangle (x_min, y_min, x_max, y_max).
Returns	Optional[tuple[types.Point3D, types.Point3D]]	Clipped segment or None if fully outside.
Complexity		O(1) time, O(1) space

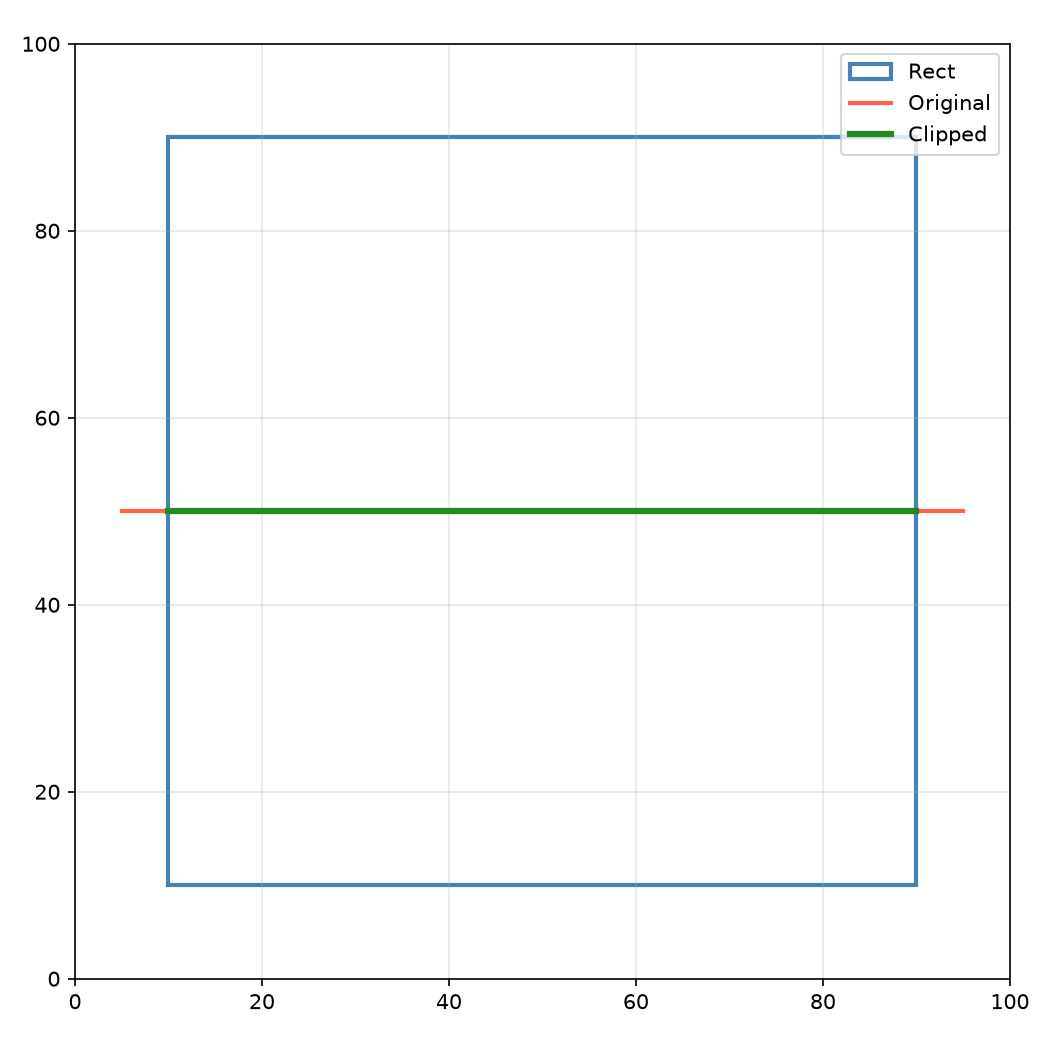

Line clipped to rectangle

clip_line_segment_with_rect_2d()

clip_line_segment_with_rect_2d(
    p1: types.Point,
    p2: types.Point,
    rect: types.Rect,
) -> Optional[tuple[types.Point, types.Point]]

Clip a 2D line segment with a rectangle (XY-plane only).

Parameter	Type	Description
p1	types.Point	Start point (x, y).
p2	types.Point	End point (x, y).
rect	types.Rect	Clipping rectangle (x_min, y_min, x_max, y_max).
Returns	Optional[tuple[types.Point, types.Point]]	Clipped segment or None if fully outside.
Complexity		O(1) time, O(1) space

from_clipper()

from_clipper(polygon: list[tuple[int, int]]) -> list[tuple[float, float]]

Convert a polygon from Clipper coordinates.

Parameter	Type	Description
polygon	list[tuple[int, int]]	Integer polygon from Clipper.
Returns	list[tuple[float, float]]	Polygon with float coordinates.
Complexity		O(n) time, O(n) space

subtract_polygons_from_line_segment()

subtract_polygons_from_line_segment(
    p1: types.Point3D,
    p2: types.Point3D,
    regions: Sequence[Sequence[types.Point]],
) -> list[tuple[types.Point3D, types.Point3D]]

Subtract polygon regions from a line segment.

Parameter	Type	Description
p1	types.Point3D	Start point of the line segment.
p2	types.Point3D	End point of the line segment.
regions	Sequence[Sequence[types.Point]]	List of polygon regions to subtract.
Returns	list[tuple[types.Point3D, types.Point3D]]	List of remaining segments after subtraction.
Complexity		O(n * m) time, O(n) space where n is the number of regions and m their average vertex count

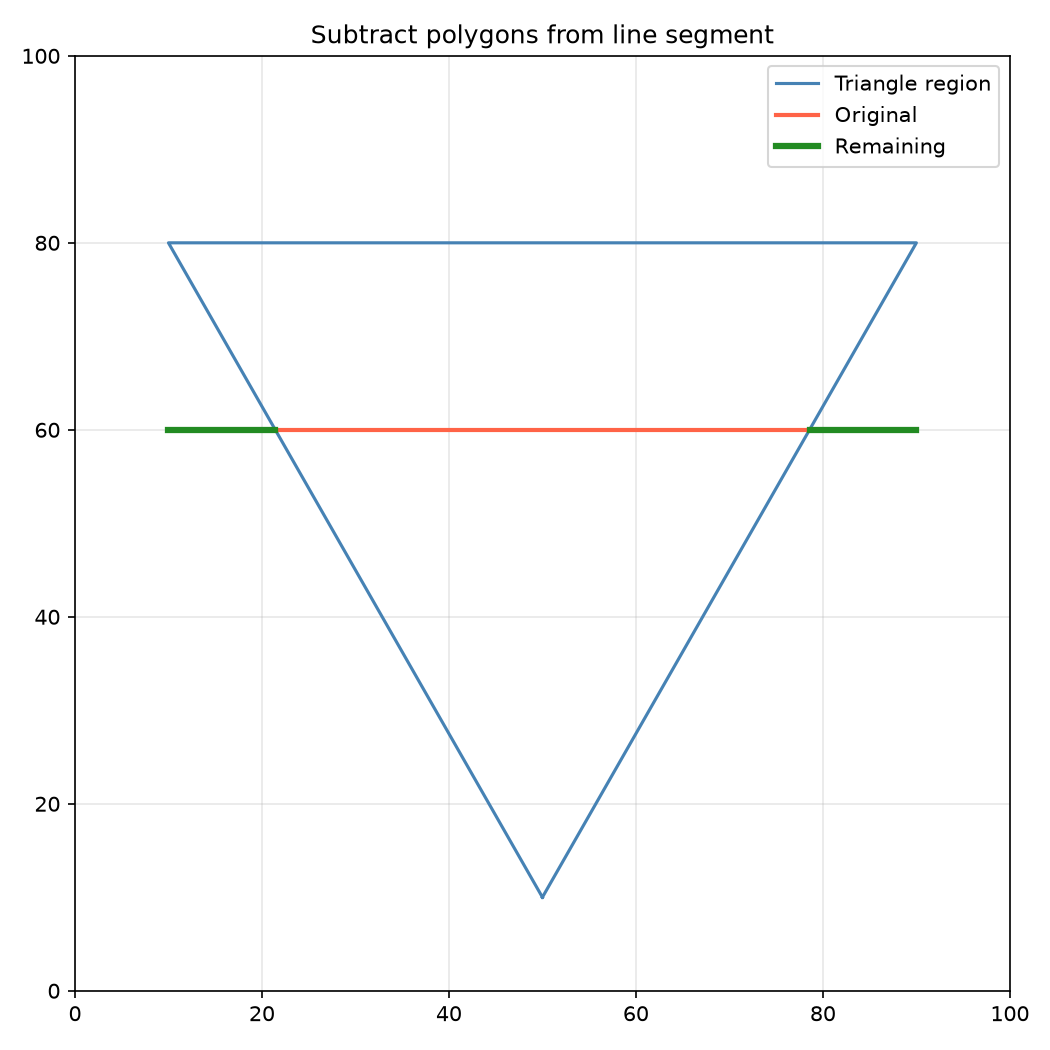

Subtract polygon from line

subtract_polygons_from_line_segment_2d()

subtract_polygons_from_line_segment_2d(
    p1: types.Point,
    p2: types.Point,
    regions: Sequence[Sequence[types.Point]],
) -> list[tuple[types.Point, types.Point]]

Subtract polygon regions from a 2D line segment (XY-plane only).

Parameter	Type	Description
p1	types.Point	Start point (x, y).
p2	types.Point	End point (x, y).
regions	Sequence[Sequence[types.Point]]	List of polygon regions to subtract.
Returns	list[tuple[types.Point, types.Point]]	List of remaining segments after subtraction.
Complexity		O(n * m) time, O(n) space where n is the number of regions and m their average vertex count

to_clipper()

to_clipper(polygon: types.Polygon) -> list[tuple[int, int]]

Convert a polygon to Clipper coordinates.

Parameter	Type	Description
polygon	types.Polygon	Input polygon as a list of (x, y) points.
Returns	list[tuple[int, int]]	Polygon with integer coordinates for Clipper.
Complexity		O(n) time, O(n) space
