raygeo.ops.assembly.wavefront

Functions

adaptive_wavefronts()

adaptive_wavefronts(
    cleared: ops.cut.cleared_area.ClearedArea,
    pocket_boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] = [],
    tool_radius: float = 3,
    step_over: float = 2,
    z: float = 0,
    area_tolerance: float = 1,
    cut_feed_rate: int = 1200,
    cut_power: float = 1,
) -> ops.Ops

Inside-out adaptive wavefronts.

Starting from the cleared state, each iteration expands the cleared boundary outward by step_over, clips to the valid tool area (pocket boundary offset inward by tool_radius, with islands excluded), and adds the result back to cleared. The loop terminates when the newly added area drops below area_tolerance.

Each ring fragment is emitted as MoveTo + LineTo at height z with cut_feed_rate applied.

Parameter	Type	Description
cleared	ops.cut.cleared_area.ClearedArea	ClearedArea instance (mutated in place).
pocket_boundary	Sequence[tuple[float, float]]	Outer boundary of the pocket.
islands	Sequence[Sequence[tuple[float, float]]] = []	List of island (hole) polygons (default []).
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 2	Radial expansion per iteration (default 2.0).
z	float = 0	Z height for generated commands (default 0.0).
area_tolerance	float = 1	Minimum area increase to continue (default 1.0).
cut_feed_rate	int = 1200	Feed rate for cutting moves (default 1200).
cut_power	float = 1	Laser power for cutting moves (0.0-1.0, default 1.0).
Returns	ops.Ops	Ops with wavefront cutting commands.

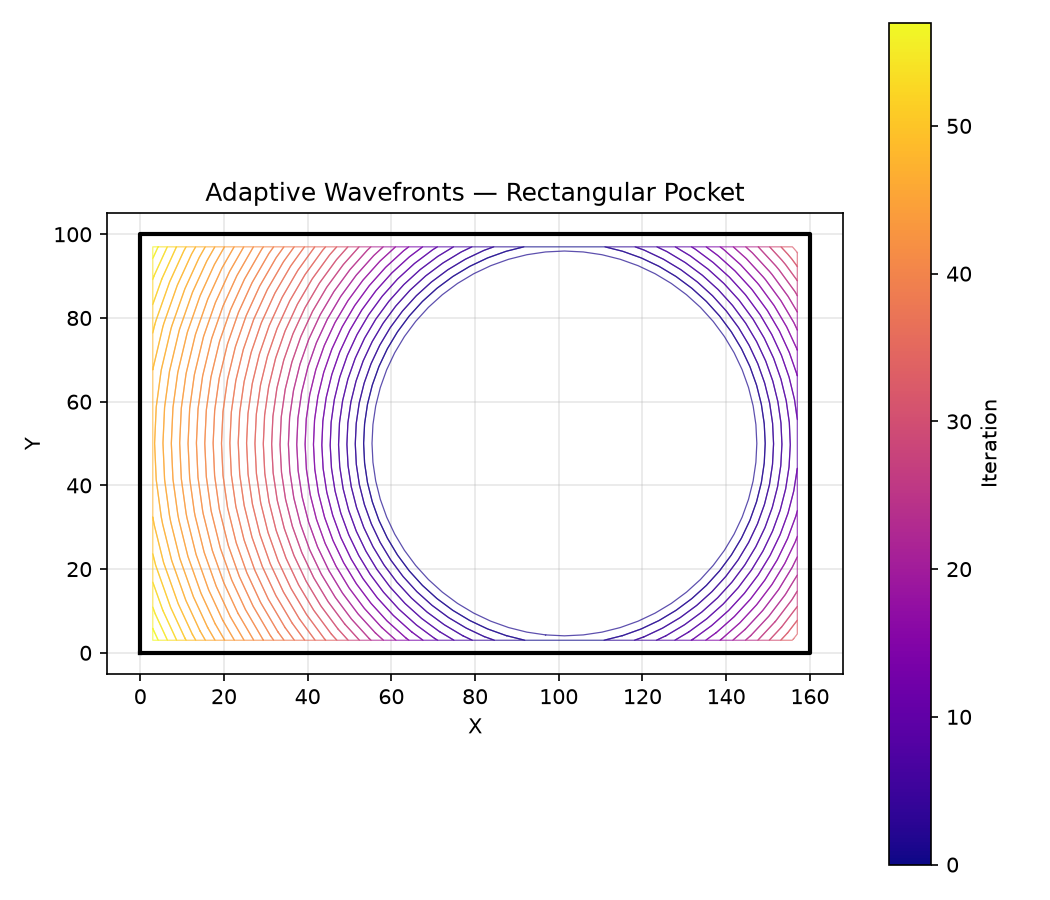

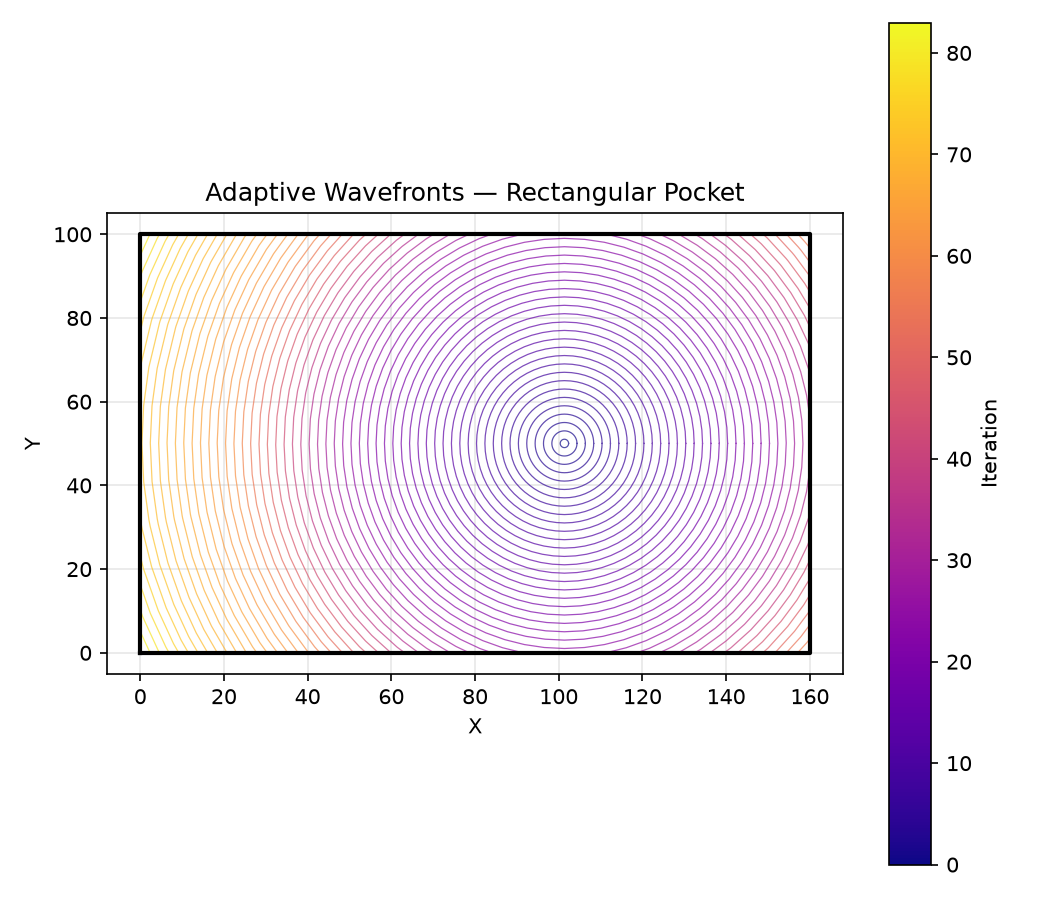

Adaptive wavefronts expanding outward from the initial cleared disk (blue) to fill the pocket boundary (black)

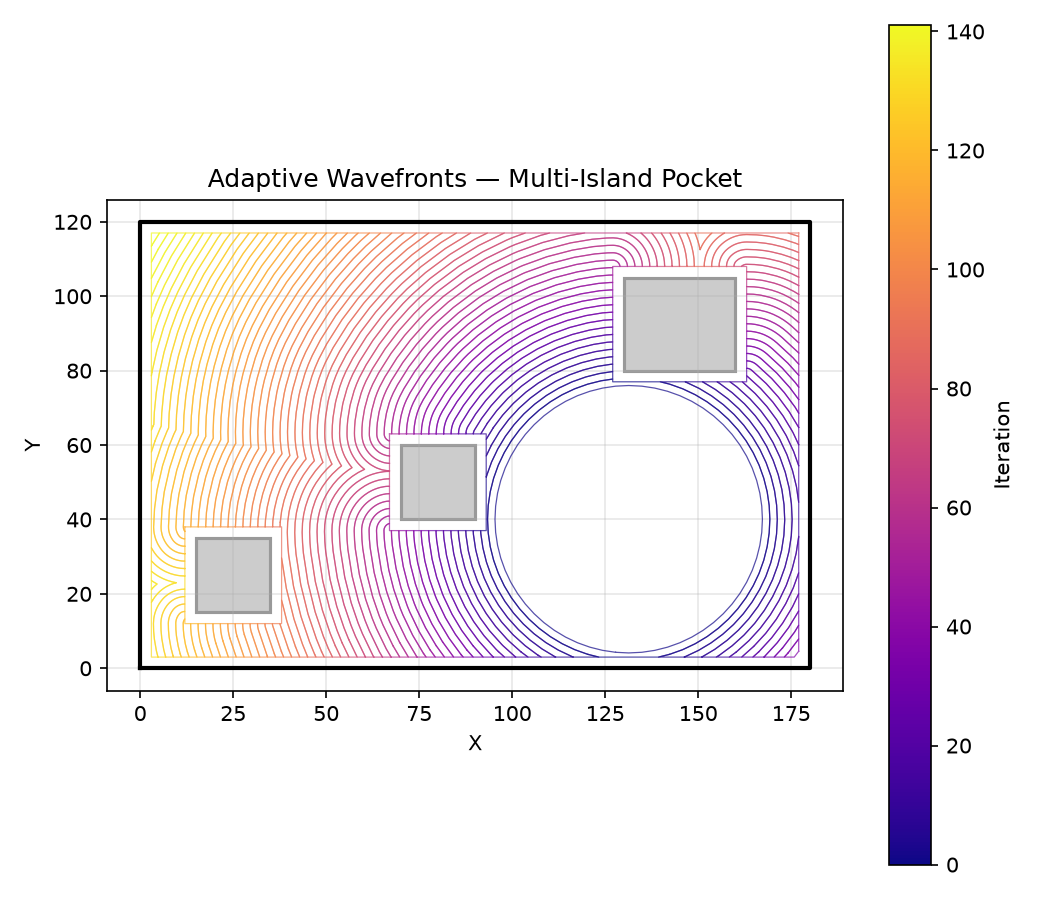

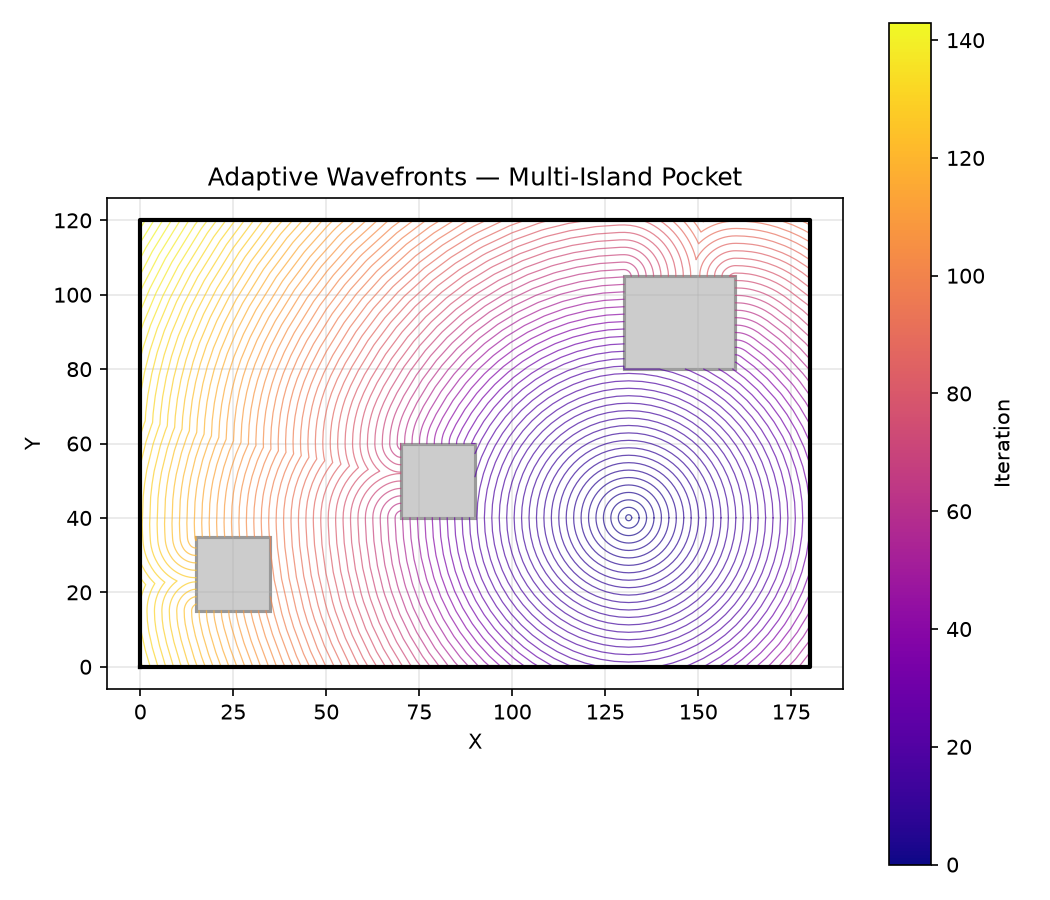

Adaptive wavefronts in a pocket with three islands — contours wrap around each island as they expand

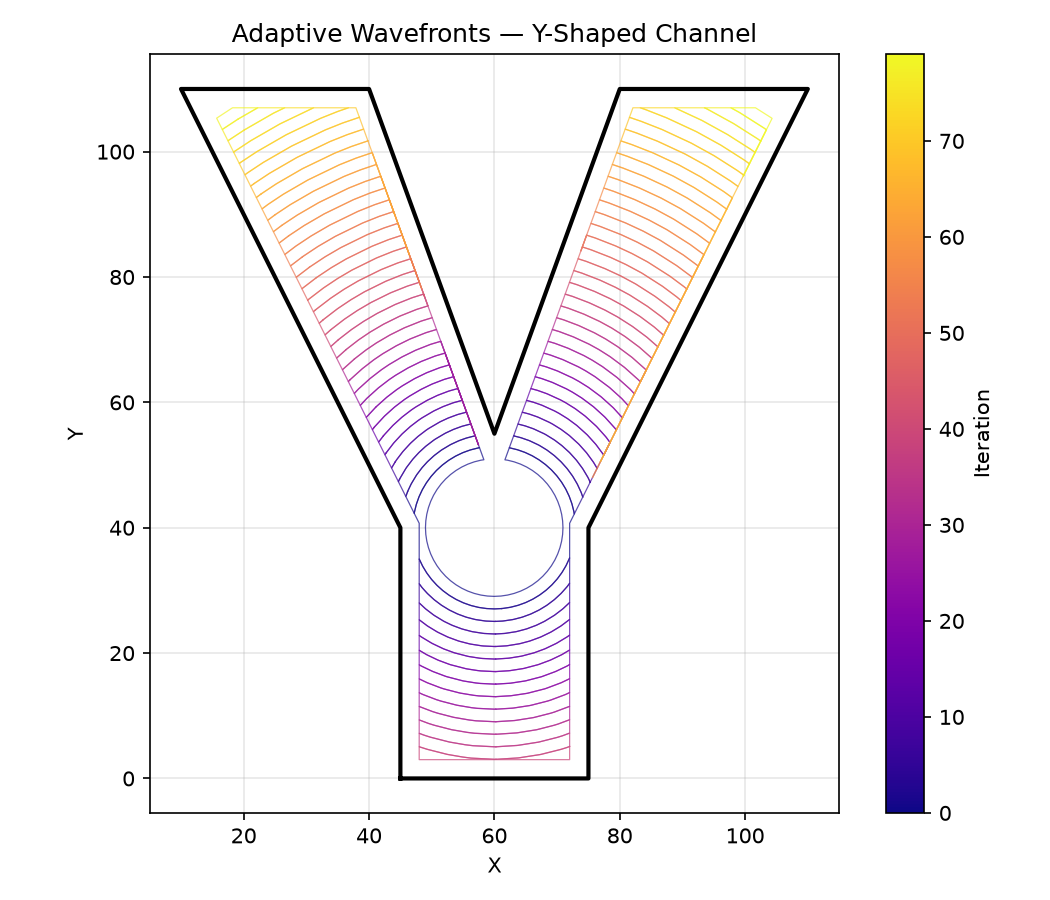

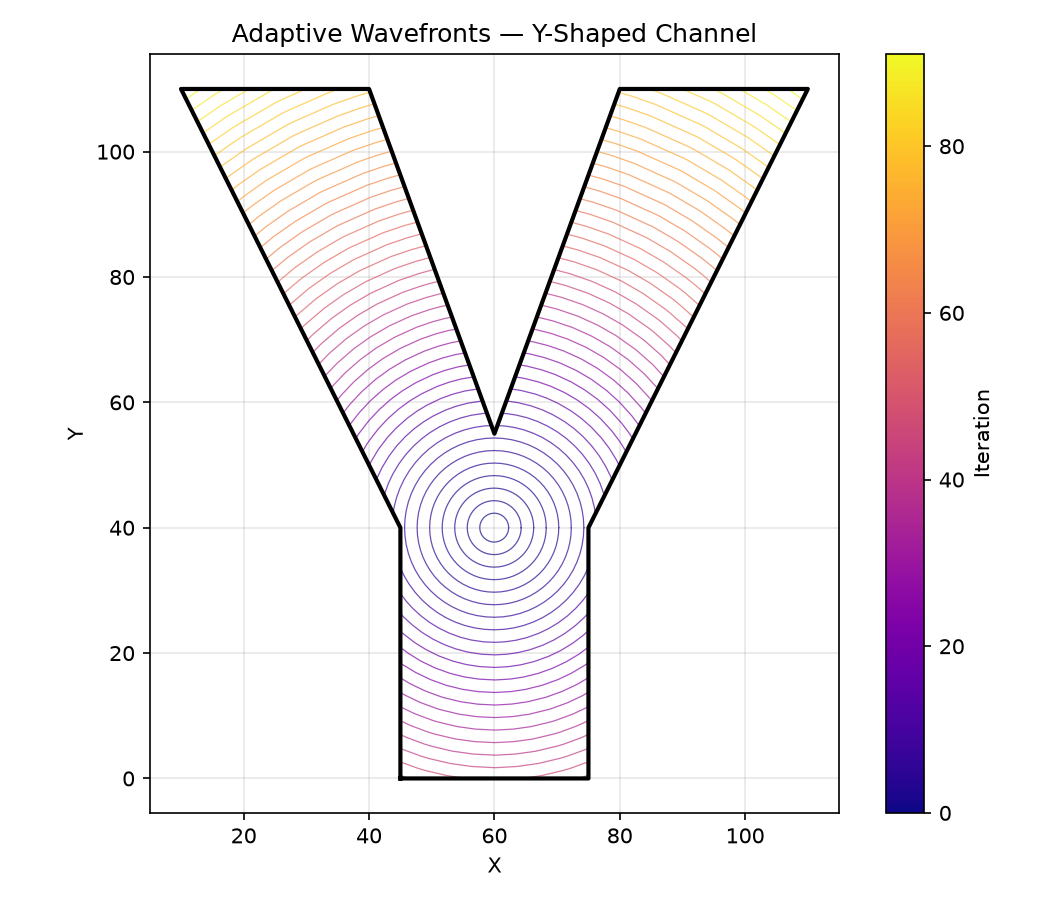

Adaptive wavefronts in a Y-shaped channel — contours split and propagate along each branch

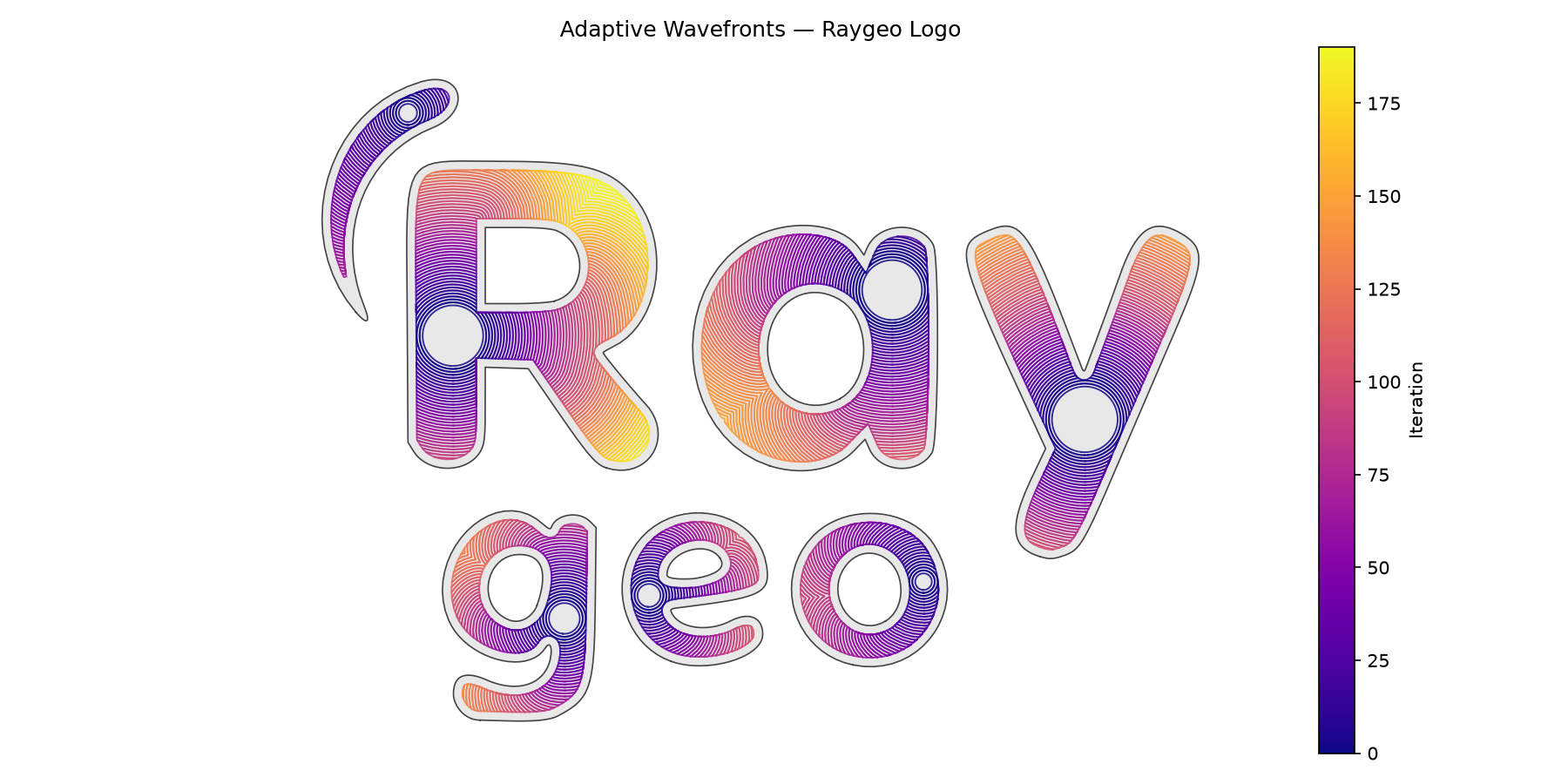

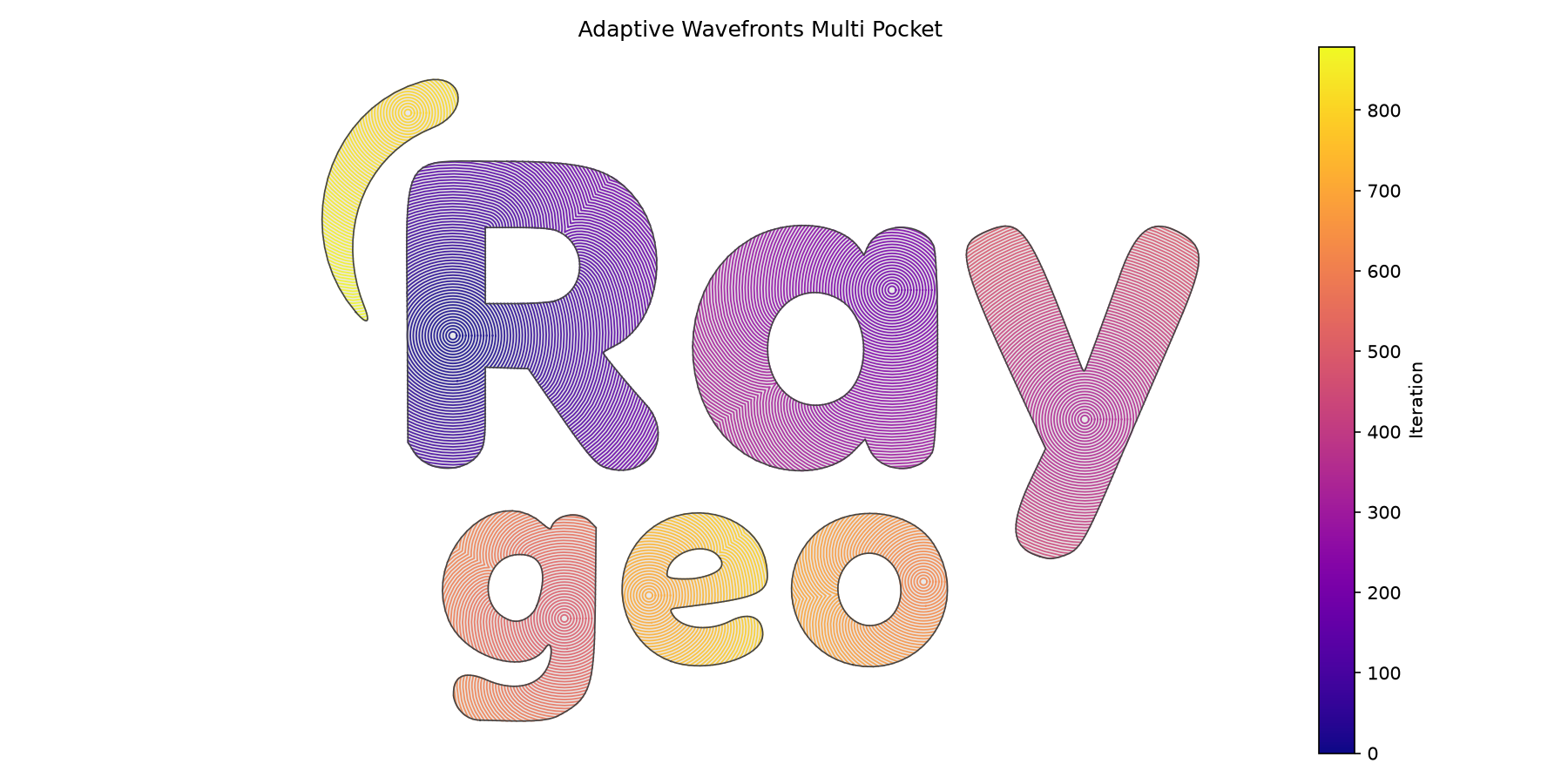

Adaptive wavefronts expanding within a complex shape loaded from an SVG file — contours adapt to the irregular boundary and wrap around internal islands
