raygeo.geo.algo.spiral

Flat Archimedean spiral path generation.

Produces a constant-Z spiral from a start radius to an end radius with configurable direction, revolutions, and angular resolution. Used for widening after a helical entry (EntryStrategy.Helix expand_to_diameter).

Functions

generate_spiral()

generate_spiral(
    center: tuple[float, float],
    z: float,
    start_radius: float,
    end_radius: float,
    revolutions: float,
    direction: helix.HelixDirection,
    angular_step: float = 0.1,
) -> list[tuple[float, float, float]]

Generate a flat Archimedean spiral at constant Z.

The spiral sweeps linearly from start_radius to end_radius over the requested number of revolutions.

Parameter	Type	Description
center	tuple[float, float]	Center (x, y) of the spiral.
z	float	Constant Z height of the spiral.
start_radius	float	Starting radius.
end_radius	float	Ending radius.
revolutions	float	Total turns (may be fractional).
direction	helix.HelixDirection	CW or CCW revolution.
angular_step	float = 0.1	Angular step in radians per vertex (default 0.1).
Returns	list[tuple[float, float, float]]	List of (x, y, z) points approximating the spiral.
Complexity		O(n) time, O(n) space where n = total_angle / angular_step

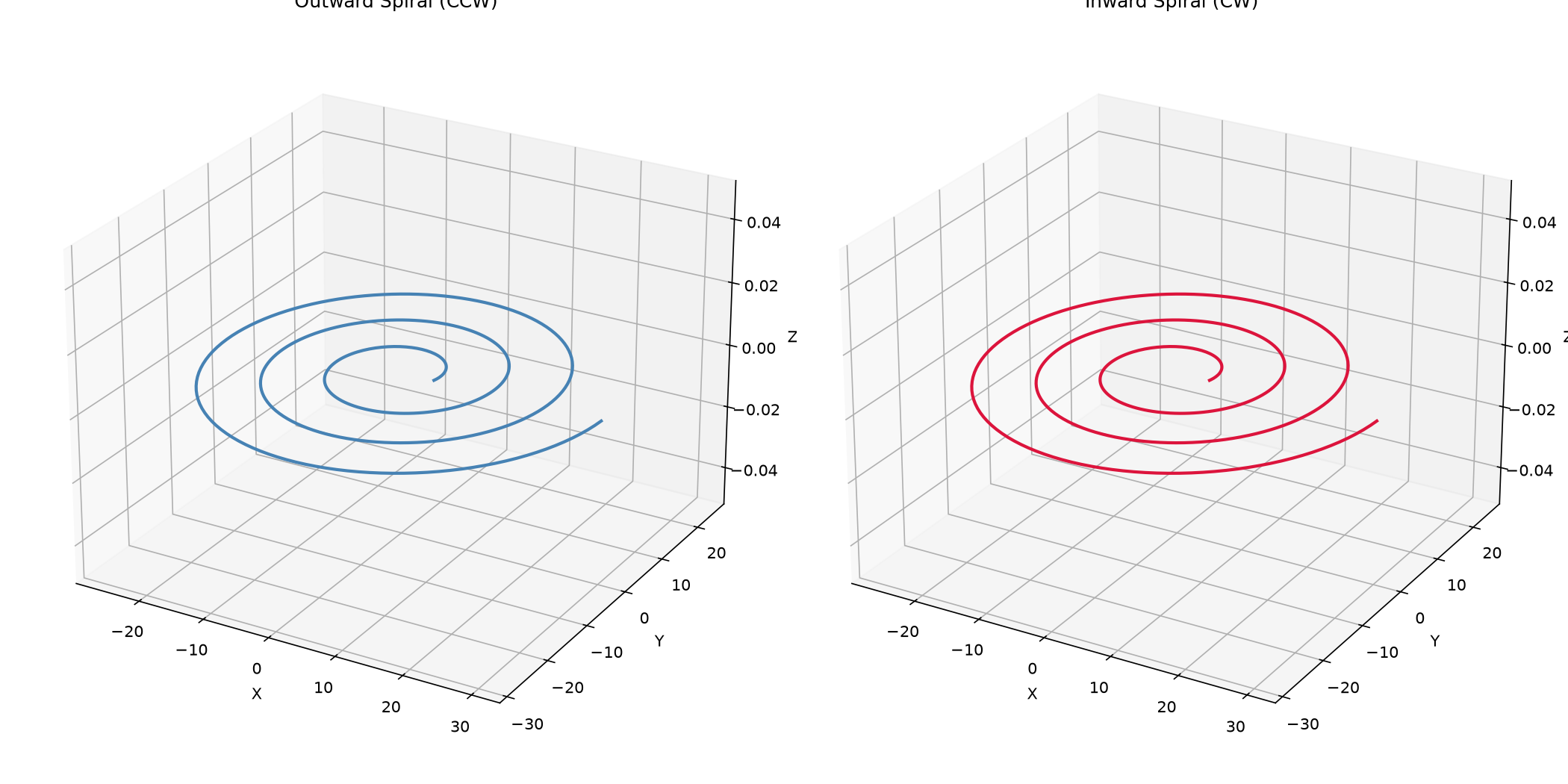

Outward (CCW) and inward (CW) flat Archimedean spirals
