raygeo.geo.algo.ramp

Ramp entry path generation for milling.

Provides linear and zig-zag ramp generation for tool entry into material, with automatic extension when the ramp angle exceeds the maximum.

RampStyle

Functions

generate_ramp()

generate_ramp(
    start: tuple[float, float],
    end: tuple[float, float],
    z_start: float,
    z_end: float,
    max_ramp_angle_deg: float = 45,
    style: RampStyle = RampStyle.Linear,
    lateral_amplitude: float = 1,
) -> list[tuple[float, float, float]]

Generate a ramp entry polyline.

If the direct ramp angle exceeds max_ramp_angle_deg, the ramp is extended in both directions along the same line.

Parameter	Type	Description
start	tuple[float, float]	Start XY position.
end	tuple[float, float]	End XY position.
z_start	float	Starting Z height.
z_end	float	Ending Z height (must be lower than z_start).
max_ramp_angle_deg	float = 45	Maximum allowed ramp angle in degrees (default 45).
style	RampStyle = RampStyle.Linear	Ramp style — Linear or ZigZag (default Linear).
lateral_amplitude	float = 1	Lateral oscillation amplitude for ZigZag (default 1.0).
Returns	list[tuple[float, float, float]]	List of (x, y, z) points along the ramp.
Complexity		O(n) time, O(n) space where n is proportional to path length

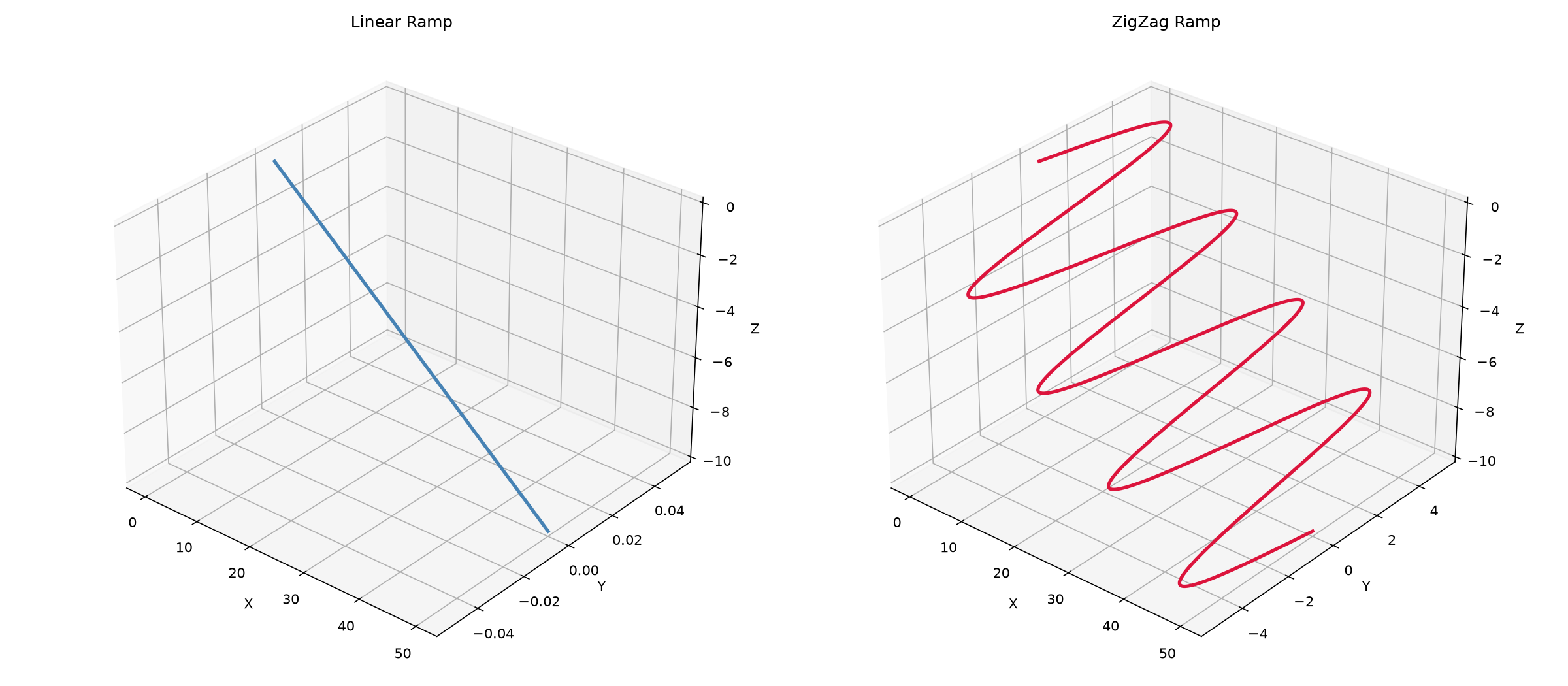

Linear (left) and ZigZag (right) ramp entry paths
