raygeo.geo.shape.line

Line segment geometry queries.

Provides line-line intersection (infinite lines), line-segment intersection, closest point on a line or segment to a given point, line-segment-vs-polygon intersections, point-on-segment tests, point-in-rectangle tests, rectangle containment checks, and angle-at-vertex computation.

Functions

does_line_segment_intersect_circle()

does_line_segment_intersect_circle(p1: Point, p2: Point, circle_center: Point, circle_radius: float) -> bool

Check if a line segment intersects a circle.

Returns: True if the segment intersects the circle.

Parameter	Type	Description
p1	Point	Start of the line segment.
p2	Point	End of the line segment.
circle_center	Point	Circle center (x, y).
circle_radius	float	Circle radius.
Returns	bool

does_line_segment_intersect_rect()

does_line_segment_intersect_rect(p1: Point, p2: Point, rect: Rect) -> bool

Check if a line segment intersects a rectangle.

Returns: True if the segment intersects the rectangle.

Parameter	Type	Description
p1	Point	Start of the line segment.
p2	Point	End of the line segment.
rect	Rect	Rectangle (x_min, y_min, x_max, y_max).
Returns	bool

get_angle_at_vertex()

get_angle_at_vertex(p0: Point, p1: Point, p2: Point) -> float

Get the angle at a vertex between three points.

Returns: Angle in radians.

Parameter	Type	Description
p0	Point	First point.
p1	Point	Vertex point.
p2	Point	Third point.
Returns	float

get_line_closest_point()

get_line_closest_point(line_p1: Point, line_p2: Point, x: float, y: float) -> Point

Get the closest point on a line to a given point.

Returns: Closest point (x, y) on the line.

Parameter	Type	Description
line_p1	Point	First point on the line.
line_p2	Point	Second point on the line.
x	float	X coordinate of target point.
y	float	Y coordinate of target point.
Returns	Point

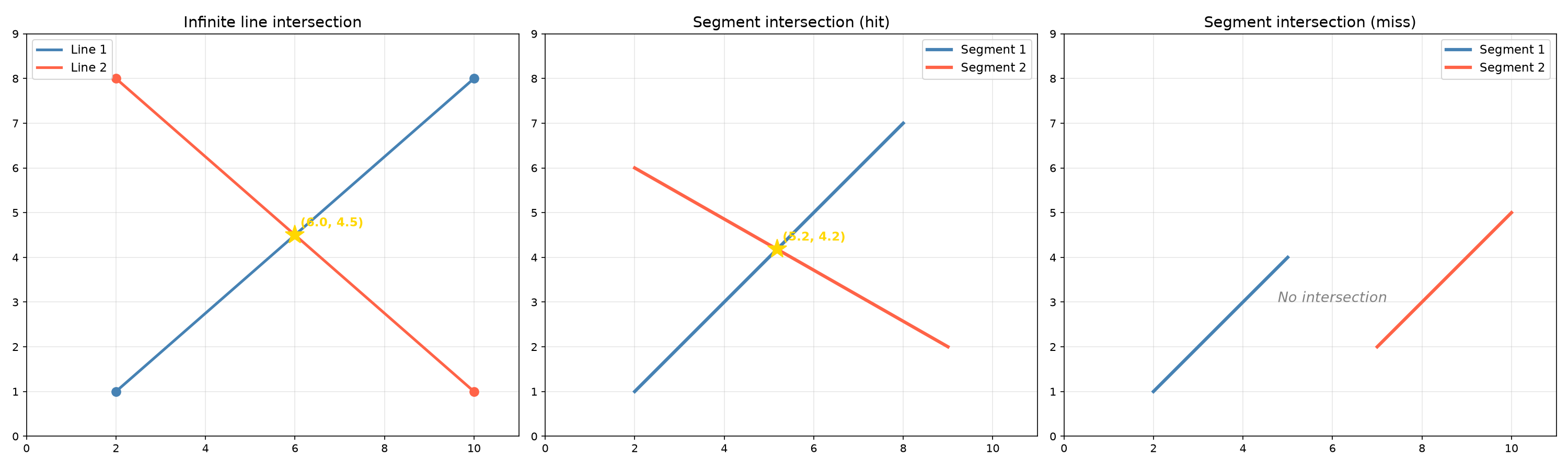

get_line_line_intersection()

get_line_line_intersection(p1: Point, p2: Point, p3: Point, p4: Point) -> Optional[Point]

Get the intersection of two infinite lines.

Returns: Intersection point (x, y) or None.

Parameter	Type	Description
p1	Point	First point on line 1.
p2	Point	Second point on line 1.
p3	Point	First point on line 2.
p4	Point	Second point on line 2.
Returns	Optional[Point]

get_line_segment_closest_point()

get_line_segment_closest_point(seg_p1: Point, seg_p2: Point, x: float, y: float) -> tuple[float, Point, float]

Get closest point on a line segment to a point.

Returns: Tuple of (parameter, closest_point, distance).

Parameter	Type	Description
seg_p1	Point	Start of the line segment.
seg_p2	Point	End of the line segment.
x	float	X coordinate of target point.
y	float	Y coordinate of target point.
Returns	tuple[float, Point, float]

get_line_segment_intersection()

get_line_segment_intersection(p1: Point, p2: Point, p3: Point, p4: Point) -> Optional[Point]

Get the intersection of two line segments.

Returns: Intersection point (x, y) or None.

Parameter	Type	Description
p1	Point	Start of segment 1.
p2	Point	End of segment 1.
p3	Point	Start of segment 2.
p4	Point	End of segment 2.
Returns	Optional[Point]

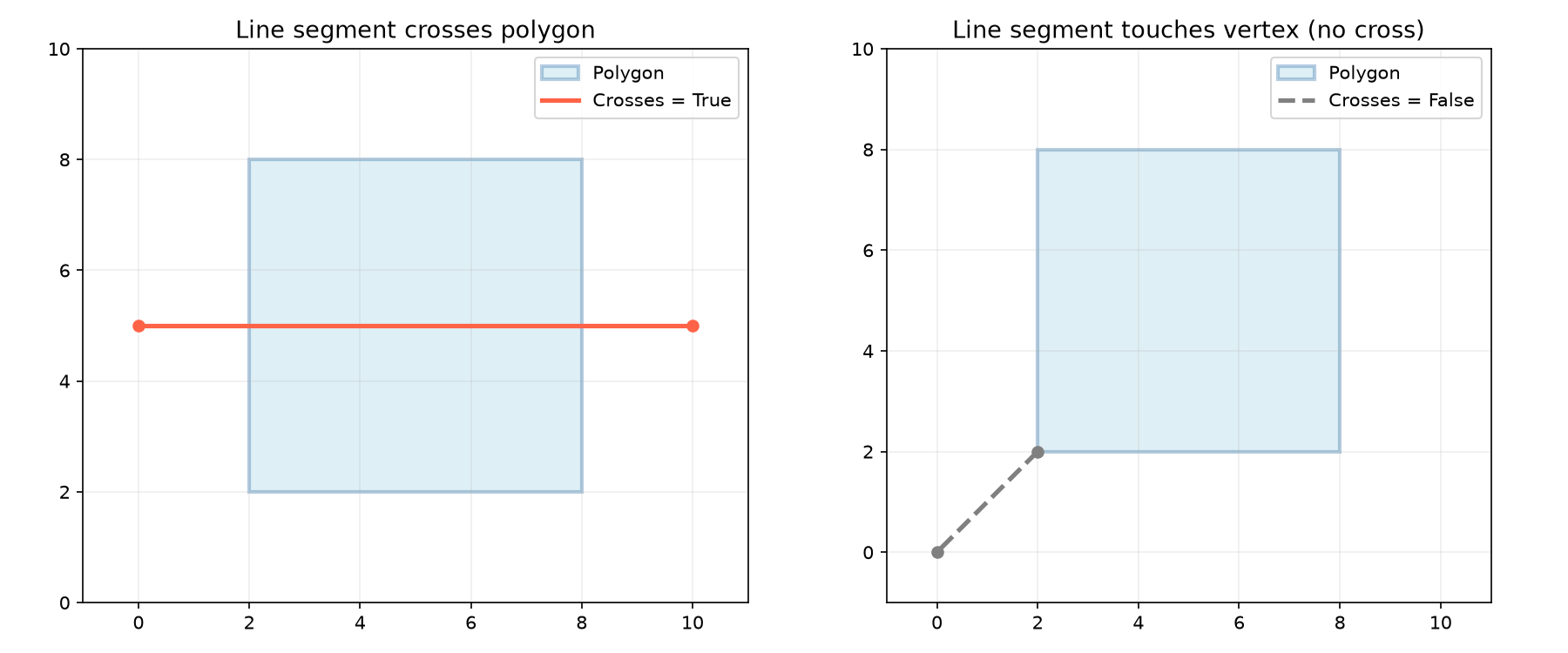

get_line_segment_polygon_intersections()

get_line_segment_polygon_intersections(p1: Point, p2: Point, polygon: list[Polygon]) -> list[float]

Get t-values of line segment-polygon intersections.

Returns: List of t-values where the segment intersects.

Parameter	Type	Description
p1	Point	Start of the line segment.
p2	Point	End of the line segment.
polygon	list[Polygon]	Polygon(s) to test against.
Returns	list[float]

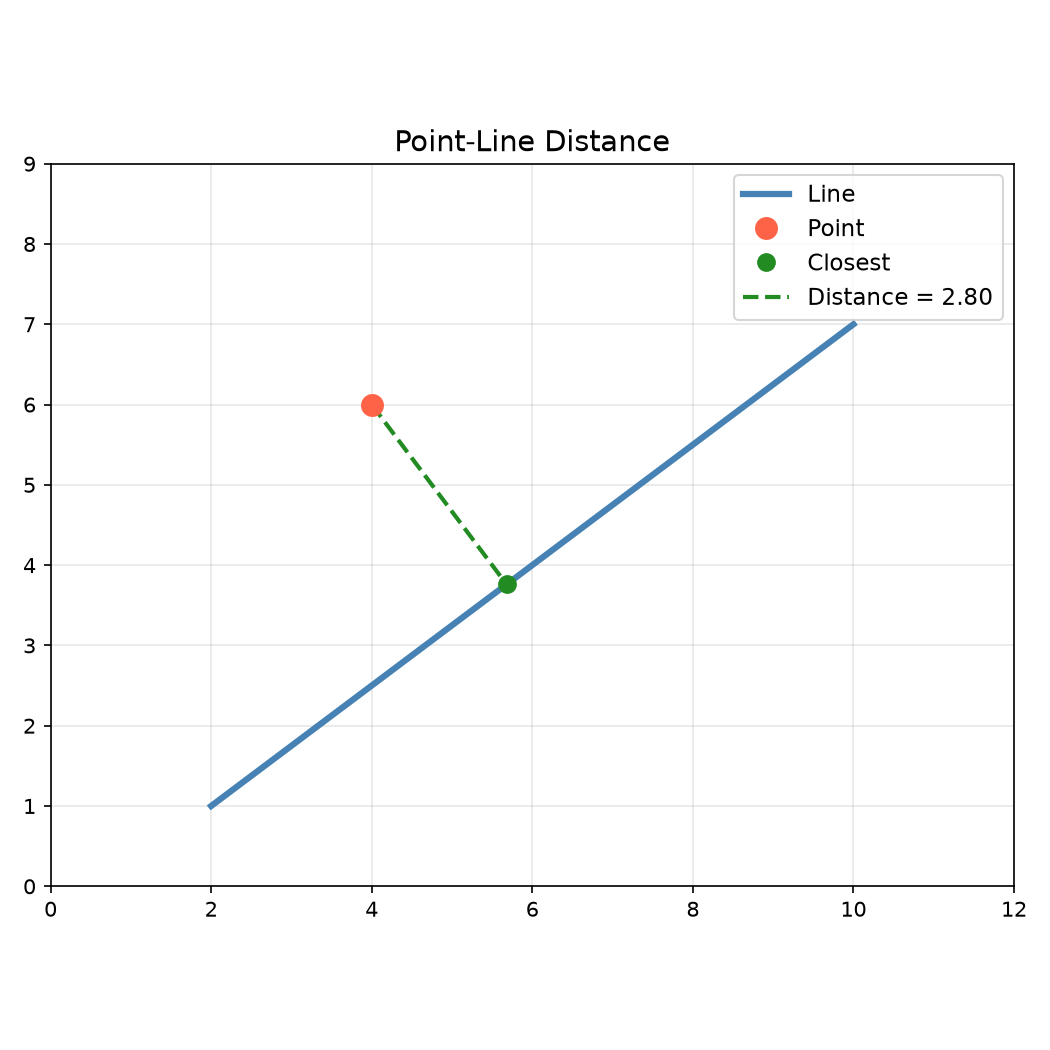

get_point_line_distance()

get_point_line_distance(point: Point, line_p1: Point, line_p2: Point) -> float

Get the distance from a point to a line.

Returns: Perpendicular distance.

Parameter	Type	Description
point	Point	Point (x, y).
line_p1	Point	First point on the line.
line_p2	Point	Second point on the line.
Returns	float

is_point_on_line_segment()

is_point_on_line_segment(point: Point, seg_p1: Point, seg_p2: Point) -> bool

Check if a point is on a line segment.

Returns: True if the point lies on the segment.

Parameter	Type	Description
point	Point	Point (x, y) to test.
seg_p1	Point	Start of the line segment.
seg_p2	Point	End of the line segment.
Returns	bool
