raygeo.ops.assembly.adaptive

Functions

adaptive_clearing()

adaptive_clearing(
    cleared: ops.cut.cleared_area.ClearedArea,
    pocket_boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] = [],
    radius: float = 3,
    advance: float = 1.5,
    cut_z: float = -5,
    safe_z: float = 2,
    step_length: float = 0.6,
    max_deflection_deg: float = 30,
    wall_margin: float = 0,
    area_tolerance: float = 1,
    cut_feed_rate: int = 1200,
    cut_power: float = 1,
    start_pos: tuple[float, float] | None = None,
    start_heading: float | None = None,
    expansion_batch_size: int = 20,
    profile: bool = False,
) -> ops.Ops

Run forward-stepping adaptive clearing.

Starting from the pre-populated cleared area, uses a constant-engagement stepping solver to generate a continuous spiral toolpath from the seed clearing to the pocket wall.

The caller is responsible for populating cleared with entry polygons (e.g. from adaptive_entry) and prepending the entry Ops to the result.

Parameter	Type	Description
cleared	ops.cut.cleared_area.ClearedArea	ClearedArea instance (mutated in place).
pocket_boundary	Sequence[tuple[float, float]]	Outer boundary of the pocket.
islands	Sequence[Sequence[tuple[float, float]]] = []	List of island (hole) polygons (default []).
radius	float = 3	Tool radius in mm (default 3.0).
advance	float = 1.5	Forward advance per step (default 1.5).
cut_z	float = -5	Cutting Z height (default -5.0).
safe_z	float = 2	Retract Z height for travel (default 2.0).
step_length	float = 0.6	Forward distance per solver step (default 0.6).
max_deflection_deg	float = 30	Maximum steering deflection per step in degrees (default 30).
wall_margin	float = 0	Extra clearance between tool and boundary (default 0.0).
area_tolerance	float = 1	Stop when remaining uncut area drops below this threshold (default 1.0).
cut_feed_rate	int = 1200	Feed rate for cutting moves (default 1200).
cut_power	float = 1	Laser power for cutting moves (0.0-1.0, default 1.0).
start_pos	tuple[float, float] | None = None	Initial tool position (x, y). When None, auto-detected from the cleared-area frontier.
start_heading	float | None = None	Initial tool heading in radians. When None, auto-detected as the CCW tangent at start_pos.
expansion_batch_size	int = 20	Batch cleared-area expansions every N steps (default 20). Larger values improve performance but may slightly reduce path quality.
profile	bool = False	Print a profiling report to stdout (default False).
Returns	ops.Ops	Ops with cutting commands (entry not included).

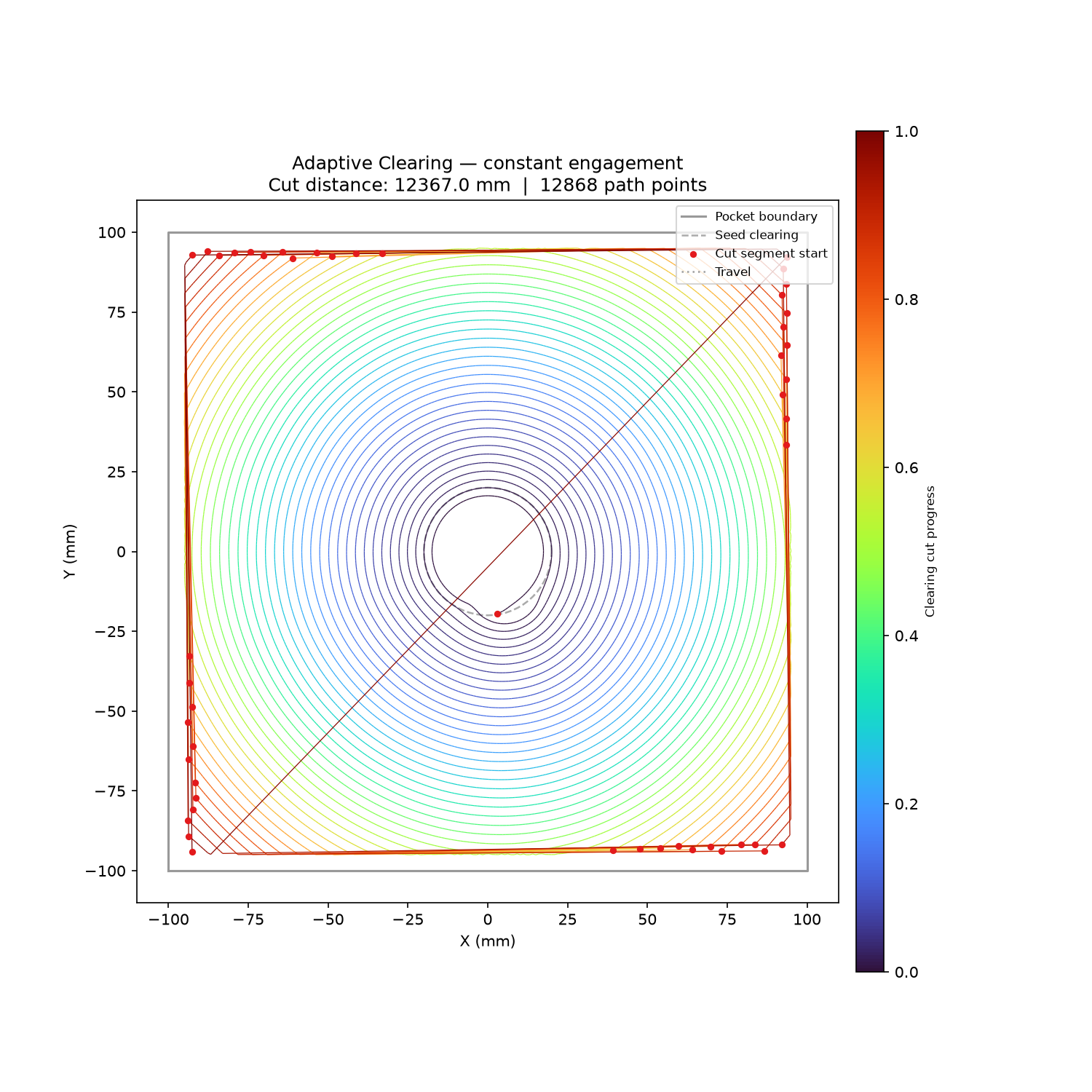

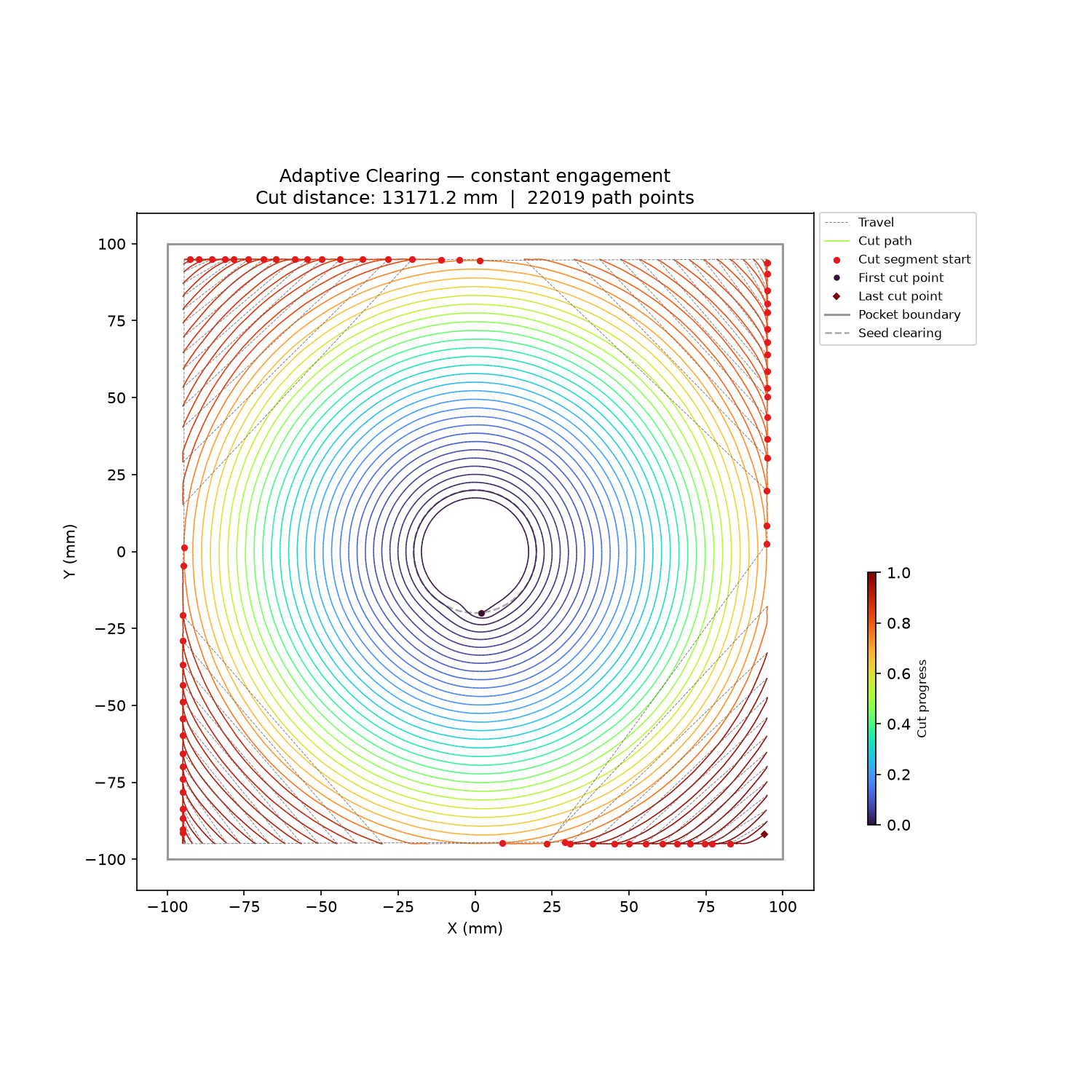

Forward-stepping constant-engagement clearing cuts (coloured by progress via the full-spectrum turbo gradient) from a central seed clearing (green), with MAT-routed travel links (red dashed) between segments.

target_area_per_distance()

target_area_per_distance(
    radius: float,
    advance: float,
    step_length: float,
) -> float

Target cut-area per unit distance for the engagement solver.

Parameter	Type	Description
radius	float	Tool radius in mm.
advance	float	Step-over distance in mm.
step_length	float	Forward step length in mm.
Returns	float	Target area per distance (mm).

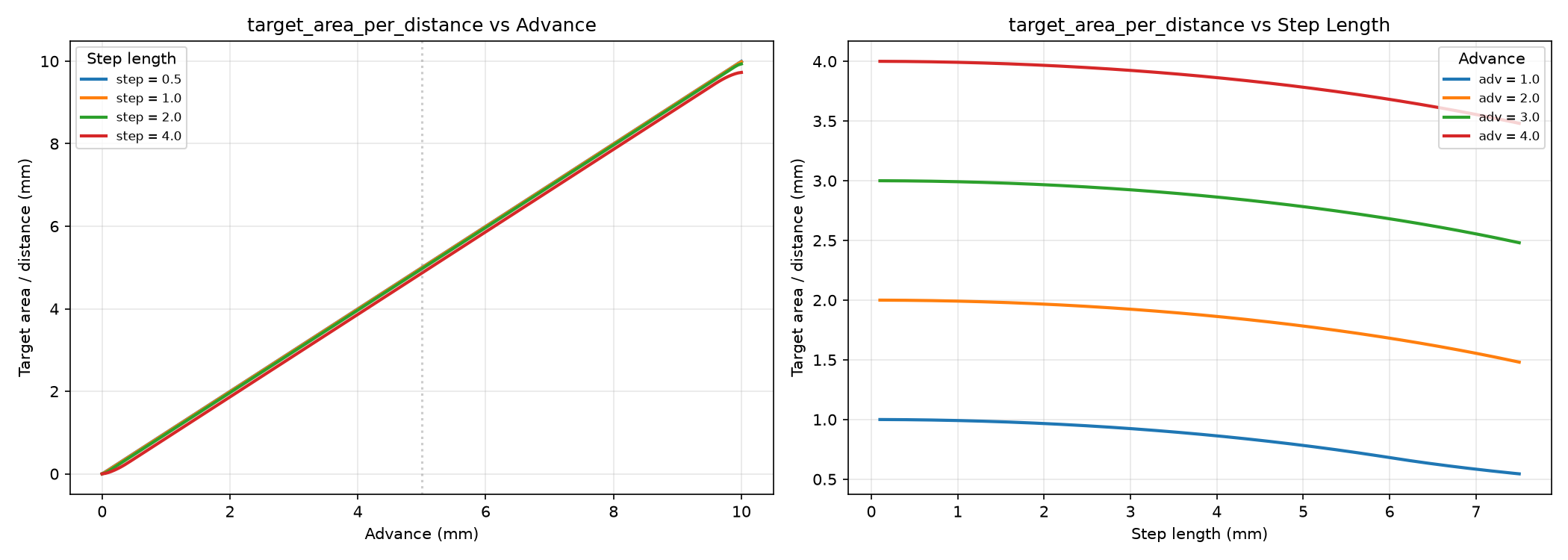

Left: target area per distance as a function of advance for several step lengths. Right: target area per distance as a function of step length for several advance values.

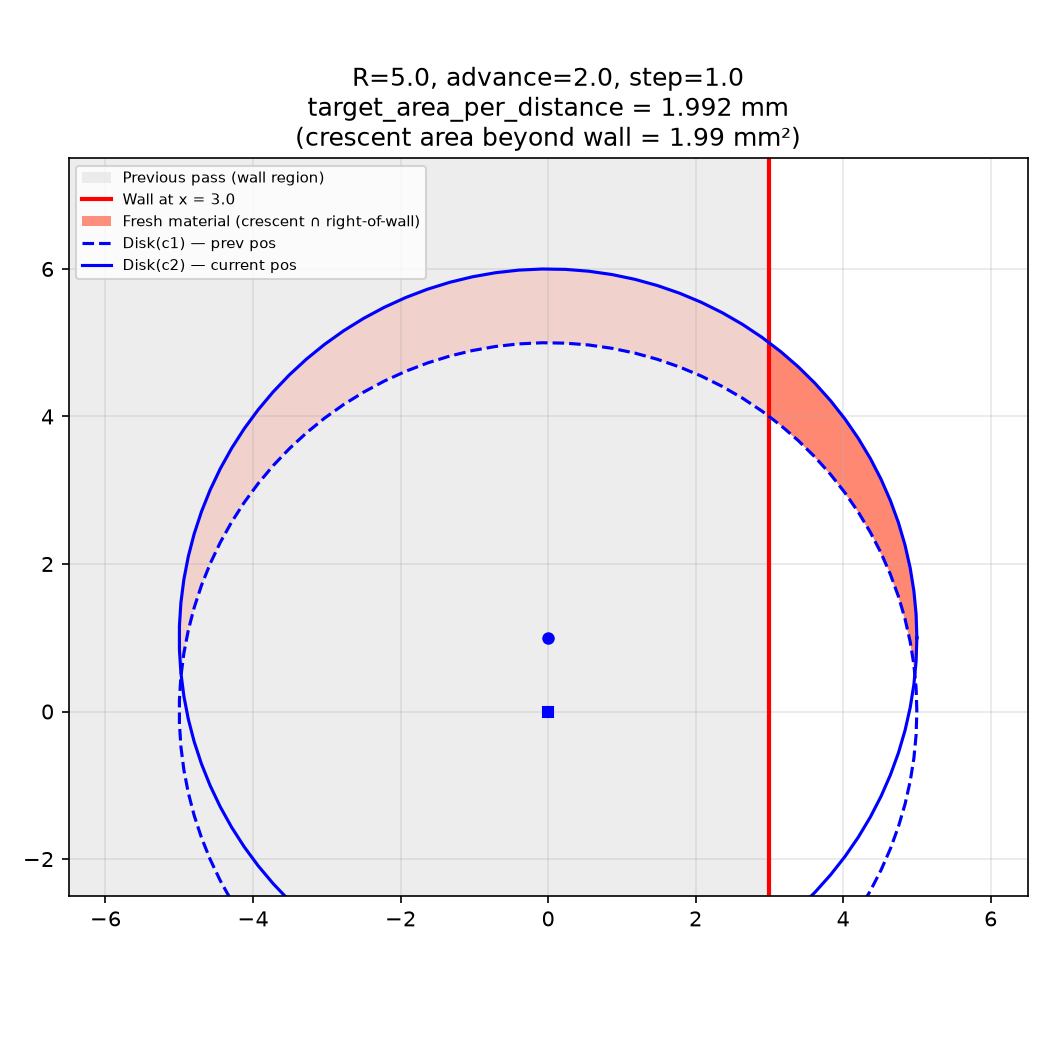

Geometric model underlying target_area_per_distance: two disks offset by step_length along the travel direction, with a vertical wall at x = R − advance representing the previous pass boundary. The fresh material (dark red) is the portion of the crescent that lies to the right of the wall.
