raygeo.ops.assembly.hsm

Functions

adaptive_entry()

adaptive_entry(
    pocket_boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] = [],
    tool_radius: float = 3,
    step_over: float = 2,
    safe_z: float = 2,
    target_z: float = -5,
    plunge_pitch: float = 1,
    safe_margin: float = 1,
    angular_step: float = 0.1,
    cut_feed_rate: int = 1200,
) -> tuple[ops.Ops, list[list[tuple[float, float]]]]

Fast central clearing entry.

Finds the optimal entry pole using find_largest_circle, then generates either a helix->spiral (wide area) or zigzag ramp (tight slot).

The returned cleared_polygons should be inserted into a ClearedArea via add_cleared_polygons.

Parameter	Type	Description
pocket_boundary	Sequence[tuple[float, float]]	Outer boundary of the pocket.
islands	Sequence[Sequence[tuple[float, float]]] = []	List of island (hole) polygons (default []).
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 2	Radial step-over per spiral revolution (default 2.0).
safe_z	float = 2	Safe (retract) Z height (default 2.0).
target_z	float = -5	Target cutting depth (default -5.0).
plunge_pitch	float = 1	Vertical descent per helix revolution (default 1.0).
safe_margin	float = 1	Extra margin from tool edge to boundary (default 1.0).
angular_step	float = 0.1	Angular step in radians for path vertices (default 0.1).
cut_feed_rate	int = 1200	Feed rate for the entry path (default 1200).
Returns	tuple[ops.Ops, list[list[tuple[float, float]]]]	(ops, cleared_polygons) where *ops* is an Ops with the entry toolpath and *cleared_polygons* is a list of polygons to add to the ClearedArea.

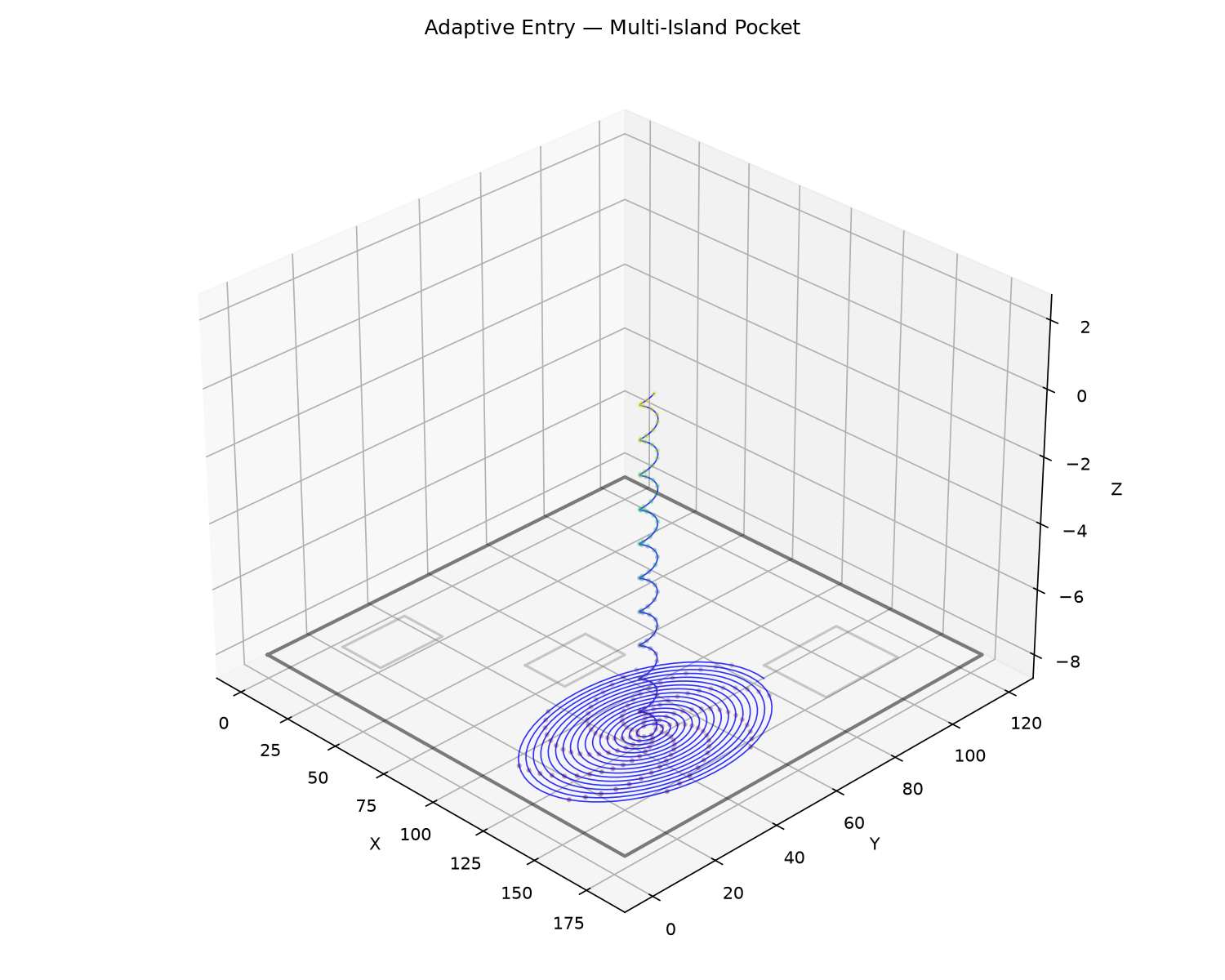

Adaptive clearing — Helix → Spiral in a pocket with three islands

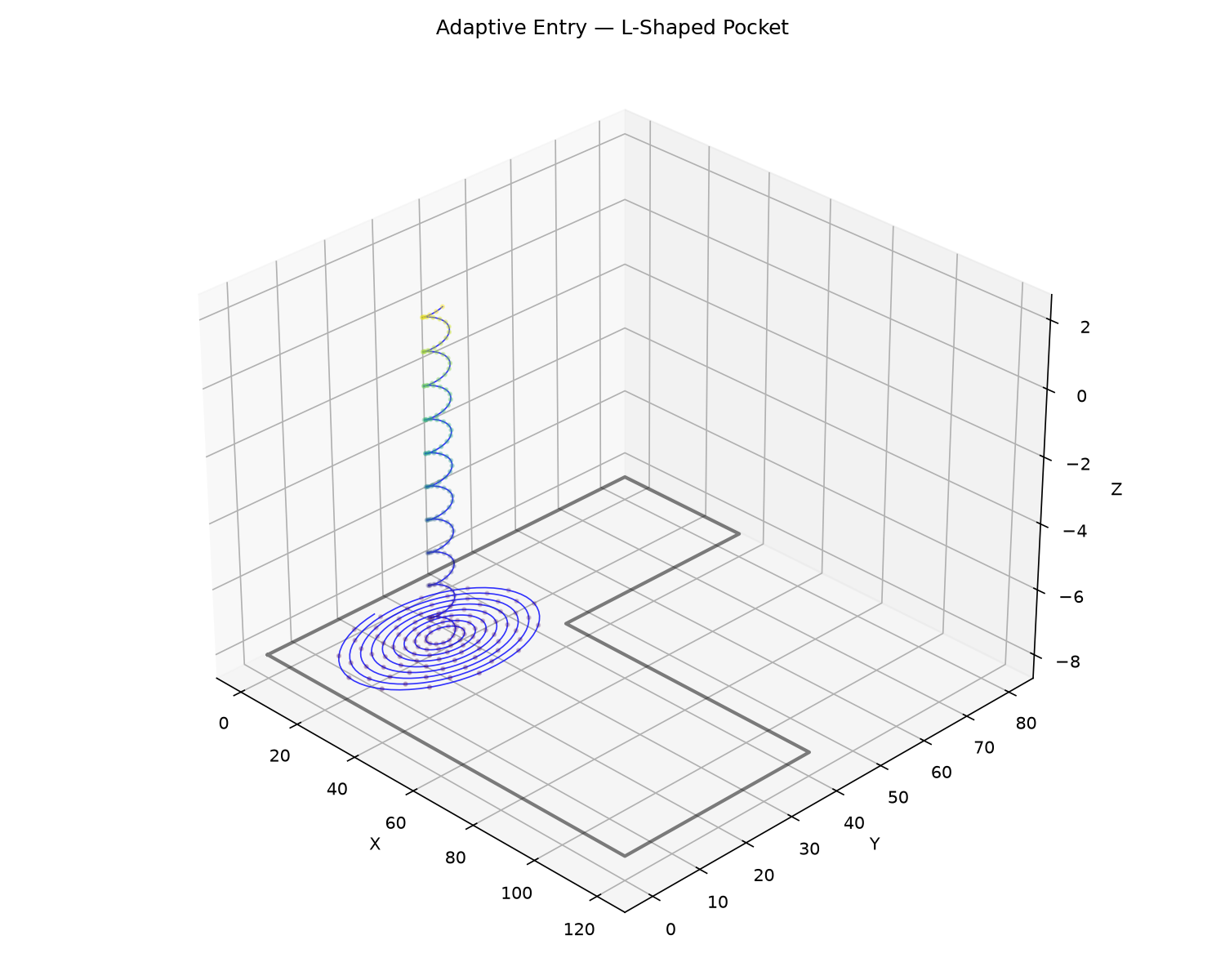

Adaptive clearing — Helix → Spiral in an L-shaped pocket

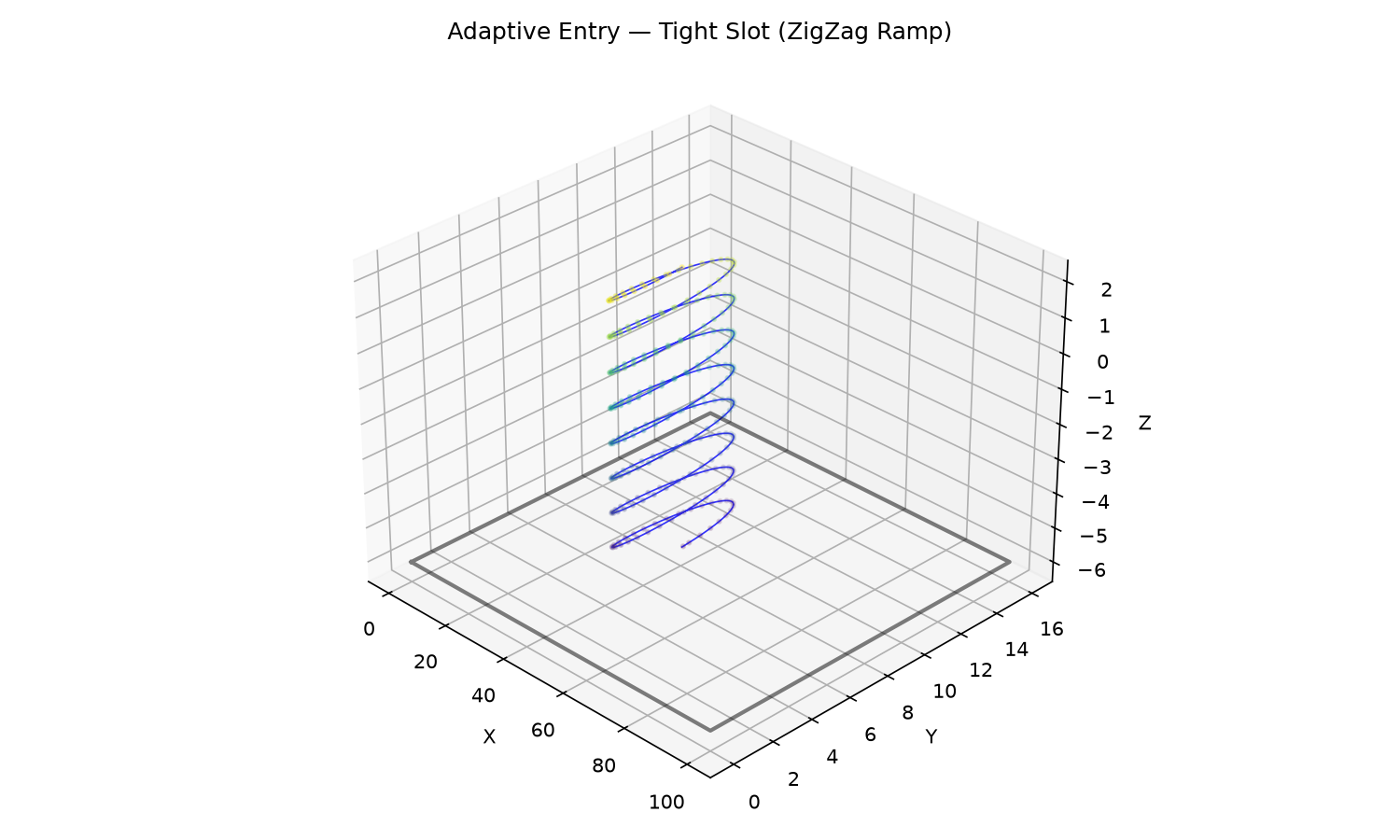

Adaptive clearing — ZigZag Ramp in a tight slot

adaptive_peeling()

adaptive_peeling(
    cleared: geo.algo.cleared_area.ClearedArea,
    pocket_boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] = [],
    tool_radius: float = 3,
    step_over: float = 2,
    cut_z: float = -5,
    safe_z: float = 2,
    wall_margin: float = 0,
    travel_smoothing: int = 50,
    area_tolerance: float = 1,
    cut_feed_rate: int = 1200,
    travel_rapid_rate: int = 8000,
) -> ops.Ops

Run the peeling (D-cut) clearing strategy and return an Ops.

Starting from the cleared state (mutated in place), each iteration expands the cleared boundary outward by step_over, clips to the valid tool area, computes crescent-shaped "bites", and generates a D-cut for each bite. The individual passes are linked into a single Ops: each cutting arc at cut_z (LineTo with cut_feed_rate) followed by a travel segment at safe_z (MoveTo with travel_rapid_rate). The Medial Axis of the pocket is used to route travel around obstacles.

Parameter	Type	Description
cleared	geo.algo.cleared_area.ClearedArea	ClearedArea instance (mutated in place).
pocket_boundary	Sequence[tuple[float, float]]	Outer boundary of the pocket.
islands	Sequence[Sequence[tuple[float, float]]] = []	List of island (hole) polygons (default []).
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 2	Radial expansion per iteration (default 2.0).
cut_z	float = -5	Cutting Z height (default -5.0).
safe_z	float = 2	Retract Z height for travel segments (default 2.0).
wall_margin	float = 0	Extra clearance between tool sweep and walls (default 0.0).
travel_smoothing	int = 50	Gaussian smoothing for MAT-routed travel (default 50).
area_tolerance	float = 1	Convergence tolerance in square mm (default 1.0).
cut_feed_rate	int = 1200	Feed rate for cutting moves (default 1200).
travel_rapid_rate	int = 8000	Rapid rate for travel moves (default 8000).
Returns	ops.Ops	Ops with cutting and travel commands.

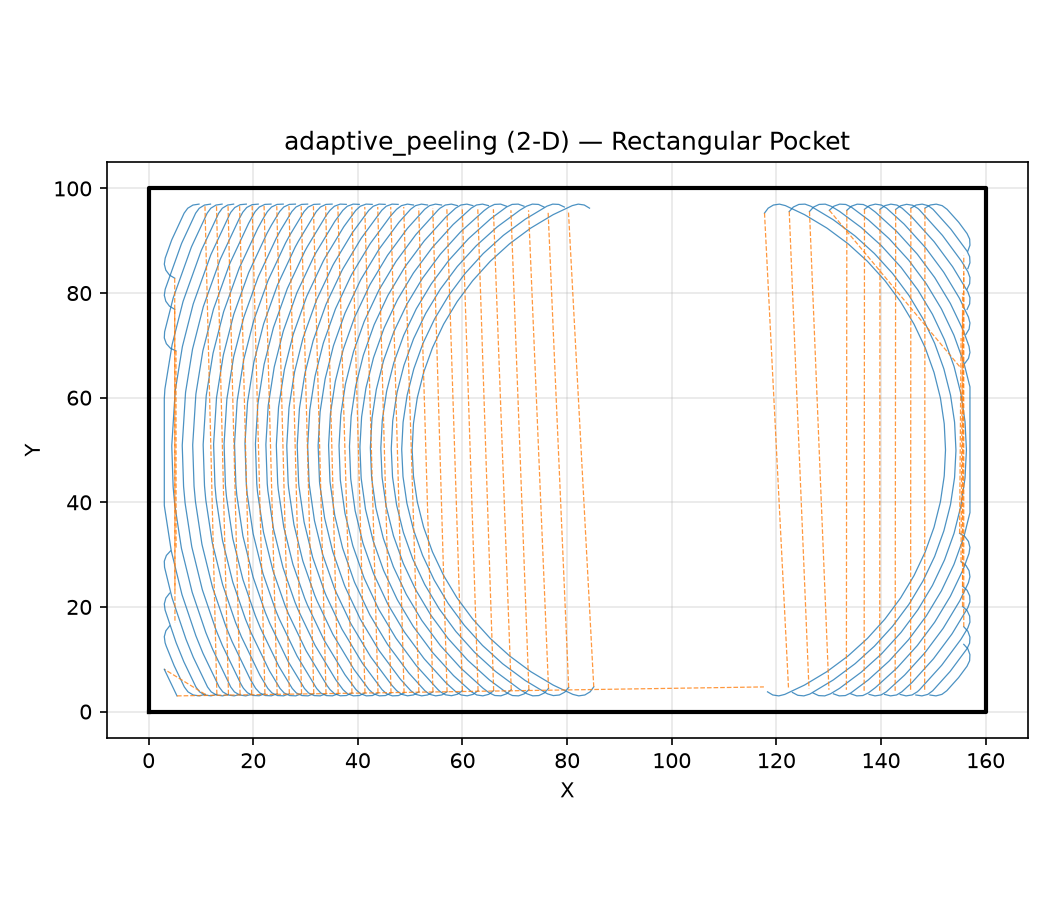

adaptive_peeling on a rectangular pocket — cutting arcs (blue, solid) at cut depth and travel links (orange, dashed) at safe Z

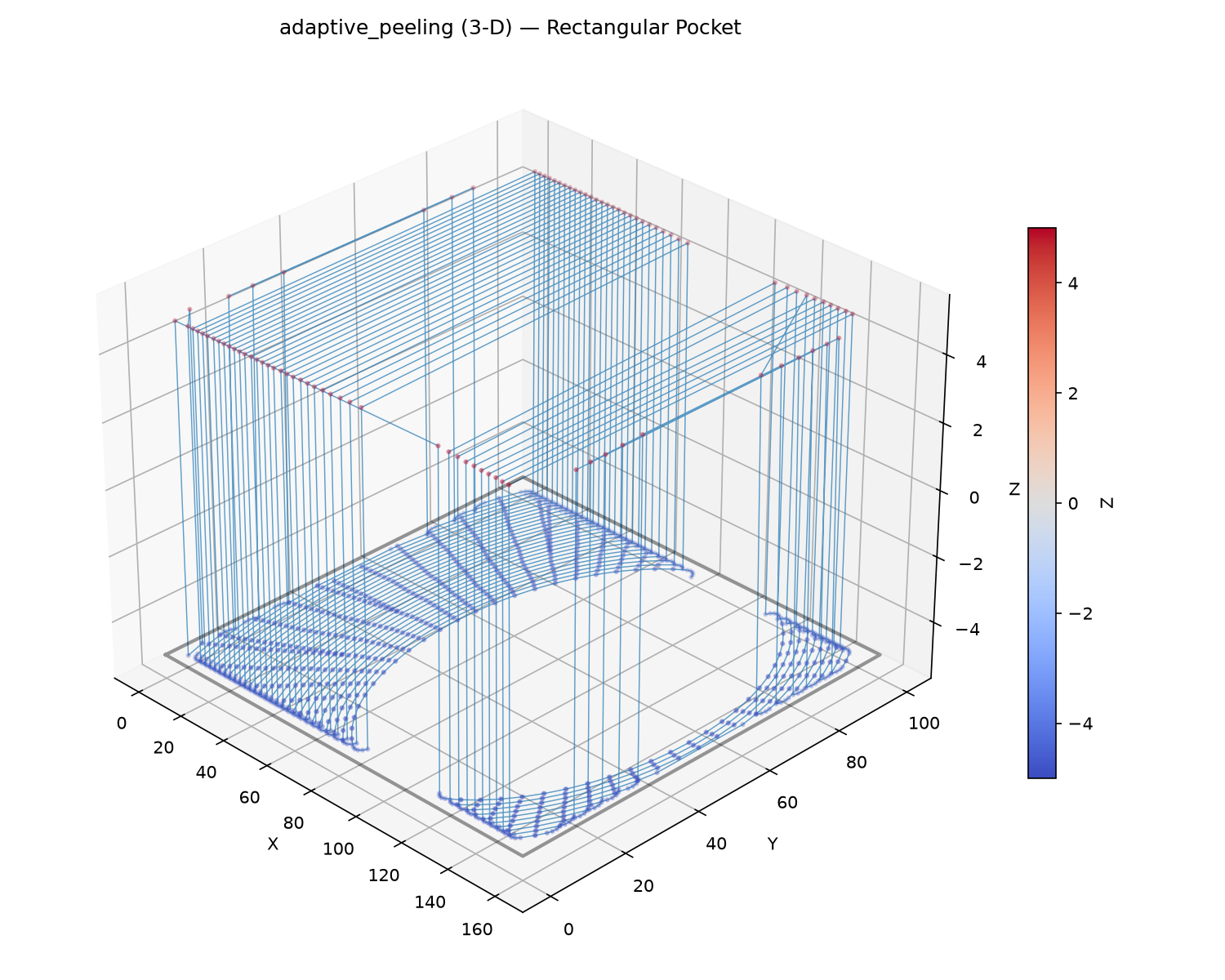

adaptive_peeling (3-D) — Z colouring shows cutting depth (blue) vs travel height (red)

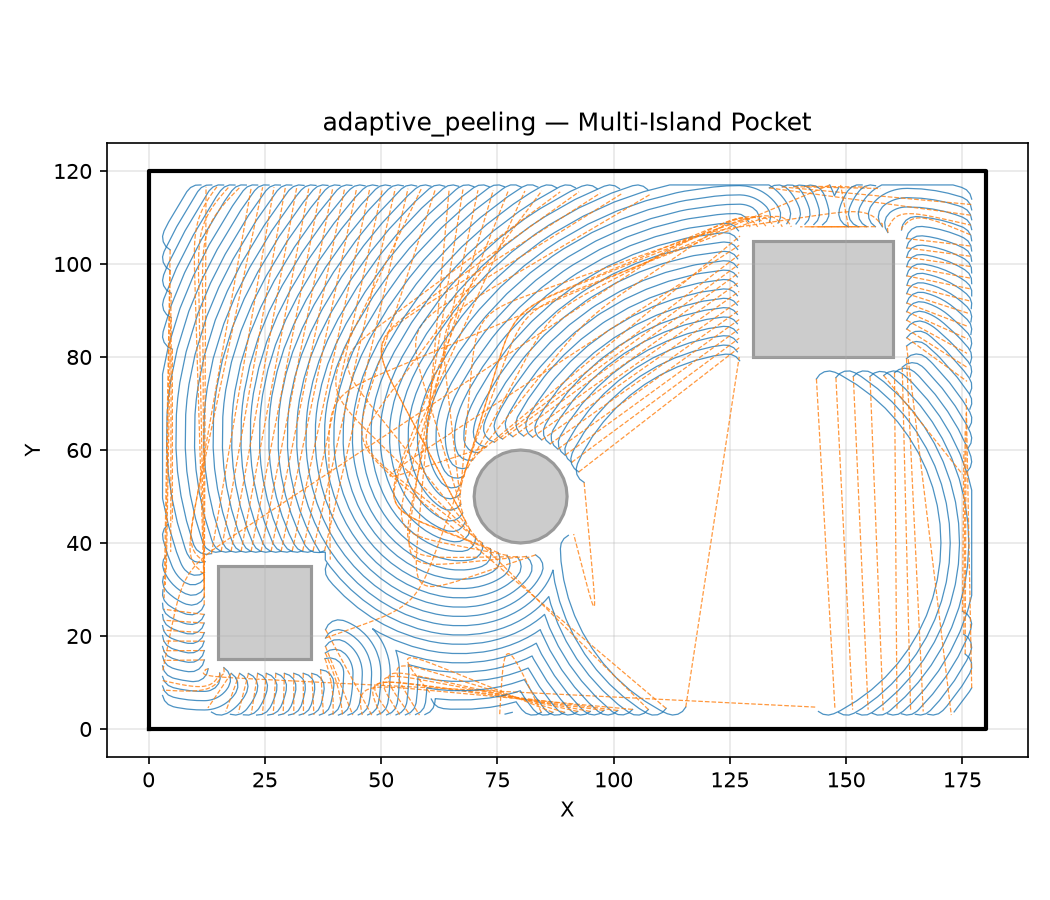

adaptive_peeling on a pocket with three islands — travel links route around obstacles

adaptive_wavefronts()

adaptive_wavefronts(
    cleared: geo.algo.cleared_area.ClearedArea,
    pocket_boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] = [],
    tool_radius: float = 3,
    step_over: float = 2,
    z: float = 0,
    area_tolerance: float = 1,
    cut_feed_rate: int = 1200,
) -> ops.Ops

Inside-out adaptive wavefronts.

Starting from the cleared state, each iteration expands the cleared boundary outward by step_over, clips to the valid tool area (pocket boundary offset inward by tool_radius, with islands excluded), and adds the result back to cleared. The loop terminates when the newly added area drops below area_tolerance.

Each ring fragment is emitted as MoveTo + LineTo at height z with cut_feed_rate applied.

Parameter	Type	Description
cleared	geo.algo.cleared_area.ClearedArea	ClearedArea instance (mutated in place).
pocket_boundary	Sequence[tuple[float, float]]	Outer boundary of the pocket.
islands	Sequence[Sequence[tuple[float, float]]] = []	List of island (hole) polygons (default []).
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 2	Radial expansion per iteration (default 2.0).
z	float = 0	Z height for generated commands (default 0.0).
area_tolerance	float = 1	Minimum area increase to continue (default 1.0).
cut_feed_rate	int = 1200	Feed rate for cutting moves (default 1200).
Returns	ops.Ops	Ops with wavefront cutting commands.

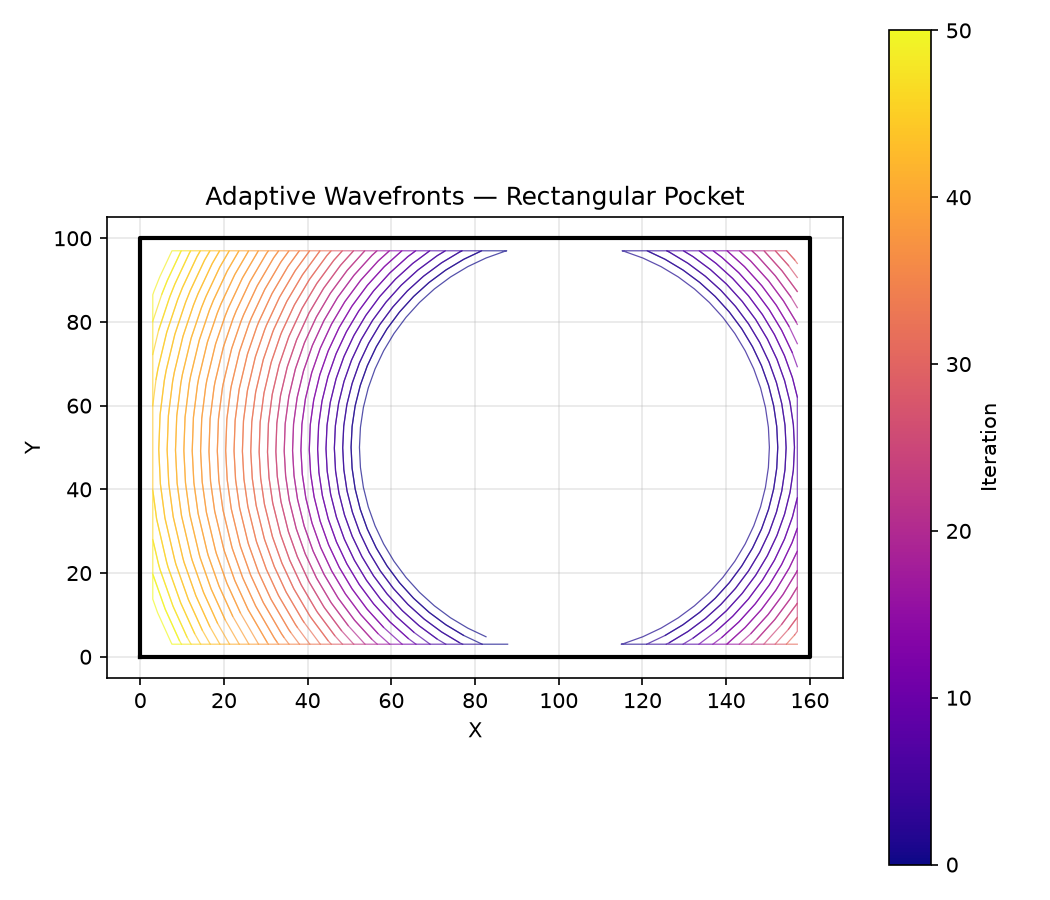

Adaptive wavefronts expanding outward from the initial cleared disk (blue) to fill the pocket boundary (black)

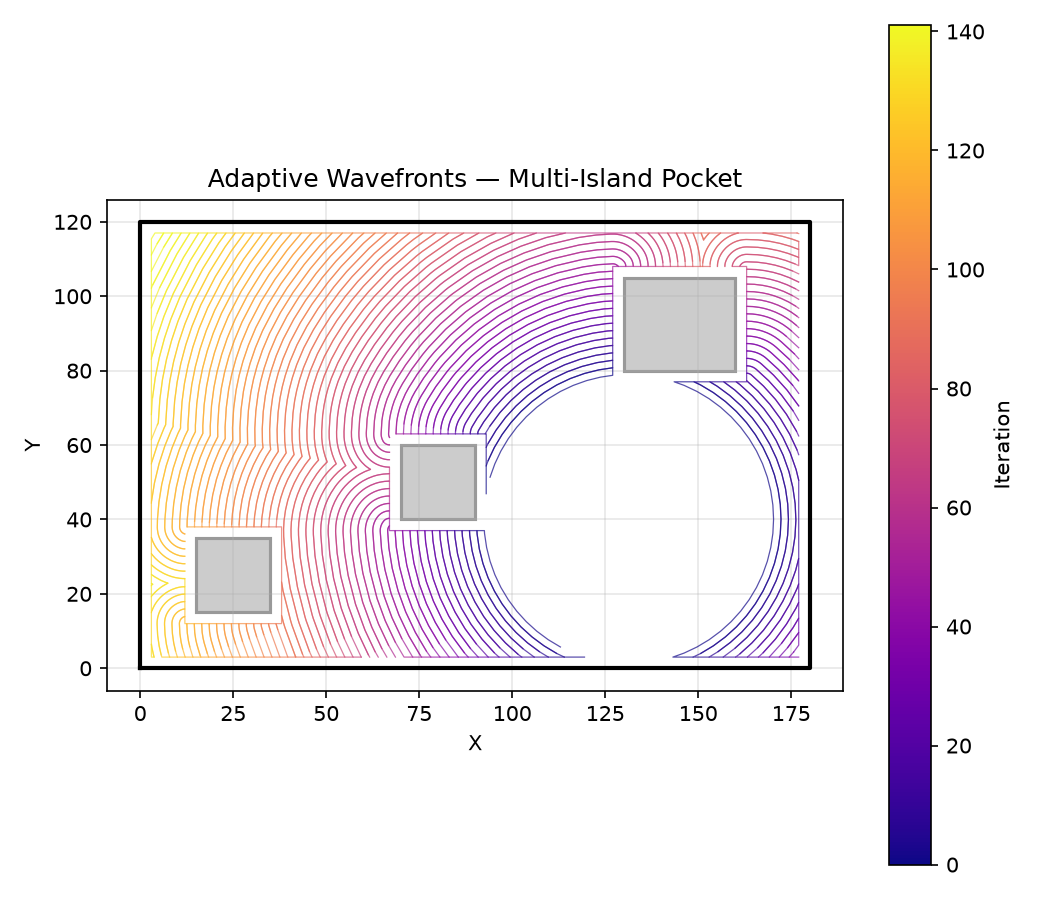

Adaptive wavefronts in a pocket with three islands — contours wrap around each island as they expand

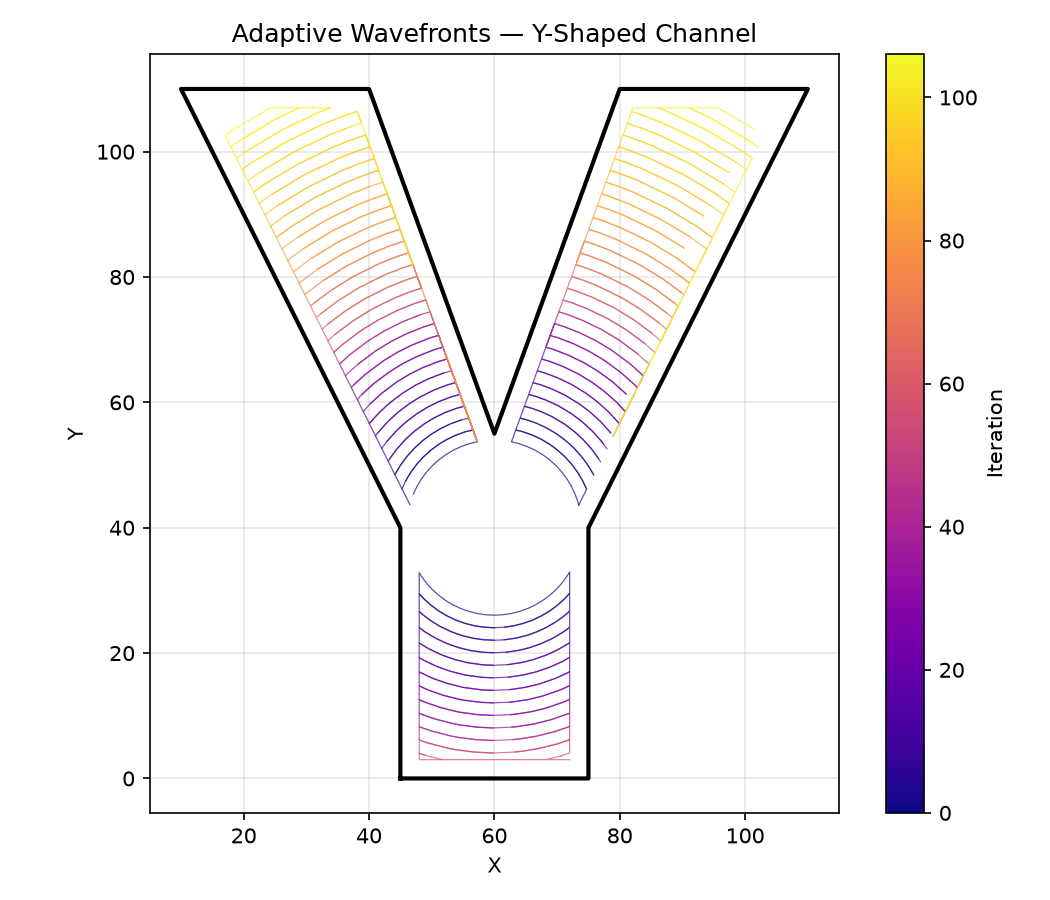

Adaptive wavefronts in a Y-shaped channel — contours split and propagate along each branch

find_cutting_arc()

find_cutting_arc(
    bite: Sequence[tuple[float, float]],
    cleared_fragments: Sequence[Sequence[tuple[float, float]]],
) -> list[tuple[float, float]] | None

Extract the cutting arc (outer) vertices from a bite polygon.

The cutting arc is the longest contiguous run of bite vertices that lie outside all cleared fragments.

Parameter	Type	Description
bite	Sequence[tuple[float, float]]	Bite polygon vertices.
cleared_fragments	Sequence[Sequence[tuple[float, float]]]	List of cleared-area polygons.
Returns	list[tuple[float, float]] | None	The cutting arc polyline, or None if degenerate.

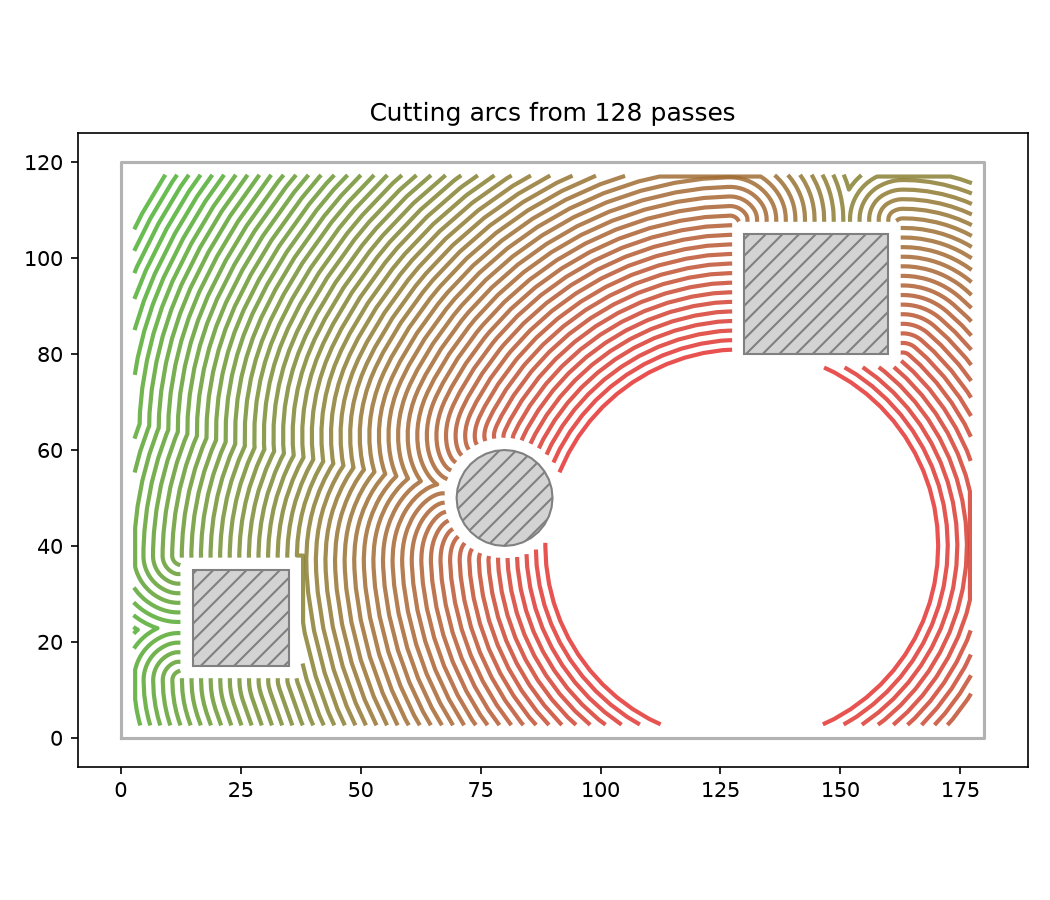

Cutting arcs from peeling passes in a pocket with three islands — each arc is the outer edge of a bite polygon

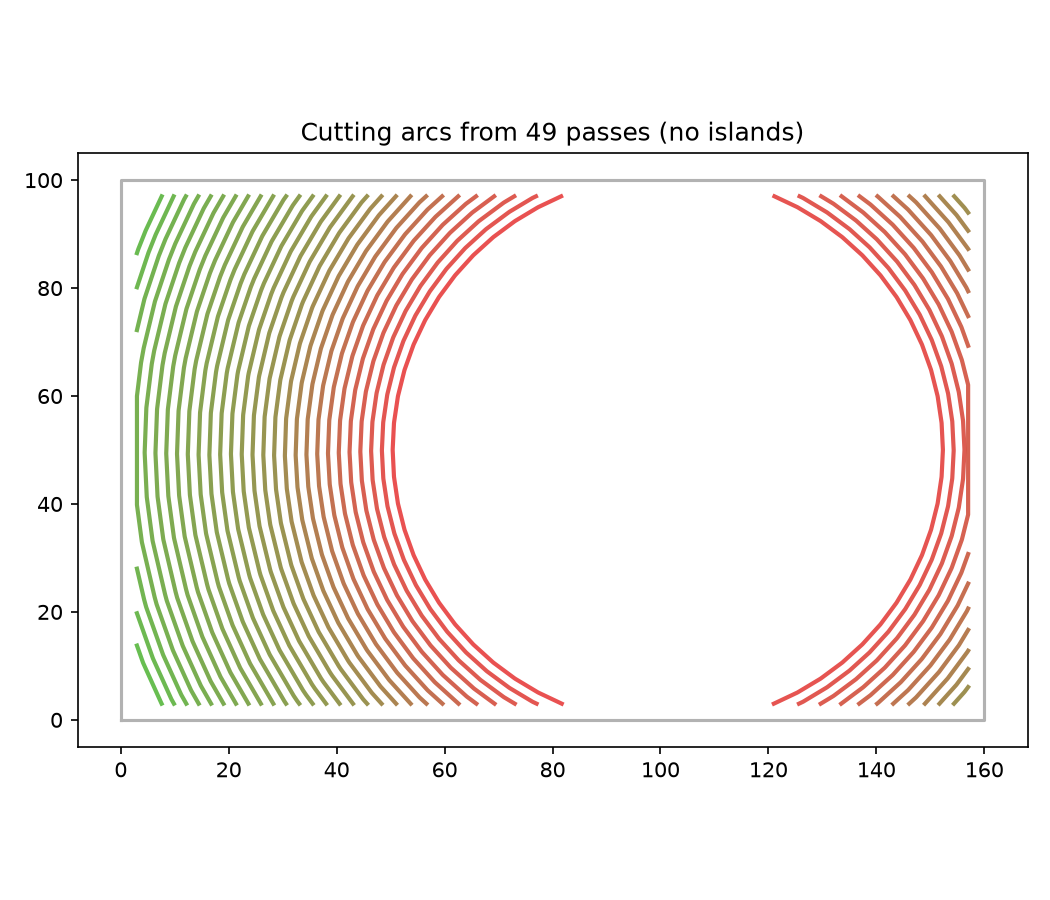

Cutting arcs from passes without islands

link_arcs_to_ops()

link_arcs_to_ops(
    arcs: Sequence[Sequence[tuple[float, float]]],
    uncleared: Sequence[Sequence[tuple[float, float]]] = [],
    cut_z: float = -1,
    safe_z: float = 5,
    mat: tuple[list[tuple[float, float]], list[tuple[int, int]]] | None = None,
    safe_margin: float = 0,
    smoothing_amount: int = 50,
    preserve_order: bool = False,
    cut_feed_rate: int = 1200,
    travel_rapid_rate: int = 8000,
) -> ops.Ops

Link filleted arcs into an Ops with MAT-routed travel.

Consecutive arcs are joined by travel segments (MoveTo) at safe_z. When the direct line would cross (or pass within safe_margin of) any polygon in uncleared, the connection uses the Medial Axis to route around obstacles, then smoothed.

Cutting arcs are emitted as LineTo at cut_z with cut_feed_rate; travel links as MoveTo at safe_z with travel_rapid_rate.

Parameter	Type	Description
arcs	Sequence[Sequence[tuple[float, float]]]	Sequence of arcs (each a list of (x, y) points).
uncleared	Sequence[Sequence[tuple[float, float]]] = []	Areas to avoid during travel (default []).
cut_z	float = -1	Cutting Z height (default -1.0).
safe_z	float = 5	Safe (rapid) Z height (default 5.0).
mat	tuple[list[tuple[float, float]], list[tuple[int, int]]] | None = None	Optional (nodes, edges) tuple from compute_medial_axis for obstacle-aware routing.
safe_margin	float = 0	Minimum distance from uncleared polygons for a direct travel line to be considered safe (default 0 = no margin check).
smoothing_amount	int = 50	Gaussian smoothing amount (0-200) applied to MAT-routed travel (default 50).
preserve_order	bool = False	Keep arc order as given instead of nearest-neighbour reordering (default False).
cut_feed_rate	int = 1200	Feed rate for cutting moves (default 1200).
travel_rapid_rate	int = 8000	Rapid rate for travel moves (default 8000).
Returns	ops.Ops	Ops with cutting LineTo and travel MoveTo commands.

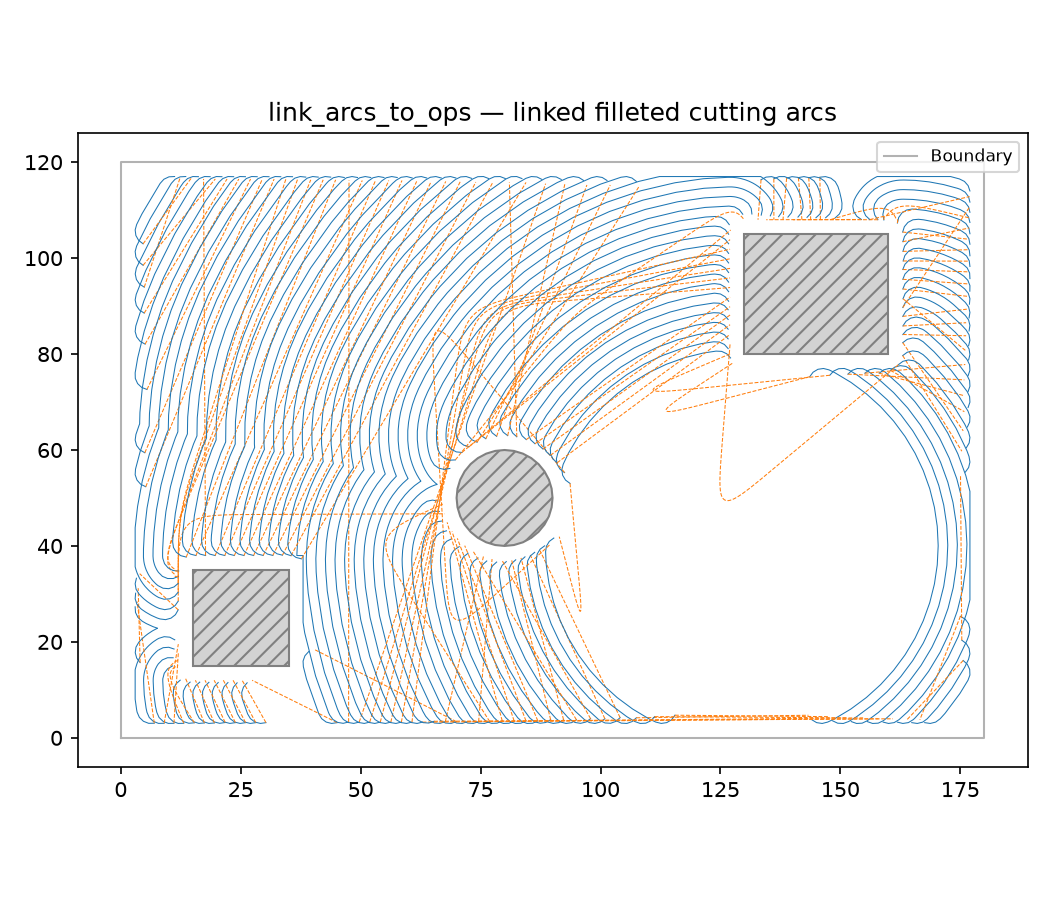

Pre-computed filleted arcs linked into an Ops with MAT-routed travel segments
