raygeo.geo.shape.polygon3d

Functions

`flip_polygon_3d()`

flip_polygon_3d(
    polygon: Sequence[types.Point3D],
    flip_h: bool = False,
    flip_v: bool = False,
    flip_z: bool = False,
) -> types.Polygon3D

Flip a 3D polygon horizontally, vertically, and/or along Z.

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
`flip_h`	`bool = False`	Whether to flip horizontally (negate X).
`flip_v`	`bool = False`	Whether to flip vertically (negate Y).
`flip_z`	`bool = False`	Whether to flip along Z (negate Z).
Returns	`types.Polygon3D`	Flipped polygon.
Complexity		O(n)

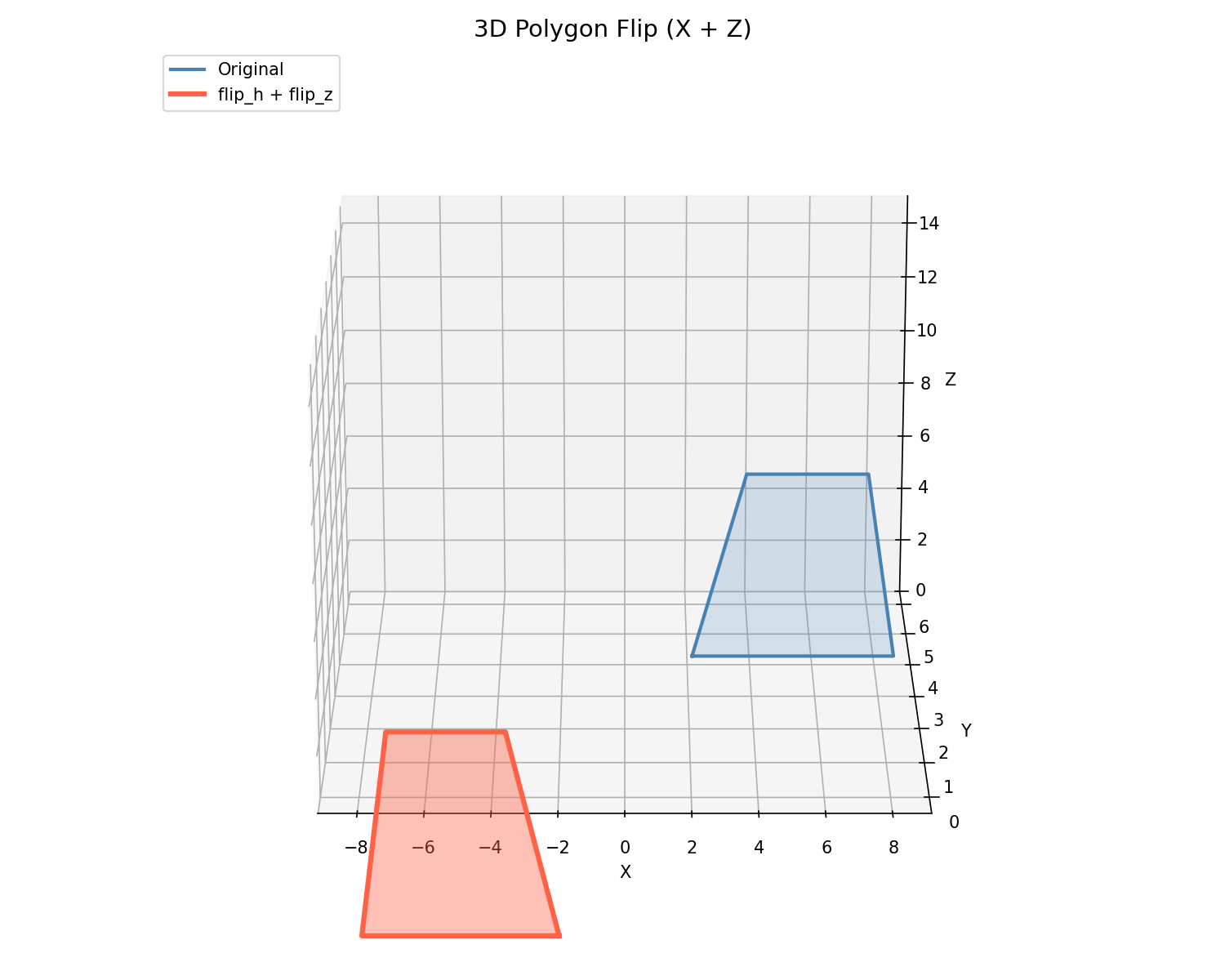

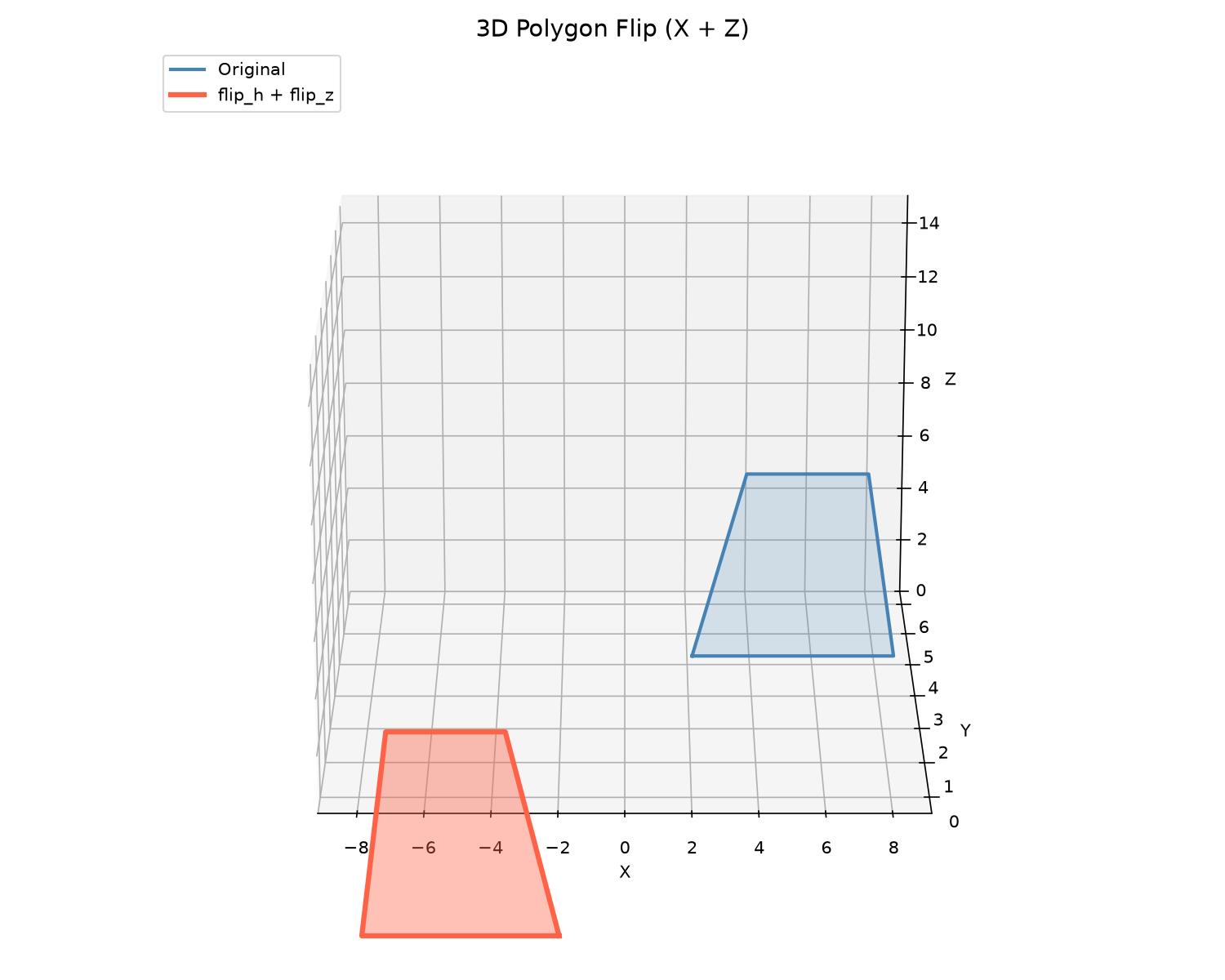

3D polygon flipped horizontally and along Z

3D polygon flipped horizontally and along Z

`flip_polygons_3d()`

flip_polygons_3d(
    polygons: Any,
    flip_h: bool = False,
    flip_v: bool = False,
    flip_z: bool = False,
) -> list[types.Polygon3D]

Flip multiple 3D polygons.

Parameter	Type	Description
`polygons`	`Any`	List of 3D polygons.
`flip_h`	`bool = False`	Whether to flip horizontally (negate X).
`flip_v`	`bool = False`	Whether to flip vertically (negate Y).
`flip_z`	`bool = False`	Whether to flip along Z (negate Z).
Returns	`list[types.Polygon3D]`	Flipped polygons.
Complexity		O(n * m)

`get_polygon_bounds_3d()`

get_polygon_bounds_3d(polygon: Sequence[types.Point3D]) -> types.Rect3D

Get the 3D bounding box of a polygon.

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
Returns	`types.Rect3D`	Bounding box as (x_min, y_min, x_max, y_max, z_min, z_max).
Complexity		O(n)

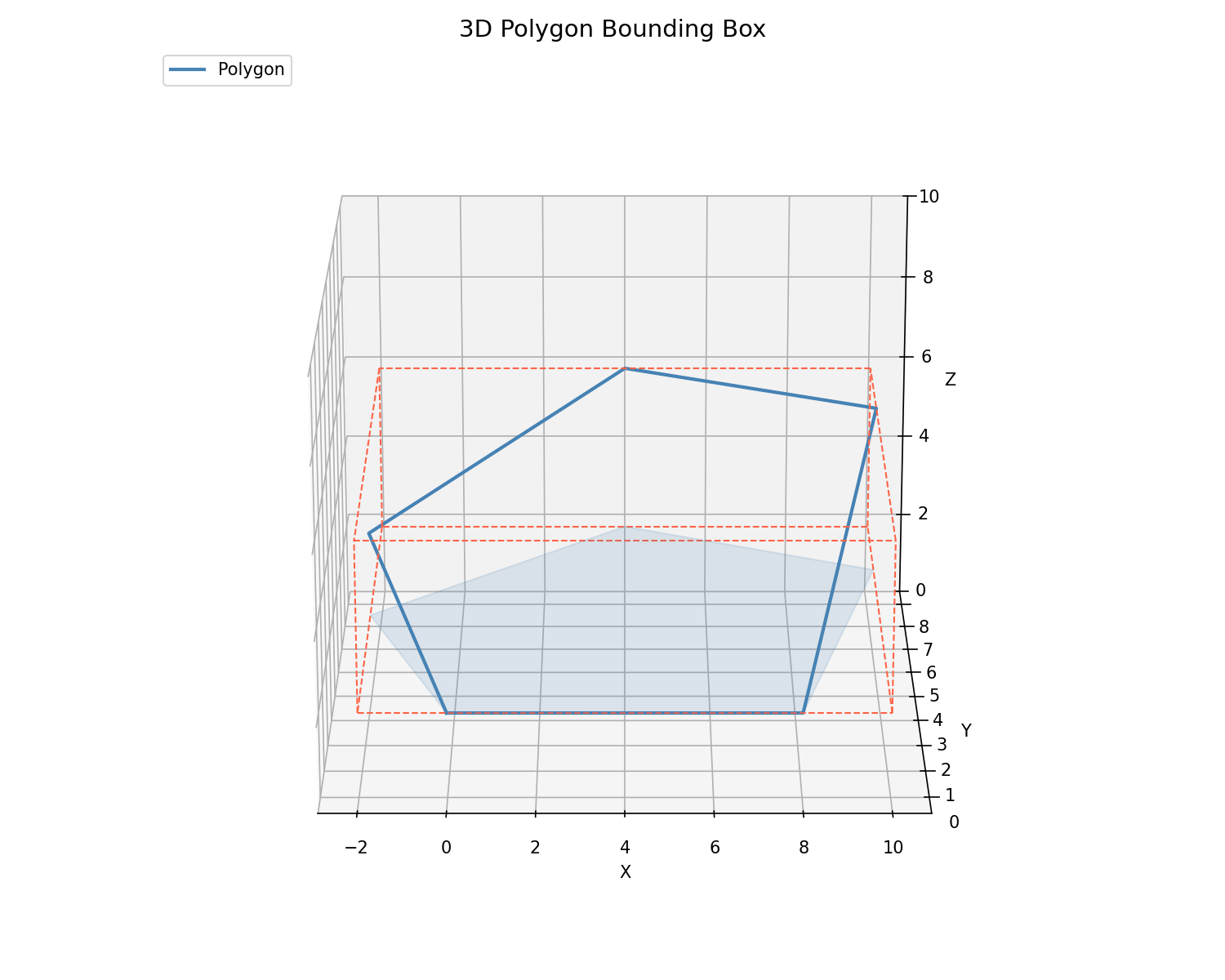

3D bounding box (Rect3D)

3D bounding box (Rect3D)

`get_polygon_centroid_3d()`

get_polygon_centroid_3d(polygon: Sequence[types.Point3D]) -> types.Point3D

Get the centroid of a 3D polygon.

XY centroid from shoelace formula, Z from average.

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
Returns	`types.Point3D`	Centroid point (x, y, z).
Complexity		O(n)

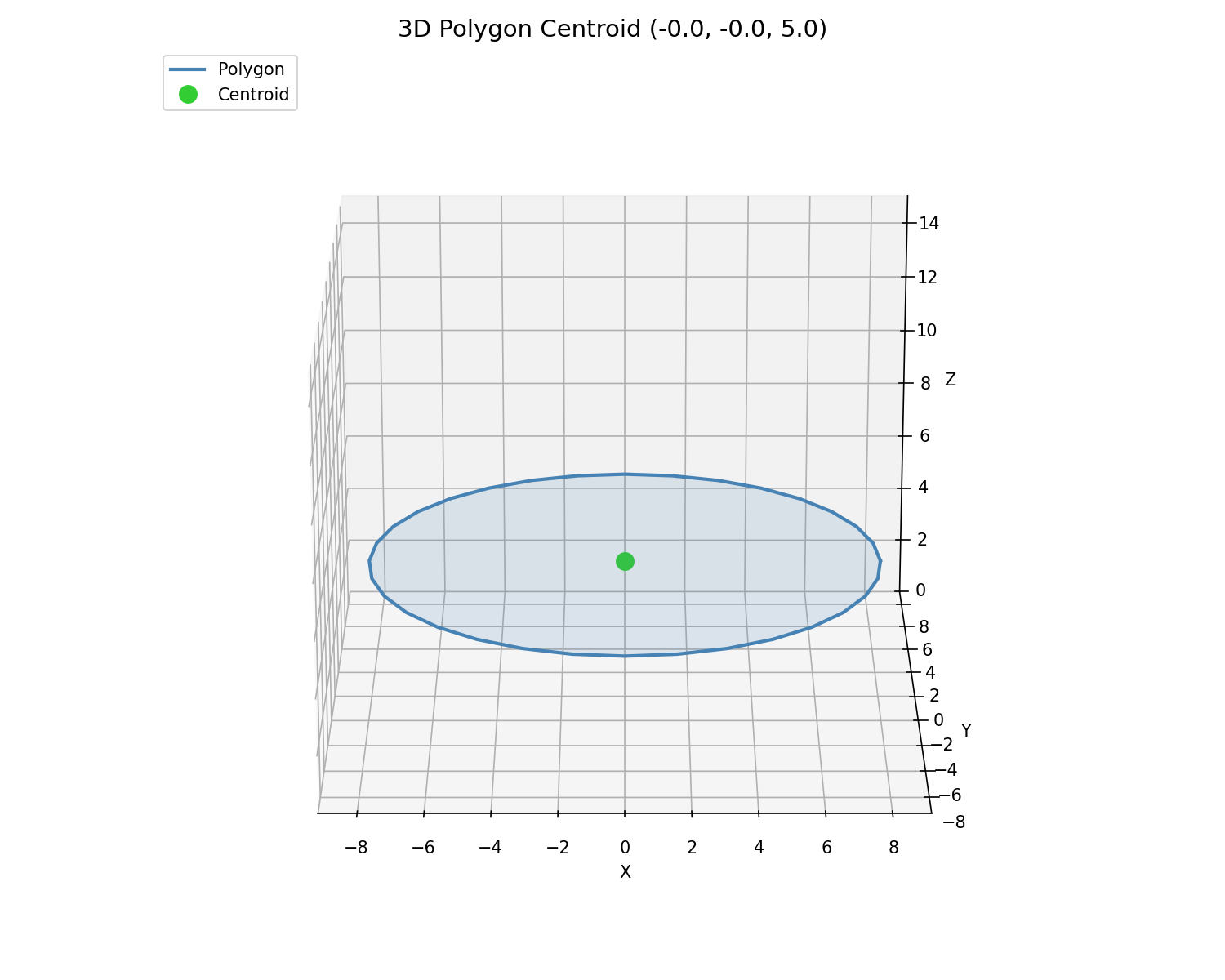

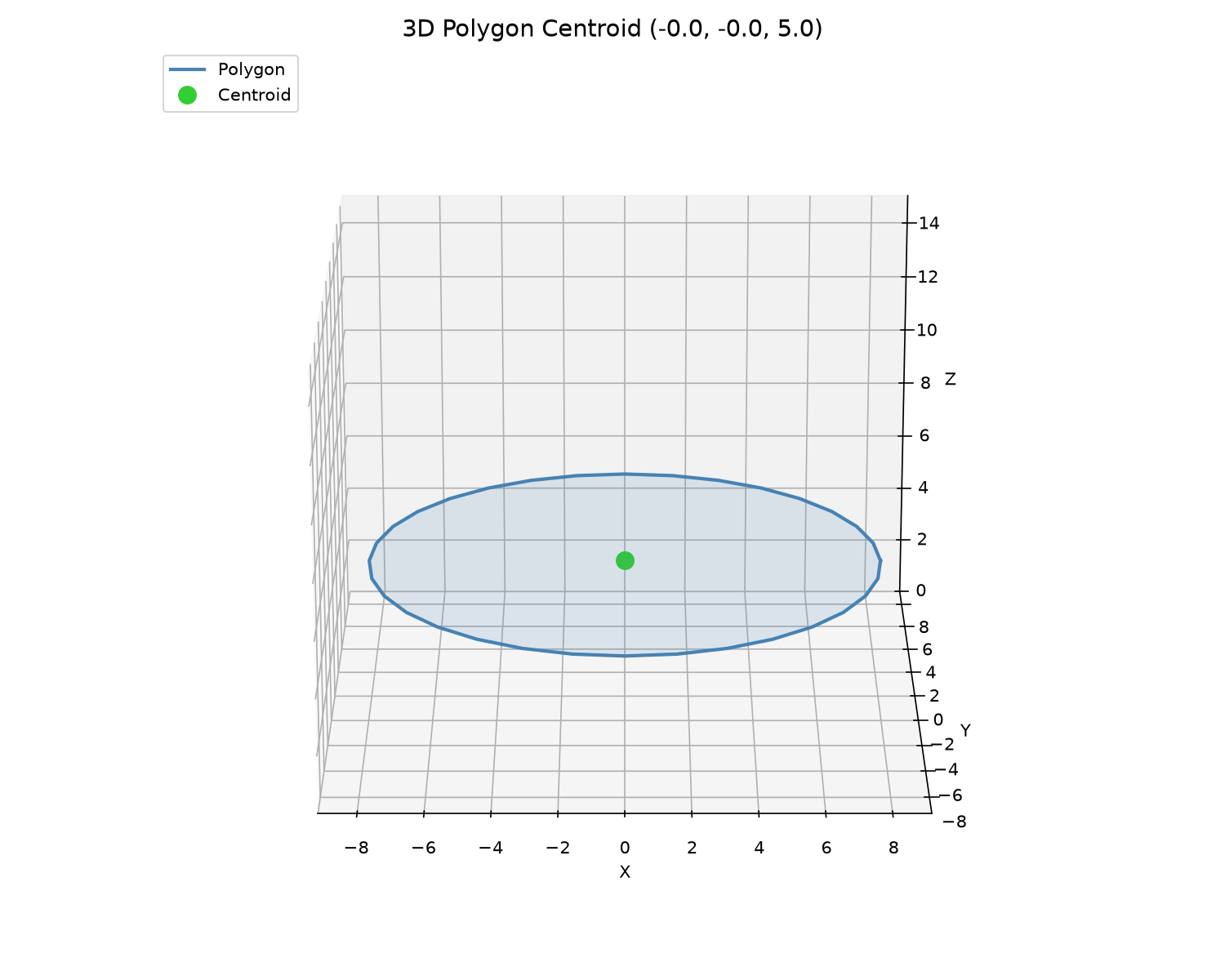

3D centroid – XY via shoelace, Z as average

3D centroid – XY via shoelace, Z as average

`get_polygon_convex_hull_3d()`

get_polygon_convex_hull_3d(polygon: Sequence[types.Point3D]) -> types.Polygon3D

Get the convex hull of a 3D polygon (XY-plane, Z from first vertex).

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
Returns	`types.Polygon3D`	Convex hull as list of (x, y, z) points.
Complexity		O(n log n)

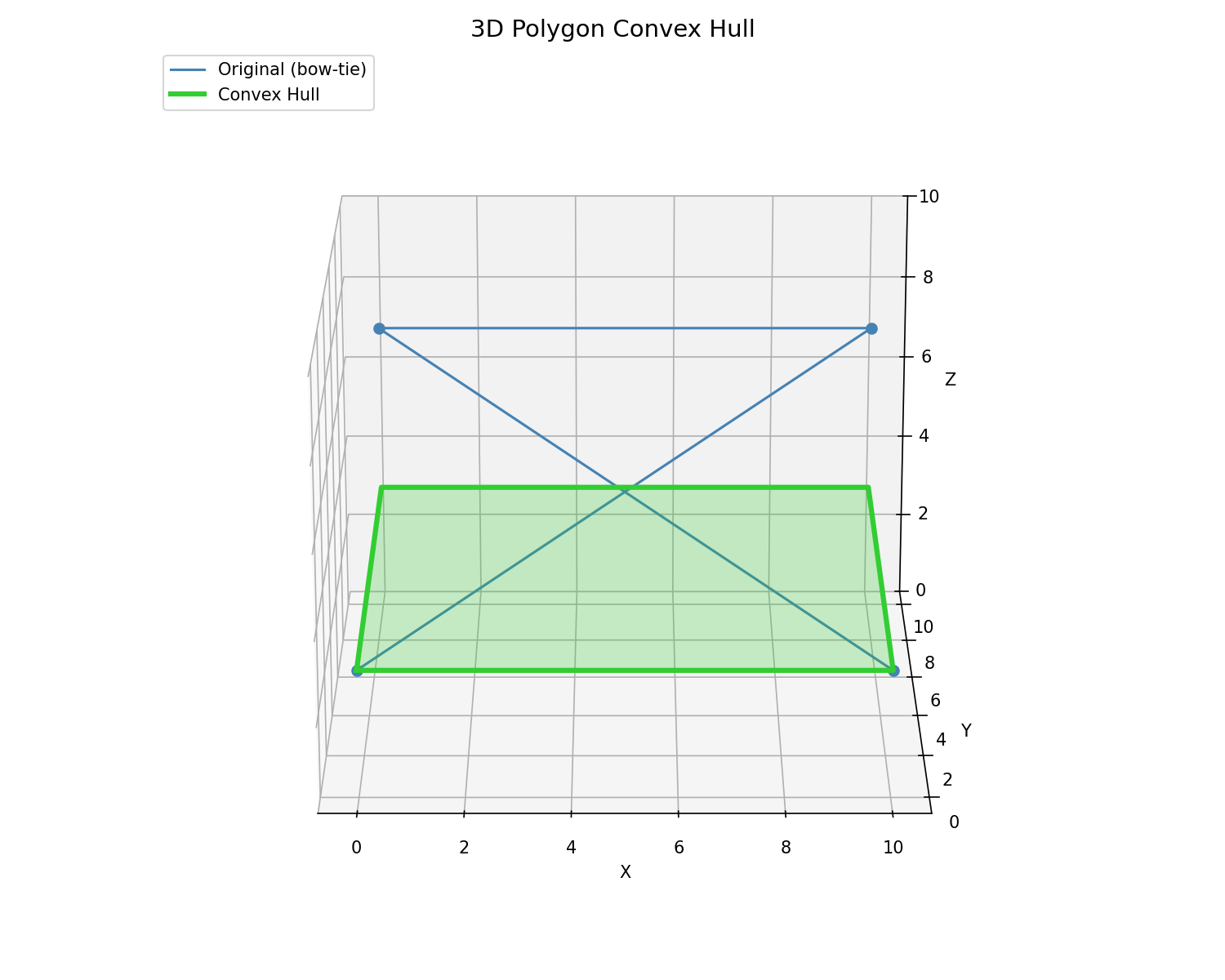

3D convex hull (XY-plane, Z from first hull vertex)

3D convex hull (XY-plane, Z from first hull vertex)

`get_polygon_edges_3d()`

get_polygon_edges_3d(
    polygon: Sequence[types.Point3D],
) -> list[tuple[types.Point3D, types.Point3D]]

Get the edges of a 3D polygon.

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
Returns	`list[tuple[types.Point3D, types.Point3D]]`	List of ((x1, y1, z1), (x2, y2, z2)) edges.
Complexity		O(n)

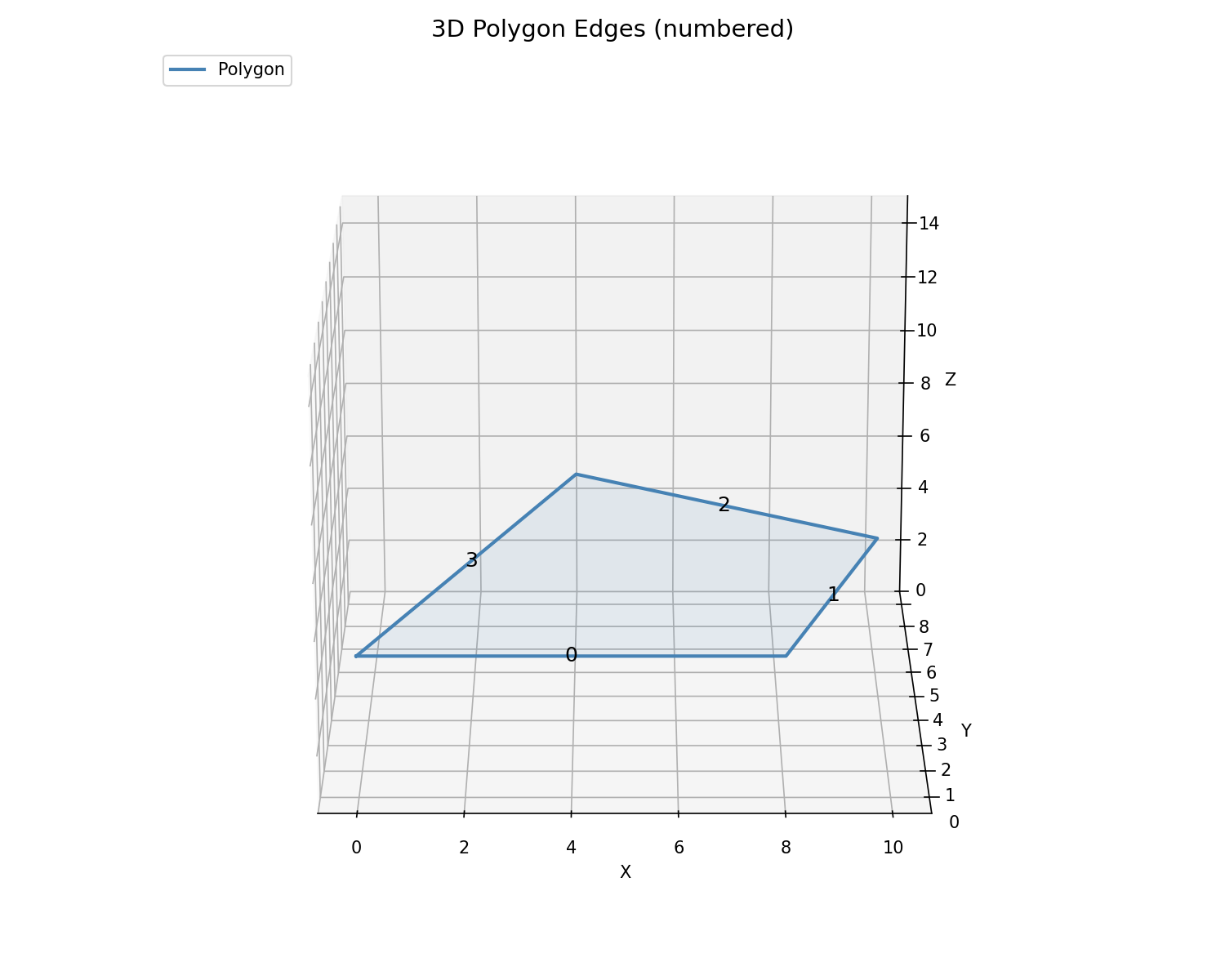

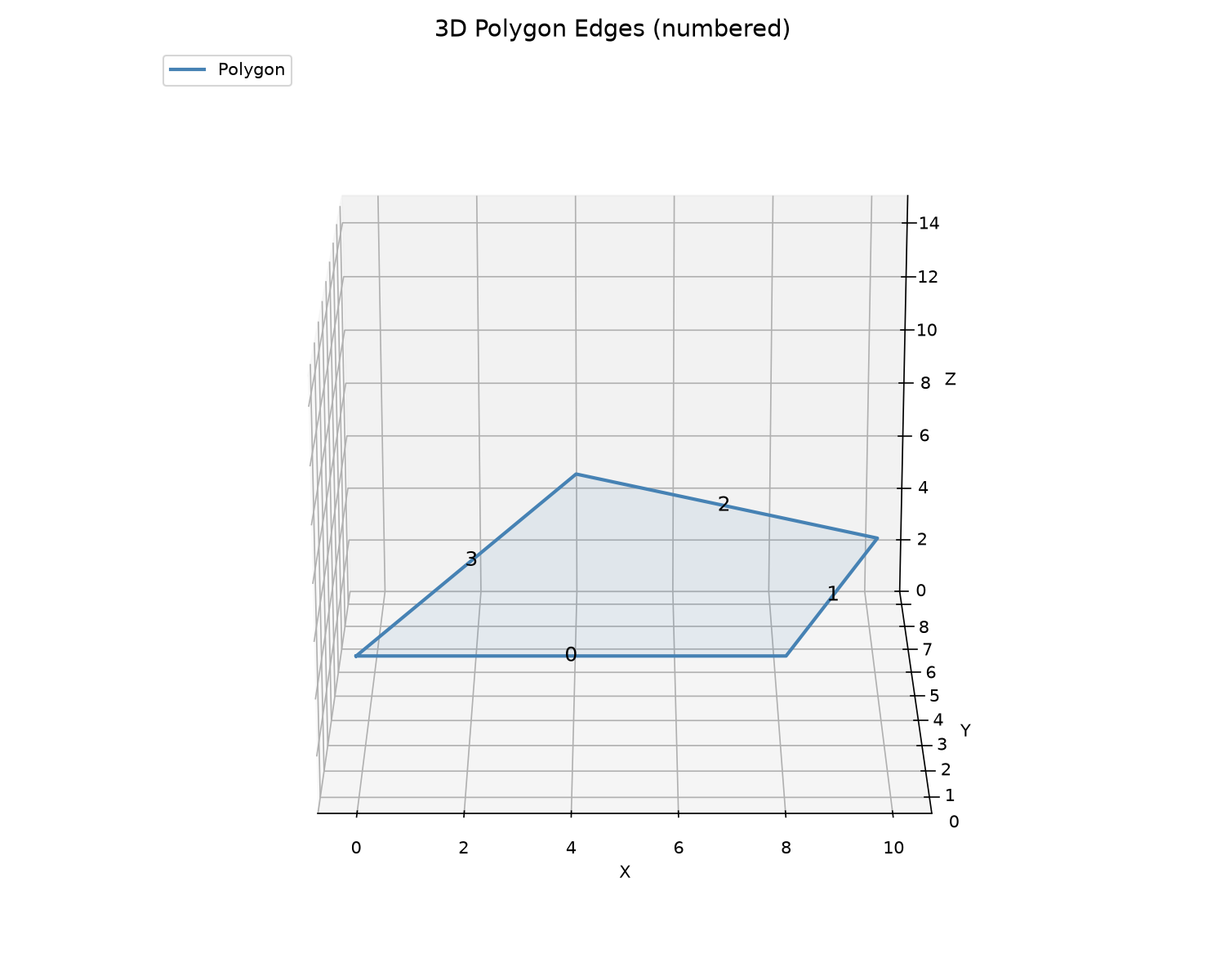

3D polygon edges as (start, end) pairs

3D polygon edges as (start, end) pairs

`get_polygon_group_bounds_3d()`

get_polygon_group_bounds_3d(polygons: Any) -> types.Rect3D

Get the 3D bounding box of a group of polygons.

Parameter	Type	Description
`polygons`	`Any`	List of 3D polygons.
Returns	`types.Rect3D`	Bounding box as (x_min, y_min, x_max, y_max, z_min, z_max).
Complexity		O(n * m)

`get_polygon_perimeter_3d()`

get_polygon_perimeter_3d(polygon: Sequence[types.Point3D]) -> float

Get the perimeter of a 3D polygon using full 3D edge lengths.

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
Returns	`float`	Perimeter length.
Complexity		O(n)

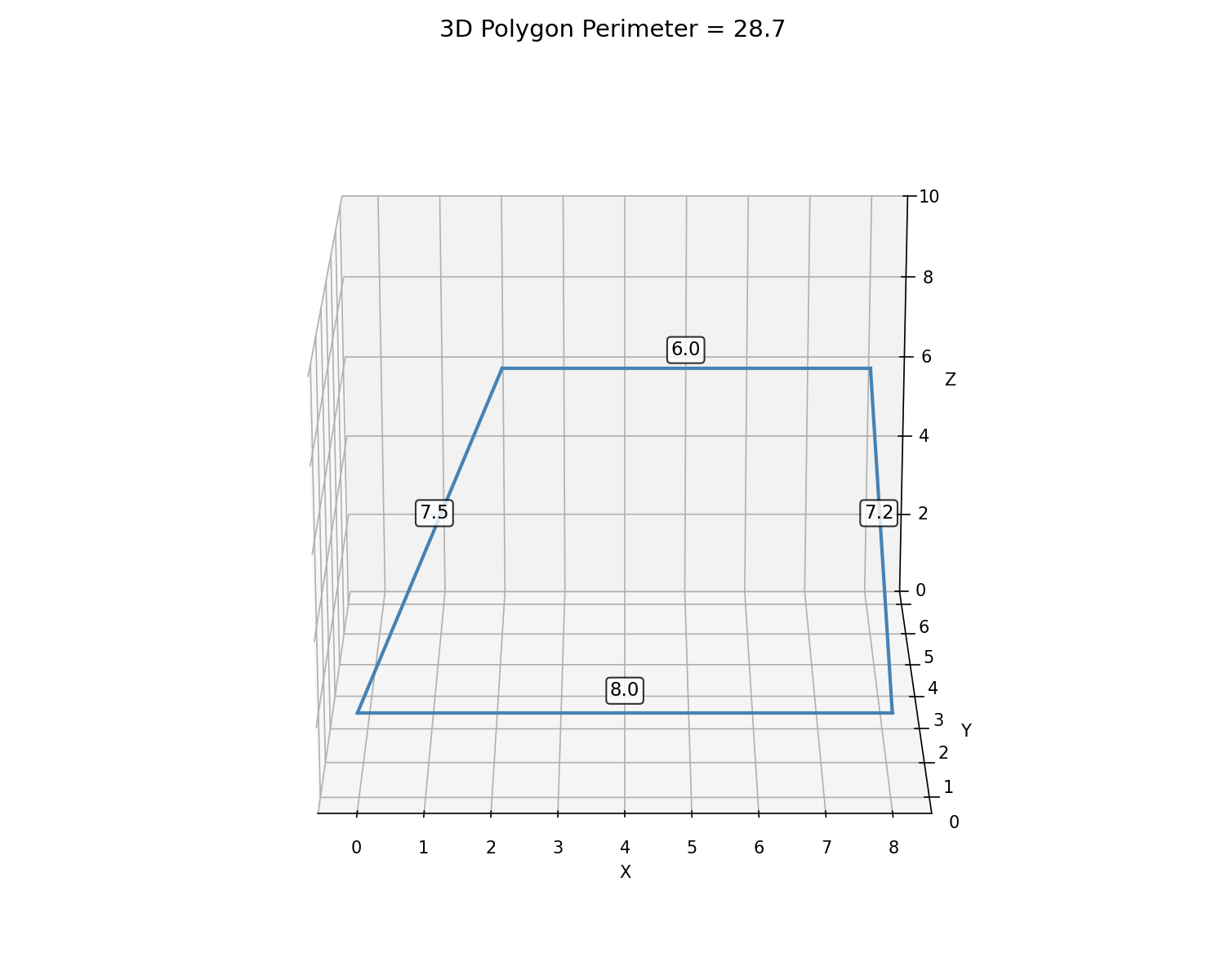

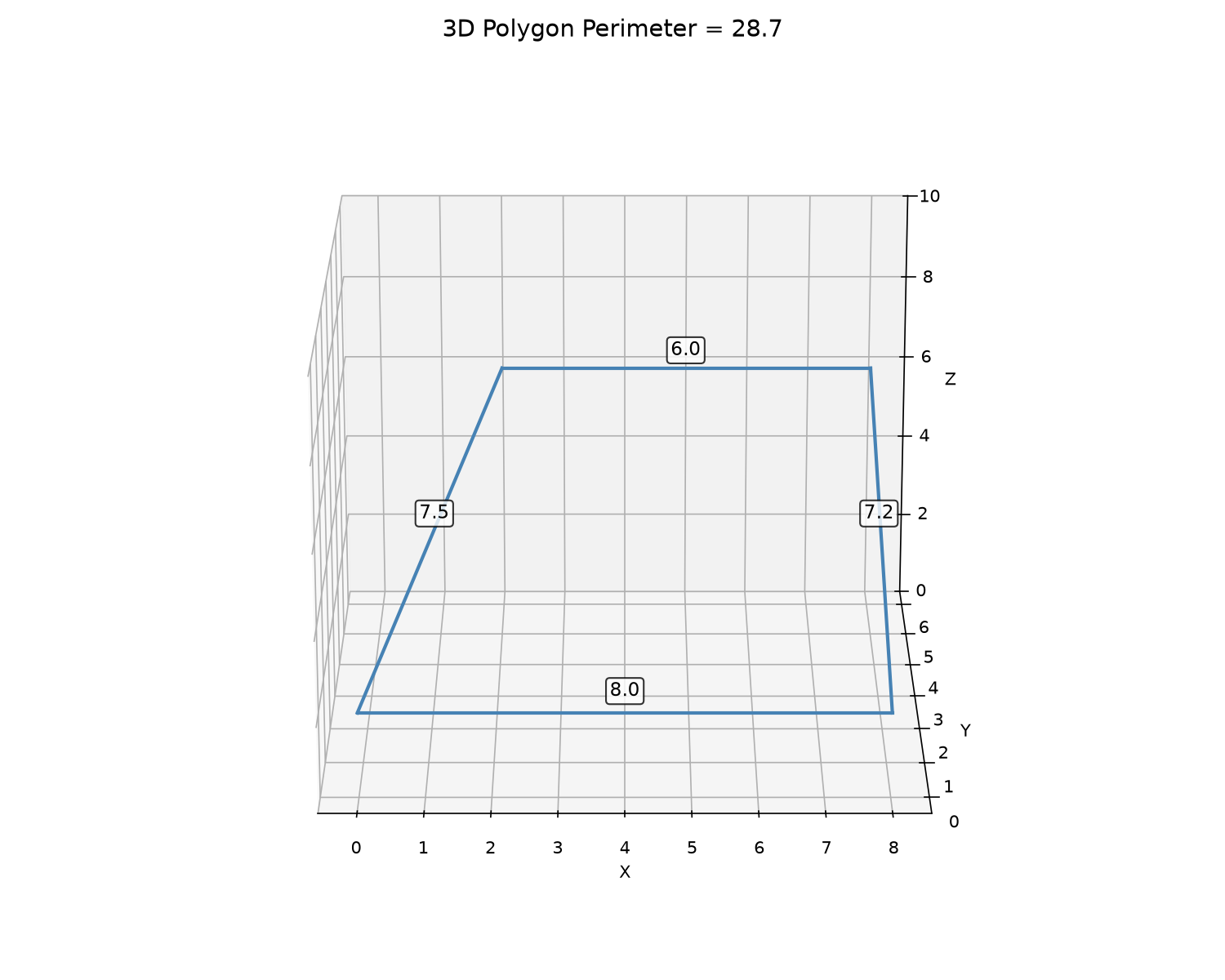

3D polygon perimeter using full 3D edge lengths

3D polygon perimeter using full 3D edge lengths

`get_polygons_difference_3d()`

get_polygons_difference_3d(poly1: Any, poly2: Any) -> list[types.Polygon3D]

Compute the difference of two 3D polygons (poly1 - poly2).

Parameter	Type	Description
`poly1`	`Any`	Subject 3D polygon.
`poly2`	`Any`	Clip 3D polygon.
Returns	`list[types.Polygon3D]`	Difference result with Z from first polygon.

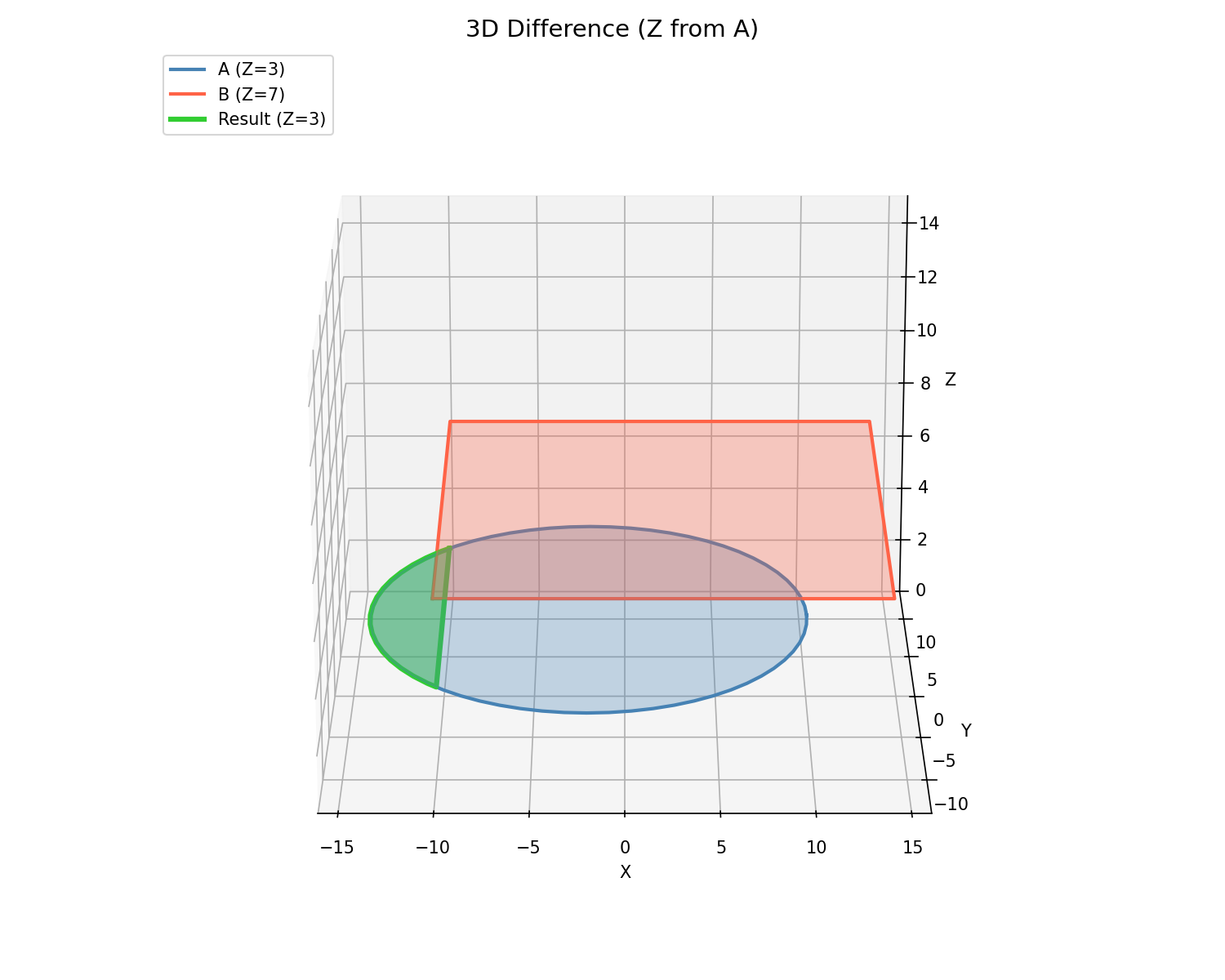

3D polygon difference (A − B) — Z from A

3D polygon difference (A − B) — Z from A

`get_polygons_group_difference_3d()`

get_polygons_group_difference_3d(
    subject: Any,
    clip: Any,
) -> list[types.Polygon3D]

Group difference of 3D polygons (subject - clip).

Parameter	Type	Description
`subject`	`Any`	Subject group of 3D polygons.
`clip`	`Any`	Clip group of 3D polygons.
Returns	`list[types.Polygon3D]`	Difference result with Z from first subject polygon.

`get_polygons_group_intersection_3d()`

get_polygons_group_intersection_3d(
    subject: Any,
    clip: Any,
) -> list[types.Polygon3D]

Group intersection of 3D polygons (subject ∩ clip).

Parameter	Type	Description
`subject`	`Any`	Subject group of 3D polygons.
`clip`	`Any`	Clip group of 3D polygons.
Returns	`list[types.Polygon3D]`	Intersection result with Z from first subject polygon.

`get_polygons_intersection_3d()`

get_polygons_intersection_3d(poly1: Any, poly2: Any) -> list[types.Polygon3D]

Compute the intersection of two 3D polygons (XY-plane, Z preserved).

Parameter	Type	Description
`poly1`	`Any`	First 3D polygon.
`poly2`	`Any`	Second 3D polygon.
Returns	`list[types.Polygon3D]`	Intersection result with Z from first polygon.

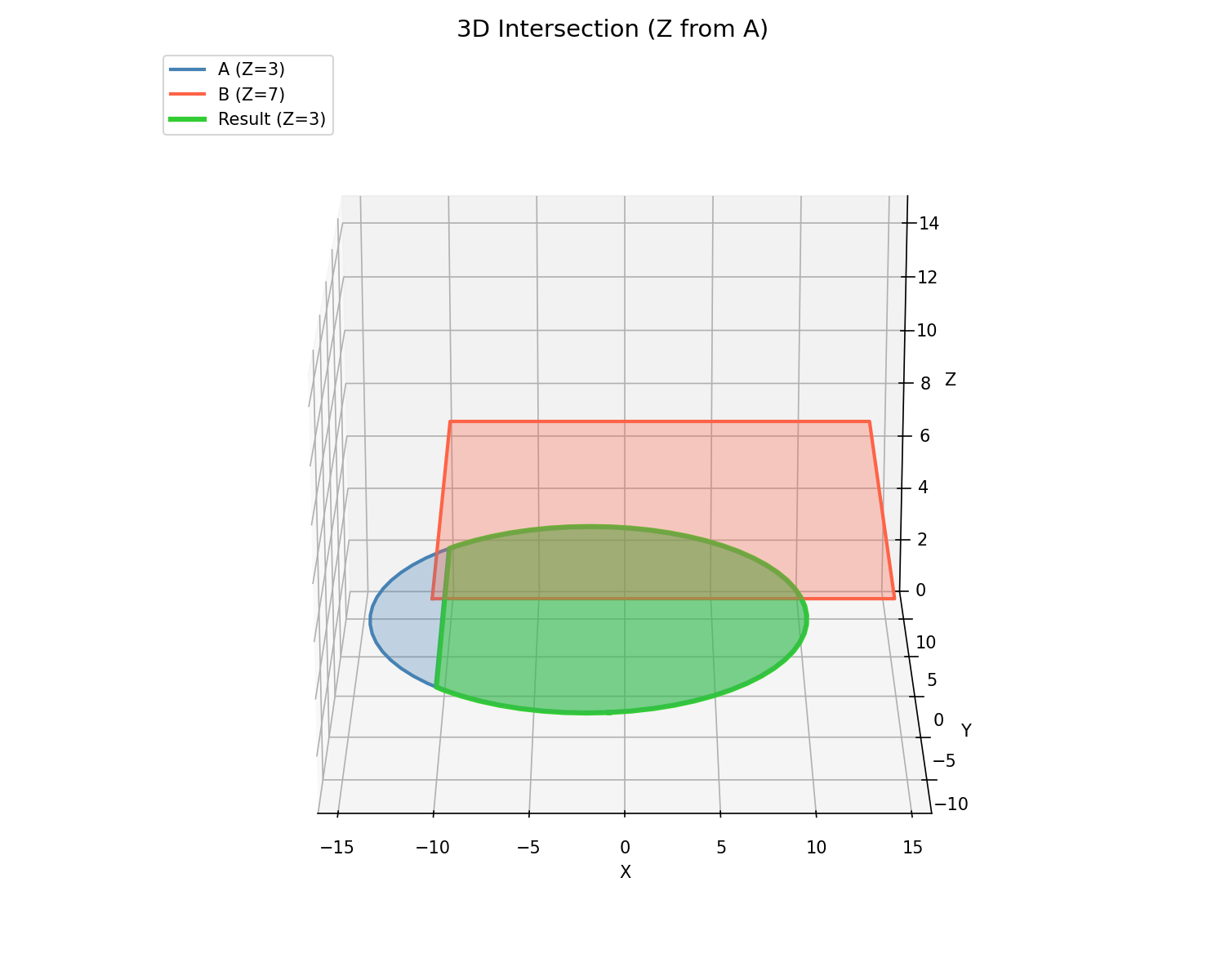

3D polygon intersection — Z from first polygon

3D polygon intersection — Z from first polygon

`get_polygons_union_3d()`

get_polygons_union_3d(polygons: Any) -> list[types.Polygon3D]

Compute the union of 3D polygons (XY-plane, Z preserved).

Parameter	Type	Description
`polygons`	`Any`	List of 3D polygons.
Returns	`list[types.Polygon3D]`	Union result with Z from first polygon.

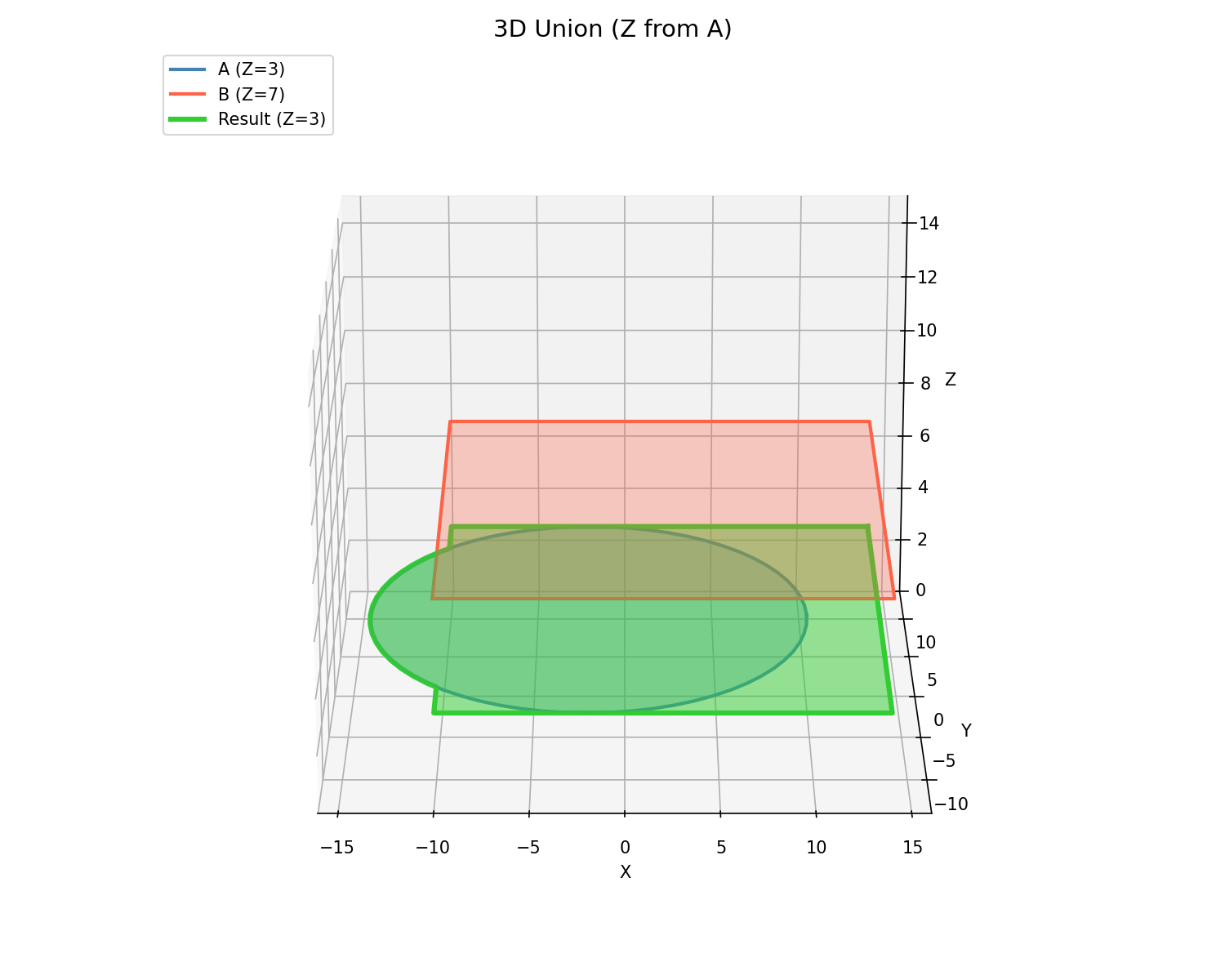

3D polygon union — Z from first polygon

3D polygon union — Z from first polygon

`offset_polygon_3d()`

offset_polygon_3d(polygon: Any, offset: float) -> list[types.Polygon3D]

Offset (inflate/deflate) a closed 3D polygon.

Parameter	Type	Description
`polygon`	`Any`	Input 3D polygon.
`offset`	`float`	Offset distance (positive = grow, negative = shrink).
Returns	`list[types.Polygon3D]`	Offset polygons with Z from input.

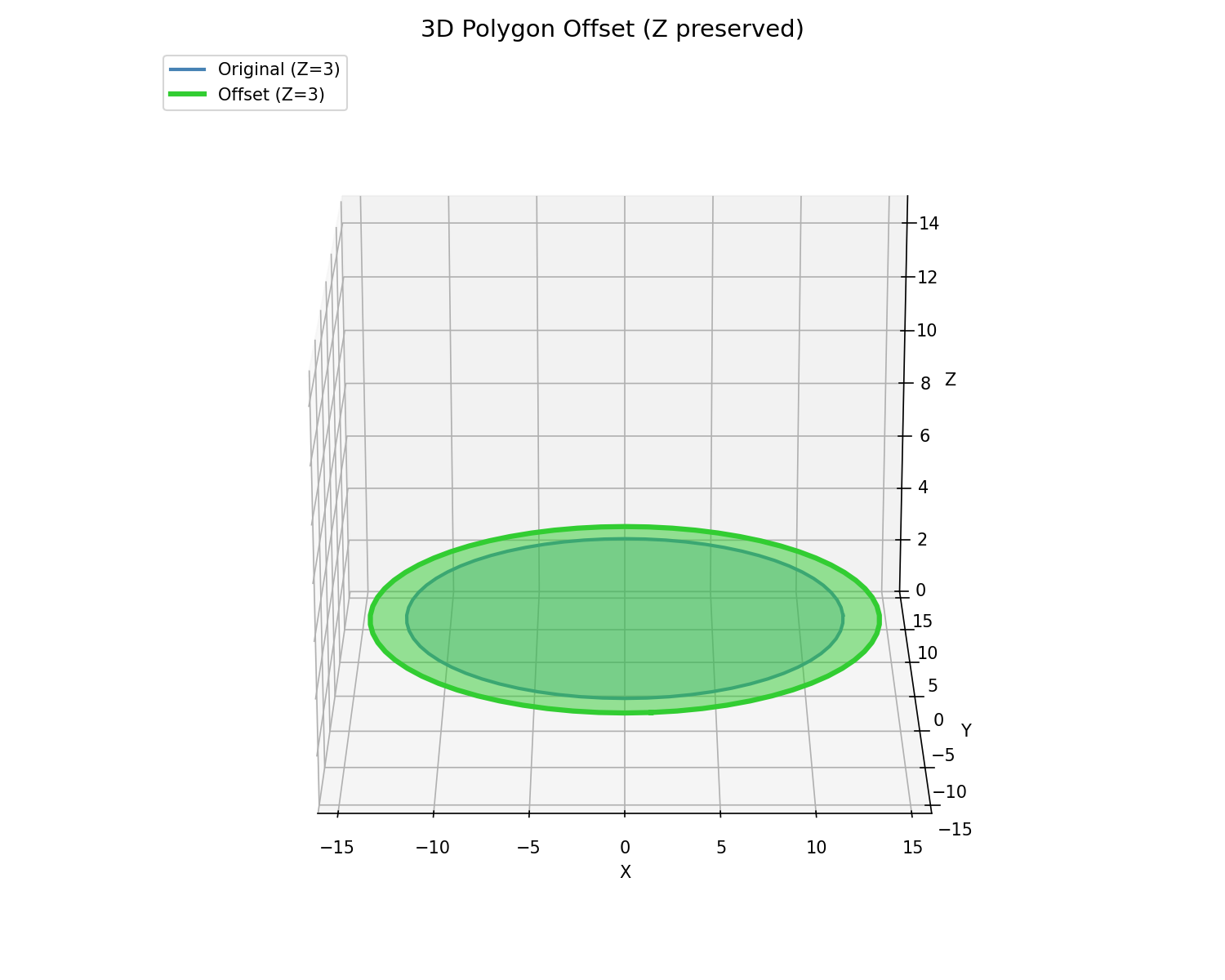

3D polygon offset — Z preserved from input

3D polygon offset — Z preserved from input

`offset_polyline_3d()`

offset_polyline_3d(
    polyline: Sequence[types.Point3D],
    distance: float,
    closed: bool = False,
) -> types.Polygon3D

Offset a 3D polyline in true 3D (edge-plane miter).

Unlike offset_polygon_3d (which projects to XY, offsets, then lifts back), this function offsets each vertex in the local plane of its two adjacent edges. This gives a true 3D offset suitable for non-planar polylines.

Positive distance offsets to the left of the traversal direction.

Parameter	Type	Description
`polyline`	`Sequence[types.Point3D]`	Input 3D vertices as `(x, y, z)` points.
`distance`	`float`	Offset distance (positive = left, negative = right).
`closed`	`bool = False`	When `True`, the polyline is treated as a closed ring (last vertex connects back to first). When `False` (default), the first and last vertices are offset perpendicular to their single edge.
Returns	`types.Polygon3D`	Offset polyline with the same number of vertices.
Complexity		O(n)

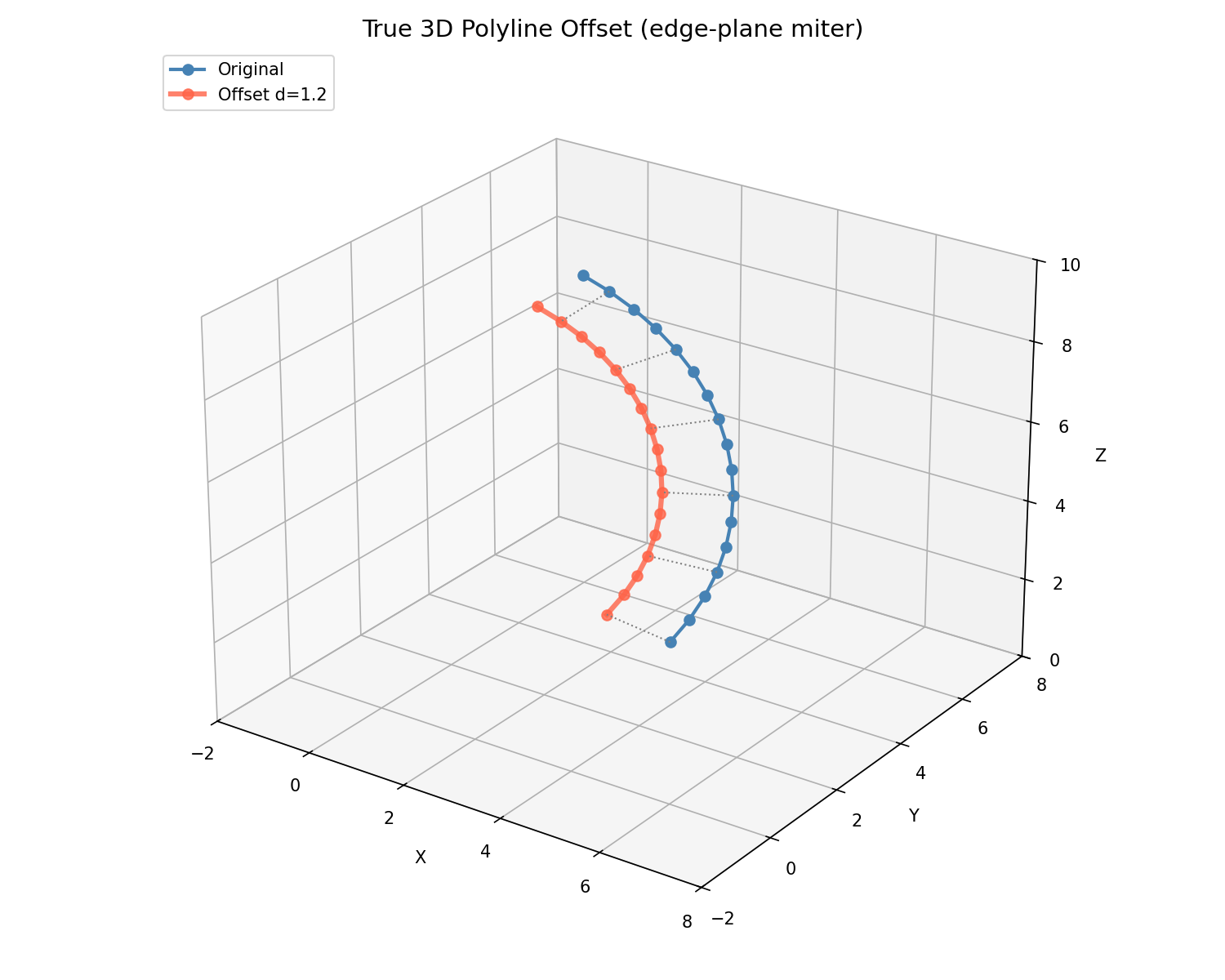

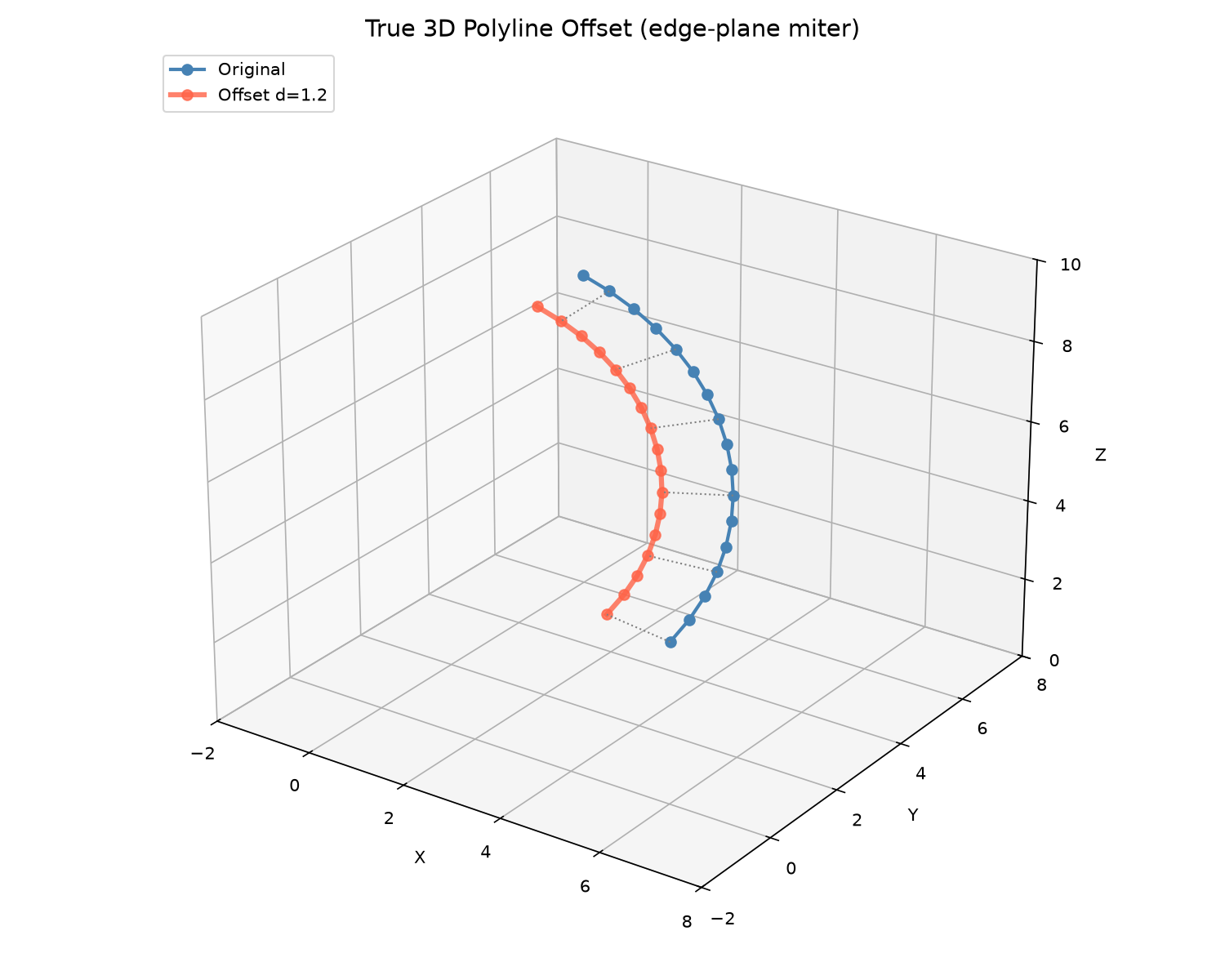

True 3D polyline offset (edge-plane miter)

True 3D polyline offset (edge-plane miter)

`rotate_polygon_3d()`

rotate_polygon_3d(
    polygon: Sequence[types.Point3D],
    angle: float,
) -> types.Polygon3D

Rotate a 3D polygon around the Z axis (XY rotation, Z preserved).

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
`angle`	`float`	Rotation angle in degrees.
Returns	`types.Polygon3D`	Rotated polygon.
Complexity		O(n)

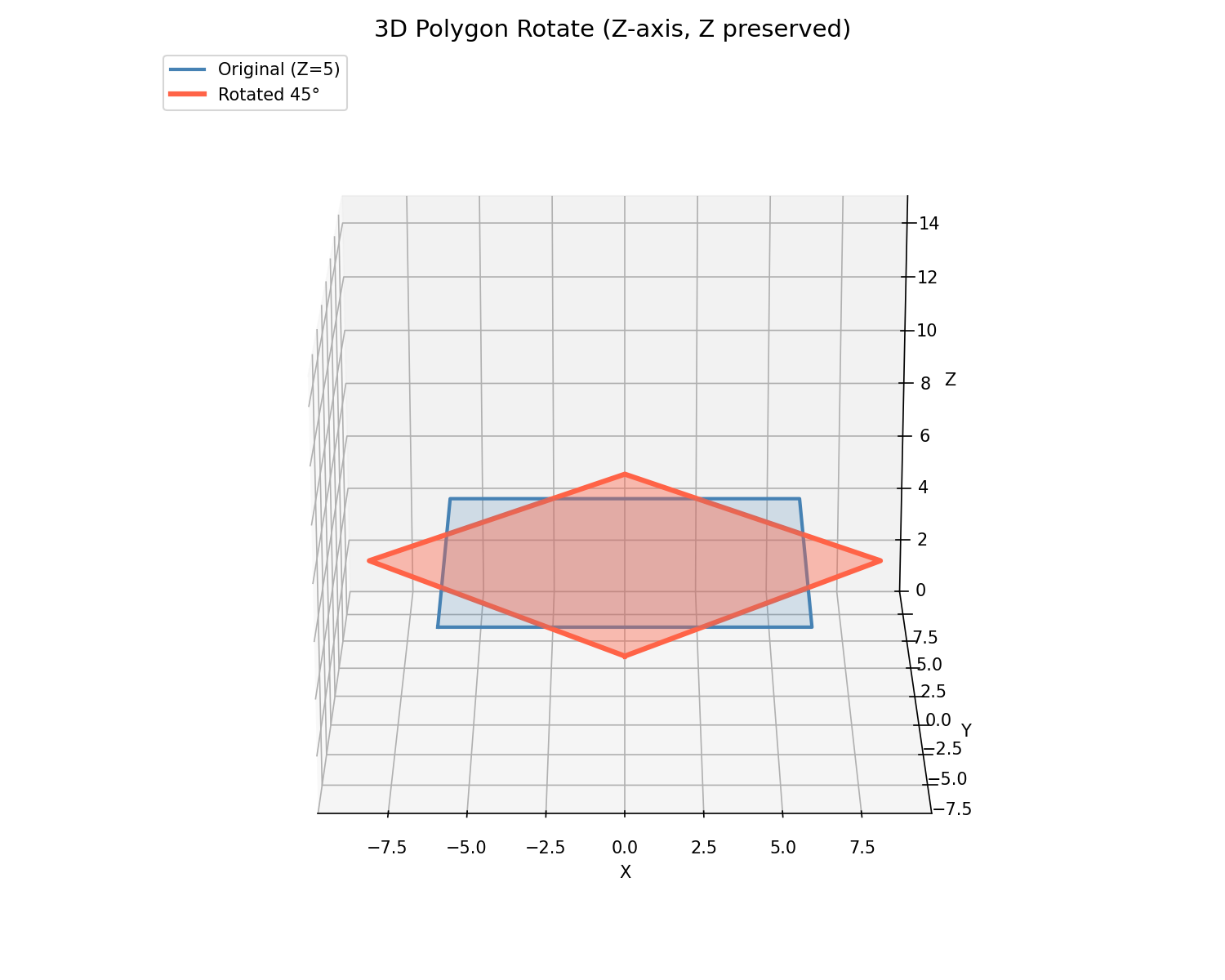

3D polygon rotated around Z axis (Z preserved)

3D polygon rotated around Z axis (Z preserved)

`rotate_polygons_3d()`

rotate_polygons_3d(polygons: Any, angle: float) -> list[types.Polygon3D]

Rotate multiple 3D polygons around the Z axis.

Parameter	Type	Description
`polygons`	`Any`	List of 3D polygons.
`angle`	`float`	Rotation angle in degrees.
Returns	`list[types.Polygon3D]`	Rotated polygons.
Complexity		O(n * m)

`scale_polygon_3d()`

scale_polygon_3d(
    polygon: Sequence[types.Point3D],
    scale: float,
    scale_y: Optional[float] = None,
    scale_z: Optional[float] = None,
) -> types.Polygon3D

Scale a 3D polygon.

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
`scale`	`float`	X (and Y/Z if scale_y/scale_z are None) scale factor.
`scale_y`	`Optional[float] = None`	Y scale factor (optional).
`scale_z`	`Optional[float] = None`	Z scale factor (optional).
Returns	`types.Polygon3D`	Scaled polygon.
Complexity		O(n)

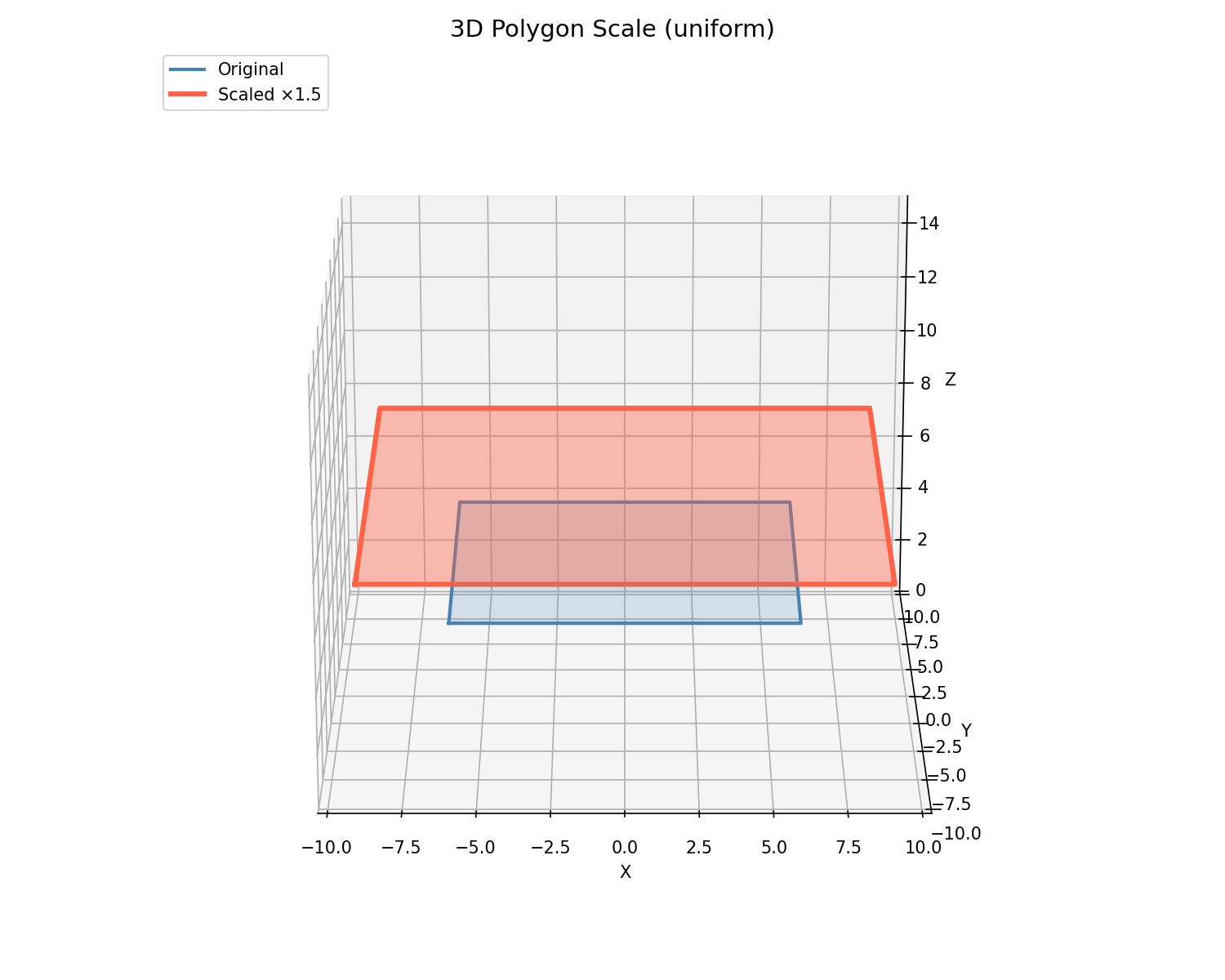

3D polygon scaled uniformly

3D polygon scaled uniformly

`translate_polygon_3d()`

translate_polygon_3d(
    polygon: Sequence[types.Point3D],
    dx: float,
    dy: float,
    dz: float = 0,
) -> types.Polygon3D

Translate a 3D polygon.

Parameter	Type	Description
`polygon`	`Sequence[types.Point3D]`	Polygon as (x, y, z) points.
`dx`	`float`	X translation.
`dy`	`float`	Y translation.
`dz`	`float = 0`	Z translation.
Returns	`types.Polygon3D`	Translated polygon.
Complexity		O(n)

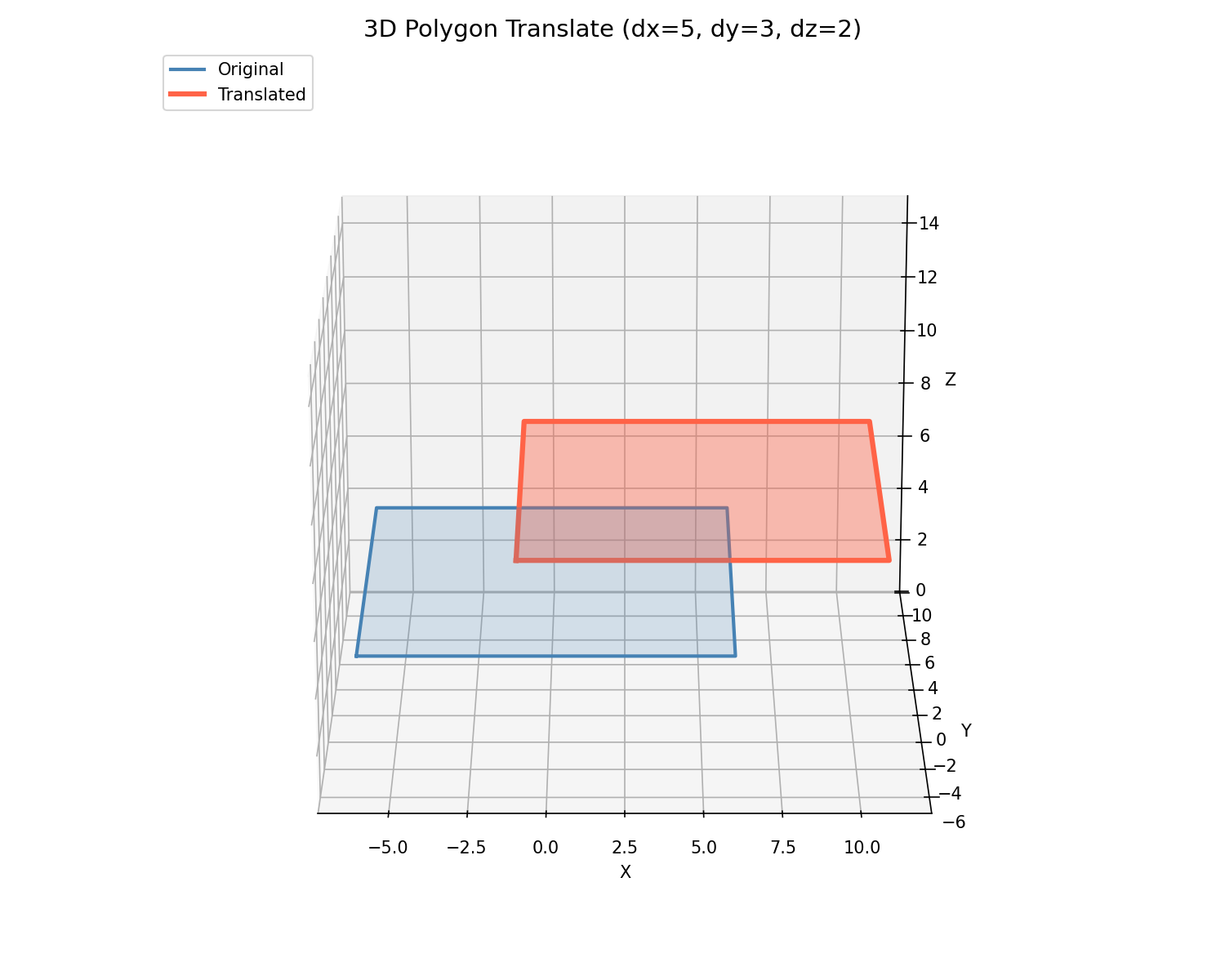

3D polygon translated by dx, dy, dz

3D polygon translated by dx, dy, dz

`translate_polygons_3d()`

translate_polygons_3d(
    polygons: Any,
    dx: float,
    dy: float,
    dz: float = 0,
) -> list[types.Polygon3D]

Translate a list of 3D polygons.

Parameter	Type	Description
`polygons`	`Any`	List of 3D polygons.
`dx`	`float`	X translation.
`dy`	`float`	Y translation.
`dz`	`float = 0`	Z translation.
Returns	`list[types.Polygon3D]`	Translated polygons.
Complexity		O(n * m)
