raygeo.geo.shape.polyline

Functions

get_polyline_bounds()

get_polyline_bounds(polyline: Sequence[types.Point]) -> types.Rect

Get the bounding rectangle of an open polyline.

Parameter	Type	Description
polyline	Sequence[types.Point]	Polyline as (x, y) points.
Returns	types.Rect	Bounding rectangle as (x_min, y_min, x_max, y_max).
Complexity		O(n)

get_polyline_closest_point()

get_polyline_closest_point(
    polyline: Sequence[tuple[float, float]],
    point: tuple[float, float],
) -> tuple[int, float] | None

Find the closest edge and parametric position on an open polyline.

Each edge of the polyline is tested, and the closest one is returned as (edge_index, t) where t in [0, 1] is the parametric position along that edge.

Parameter	Type	Description
polyline	Sequence[tuple[float, float]]	Open polyline as (x, y) points.
point	tuple[float, float]	Query point (x, y).
Returns	tuple[int, float] | None	(edge_index, t) or None if the polyline has fewer than 2 points.

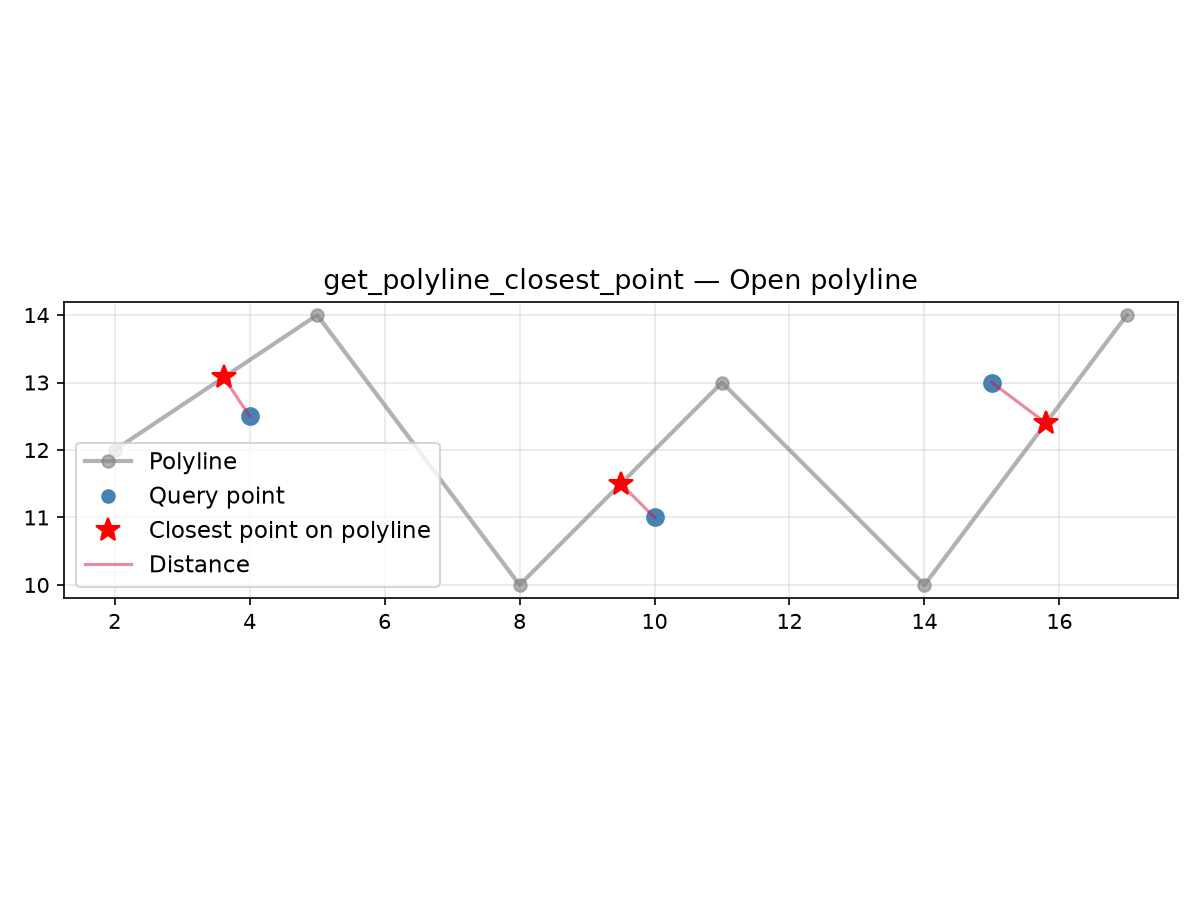

get_polyline_closest_point finds the closest point on an open polyline to a query point, returning the edge index and parametric position

resample_polyline()

resample_polyline(
    polyline: Sequence[tuple[float, float]],
    max_len: float,
) -> list[tuple[float, float]]

Resample an open 2D polyline so consecutive points are at most max_len apart.

New points are linearly interpolated along each segment that exceeds the threshold. The first and last points are always preserved.

Parameter	Type	Description
polyline	Sequence[tuple[float, float]]	Open polyline as (x, y) points.
max_len	float	Maximum allowed segment length.
Returns	list[tuple[float, float]]	Resampled polyline.
Complexity		O(n * m)

split_polyline_at_v_junctions()

split_polyline_at_v_junctions(
    polyline: Sequence[tuple[float, float]],
    angle_threshold: float,
) -> list[list[tuple[float, float]]]

Split a polyline at V-junction vertices where the interior angle is much sharper than both neighbours.

Each resulting sub-polyline is trimmed with trim_polyline_angular_ends.

Parameter	Type	Description
polyline	Sequence[tuple[float, float]]	Sequence of (x, y) points.
angle_threshold	float	Angle threshold in radians.
Returns	list[list[tuple[float, float]]]	List of sub-polylines.
Complexity		O(n) time, O(n) space

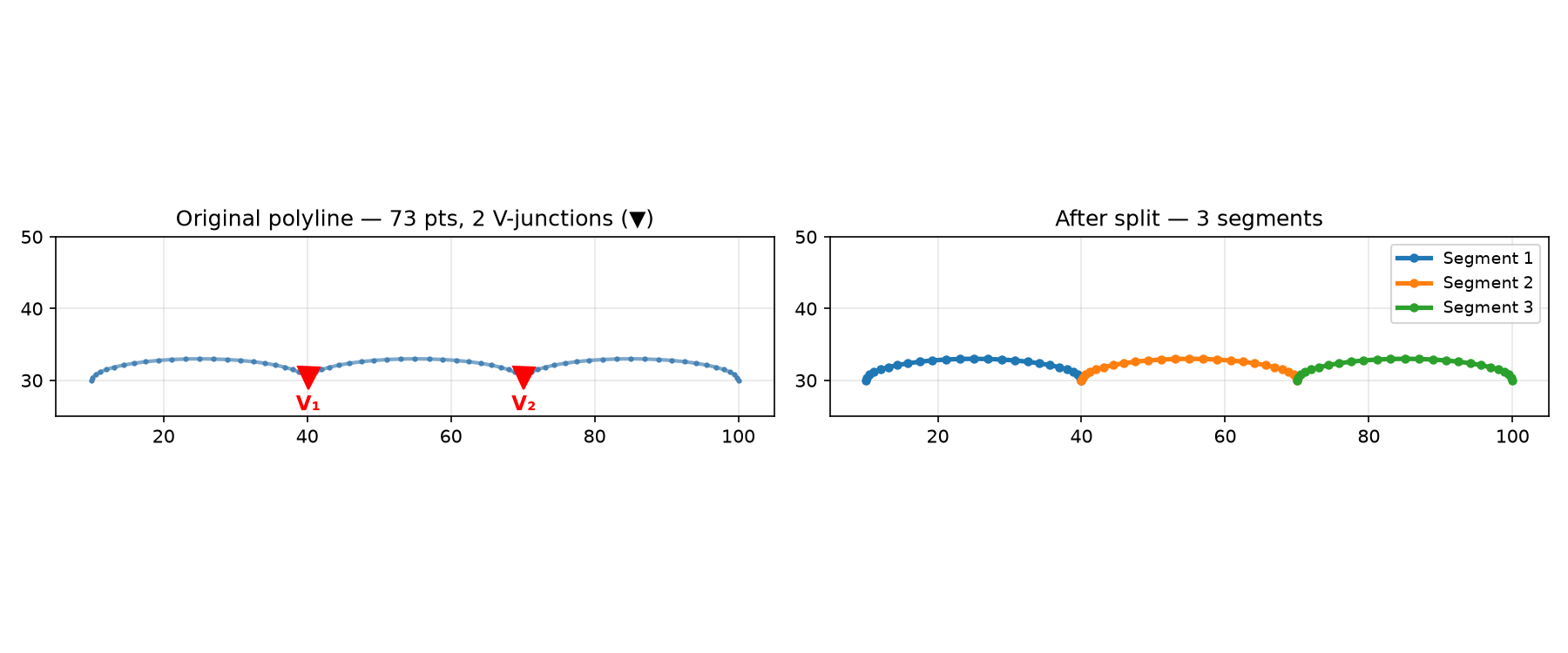

Three semi-arcs (hills) form two V-junctions where they meet. The function splits the polyline at those points and trims each segment's angular ends.

trim_polyline_angular_ends()

trim_polyline_angular_ends(
    polygon: Sequence[tuple[float, float]],
    start: int,
    length: int,
    angle_threshold_rad: float,
) -> tuple[int, int]

Trim vertices from both ends of a contiguous subsequence where the interior angle jumps sharply.

Detects "transition" vertices at the boundary between two differently- curved regions of a closed polygon. The function iteratively trims such vertices from the start and end of the subsequence until no more trimming occurs or the sequence is too short.

Parameter	Type	Description
polygon	Sequence[tuple[float, float]]	Closed polygon as (x, y) points.
start	int	Start index of the subsequence.
length	int	Length of the subsequence.
angle_threshold_rad	float	Angle threshold in radians.
Returns	tuple[int, int]	(new_start, new_length) within the original polygon.

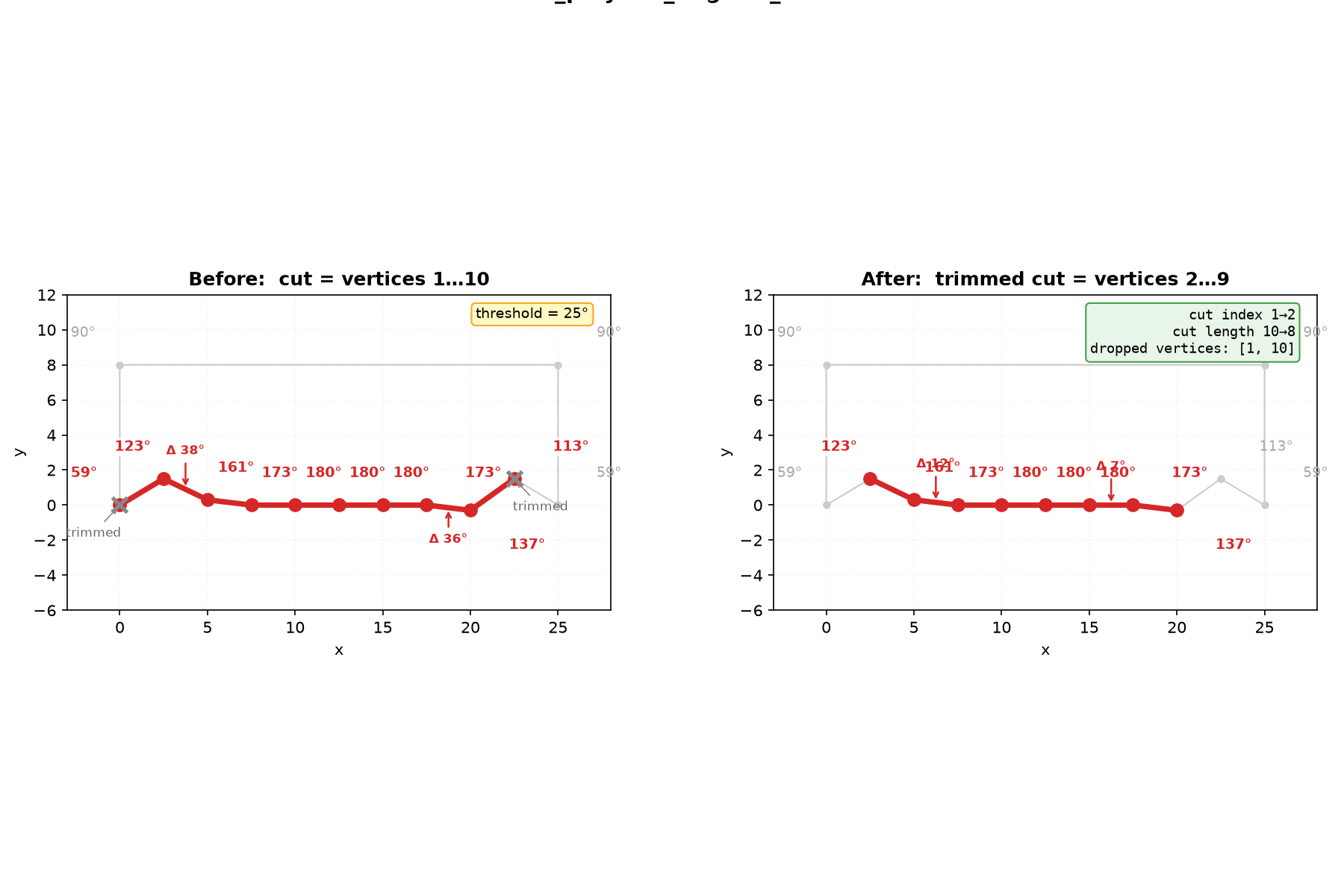

trim_polyline_angular_ends removes transition vertices from both ends of a contiguous subsequence where the interior angle jumps sharply. Here a 10-vertex cut (indices 1–10) with angles ranging 59°→180°→59° is trimmed to 8 vertices using a 25° threshold.

trim_polyline_at()

trim_polyline_at(
    polyline: Sequence[tuple[float, float]],
    a: tuple[float, float],
    b: tuple[float, float],
) -> list[tuple[float, float]]

Trim a polyline to the portion between two points.

Each point is projected onto the nearest edge of the polyline. The returned polyline goes from the projection of a to the projection of b, preserving intermediate vertices.

Parameter	Type	Description
polyline	Sequence[tuple[float, float]]	Open polyline as (x, y) points.
a	tuple[float, float]	Start point to trim at.
b	tuple[float, float]	End point to trim at.
Returns	list[tuple[float, float]]	Trimmed polyline.

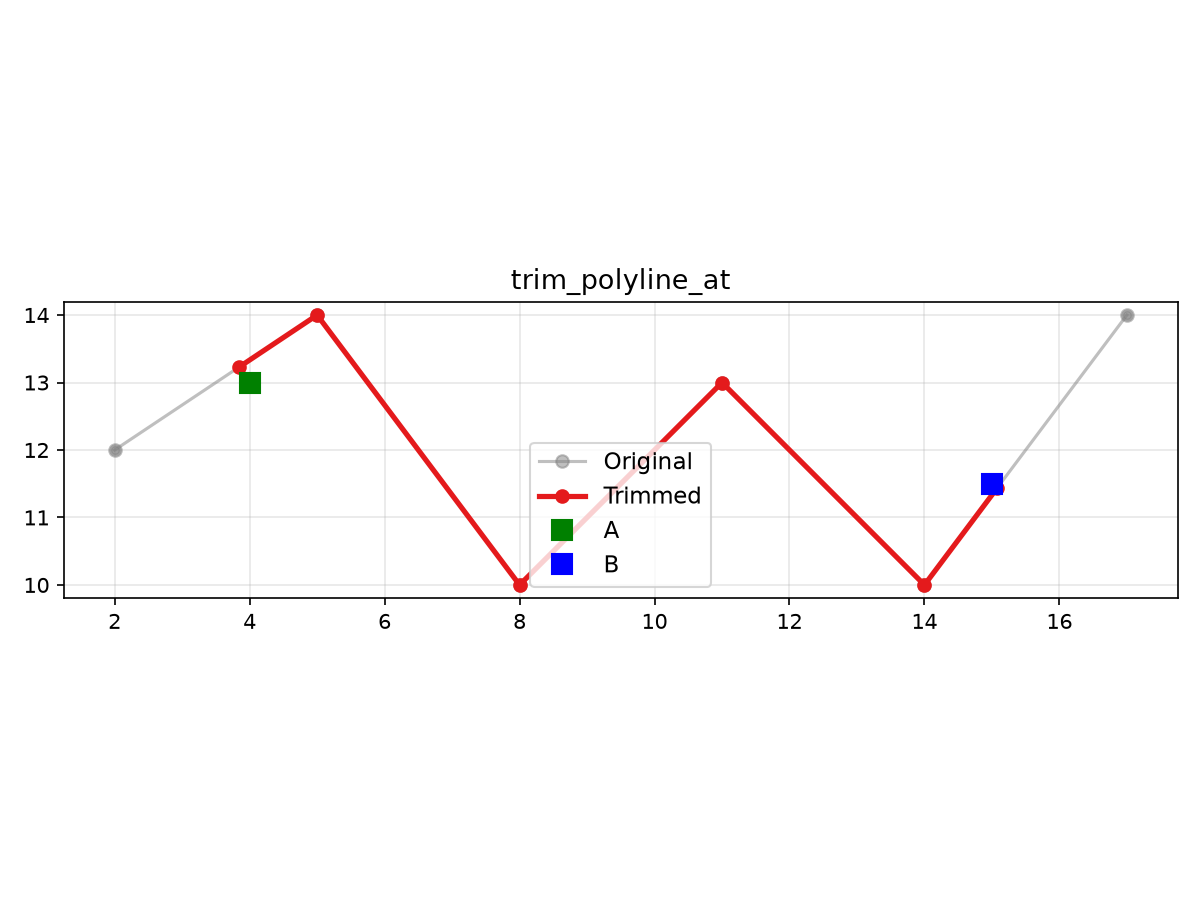

trim_polyline_at trims a polyline between two points
