raygeo.geo.shape.polygon

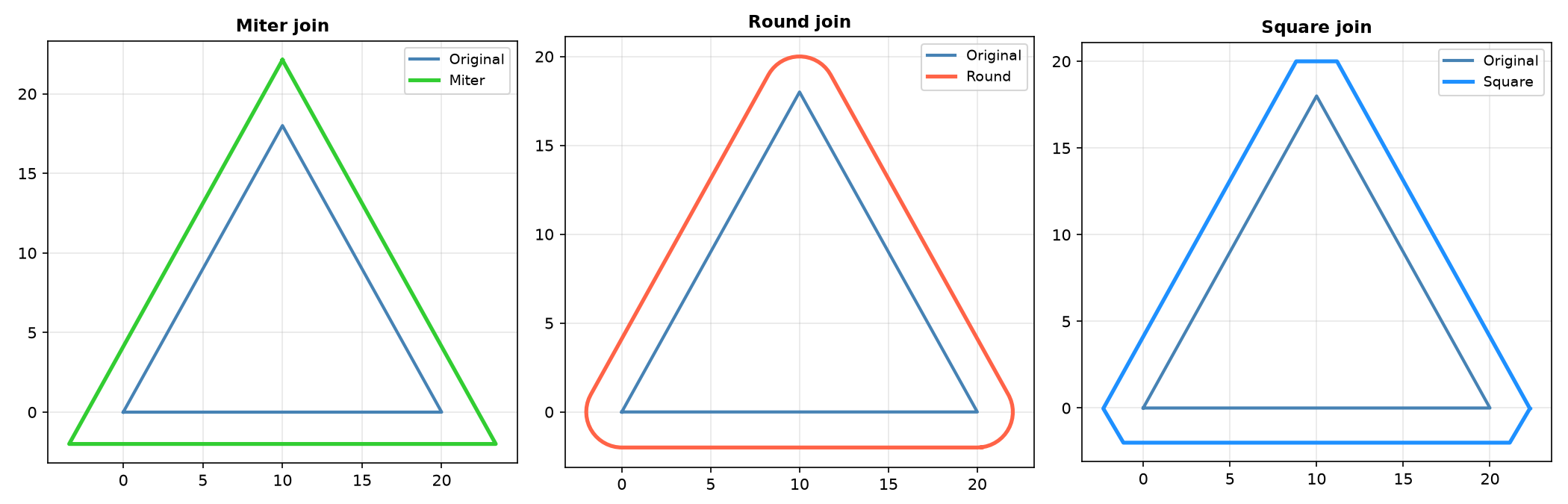

JoinStyle

Corner join style for polygon offset operations.

• JoinStyle.Miter: Extends edges until they meet (default).
• JoinStyle.Round: Adds a circular arc at the corner.
• JoinStyle.Square: Extends edges by the offset distance.

Functions

apply_minimum_curvature()

apply_minimum_curvature(
    polygon: Sequence[types.Point],
    r_min: float,
) -> list[types.Polygon]

Fillet tight internal corners to a minimum radius.

Offsets inward by r_min (Miter), then outward by r_min (Round). Acts as a high-pass curvature filter — sharp corners are rounded to exactly r_min while the overall shape is preserved.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
r_min	float	Minimum allowed curvature radius.
Returns	list[types.Polygon]	Filleted polygon(s).
Complexity		O(n)

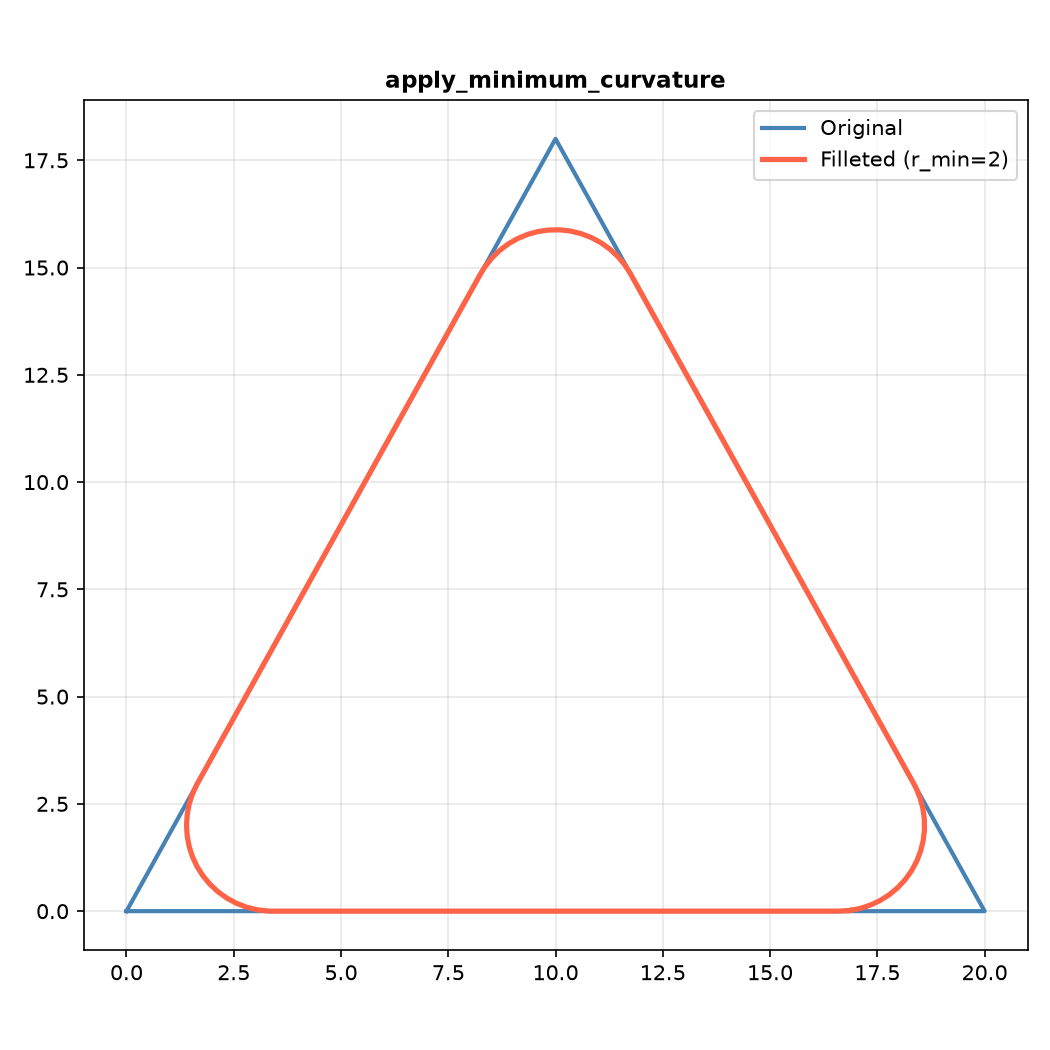

Minimum curvature fillet applied to a triangle

clean_polygon()

clean_polygon(
    polygon: Sequence[types.Point],
    tolerance: Optional[float] = None,
) -> Optional[types.Polygon]

Clean a polygon by removing near-duplicate points.

Parameter	Type	Description
polygon	Sequence[types.Point]	Input polygon as (x, y) points.
tolerance	Optional[float] = None	Distance tolerance for deduplication.
Returns	Optional[types.Polygon]	Cleaned polygon or None.
Complexity		O(n)

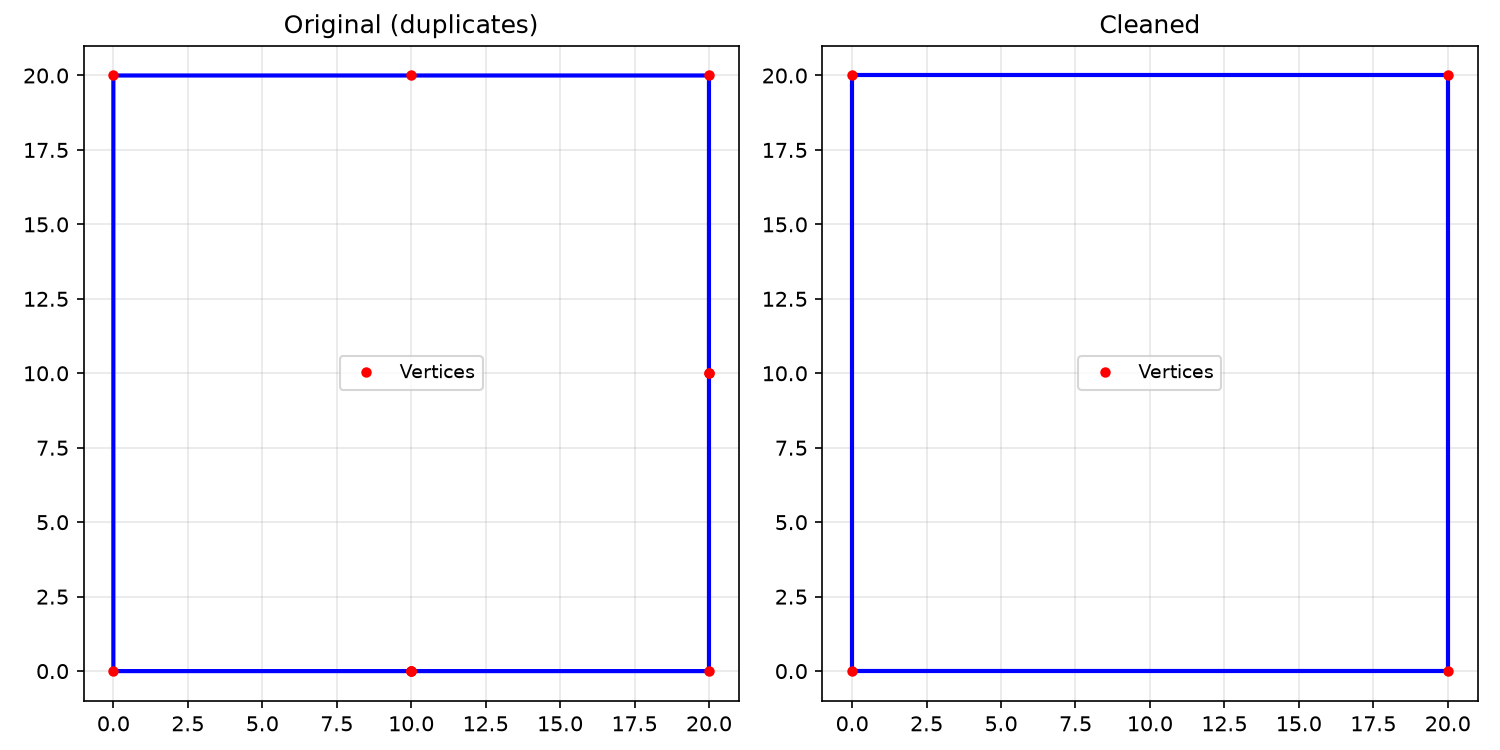

clean_polygon removes near-duplicate vertices

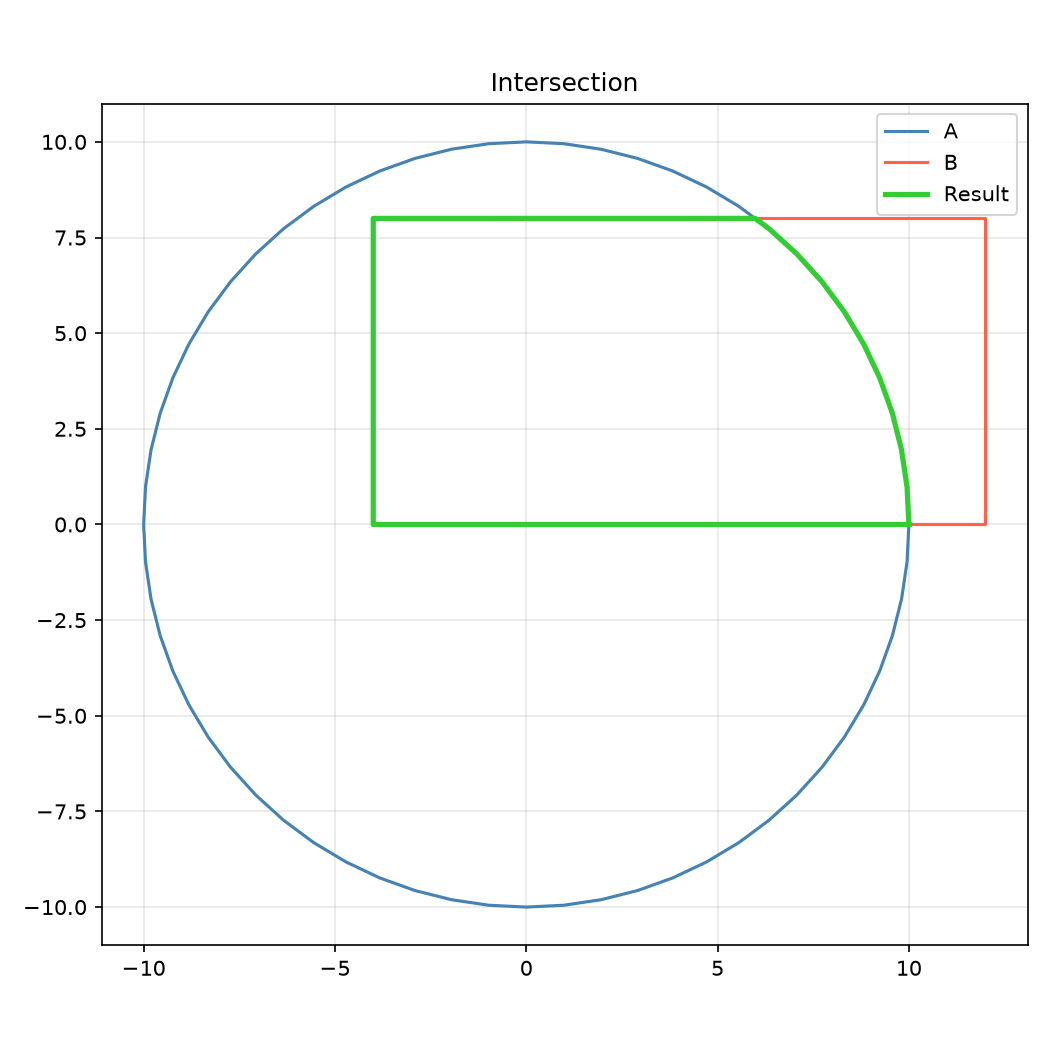

do_polygons_intersect()

do_polygons_intersect(
    p1: Sequence[types.Point],
    p2: Sequence[types.Point],
    min_area: float = 0,
) -> bool

Check if two polygons intersect.

Parameter	Type	Description
p1	Sequence[types.Point]	First polygon as (x, y) points.
p2	Sequence[types.Point]	Second polygon as (x, y) points.
min_area	float = 0	Minimum intersection area threshold.
Returns	bool	True if polygons intersect.
Complexity		O(n * m)

does_path_sweep_intersect_polygon()

does_path_sweep_intersect_polygon(
    path: Sequence[types.Point],
    radius: float,
    obstacles: Sequence[types.Polygon],
) -> bool

Check if a disk swept along a path intersects any obstacle polygon.

Returns True when the Minkowski sweep of a disk of radius along path intersects any polygon in obstacles.

Parameter	Type	Description
path	Sequence[types.Point]	Open polyline as (x, y) points.
radius	float	Disk radius.
obstacles	Sequence[types.Polygon]	List of obstacle polygons.
Returns	bool	True if any obstacle intersects the sweep.
Complexity		O(n * m)

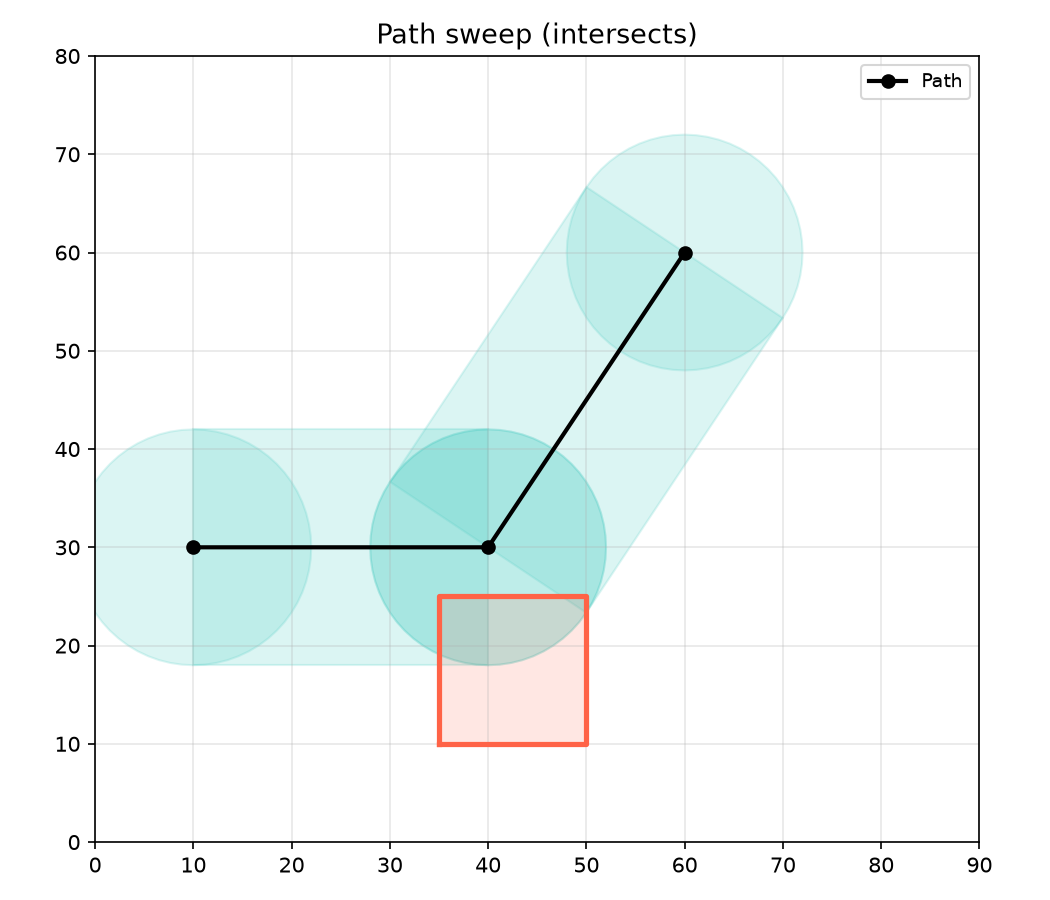

Tests whether the Minkowski sweep of a disk along a polyline intersects any obstacle polygon

does_polygon_enclose_circle()

does_polygon_enclose_circle(
    center: types.Point,
    radius: float,
    polygon: Sequence[types.Point],
) -> bool

Check if a polygon fully encloses a circle.

Uses a conservative fast check: the polygon's AABB must contain the circle's AABB, and the circle center must be inside the polygon.

Parameter	Type	Description
center	types.Point	Circle center (x, y).
radius	float	Circle radius.
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	bool	True if the polygon fully encloses the circle.
Complexity		O(n)

flip_polygon()

flip_polygon(
    polygon: Sequence[types.Point],
    flip_h: bool,
    flip_v: bool,
) -> types.Polygon

Flip a polygon horizontally and/or vertically.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
flip_h	bool	Whether to flip horizontally.
flip_v	bool	Whether to flip vertically.
Returns	types.Polygon	Flipped polygon.
Complexity		O(n)

flip_polygon_numpy()

flip_polygon_numpy(
    polygon: numpy.NDArray,
    flip_h: bool,
    flip_v: bool,
) -> numpy.NDArray

Flip a polygon from numpy array.

Parameter	Type	Description
polygon	numpy.NDArray	Polygon as a 2D numpy array.
flip_h	bool	Whether to flip horizontally.
flip_v	bool	Whether to flip vertically.
Returns	numpy.NDArray	Flipped polygon as numpy array.
Complexity		O(n)

flip_polygons()

flip_polygons(
    polygons: Sequence[types.Polygon],
    flip_h: bool,
    flip_v: bool,
) -> list[types.Polygon]

Flip multiple polygons.

Parameter	Type	Description
polygons	Sequence[types.Polygon]	List of polygons to flip.
flip_h	bool	Whether to flip horizontally.
flip_v	bool	Whether to flip vertically.
Returns	list[types.Polygon]	Flipped polygons.
Complexity		O(n * m)

flip_polygons_numpy()

flip_polygons_numpy(
    polygons: Sequence[numpy.NDArray],
    flip_h: bool,
    flip_v: bool,
) -> list[numpy.NDArray]

Flip polygons from numpy arrays.

Parameter	Type	Description
polygons	Sequence[numpy.NDArray]	List of 2D numpy arrays.
flip_h	bool	Whether to flip horizontally.
flip_v	bool	Whether to flip vertically.
Returns	list[numpy.NDArray]	List of flipped numpy arrays.
Complexity		O(n * m)

get_circle_polygon()

get_circle_polygon(
    center: types.Point,
    radius: float,
    n: int = 64,
) -> types.Polygon

Approximate a circle as an n-gon polygon.

Parameter	Type	Description
center	types.Point	Centre point (x, y).
radius	float	Circle radius.
n	int = 64	Number of sides (default 64).
Returns	types.Polygon	Polygon as list of (x, y) points.
Complexity		O(n)

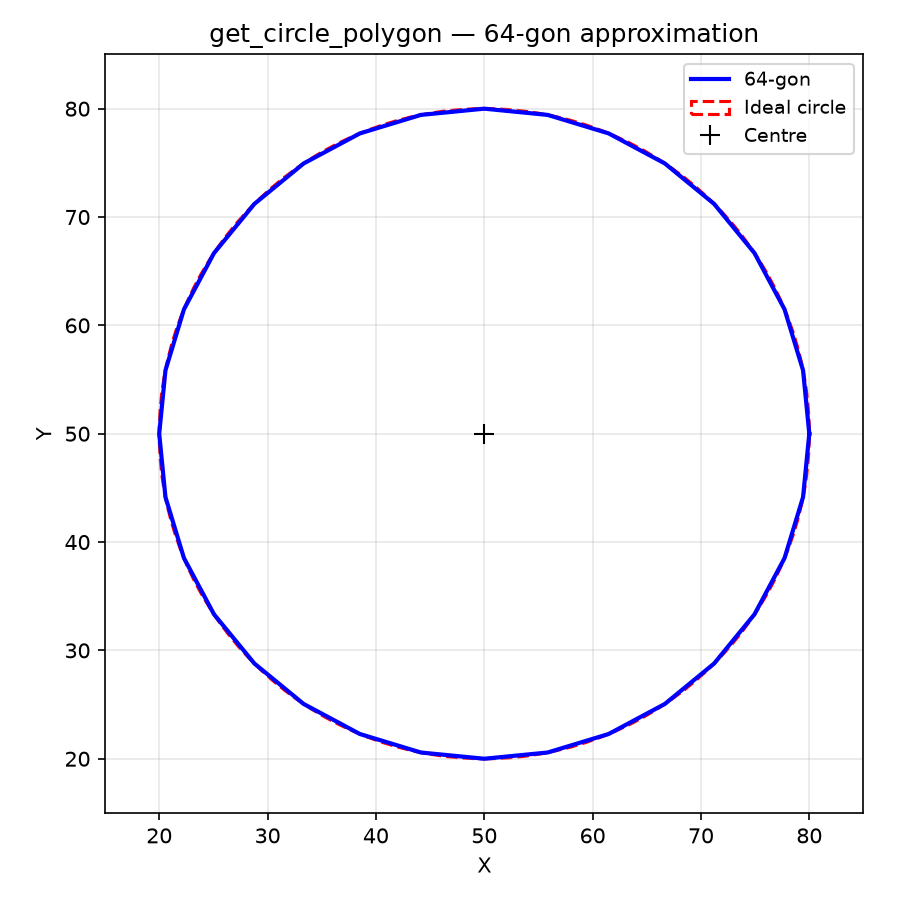

get_circle_polygon approximates a circle as an n-sided polygon

get_miter_offset_intersection()

get_miter_offset_intersection(
    v: types.Point,
    off_a: types.Point,
    dir_a: types.Point,
    off_b: types.Point,
    dir_b: types.Point,
) -> types.Point

Intersect two offset lines at a vertex for miter join.

Line A: v + off_a + t * dir_a Line B: v + off_b + s * dir_b

Returns the intersection point. When the lines are nearly parallel falls back to v + off_a.

Parameter	Type	Description
v	types.Point	Vertex point (x, y).
off_a	types.Point	Offset from v along line A.
dir_a	types.Point	Unit direction vector of line A.
off_b	types.Point	Offset from v along line B.
dir_b	types.Point	Unit direction vector of line B.
Returns	types.Point	Intersection point (x, y).

get_point_line_distance()

get_point_line_distance(
    point: types.Point,
    line_start: types.Point,
    line_end: types.Point,
) -> float

Compute the distance from a point to a line.

Parameter	Type	Description
point	types.Point	Point (x, y).
line_start	types.Point	Line start point (x, y).
line_end	types.Point	Line end point (x, y).
Returns	float	Perpendicular distance.
Complexity		O(1)

get_polygon_area()

get_polygon_area(polygon: Sequence[types.Point]) -> float

Get the unsigned area of a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	float	Unsigned area.
Complexity		O(n)

get_polygon_boundary_distance()

get_polygon_boundary_distance(
    a: Sequence[tuple[float, float]],
    b: Sequence[tuple[float, float]],
) -> float

Minimum midpoint-to-segment distance between the boundaries of two polygons.

Uses segment midpoints rather than raw segment-segment distance to avoid false positives from polygons that merely touch at a shared vertex.

Parameter	Type	Description
a	Sequence[tuple[float, float]]	First polygon as (x, y) points.
b	Sequence[tuple[float, float]]	Second polygon as (x, y) points.
Returns	float	Minimum boundary distance.
Complexity		O(n * m)

get_polygon_bounds()

get_polygon_bounds(polygon: Sequence[types.Point]) -> types.Rect

Get the bounding rectangle of a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	types.Rect	Bounding rectangle as (x_min, y_min, x_max, y_max).
Complexity		O(n)

get_polygon_centroid()

get_polygon_centroid(polygon: Sequence[types.Point]) -> types.Point

Get the centroid of a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	types.Point	Centroid point (x, y).
Complexity		O(n)

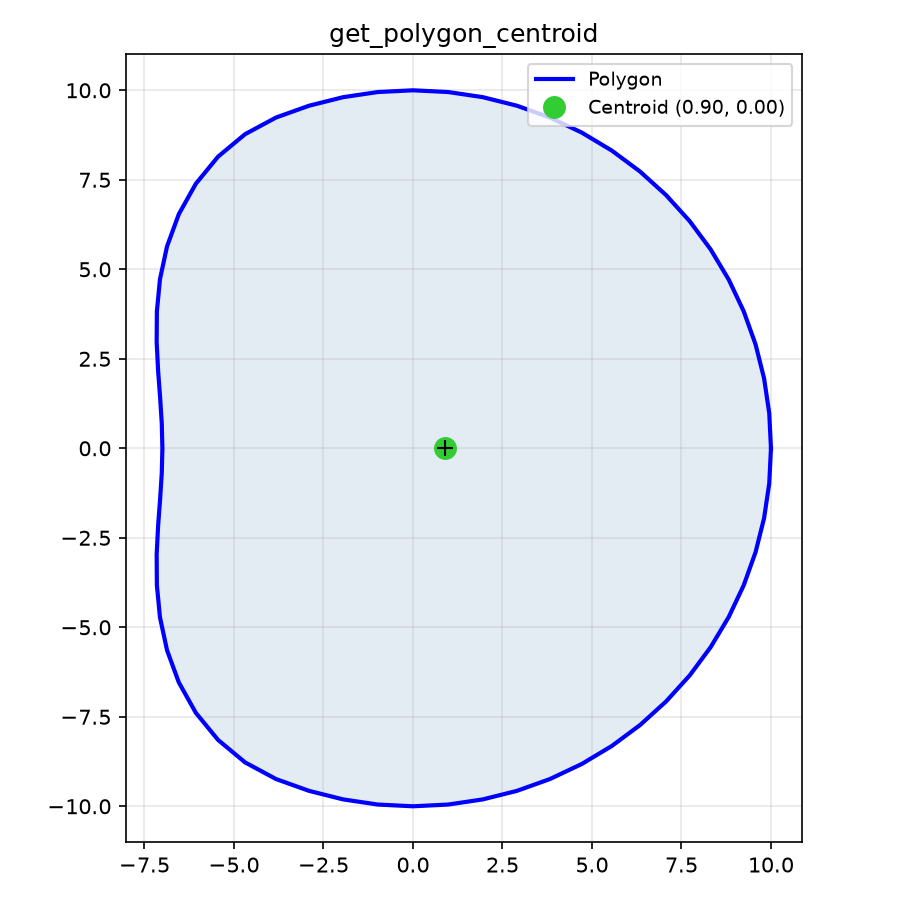

get_polygon_centroid computes the geometric center

get_polygon_closest_point()

get_polygon_closest_point(
    polygon: Sequence[types.Point],
    x: float,
    y: float,
) -> tuple[float, tuple[float, float], float] | None

Find the closest point on a polygon boundary to (x, y).

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
x	float	X coordinate.
y	float	Y coordinate.
Returns	tuple[float, tuple[float, float], float] | None	(t, (cx, cy), distance_squared) or None if degenerate.

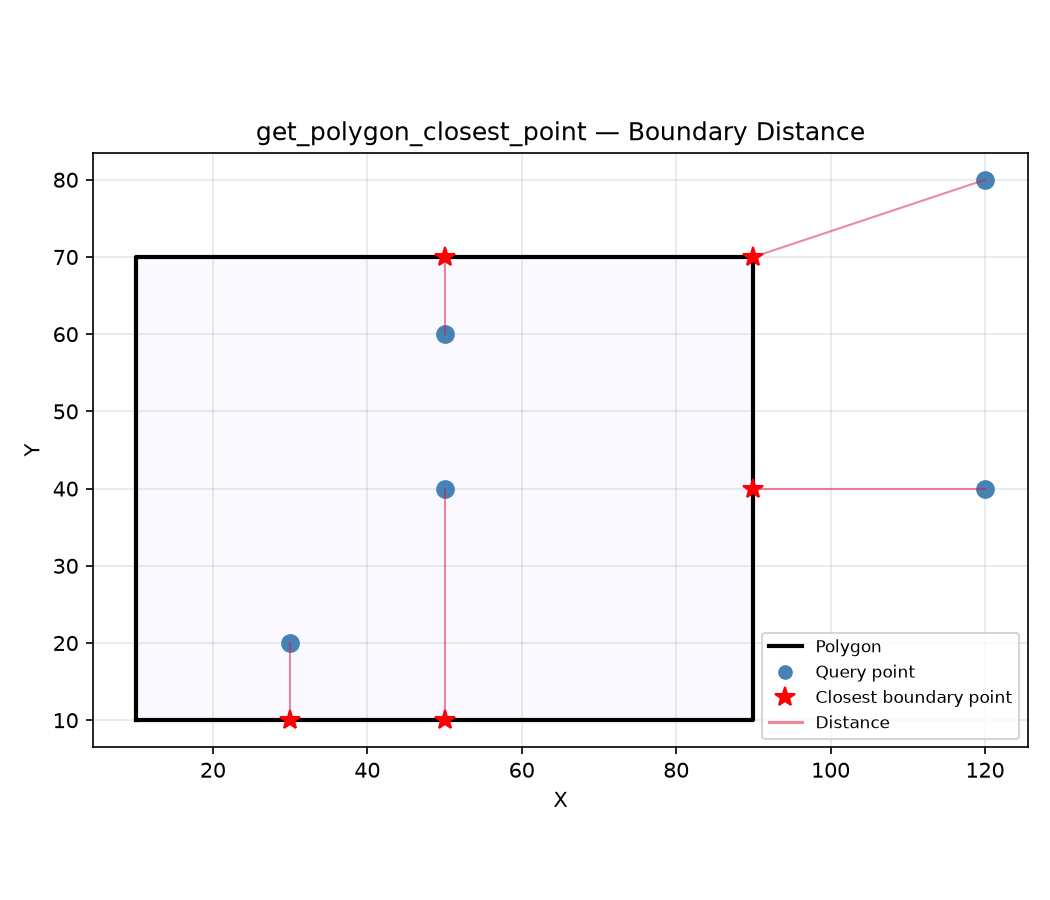

get_polygon_closest_point finds the nearest boundary point to a given coordinate

get_polygon_convex_hull()

get_polygon_convex_hull(polygon: Sequence[types.Point]) -> types.Polygon

Get the convex hull of a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	types.Polygon	Convex hull as list of points.
Complexity		O(n log n)

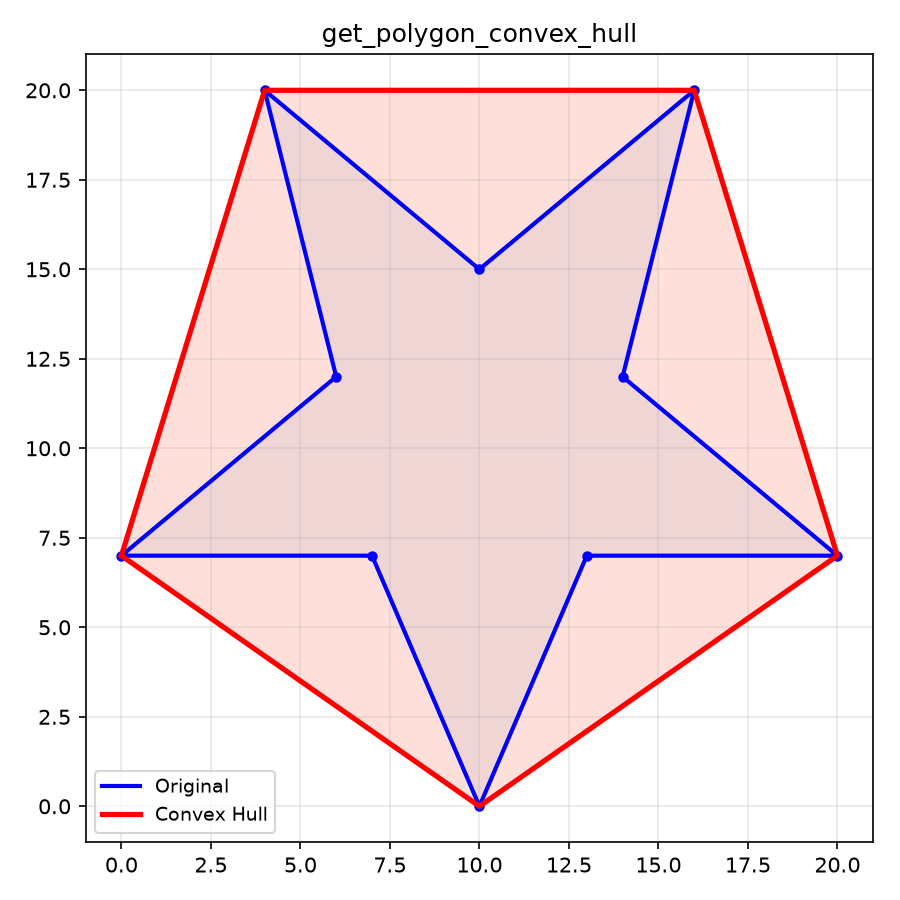

get_polygon_convex_hull wraps polygon in convex hull

get_polygon_edges()

get_polygon_edges(
    polygon: Sequence[types.Point],
) -> list[tuple[types.Point, types.Point]]

Get the edges of a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	list[tuple[types.Point, types.Point]]	List of ((x1, y1), (x2, y2)) edges.
Complexity		O(n)

get_polygon_group_bounds()

get_polygon_group_bounds(polygons: Sequence[types.Polygon]) -> types.Rect

Get the bounding rectangle of a group of polygons.

Parameter	Type	Description
polygons	Sequence[types.Polygon]	List of polygons.
Returns	types.Rect	Bounding rectangle as (x_min, y_min, x_max, y_max).
Complexity		O(n * m)

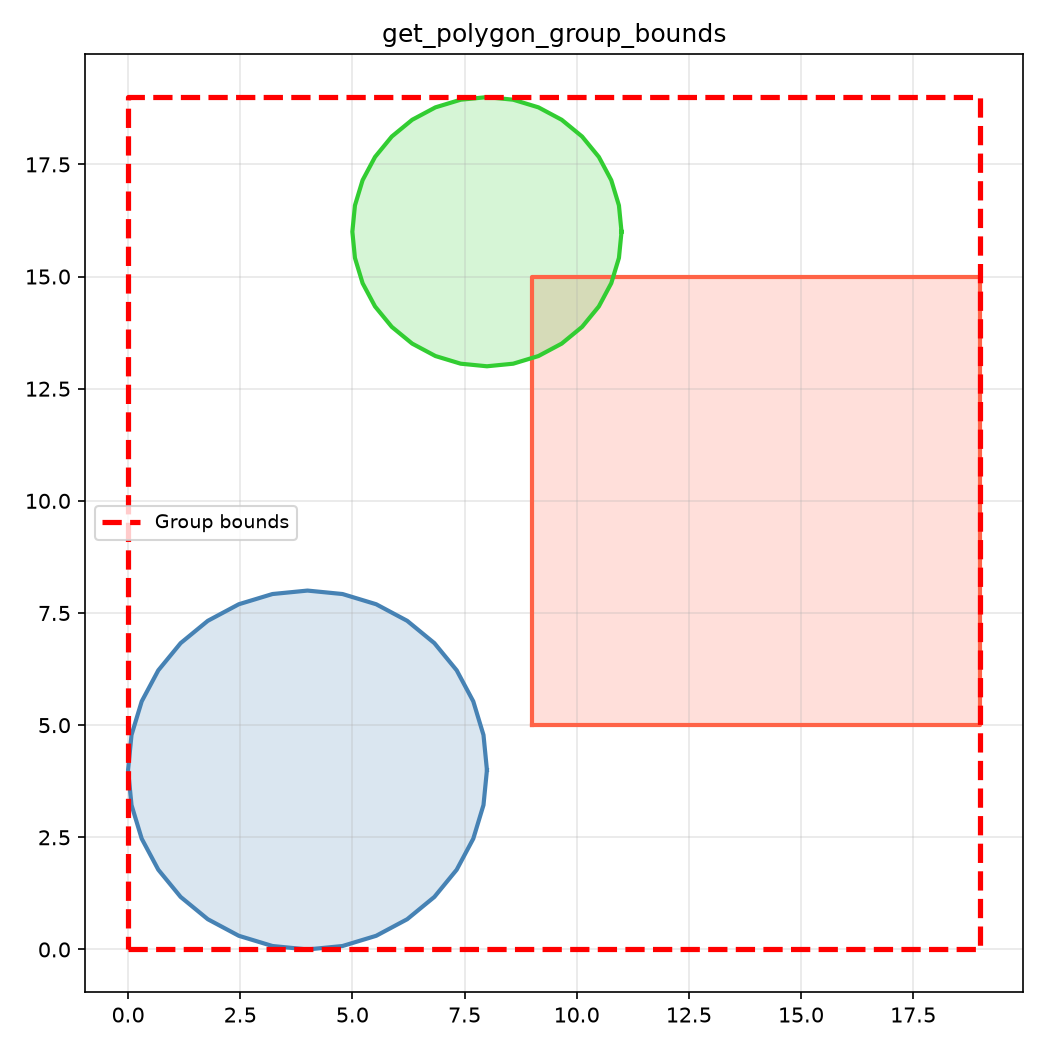

get_polygon_group_bounds all polygons within a rect

get_polygon_heading_at()

get_polygon_heading_at(
    polygon: list[tuple[float, float]],
    vertex: tuple[float, float],
) -> float

Parameter	Type	Description
polygon	list[tuple[float, float]]
vertex	tuple[float, float]
Returns	float

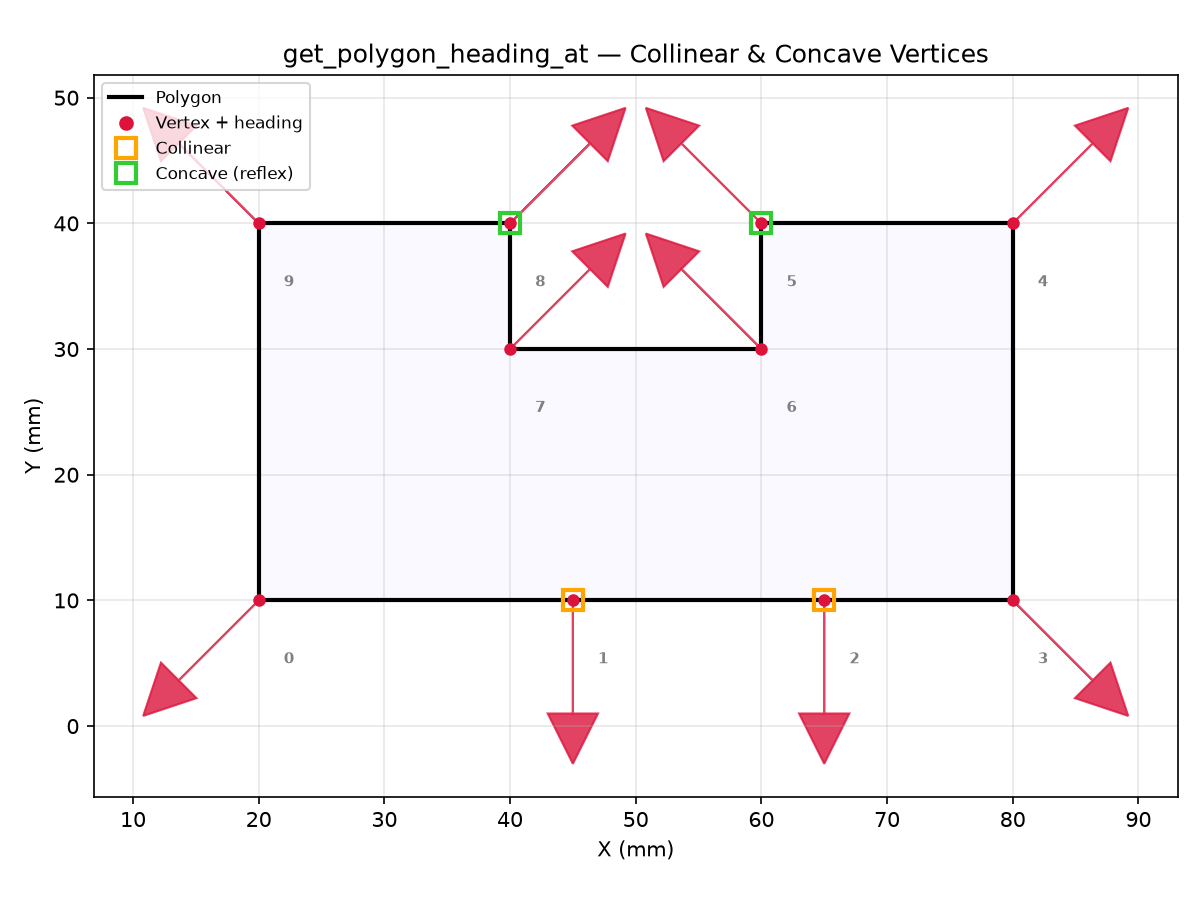

get_polygon_heading_at draws outward-facing heading arrows at each vertex of a CCW polygon.

get_polygon_perimeter()

get_polygon_perimeter(polygon: Sequence[types.Point]) -> float

Get the perimeter of a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	float	Perimeter length.
Complexity		O(n)

get_polygon_signed_area()

get_polygon_signed_area(polygon: Sequence[types.Point]) -> float

Get the signed area of a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	float	Signed area (positive for CCW, negative for CW).
Complexity		O(n)

get_polygon_vertex_centroid()

get_polygon_vertex_centroid(
    polygon: Sequence[tuple[float, float]],
) -> tuple[float, float]

Arithmetic mean of polygon vertices (vertex-average centroid).

Unlike get_polygon_centroid (area-weighted shoelace centroid), this is useful for concave polygons where the area centroid lies outside the boundary.

Parameter	Type	Description
polygon	Sequence[tuple[float, float]]	Polygon as (x, y) points.
Returns	tuple[float, float]	Vertex-average centroid (x, y).
Complexity		O(n)

get_polygons_closest_point()

get_polygons_closest_point(
    polygons: Sequence[types.Polygon],
    x: float,
    y: float,
) -> tuple[int, float, tuple[float, float], float] | None

Find the closest point on any polygon in a list to (x, y).

Parameter	Type	Description
polygons	Sequence[types.Polygon]	List of polygons as (x, y) points.
x	float	X coordinate.
y	float	Y coordinate.
Returns	tuple[int, float, tuple[float, float], float] | None	(polygon_index, t, (cx, cy), distance_squared) or None.

get_polygons_difference()

get_polygons_difference(
    poly1: Sequence[types.Point],
    poly2: Sequence[types.Point],
) -> list[types.Polygon]

Get the difference of two polygons.

Parameter	Type	Description
poly1	Sequence[types.Point]	First polygon as (x, y) points.
poly2	Sequence[types.Point]	Second polygon to subtract.
Returns	list[types.Polygon]	Difference polygon(s).
Complexity		O(n log n)

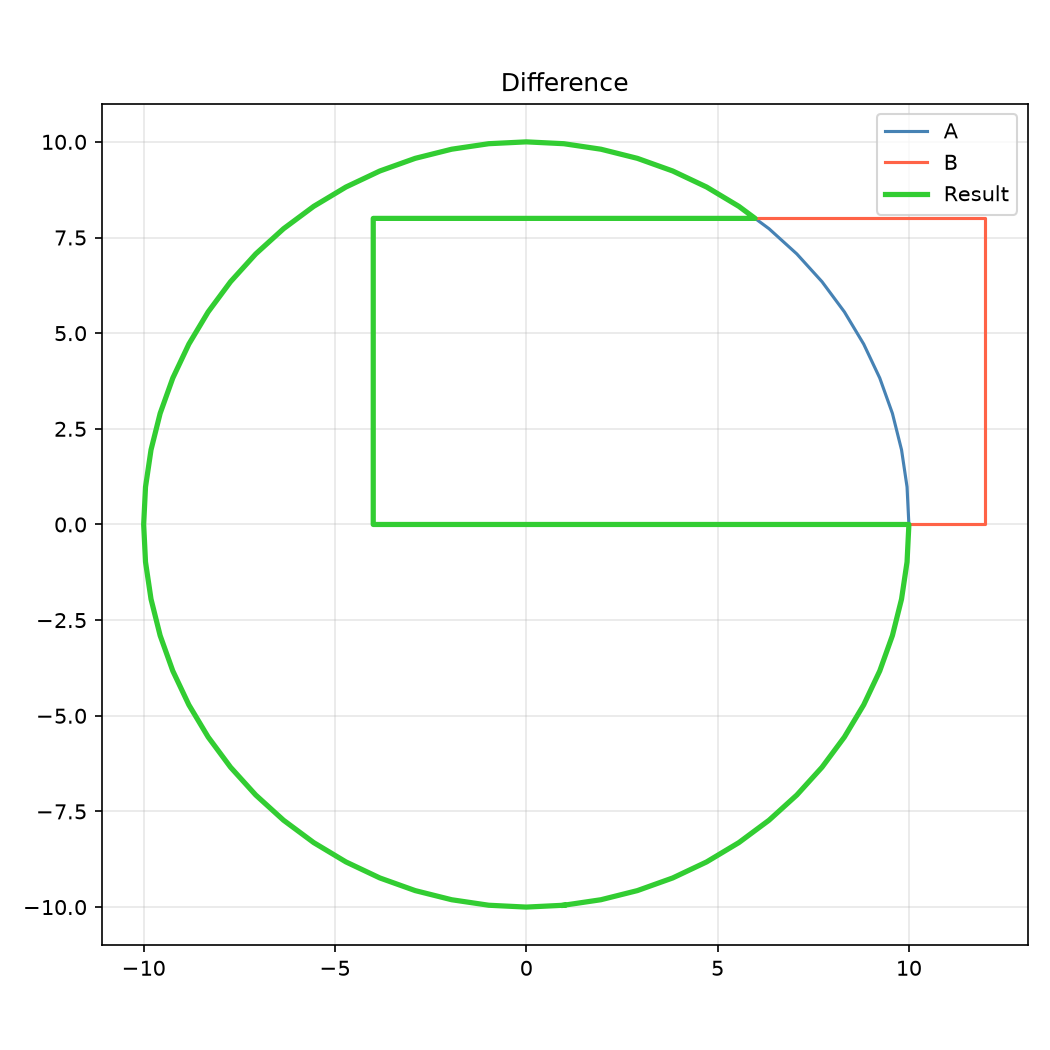

Polygon difference

get_polygons_group_difference()

get_polygons_group_difference(
    subject: Sequence[types.Polygon],
    clip: Sequence[types.Polygon],
) -> list[types.Polygon]

Subtract clip polygons from subject polygons.

Parameter	Type	Description
subject	Sequence[types.Polygon]	Subject polygons.
clip	Sequence[types.Polygon]	Clip polygons to subtract.
Returns	list[types.Polygon]	Difference polygon(s).
Complexity		O(n log n)

get_polygons_group_intersection()

get_polygons_group_intersection(
    subject: Sequence[types.Polygon],
    clip: Sequence[types.Polygon],
) -> list[types.Polygon]

Intersect two groups of polygons (subject & clip).

Parameter	Type	Description
subject	Sequence[types.Polygon]	Subject polygons.
clip	Sequence[types.Polygon]	Clip polygons.
Returns	list[types.Polygon]	Intersection polygon(s).
Complexity		O(n log n)

get_polygons_intersection()

get_polygons_intersection(
    poly1: Sequence[types.Point],
    poly2: Sequence[types.Point],
) -> list[types.Polygon]

Get the intersection of two polygons.

Parameter	Type	Description
poly1	Sequence[types.Point]	First polygon as (x, y) points.
poly2	Sequence[types.Point]	Second polygon as (x, y) points.
Returns	list[types.Polygon]	Intersection polygon(s).
Complexity		O(n log n)

Polygon intersection

get_polygons_union()

get_polygons_union(polygons: Sequence[types.Polygon]) -> list[types.Polygon]

Get the union of multiple polygons.

Parameter	Type	Description
polygons	Sequence[types.Polygon]	List of polygons to union.
Returns	list[types.Polygon]	Union polygon(s).
Complexity		O(n log n)

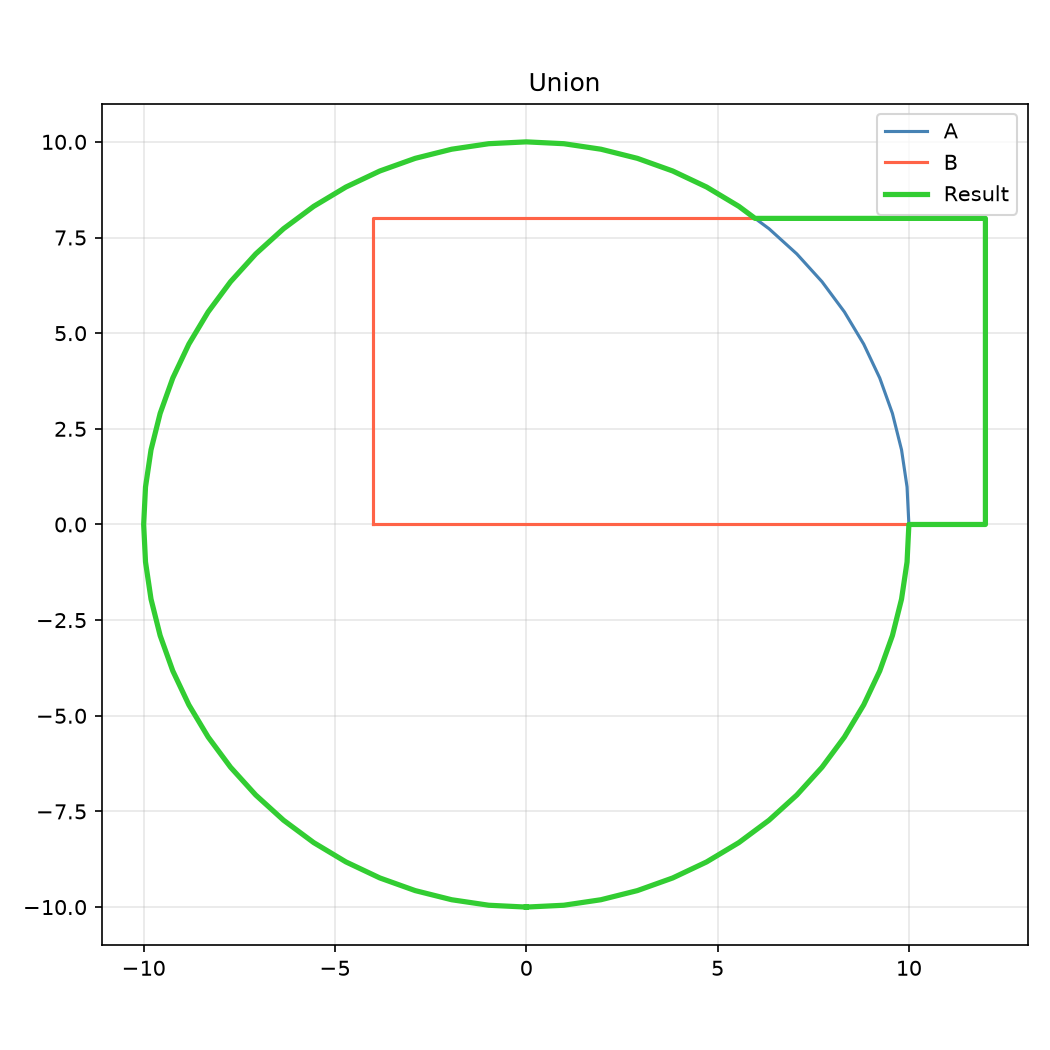

Polygon union

get_polyline_swept_polygon()

get_polyline_swept_polygon(
    path: Sequence[types.Point],
    radius: float,
) -> list[types.Polygon]

Compute the Minkowski sum of a polyline path with a disk.

Returns a single polygon covering the swept area — the union of segment-wide rectangular strips capped with half-circles at the first and last endpoints.

Parameter	Type	Description
path	Sequence[types.Point]	Open polyline as (x, y) points.
radius	float	Offset radius.
Returns	list[types.Polygon]	A single swept polygon.
Complexity		O(n)

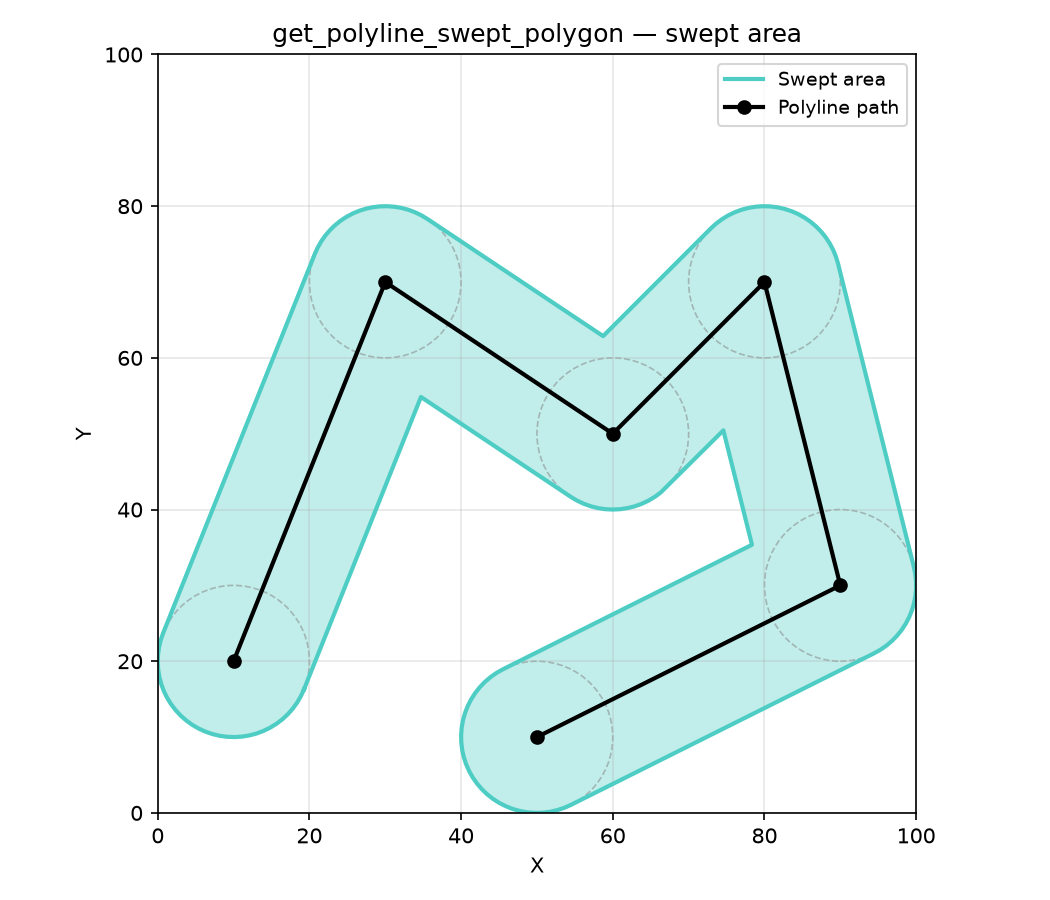

get_polyline_swept_polygon computes the Minkowski sum of a polyline path with a disk

get_segment_swept_polygon()

get_segment_swept_polygon(
    a: types.Point,
    b: types.Point,
    radius: float,
) -> list[types.Polygon]

Compute the swept area of a line segment with a given radius.

Returns a rectangle (the Minkowski sum of the segment with a disk of radius) plus two disks at the endpoints. Useful for toolpath clearance tracking and roughing simulation.

Parameter	Type	Description
a	types.Point	Start point (x, y).
b	types.Point	End point (x, y).
radius	float	Offset radius.
Returns	list[types.Polygon]	List of polygons (rectangle + two end-caps).
Complexity		O(n)

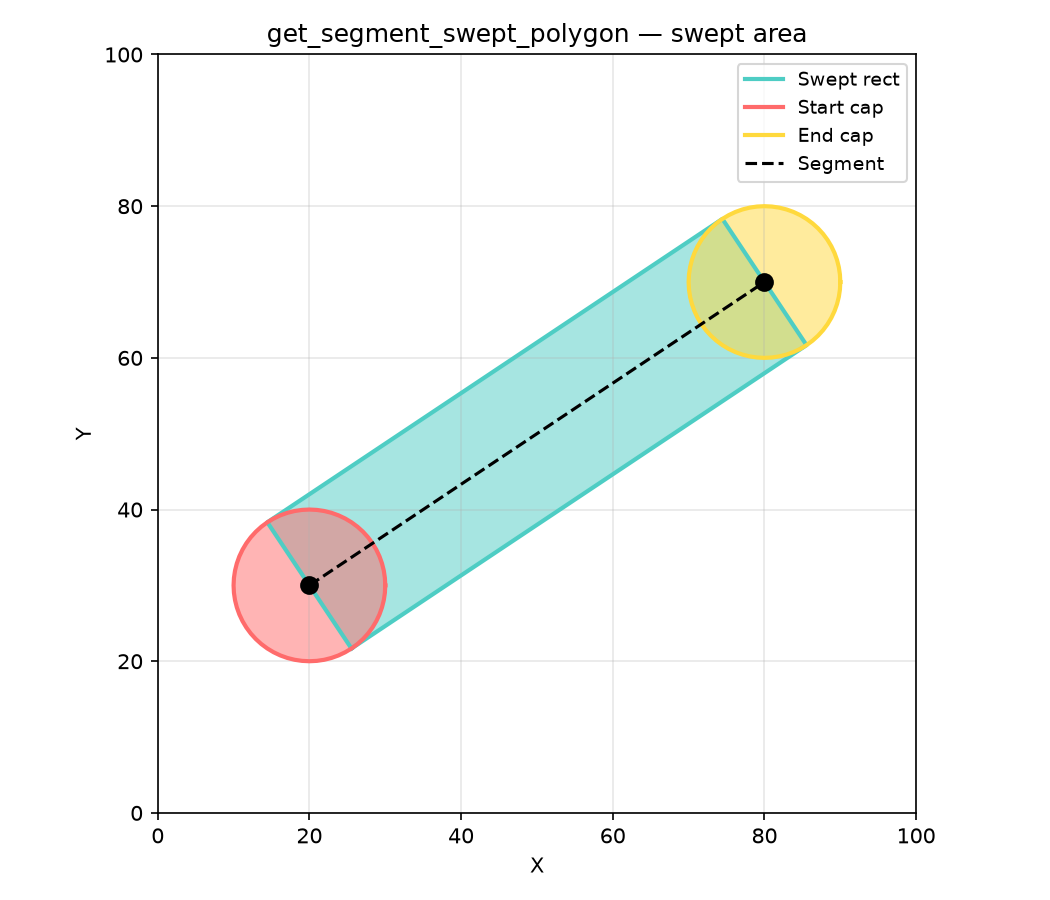

get_segment_swept_polygon computes the swept area of a line segment with a given radius

get_signed_boundary_distance()

get_signed_boundary_distance(
    point: tuple[float, float],
    polygons: Sequence[Sequence[tuple[float, float]]],
) -> float

Signed perpendicular distance from point to nearest polygon boundary.

Positive = outside all polygons, Negative = inside any polygon, Zero = exactly on a boundary.

Parameter	Type	Description
point	tuple[float, float]	Query point (x, y).
polygons	Sequence[Sequence[tuple[float, float]]]	List of polygons.
Returns	float	Signed distance (mm).

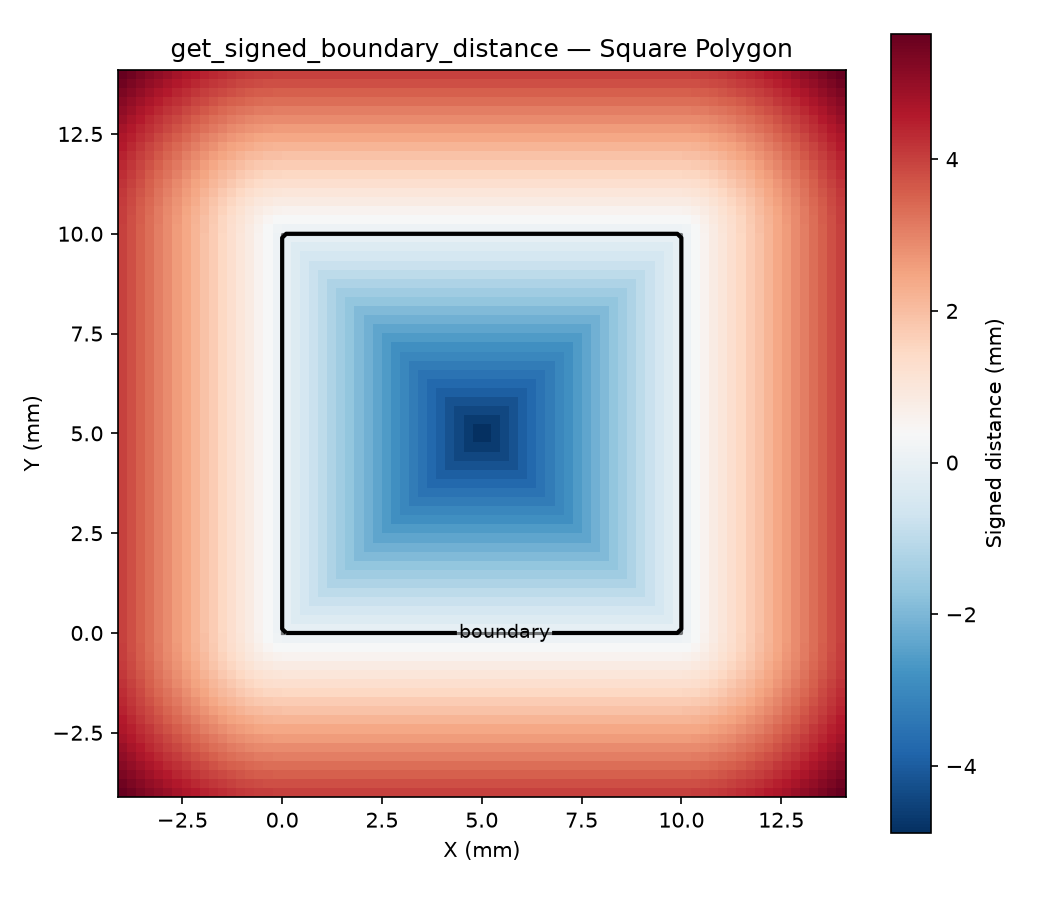

Signed distance field around a square polygon. Red = outside (positive), blue = inside (negative), black contour marks the boundary.

is_almost_equal()

is_almost_equal(a: float, b: float, tolerance: Optional[float] = None) -> bool

Check if two floats are almost equal.

Parameter	Type	Description
a	float	First float.
b	float	Second float.
tolerance	Optional[float] = None	Comparison tolerance.
Returns	bool	True if
Complexity		O(1)

is_point_inside_polygon()

is_point_inside_polygon(
    point: types.Point,
    polygon: Sequence[types.Point],
) -> bool

Check if a point is inside a polygon.

Parameter	Type	Description
point	types.Point	Point (x, y) to test.
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	bool	True if point is inside the polygon.
Complexity		O(n)

is_polygon_clockwise()

is_polygon_clockwise(points: Sequence[types.Point2DOr3D]) -> bool

Check if a polygon has clockwise winding.

Parameter	Type	Description
points	Sequence[types.Point2DOr3D]	Sequence of (x, y) or (x, y, z) points.
Returns	bool	True if the polygon is clockwise.
Complexity		O(n)

is_polygon_convex()

is_polygon_convex(polygon: Sequence[types.Point]) -> bool

Check if a polygon is convex.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
Returns	bool	True if the polygon is convex.
Complexity		O(n)

normalize_polygons()

normalize_polygons(
    polygons: Sequence[types.Polygon],
) -> tuple[list[types.Polygon], float, float]

Normalize polygons (outer CCW, inner CW).

Parameter	Type	Description
polygons	Sequence[types.Polygon]	List of polygons to normalize.
Returns	tuple[list[types.Polygon], float, float]	Tuple of (normalized_polygons, min_x, min_y).
Complexity		O(n log n)

normalize_polygons_numpy()

normalize_polygons_numpy(
    polygons: Sequence[numpy.NDArray],
) -> tuple[list[numpy.NDArray], float, float]

Normalize polygons from numpy arrays.

Parameter	Type	Description
polygons	Sequence[numpy.NDArray]	Sequence of 2D numpy arrays.
Returns	tuple[list[numpy.NDArray], float, float]	Tuple of (normalized_arrays, min_x, min_y).
Complexity		O(n log n)

offset_polygon()

offset_polygon(
    polygon: Sequence[types.Point],
    offset: float,
    join_style: JoinStyle = JoinStyle.Miter,
) -> list[types.Polygon]

Offset (inflate/deflate) a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
offset	float	Offset distance (positive to inflate, negative to deflate).
join_style	JoinStyle = JoinStyle.Miter	Corner join style (default: JoinStyle.Miter).
Returns	list[types.Polygon]	Offset polygon(s).
Complexity		O(n log n)

Polygon offset — miter vs round vs square join styles

point_in_polygon_numpy()

point_in_polygon_numpy(point: types.Point, polygon: numpy.NDArray) -> bool

Check if point is in polygon from numpy array.

Parameter	Type	Description
point	types.Point	Point (x, y) to test.
polygon	numpy.NDArray	Polygon as a 2D numpy array.
Returns	bool	True if point is inside the polygon.
Complexity		O(n)

polygon_area_numpy()

polygon_area_numpy(polygon: numpy.NDArray) -> float

Get the area of a polygon from numpy array.

Parameter	Type	Description
polygon	numpy.NDArray	Polygon as a 2D numpy array.
Returns	float	Signed area.
Complexity		O(n)

polygon_bounds_numpy()

polygon_bounds_numpy(polygon: numpy.NDArray) -> types.Rect

Get bounds of a polygon from numpy array.

Parameter	Type	Description
polygon	numpy.NDArray	Polygon as a 2D numpy array.
Returns	types.Rect	Bounding rectangle as (x_min, y_min, x_max, y_max).
Complexity		O(n)

polygon_group_bounds_numpy()

polygon_group_bounds_numpy(polygons: Sequence[numpy.NDArray]) -> types.Rect

Get bounds of polygon group from numpy arrays.

Parameter	Type	Description
polygons	Sequence[numpy.NDArray]	Sequence of 2D numpy arrays.
Returns	types.Rect	Bounding rectangle as (x_min, y_min, x_max, y_max).
Complexity		O(n * m)

polygon_perimeter_numpy()

polygon_perimeter_numpy(polygon: numpy.NDArray) -> float

Get the perimeter of a polygon from numpy array.

Parameter	Type	Description
polygon	numpy.NDArray	Polygon as a 2D numpy array.
Returns	float	Perimeter length.
Complexity		O(n)

polygons_intersect_numpy()

polygons_intersect_numpy(
    poly1: numpy.NDArray,
    poly2: numpy.NDArray,
    min_area: float = 0,
) -> bool

Check if polygons intersect from numpy arrays.

Parameter	Type	Description
poly1	numpy.NDArray	First polygon as a 2D numpy array.
poly2	numpy.NDArray	Second polygon as a 2D numpy array.
min_area	float = 0	Minimum intersection area threshold.
Returns	bool	True if polygons intersect.
Complexity		O(n * m)

resample_polygon()

resample_polygon(
    polygon: Sequence[tuple[float, float]],
    spacing: float,
) -> list[tuple[float, float]]

Resample a closed polygon by inserting evenly-spaced points along each edge so that no segment is longer than spacing.

The result is a closed polyline (last point connects back to first conceptually, but is not duplicated).

Parameter	Type	Description
polygon	Sequence[tuple[float, float]]	Polygon as (x, y) points.
spacing	float	Maximum allowed segment length.
Returns	list[tuple[float, float]]	Resampled polygon as list of (x, y) points.
Complexity		O(n * m)

rotate_polygon()

rotate_polygon(polygon: Sequence[types.Point], angle: float) -> types.Polygon

Rotate a polygon by an angle.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
angle	float	Rotation angle in degrees.
Returns	types.Polygon	Rotated polygon.
Complexity		O(n)

rotate_polygon_numpy()

rotate_polygon_numpy(polygon: numpy.NDArray, angle: float) -> numpy.NDArray

Rotate a polygon from numpy array.

Parameter	Type	Description
polygon	numpy.NDArray	Polygon as a 2D numpy array.
angle	float	Rotation angle in degrees.
Returns	numpy.NDArray	Rotated polygon as numpy array.
Complexity		O(n)

rotate_polygons()

rotate_polygons(
    polygons: Sequence[types.Polygon],
    angle: float,
) -> list[types.Polygon]

Rotate multiple polygons by an angle.

Parameter	Type	Description
polygons	Sequence[types.Polygon]	List of polygons to rotate.
angle	float	Rotation angle in degrees.
Returns	list[types.Polygon]	Rotated polygons.
Complexity		O(n * m)

rotate_polygons_numpy()

rotate_polygons_numpy(
    polygons: Sequence[numpy.NDArray],
    angle: float,
) -> list[numpy.NDArray]

Rotate polygons from numpy arrays.

Parameter	Type	Description
polygons	Sequence[numpy.NDArray]	Sequence of 2D numpy arrays.
angle	float	Rotation angle in degrees.
Returns	list[numpy.NDArray]	List of rotated numpy arrays.
Complexity		O(n * m)

scale_polygon()

scale_polygon(
    polygon: Sequence[types.Point],
    scale: float,
    scale_y: Optional[float] = None,
) -> types.Polygon

Scale a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
scale	float	X (and Y if scale_y is None) scale factor.
scale_y	Optional[float] = None	Y scale factor (optional).
Returns	types.Polygon	Scaled polygon.
Complexity		O(n)

to_clipper_numpy()

to_clipper_numpy(polygon: Sequence[numpy.NDArray]) -> list[tuple[int, int]]

Convert a numpy polygon to Clipper integer coordinates.

Parameter	Type	Description
polygon	Sequence[numpy.NDArray]	Sequence of 2D numpy arrays.
Returns	list[tuple[int, int]]	List of (x, y) integer tuples.
Complexity		O(n * m)

translate_bounds()

translate_bounds(bounds: types.Rect, dx: float, dy: float) -> types.Rect

Translate a bounding rectangle.

Parameter	Type	Description
bounds	types.Rect	Bounding rectangle (x_min, y_min, x_max, y_max).
dx	float	X translation.
dy	float	Y translation.
Returns	types.Rect	Translated bounding rectangle.
Complexity		O(1)

translate_polygon()

translate_polygon(
    polygon: Sequence[types.Point],
    dx: float,
    dy: float,
) -> types.Polygon

Translate a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point]	Polygon as (x, y) points.
dx	float	X translation.
dy	float	Y translation.
Returns	types.Polygon	Translated polygon.
Complexity		O(n)

translate_polygon_numpy()

translate_polygon_numpy(
    polygon: numpy.NDArray,
    dx: float,
    dy: float,
) -> numpy.NDArray

Translate a polygon from numpy array.

Parameter	Type	Description
polygon	numpy.NDArray	Polygon as a 2D numpy array.
dx	float	X translation.
dy	float	Y translation.
Returns	numpy.NDArray	Translated polygon as numpy array.
Complexity		O(n)

translate_polygons()

translate_polygons(
    polygons: Sequence[types.Polygon],
    dx: float,
    dy: float,
) -> list[types.Polygon]

Translate a list of polygons.

Parameter	Type	Description
polygons	Sequence[types.Polygon]	List of polygons to translate.
dx	float	X translation.
dy	float	Y translation.
Returns	list[types.Polygon]	Translated polygons.
Complexity		O(n * m)

translate_polygons_numpy()

translate_polygons_numpy(
    polygons: Sequence[numpy.NDArray],
    dx: float,
    dy: float,
) -> list[numpy.NDArray]

Translate polygons from numpy arrays.

Parameter	Type	Description
polygons	Sequence[numpy.NDArray]	Sequence of 2D numpy arrays.
dx	float	X translation.
dy	float	Y translation.
Returns	list[numpy.NDArray]	List of translated numpy arrays.
Complexity		O(n * m)

walk_polygon_from_point()

walk_polygon_from_point(
    polygon: list[tuple[float, float]],
    start: tuple[float, float],
) -> list[tuple[int, float, float]]

Parameter	Type	Description
polygon	list[tuple[float, float]]
start	tuple[float, float]
Returns	list[tuple[int, float, float]]

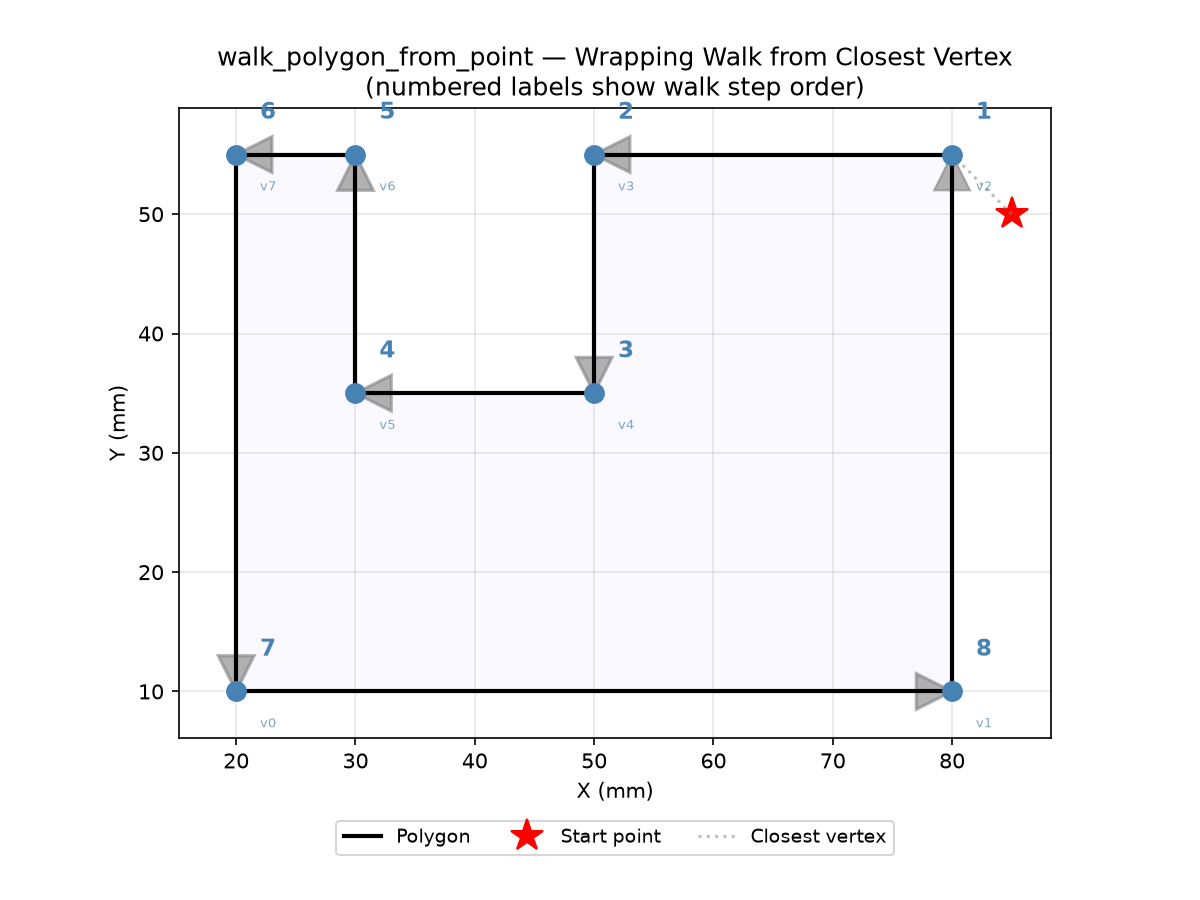

walk_polygon_from_point returns vertices in walk order starting from the vertex closest to a marker.

walk_polygon_vertices()

walk_polygon_vertices(
    polygon: list[tuple[float, float]],
    start_idx: int,
    forward: bool,
) -> list[tuple[int, float, float]]

Parameter	Type	Description
polygon	list[tuple[float, float]]
start_idx	int
forward	bool
Returns	list[tuple[int, float, float]]
