raygeo.ops.assembly.entry

Functions

`adaptive_entry()`

adaptive_entry(
    pocket_boundary: Sequence[tuple[float, float]],
    islands: Sequence[Sequence[tuple[float, float]]] = [],
    tool_radius: float = 3,
    step_over: float = 2,
    safe_z: float = 2,
    target_z: float = -5,
    plunge_pitch: float = 1,
    safe_margin: float = 1,
    angular_step: float = 0.1,
    cut_feed_rate: int = 1200,
    cut_power: float = 1,
) -> tuple[ops.Ops, list[list[tuple[float, float]]]]

Fast central clearing entry.

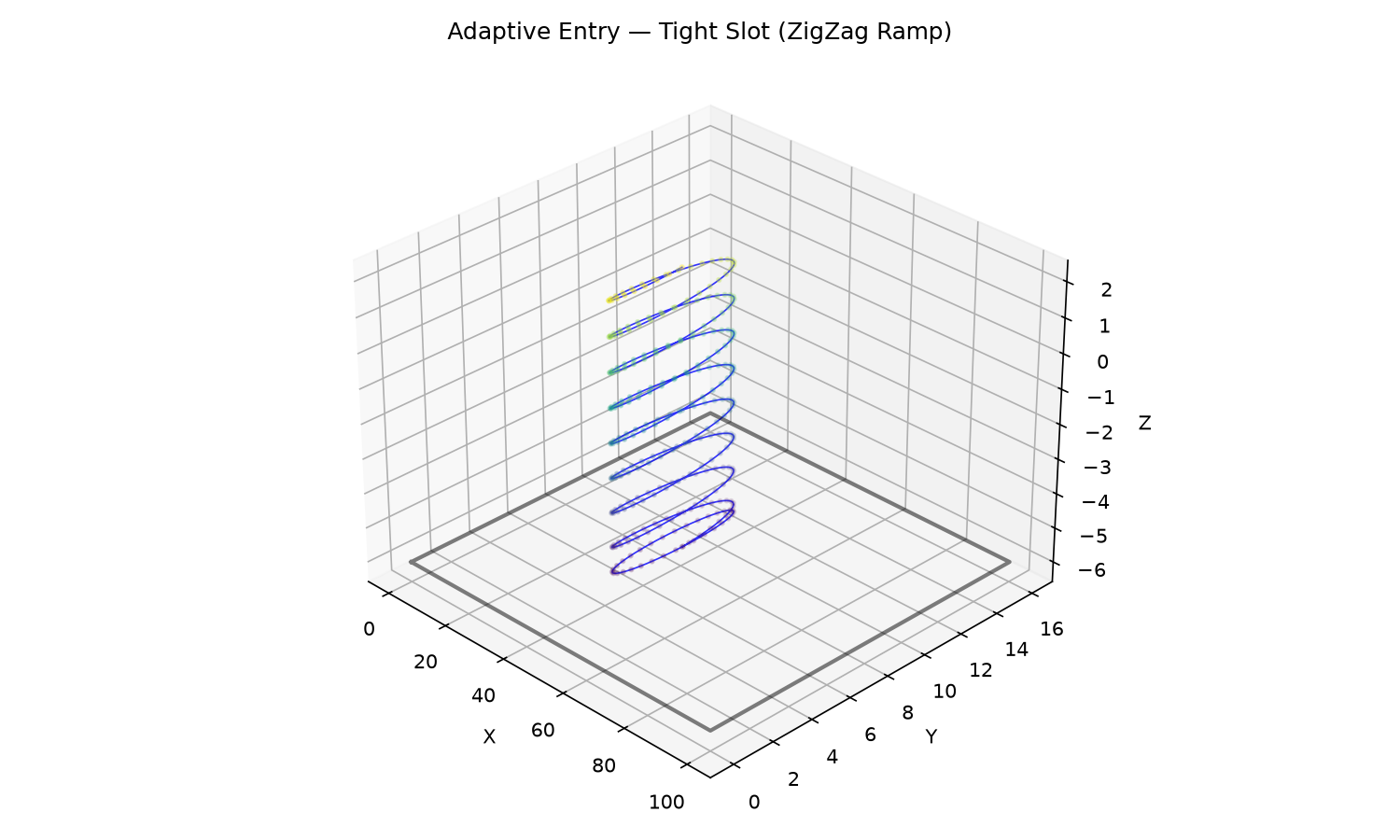

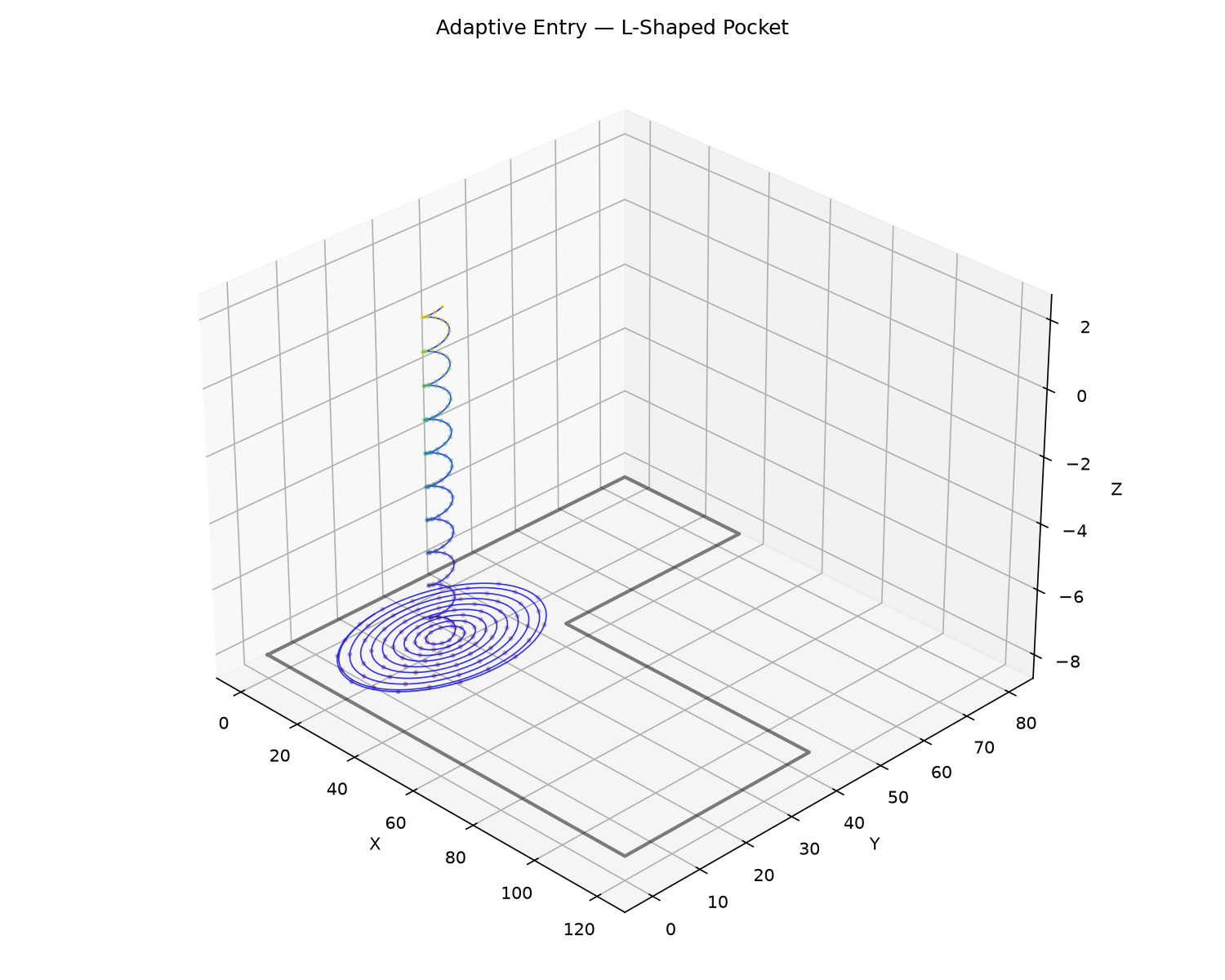

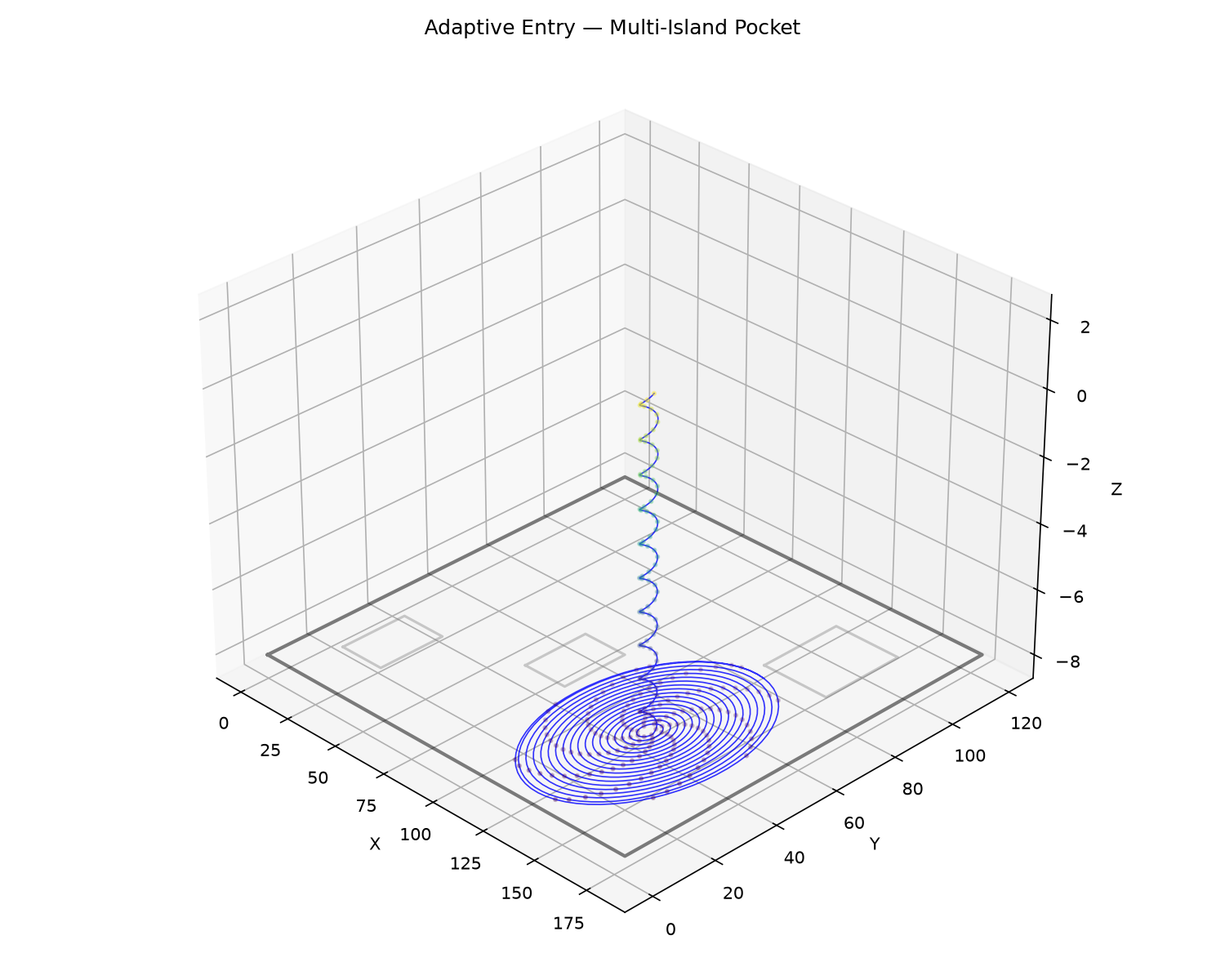

Finds the optimal entry pole using find_largest_circle, then generates either a helix->spiral (wide area) or zigzag ramp (tight slot).

The returned cleared_polygons should be inserted into a ClearedArea via cut.

Parameter	Type	Description
`pocket_boundary`	`Sequence[tuple[float, float]]`	Outer boundary of the pocket.
`islands`	`Sequence[Sequence[tuple[float, float]]] = []`	List of island (hole) polygons (default []).
`tool_radius`	`float = 3`	Tool radius in mm (default 3.0).
`step_over`	`float = 2`	Radial step-over per spiral revolution (default 2.0).
`safe_z`	`float = 2`	Safe (retract) Z height (default 2.0).
`target_z`	`float = -5`	Target cutting depth (default -5.0).
`plunge_pitch`	`float = 1`	Vertical descent per helix revolution (default 1.0).
`safe_margin`	`float = 1`	Extra margin from tool edge to boundary (default 1.0).
`angular_step`	`float = 0.1`	Angular step in radians for path vertices (default 0.1).
`cut_feed_rate`	`int = 1200`	Feed rate for the entry path (default 1200).
`cut_power`	`float = 1`	Laser power for the entry path (0.0-1.0, default 1.0).
Returns	`tuple[ops.Ops, list[list[tuple[float, float]]]]`	`(ops, cleared_polygons)` where ops is an `Ops` with the entry toolpath and cleared_polygons is a list of polygons to add to the `ClearedArea`.
