raygeo.geo.shape.line

Line segment geometry queries.

Provides line-line intersection (infinite lines), line-segment intersection, closest point on a line or segment to a given point, line-segment-vs-polygon intersections, point-on-segment tests, point-in-rectangle tests, rectangle containment checks, and angle-at-vertex computation.

Functions

does_line_cross_polygon()

does_line_cross_polygon(
    a: types.Point,
    b: types.Point,
    polygon: list[types.Point],
) -> bool

Check if a line segment crosses the interior of a polygon.

Returns True when the segment strictly crosses the polygon boundary — touching a vertex or grazing an edge at an endpoint is not considered a crossing.

Parameter	Type	Description
a	types.Point	Segment start point (x, y).
b	types.Point	Segment end point (x, y).
polygon	list[types.Point]	Polygon vertices [(x1, y1), (x2, y2), ...].
Returns	bool	True if the segment crosses the polygon interior.
Complexity		O(n) time, O(1) space

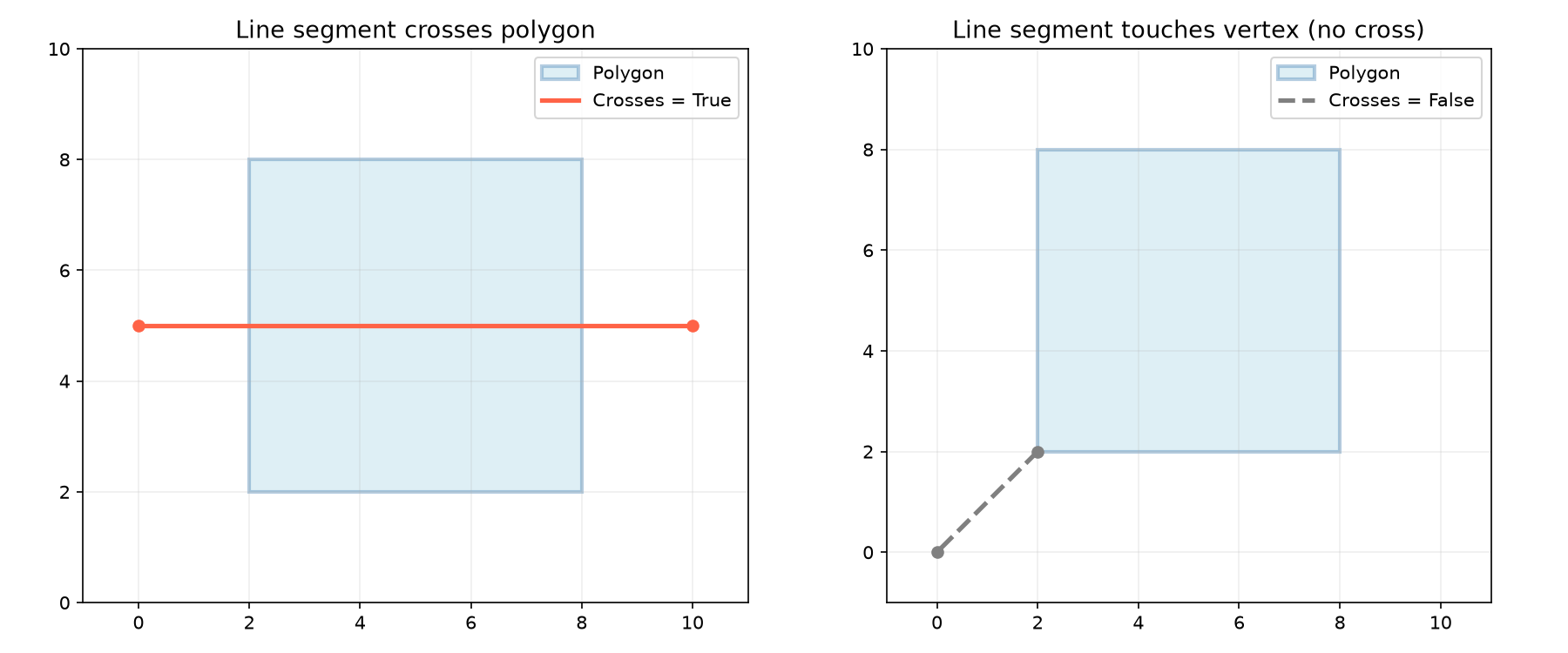

Check if line segment crosses polygon interior. Left: crosses (red). Right: touches boundary (gray).

does_line_segment_intersect_circle()

does_line_segment_intersect_circle(
    p1: types.Point,
    p2: types.Point,
    circle_center: types.Point,
    circle_radius: float,
) -> bool

Check if a line segment intersects a circle.

Parameter	Type	Description
p1	types.Point	Start of the line segment.
p2	types.Point	End of the line segment.
circle_center	types.Point	Circle center (x, y).
circle_radius	float	Circle radius.
Returns	bool	True if the segment intersects the circle.
Complexity		O(1) time, O(1) space

does_line_segment_intersect_rect()

does_line_segment_intersect_rect(
    p1: types.Point,
    p2: types.Point,
    rect: types.Rect,
) -> bool

Check if a line segment intersects a rectangle.

Parameter	Type	Description
p1	types.Point	Start of the line segment.
p2	types.Point	End of the line segment.
rect	types.Rect	Rectangle (x_min, y_min, x_max, y_max).
Returns	bool	True if the segment intersects the rectangle.
Complexity		O(1) time, O(1) space

get_angle_at_vertex()

get_angle_at_vertex(p0: types.Point, p1: types.Point, p2: types.Point) -> float

Compute the angle at vertex p1.

Parameter	Type	Description
p0	types.Point	Previous point.
p1	types.Point	Vertex point.
p2	types.Point	Next point.
Returns	float	Angle in radians.
Complexity		O(1) time, O(1) space

get_interior_angle()

get_interior_angle(p0: types.Point, p1: types.Point, p2: types.Point) -> float

Interior angle at vertex p1 formed by edges p0→p1 and p1→p2.

Returns 0.0 when any two adjacent points coincide (degenerate input).

Parameter	Type	Description
p0	types.Point	Previous point.
p1	types.Point	Vertex point.
p2	types.Point	Next point.
Returns	float	Angle in radians in [0, π].
Complexity		O(1) time, O(1) space

get_line_closest_point()

get_line_closest_point(
    line_p1: types.Point,
    line_p2: types.Point,
    x: float,
    y: float,
) -> types.Point

Get the closest point on an infinite line to a given point. The result may lie beyond the segment endpoints (unclamped projection).

Parameter	Type	Description
line_p1	types.Point	First point on the line.
line_p2	types.Point	Second point on the line.
x	float	X coordinate of target point.
y	float	Y coordinate of target point.
Returns	types.Point	Closest point (x, y) on the infinite line.
Complexity		O(1) time, O(1) space

get_line_line_intersection()

get_line_line_intersection(
    p1: types.Point,
    p2: types.Point,
    p3: types.Point,
    p4: types.Point,
) -> Optional[types.Point]

Get the intersection of two infinite lines.

Parameter	Type	Description
p1	types.Point	First point on line 1.
p2	types.Point	Second point on line 1.
p3	types.Point	First point on line 2.
p4	types.Point	Second point on line 2.
Returns	Optional[types.Point]	Intersection point (x, y) or None.
Complexity		O(1) time, O(1) space

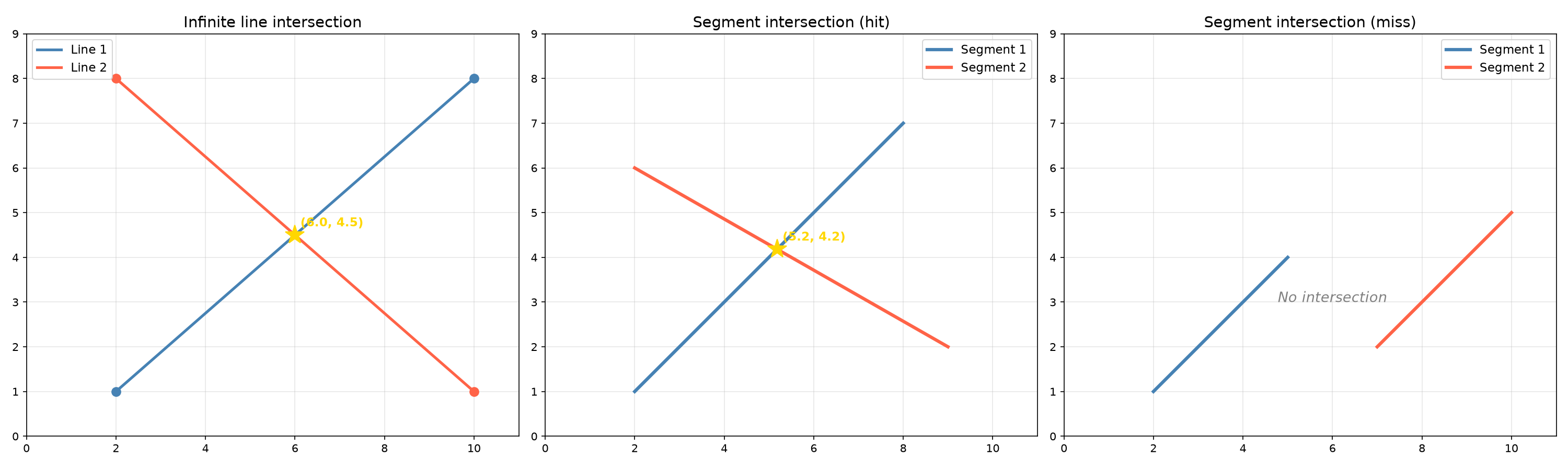

Line-line and segment intersection

get_line_segment_closest_point()

get_line_segment_closest_point(
    seg_p1: types.Point,
    seg_p2: types.Point,
    x: float,
    y: float,
) -> tuple[float, types.Point, float]

Get closest point on a line segment to a point.

Parameter	Type	Description
seg_p1	types.Point	Start of the line segment.
seg_p2	types.Point	End of the line segment.
x	float	X coordinate of target point.
y	float	Y coordinate of target point.
Returns	tuple[float, types.Point, float]	Tuple of (parameter, closest_point, distance).
Complexity		O(1) time, O(1) space

get_line_segment_intersection()

get_line_segment_intersection(
    p1: types.Point,
    p2: types.Point,
    p3: types.Point,
    p4: types.Point,
) -> Optional[types.Point]

Get the intersection of two line segments.

Parameter	Type	Description
p1	types.Point	Start of segment 1.
p2	types.Point	End of segment 1.
p3	types.Point	Start of segment 2.
p4	types.Point	End of segment 2.
Returns	Optional[types.Point]	Intersection point (x, y) or None.
Complexity		O(1) time, O(1) space

get_line_segment_length()

get_line_segment_length(p1: types.Point, p2: types.Point) -> float

Compute the length of a line segment.

Parameter	Type	Description
p1	types.Point	Start point (x, y).
p2	types.Point	End point (x, y).
Returns	float	Distance between the two points.
Complexity		O(1) time, O(1) space

get_line_segment_polygon_intersections()

get_line_segment_polygon_intersections(
    p1: types.Point,
    p2: types.Point,
    polygon: Sequence[types.Polygon],
) -> list[float]

Get t-values where a line segment intersects a polygon.

Parameter	Type	Description
p1	types.Point	Start of the line segment.
p2	types.Point	End of the line segment.
polygon	Sequence[types.Polygon]	Polygon to check against.
Returns	list[float]	List of t-values of intersection points.
Complexity		O(n) time, O(1) space

get_point_line_distance()

get_point_line_distance(
    point: types.Point,
    line_p1: types.Point,
    line_p2: types.Point,
) -> float

Get the distance from a point to a line segment. The projection is clamped to the segment, so distance is measured to the nearest endpoint when the perpendicular falls outside.

Parameter	Type	Description
point	types.Point	Point (x, y).
line_p1	types.Point	First point on the segment.
line_p2	types.Point	Second point on the segment.
Returns	float	Distance (clamped to segment).
Complexity		O(1) time, O(1) space

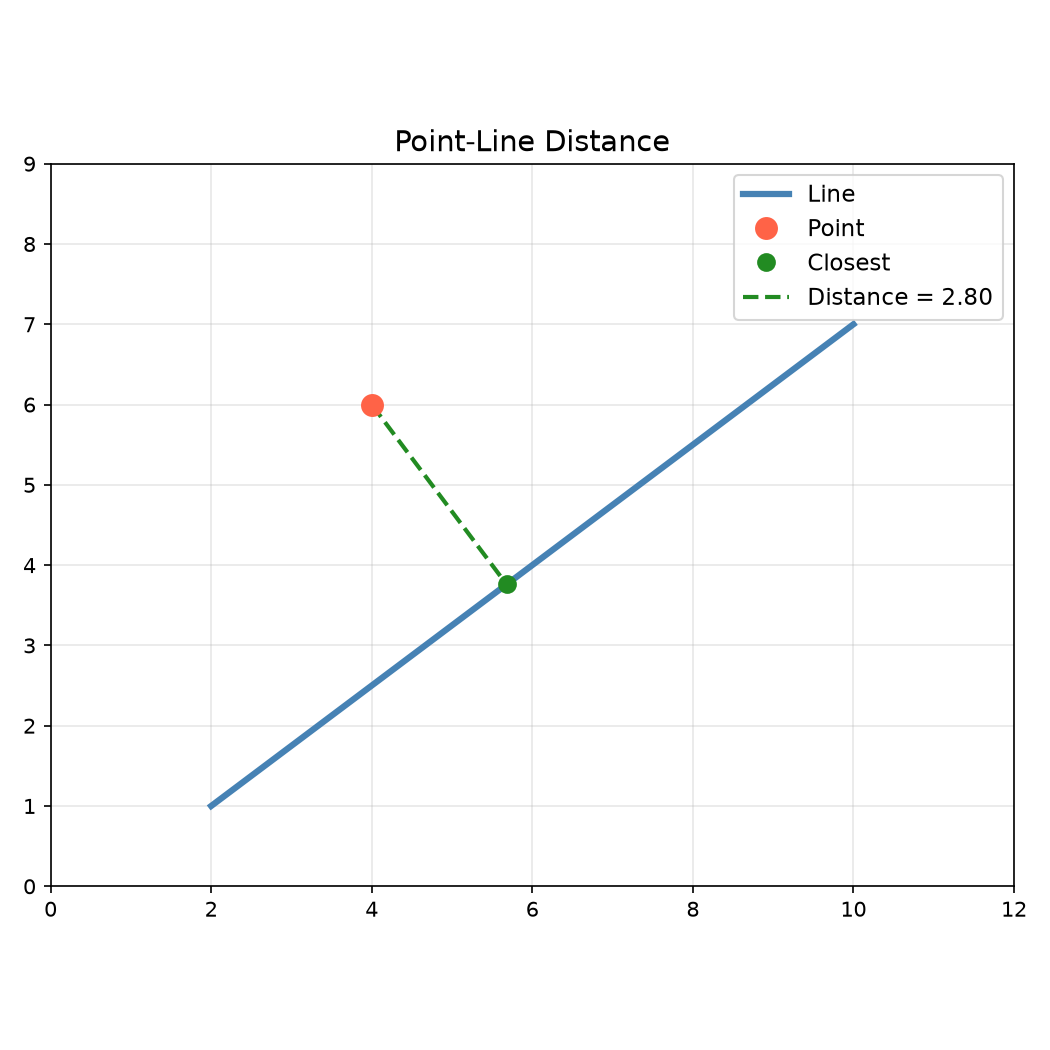

Perpendicular distance from a point to a line

get_segment_segment_distance()

get_segment_segment_distance(
    a: tuple[float, float],
    b: tuple[float, float],
    c: tuple[float, float],
    d: tuple[float, float],
) -> float

Minimum Euclidean distance between two line segments.

Parameter	Type	Description
a	tuple[float, float]	Start of segment 1.
b	tuple[float, float]	End of segment 1.
c	tuple[float, float]	Start of segment 2.
d	tuple[float, float]	End of segment 2.
Returns	float	Minimum distance between the two segments.
Complexity		O(1) time, O(1) space

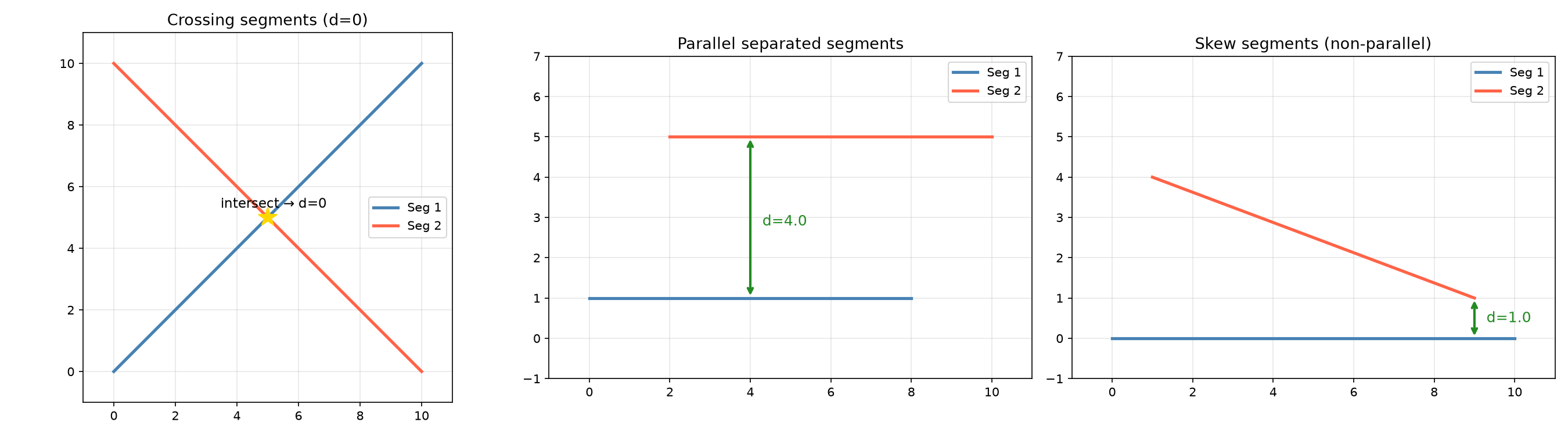

Minimum Euclidean distance between 2 segments. Left: crossing (0). Centre: parallel. Right: skew.

interpolated_segment_3d()

interpolated_segment_3d(
    from_x: float,
    from_y: float,
    to_x: float,
    to_y: float,
    z: float,
    n: int,
) -> list[tuple[float, float, float]]

Generate linearly interpolated 3D points along a 2D segment.

Returns n points from from to to at height z. The start is not included; the end is included.

Parameter	Type	Description
from_x	float	X coordinate of the start.
from_y	float	Y coordinate of the start.
to_x	float	X coordinate of the end.
to_y	float	Y coordinate of the end.
z	float	Z height for all points.
n	int	Number of points to generate.
Returns	list[tuple[float, float, float]]	List of (x, y, z) points.
Complexity		O(n) time, O(1) space

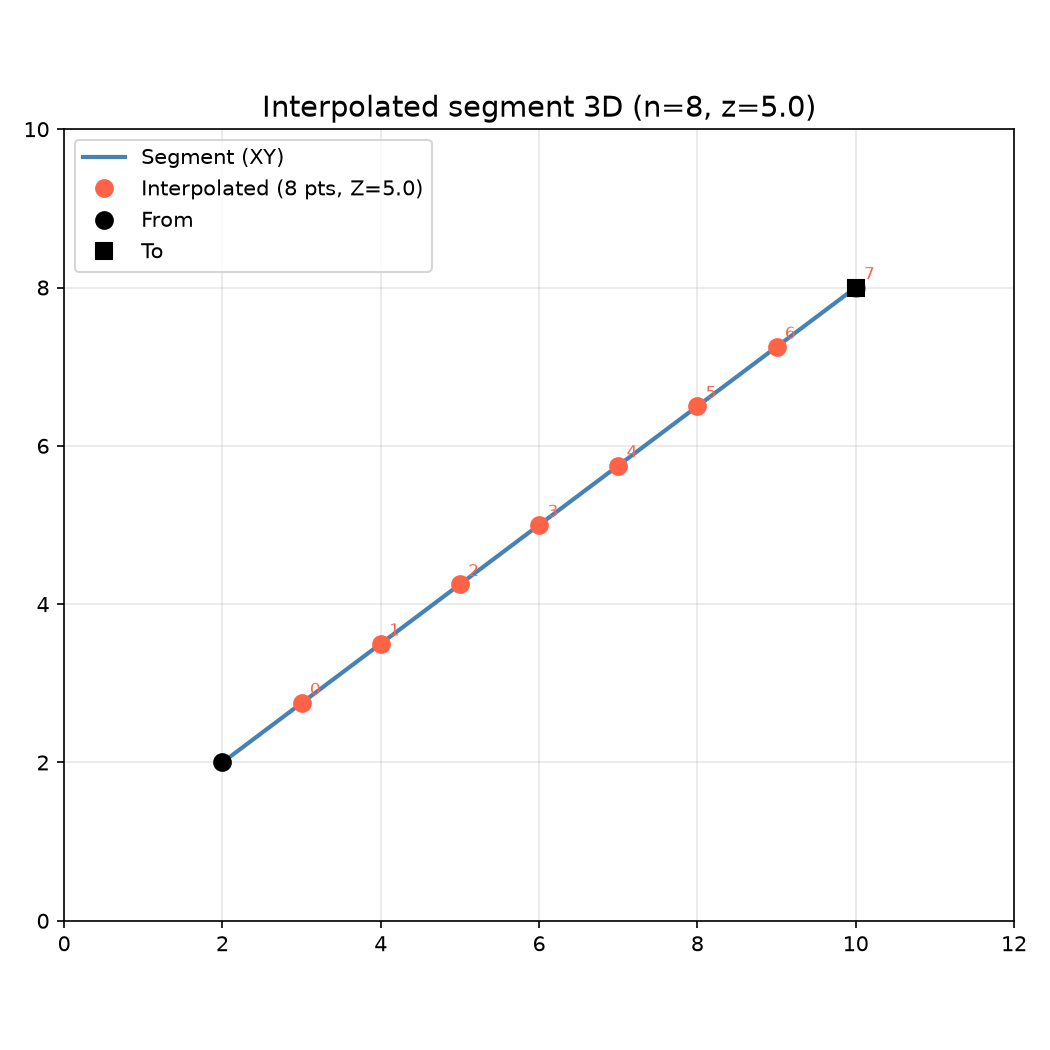

Linearly interpolated 3D points along a 2D segment

is_point_on_line_segment()

is_point_on_line_segment(
    point: types.Point,
    seg_p1: types.Point,
    seg_p2: types.Point,
) -> bool

Check if a point is on a line segment.

Parameter	Type	Description
point	types.Point	Point (x, y) to test.
seg_p1	types.Point	Start of the line segment.
seg_p2	types.Point	End of the line segment.
Returns	bool	True if the point lies on the segment.
Complexity		O(1) time, O(1) space

longest_line_through_point()

longest_line_through_point(
    pt: tuple[float, float],
    bbox: tuple[float, float, float, float],
) -> tuple[tuple[float, float], tuple[float, float]]

Find the longest axis-aligned line through a point within a rectangle.

Returns (start, end) — a horizontal line when the bounding box is wider than tall, otherwise a vertical line.

Parameter	Type	Description
pt	tuple[float, float]	(x, y) point.
bbox	tuple[float, float, float, float]	(x_min, y_min, x_max, y_max) rectangle.
Returns	tuple[tuple[float, float], tuple[float, float]]	((x1, y1), (x2, y2)) start and end of the line.
Complexity		O(1) time, O(1) space

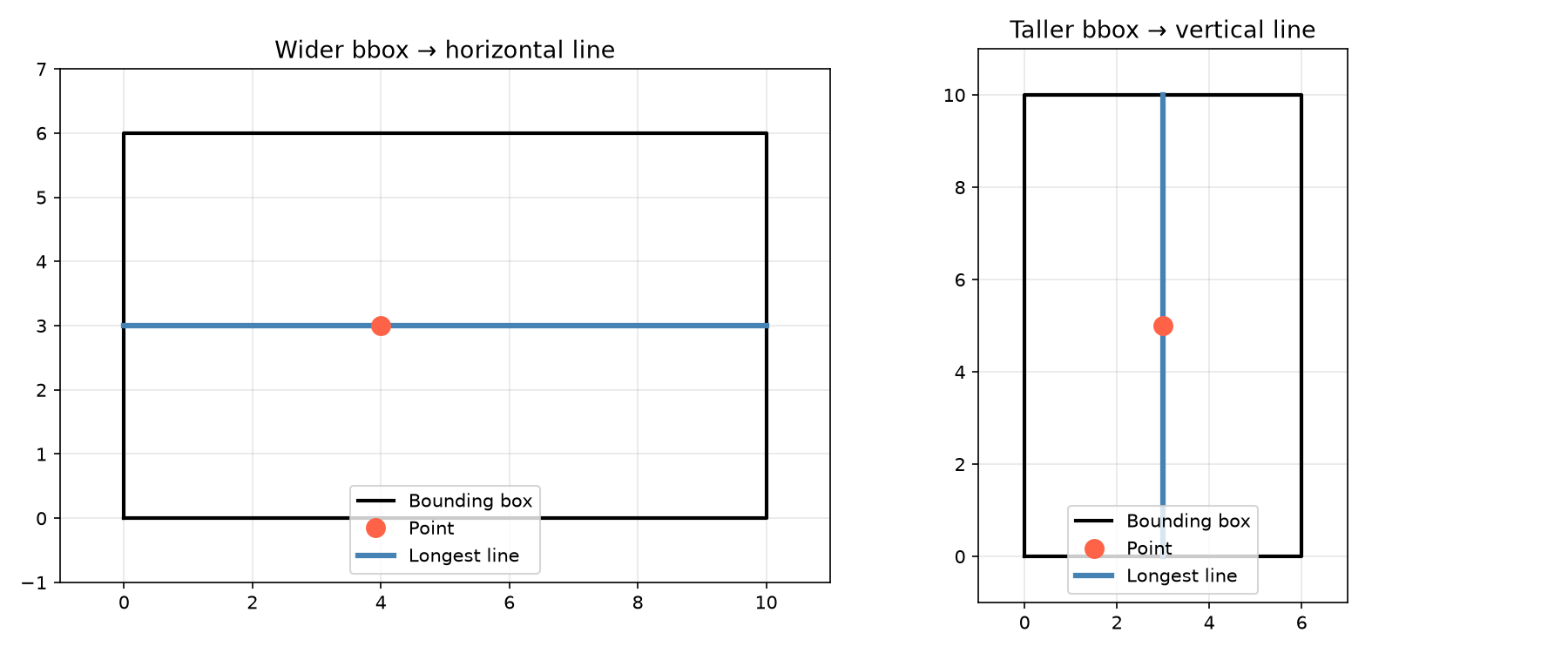

Longest axis-aligned line through a point in a bbox. Left: wider→horizontal. Right: taller→vertical.
