raygeo.geo.algo.smooth

Polyline smoothing using Gaussian kernels.

Provides Gaussian kernel computation and circular/linear polyline smoothing with configurable corner angle thresholds to preserve sharp features.

Functions

blend_tangent()

blend_tangent(
    link: Sequence[tuple[float, float]],
    prev_tail: Sequence[tuple[float, float]],
    next_head: Sequence[tuple[float, float]],
    margin: float,
) -> list[tuple[float, float]]

Insert tangent extension points at both ends of a connecting polyline.

Returns a new polyline with points inserted to ensure it meets the adjacent polylines tangentially (G1 continuity).

Parameter	Type	Description
link	Sequence[tuple[float, float]]	Connecting polyline as a list of (x, y) tuples.
prev_tail	Sequence[tuple[float, float]]	Last 2+ points of the preceding polyline.
next_head	Sequence[tuple[float, float]]	First 2+ points of the following polyline.
margin	float	Extension distance along the tangent direction.
Returns	list[tuple[float, float]]	Modified polyline with tangent extension points inserted.

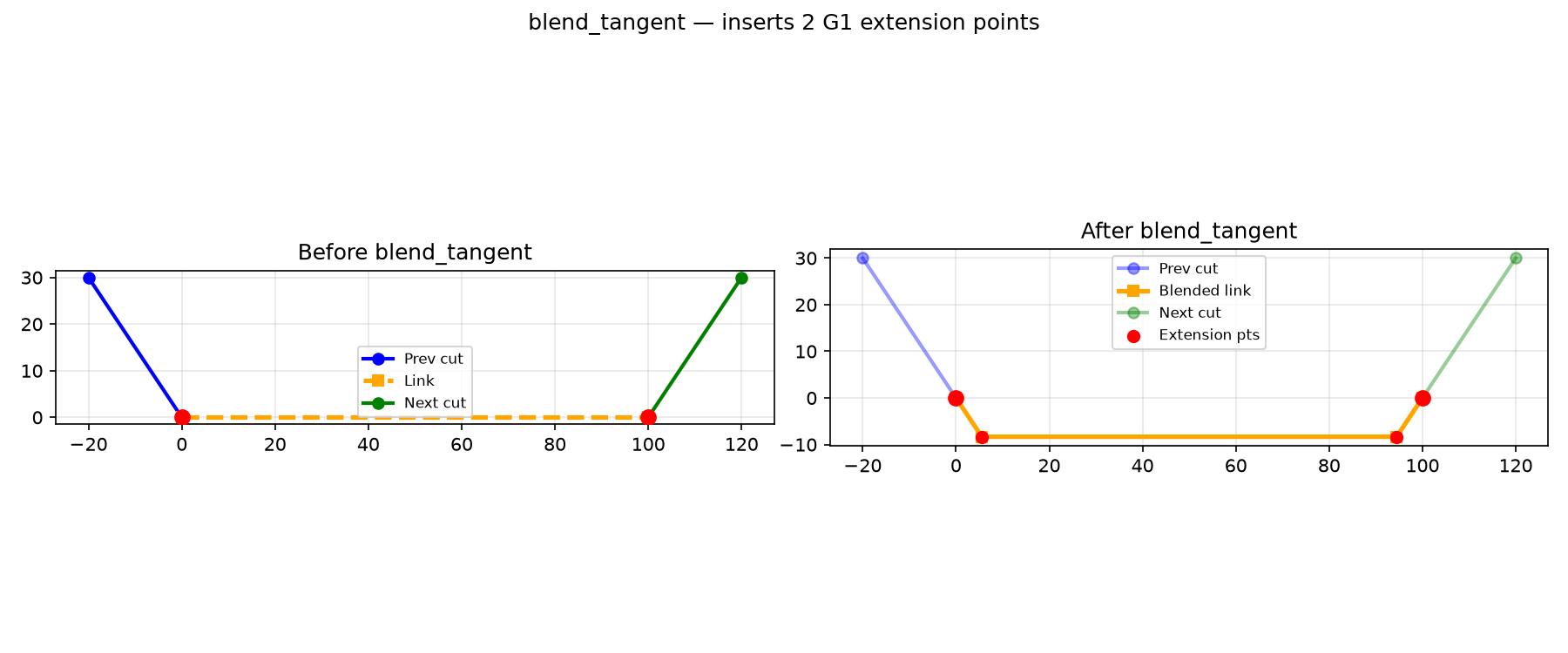

blend_tangent adds tangent points at travel-link ends for G1 continuity at cut–travel junctions

build_smoothed_path()

build_smoothed_path(
    last: tuple[float, float],
    first: tuple[float, float],
    waypoints: Sequence[tuple[float, float]] = [],
    uncleared: Sequence[Sequence[tuple[float, float]]] = [],
    clearance: float = 1,
    smoothing_amount: int = 120,
) -> list[tuple[float, float]]

Build a smooth path between two points via multi-stage processing.

Pipeline:

1. Prepends last and appends first to waypoints.
2. Resamples for point density.
3. Iteratively shortcuts removable waypoints (collision-checked).
4. Applies aggressive Gaussian smoothing with per-point collision checking so points near obstacles are preserved while open areas are fully rounded.

Parameter	Type	Description
last	tuple[float, float]	Start point (x, y).
first	tuple[float, float]	End point (x, y).
waypoints	Sequence[tuple[float, float]] = []	Intermediate waypoints between last and first.
uncleared	Sequence[Sequence[tuple[float, float]]] = []	Obstacle polygons to avoid.
clearance	float = 1	Minimum distance from obstacles.
smoothing_amount	int = 120	Gaussian smoothing amount (0-200, default 120).
Returns	list[tuple[float, float]]	Smoothed path as a list of (x, y) tuples.

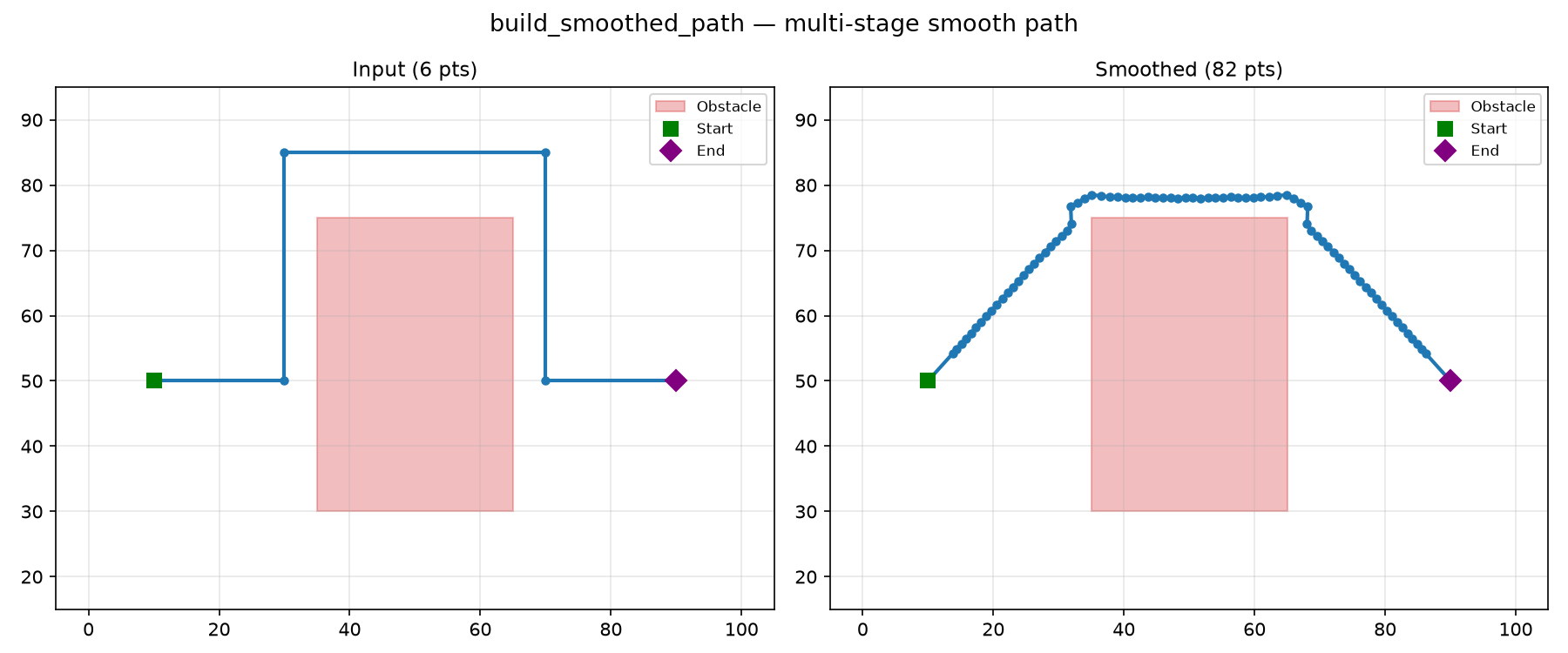

build_smoothed_path builds a smooth path via resample → shortcut → Gaussian relaxation

chaikin_corner_cut()

chaikin_corner_cut(
    points: Sequence[tuple[float, float]],
    obstacles: Sequence[Sequence[tuple[float, float]]] = [],
    clearance: float = 1,
    iterations: int = 6,
) -> list[tuple[float, float]]

Round sharp corners using Chaikin corner cutting with collision checking.

Corners sharper than 45° are cut; gently curving sections are left untouched. Each cut point is collision-tested against obstacles at clearance distance; if the cut would collide, the original corner is preserved.

Parameter	Type	Description
points	Sequence[tuple[float, float]]	Polyline as a list of (x, y) tuples.
obstacles	Sequence[Sequence[tuple[float, float]]] = []	List of obstacle polygons (each a list of (x, y)).
clearance	float = 1	Minimum distance from obstacles (default 1.0).
iterations	int = 6	Number of Chaikin cutting passes (default 6).
Returns	list[tuple[float, float]]	Corner-smoothed polyline as a list of (x, y) tuples.

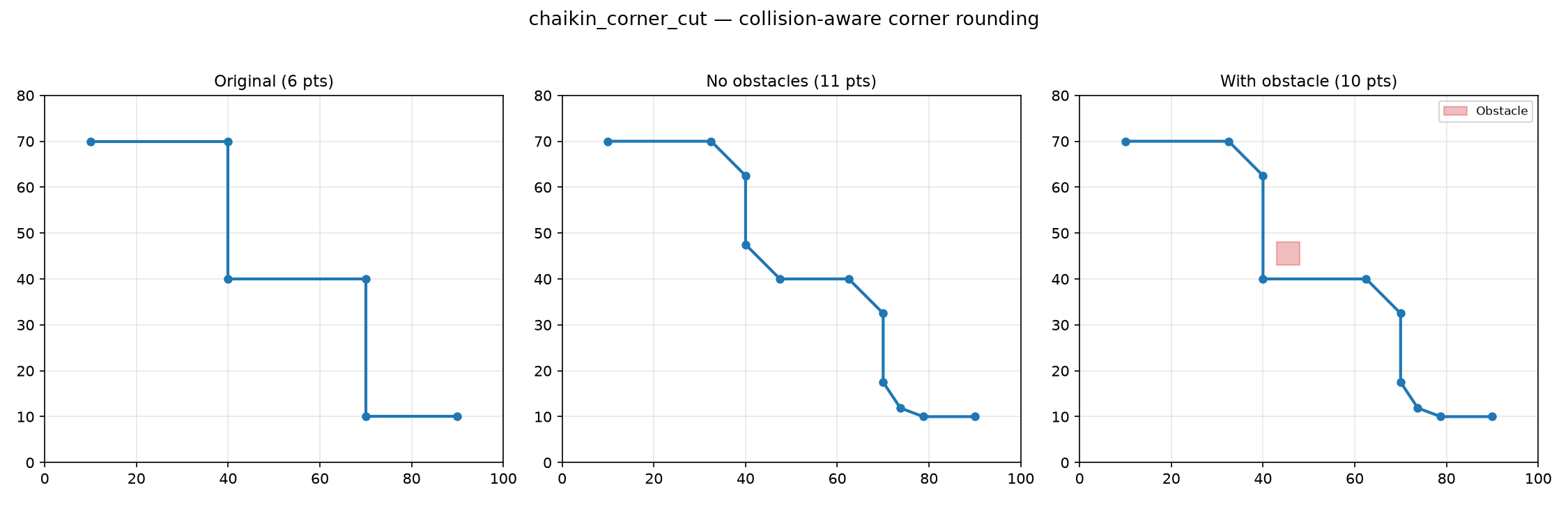

chaikin_corner_cut rounds sharp corners via Chaikin cut, respecting obstacle clearance

compute_gaussian_kernel()

compute_gaussian_kernel(amount: int) -> tuple[list[float], float]

Compute a Gaussian kernel of the given size.

Parameter	Type	Description
amount	int	Kernel size.
Returns	tuple[list[float], float]	Tuple of (kernel_values, sigma).
Complexity		O(k) time, O(k) space

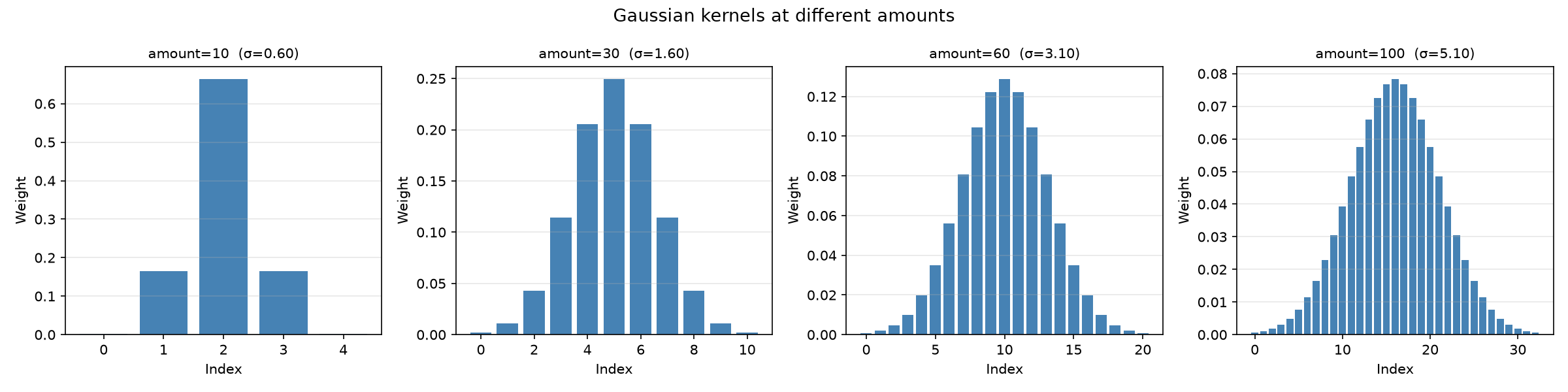

Gaussian kernel weights

shortcut_path()

shortcut_path(
    points: Sequence[tuple[float, float]],
    obstacles: Sequence[Sequence[tuple[float, float]]],
    clearance: float,
) -> list[tuple[float, float]]

Iteratively remove interior waypoints whose direct connection (prev → next) is collision-free, repeating until no more points can be removed. Endpoints are always preserved.

Parameter	Type	Description
points	Sequence[tuple[float, float]]	Polyline as a list of (x, y) tuples.
obstacles	Sequence[Sequence[tuple[float, float]]]	List of obstacle polygons (each a list of (x, y)).
clearance	float	Minimum distance the path must keep from obstacles.
Returns	list[tuple[float, float]]	Shortcutted polyline as a list of (x, y) tuples.
Complexity		O(n²) worst-case time, O(n) space

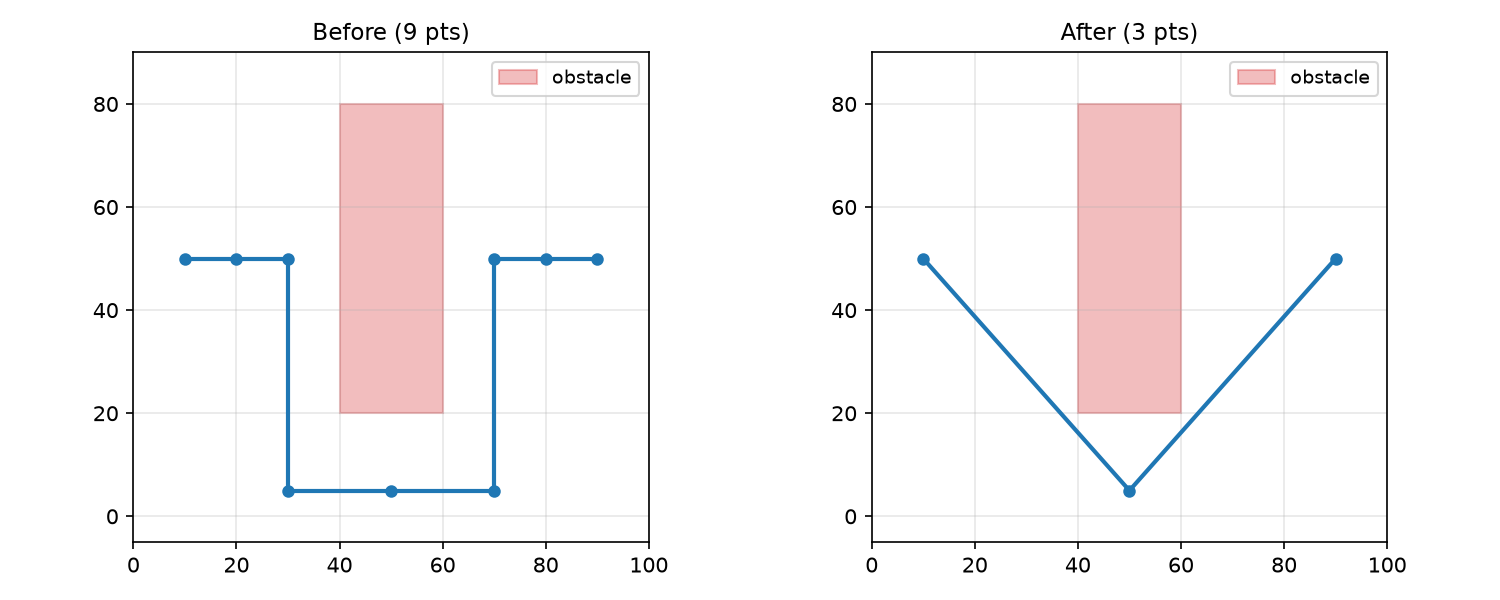

Iterative waypoint removal

smooth_circularly()

smooth_circularly(
    points: Sequence[types.Point3D],
    kernel: Sequence[float],
) -> list[types.Point3D]

Smooth a closed polyline circularly.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points to smooth.
kernel	Sequence[float]	Gaussian kernel values.
Returns	list[types.Point3D]	Smoothed points.
Complexity		O(n * k) time, O(n) space where k is the kernel size and n the number of points

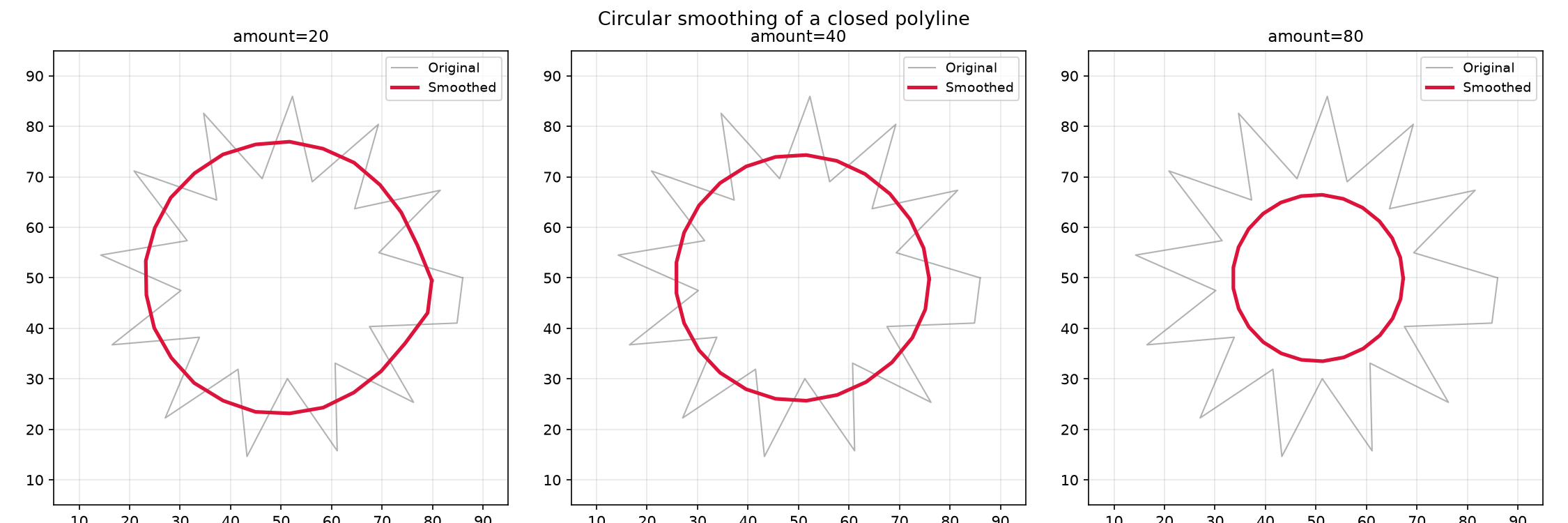

Circular smoothing

smooth_path()

smooth_path(
    points: Sequence[tuple[float, float]],
    obstacles: Sequence[Sequence[tuple[float, float]]],
    clearance: float,
    smoothing_amount: int = 50,
) -> list[tuple[float, float]]

Smooth a polyline while avoiding obstacles.

Two-phase constrained smoothing:

1. Shortcut – greedily removes intermediate waypoints whose direct connection stays clear of all obstacles by at least clearance.
2. Gaussian relaxation – iteratively applies Gaussian smoothing, reverting any point whose smoothed position would violate the clearance constraint.

Endpoints are always preserved.

Parameter	Type	Description
points	Sequence[tuple[float, float]]	Polyline as a list of (x, y) tuples.
obstacles	Sequence[Sequence[tuple[float, float]]]	List of obstacle polygons (each a list of (x, y)).
clearance	float	Minimum distance the path must keep from obstacles.
smoothing_amount	int = 50	Gaussian smoothing amount 0–200 (default 50). 0 applies shortcut only.
Returns	list[tuple[float, float]]	Smoothed polyline as a list of (x, y) tuples.

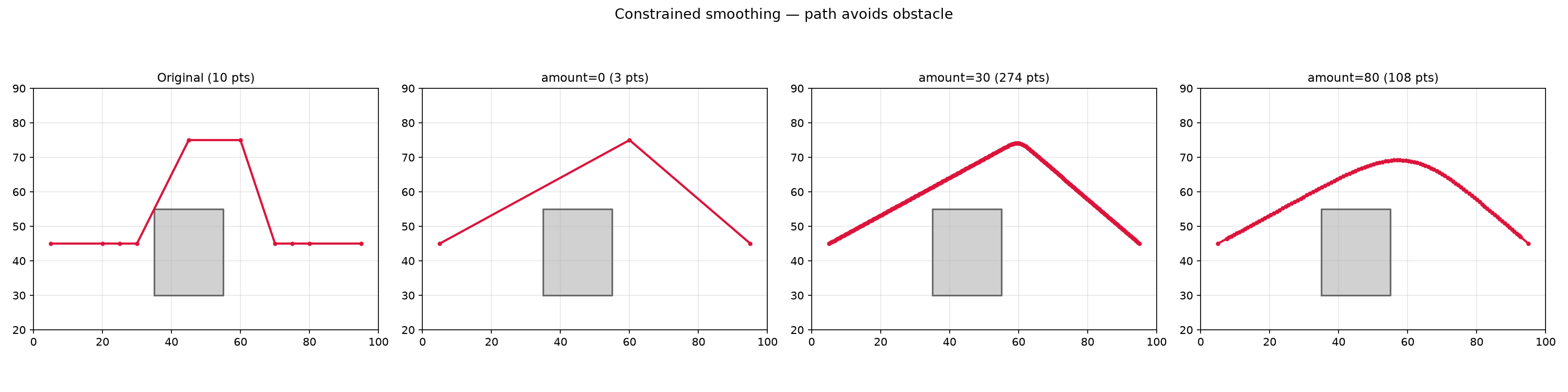

Constrained path smoothing

smooth_polyline_3d()

smooth_polyline_3d(
    points: Sequence[types.Point3D],
    amount: int,
    corner_angle_threshold: float,
    is_closed: Optional[bool] = None,
) -> list[types.Point3D]

Smooth a 3D polyline using Gaussian smoothing.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points to smooth.
amount	int	Smoothing amount (kernel size).
corner_angle_threshold	float	Angle threshold for preserving corners.
is_closed	Optional[bool] = None	Whether the polyline is closed.
Returns	list[types.Point3D]	Smoothed 3D points.
Complexity		O(n * k) time, O(n) space where k is the kernel size and n the number of points

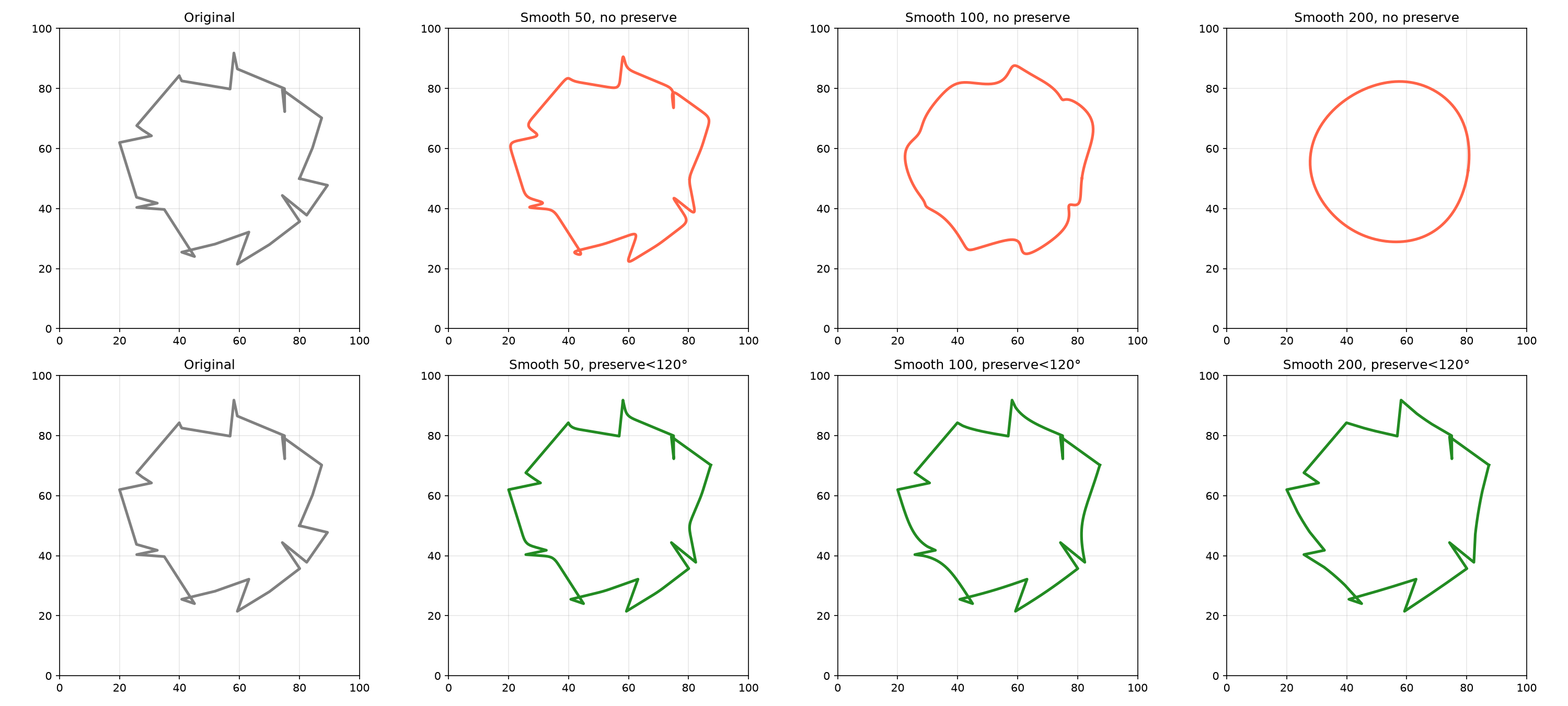

Gaussian smoothing

smooth_sub_segment()

smooth_sub_segment(
    points: Sequence[types.Point3D],
    kernel: Sequence[float],
) -> list[types.Point3D]

Smooth a sub-segment of a polyline.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points to smooth.
kernel	Sequence[float]	Gaussian kernel values.
Returns	list[types.Point3D]	Smoothed points.
Complexity		O(n * k) time, O(n) space where k is the kernel size and n the number of points

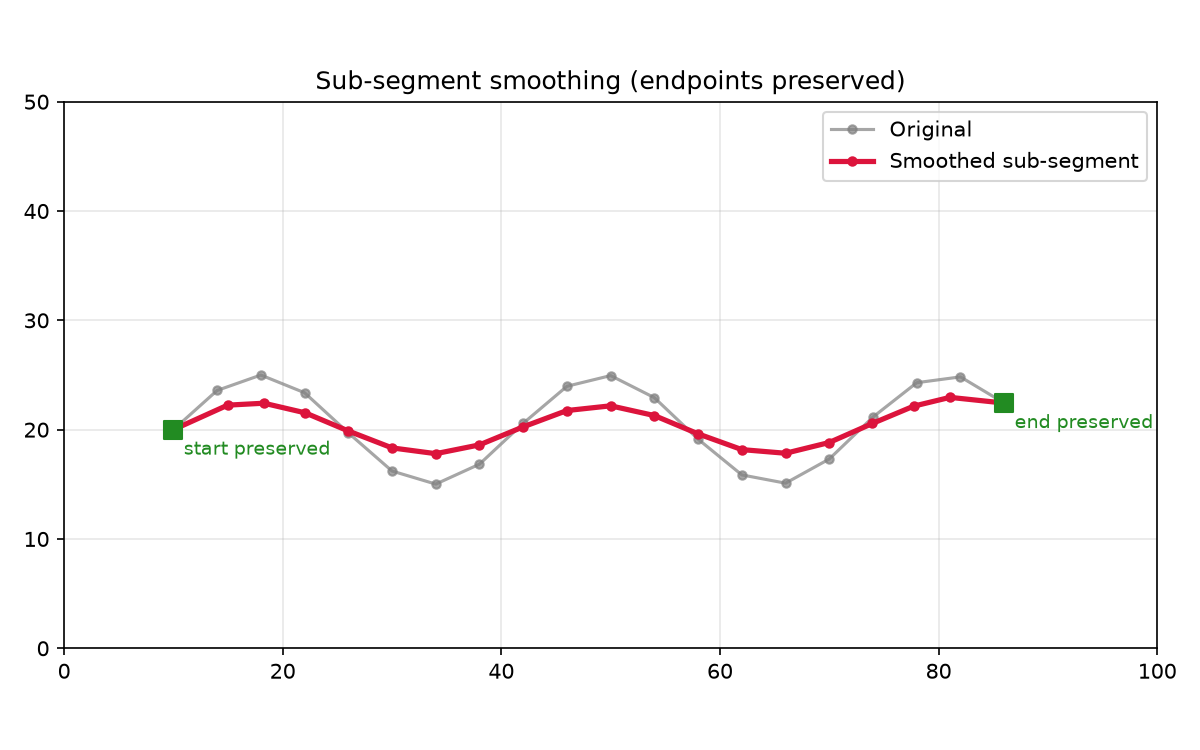

Sub-segment smoothing
