raygeo.geo

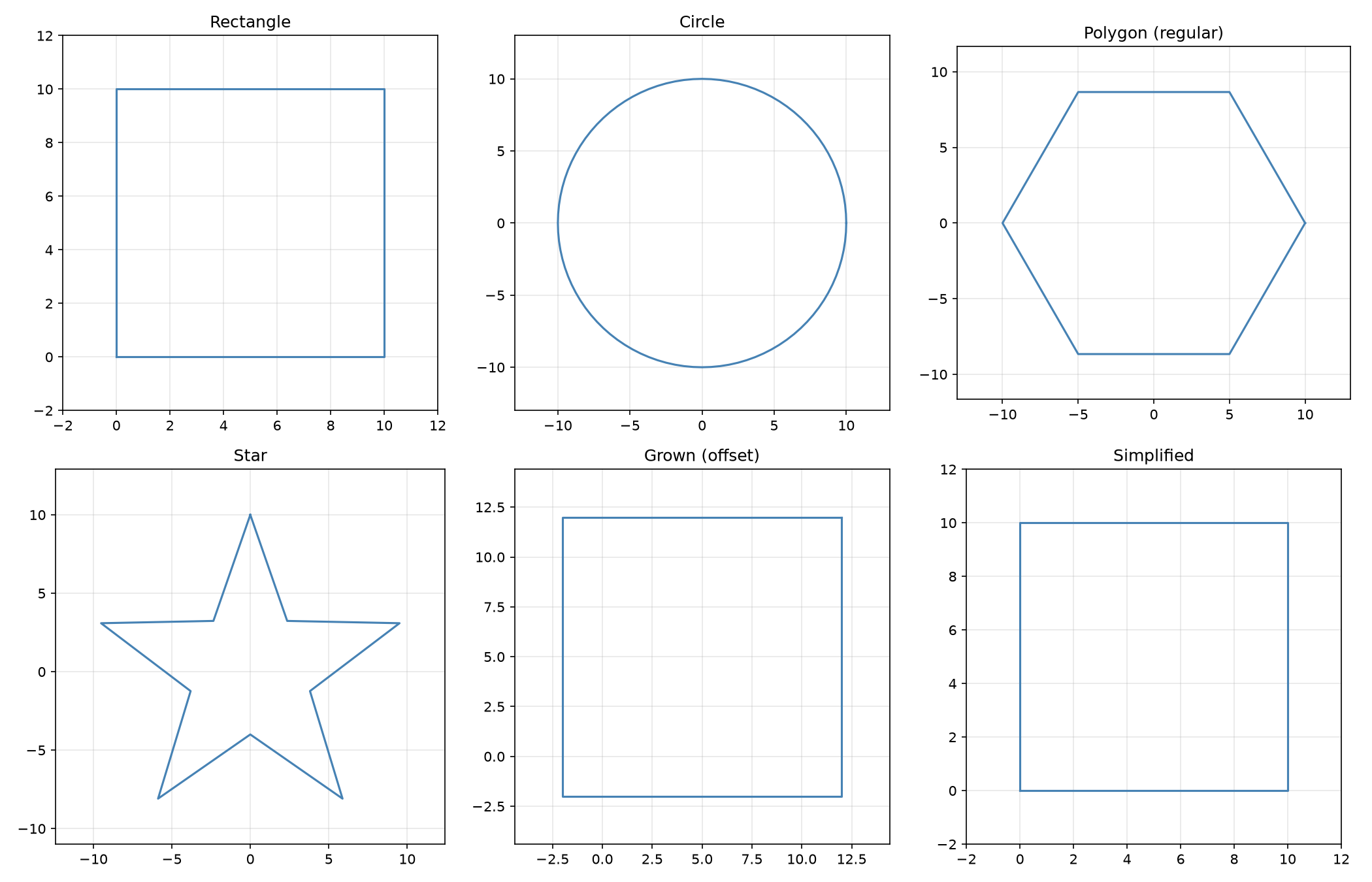

Various geometry shapes and operations Geometry types and operations for 2D/3D path data.

The central type is Geometry — a mutable sequence of drawing commands (move, line, arc, bezier) that represents one or more closed or open paths. Geometry supports construction (add_rect, add_circle, etc.), analysis (area, distance, bounding rect), and manipulation (transform, simplify, linearize, fit curves, grow/shrink, split, clip).

Shape sub-modules provide primitive-specific operations: arc bounding and intersection, bezier splitting and flattening, circle containment tests, polygon boolean algebra and offsetting, and line intersection.

Algorithm sub-modules provide higher-level geometric processing such as polyline simplification, smoothing, curve fitting, and Minkowski sums for toolpath generation.

Arc

A circular-arc cutting command.

center_offset

center_offset: tuple[float, float, float]

Centre offset from the start point (3D).

clockwise

clockwise: bool

Whether the arc is clockwise (computed from the normal).

end

end: tuple[float, float, float]

Endpoint of the arc in 3D space.

normal

normal: tuple[float, float, float]

Plane normal of the arc. A positive Z component means CCW in XY.

Bezier

A cubic-Bezier curve cutting command.

control1

control1: tuple[float, float, float]

First control point in 3D space.

control2

control2: tuple[float, float, float]

Second control point in 3D space.

end

end: tuple[float, float, float]

Endpoint of the curve in 3D space.

Geometry

A sequence of geometric commands (Move, Line, Arc, Bezier).

The primary building block for vector geometry in raygeo. Geometry objects can be constructed procedurally, parsed from SVG, or obtained by converting an ~raygeo.ops.Ops sequence.

data

data: list[Any]

The commands as a list of typed command objects.

last_move_to

last_move_to: tuple[float, float, float]

The coordinates of the last move-to command.

uniform_scalable

uniform_scalable: bool

Whether the geometry uses uniform scalable arcs.

arc_to()

arc_to(
    x: float,
    y: float,
    i: float = 0.0,
    j: float = 0.0,
    clockwise: bool = True,
    z: float = 0.0,
) -> Geometry

Draw an arc to the given coordinates.

Parameter	Type	Description
x	float	X coordinate.
y	float	Y coordinate.
i	float = 0.0	I offset from current point to center.
j	float = 0.0	J offset from current point to center.
clockwise	bool = True	Whether the arc is clockwise.
z	float = 0.0	Z coordinate (default 0.0).
Returns	Geometry	The geometry (for method chaining).
Complexity		O(1) time, O(1) space

arc_to_as_bezier()

arc_to_as_bezier(
    x: float,
    y: float,
    i: float,
    j: float,
    clockwise: bool = True,
    z: float = 0.0,
) -> Geometry

Draw an arc, converting it to bezier curves.

Parameter	Type	Description
x	float	End X coordinate.
y	float	End Y coordinate.
i	float	I offset to center.
j	float	J offset to center.
clockwise	bool = True	Arc direction.
z	float = 0.0	End Z coordinate.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(1) time, O(1) space

area()

area() -> float

Return the signed area of the geometry.

Parameter	Type	Description
Returns	float	The signed area in mm².
Complexity		O(n) time, O(1) space

bezier_to()

bezier_to(
    x: float,
    y: float,
    c1x: float,
    c1y: float,
    c2x: float,
    c2y: float,
    *,
    c1z: float = 0.0,
    c2z: float = 0.0,
    z: float = 0.0,
) -> Geometry

Draw a cubic bezier curve.

Parameter	Type	Description
x	float	End X coordinate.
y	float	End Y coordinate.
c1x	float	First control point X.
c1y	float	First control point Y.
c2x	float	Second control point X.
c2y	float	Second control point Y.
c1z	float	First control point Z (default 0.0).
c2z	float	Second control point Z (default 0.0).
z	float	End Z coordinate (default 0.0).
Returns	Geometry	The geometry (for method chaining).
Complexity		O(1) time, O(1) space

cleanup()

cleanup(tolerance: float) -> Geometry

Remove duplicate segments from the geometry.

Parameter	Type	Description
tolerance	float	Maximum deviation for equality.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n log n) average time, O(n) space

clear()

clear() -> Geometry

Remove all commands from the geometry.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(1) time, O(1) space

close_all_contours()

close_all_contours() -> Geometry

Close all open contours in the geometry.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(n) space

close_gaps()

close_gaps(tolerance: Optional[float] = None) -> Geometry

Close gaps between sub-paths.

Parameter	Type	Description
tolerance	Optional[float] = None	Max gap to close.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(n) space

close_path()

close_path() -> Geometry

Close the current sub-path.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(1) time, O(1) space

convert_arcs_to_beziers()

convert_arcs_to_beziers() -> None

Convert all Arc commands to Bezier curve approximations in-place.

After this call, the geometry will only contain Move, Line, and Bezier commands.

Parameter	Type	Description
Returns	None
Complexity		O(n) time, O(n) space where n = number of commands

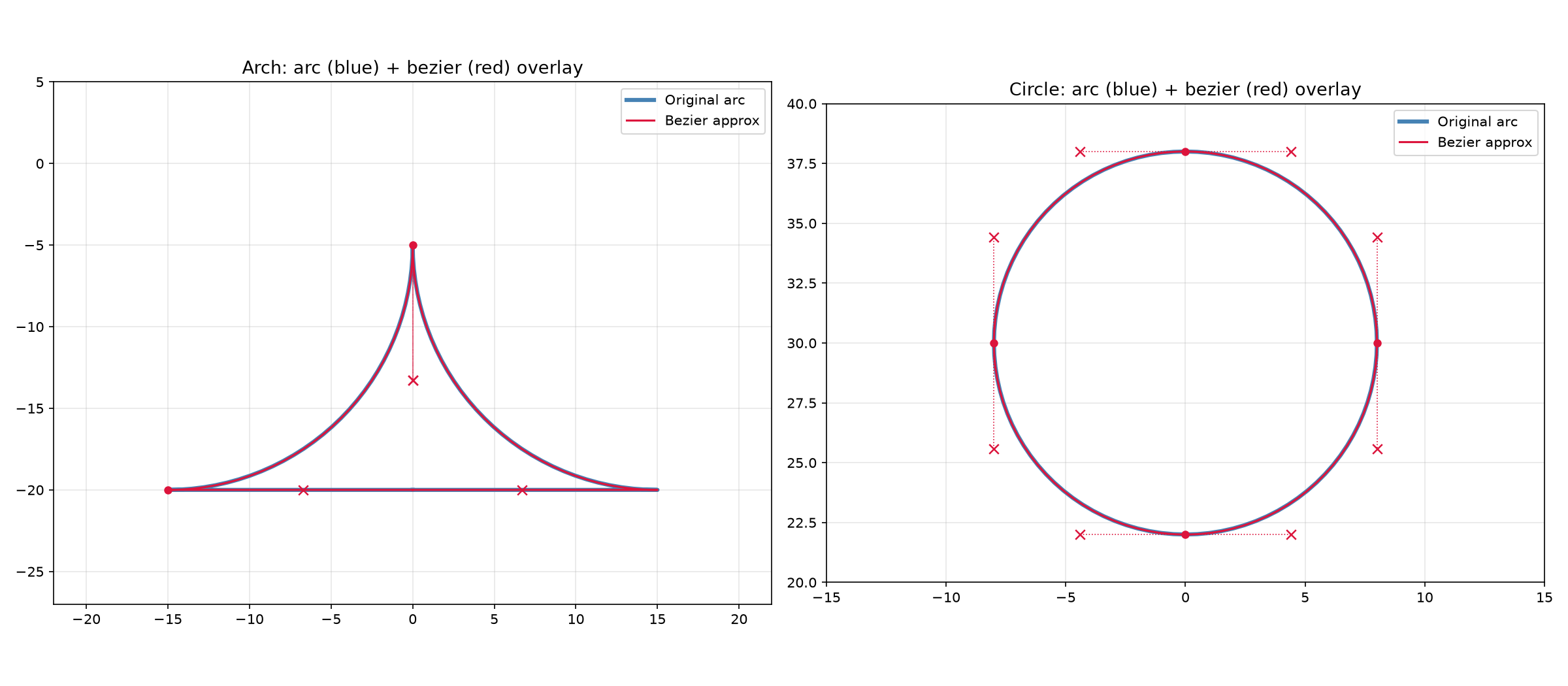

Overlay showing Bezier curves (with control points) closely matching the original arcs

copy()

copy() -> Geometry

Return a deep copy of this geometry.

Parameter	Type	Description
Returns	Geometry	A deep copy of the geometry.
Complexity		O(n) time, O(n) space

distance()

distance() -> float

Return the total path distance.

Parameter	Type	Description
Returns	float	The total path distance in mm.
Complexity		O(n) time, O(1) space

encloses()

encloses(other: Geometry) -> bool

Check if this geometry encloses another.

Parameter	Type	Description
other	Geometry	The potentially enclosed geometry.
Returns	bool	True if this geometry encloses the other.
Complexity		O(n log n) average time, O(n) space

extend()

extend(other: Geometry) -> Geometry

Append another geometry's commands to this one.

Parameter	Type	Description
other	Geometry	The geometry to append.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(n) space

filter()

filter(indices: set[int]) -> Geometry

Return a new Geometry containing only commands at the given indices.

Parameter	Type	Description
indices	set[int]	Set of command indices to keep.
Returns	Geometry	A new Geometry with the filtered commands.
Complexity		O(n) time, O(n) space

filter_to_external_contours()

filter_to_external_contours() -> Geometry

Filter to only external (outermost) contours.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n log n) average time, O(n) space

find_closest_point()

find_closest_point(
    x: float,
    y: float,
) -> Optional[tuple[int, float, tuple[float, float]]]

Find the closest point on the path to (x, y).

Parameter	Type	Description
x	float	X coordinate.
y	float	Y coordinate.
Returns	Optional[tuple[int, float, tuple[float, float]]]	Tuple of (segment_index, t, point) or None.
Complexity		O(n) time, O(1) space

fit_arcs()

fit_arcs(tolerance: float) -> Geometry

Fit arcs only to the linearized geometry.

Parameter	Type	Description
tolerance	float	Maximum deviation.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n log n) average time, O(n) space

fit_curves()

fit_curves(
    tolerance: float,
    beziers: bool = True,
    arcs: bool = True,
    on_progress: Optional[Any] = None,
) -> Geometry

Fit curves (beziers and arcs) to the linearized geometry.

Parameter	Type	Description
tolerance	float	Maximum deviation.
beziers	bool = True	Whether to fit bezier curves.
arcs	bool = True	Whether to fit arcs.
on_progress	Optional[Any] = None	Optional progress callback called with (current, total).
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n log n) average time, O(n) space

flip_x()

flip_x() -> Geometry

Mirror the geometry along the X axis.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(1) space

flip_y()

flip_y() -> Geometry

Mirror the geometry along the Y axis.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(1) space

from_dict()

@classmethod from_dict(data: dict) -> Geometry

Create a Geometry from a dictionary.

Parameter	Type	Description
data	dict	A dictionary as produced by to_dict.
Returns	Geometry	A new Geometry instance.
Complexity		O(n) time, O(n) space

from_points()

@classmethod from_points(points: Any, close: bool = True) -> Geometry

Create a Geometry from a sequence of points.

Parameter	Type	Description
points	Any	A sequence of (x, y) or (x, y, z) coordinate tuples.
close	bool = True	Whether to close the path.
Returns	Geometry	A new Geometry instance.
Complexity		O(n) time, O(n) space

get_command_at()

get_command_at(index: int) -> Optional[Any]

Get the command at the given index as a typed command object.

Parameter	Type	Description
index	int	Command index (negative returns None).
Returns	Optional[Any]	The typed command or None.
Complexity		O(1) time, O(1) space

get_last_point()

get_last_point() -> tuple[float, float, float]

Get the last point in the geometry.

Parameter	Type	Description
Returns	tuple[float, float, float]	The last point as (x, y, z), or (0, 0, 0) if empty.
Complexity		O(1) time, O(1) space

get_outward_normal_at()

get_outward_normal_at(
    segment_index: int,
    t: float,
) -> Optional[tuple[float, float]]

Get the outward normal at parameter t on a segment.

Parameter	Type	Description
segment_index	int	Index of the segment.
t	float	Parameter in [0, 1].
Returns	Optional[tuple[float, float]]	Normal vector or None.
Complexity		O(1) time, O(1) space

get_point_at()

get_point_at(
    segment_index: int,
    t: float,
) -> Optional[tuple[float, float, float]]

Get the point at parameter t on a segment.

Parameter	Type	Description
segment_index	int	Index of the segment.
t	float	Parameter in [0, 1].
Returns	Optional[tuple[float, float, float]]	The 3D point or None.
Complexity		O(1) time, O(1) space

get_positions_at_distances()

get_positions_at_distances(
    distances: Sequence[float],
) -> list[tuple[int, float, tuple[float, float]]]

Given a list of distances along the path, returns the corresponding (segment_index, t, point) for each distance.

Distances are clamped to [0, total_length].

Parameter	Type	Description
distances	Sequence[float]	List of distances along the path.
Returns	list[tuple[int, float, tuple[float, float]]]	List of (segment_index, t, (x, y)) tuples.
Complexity		O(n + m) time, O(m) space where n is the number of segments and m the number of distances

get_tangent_at()

get_tangent_at(segment_index: int, t: float) -> Optional[tuple[float, float]]

Get the tangent vector at parameter t on a segment.

Parameter	Type	Description
segment_index	int	Index of the segment.
t	float	Parameter in [0, 1].
Returns	Optional[tuple[float, float]]	The normalized tangent vector or None.
Complexity		O(1) time, O(1) space

get_typed_command_at()

get_typed_command_at(index: int) -> Move | Line | Arc | Bezier | None

Get the typed command at the given index.

Parameter	Type	Description
index	int	Command index.
Returns	Move | Line | Arc | Bezier | None
Complexity		O(1) time, O(1) space

get_valid_contours_data()

get_valid_contours_data() -> list[dict]

Get valid contour data from the geometry's contours.

Parameter	Type	Description
Returns	list[dict]	List of dicts with keys "geo", "vertices", "is_closed", "original_index".
Complexity		O(n) time, O(n) space

grow()

grow(amount: float) -> Geometry

Offset (grow/shrink) the geometry by the given amount.

Parameter	Type	Description
amount	float	Positive to grow, negative to shrink.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n log n) average time, O(n) space

has_self_intersections()

has_self_intersections(fail_on_t_junction: bool = False) -> bool

Check if the geometry has self-intersections.

Parameter	Type	Description
fail_on_t_junction	bool = False	Whether to fail on T-junctions.
Returns	bool	True if the geometry has self-intersections.
Complexity		O(n²) worst-case time, O(1) space

intersects_with()

intersects_with(other: Geometry) -> bool

Check if this geometry intersects with another.

Parameter	Type	Description
other	Geometry	The other geometry.
Returns	bool	True if the geometries intersect.
Complexity		O(n * m) worst-case time, O(1) space where n and m are the number of segments in each geometry

is_closed()

is_closed(tolerance: float = 1e-06) -> bool

Check if the geometry forms a closed path.

Parameter	Type	Description
tolerance	float = 1e-06	Max gap between start and end point.
Returns	bool	True if the geometry forms a closed path.
Complexity		O(n) time, O(1) space

is_empty()

is_empty() -> bool

Check if the geometry has no commands.

Parameter	Type	Description
Returns	bool	True if the geometry has no commands.
Complexity		O(1) time, O(1) space

iter_commands()

iter_commands() -> list[Any]

Iterate over all commands as typed command objects.

Parameter	Type	Description
Returns	list[Any]	List of typed command objects.
Complexity		O(n) time, O(n) space

iter_typed_commands()

iter_typed_commands() -> list[Move | Line | Arc | Bezier]

Iterate over all commands as typed command objects.

Parameter	Type	Description
Returns	list[Move | Line | Arc | Bezier]
Complexity		O(n) time, O(n) space

line_to()

line_to(x: float, y: float, z: float = 0.0) -> Geometry

Draw a line to the given coordinates.

Parameter	Type	Description
x	float	X coordinate.
y	float	Y coordinate.
z	float = 0.0	Z coordinate (default 0.0).
Returns	Geometry	The geometry (for method chaining).
Complexity		O(1) time, O(1) space

linearize()

linearize(tolerance: float) -> Geometry

Convert all curves to line segments.

Parameter	Type	Description
tolerance	float	Maximum deviation from curves.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(n) space

map_to_frame()

map_to_frame(
    origin: tuple[float, float],
    p_width: tuple[float, float],
    p_height: tuple[float, float],
    anchor_y: Optional[float] = None,
    stable_src_height: Optional[float] = None,
    anchor_x: Optional[float] = None,
    stable_src_width: Optional[float] = None,
) -> Geometry

Map the geometry into a rectangular frame.

Parameter	Type	Description
origin	tuple[float, float]	Frame origin (x, y).
p_width	tuple[float, float]	Frame width vector.
p_height	tuple[float, float]	Frame height vector.
anchor_y	Optional[float] = None	Y anchor position.
stable_src_height	Optional[float] = None	Stable source height for anchoring.
anchor_x	Optional[float] = None	X anchor position.
stable_src_width	Optional[float] = None	Stable source width for anchoring.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(n) space

move_to()

move_to(x: float, y: float, z: float = 0.0) -> Geometry

Move the pen to the given coordinates.

Parameter	Type	Description
x	float	X coordinate.
y	float	Y coordinate.
z	float = 0.0	Z coordinate (default 0.0).
Returns	Geometry	The geometry (for method chaining).
Complexity		O(1) time, O(1) space

normalize_winding_orders()

normalize_winding_orders() -> Geometry

Normalize winding orders (outer CCW, inner CW) of all contours.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n log n) average time, O(n) space

rect()

rect() -> tuple[float, float, float, float]

Return the bounding rectangle (x_min, y_min, x_max, y_max).

Parameter	Type	Description
Returns	tuple[float, float, float, float]	(x_min, y_min, x_max, y_max).
Complexity		O(n) time, O(1) space

remove_inner_edges()

remove_inner_edges() -> Geometry

Remove inner edges (shared between contours).

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(n) space

reverse_contour()

reverse_contour() -> Geometry

Reverse the winding direction of all contours.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(n) space

segment_bounds()

segment_bounds(index: int) -> Optional[tuple[float, float, float, float]]

Return the bounding box of a single segment at the given index. Returns None for Move commands or if the index is out of bounds.

Parameter	Type	Description
index	int	Segment index.
Returns	Optional[tuple[float, float, float, float]]	(x_min, y_min, x_max, y_max) or None.
Complexity		O(1) time, O(1) space

segments()

segments() -> list[list[tuple[float, float, float]]]

Return the geometry split into segments of connected commands.

Parameter	Type	Description
Returns	list[list[tuple[float, float, float]]]	List of segments, each a list of 3D points.
Complexity		O(n) time, O(n) space

segments_in_frame()

segments_in_frame(x1: float, y1: float, x2: float, y2: float) -> list[int]

Return indices of all segments whose bounding box intersects the given rectangle. Excludes Move commands.

Parameter	Type	Description
x1	float	First corner X.
y1	float	First corner Y.
x2	float	Second corner X.
y2	float	Second corner Y.
Returns	list[int]	List of segment indices.
Complexity		O(n) time, O(n) space

simplify()

simplify(tolerance: float) -> Geometry

Simplify the geometry using Ramer-Douglas-Peucker.

Parameter	Type	Description
tolerance	float	Maximum deviation from original.
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n log n) average time, O(n) space

split_inner_and_outer_contours()

split_inner_and_outer_contours() -> tuple[list[Geometry], list[Geometry]]

Split contours into inner and outer groups.

Parameter	Type	Description
Returns	tuple[list[Geometry], list[Geometry]]	Tuple of (inner_contours, outer_contours), each a list of Geometry.
Complexity		O(n log n) average time, O(n) space

split_into_components()

split_into_components() -> list[Geometry]

Split the geometry into connected components.

Parameter	Type	Description
Returns	list[Geometry]	List of Geometry objects, one per connected component.
Complexity		O(n log n) average time, O(n) space

split_into_contours()

split_into_contours() -> list[Geometry]

Split the geometry into individual contours.

Parameter	Type	Description
Returns	list[Geometry]	List of Geometry objects, one per contour.
Complexity		O(n) time, O(n) space

to_dict()

to_dict() -> dict

Serialize the geometry to a dictionary.

Parameter	Type	Description
Returns	dict	A dictionary representation of the geometry.
Complexity		O(n) time, O(n) space

to_polygons()

to_polygons(tolerance: float = 0.01) -> list[list[tuple[float, float]]]

Convert the geometry to a list of polygons.

Parameter	Type	Description
tolerance	float = 0.01	Max deviation for linearization.
Returns	list[list[tuple[float, float]]]	List of polygons, each a list of (x, y) vertices.
Complexity		O(n) time, O(n) space

transform()

transform(matrix: Matrix | types.TransformMatrix) -> Geometry

Apply an affine transformation matrix.

Parameter	Type	Description
matrix	Matrix | types.TransformMatrix	A ~raygeo.geo.Matrix or a 4x4 matrix as list of lists.
Returns	Geometry	A new transformed Geometry.
Complexity		O(n) time, O(n) space

upgrade_to_scalable()

upgrade_to_scalable() -> Geometry

Convert all arcs to bezier curves for uniform scaling.

Parameter	Type	Description
Returns	Geometry	The geometry (for method chaining).
Complexity		O(n) time, O(n) space

Line

A straight-line cutting command.

end

end: tuple[float, float, float]

Endpoint of the line in 3D space.

Matrix

A 3x3 affine transformation matrix for 2D graphics.

Provides an object-oriented interface for matrix operations, including translations, rotations, and scaling.

compose()

@classmethod
compose(
    tx: float,
    ty: float,
    angle_deg: float,
    sx: float,
    sy: float,
    skew_angle_deg: float,
) -> Matrix

Compose a matrix from translation, rotation, scale, and skew.

Parameter	Type	Description
tx	float	Translation x.
ty	float	Translation y.
angle_deg	float	Rotation angle in degrees.
sx	float	Scale x.
sy	float	Scale y.
skew_angle_deg	float	Skew angle in degrees.
Returns	Matrix	A new Matrix.

copy()

copy() -> Matrix

Return a deep copy of this matrix.

Parameter	Type	Description
Returns	Matrix

decompose()

decompose() -> tuple[float, float, float, float, float, float]

Decompose the matrix into translation, rotation, scale, and skew.

Parameter	Type	Description
Returns	tuple[float, float, float, float, float, float]	(tx, ty, angle_deg, sx, sy, skew_angle_deg).

flip_horizontal()

@classmethod
flip_horizontal(
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Create a horizontal flip matrix.

Parameter	Type	Description
center	Optional[tuple[float, float]] = None
Returns	Matrix

flip_vertical()

@classmethod
flip_vertical(
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Create a vertical flip matrix.

Parameter	Type	Description
center	Optional[tuple[float, float]] = None
Returns	Matrix

for_cairo()

for_cairo() -> tuple[float, float, float, float, float, float]

Returns the matrix components in Cairo order (xx, yx, xy, yy, x0, y0).

Parameter	Type	Description
Returns	tuple[float, float, float, float, float, float]

from_list()

@classmethod from_list(data: Sequence[Sequence[float]]) -> Matrix

Create a Matrix from a list of lists.

Parameter	Type	Description
data	Sequence[Sequence[float]]
Returns	Matrix

get()

get(row: int, col: int) -> float

Get a single element from the 3x3 matrix (row-major indexing).

Parameter	Type	Description
row	int
col	int
Returns	float

get_abs_scale()

get_abs_scale() -> tuple[float, float]

Extract the absolute scale components (|sx|, |sy|).

Parameter	Type	Description
Returns	tuple[float, float]

get_determinant_2x2()

get_determinant_2x2() -> float

Calculate the determinant of the top-left 2x2 sub-matrix.

Parameter	Type	Description
Returns	float

get_rotation()

get_rotation() -> float

Extract the rotation angle in degrees.

Parameter	Type	Description
Returns	float

get_scale()

get_scale() -> tuple[float, float]

Extract the signed scale components (sx, sy).

Parameter	Type	Description
Returns	tuple[float, float]

get_translation()

get_translation() -> tuple[float, float]

Extract the translation component (tx, ty).

Parameter	Type	Description
Returns	tuple[float, float]

get_x_axis_angle()

get_x_axis_angle() -> float

Calculate the angle of the transformed X-axis in degrees.

Parameter	Type	Description
Returns	float

get_y_axis_angle()

get_y_axis_angle() -> float

Calculate the angle of the transformed Y-axis in degrees.

Parameter	Type	Description
Returns	float

has_zero_scale()

has_zero_scale(tolerance: float = 1e-06) -> bool

Check if the matrix has zero scale on any axis.

Parameter	Type	Description
tolerance	float = 1e-06	Threshold below which a scale is considered zero.
Returns	bool

identity()

@classmethod identity() -> Matrix

Create an identity matrix.

Parameter	Type	Description
Returns	Matrix

invert()

invert() -> Matrix

Compute the inverse of the matrix.

Will raise an error if the matrix is singular.

Parameter	Type	Description
Returns	Matrix

is_close()

is_close(other: Matrix, tol: float = 1e-06) -> bool

Check if two matrices are effectively equal within tolerance.

Parameter	Type	Description
other	Matrix	The matrix to compare against.
tol	float = 1e-06	The absolute tolerance parameter.
Returns	bool

is_flipped()

is_flipped() -> bool

Check if the matrix includes a reflection (flip).

Parameter	Type	Description
Returns	bool

is_identity()

is_identity() -> bool

Check if the matrix is an identity matrix.

Parameter	Type	Description
Returns	bool

post_rotate()

post_rotate(
    angle_deg: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Apply a rotation after this matrix's transformation.

Parameter	Type	Description
angle_deg	float	Rotation angle in degrees.
center	Optional[tuple[float, float]] = None	Optional center point to rotate around.
Returns	Matrix

post_scale()

post_scale(
    sx: float,
    sy: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Apply a scale after this matrix's transformation.

Parameter	Type	Description
sx	float	Scale factor for x-axis.
sy	float	Scale factor for y-axis.
center	Optional[tuple[float, float]] = None	Optional center point to scale around.
Returns	Matrix

post_shear()

post_shear(
    shx: float,
    shy: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Apply a shear after this matrix's transformation.

Parameter	Type	Description
shx	float	Shear factor for x-axis.
shy	float	Shear factor for y-axis.
center	Optional[tuple[float, float]] = None	Optional center point to shear around.
Returns	Matrix

post_translate()

post_translate(tx: float, ty: float) -> Matrix

Apply a translation after this matrix's transformation.

Parameter	Type	Description
tx	float
ty	float
Returns	Matrix

pre_rotate()

pre_rotate(
    angle_deg: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Apply a rotation before this matrix's transformation.

Parameter	Type	Description
angle_deg	float	Rotation angle in degrees.
center	Optional[tuple[float, float]] = None	Optional center point to rotate around.
Returns	Matrix

pre_scale()

pre_scale(
    sx: float,
    sy: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Apply a scale before this matrix's transformation.

Parameter	Type	Description
sx	float	Scale factor for x-axis.
sy	float	Scale factor for y-axis.
center	Optional[tuple[float, float]] = None	Optional center point to scale around.
Returns	Matrix

pre_shear()

pre_shear(
    shx: float,
    shy: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Apply a shear before this matrix's transformation.

Parameter	Type	Description
shx	float	Shear factor for x-axis.
shy	float	Shear factor for y-axis.
center	Optional[tuple[float, float]] = None	Optional center point to shear around.
Returns	Matrix

pre_translate()

pre_translate(tx: float, ty: float) -> Matrix

Apply a translation before this matrix's transformation.

Parameter	Type	Description
tx	float
ty	float
Returns	Matrix

rotation()

@classmethod
rotation(
    angle_deg: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Create a rotation matrix.

Parameter	Type	Description
angle_deg	float	Rotation angle in degrees.
center	Optional[tuple[float, float]] = None	Optional (x, y) center point to rotate around.
Returns	Matrix

scale()

@classmethod
scale(
    sx: float,
    sy: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Create a scaling matrix.

Parameter	Type	Description
sx	float	Scale factor for x-axis.
sy	float	Scale factor for y-axis.
center	Optional[tuple[float, float]] = None	Optional (x, y) center point to scale around.
Returns	Matrix

set_translation()

set_translation(tx: float, ty: float) -> Matrix

Returns a new matrix with the same rotation/scale/shear but new translation.

Parameter	Type	Description
tx	float	New translation x.
ty	float	New translation y.
Returns	Matrix

shear()

@classmethod
shear(
    shx: float,
    shy: float,
    center: Optional[tuple[float, float]] = None,
) -> Matrix

Create a shearing matrix.

Parameter	Type	Description
shx	float	Shear factor for x-axis.
shy	float	Shear factor for y-axis.
center	Optional[tuple[float, float]] = None	Optional (x, y) center point to shear around.
Returns	Matrix

to_4x4_list()

to_4x4_list() -> list[list[float]]

Converts the matrix to a 4x4 list of lists (row-major). The 3x3 Matrix is placed in the top-left 2x2 of the 4x4, with translation in the last column, and Z preserved.

Parameter	Type	Description
Returns	list[list[float]]

to_4x4_numpy()

to_4x4_numpy() -> numpy.NDArray[numpy.float64]

Return the matrix as a 4x4 numpy array (affine, Z-preserving).

Parameter	Type	Description
Returns	numpy.NDArray[numpy.float64]

to_graphene()

to_graphene() -> tuple[float, float, float, float, float, float]

Returns (xx, yx, xy, yy, x0, y0) for GTK/Graphene.

Parameter	Type	Description
Returns	tuple[float, float, float, float, float, float]

to_list()

to_list() -> list[list[float]]

Returns a copy of the matrix data as a list of lists.

Parameter	Type	Description
Returns	list[list[float]]

to_numpy()

to_numpy() -> numpy.NDArray[numpy.float64]

Return the matrix as a 3x3 numpy array.

Parameter	Type	Description
Returns	numpy.NDArray[numpy.float64]

transform_point()

transform_point(*args: float | tuple[float, float]) -> tuple[float, float]

Apply the affine transformation to a 2D point.

Parameter	Type	Description
*args	float | tuple[float, float]
Returns	tuple[float, float]

transform_rectangle()

transform_rectangle(
    *args: float | tuple[float, float, float, float],
) -> tuple[float, float, float, float]

Transform a rectangle and return the new axis-aligned bounding box.

Parameter	Type	Description
*args	float | tuple[float, float, float, float]
Returns	tuple[float, float, float, float]

transform_vector()

transform_vector(*args: float | tuple[float, float]) -> tuple[float, float]

Apply the transformation to a 2D vector, ignoring translation.

Parameter	Type	Description
*args	float | tuple[float, float]
Returns	tuple[float, float]

translation()

@classmethod translation(tx: float, ty: float) -> Matrix

Create a translation matrix.

Parameter	Type	Description
tx	float	Translation in x.
ty	float	Translation in y.
Returns	Matrix

without_translation()

without_translation() -> Matrix

Returns a new matrix with translation set to zero.

Parameter	Type	Description
Returns	Matrix

Move

A rapid-move command with an endpoint but no cutting.

end

end: tuple[float, float, float]

Endpoint of the move in 3D space.
