raygeo.image

Image processing functions for CNC engraving applications.

Provides sRGB/linear color space conversions, RGBA-to-grayscale/binary conversions with alpha unpremultiplication, grayscale normalization with auto-levels, dithering algorithms (Floyd-Steinberg, Bayer, minimum run length) for converting grayscale images to binary output, and scanline rasterization for converting Ops scanlines into pixel buffers.

Functions

rasterize_scanlines()

rasterize_scanlines(
    ops: ops.Ops,
    width_px: int,
    height_px: int,
    px_per_mm: tuple[float, float],
    origin_mm: tuple[float, float] = (0, 0),
    radius_px: int = 0,
) -> compressed_array.CompressedArray

Rasterize ScanLine commands from ops into a 2D power-map buffer.

Iterates all scanline commands in ops, converts their mm coordinates to pixel space using px_per_mm, and returns a uint8 array where each pixel holds the maximum power value written to it.

When radius_px is greater than zero, each rasterized sample is expanded to a square brush of side 2*radius_px + 1 (max-merged), equivalent to a square morphological dilation of the thin raster. Coverage is bounds-clamped at the texture edges (no wraparound).

Parameter	Type	Description
ops	ops.Ops	Command sequence to rasterize.
width_px	int	Width of the output texture in pixels.
height_px	int	Height of the output texture in pixels.
px_per_mm	tuple[float, float]	(x, y) resolution in pixels per millimeter.
origin_mm	tuple[float, float] = (0, 0)	(x, y) origin offset in mm (default (0.0, 0.0)).
radius_px	int = 0	Half-size of the dilation brush in pixels (default 0 -- no dilation).
Returns	compressed_array.CompressedArray	CompressedArray of shape (height_px, width_px), uint8.
Complexity		O(scanline_pixels * (2*radius_px + 1))

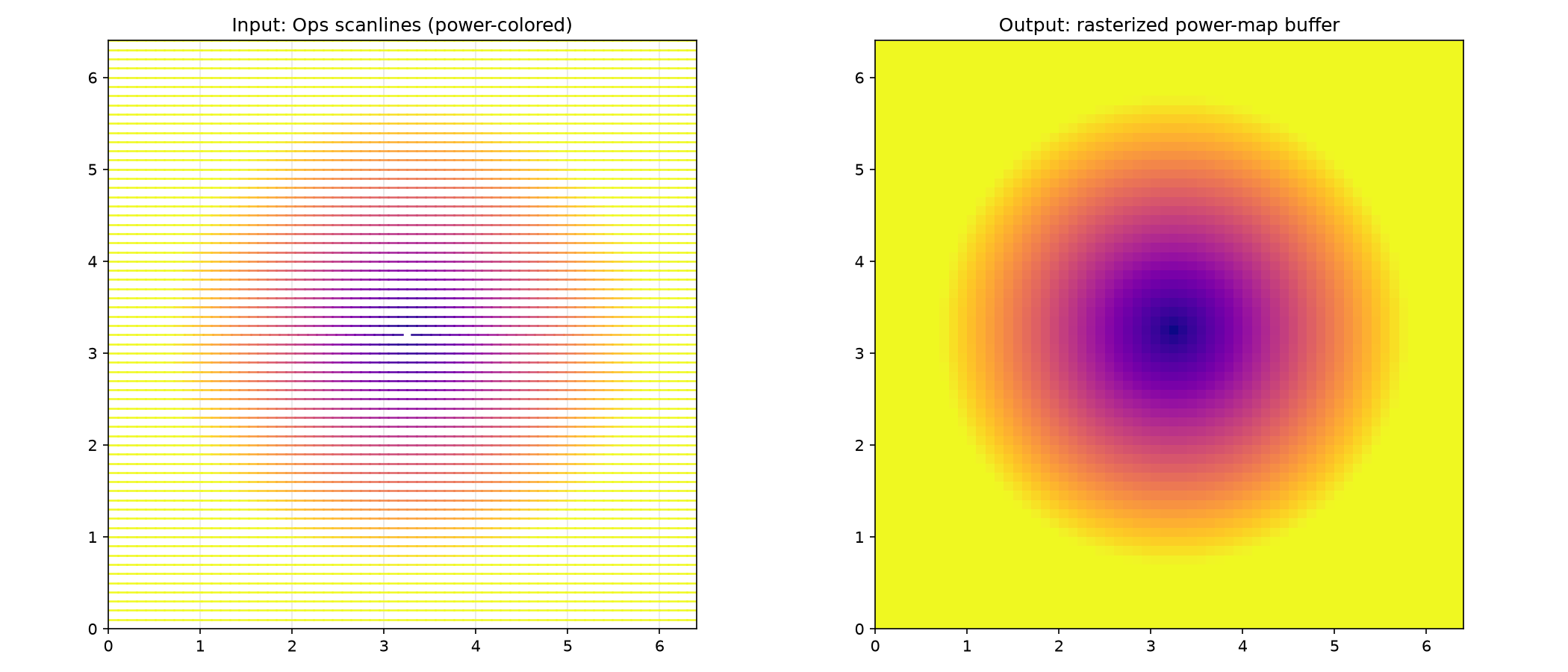

Scanline ops rasterized into a 2D power-map buffer
