raygeo.ops.assembly.slot

SlotSpec

Parameters for the slot assembler.

carrier

carrier: list[tuple[float, float]]

(x, y) carrier waypoints.

target_z

target_z: float

tool_radius

tool_radius: float

Functions

generate_slot()

generate_slot(
    part: ops.part.Part,
    carrier: Sequence[tuple[float, float]],
    tool_radius: float,
    target_z: float,
    state: ops.state.State | None = None,
) -> ops.assembly.AssemblyResult

Generate a back-and-forth slot clearing path along a carrier.

Produces a forward pass then a backward pass along the carrier, both at constant target_z. The cleared polygon is the carrier swept by tool_radius (Minkowski sum).

Parameter	Type	Description
part	ops.part.Part
carrier	Sequence[tuple[float, float]]	(x, y) waypoints (currently 2-point segment).
tool_radius	float	Tool radius in mm.
target_z	float	Cutting Z height.
state	ops.state.State | None = None	Optional machine state to apply before the path.
Returns	ops.assembly.AssemblyResult	An AssemblyResult with the slot path.

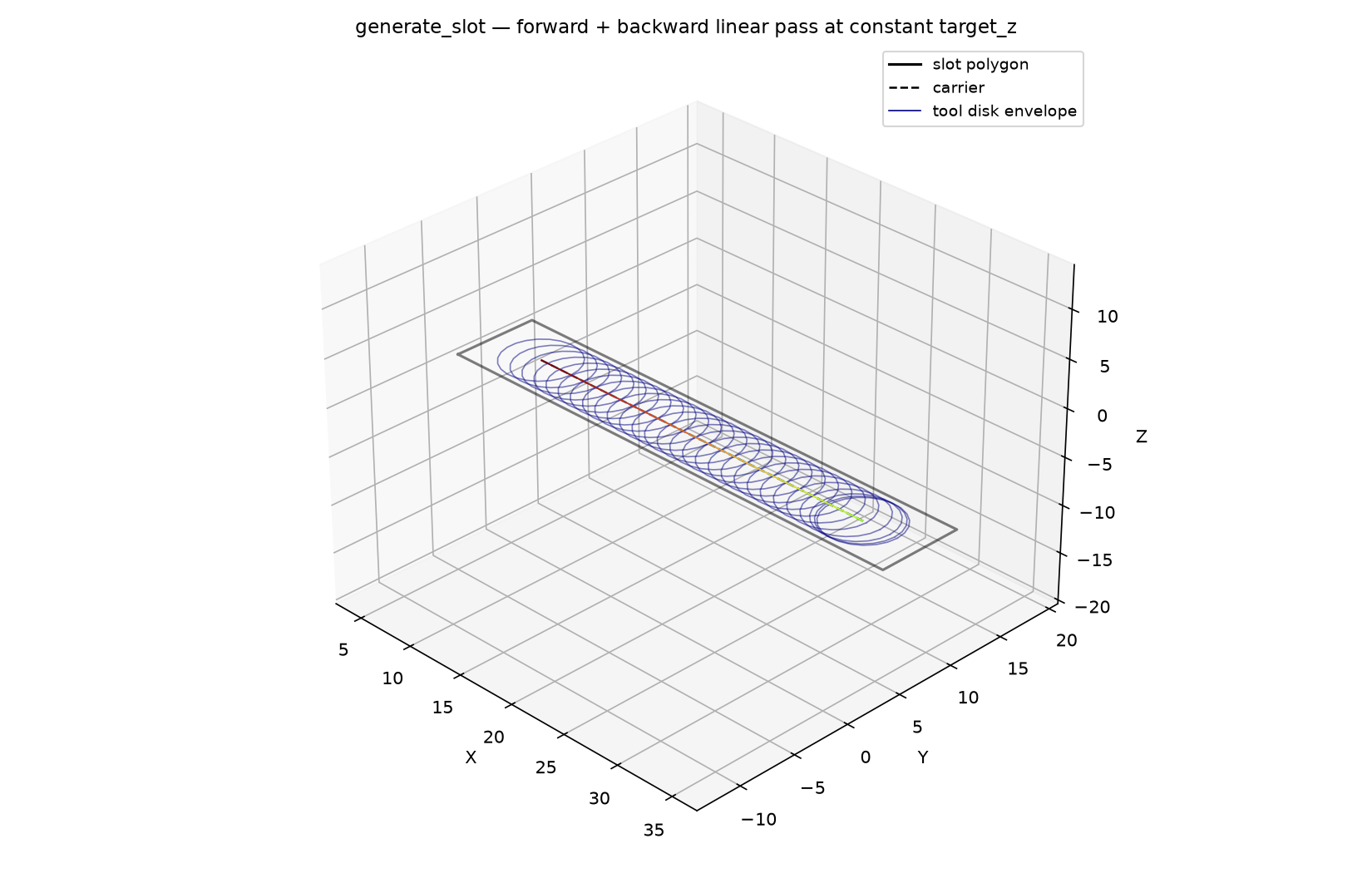

3D forward+backward slot path through a rectangular slot at constant depth, no trochoid.
