raygeo.ops.assembly.wavefront

Functions

adaptive_wavefronts()

adaptive_wavefronts(
    part: ops.part.Part,
    step_over: float = 2,
    z: float = 0,
    area_tolerance: float = 1,
    precision: float = 0,
    cut_feed_rate: int = 1200,
    cut_power: float = 1,
) -> ops.assembly.AssemblyResult

Inside-out adaptive wavefronts.

Finds the largest inscribed circle inside part's boundary, seeds the cleared area with concentric rings spaced step_over apart, then iteratively expands the frontier outward by step_over, clipping to the boundary. The loop terminates when the newly added area drops below area_tolerance.

Each ring fragment is emitted as MoveTo + LineTo at height z with cut_feed_rate applied.

Parameter	Type	Description
part	ops.part.Part	The part whose stock_region defines the pocket boundary and islands.
step_over	float = 2	Radial expansion per iteration (default 2.0).
z	float = 0	Z height for generated commands (default 0.0).
area_tolerance	float = 1	Minimum area increase to continue (default 1.0).
precision	float = 0	Edge tolerance for frontier simplification and vertex resampling; smaller values produce denser edges (default 0.0 = use internal default).
cut_feed_rate	int = 1200	Feed rate for cutting moves (default 1200).
cut_power	float = 1	Laser power for cutting moves (0.0-1.0, default 1.0).
Returns	ops.assembly.AssemblyResult	An AssemblyResult with wavefront cutting commands.

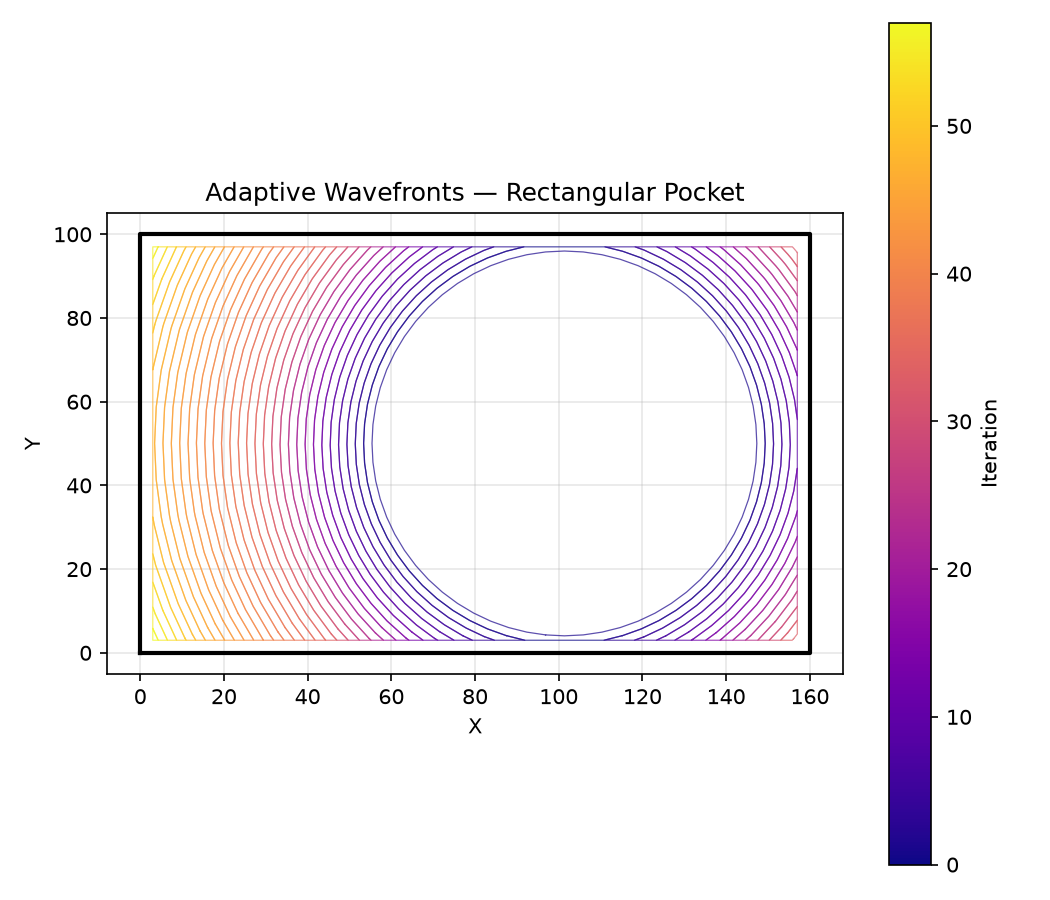

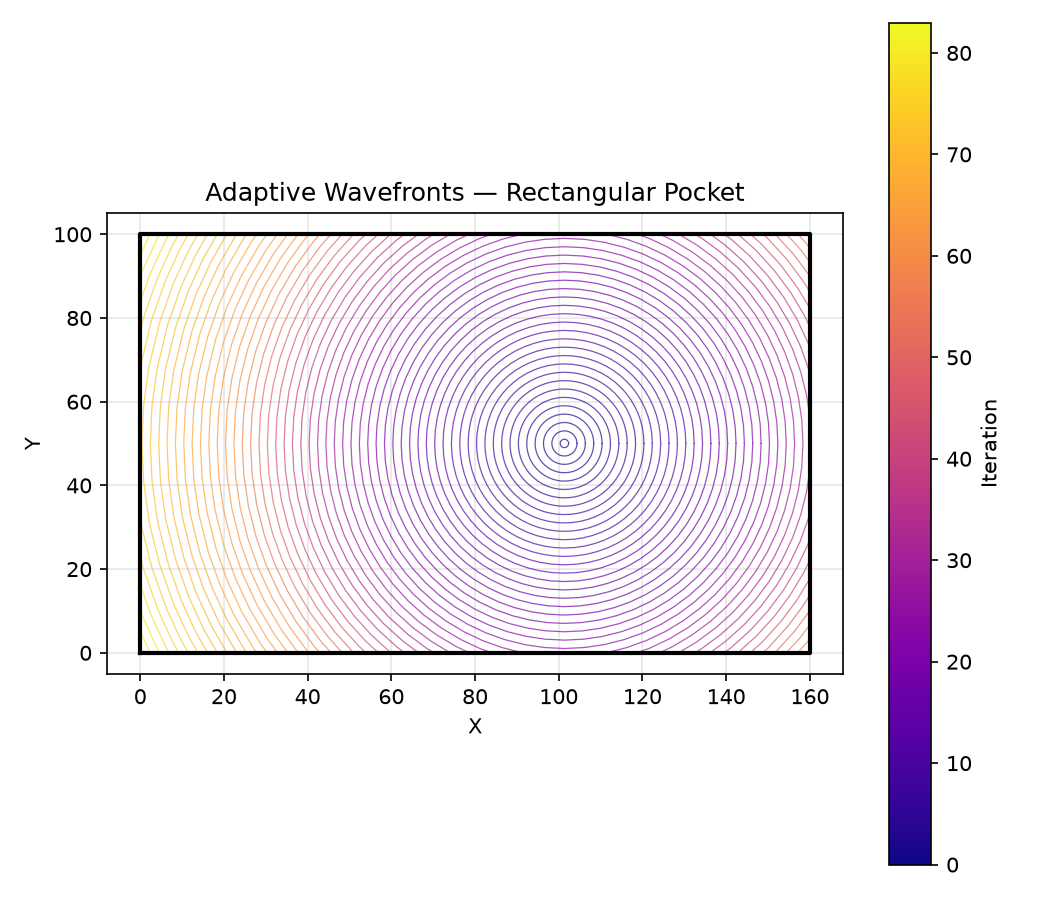

Adaptive wavefronts expand from the initial cleared disk (blue) to fill the pocket boundary (black)

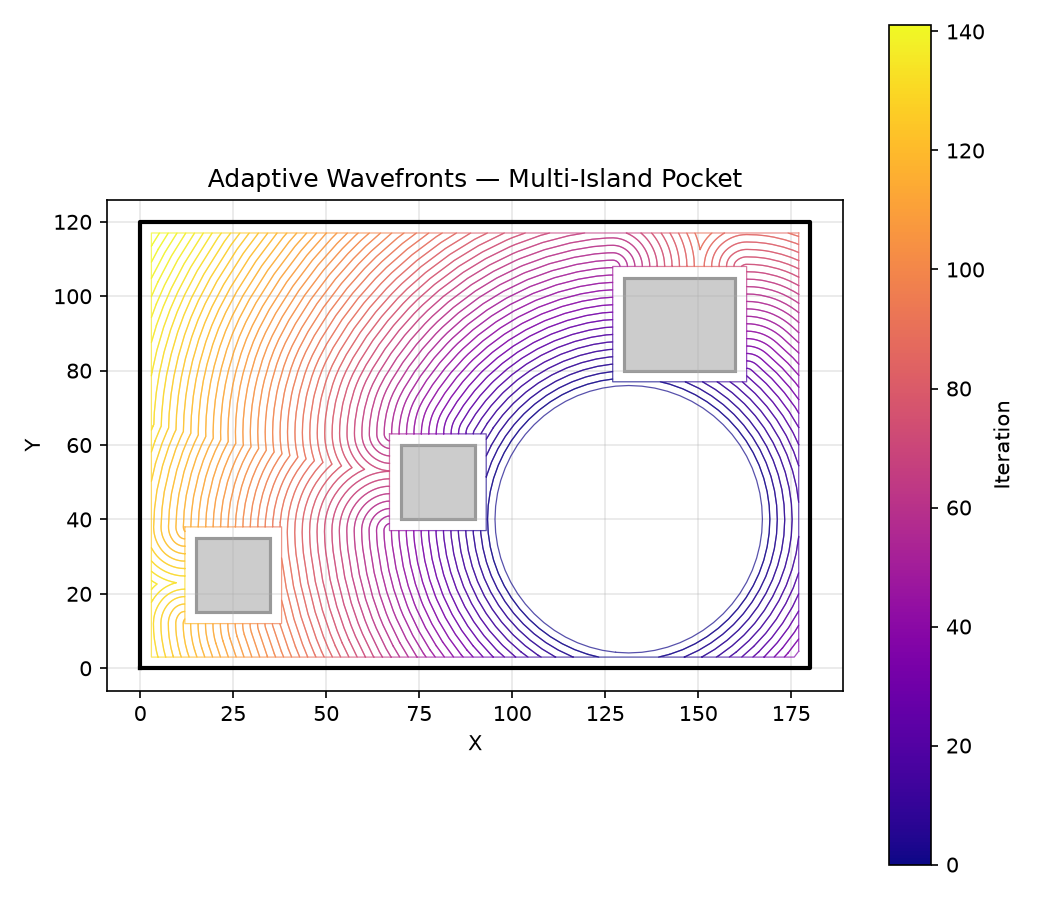

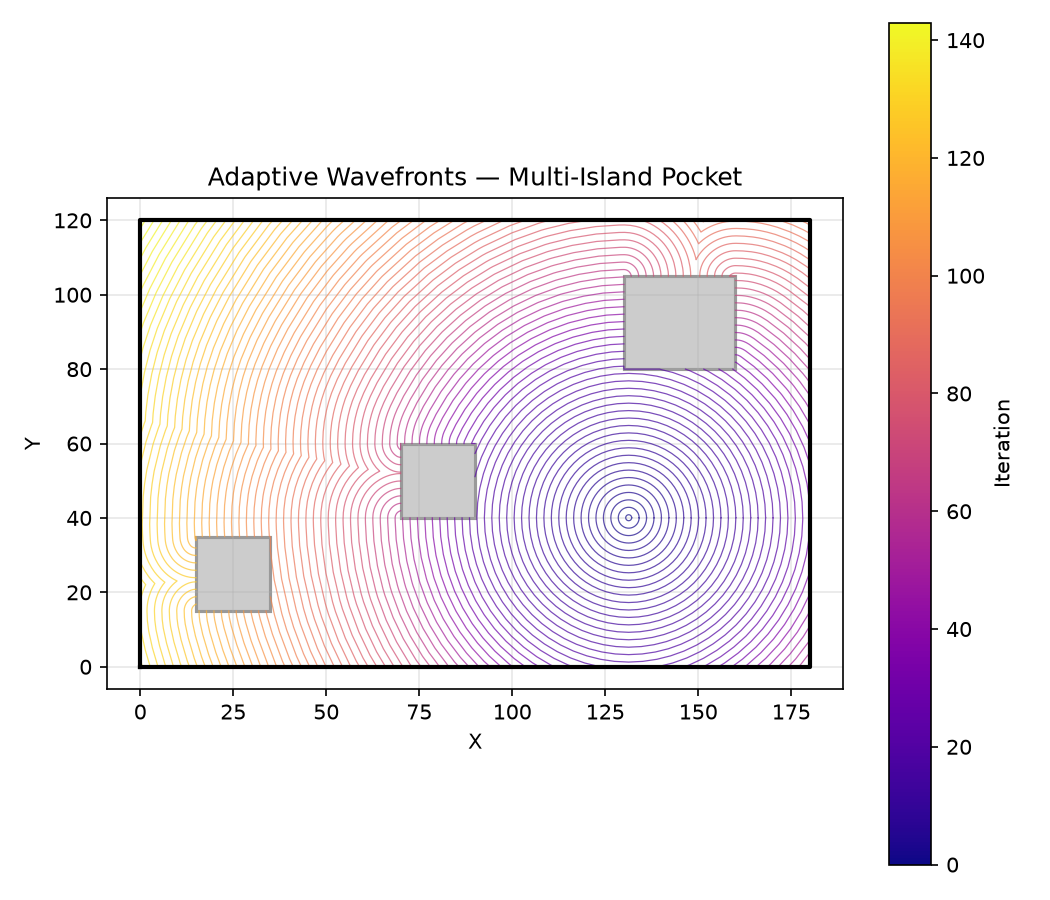

Adaptive wavefronts in a pocket with three islands — contours wrap around each island as they expand

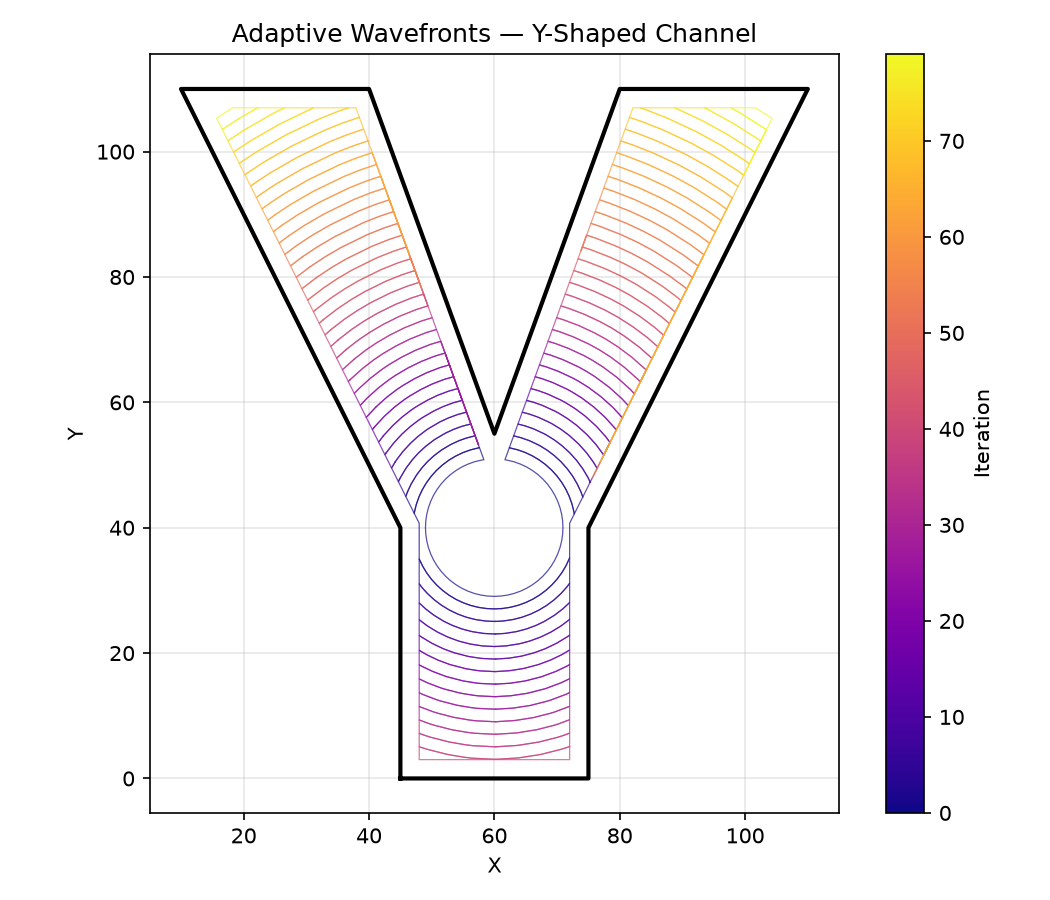

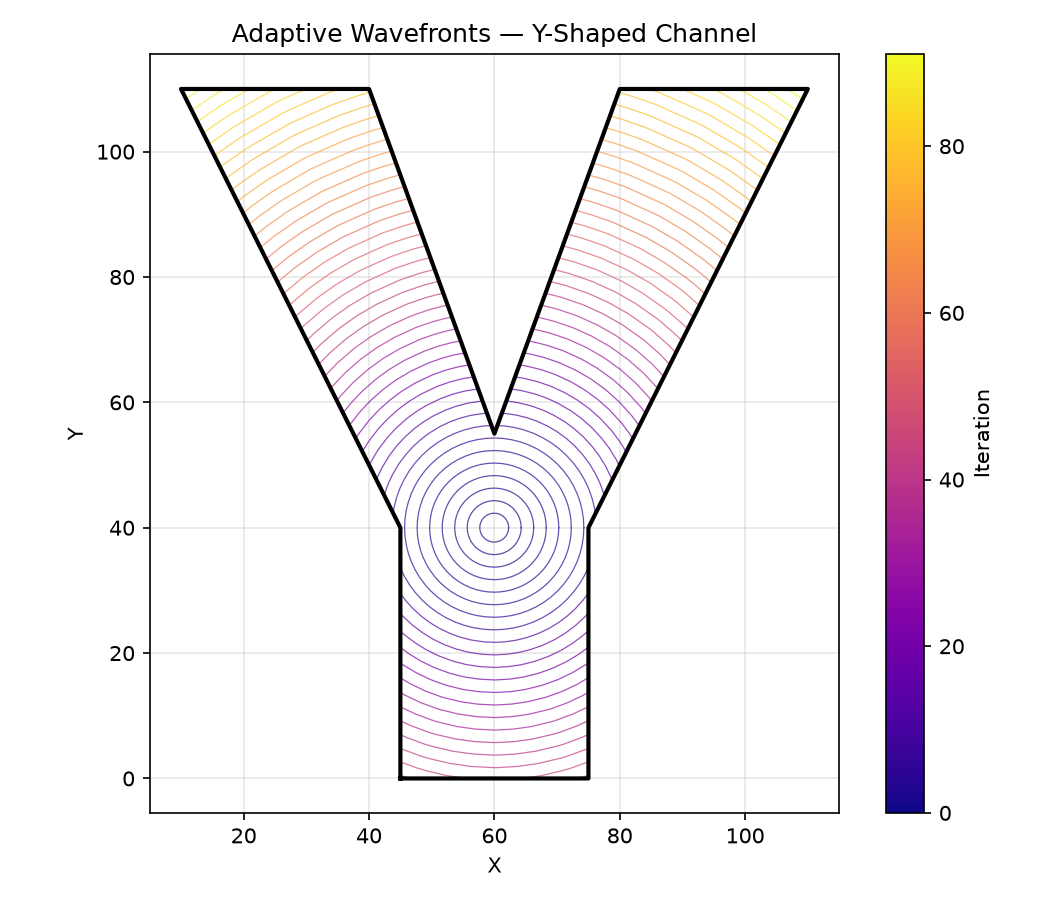

Adaptive wavefronts in a Y-shaped channel — contours split and propagate along each branch

adaptive_wavefronts_multi_pocket()

adaptive_wavefronts_multi_pocket(
    part: ops.part.Part,
    step_over: float = 2,
    offset_mm: float = 0,
    area_tolerance: float = 0.01,
    precision: float = 0,
    cut_feed_rate: int = 1200,
    cut_power: float = 1,
    profile: bool = False,
) -> ops.assembly.AssemblyResult

Multi-pocket adaptive wavefronts.

Extracts all pockets from part.geometry, optionally offsets the boundary inward by offset_mm, seeds each pocket with concentric rings spaced step_over apart, and runs wavefront expansion inside each pocket. Returns the combined result.

Raises: ValueError — If the part has no geometry or no closed contours.

Parameter	Type	Description
part	ops.part.Part	The part whose geometry defines the pockets.
step_over	float = 2	Radial expansion per iteration (default 2.0).
offset_mm	float = 0	Inward offset applied to all contours (default 0.0).
area_tolerance	float = 0.01	Minimum area increase to continue (default 0.01).
precision	float = 0	Edge tolerance for frontier simplification (default 0.0).
cut_feed_rate	int = 1200	Feed rate for cutting moves (default 1200).
cut_power	float = 1	Laser power for cutting moves (0.0-1.0, default 1.0).
profile	bool = False	Print a profiling report to stdout (default False).
Returns	ops.assembly.AssemblyResult	An AssemblyResult with combined wavefront paths.

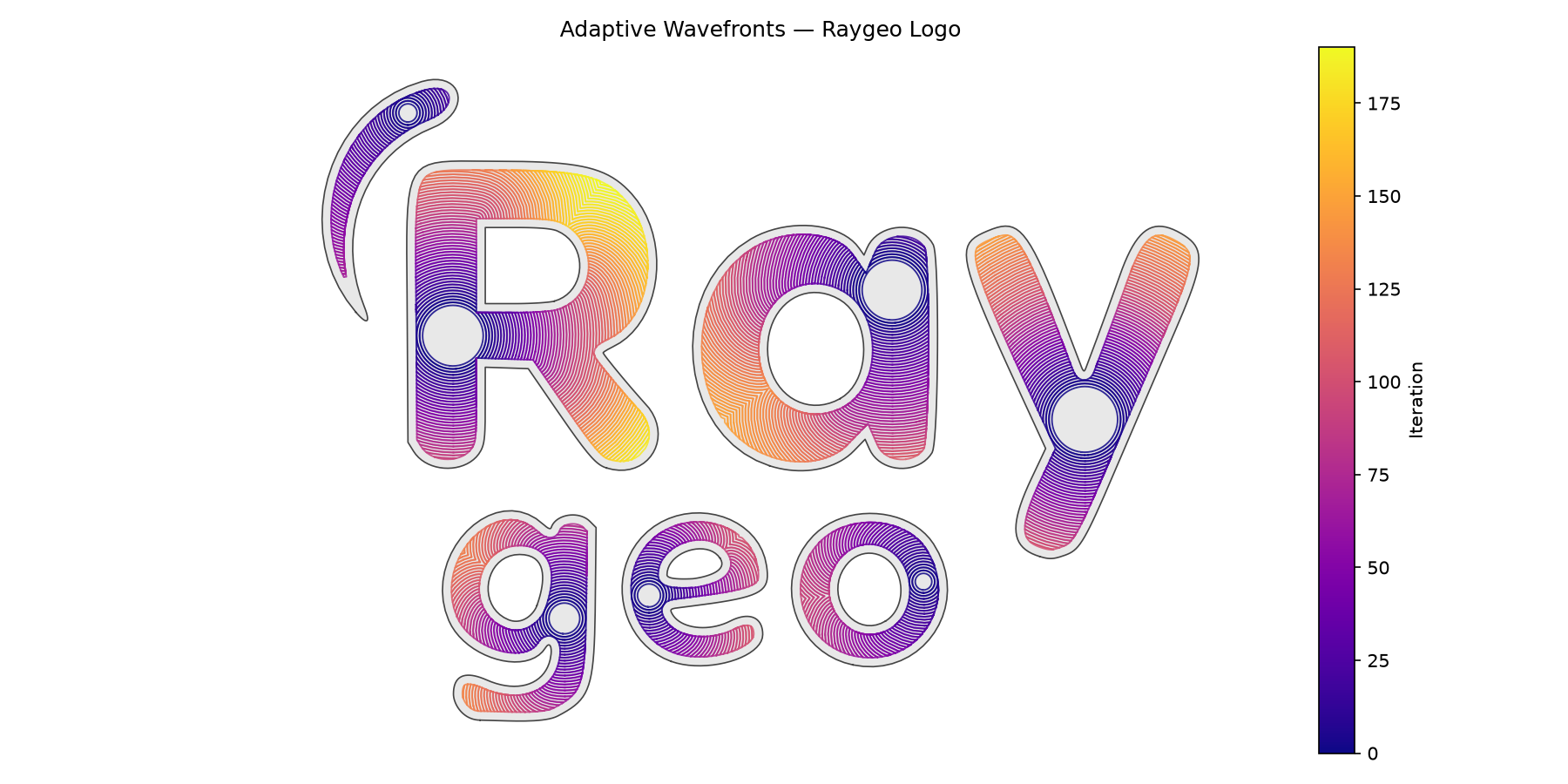

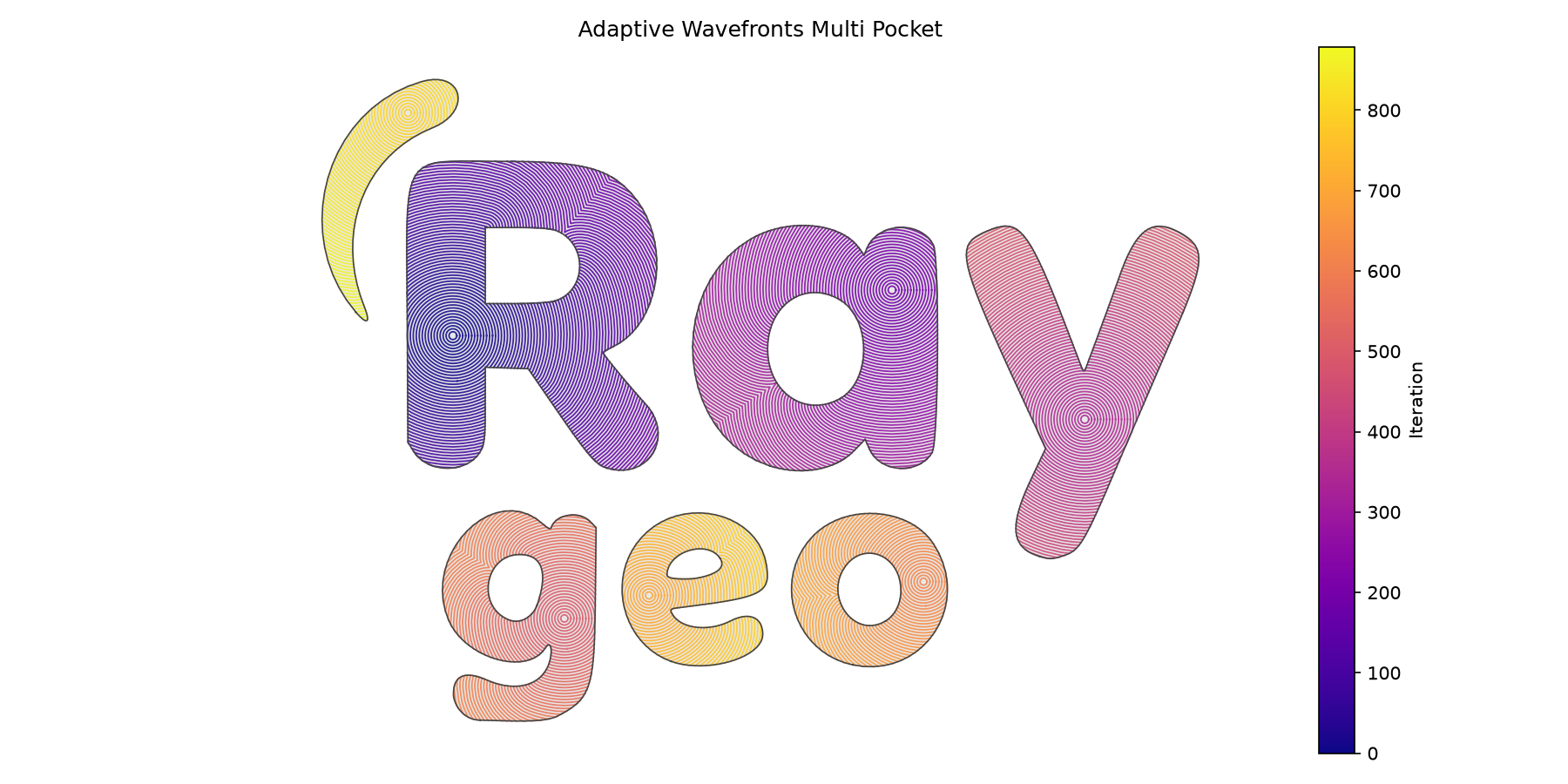

Adaptive wavefronts in a complex SVG shape — contours adapt to the boundary and wrap around islands
