generate_toroid()

generate_toroid(
    part: ops.part.Part,
    carrier: Sequence[tuple[float, float]],
    tool_radius: float,
    step_over: float,
    target_z: float,
    direction: str = 'CW',
    angular_step: float = 0.1,
    state: ops.state.State | None = None,
) -> ops.assembly.AssemblyResult

Generate a toroidal (trochoidal) path along a carrier.

Produces a trochoidal looping path that follows the carrier polyline, clearing a slot of width tool_radius.

Parameter	Type	Description
part	ops.part.Part
carrier	Sequence[tuple[float, float]]	List of (x, y) waypoints defining the slot axis.
tool_radius	float	Tool radius in mm.
step_over	float	Forward advance per trochoid loop.
target_z	float	Cutting Z height.
direction	str = 'CW'	"CW" or "CCW" (default "CW").
angular_step	float = 0.1	Angular step in radians (default 0.1).
state	ops.state.State | None = None	Optional machine state to apply before the path.
Returns	ops.assembly.AssemblyResult	An AssemblyResult with the toroidal path.

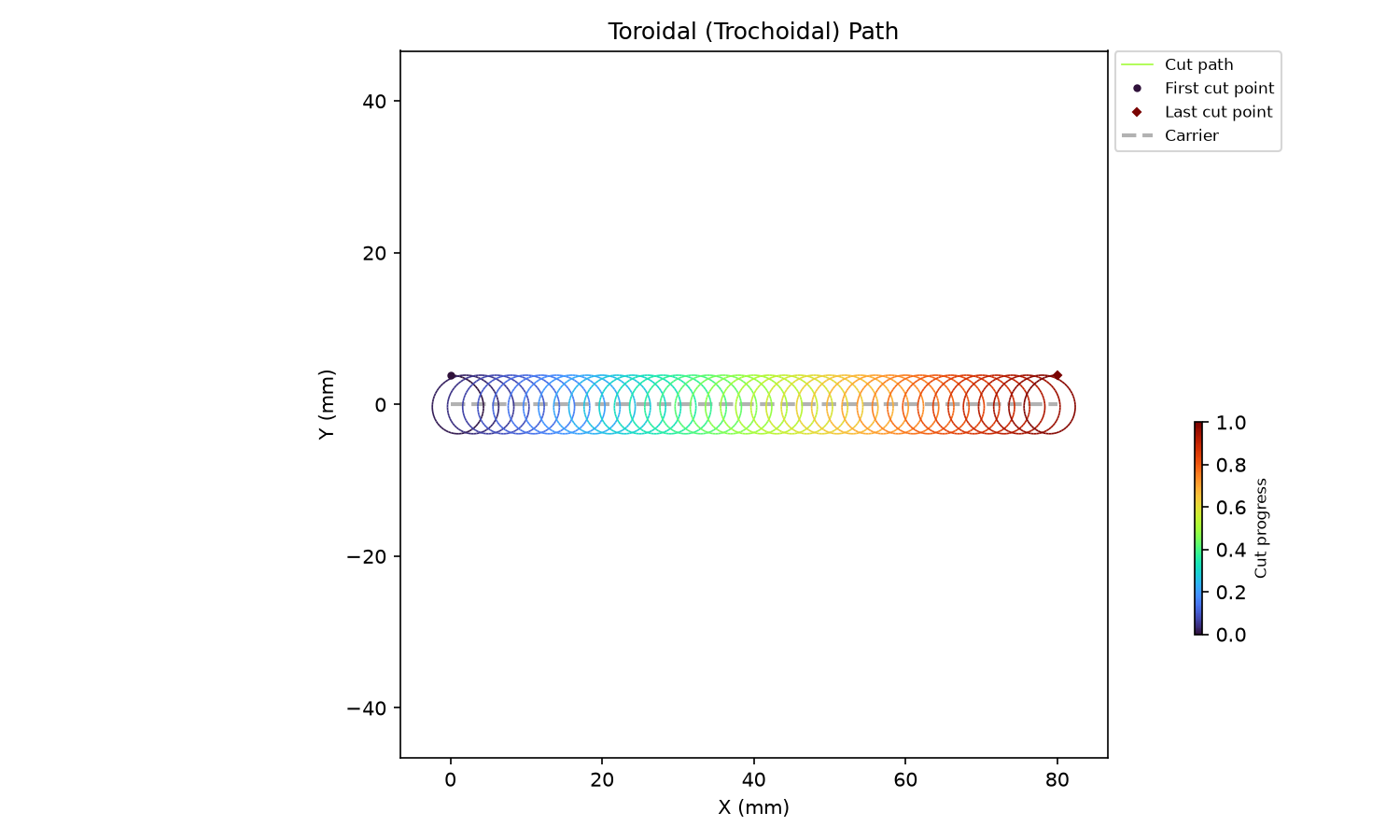

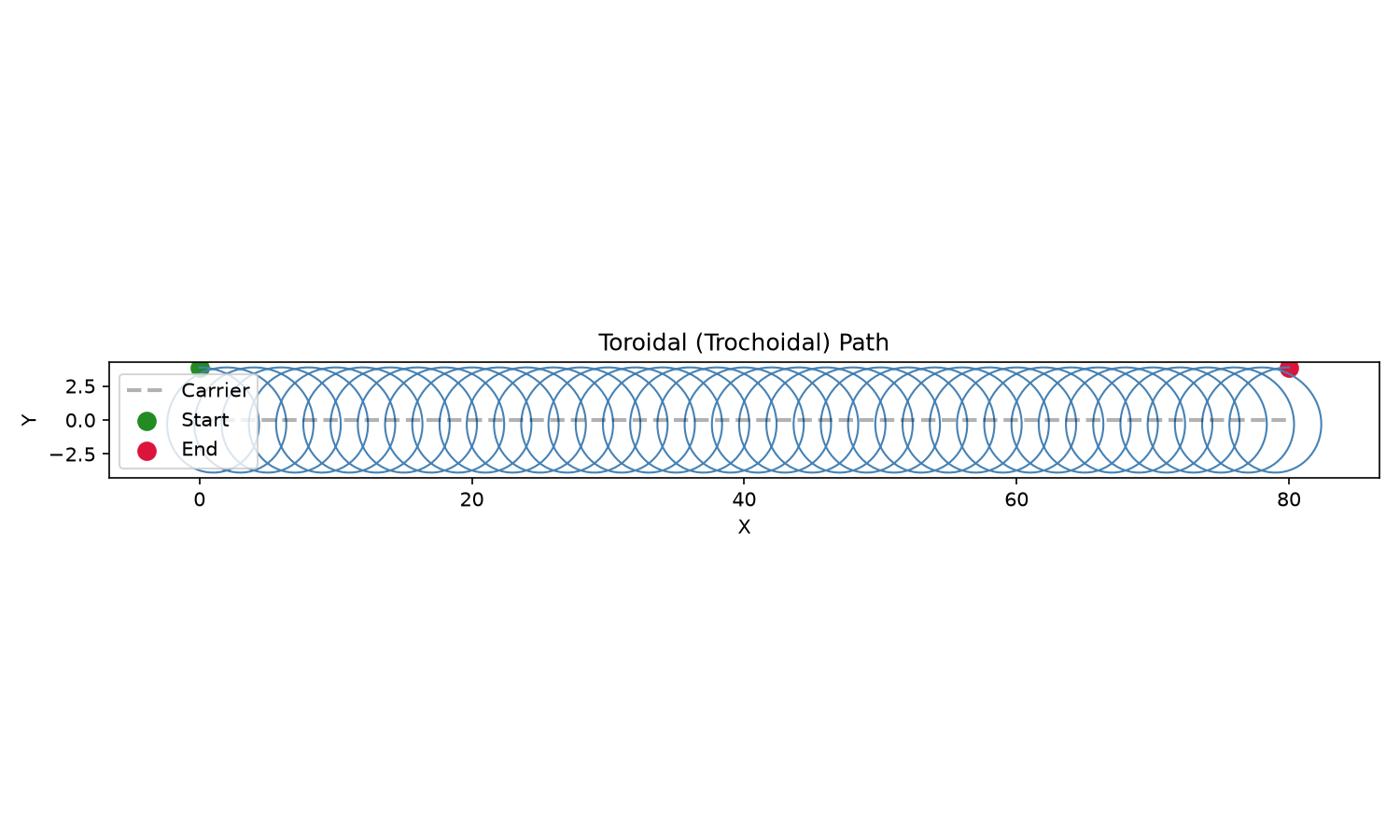

Trochoidal slot path along a carrier polyline

generate_toroidal_clear()

generate_toroidal_clear(
    part: ops.part.Part,
    carrier: Sequence[tuple[float, float]],
    start: tuple[float, float, float],
    target_z: float,
    tool_radius: float,
    step_over: float,
    max_ramp_angle_deg: float = 5,
    direction: str = 'CW',
    angular_step: float = 0.1,
    state: ops.state.State | None = None,
) -> ops.assembly.AssemblyResult

Generate a ramp-down toroidal clear path along a carrier.

Descends Z linearly along the carrier's arc-length at a slope capped by max_ramp_angle_deg, zig-zagging back-and-forth along the carrier until target_z is reached, then emits one final full forward pass at constant target_z.

Parameter	Type	Description
part	ops.part.Part
carrier	Sequence[tuple[float, float]]	2D polyline (x, y) waypoints defining the slot axis.
start	tuple[float, float, float]	(x, y, z) entry point; x, y should match carrier[0], z is the entry height.
target_z	float	Final cutting Z height.
tool_radius	float	Tool radius in mm.
step_over	float	Forward advance per trochoid loop.
max_ramp_angle_deg	float = 5	Maximum descent angle vs. the XY plane (default 5°).
direction	str = 'CW'	"CW" or "CCW" (default "CW").
angular_step	float = 0.1	Angular step in radians (default 0.1).
state	ops.state.State | None = None	Optional machine state.
Returns	ops.assembly.AssemblyResult	An AssemblyResult with the ramp-down + flat-final toroidal path.

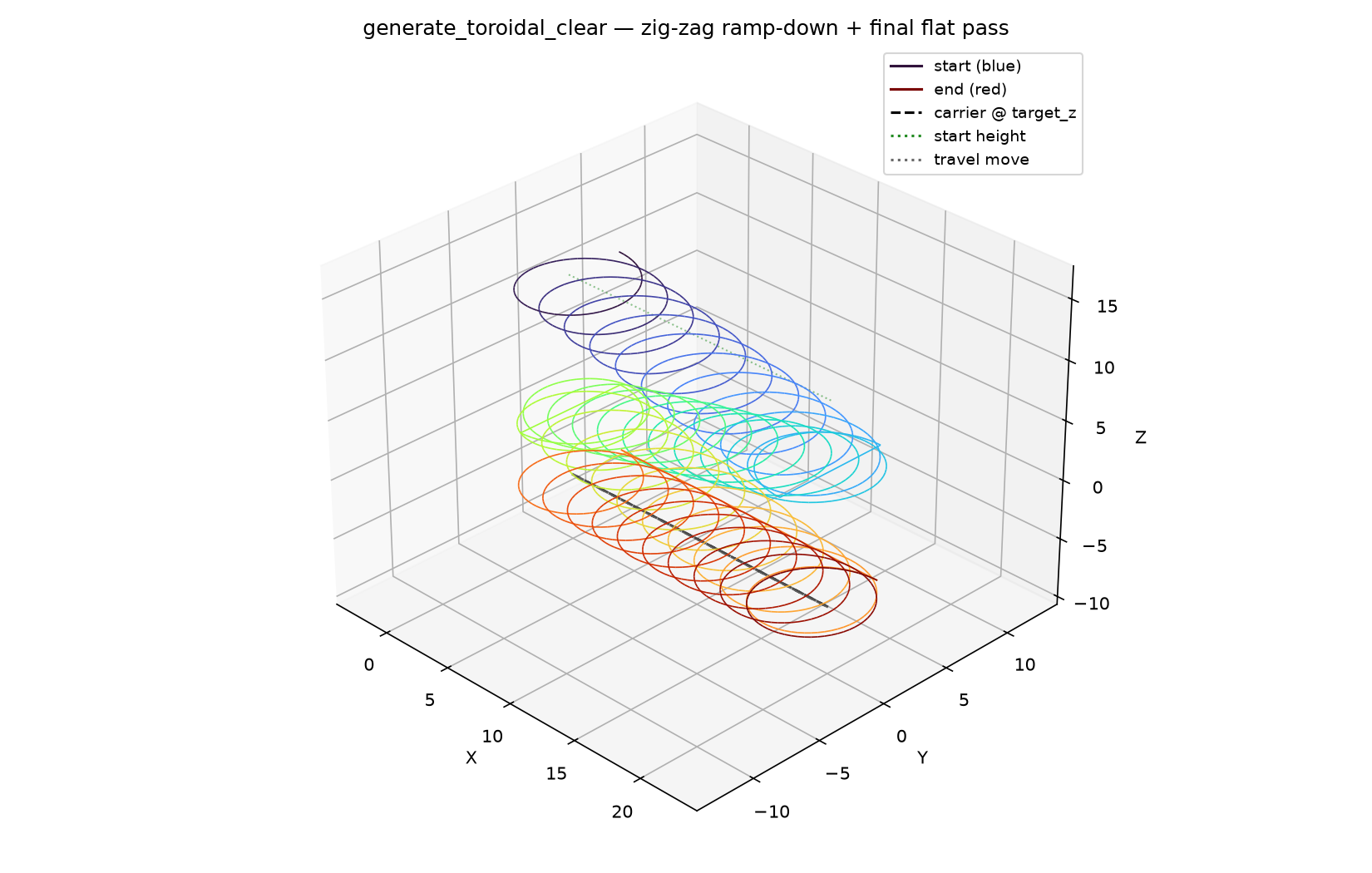

3D ramp-down toroidal clear zig-zagging along a short carrier with full ramp descent.
