raygeo.ops.assembly.adaptive

ResumePointNotFoundError

Raised when all resume strategies fail to find an engagement point.

RoutingError

Raised when all route strategies fail to find a path.

Functions

adaptive_clearing()

adaptive_clearing(
    part: ops.part.Part,
    tool_radius: float = 3,
    step_over: float = 1.5,
    step_length: float = 0.6,
    target_z: float = -5,
    safe_z: float = 2,
    max_deflection_deg: float = 30,
    wall_margin: float = 0,
    area_tolerance: float = 1,
    cut_feed_rate: int = 1200,
    cut_power: float = 1,
    start_pos: tuple[float, float] | None = None,
    start_heading: float | None = None,
    expansion_batch_size: int = 20,
    profile: bool = False,
    cut_direction: str = 'ccw',
    trace_path: str | None = None,
    on_progress: Callable[[dict], None] | None = None,
    batch_size: int = 128,
) -> ops.assembly.AssemblyResult

Run forward-stepping adaptive clearing.

Starting from the pre-populated cleared area inside part, uses a constant-engagement stepping solver to generate a continuous spiral toolpath from the seed clearing to the pocket wall.

The caller is responsible for populating the part's cleared area with the entry polygons (e.g. via a workplan built by raygeo.cnc.machining.entry.build_entry_workplan and executed by raygeo.cnc.machining.plan.Workplan) and prepending the entry Ops to the result.

Parameter	Type	Description
part	ops.part.Part	The part whose cleared field tracks accumulated workpiece state and whose geometry defines the pocket boundary and islands.
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 1.5	Step-over distance (default 1.5).
step_length	float = 0.6	Forward step length in mm (default 0.6).
target_z	float = -5	Cutting Z height (default -5.0).
safe_z	float = 2	Retract Z height for travel (default 2.0).
max_deflection_deg	float = 30	Maximum steering deflection per step in degrees (default 30).
wall_margin	float = 0	Extra clearance between tool and boundary (default 0.0).
area_tolerance	float = 1	Stop when remaining uncut area drops below this threshold (default 1.0).
cut_feed_rate	int = 1200	Feed rate for cutting moves (default 1200).
cut_power	float = 1	Laser power for cutting moves (0.0-1.0, default 1.0).
start_pos	tuple[float, float] | None = None	Initial tool position (x, y). When None, auto-detected from the cleared-area frontier.
start_heading	float | None = None	Initial tool heading in radians. When None, auto-detected as the CCW tangent at start_pos.
expansion_batch_size	int = 20	Batch cleared-area expansions every N steps (default 20). Larger values improve performance but may slightly reduce path quality.
profile	bool = False	Print a profiling report to stdout (default False).
cut_direction	str = 'ccw'	Rotational direction of all cutting moves. "cw" or "ccw" (default "ccw").
trace_path	str | None = None	When set, write a per-step binary trace file for the Python inspector (debug builds only).
on_progress	Callable[[dict], None] | None = None	Optional callback receiving progress dicts.
batch_size	int = 128	Ops batch size for on_progress (default 128).
Returns	ops.assembly.AssemblyResult	Ops with cutting commands (entry not included).

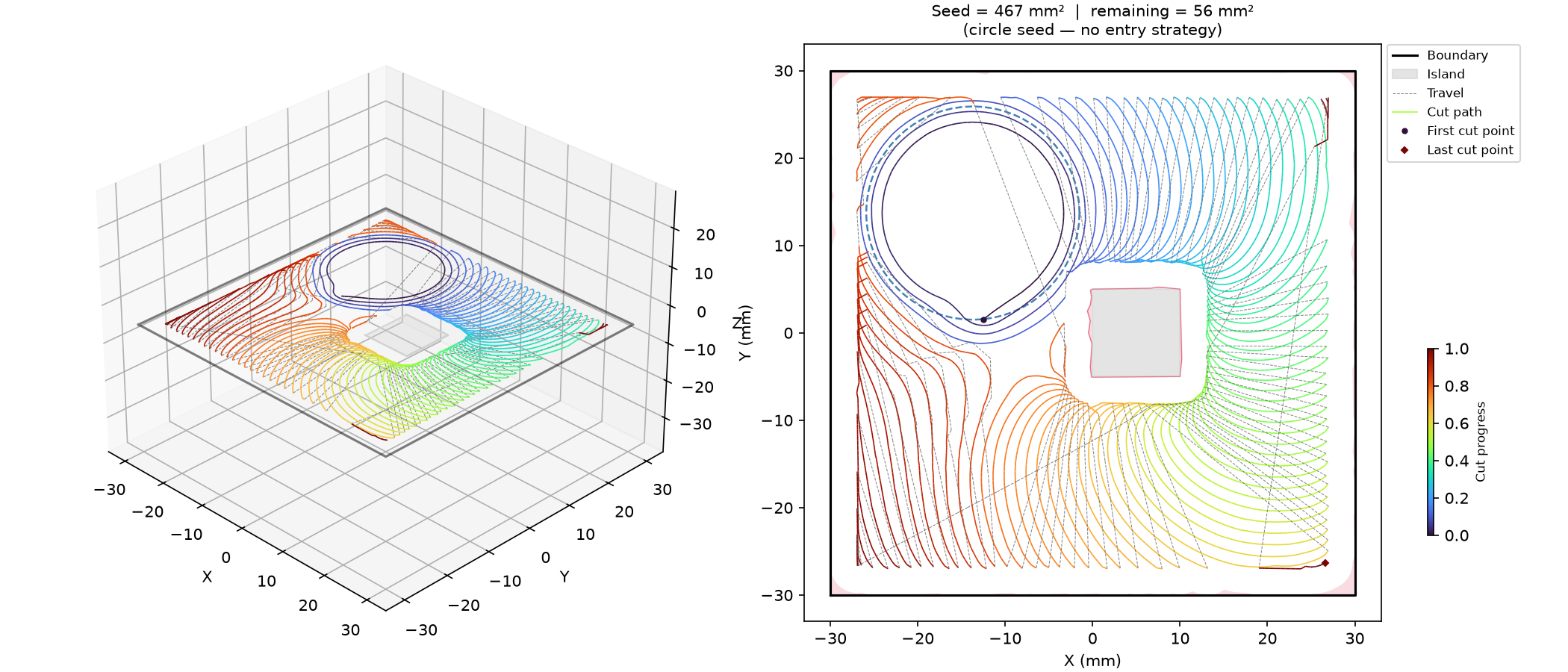

Circle-seed clearing in a square pocket with central island: seed, toolpath, and remaining.

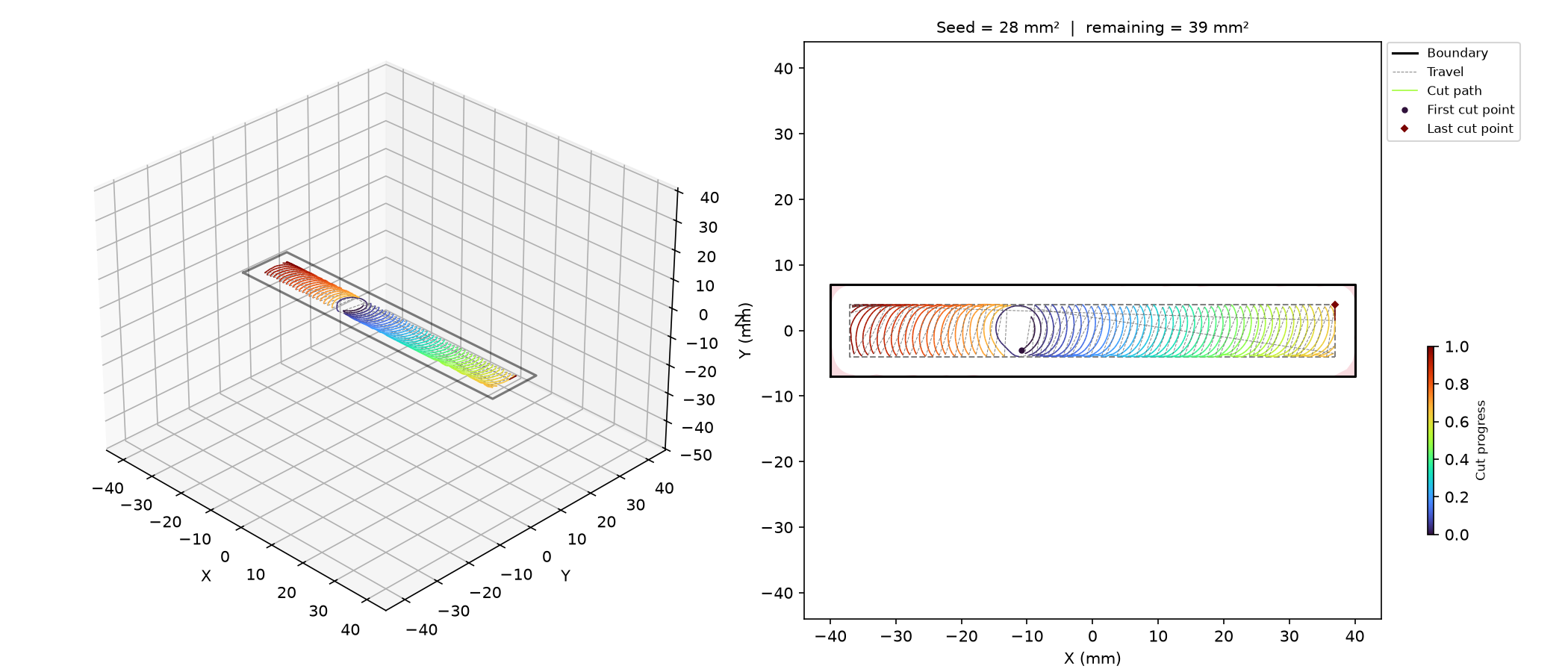

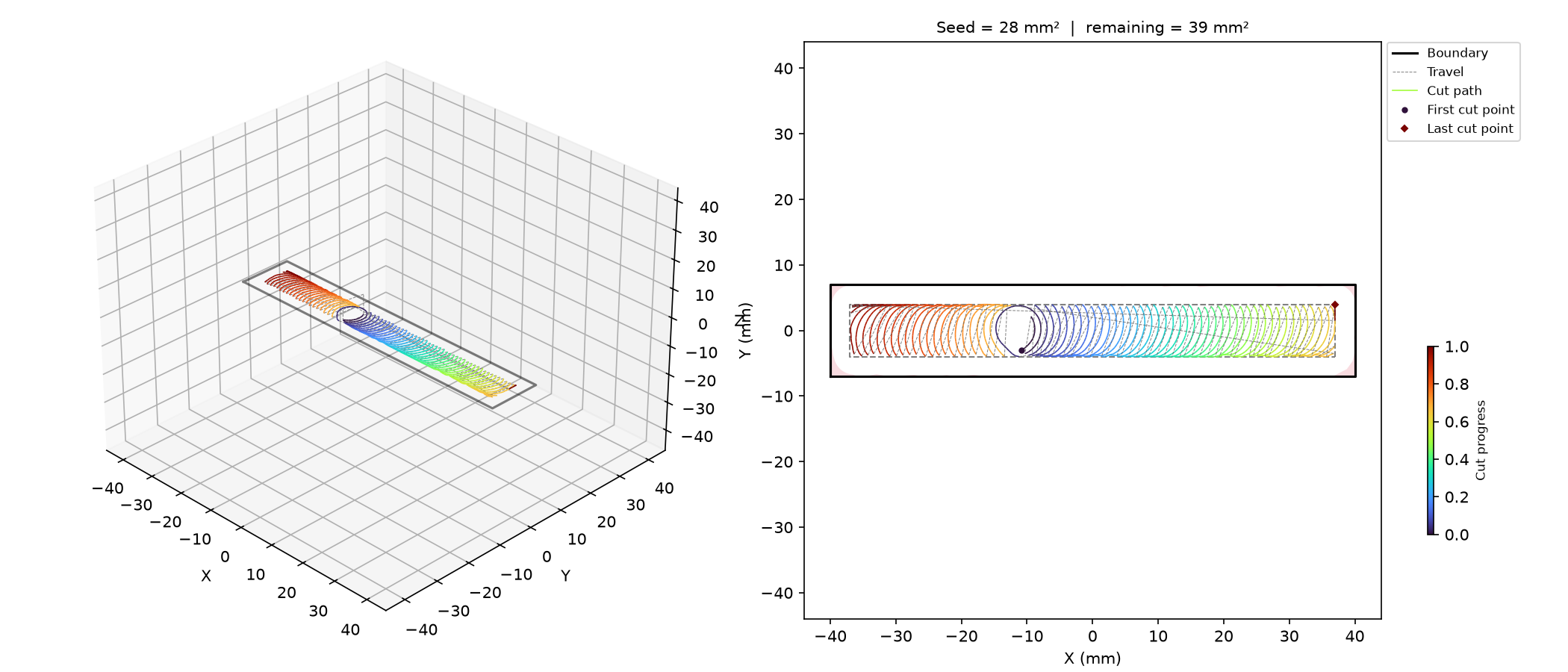

Narrow pocket — 3D toolpath view (left) and 2D top-down with seed/remaining overlay (right).

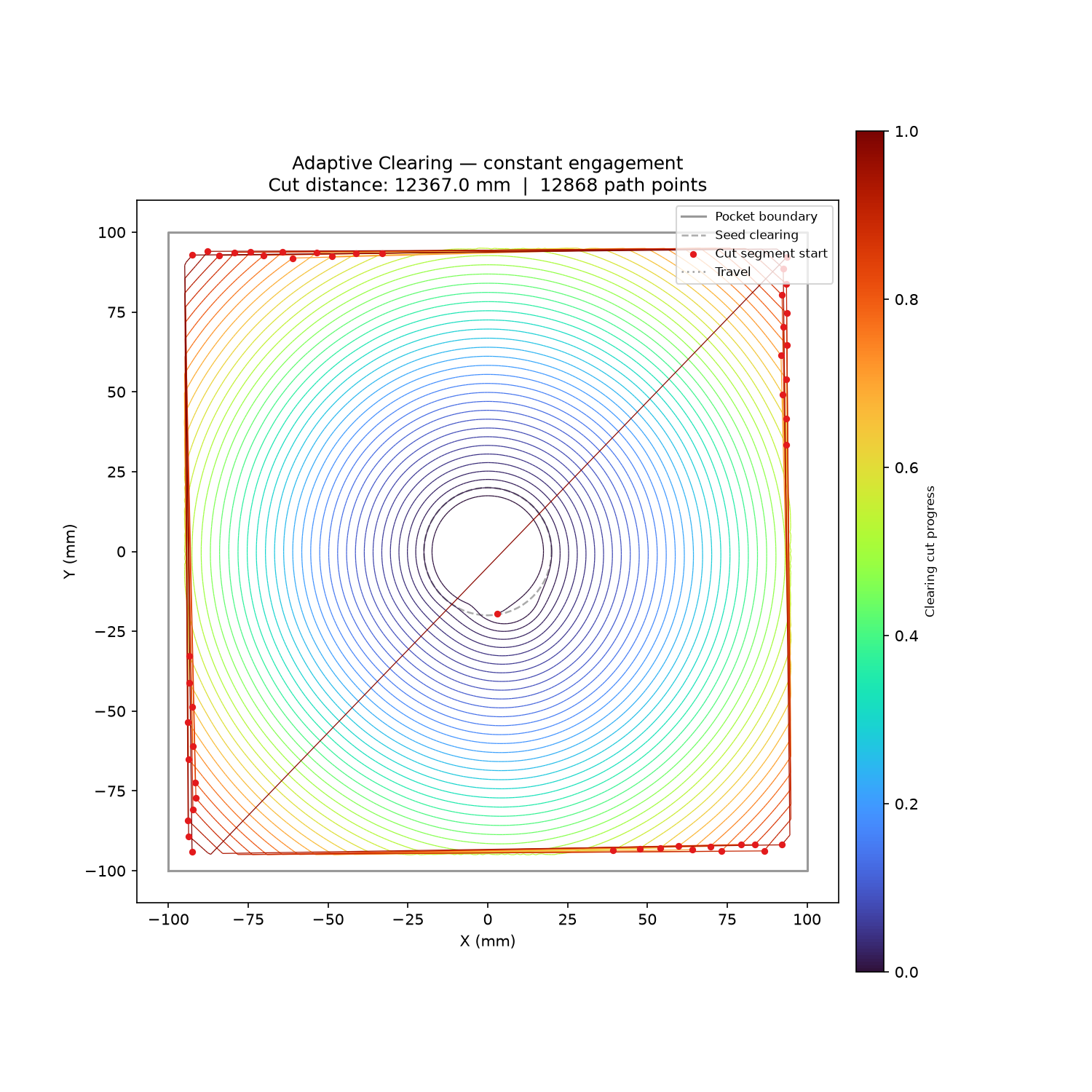

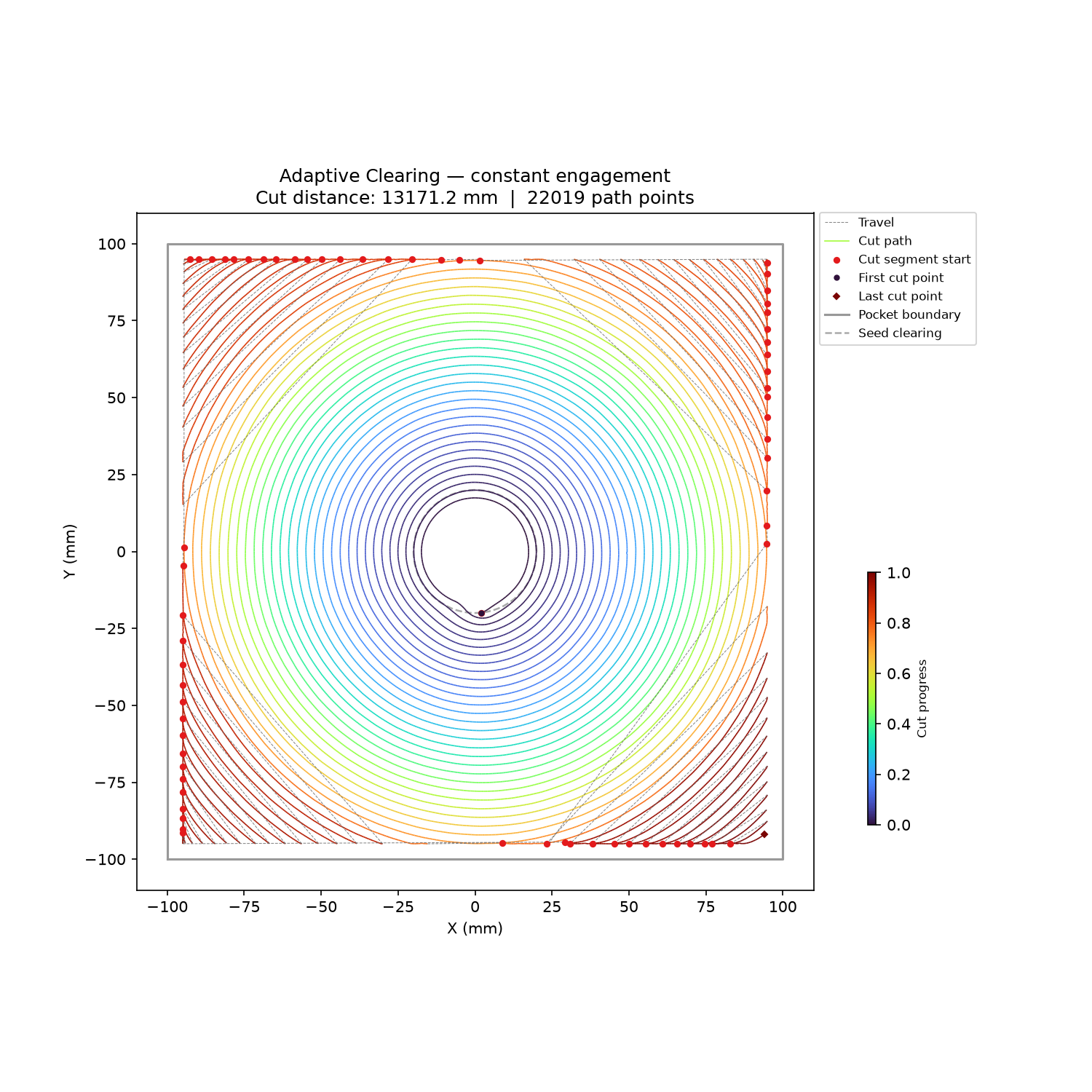

Constant-engagement clearing cuts, MAT-routed travel links, coloured by progress.

target_area_per_distance()

target_area_per_distance(
    radius: float,
    advance: float,
    step_length: float,
) -> float

Target cut-area per unit distance for the engagement solver.

Parameter	Type	Description
radius	float	Tool radius in mm.
advance	float	Step-over distance in mm.
step_length	float	Forward step length in mm.
Returns	float	Target area per distance (mm).

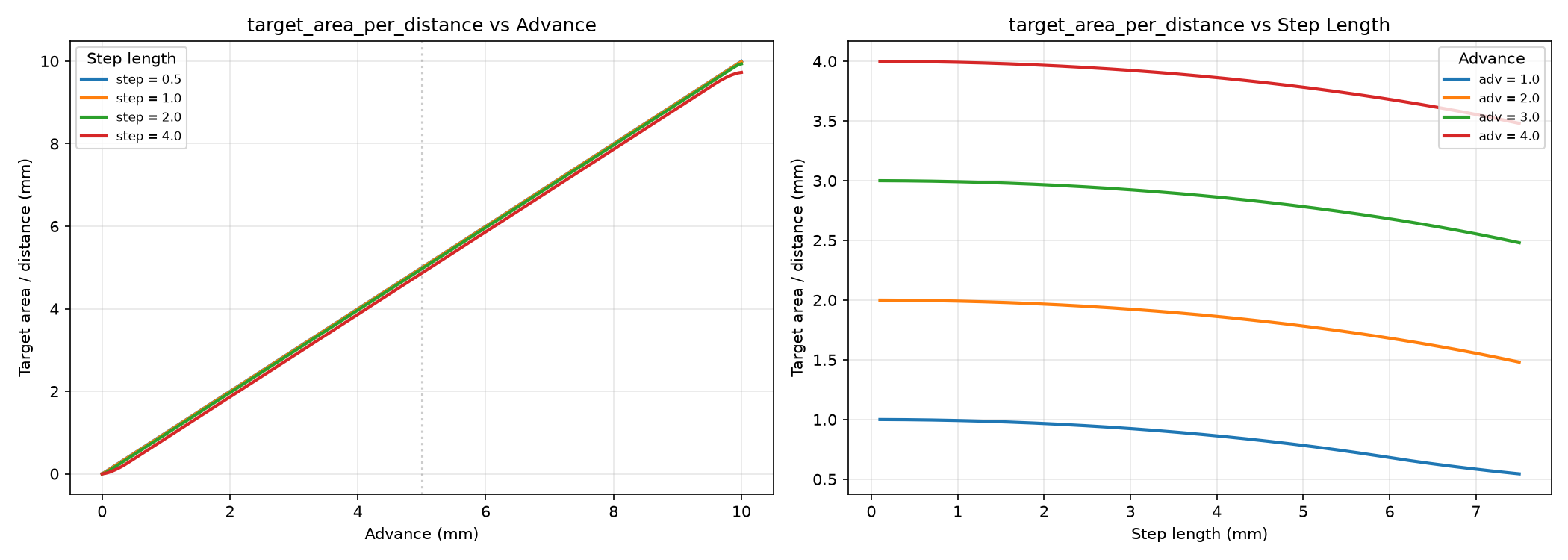

Left: area/distance vs advance for several step lengths. Right: vs step length for several advances.

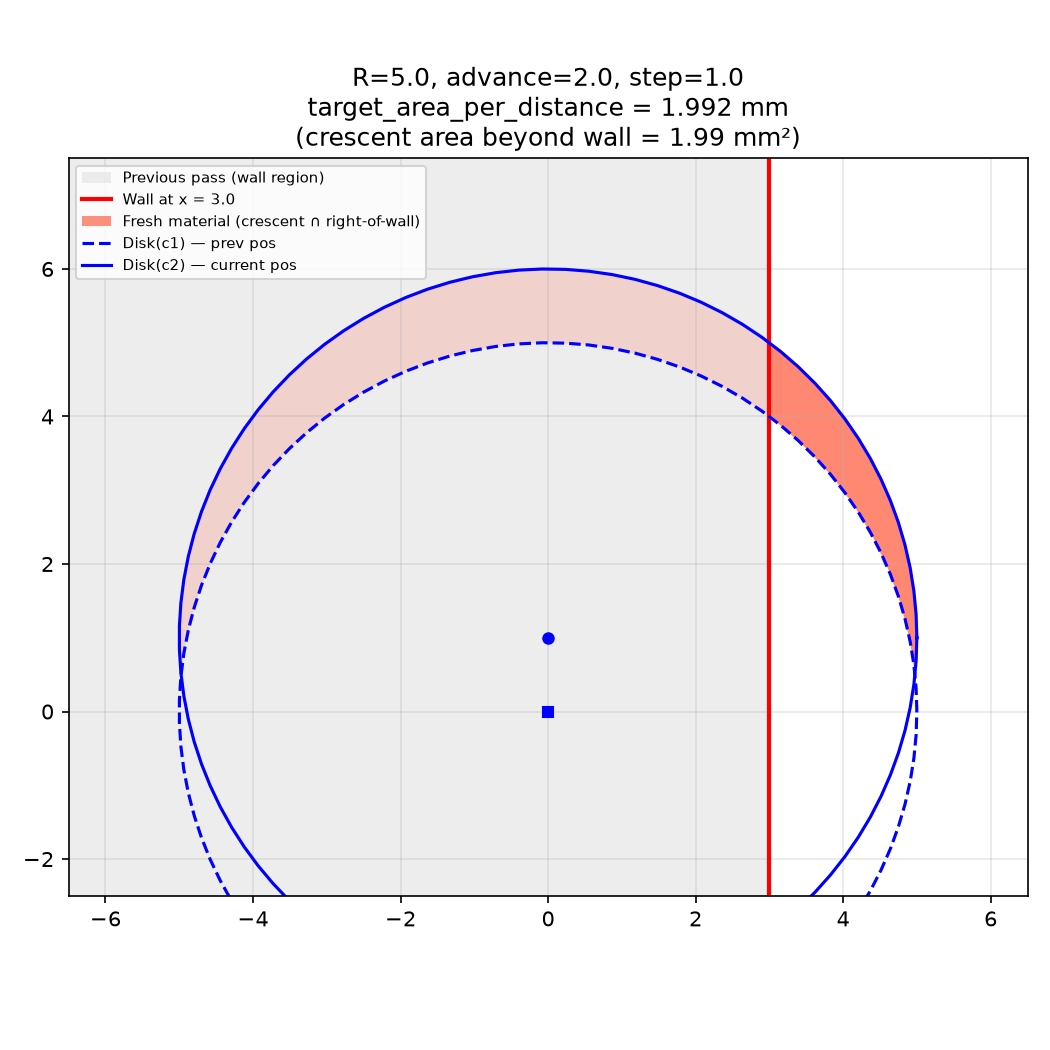

Two offset disks and a wall at x=R−advance: crescent beyond wall is fresh material.
