raygeo.image

Image processing functions for CNC engraving applications.

Provides sRGB/linear color space conversions, RGBA-to-grayscale/binary conversions with alpha unpremultiplication, grayscale normalization with auto-levels, dithering algorithms (Floyd-Steinberg, Bayer, minimum run length) for converting grayscale images to binary output, and scanline rasterization for converting Ops scanlines into pixel buffers.

Functions

rasterize_scanlines()

rasterize_scanlines(
    ops: ops.Ops,
    width_px: int,
    height_px: int,
    px_per_mm: tuple[float, float],
    origin_mm: tuple[float, float] = (0, 0),
) -> numpy.NDArray[numpy.uint8]

Rasterize ScanLine commands from ops into a 2D power-map buffer.

Iterates all scanline commands in ops, converts their mm coordinates to pixel space using px_per_mm, and returns a uint8 array where each pixel holds the maximum power value written to it.

Parameter	Type	Description
ops	ops.Ops	Command sequence to rasterize.
width_px	int	Width of the output texture in pixels.
height_px	int	Height of the output texture in pixels.
px_per_mm	tuple[float, float]	(x, y) resolution in pixels per millimeter.
origin_mm	tuple[float, float] = (0, 0)	(x, y) origin offset in mm (default (0.0, 0.0)).
Returns	numpy.NDArray[numpy.uint8]	2D uint8 array of shape (height_px, width_px).
Complexity		O(scanline_pixels)

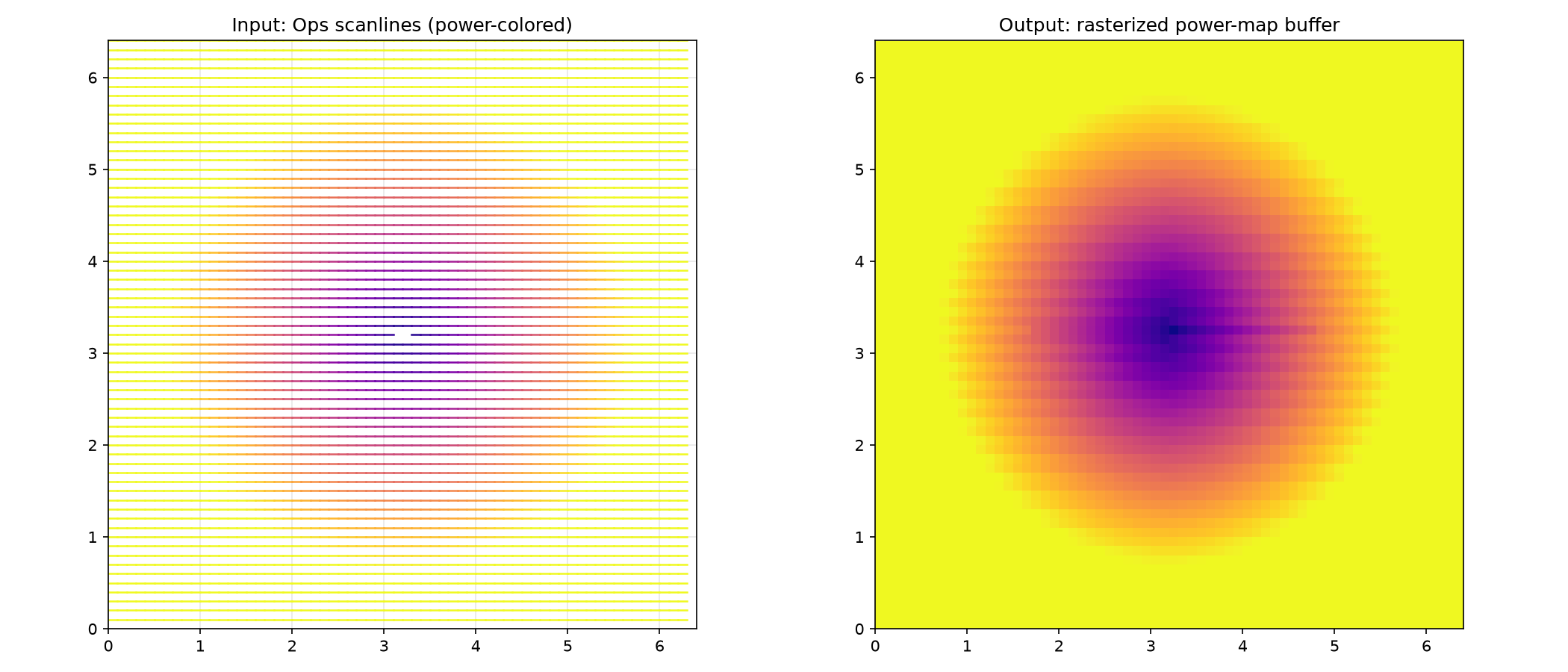

Scanline ops rasterized into a 2D power-map buffer
