raygeo.geo.shape.polygon3d

Functions

deduplicate_polyline_3d()

deduplicate_polyline_3d(polyline: Sequence[types.Point3D]) -> types.Polygon3D

Remove consecutive near-identical points from a 3D polyline.

Points whose squared distance is less than 1e-12 are collapsed.

Parameter	Type	Description
polyline	Sequence[types.Point3D]	Polyline as (x, y, z) points.
Returns	types.Polygon3D	Deduplicated polyline.
Complexity		O(n)

fillet_polyline_3d()

fillet_polyline_3d(
    polyline: Sequence[types.Point3D],
    radius: float,
) -> types.Polygon3D

Fillet corners of a 3D polyline with circular arcs.

Each internal vertex with enough room on both adjacent edges is replaced by a circular arc of the given radius tangent to both edges.

Parameter	Type	Description
polyline	Sequence[types.Point3D]	Input polyline as (x, y, z) points.
radius	float	Fillet radius (must be > 0).
Returns	types.Polygon3D	Filleted polyline (first and last points preserved).
Complexity		O(n)

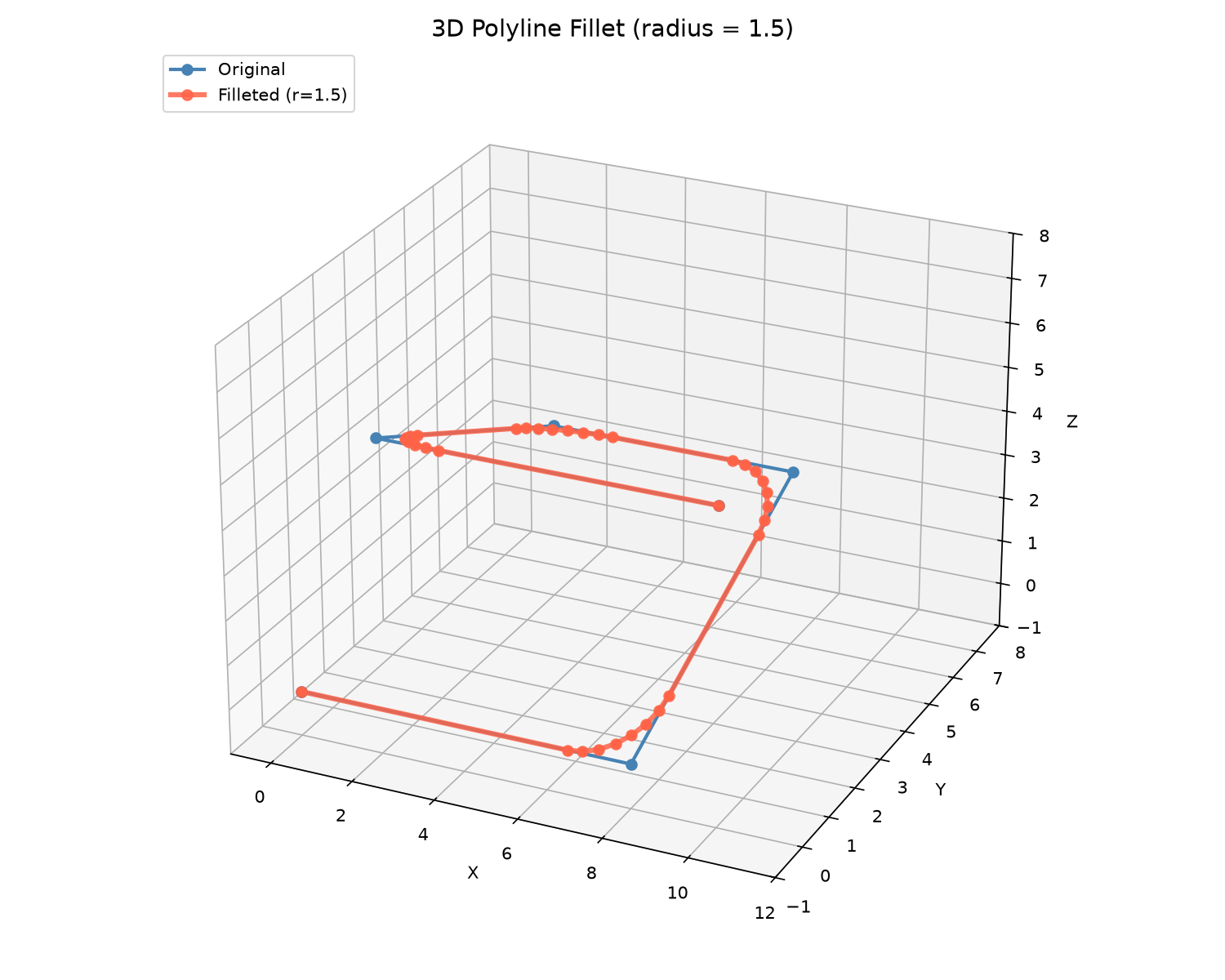

Fillet corners of a 3D polyline with circular arcs

flip_polygon_3d()

flip_polygon_3d(
    polygon: Sequence[types.Point3D],
    flip_h: bool = False,
    flip_v: bool = False,
    flip_z: bool = False,
) -> types.Polygon3D

Flip a 3D polygon horizontally, vertically, and/or along Z.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
flip_h	bool = False	Whether to flip horizontally (negate X).
flip_v	bool = False	Whether to flip vertically (negate Y).
flip_z	bool = False	Whether to flip along Z (negate Z).
Returns	types.Polygon3D	Flipped polygon.
Complexity		O(n)

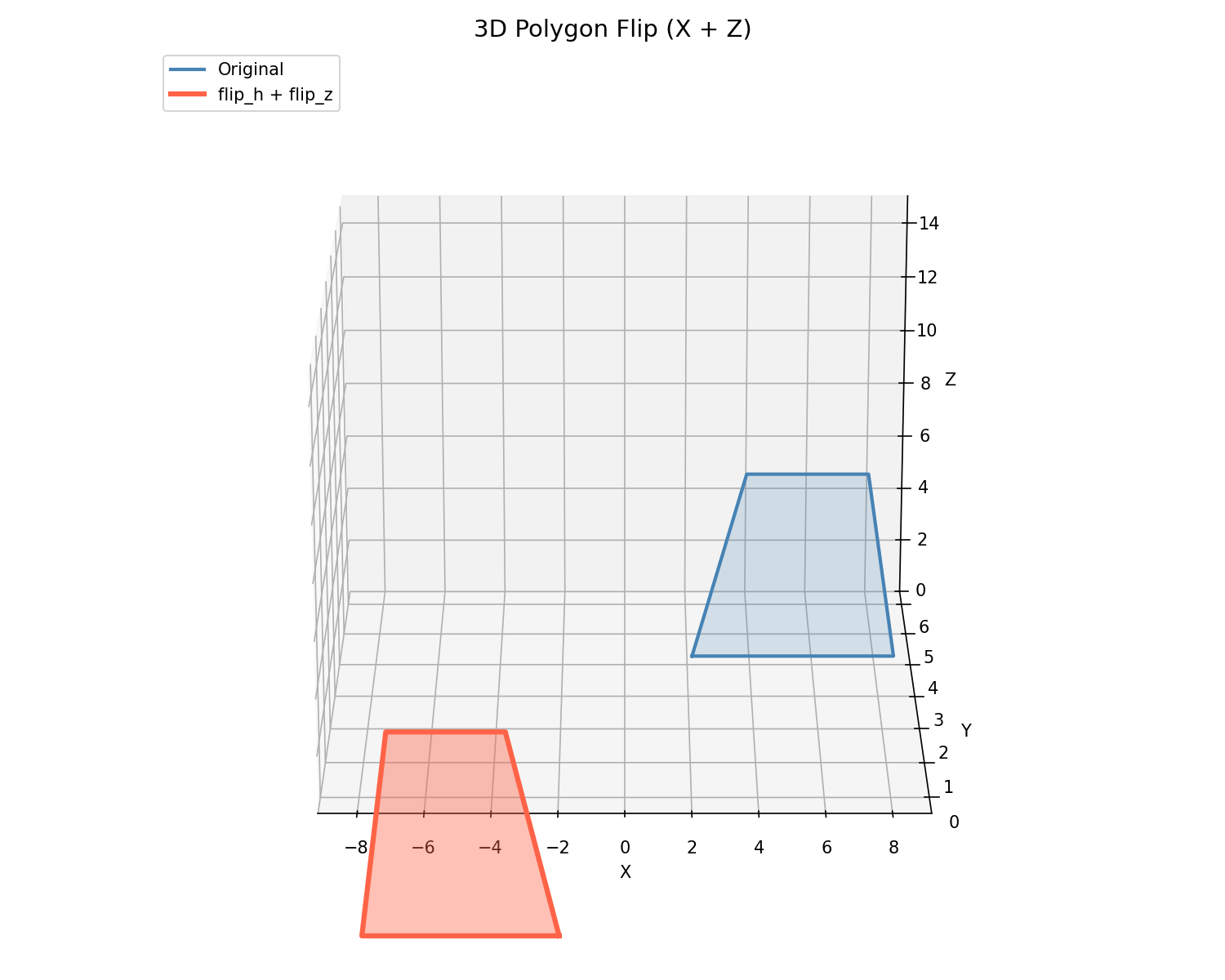

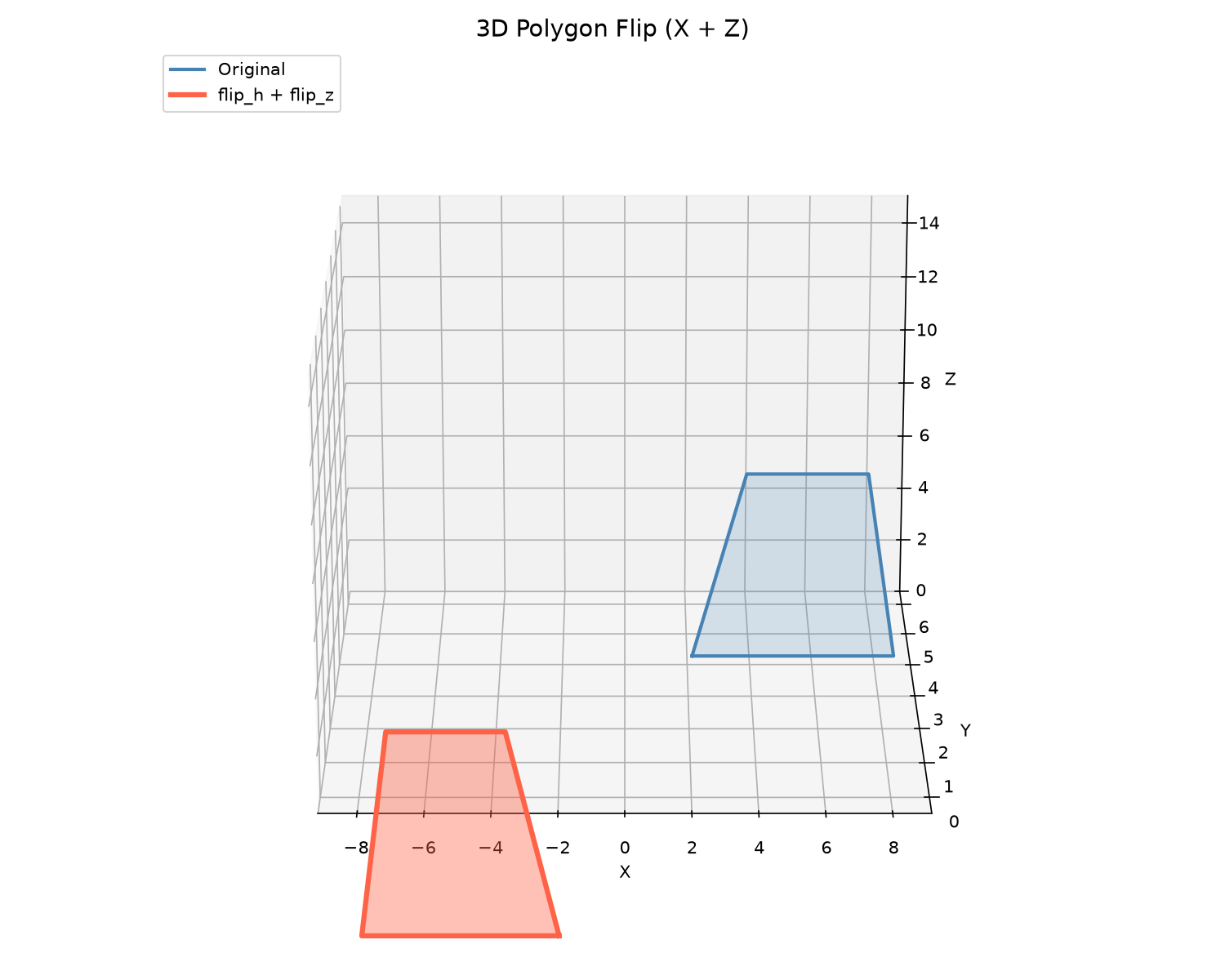

3D polygon flipped horizontally and along Z

flip_polygons_3d()

flip_polygons_3d(
    polygons: Sequence[types.Polygon3D],
    flip_h: bool = False,
    flip_v: bool = False,
    flip_z: bool = False,
) -> list[types.Polygon3D]

Flip multiple 3D polygons.

Parameter	Type	Description
polygons	Sequence[types.Polygon3D]	List of 3D polygons.
flip_h	bool = False	Whether to flip horizontally (negate X).
flip_v	bool = False	Whether to flip vertically (negate Y).
flip_z	bool = False	Whether to flip along Z (negate Z).
Returns	list[types.Polygon3D]	Flipped polygons.
Complexity		O(n * m)

get_polygon_area_3d()

get_polygon_area_3d(polygon: Sequence[types.Point3D]) -> float

XY-projected area of a 3D polygon (absolute shoelace area).

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
Returns	float	XY-projected area.
Complexity		O(n)

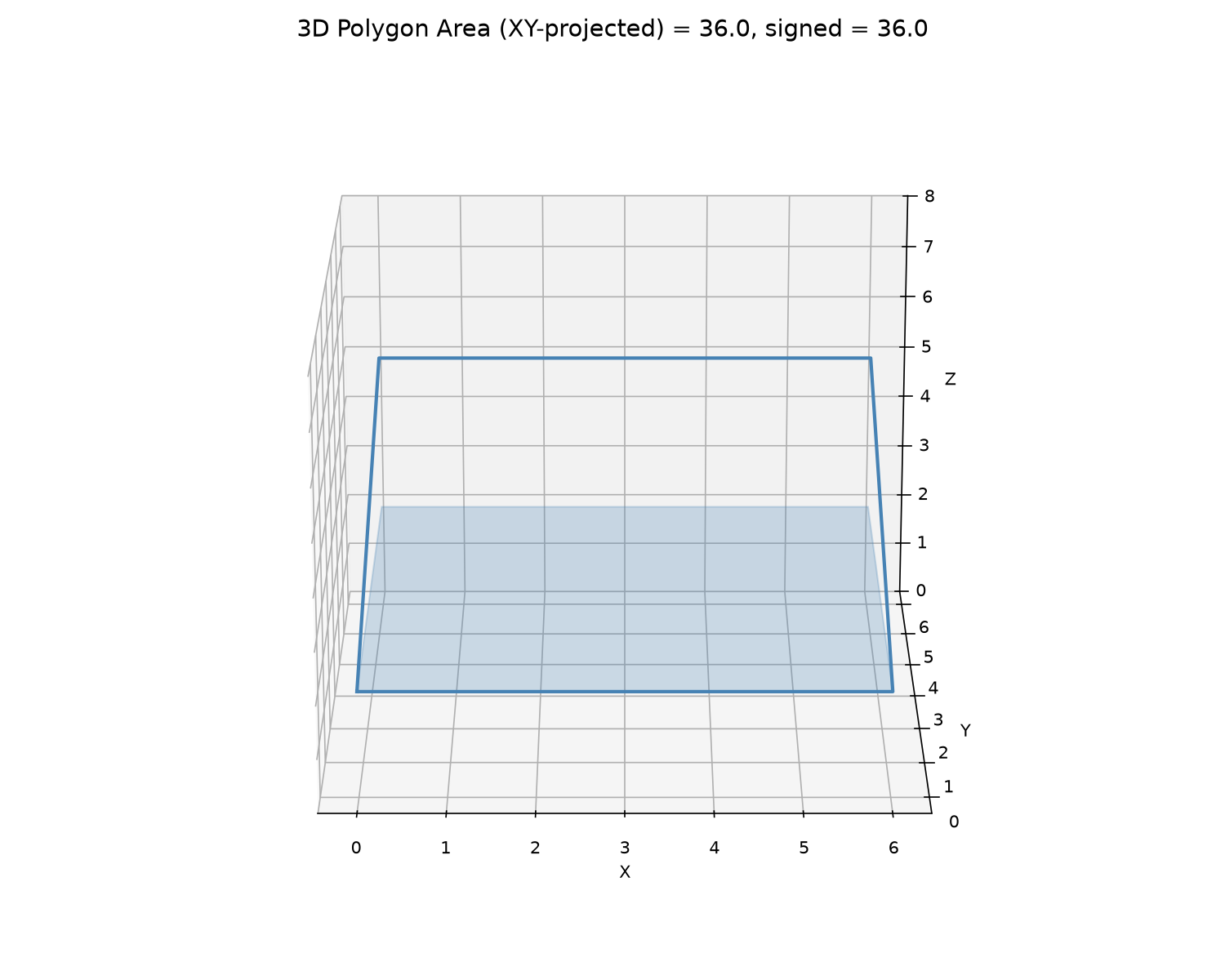

XY-projected (unsigned) area of a 3D polygon

get_polygon_bounds_3d()

get_polygon_bounds_3d(polygon: Sequence[types.Point3D]) -> types.Rect3D

Get the 3D bounding box of a polygon.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
Returns	types.Rect3D	Bounding box as (x_min, y_min, x_max, y_max, z_min, z_max).
Complexity		O(n)

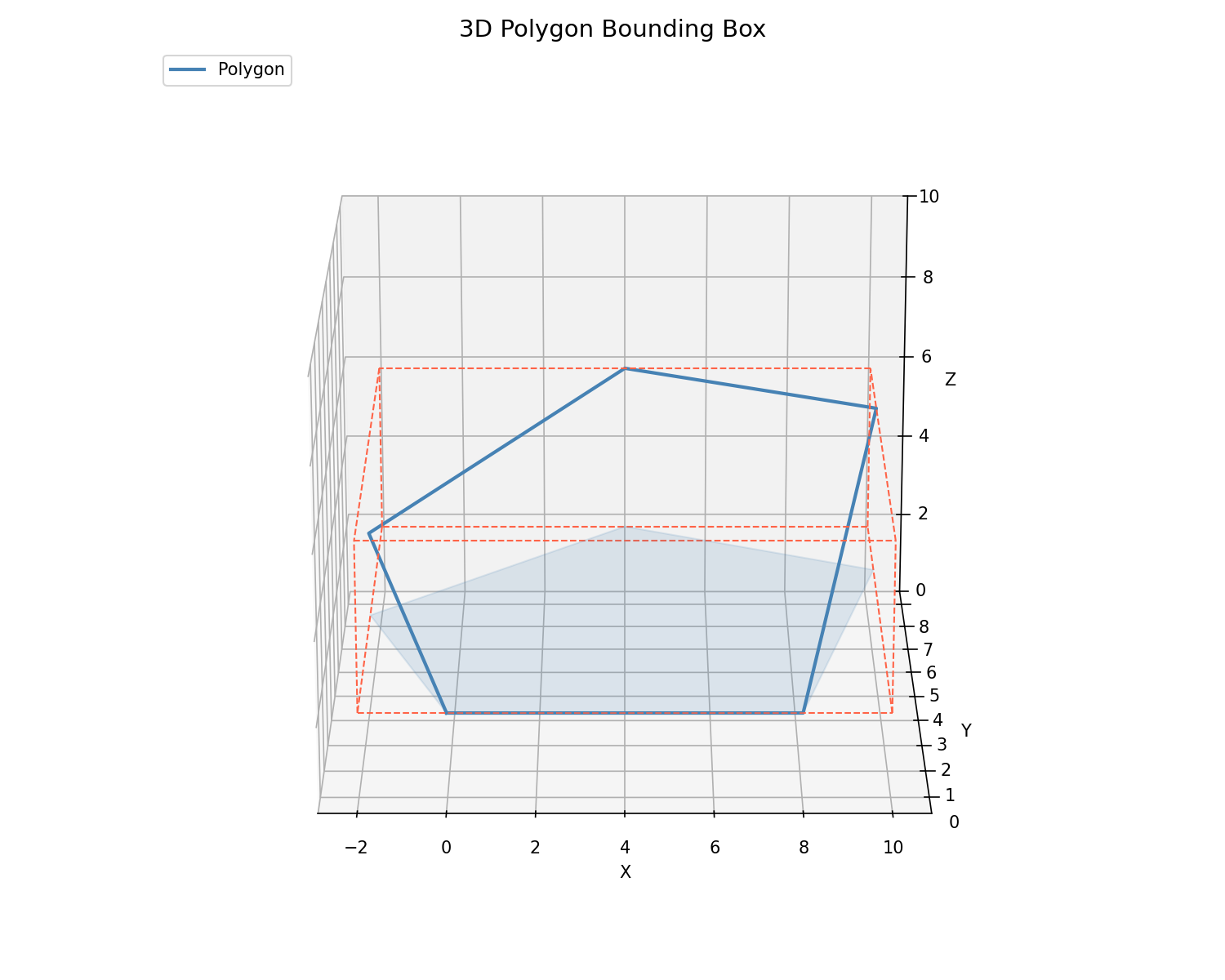

3D bounding box (Rect3D)

get_polygon_centroid_3d()

get_polygon_centroid_3d(polygon: Sequence[types.Point3D]) -> types.Point3D

Get the centroid of a 3D polygon.

XY centroid from shoelace formula, Z from average.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
Returns	types.Point3D	Centroid point (x, y, z).
Complexity		O(n)

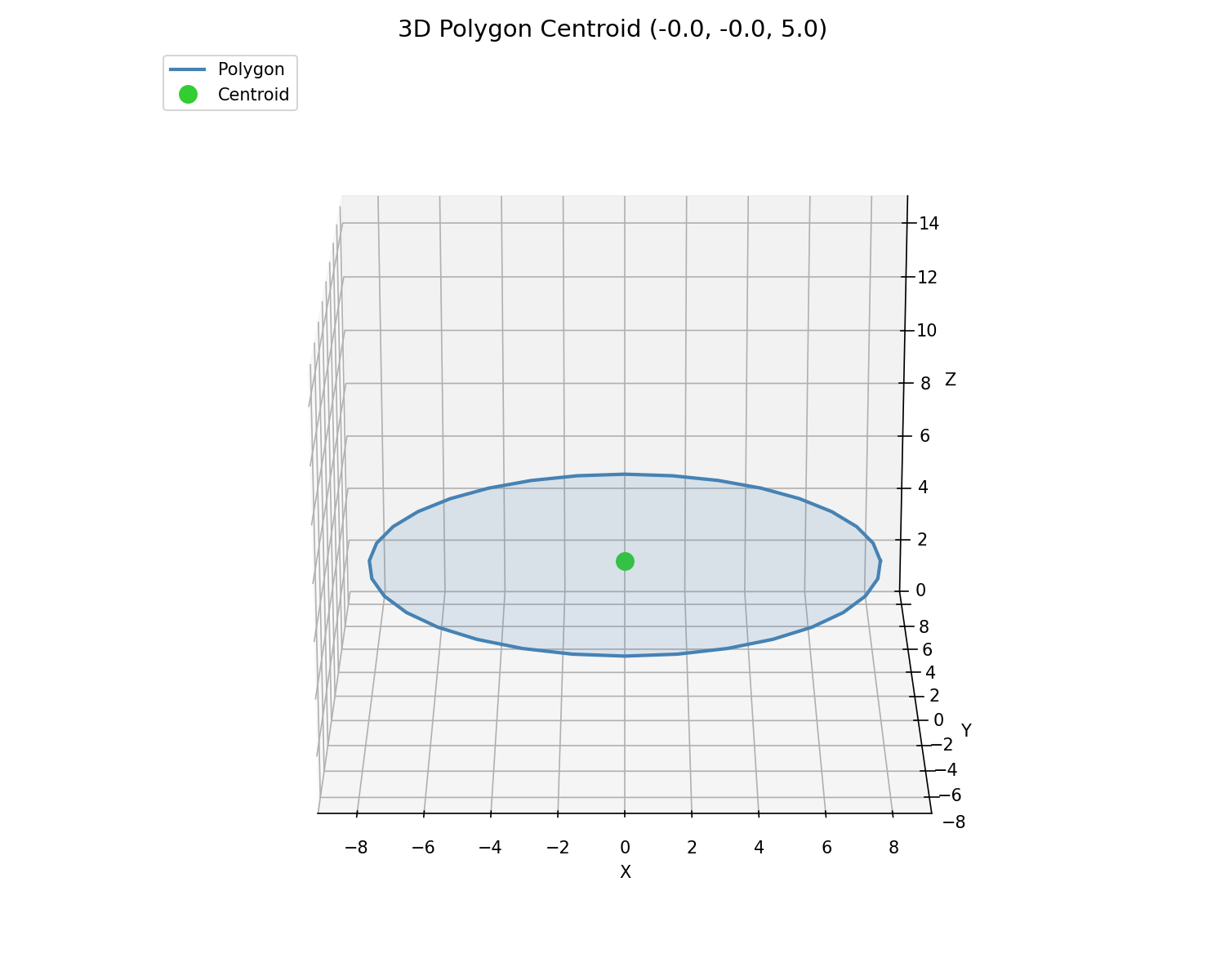

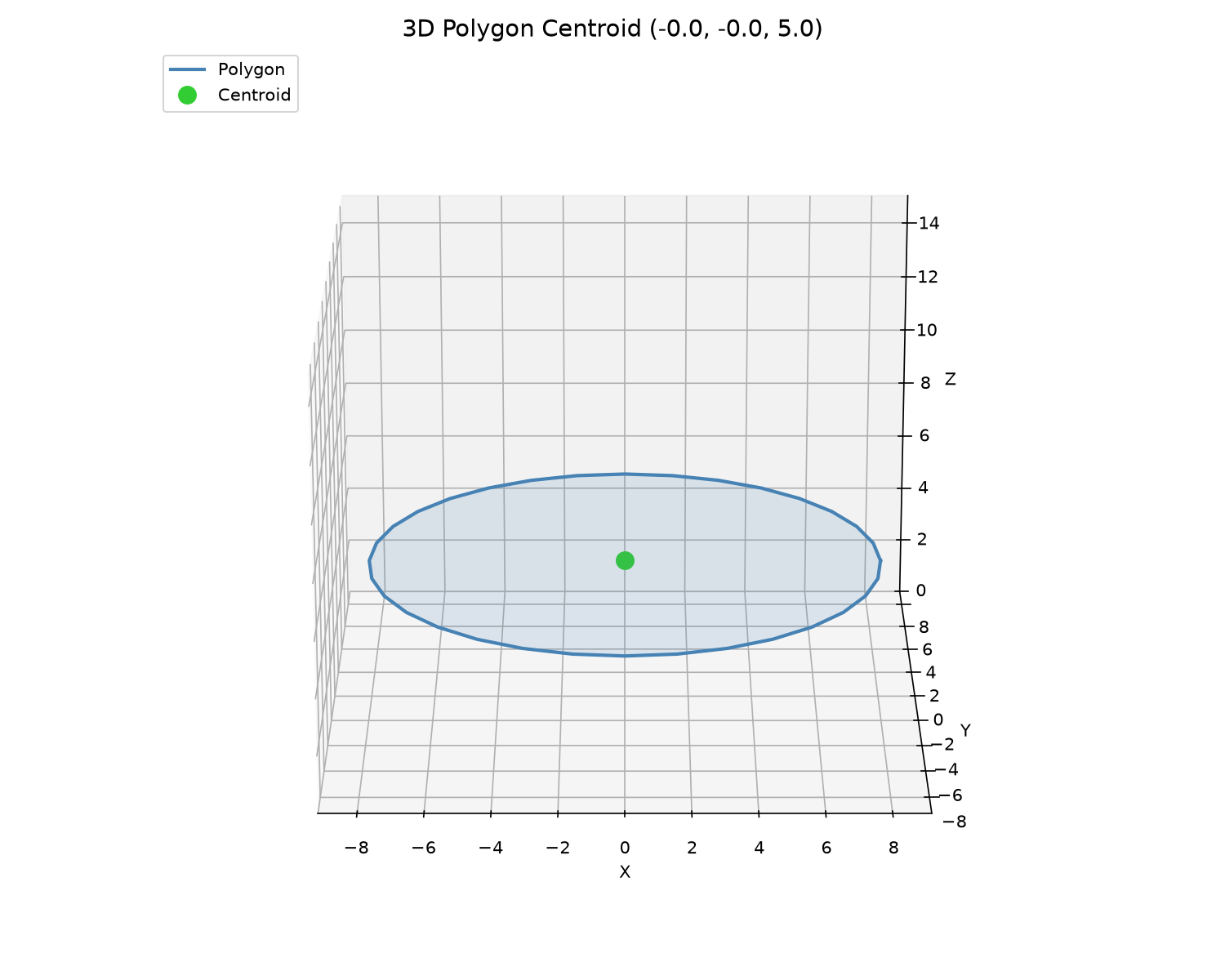

3D centroid - XY via shoelace, Z as average

get_polygon_convex_hull_3d()

get_polygon_convex_hull_3d(polygon: Sequence[types.Point3D]) -> types.Polygon3D

Get the convex hull of a 3D polygon (XY-plane, Z from first vertex).

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
Returns	types.Polygon3D	Convex hull as list of (x, y, z) points.
Complexity		O(n log n)

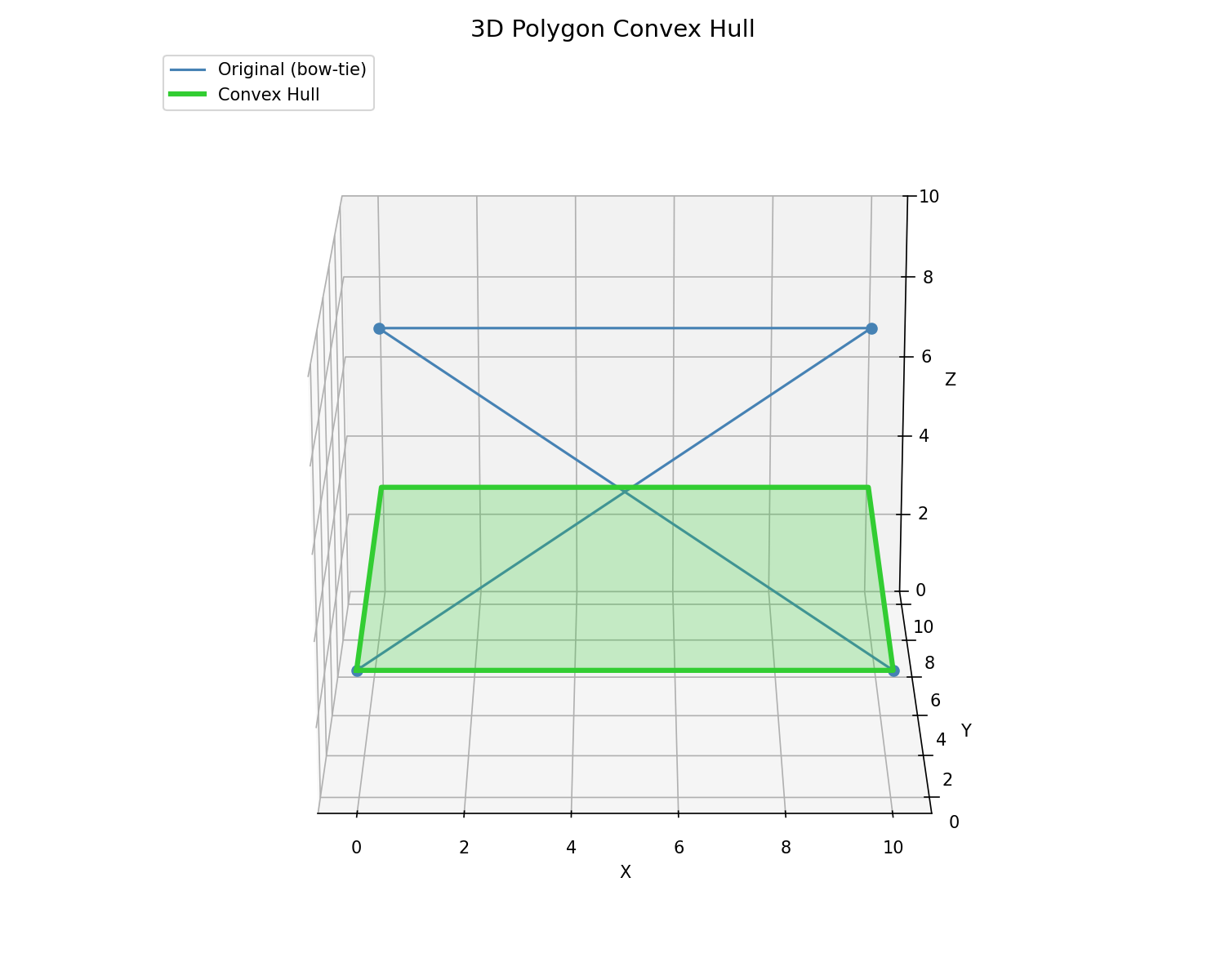

3D convex hull (XY-plane, Z from first hull vertex)

get_polygon_edges_3d()

get_polygon_edges_3d(
    polygon: Sequence[types.Point3D],
) -> list[tuple[types.Point3D, types.Point3D]]

Get the edges of a 3D polygon.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
Returns	list[tuple[types.Point3D, types.Point3D]]	List of ((x1, y1, z1), (x2, y2, z2)) edges.
Complexity		O(n)

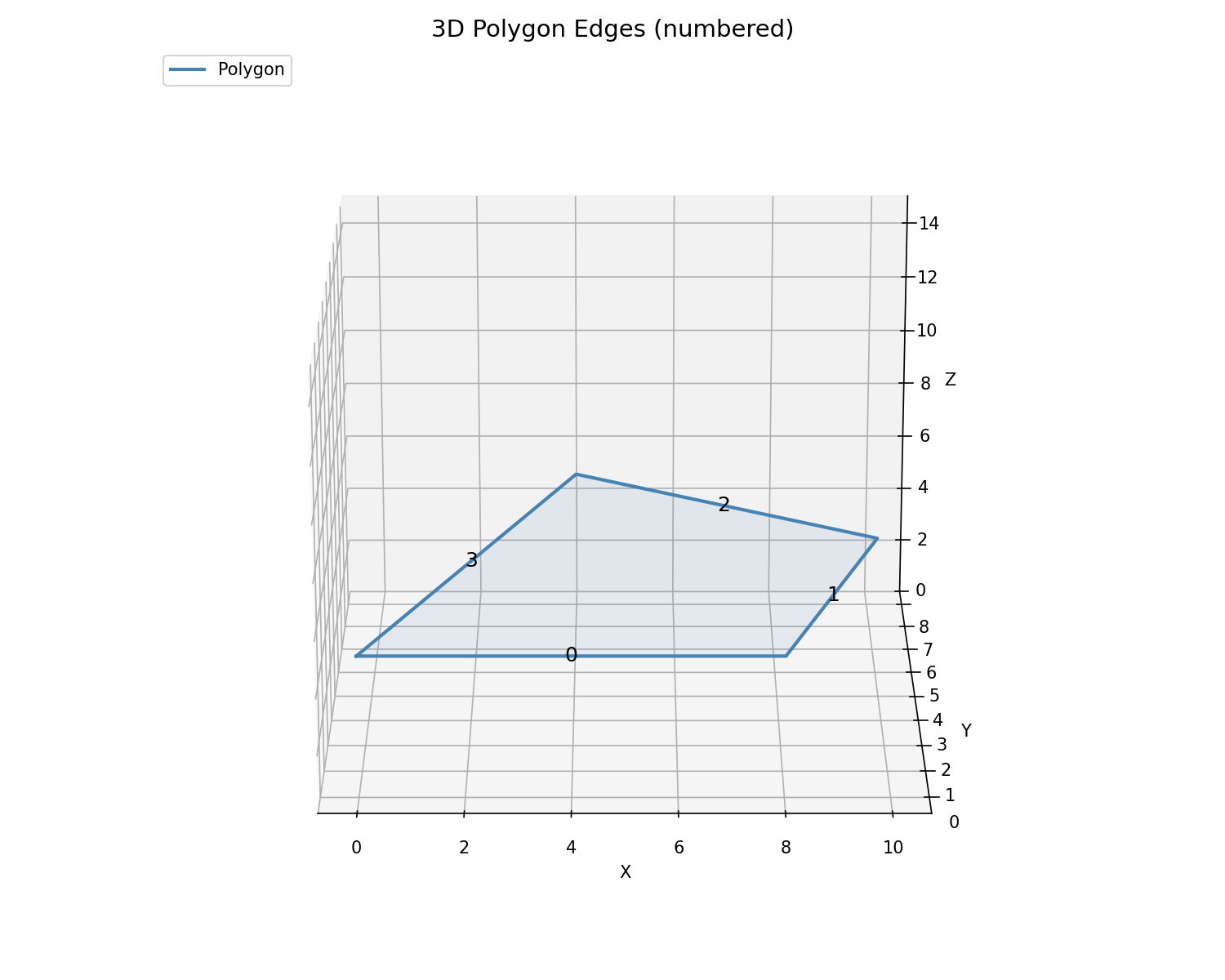

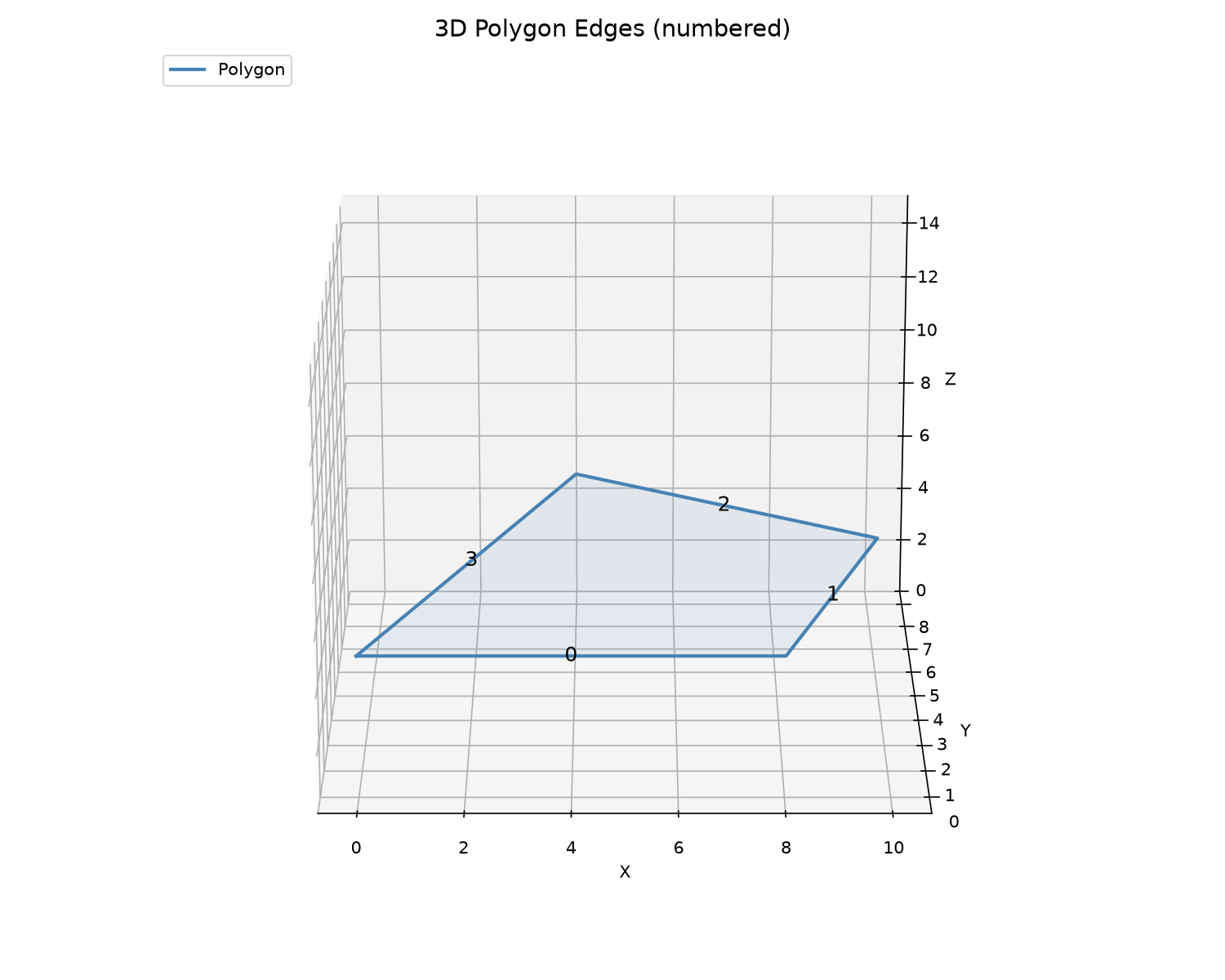

3D polygon edges as (start, end) pairs

get_polygon_group_bounds_3d()

get_polygon_group_bounds_3d(
    polygons: Sequence[types.Polygon3D],
) -> types.Rect3D

Get the 3D bounding box of a group of polygons.

Parameter	Type	Description
polygons	Sequence[types.Polygon3D]	List of 3D polygons.
Returns	types.Rect3D	Bounding box as (x_min, y_min, x_max, y_max, z_min, z_max).
Complexity		O(n * m)

get_polygon_perimeter_3d()

get_polygon_perimeter_3d(polygon: Sequence[types.Point3D]) -> float

Get the perimeter of a 3D polygon using full 3D edge lengths.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
Returns	float	Perimeter length.
Complexity		O(n)

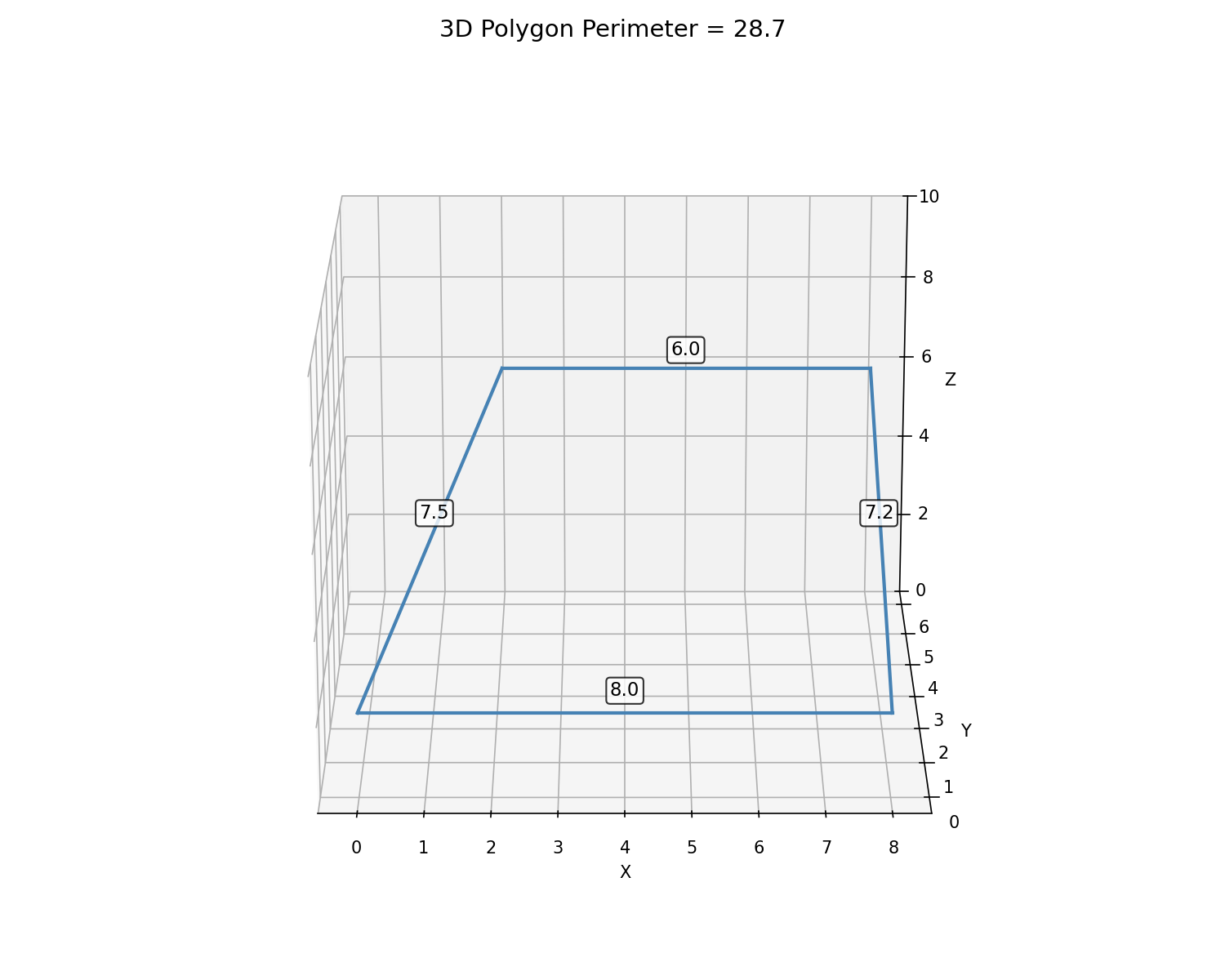

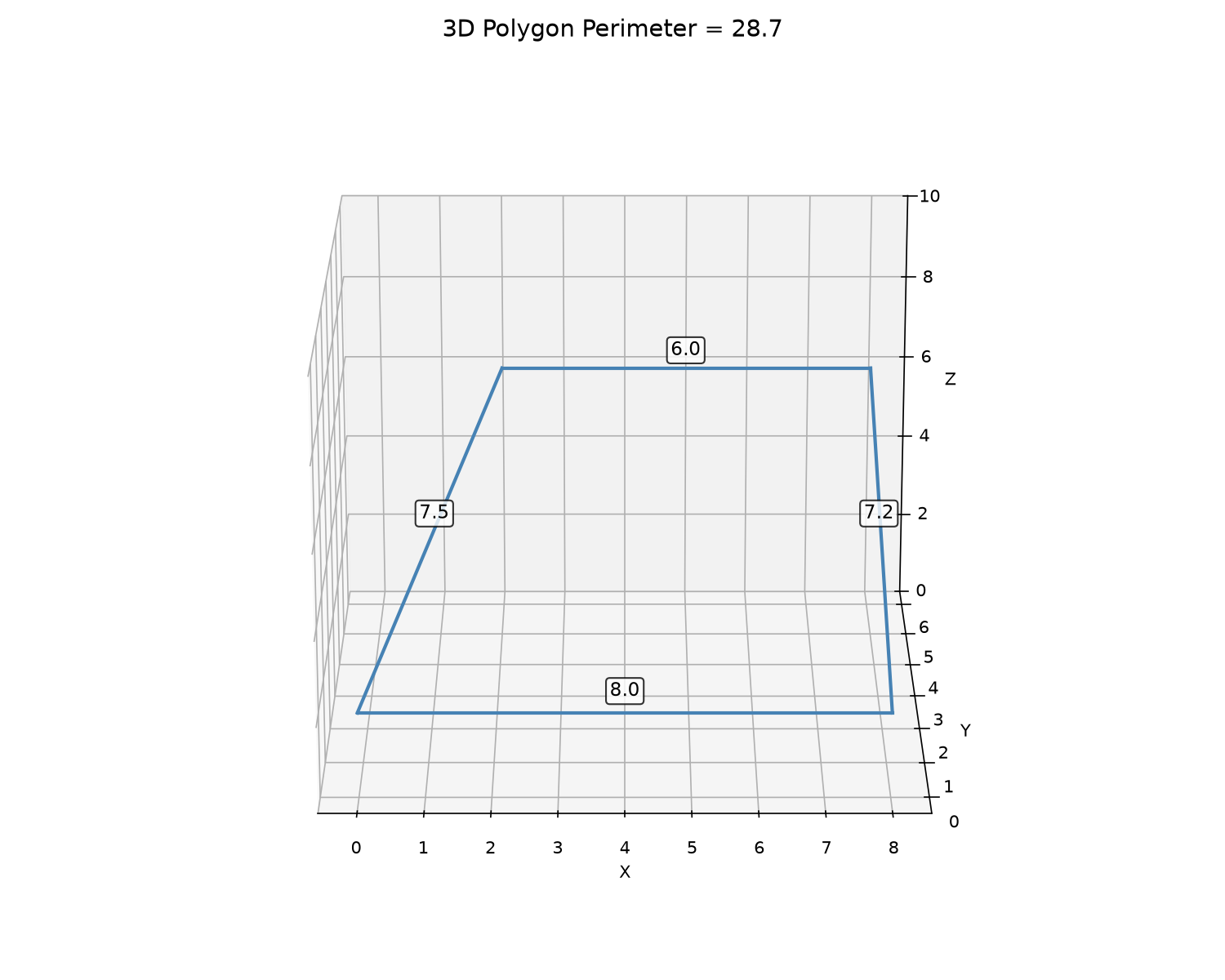

3D polygon perimeter using full 3D edge lengths

get_polygon_signed_area_3d()

get_polygon_signed_area_3d(polygon: Sequence[types.Point3D]) -> float

Signed XY-projected area of a 3D polygon (shoelace formula).

Positive for CCW winding, negative for CW.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
Returns	float	Signed XY-projected area.
Complexity		O(n)

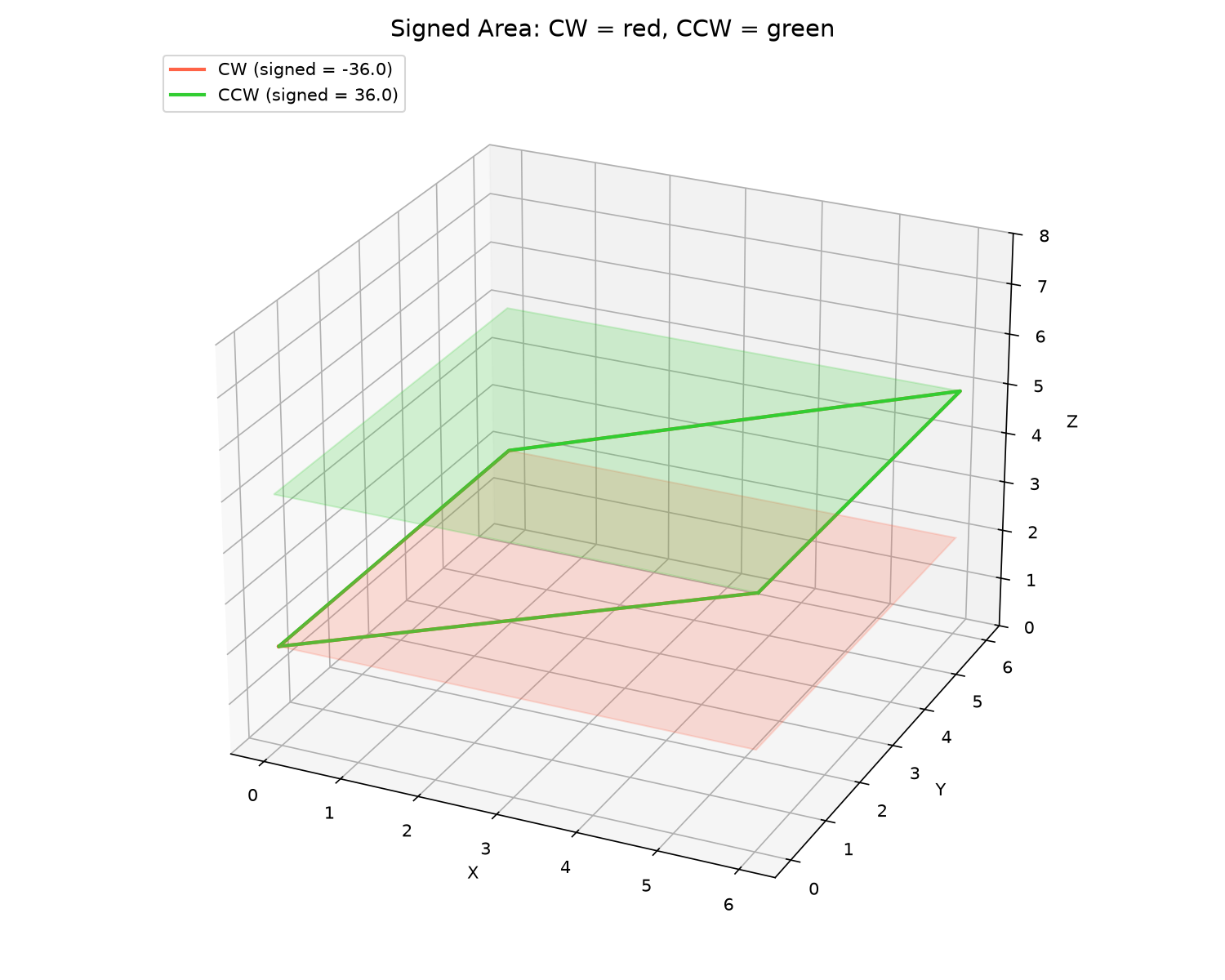

Signed XY-projected area — positive = CCW, negative = CW

get_polygons_closest_point_3d()

get_polygons_closest_point_3d(
    polygons: Sequence[types.Polygon3D],
    x: float,
    y: float,
    z: float,
) -> tuple[int, float, tuple[float, float, float], float] | None

Find the closest point on any 3D polygon in a list to (x, y, z).

Parameter	Type	Description
polygons	Sequence[types.Polygon3D]	List of 3D polygons as (x, y, z) points.
x	float	X coordinate.
y	float	Y coordinate.
z	float	Z coordinate.
Returns	tuple[int, float, tuple[float, float, float], float] | None	(polygon_index, t, (cx, cy, cz), distance_squared) or None.

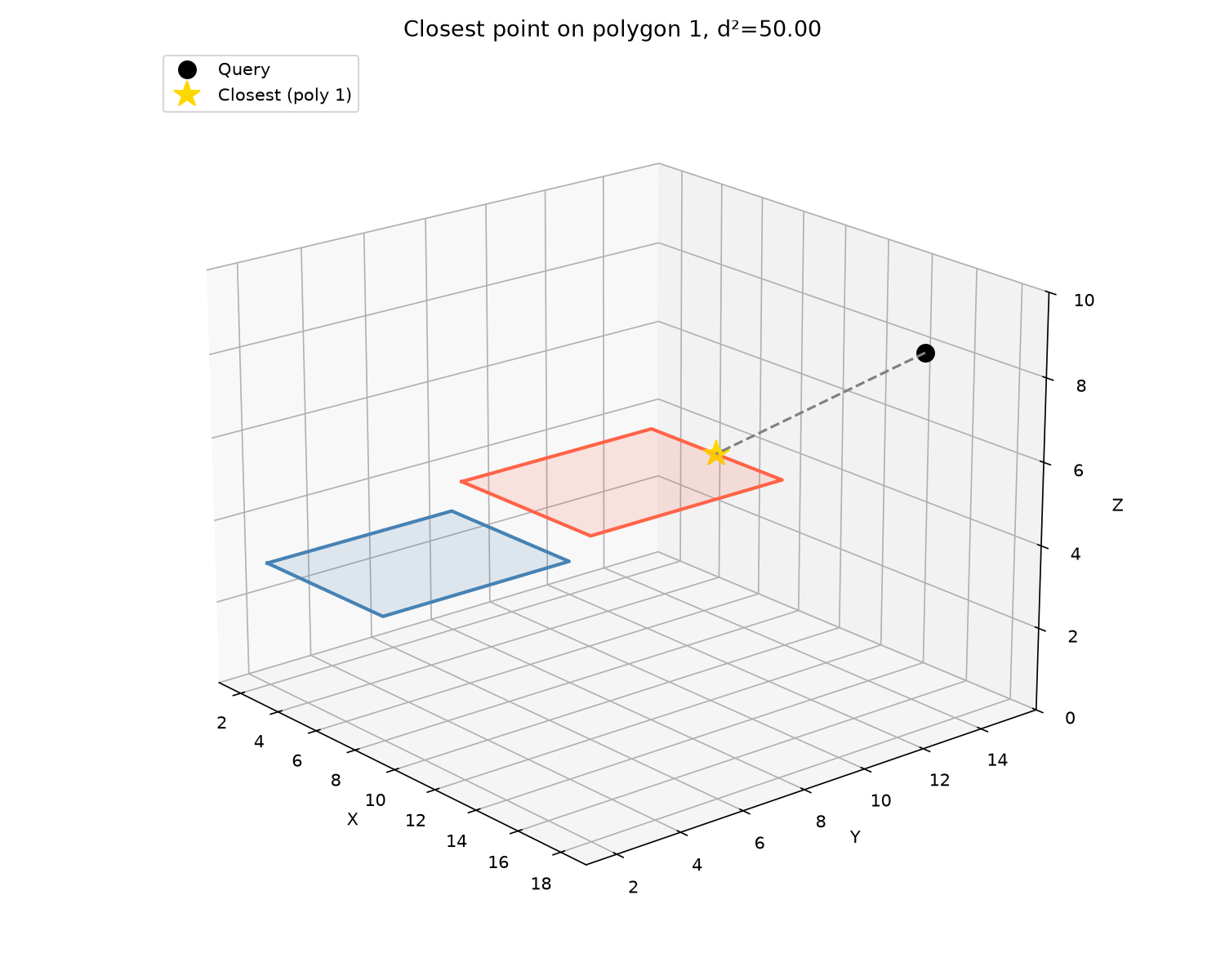

Closest point on multiple 3D polygons

get_polygons_difference_3d()

get_polygons_difference_3d(
    poly1: Sequence[types.Point3D],
    poly2: Sequence[types.Point3D],
) -> list[types.Polygon3D]

Compute the difference of two 3D polygons (poly1 - poly2).

Parameter	Type	Description
poly1	Sequence[types.Point3D]	Subject 3D polygon.
poly2	Sequence[types.Point3D]	Clip 3D polygon.
Returns	list[types.Polygon3D]	Difference result with Z from first polygon.

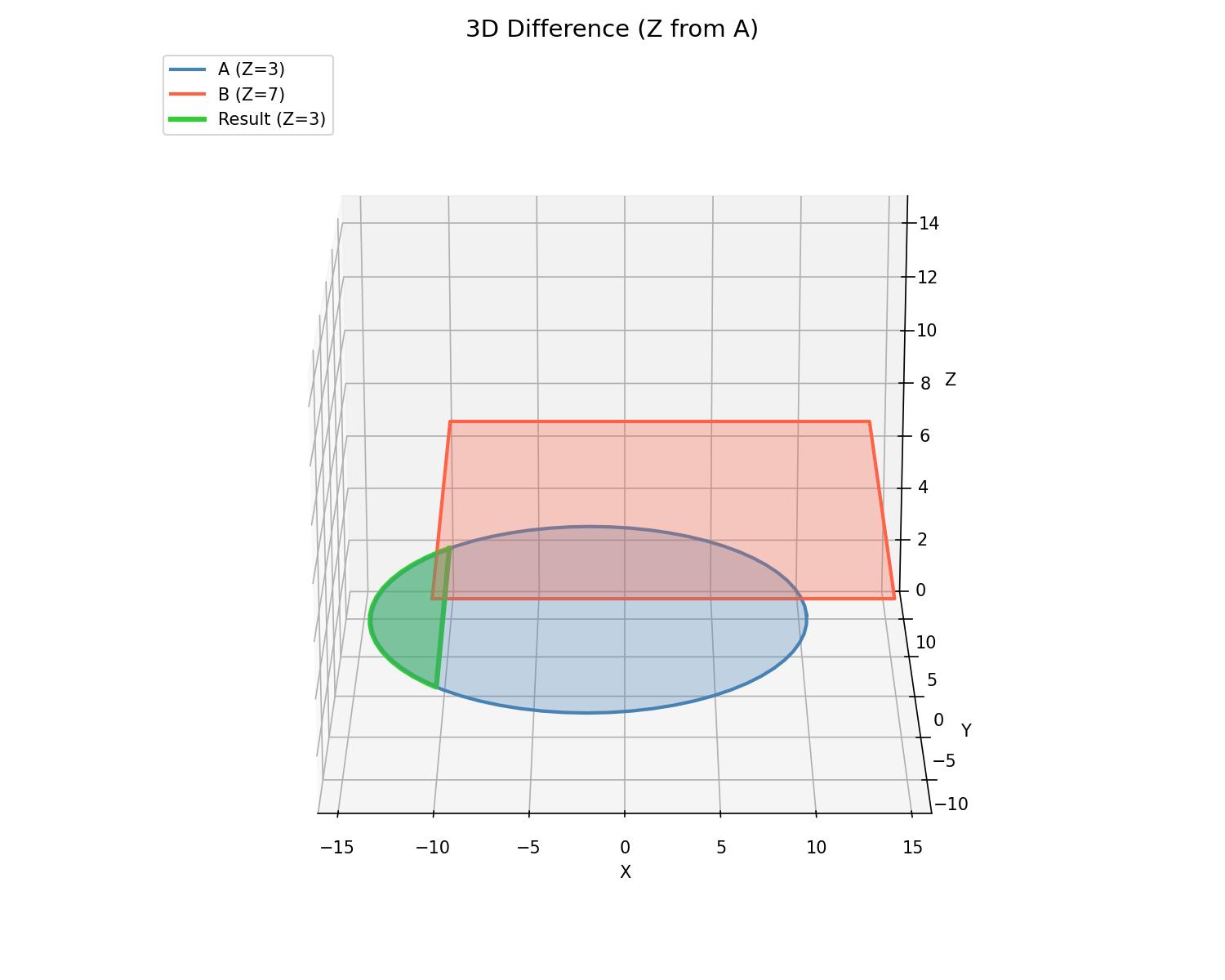

3D polygon difference (A - B) — Z from A

get_polygons_group_difference_3d()

get_polygons_group_difference_3d(
    subject: Sequence[types.Polygon3D],
    clip: Sequence[types.Polygon3D],
) -> list[types.Polygon3D]

Group difference of 3D polygons (subject - clip).

Parameter	Type	Description
subject	Sequence[types.Polygon3D]	Subject group of 3D polygons.
clip	Sequence[types.Polygon3D]	Clip group of 3D polygons.
Returns	list[types.Polygon3D]	Difference result with Z from first subject polygon.

get_polygons_group_intersection_3d()

get_polygons_group_intersection_3d(
    subject: Sequence[types.Polygon3D],
    clip: Sequence[types.Polygon3D],
) -> list[types.Polygon3D]

Group intersection of 3D polygons (subject ∩ clip).

Parameter	Type	Description
subject	Sequence[types.Polygon3D]	Subject group of 3D polygons.
clip	Sequence[types.Polygon3D]	Clip group of 3D polygons.
Returns	list[types.Polygon3D]	Intersection result with Z from first subject polygon.

get_polygons_intersection_3d()

get_polygons_intersection_3d(
    poly1: Sequence[types.Point3D],
    poly2: Sequence[types.Point3D],
) -> list[types.Polygon3D]

Compute the intersection of two 3D polygons (XY-plane, Z preserved).

Parameter	Type	Description
poly1	Sequence[types.Point3D]	First 3D polygon.
poly2	Sequence[types.Point3D]	Second 3D polygon.
Returns	list[types.Polygon3D]	Intersection result with Z from first polygon.

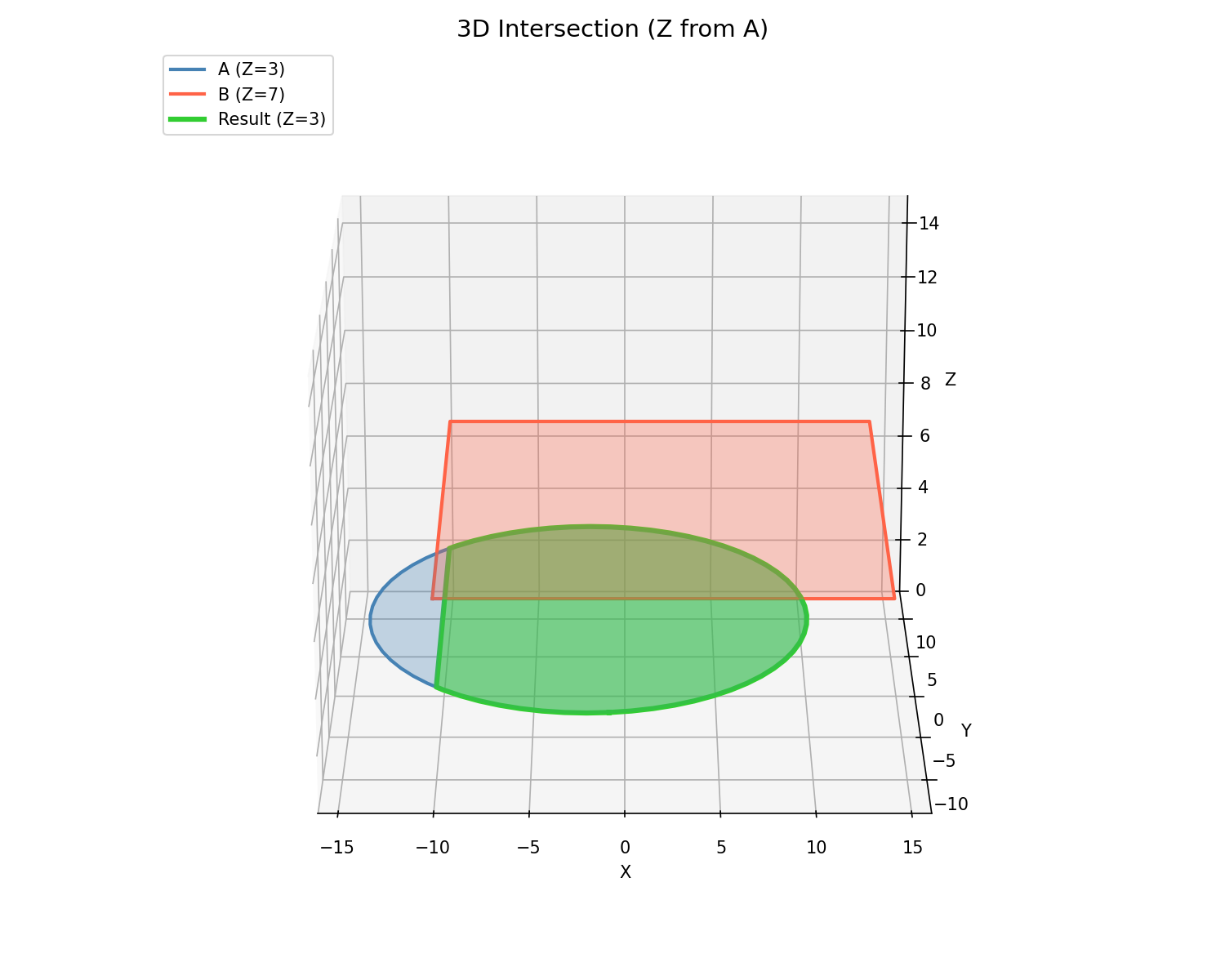

3D polygon intersection — Z from first polygon

get_polygons_union_3d()

get_polygons_union_3d(
    polygons: Sequence[types.Polygon3D],
) -> list[types.Polygon3D]

Compute the union of 3D polygons (XY-plane, Z preserved).

Parameter	Type	Description
polygons	Sequence[types.Polygon3D]	List of 3D polygons.
Returns	list[types.Polygon3D]	Union result with Z from first polygon.

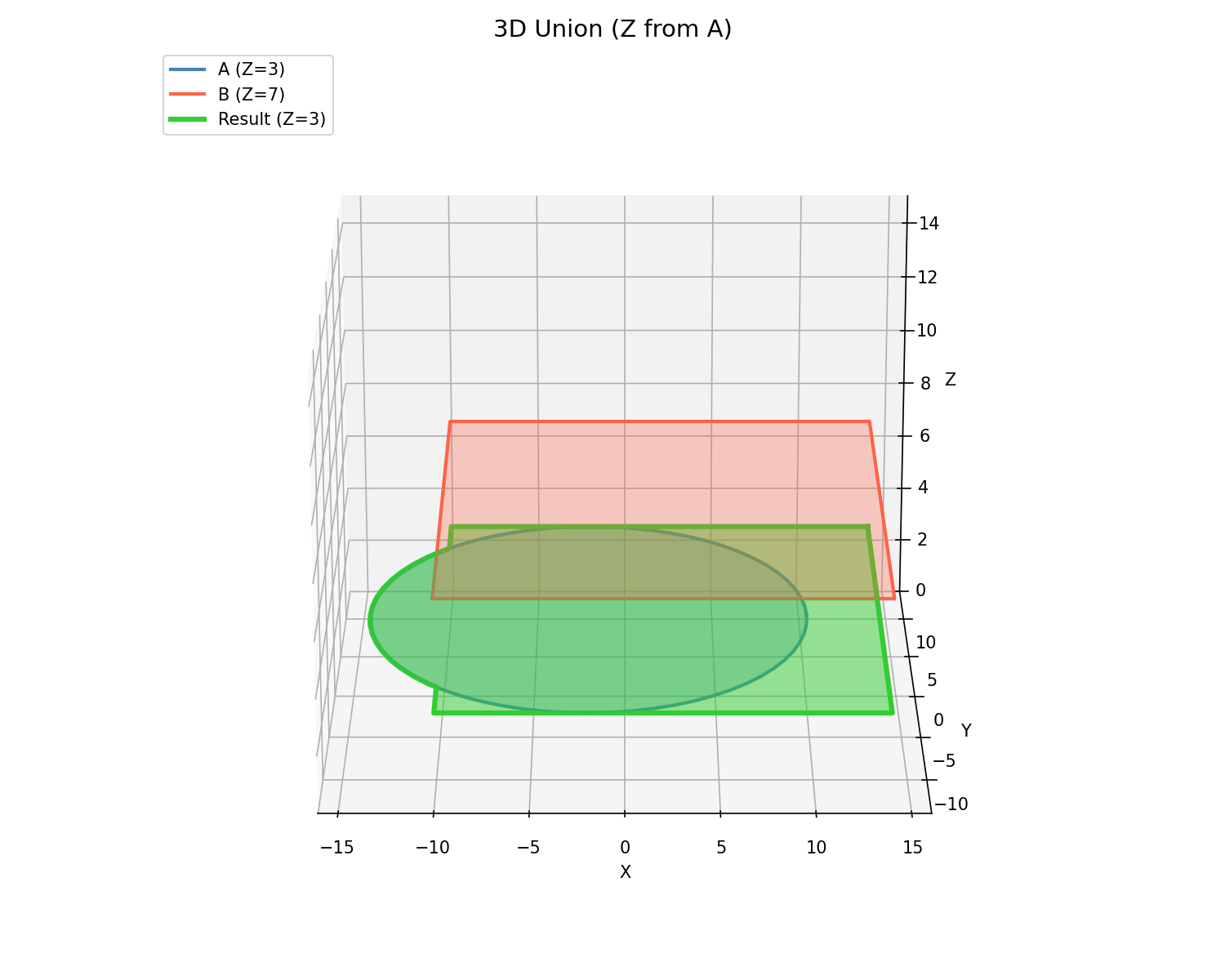

3D polygon union — Z from first polygon

get_polyline_end_tangent_3d()

get_polyline_end_tangent_3d(polyline: Sequence[types.Point3D]) -> types.Point

Normalised tangent direction at the last point of a 3D polyline.

Returns the normalised XY direction from the second-to-last point to the last point. Falls back to (1.0, 0.0) when the polyline has fewer than 2 points or the last edge has zero length.

Parameter	Type	Description
polyline	Sequence[types.Point3D]	Polyline as (x, y, z) points.
Returns	types.Point	Normalised (dx, dy) tangent direction.
Complexity		O(1)

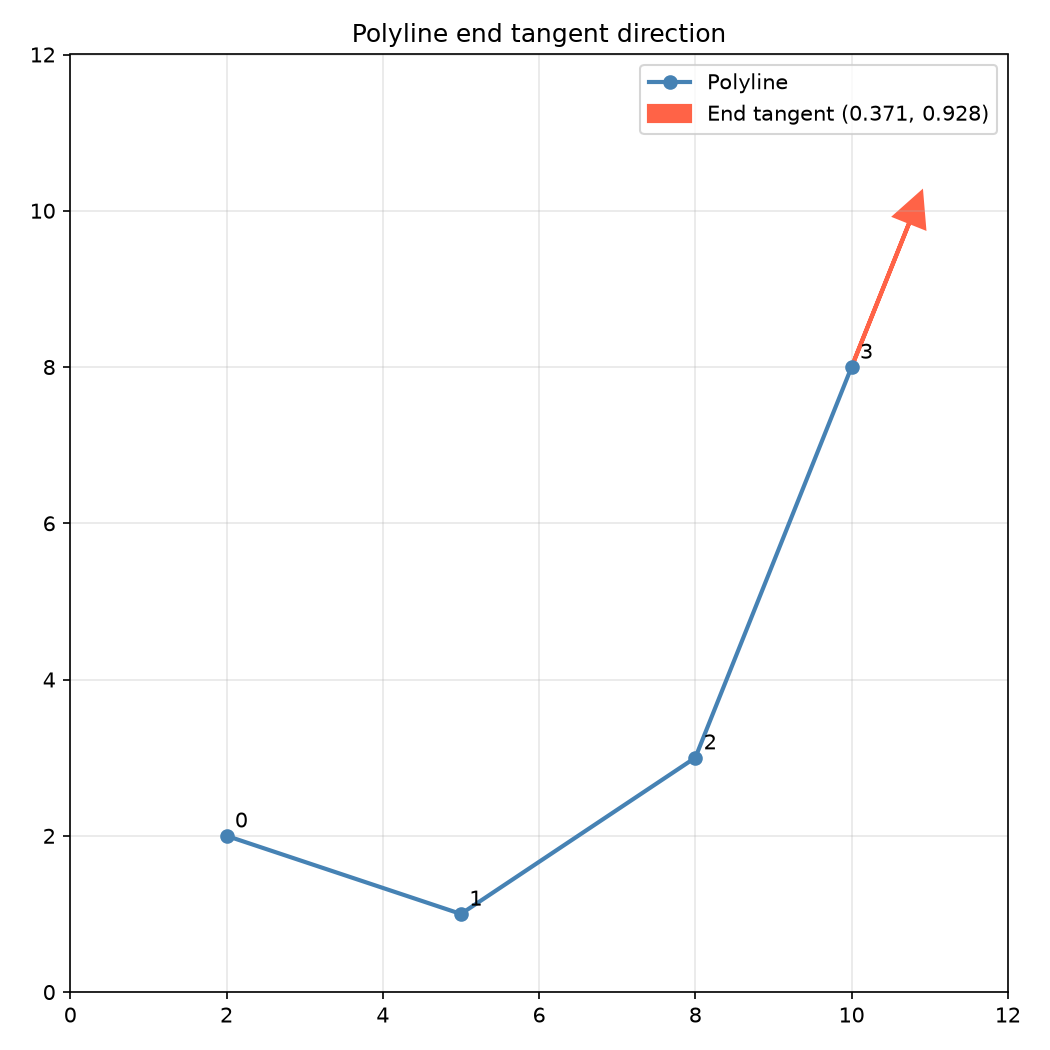

Normalised end tangent direction of a 3D polyline

offset_polygon_3d()

offset_polygon_3d(
    polygon: Sequence[types.Point3D],
    offset: float,
) -> list[types.Polygon3D]

Offset (inflate/deflate) a closed 3D polygon.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Input 3D polygon.
offset	float	Offset distance (positive = grow, negative = shrink).
Returns	list[types.Polygon3D]	Offset polygons with Z from input.

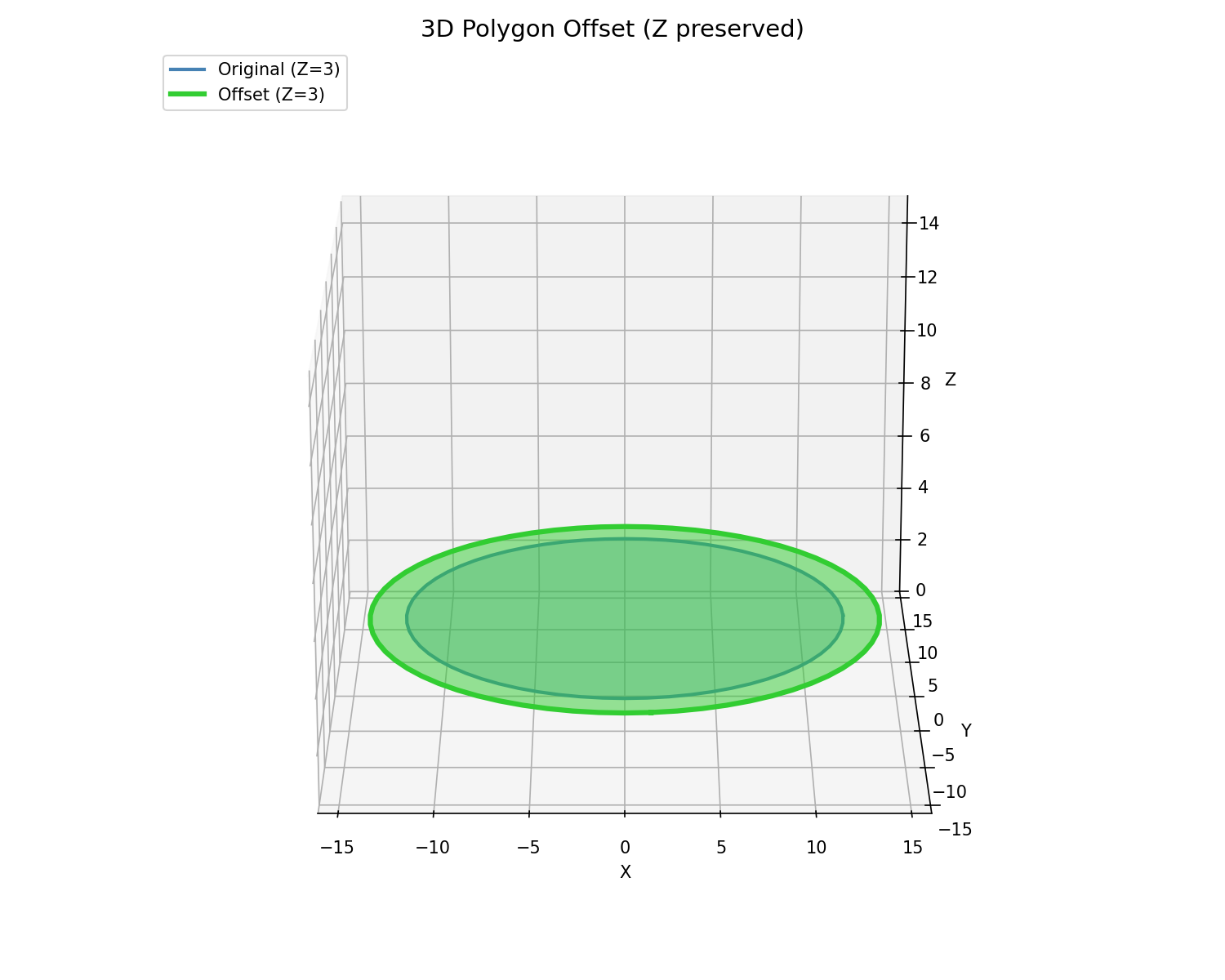

3D polygon offset — Z preserved from input

offset_polyline_3d()

offset_polyline_3d(
    polyline: Sequence[types.Point3D],
    distance: float,
    closed: bool = False,
) -> types.Polygon3D

Offset a 3D polyline in true 3D (edge-plane miter).

Unlike offset_polygon_3d (which projects to XY, offsets, then lifts back), this function offsets each vertex in the local plane of its two adjacent edges. This gives a true 3D offset suitable for non-planar polylines.

Positive distance offsets to the left of the traversal direction.

Parameter	Type	Description
polyline	Sequence[types.Point3D]	Input 3D vertices as (x, y, z) points.
distance	float	Offset distance (positive = left, negative = right).
closed	bool = False	When True, the polyline is treated as a closed ring (last vertex connects back to first). When False (default), the first and last vertices are offset perpendicular to their single edge.
Returns	types.Polygon3D	Offset polyline with the same number of vertices.
Complexity		O(n)

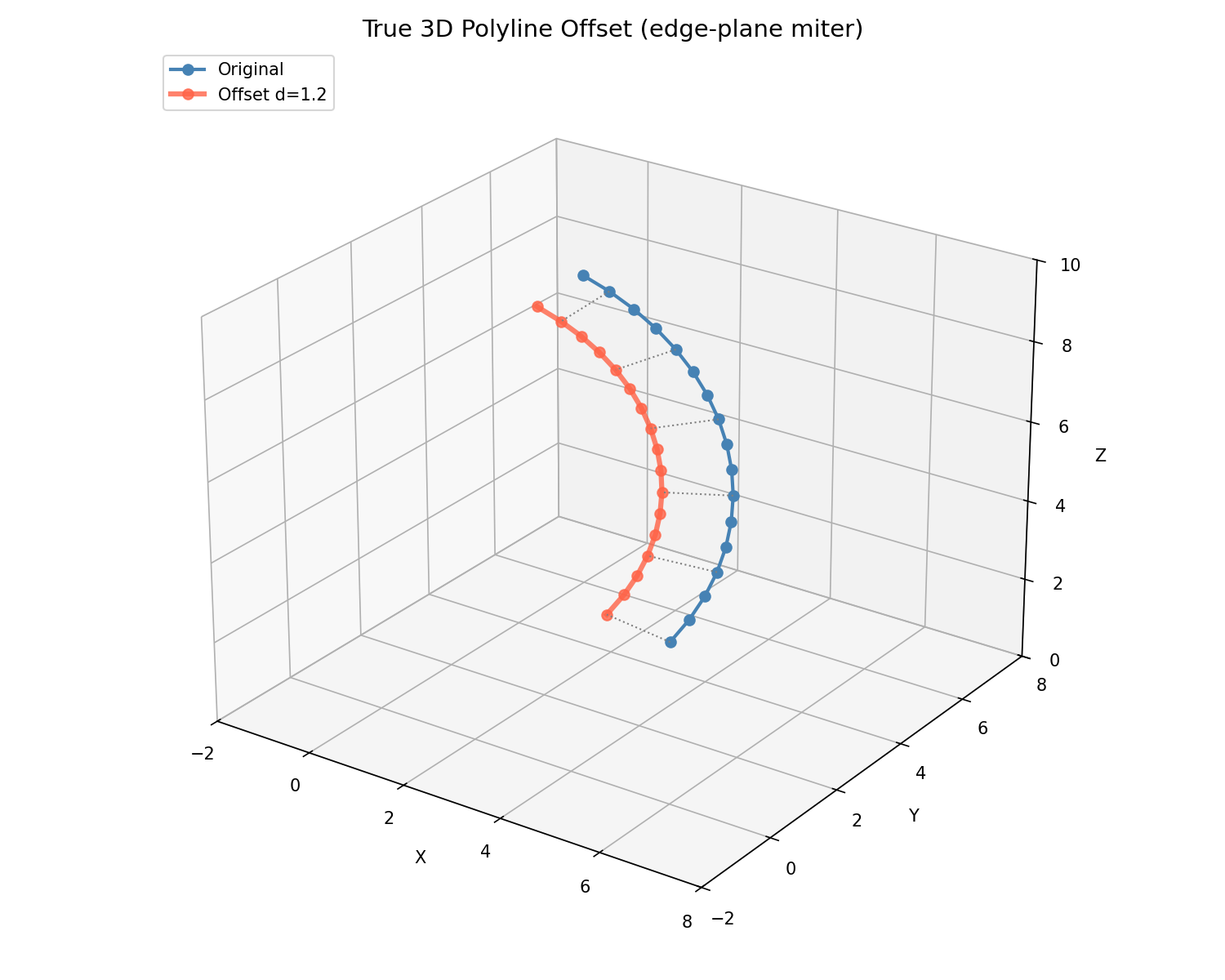

True 3D polyline offset (edge-plane miter)

resample_polyline_3d()

resample_polyline_3d(
    points: Sequence[types.Point3D],
    max_segment_length: float,
    is_closed: bool,
) -> list[types.Point3D]

Resample a 3D polyline with a maximum segment length.

Parameter	Type	Description
points	Sequence[types.Point3D]	Sequence of 3D points.
max_segment_length	float	Maximum allowed segment length.
is_closed	bool	Whether the polyline is closed.
Returns	list[types.Point3D]	Resampled 3D points.
Complexity		O(n) time, O(n) space

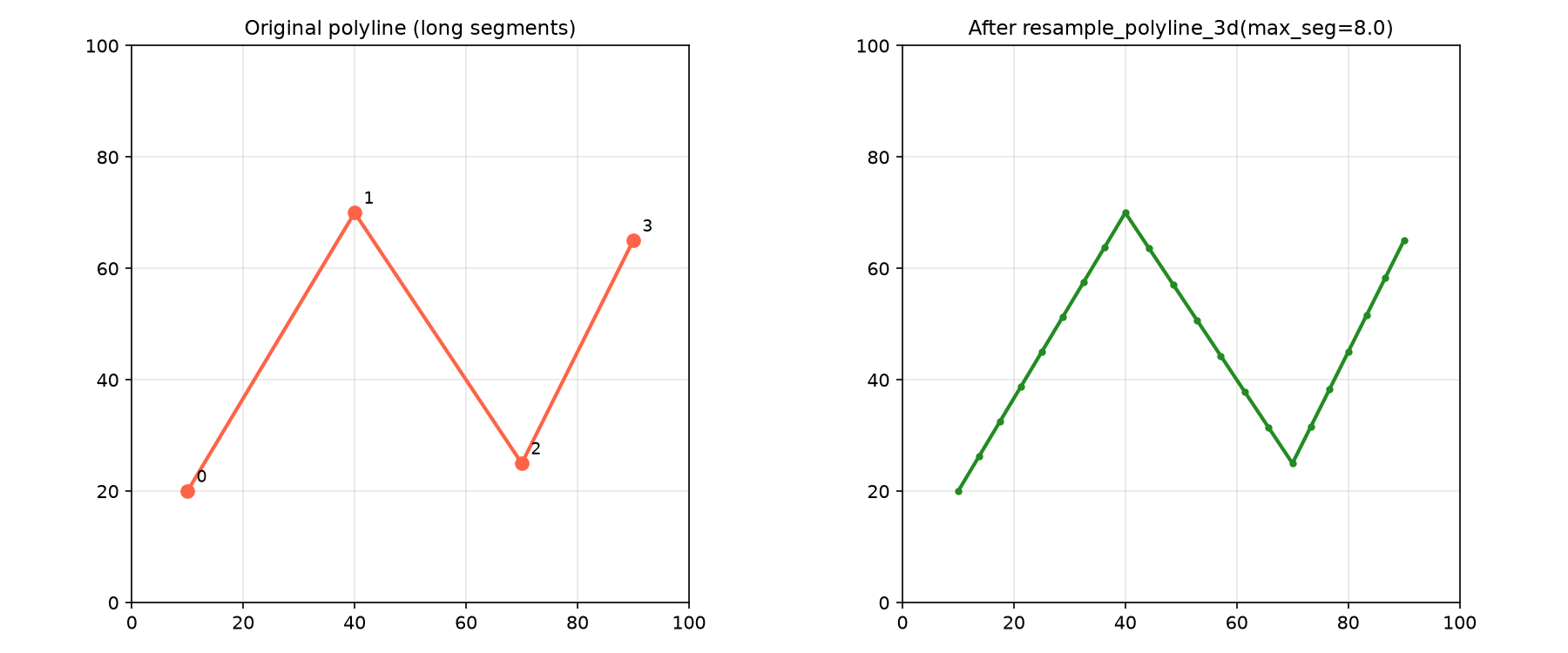

Resample a 3D polyline with a max segment length

rotate_polygon_3d()

rotate_polygon_3d(
    polygon: Sequence[types.Point3D],
    angle: float,
) -> types.Polygon3D

Rotate a 3D polygon around the Z axis (XY rotation, Z preserved).

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
angle	float	Rotation angle in degrees.
Returns	types.Polygon3D	Rotated polygon.
Complexity		O(n)

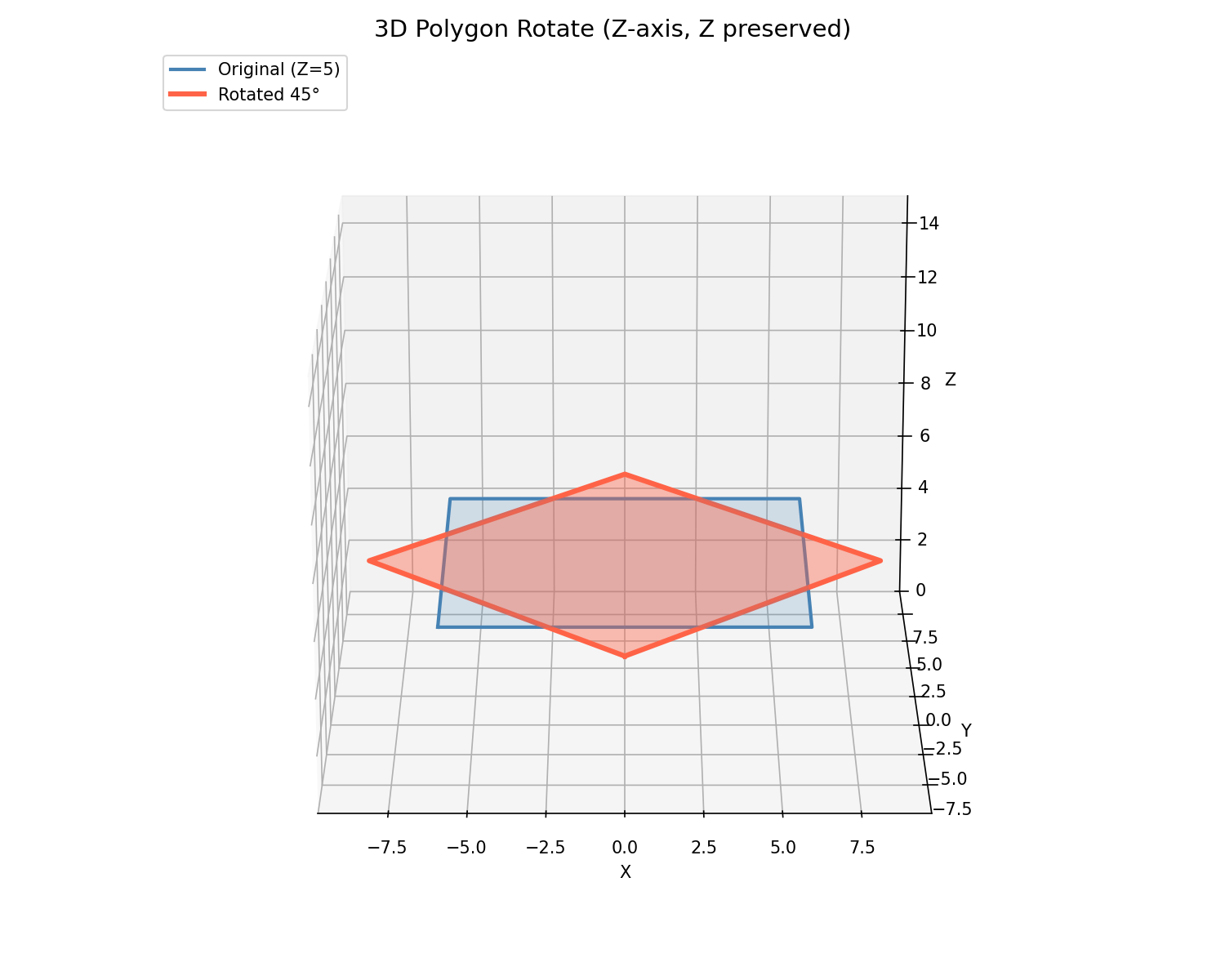

3D polygon rotated around Z axis (Z preserved)

rotate_polygons_3d()

rotate_polygons_3d(
    polygons: Sequence[types.Polygon3D],
    angle: float,
) -> list[types.Polygon3D]

Rotate multiple 3D polygons around the Z axis.

Parameter	Type	Description
polygons	Sequence[types.Polygon3D]	List of 3D polygons.
angle	float	Rotation angle in degrees.
Returns	list[types.Polygon3D]	Rotated polygons.
Complexity		O(n * m)

scale_polygon_3d()

scale_polygon_3d(
    polygon: Sequence[types.Point3D],
    scale: float,
    scale_y: Optional[float] = None,
    scale_z: Optional[float] = None,
) -> types.Polygon3D

Scale a 3D polygon.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
scale	float	X (and Y/Z if scale_y/scale_z are None) scale factor.
scale_y	Optional[float] = None	Y scale factor (optional).
scale_z	Optional[float] = None	Z scale factor (optional).
Returns	types.Polygon3D	Scaled polygon.
Complexity		O(n)

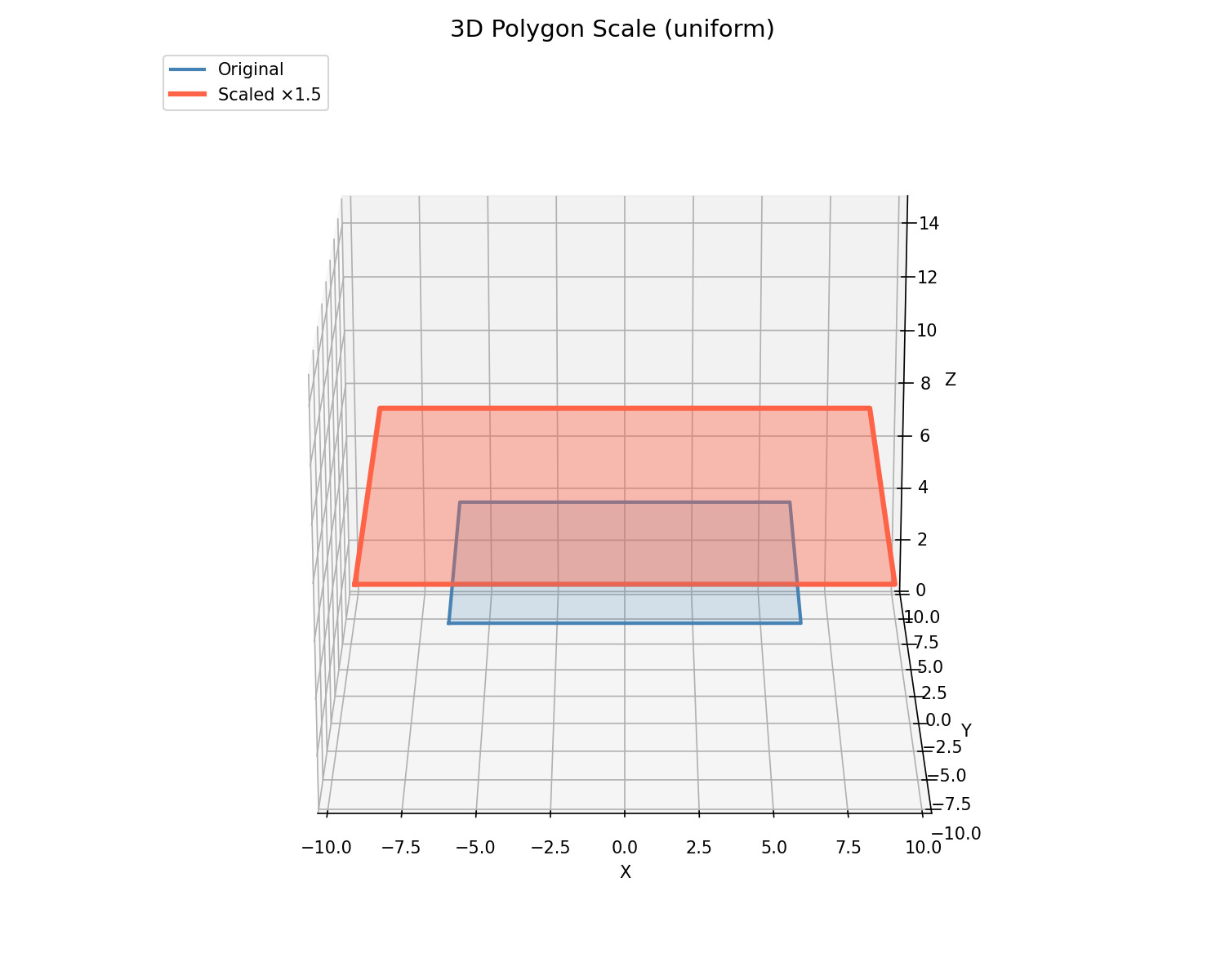

3D polygon scaled uniformly

translate_polygon_3d()

translate_polygon_3d(
    polygon: Sequence[types.Point3D],
    dx: float,
    dy: float,
    dz: float = 0,
) -> types.Polygon3D

Translate a 3D polygon.

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Polygon as (x, y, z) points.
dx	float	X translation.
dy	float	Y translation.
dz	float = 0	Z translation.
Returns	types.Polygon3D	Translated polygon.
Complexity		O(n)

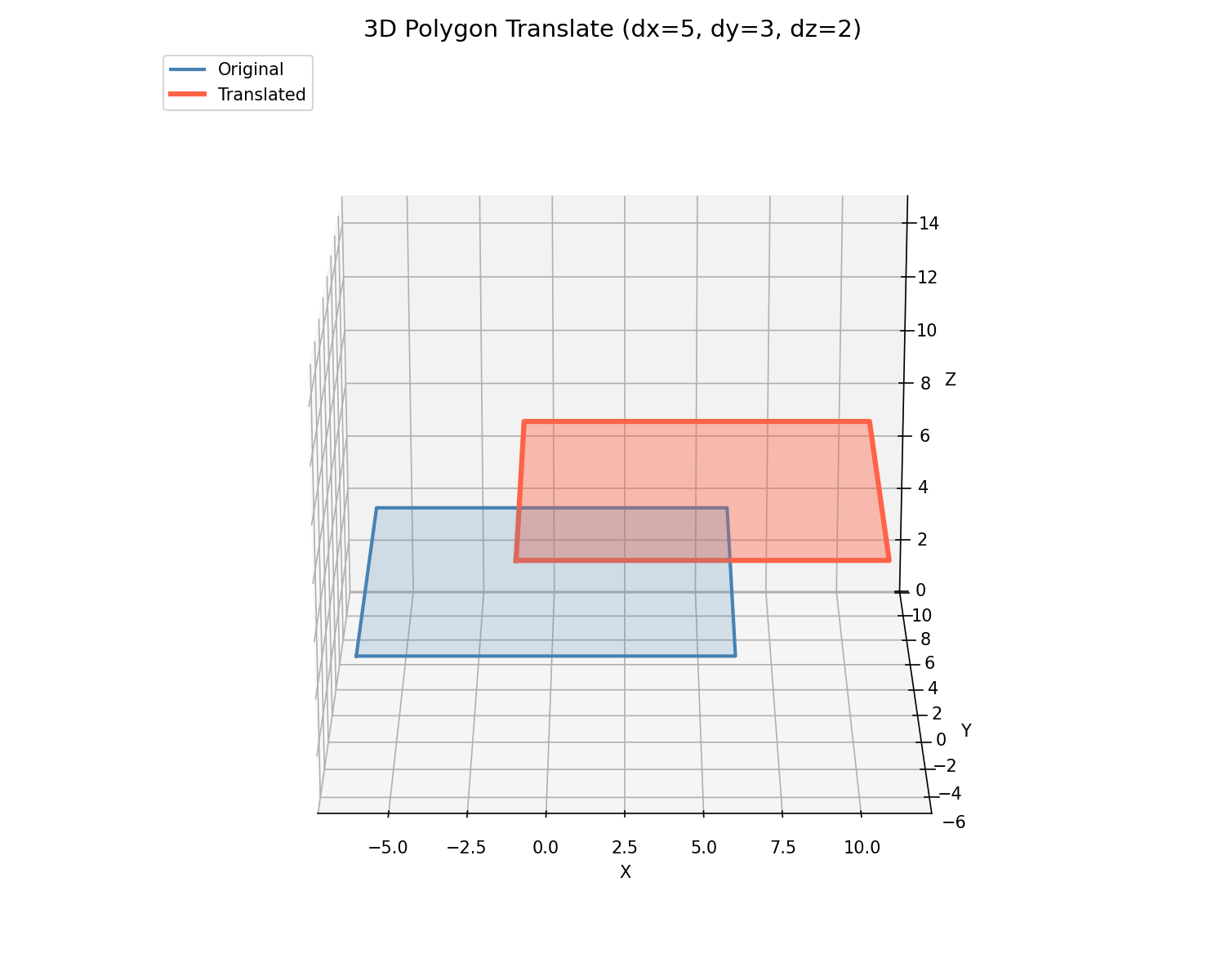

3D polygon translated by dx, dy, dz

translate_polygons_3d()

translate_polygons_3d(
    polygons: Sequence[types.Polygon3D],
    dx: float,
    dy: float,
    dz: float = 0,
) -> list[types.Polygon3D]

Translate a list of 3D polygons.

Parameter	Type	Description
polygons	Sequence[types.Polygon3D]	List of 3D polygons.
dx	float	X translation.
dy	float	Y translation.
dz	float = 0	Z translation.
Returns	list[types.Polygon3D]	Translated polygons.
Complexity		O(n * m)

walk_along_polygon_3d()

walk_along_polygon_3d(
    polygon: Sequence[types.Point3D],
    start: tuple[float, float, float],
    forward: bool,
    distance: float,
) -> types.Point3D

Walk along a closed 3D polygon by a given arc length from a starting point.

Given a closed polygon and a starting point on it, walk along the polygon edges and return the point at exactly distance units away. The walk wraps around the polygon (unlike walk_along_polyline_3d which clamps at endpoints).

Parameter	Type	Description
polygon	Sequence[types.Point3D]	Closed polygon as (x, y, z) points.
start	tuple[float, float, float]	Starting point on the polygon.
forward	bool	Walk forward (along vertex order) if True, backward if False.
distance	float	Arc length to walk.
Returns	types.Point3D	Point (x, y, z) at the given distance.
Complexity		O(n)

Walk along a closed 3D polygon (wraps around)

walk_along_polyline_3d()

walk_along_polyline_3d(
    polyline: Sequence[types.Point3D],
    start: tuple[float, float, float],
    forward: bool,
    distance: float,
) -> types.Point3D

Walk along an open 3D polyline by a given arc length from a starting point.

Given an open polyline and a starting point on it, walk along the polyline segments and return the point at exactly distance units away. Clamps to the nearest endpoint when the walk would exceed it.

Parameter	Type	Description
polyline	Sequence[types.Point3D]	Open polyline as (x, y, z) points.
start	tuple[float, float, float]	Starting point on the polyline.
forward	bool	Walk forward (along vertex order) if True, backward if False.
distance	float	Arc length to walk.
Returns	types.Point3D	Point (x, y, z) at the given distance.
Complexity		O(n)

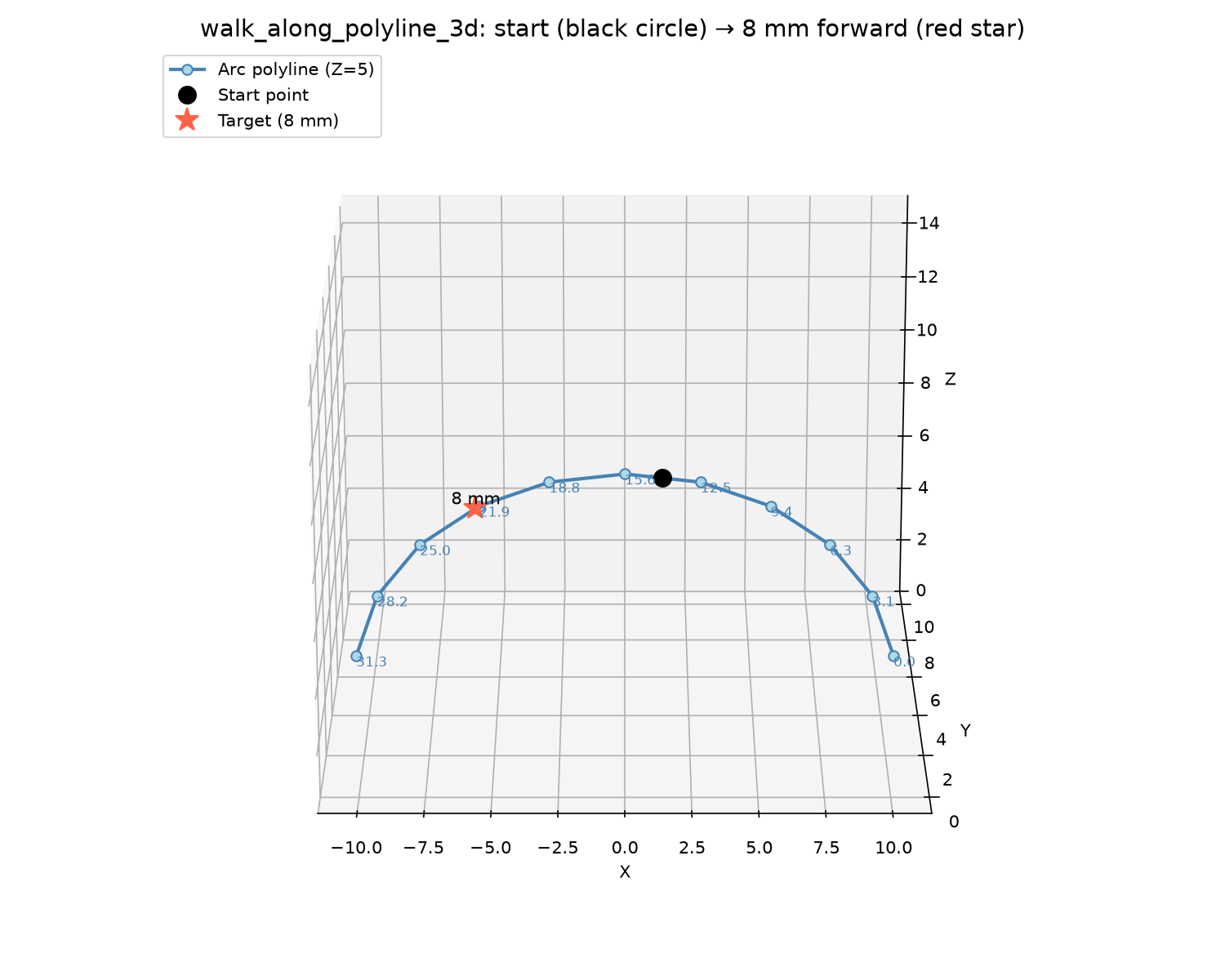

Walk along a 3D polyline by a given arc length
