raygeo.geo.algo.trochoid

Trochoidal path generation along a carrier polyline.

Provides generation of trochoidal paths with configurable diameter, engagement angle, and step-over ratio.

Functions

get_trochoid_along_3d()

get_trochoid_along_3d(
    carrier: Sequence[tuple[float, float]],
    diameter: float,
    engagement_angle_deg: float = 90,
    step_over_ratio: float = 0.2,
    min_loop_radius: float = 0.5,
    z: float = 0,
) -> list[tuple[float, float, float]]

Generate a trochoidal path along a carrier polyline.

Parameter	Type	Description
carrier	Sequence[tuple[float, float]]	Sequence of (x, y) points defining the centerline.
diameter	float	Trochoid generating circle diameter.
engagement_angle_deg	float = 90	Engagement angle in degrees (default 90).
step_over_ratio	float = 0.2	Forward advance per loop as fraction of diameter (default 0.2).
min_loop_radius	float = 0.5	Minimum trochoid loop radius in mm (default 0.5).
z	float = 0	Z height for all points (default 0.0).
Returns	list[tuple[float, float, float]]	List of (x, y, z) points forming the trochoidal path.
Complexity		O(n) time, O(n) space where n is proportional to path length / step

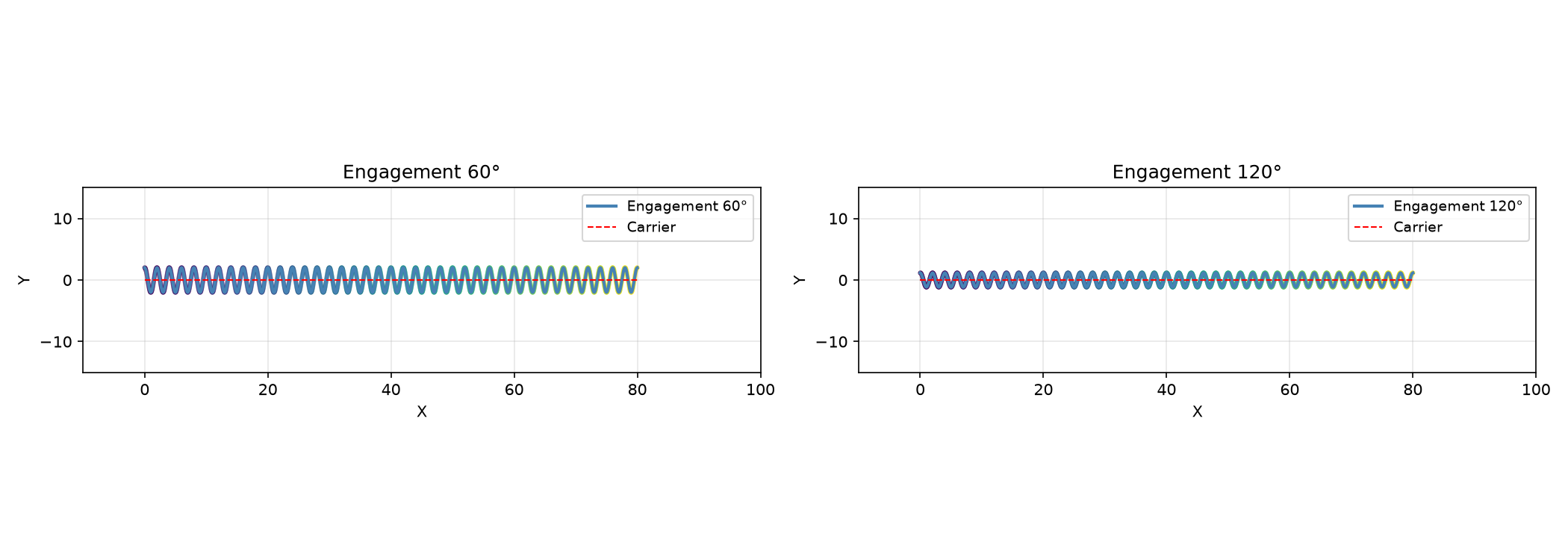

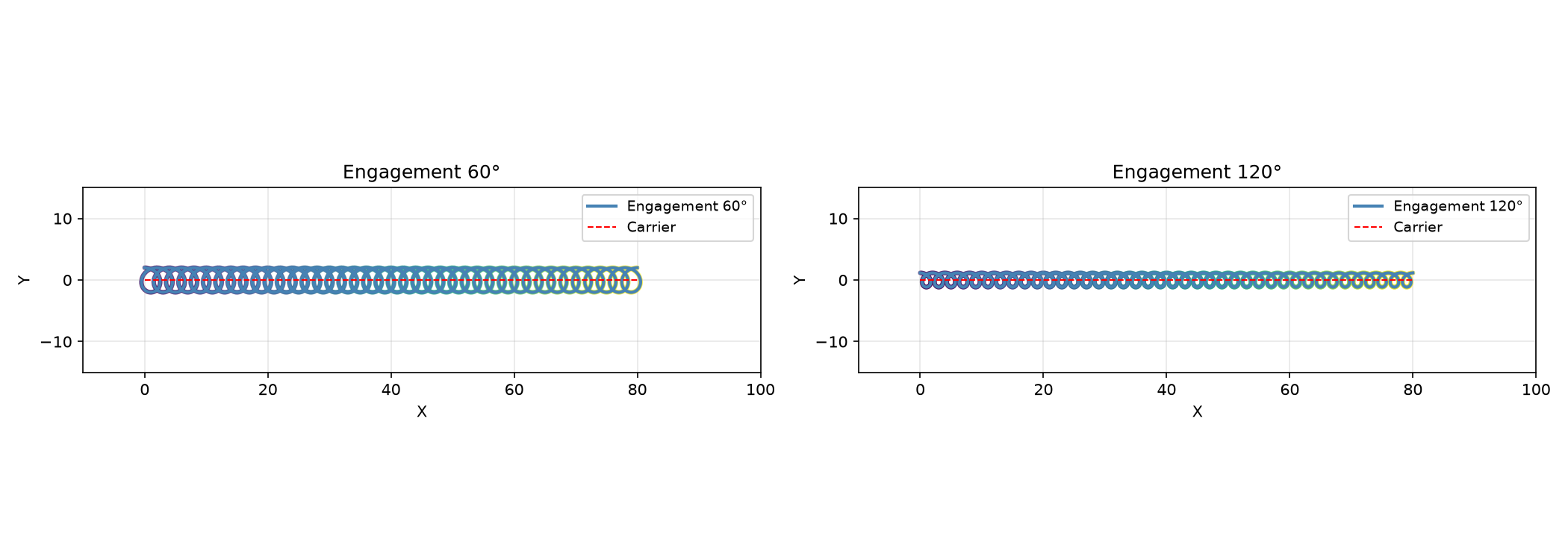

Trochoidal toolpath along a straight carrier — shallow vs steep engagement

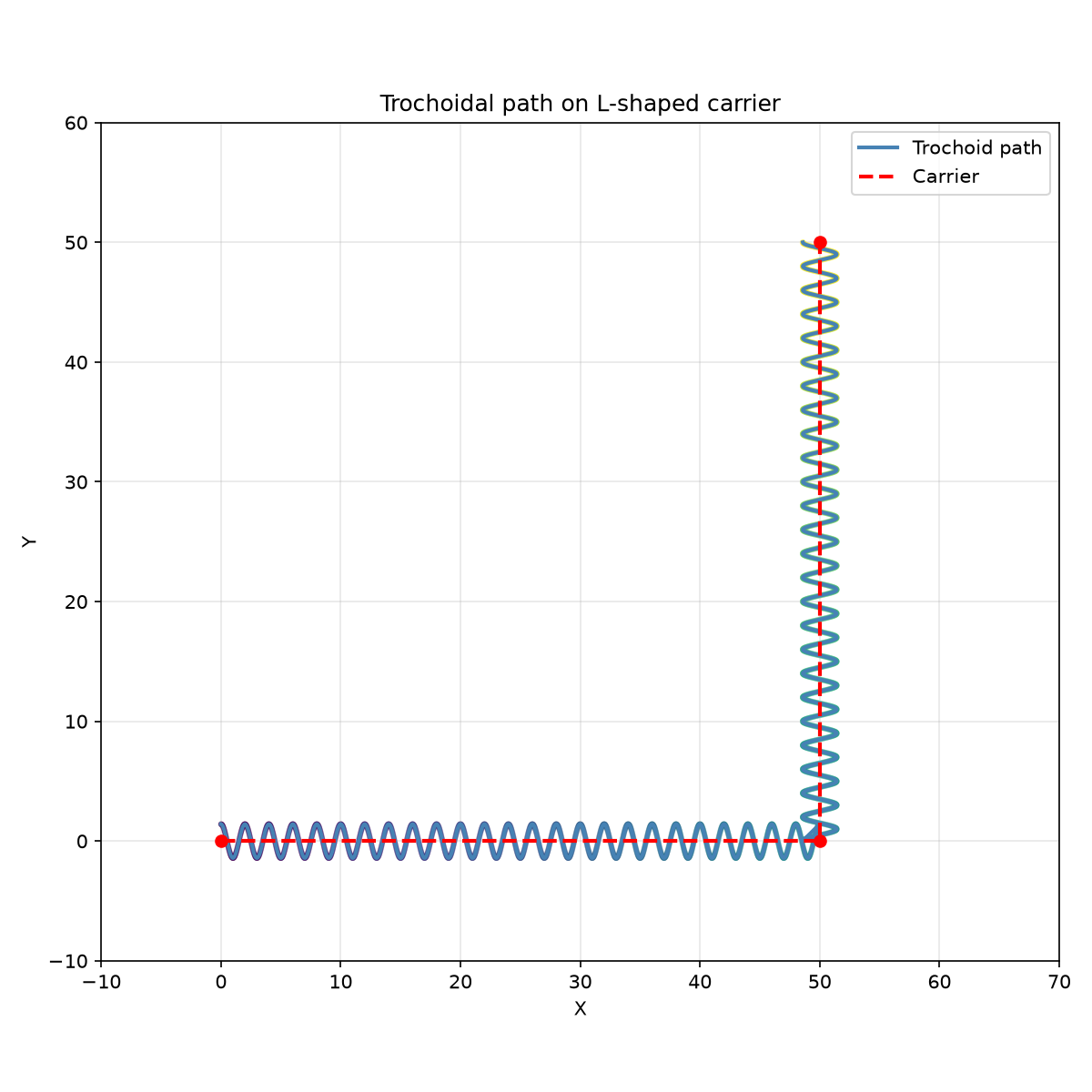

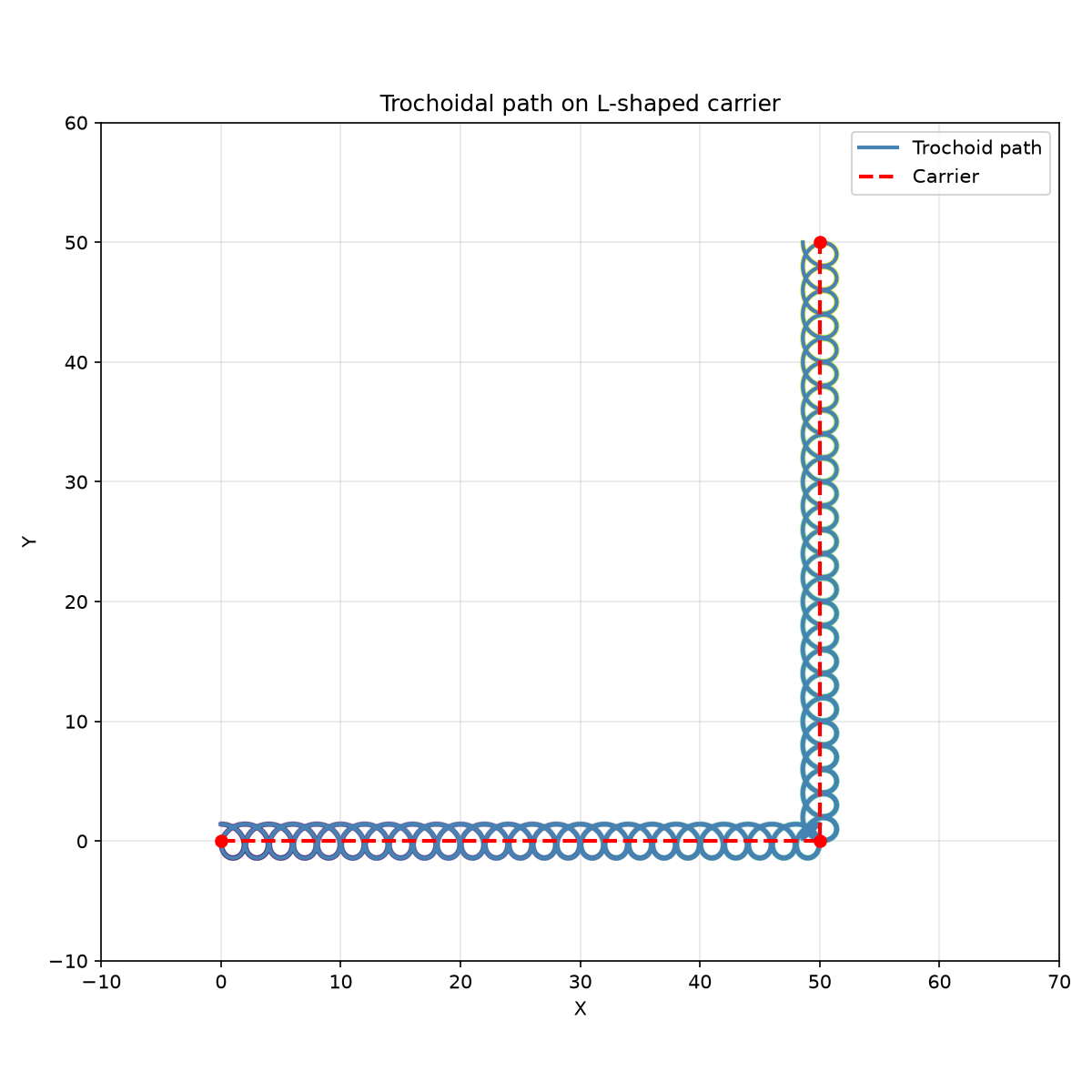

Trochoidal toolpath around an L-shaped corner

get_trochoid_along_3d_ramped()

get_trochoid_along_3d_ramped(
    carrier: Sequence[tuple[float, float]],
    diameter: float,
    z_start: float,
    z_end: float,
    engagement_angle_deg: float = 90,
    step_over_ratio: float = 0.2,
    min_loop_radius: float = 0.5,
) -> list[tuple[float, float, float]]

Generate a trochoidal path with Z ramped along the carrier.

The Z coordinate descends linearly from z_start to z_end as a function of cumulative arc-length along the carrier.

Parameter	Type	Description
carrier	Sequence[tuple[float, float]]	Sequence of (x, y) points defining the centerline.
diameter	float	Trochoid generating circle diameter.
z_start	float	Z height at the start of the carrier.
z_end	float	Z height at the end of the carrier.
engagement_angle_deg	float = 90	Engagement angle in degrees (default 90).
step_over_ratio	float = 0.2	Forward advance per loop as fraction of diameter (default 0.2).
min_loop_radius	float = 0.5	Minimum trochoid loop radius in mm (default 0.5).
Returns	list[tuple[float, float, float]]	List of (x, y, z) points forming the ramped trochoidal path.
Complexity		O(n) time, O(n) space where n is proportional to path length / step

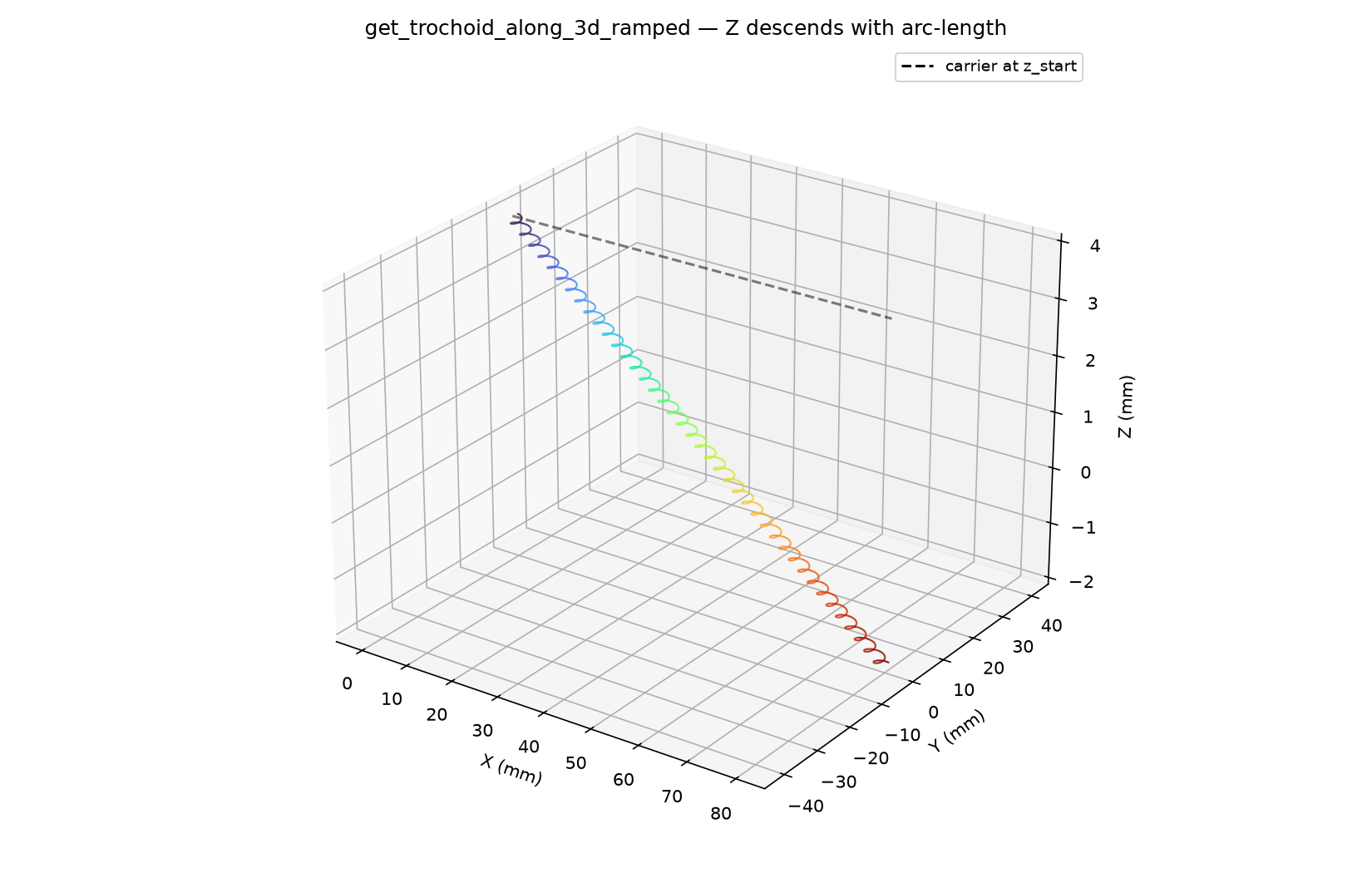

3D ramped trochoid along a long carrier with Z descending from start to end.
