raygeo.cnc.machining.entry

Functions

build_entry_workplan()

build_entry_workplan(
    region_polygon: Sequence[tuple[float, float]],
    entry_point: tuple[float, float],
    r_max: float,
    islands: Sequence[Sequence[tuple[float, float]]] | None = None,
    tool_radius: float = 3,
    step_over: float = 2,
    safe_z: float = 2,
    target_z: float = -5,
    plunge_pitch: float = 1,
    safe_margin: float = 1,
    angular_step: float = 0.1,
) -> list[dict]

Build an entry workplan for a single wide region.

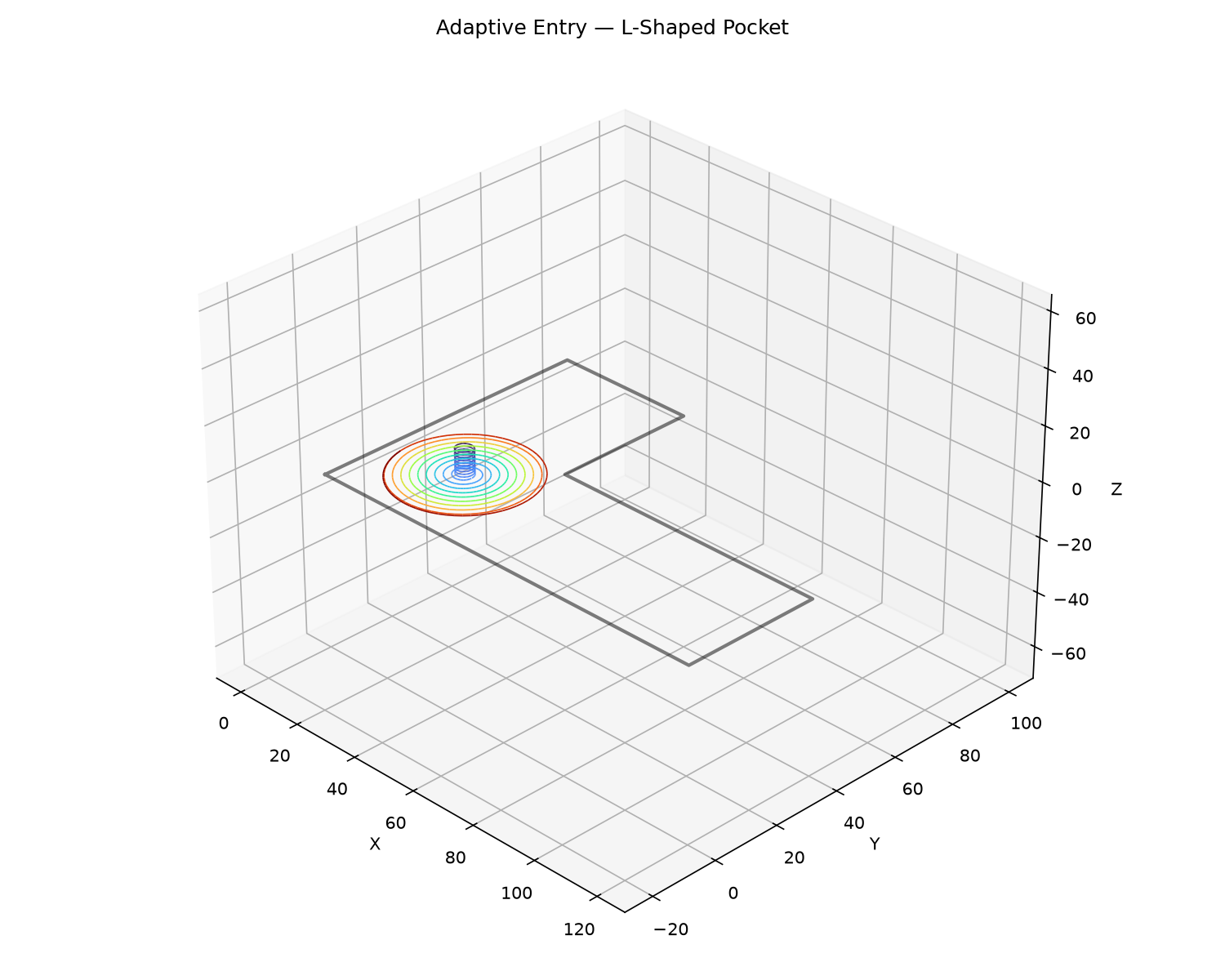

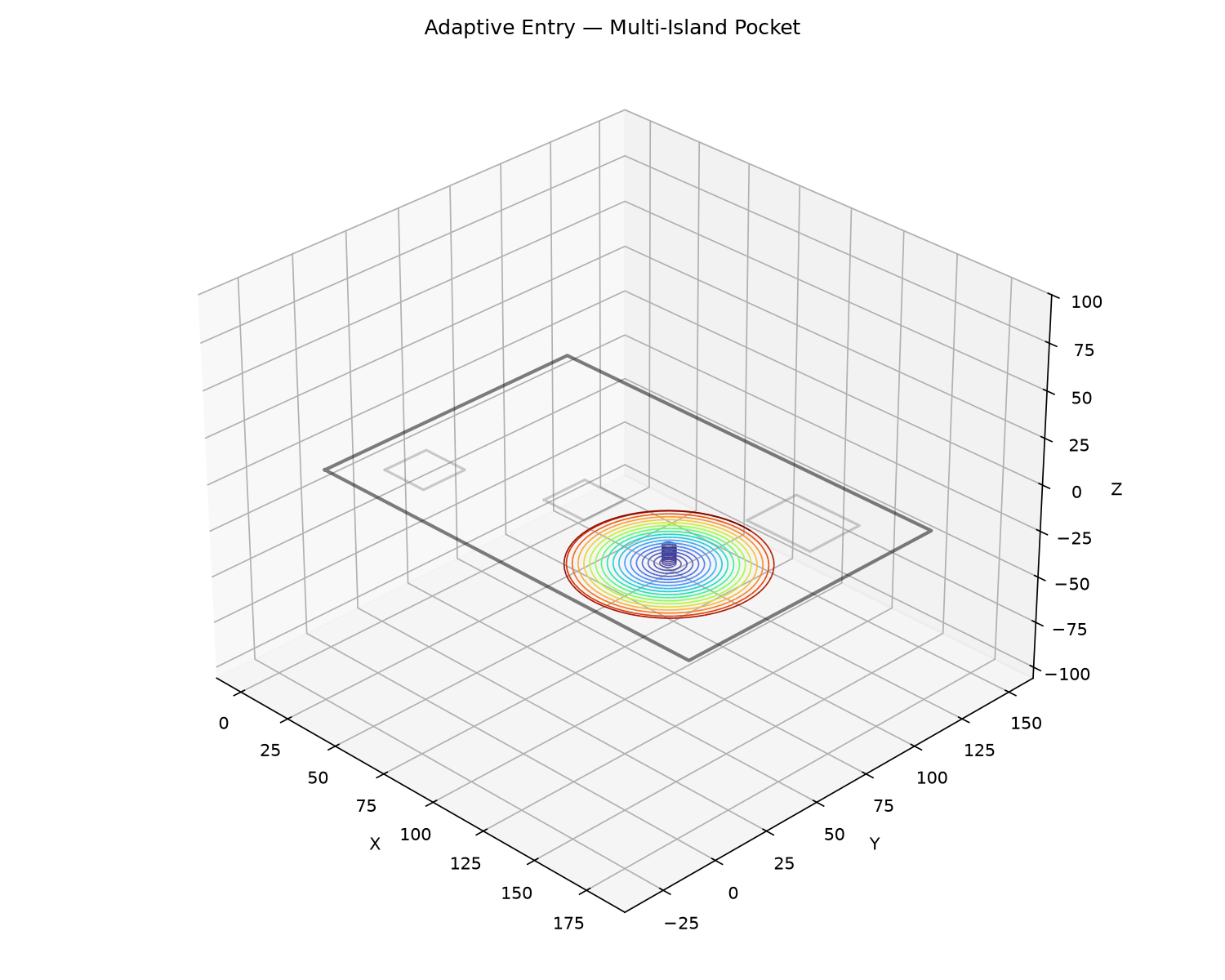

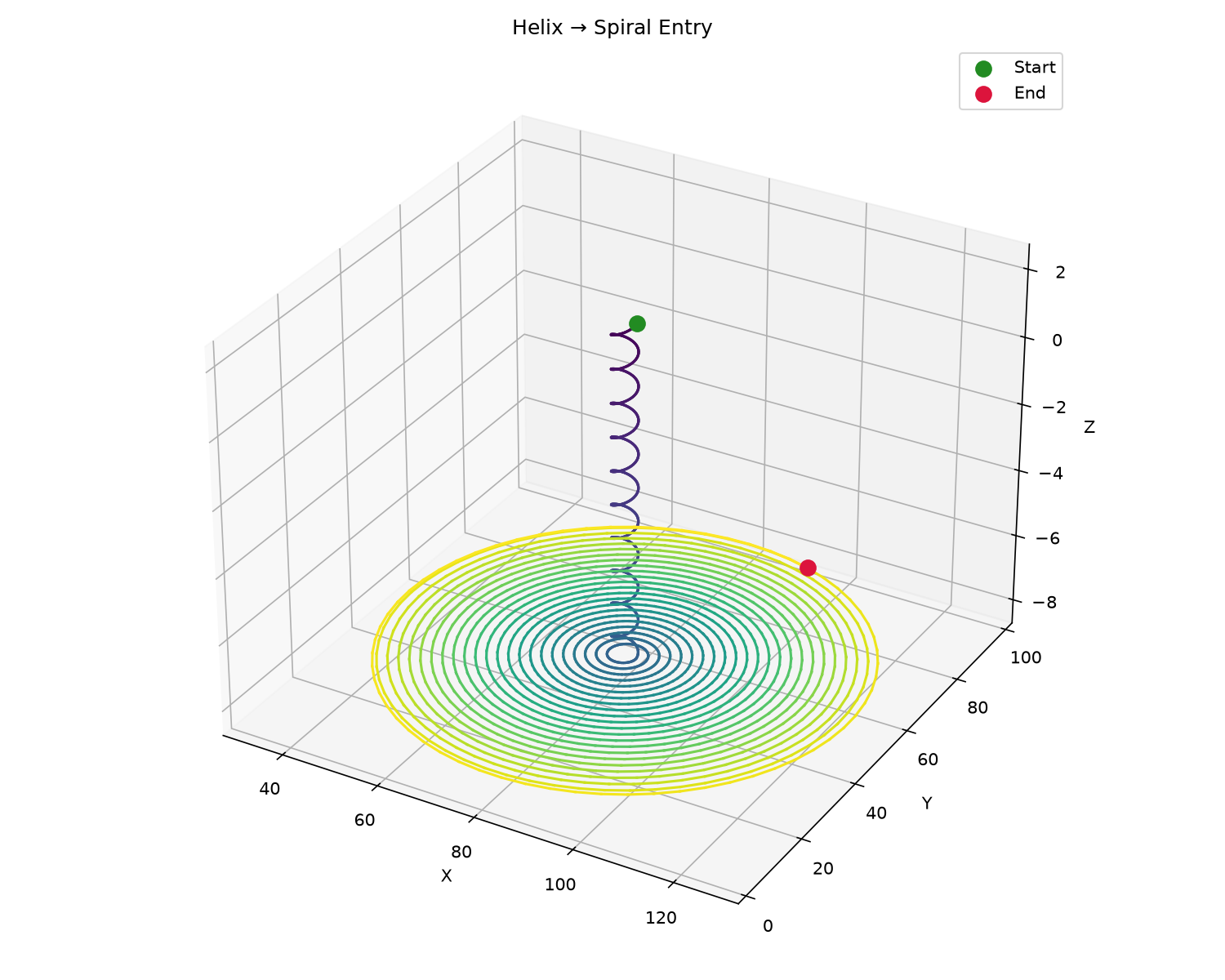

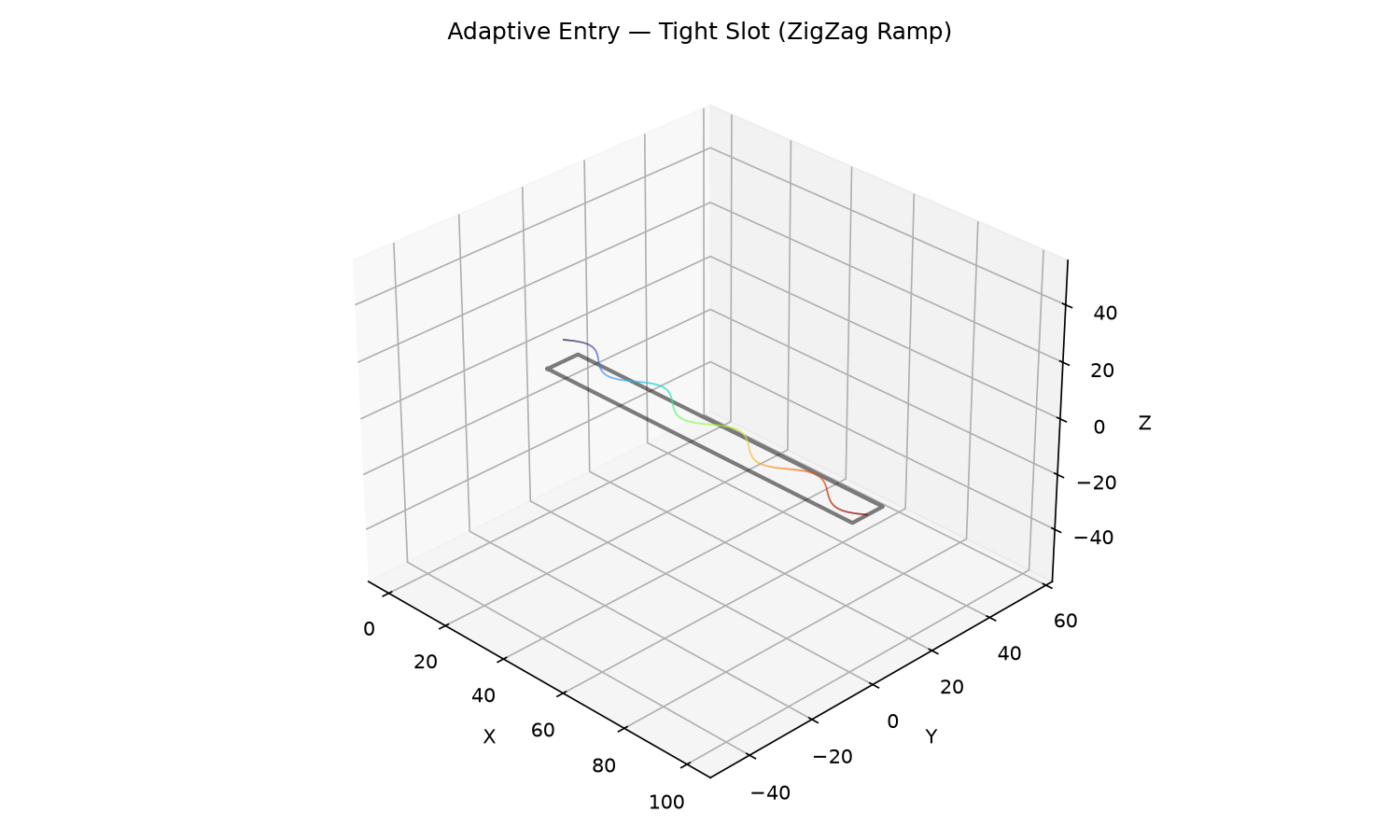

Strategy is chosen based on r_max: helix+spiral when r_max >= 2 × tool_diameter, toroidal ramp if a carrier is found, or zigzag ramp as fallback.

Use raygeo.ops.feature.region.find_regions to obtain region data first.

Parameter	Type	Description
region_polygon	Sequence[tuple[float, float]]	Region boundary as [(x, y), ...].
entry_point	tuple[float, float]	Inscribed-circle centre (x, y).
r_max	float	Largest inscribed circle radius in mm.
islands	Sequence[Sequence[tuple[float, float]]] | None = None	List of island polygons (default None).
tool_radius	float = 3	Tool radius in mm (default 3.0).
step_over	float = 2	Radial step-over (default 2.0).
safe_z	float = 2	Safe Z height (default 2.0).
target_z	float = -5	Target cutting depth (default -5.0).
plunge_pitch	float = 1	Helix pitch per revolution (default 1.0).
safe_margin	float = 1	Safety margin from tool edge (default 1.0).
angular_step	float = 0.1	Angular step in radians (default 0.1).
Returns	list[dict]	List of WorkplanStep dicts with a "kind" key.

Entry workplan: rectangle (Helix+FlatSpiral), H-shape (ToroidalClear), cup (RampEntry).
